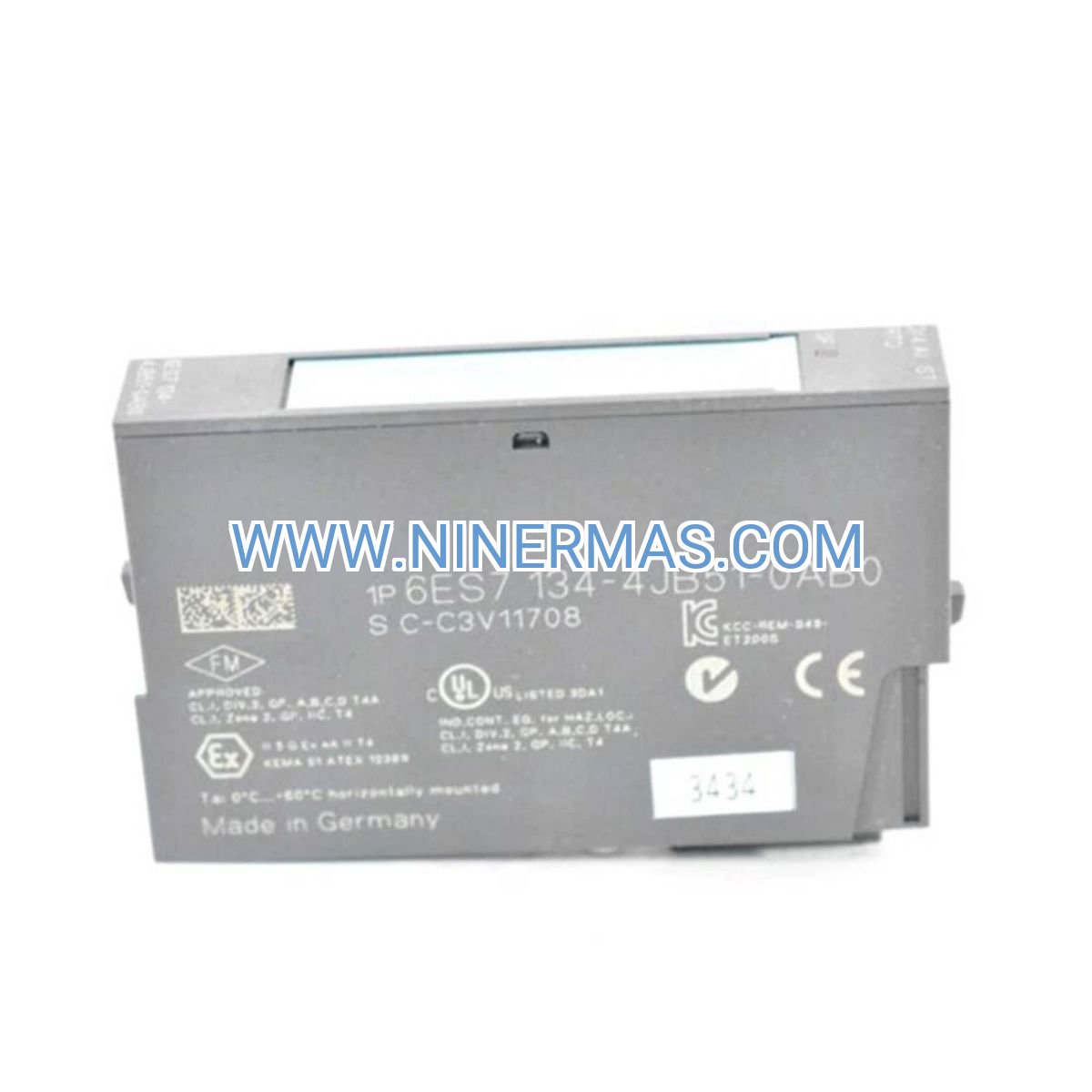

Siemens 6ES7134-4JB51-0AB0 Analog Input Module (Industrial-Grade RTD Temperature Acquisition)

The Siemens 6ES7134-4JB51-0AB0 represents a professional-grade analog input solution engineered for precision temperature measurement in distributed control architectures. Designed as part of the ET 200S modular I/O family, this RTD-compatible module delivers 15-bit measurement resolution across 2 or 4 configurable input channels, enabling accurate thermal monitoring in process-critical industrial environments.

Built to address the challenges of temperature drift, sensor compatibility, and measurement reliability, this module serves process engineers, automation integrators, and plant operators who demand consistent thermal data acquisition. Whether you're managing chemical reactors, pharmaceutical cleanrooms, or food processing lines, the 6ES7134-4JB51-0AB0 provides the measurement fidelity and diagnostic intelligence required for regulatory compliance and operational excellence.

With support for multiple RTD sensor types (Pt100, Pt1000, Ni1000, Cu10), flexible wiring configurations (2/3/4-wire), and hot-swap capability, this module reduces commissioning time while maximizing system uptime. Its compact 15mm footprint and PROFIBUS DP integration make it an ideal choice for space-constrained cabinets and legacy S7-300/400 upgrade projects.

Core Features & Benefits

→ Multi-Sensor Compatibility: Supports Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, Cu10, and LG-Ni1000 RTD types plus direct resistance measurement (0-6kΩ), eliminating the need for multiple module variants and simplifying spare parts inventory.

→ Superior Measurement Precision: 15-bit + sign resolution delivers ±0.3% full-scale accuracy with configurable conversion times (2.5-100ms), enabling both high-speed scanning and noise-filtered measurements depending on application requirements.

→ Flexible Wiring Architecture: Accepts 2-wire (cost-optimized), 3-wire (lead-compensated), or 4-wire (maximum accuracy) RTD connections, allowing engineers to balance installation cost against measurement performance based on cable run length and accuracy needs.

✓ Advanced Diagnostics: Built-in wire break detection, sensor short-circuit monitoring, and out-of-range alarms provide early fault notification, reducing unplanned downtime and enabling predictive maintenance strategies.

✓ Hot-Swap Capability: Field-replaceable during system operation without controller shutdown or process interruption, minimizing mean time to repair (MTTR) and supporting 24/7 production schedules.

✓ Galvanic Isolation: Channel-to-backplane isolation protects against ground loops and electrical noise, ensuring measurement integrity in electrically harsh industrial environments with VFDs, welders, or high-power switching equipment.

Application Scenarios

Chemical & Petrochemical Processing: Monitor exothermic reaction temperatures in batch reactors, distillation column profiles, and heat exchanger efficiency. The module's wide measurement range (-200°C to +850°C) and high accuracy support both cryogenic and high-temperature processes while meeting SIL-rated safety requirements.

Pharmaceutical Manufacturing: Maintain FDA 21 CFR Part 11 compliance with validated temperature monitoring in autoclaves, lyophilizers, and controlled-environment storage. The module's diagnostic capabilities provide audit-trail-ready fault detection for GMP documentation.

Food & Beverage Production: Ensure HACCP compliance in pasteurization tunnels, fermentation vessels, and cold chain logistics. Fast conversion times (2.5ms) enable real-time control of critical control points (CCPs) during thermal processing.

HVAC & Building Automation: Optimize energy consumption in chiller plants, boiler systems, and air handling units through precise supply/return temperature monitoring. Multi-sensor support allows standardization across diverse equipment types.

Water & Wastewater Treatment: Track digester temperatures, disinfection process heat, and seasonal thermal stratification in storage tanks. Robust construction withstands high-humidity environments and chemical exposure.

Technical Parameters & Selection Guide

Selection Criteria: Choose 2-channel configuration for point measurements or small-scale applications. Opt for 4-channel mode when monitoring multiple zones within a single process unit (e.g., multi-stage heat exchanger). Use 3-wire connections for cable runs under 100m; upgrade to 4-wire for critical measurements or long cable distances exceeding 100m. Select faster conversion times (2.5-10ms) for closed-loop control applications; use slower rates (100ms) with averaging for high-noise environments.

Extended Functions

SCADA Integration: Process values are accessible via PROFIBUS DP cyclic data exchange, enabling seamless integration with WinCC, PCS 7, or third-party SCADA platforms for trending, alarming, and historical data logging.

Scaling & Linearization: STEP 7 configuration allows custom scaling (e.g., °C to °F conversion) and linearization for non-standard RTD curves, reducing PLC programming overhead and simplifying HMI display logic.

Redundancy Support: Compatible with ET 200S redundant configurations when paired with redundant interface modules, supporting high-availability architectures in critical infrastructure applications.

Customization Options: Factory-configured modules available with pre-set sensor types, measurement ranges, and diagnostic thresholds for turnkey installations. Contact our engineering team for project-specific requirements.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited shipping available for urgent project deadlines.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty plans available for critical-path equipment.

Technical Support: Pre-sales application engineering assistance for sensor selection, wiring design, and system integration. Post-sales support includes STEP 7 configuration guidance, troubleshooting diagnostics, and firmware update coordination.

Documentation Package: Each module ships with installation manual, wiring diagrams, STEP 7 GSD file, and certificate of conformity. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

What RTD sensor types are compatible with the 6ES7134-4JB51-0AB0 module?
The module supports industry-standard Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, Cu10, and LG-Ni1000 RTD sensors. Each channel can be independently configured for different sensor types through STEP 7 hardware configuration, allowing mixed-sensor installations within a single module.

How does 3-wire RTD connection improve measurement accuracy compared to 2-wire?
3-wire RTD connections compensate for lead resistance by using a third wire to measure and subtract cable resistance errors. This is critical for cable runs over 10 meters or when using smaller gauge wire (e.g., 22 AWG). Accuracy improvement typically ranges from 0.5°C to 2°C depending on cable length and ambient temperature variations.

Can this module interface with S7-1200 or S7-1500 controllers?
The ET 200S system is designed for PROFIBUS DP communication with S7-300/400 PLCs. For S7-1200/1500 controllers using PROFINET, consider the ET 200SP equivalent (6ES7134-6JD00-0CA1) which offers similar RTD functionality with PROFINET connectivity and TIA Portal integration.

What diagnostic features help identify sensor or wiring faults?
Built-in diagnostics include wire break detection (open circuit), short circuit monitoring, sensor out-of-range alarms, and module self-test failures. Diagnostic events trigger PROFIBUS DP diagnostic interrupts to the controller and can be configured to set specific bits in the process image for HMI alarming.

Is the module suitable for hazardous area installations?
The standard 6ES7134-4JB51-0AB0 is rated for Zone 2/Division 2 hazardous locations when installed in appropriate enclosures. For Zone 1/Division 1 applications, use intrinsically safe (IS) barrier modules or consider the ET 200iSP system designed for explosive atmospheres.

How do I select the optimal conversion time for my application?
Fast conversion times (2.5-10ms) suit closed-loop control applications requiring quick response (e.g., temperature cascade control). Slower rates (100ms) with built-in averaging reduce noise in electrically harsh environments or when using long cable runs. Balance response time against measurement stability based on process dynamics.
