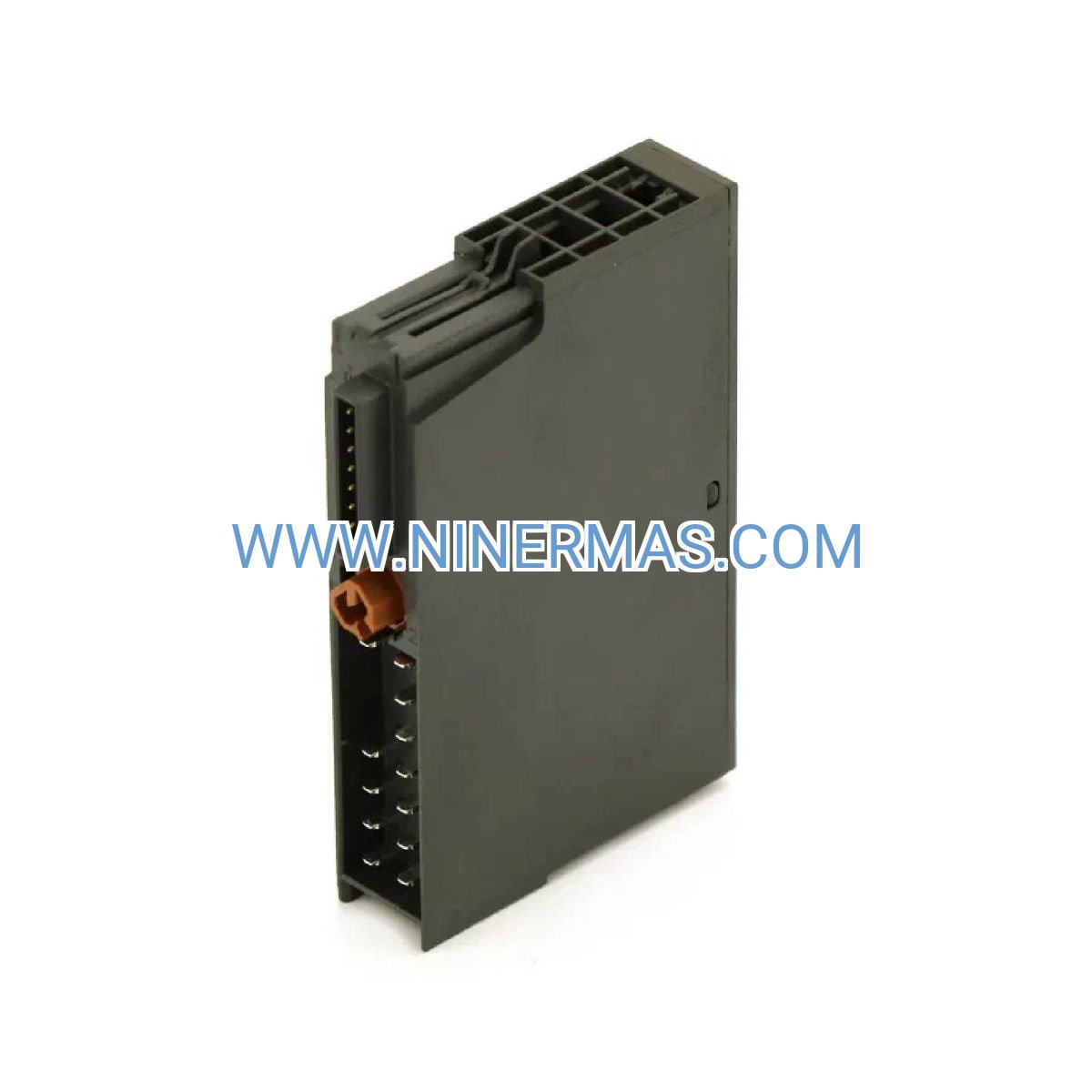

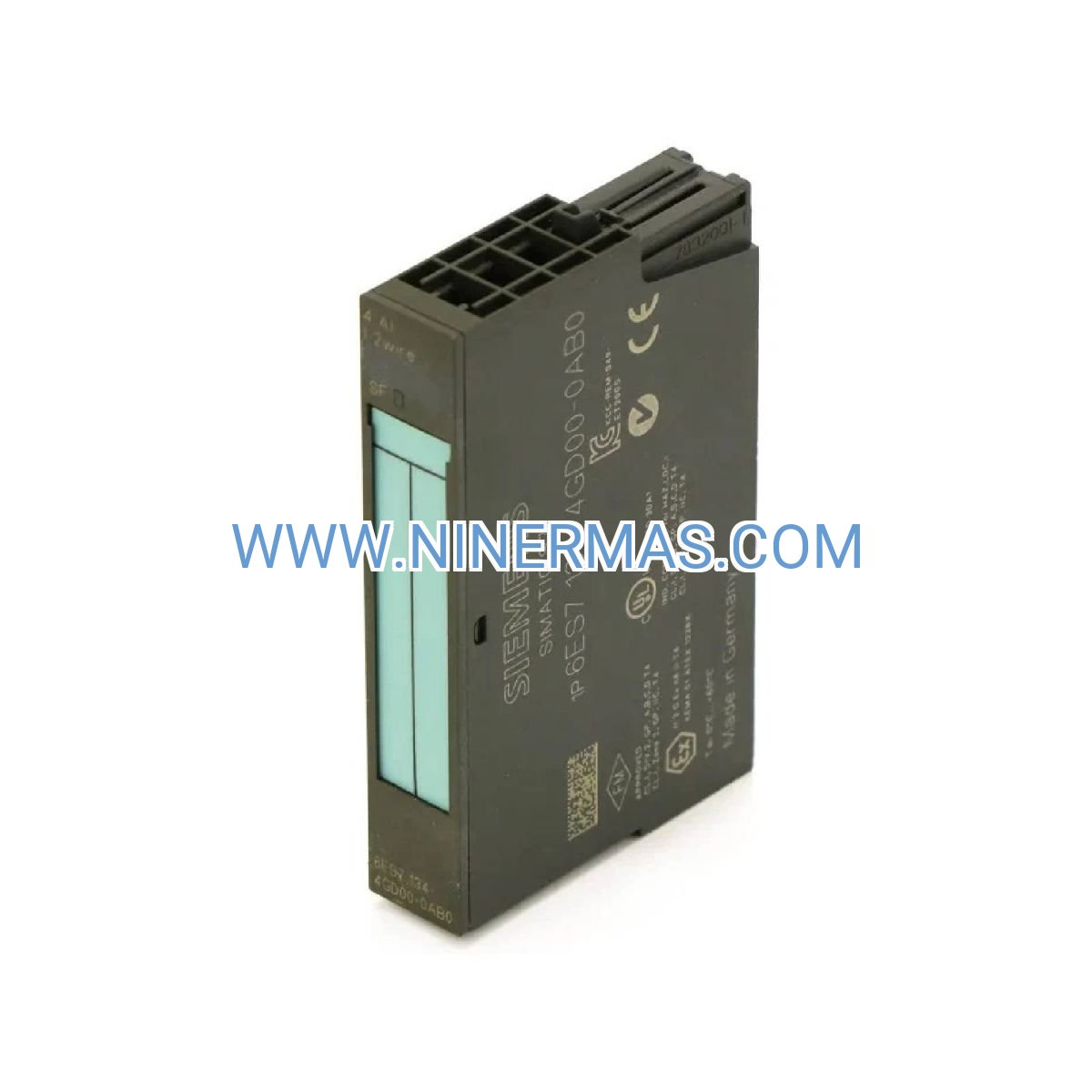

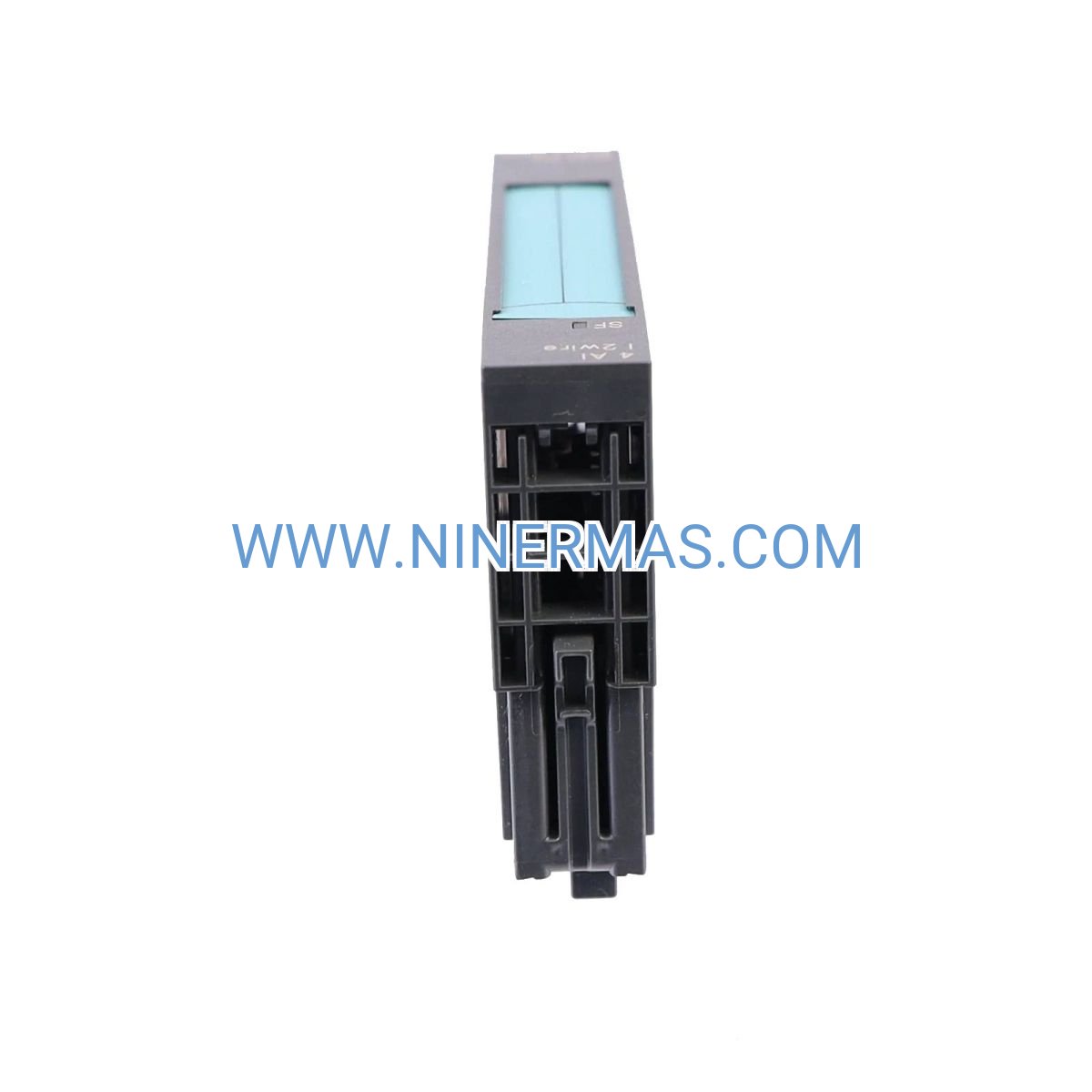

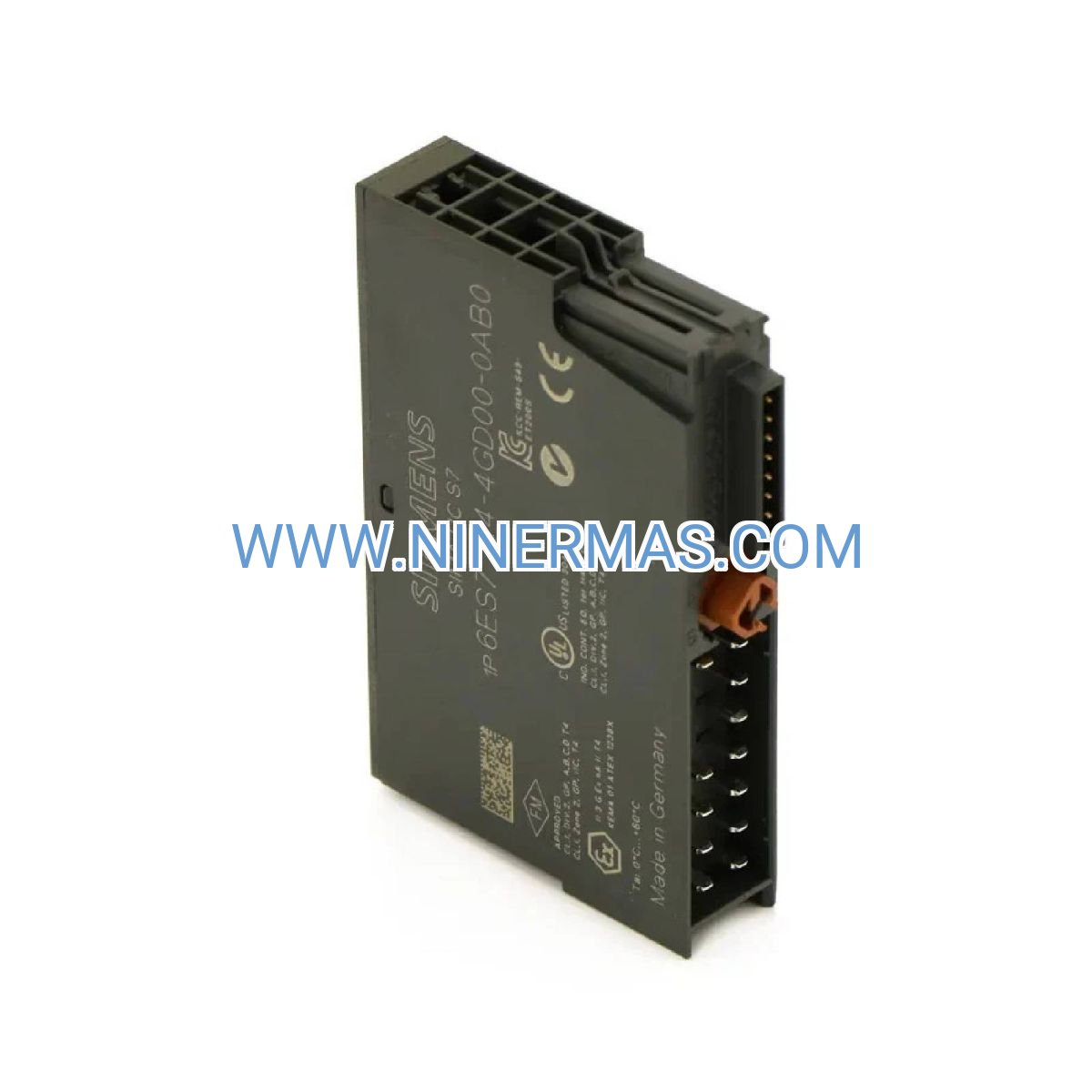

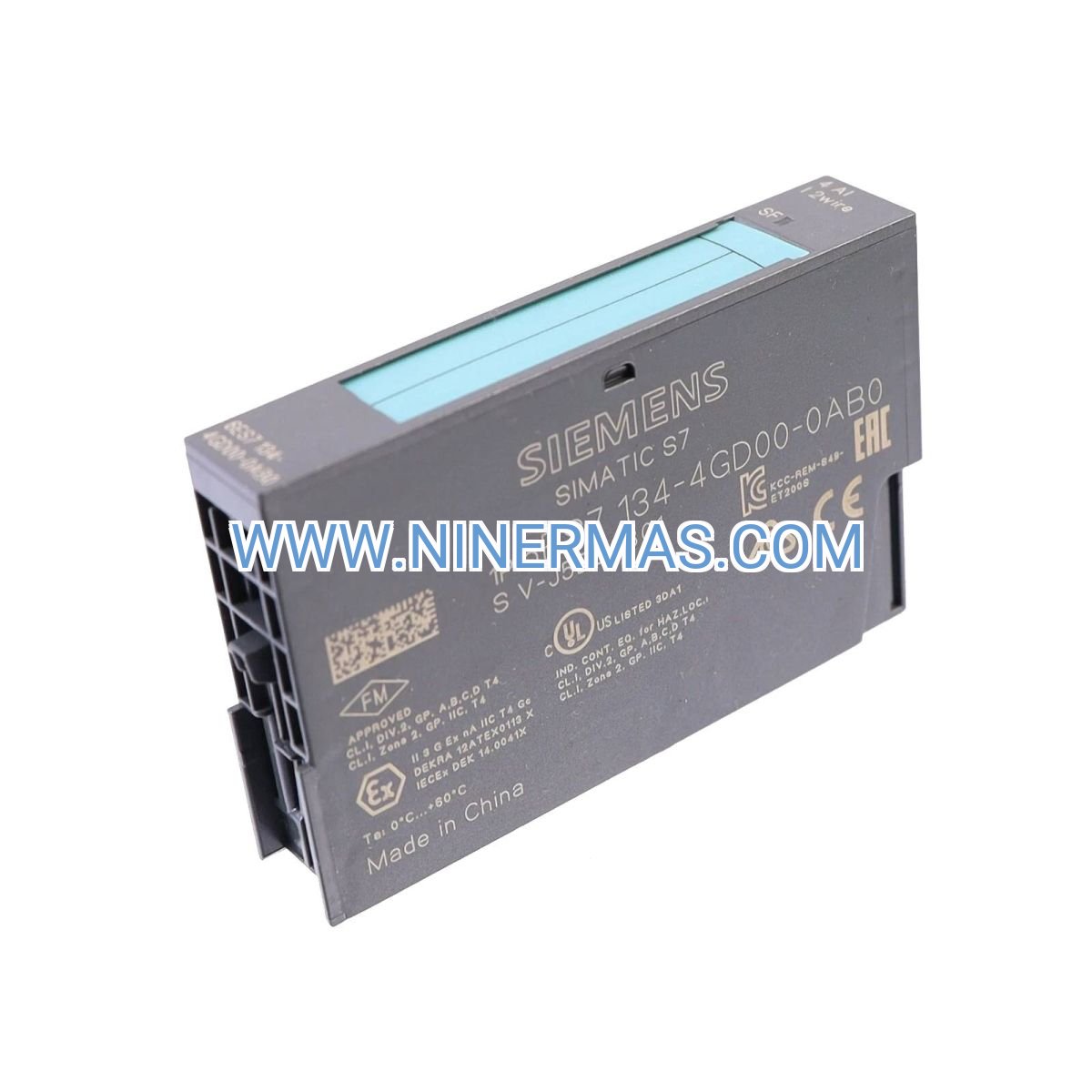

6ES7134-4GD00-0AB0 – Industrial-Grade 4-Channel Analog Input Module

The 6ES7134-4GD00-0AB0 represents a precision-engineered analog input solution within the ET 200S distributed I/O family, specifically designed for demanding industrial environments where accurate signal acquisition is mission-critical. This compact module transforms analog sensor signals into digital data streams that SIMATIC S7 controllers can process, enabling real-time monitoring and control of critical process variables across manufacturing, chemical processing, and infrastructure applications.

Built for system integrators and automation engineers who require reliable performance in space-constrained installations, this module addresses the challenge of acquiring multiple analog signals while maintaining galvanic isolation and diagnostic transparency. Whether you're retrofitting legacy systems or designing new distributed control architectures, the 6ES7134-4GD00-0AB0 delivers the measurement accuracy and operational flexibility modern industrial processes demand.

With proven compatibility across PROFIBUS DP and PROFINET networks, hot-swap capability for minimal downtime, and comprehensive diagnostic features accessible through TIA Portal, this module streamlines both initial commissioning and long-term maintenance operations. The integrated loop power supply eliminates external wiring complexity when interfacing with 2-wire transmitters, reducing installation time and potential error sources.

Core Features & Technical Advantages

✓ High-Resolution Signal Conversion
13-bit analog-to-digital conversion (8192 discrete steps) ensures precise measurement of process variables, enabling tighter control loops and improved product quality in critical applications.

✓ Integrated 2-Wire Transmitter Support
Built-in loop power supply eliminates the need for external power distribution, simplifying wiring schematics and reducing panel space requirements by up to 30% compared to traditional 4-wire configurations.

✓ Modular Hot-Swap Architecture
Replace modules during operation without shutting down the entire ET 200S station, minimizing production interruptions and enabling proactive maintenance strategies that reduce unplanned downtime costs.

✓ Channel-Level Galvanic Isolation
Electrical isolation between input channels and system backplane protects against ground loops and voltage transients, ensuring measurement integrity in electrically noisy industrial environments.

✓ Configurable Conversion Timing
Adjust sampling rates per channel to balance response speed against noise filtering requirements, optimizing performance for applications ranging from slow temperature monitoring to fast pressure control.

✓ Visual Diagnostic Indicators
Front-panel LEDs provide immediate status feedback for power, communication, and channel faults, accelerating troubleshooting and reducing mean time to repair (MTTR) by 40-60%.

Industrial Application Scenarios

→ Chemical & Petrochemical Processing
Monitor reactor pressure, flow rates, and tank levels using 4-20mA transmitters distributed across process units. The module's isolation capabilities prevent ground-related measurement errors in facilities with multiple power distribution zones, while hot-swap functionality allows sensor calibration without process shutdown.

→ Water & Wastewater Treatment
Acquire critical water quality parameters including pH, dissolved oxygen, turbidity, and chlorine residual from remote monitoring stations. The compact ET 200S footprint enables deployment in space-limited pump houses and treatment basins where traditional I/O racks cannot fit.

→ Building Automation & HVAC
Interface with temperature, humidity, and pressure sensors across multi-zone climate control systems. Configurable conversion times accommodate both fast-responding duct pressure sensors and slow-responding outdoor temperature probes within the same I/O station.

→ Food & Beverage Production
Collect temperature and pressure data from pasteurization, fermentation, and packaging equipment. The module's wide operating temperature range (0-60°C) and robust construction withstand washdown environments and temperature fluctuations common in food processing facilities.

→ Energy & Utilities Management
Gather data from current transformers, power meters, and energy monitoring devices for real-time consumption analysis. Integration with SIMATIC energy management software enables automated demand response and predictive maintenance strategies that reduce operational costs by 15-25%.

Technical Specifications & Selection Guide

Selection Criteria: Choose this module when your application requires 2-wire transmitter support with integrated loop power. For 4-wire transmitters or voltage inputs (0-10V, ±10V), consider alternative ET 200S analog input variants. If your process demands higher channel density, evaluate 8-channel modules; for applications requiring HART communication overlay, specify HART-capable versions.

Extended Capabilities & System Integration

PROFIBUS DP & PROFINET Compatibility
Seamlessly integrates with both PROFIBUS DP and PROFINET IO networks through appropriate ET 200S interface modules, providing flexibility for brownfield upgrades and greenfield installations. Supports cyclic data exchange and acyclic parameter assignment for remote configuration.

TIA Portal Integration
Full hardware catalog support in TIA Portal V13 and later enables drag-and-drop configuration, automatic address assignment, and integrated diagnostics. Pre-configured function blocks accelerate programming and reduce commissioning time by 30-50% compared to manual coding.

Redundancy Options
Deploy in redundant ET 200S configurations with dual PROFIBUS/PROFINET connections for high-availability applications where process continuity is critical. Automatic switchover maintains signal acquisition during communication path failures.

Customization & Scaling
Combine with digital I/O, analog output, and specialty modules (motor starters, frequency converters) within the same ET 200S station to create application-specific I/O configurations. Mix up to 63 modules per station to match exact process requirements without over-provisioning.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock items ship within 2-3 business days via express courier with full tracking. Typical transit time to major industrial centers: 5-7 business days.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our certified Siemens automation specialists provide pre-sales configuration assistance, post-sales troubleshooting, and integration guidance throughout the product lifecycle. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with quick-start guide, wiring diagrams, and GSD/GSDML files. Complete technical manuals, CAD drawings, and sample TIA Portal projects available for download from our technical library.

Frequently Asked Questions

Q: Can this analog input module interface with 4-wire transmitters or voltage signals?
A: This specific model (6ES7134-4GD00-0AB0) is optimized for 2-wire current loop transmitters (4-20 mA). For 4-wire transmitters or voltage inputs (0-10V, ±10V), we recommend the 6ES7134-4GB11-0AB0 or 6ES7134-6GF00-0AA1 variants which support multiple signal types.

Q: What diagnostic capabilities help reduce troubleshooting time in distributed installations?
A: The module provides wire break detection, short circuit monitoring, and out-of-range alarms accessible through TIA Portal diagnostics buffer. Front-panel LEDs indicate power status, communication health, and channel-specific faults, enabling technicians to identify issues without laptop connection.

Q: How does hot-swap functionality work without disrupting other I/O modules?
A: The ET 200S backplane architecture isolates each module electrically and logically. When you remove a module during operation, only that module's channels go offline; remaining modules continue normal operation. The controller detects module removal/insertion and automatically re-establishes communication without requiring station restart.

Q: Is this module suitable for hazardous area installations (ATEX/IECEx zones)?
A: The standard 6ES7134-4GD00-0AB0 is designed for safe area installations. For Zone 2/Division 2 hazardous locations, specify ET 200S Ex-certified variants with appropriate interface modules and barrier circuits. Contact our application engineers for hazardous area system design assistance.

Q: What network bandwidth does a 4-channel analog module consume on PROFIBUS DP?
A: At default configuration (100ms update rate per channel), the module exchanges approximately 8-12 bytes of cyclic data per bus cycle, consuming minimal bandwidth. A typical PROFIBUS DP network (1.5 Mbps) can support 50+ analog modules while maintaining sub-10ms cycle times.

Q: Can I retrofit this module into existing ET 200S stations without firmware updates?
A: Yes, the 6ES7134-4GD00-0AB0 is backward-compatible with ET 200S interface modules running firmware V2.0 and later. Simply insert the module into an available slot, update the hardware configuration in your engineering tool, and download the modified configuration to the controller.

Start Your Integration Today

Ready to enhance your distributed I/O architecture with precision analog signal acquisition? Our automation specialists are available to discuss your specific application requirements, recommend optimal module configurations, and provide detailed technical specifications. Contact us for volume pricing, custom integration services, or technical consultation.
