High-Speed Analog Input Module for ET 200S Systems (Industrial-Grade)

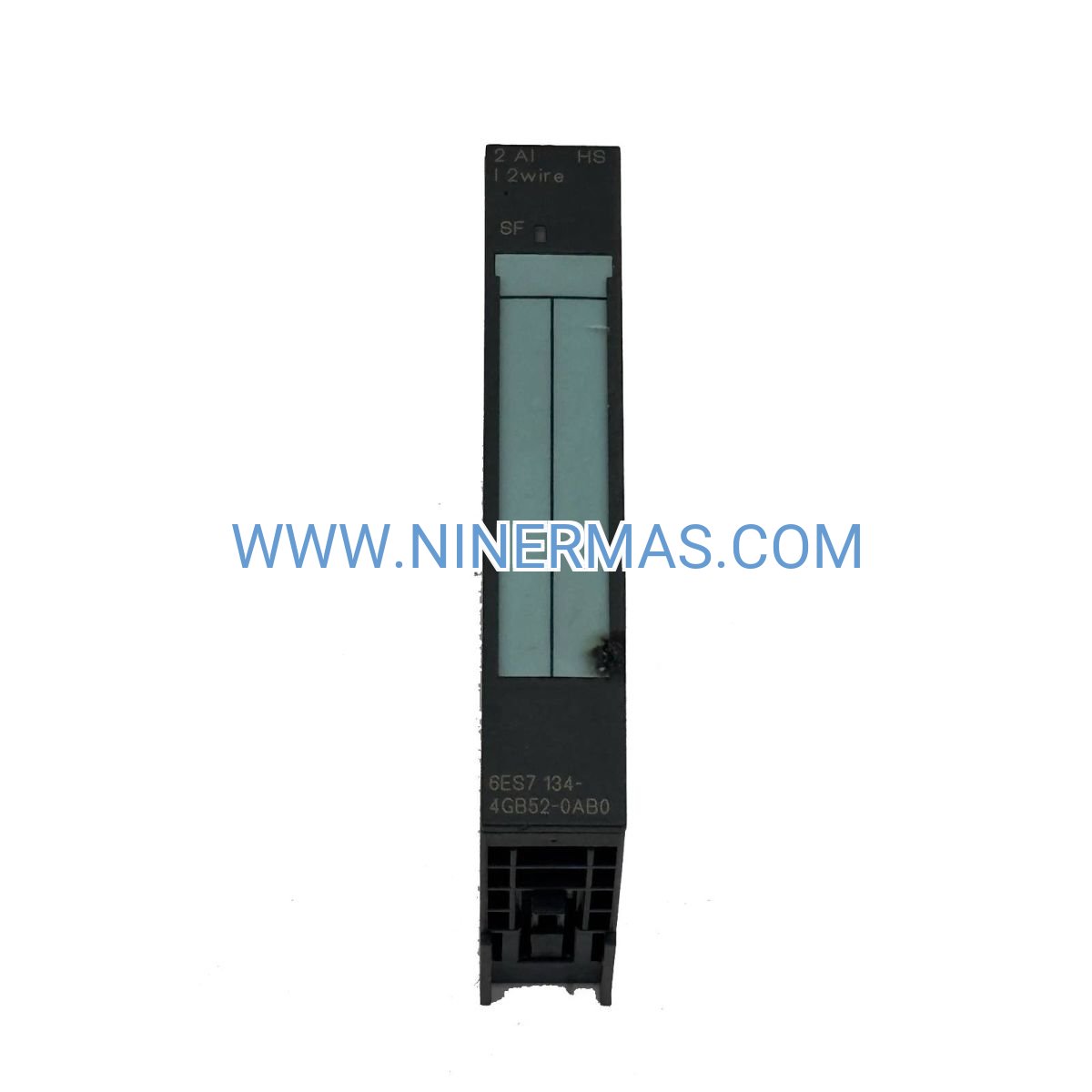

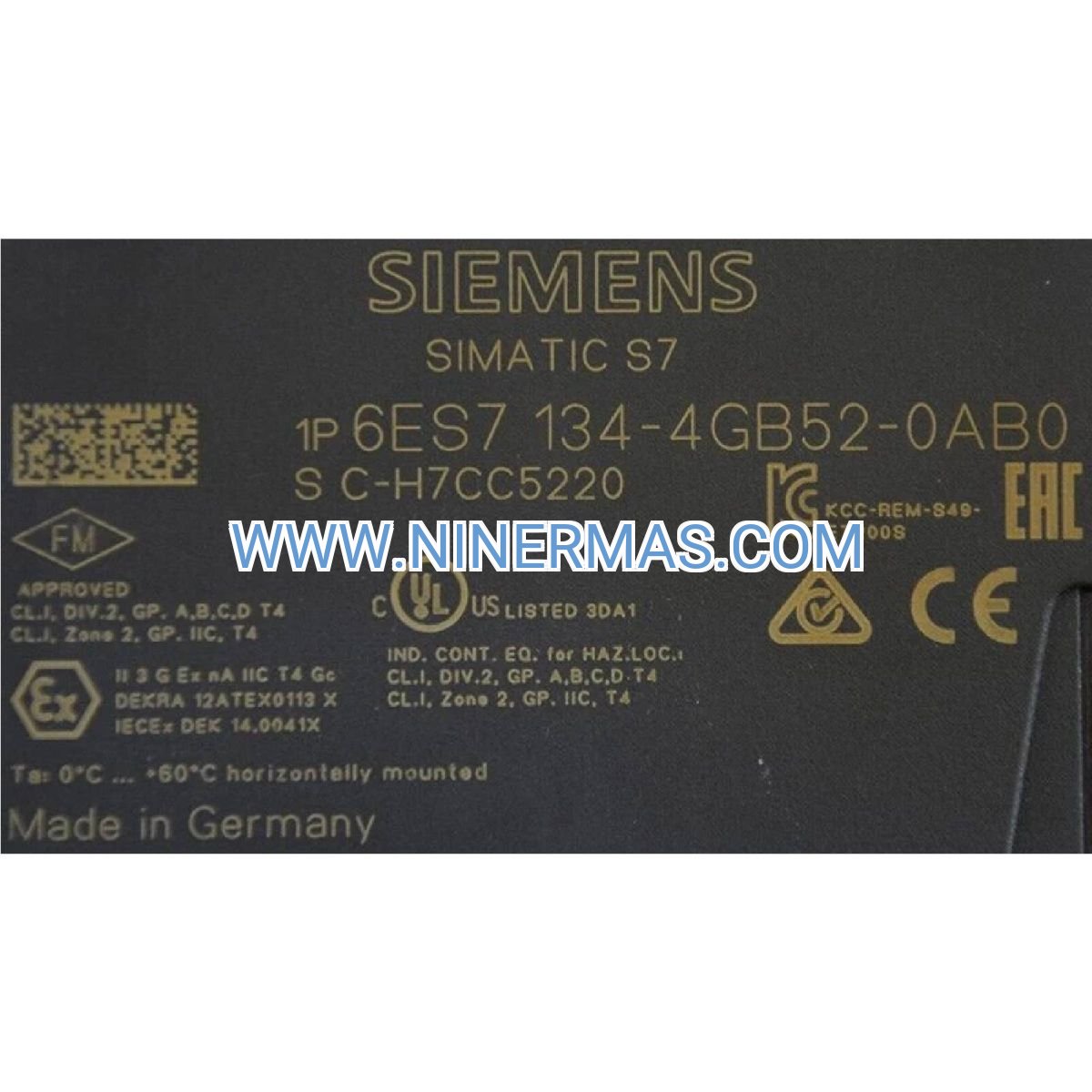

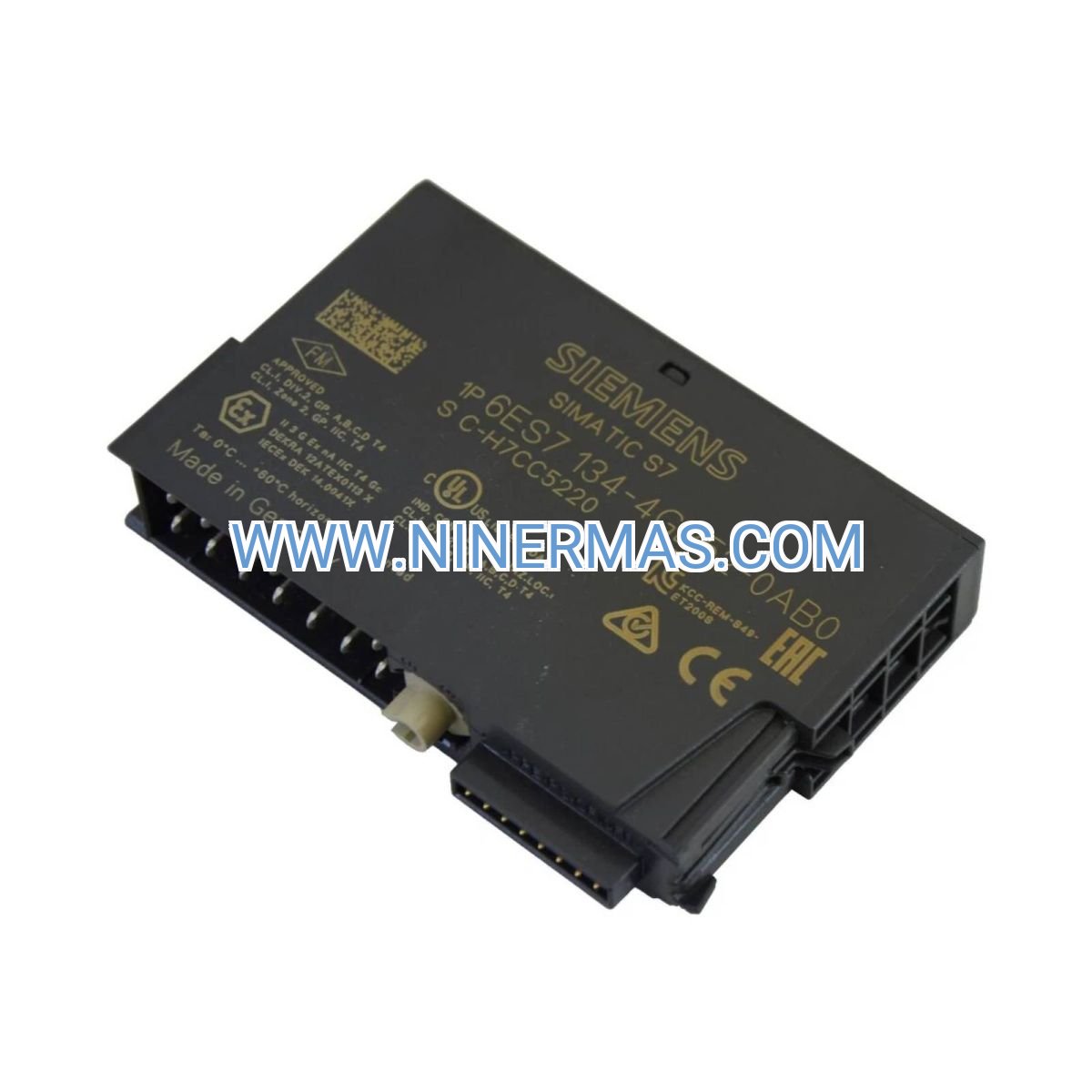

The Siemens 6ES7134-4GB52-0AB0 represents a breakthrough in rapid signal acquisition technology for distributed I/O architectures. Engineered for ET 200S platforms, this dual-channel analog input module combines 15-bit measurement precision with ultra-fast 125-microsecond conversion cycles, enabling real-time process monitoring in mission-critical automation environments. Whether you're managing high-velocity production lines or monitoring dynamic process variables, this module delivers the accuracy and speed your operations demand.

Designed for industrial engineers and system integrators who refuse to compromise on performance, the 6ES7134-4GB52-0AB0 addresses the persistent challenge of capturing transient signals in fast-moving processes. Traditional analog modules often miss critical data points during rapid fluctuations—this high-speed variant ensures every measurement counts. From automotive assembly to pharmaceutical batch processing, it serves manufacturers who require millisecond-level responsiveness paired with laboratory-grade accuracy.

What sets this module apart is its intelligent balance of speed, resolution, and industrial ruggedness. Galvanic isolation protects sensitive control systems from electrical noise, while hot-swap capability minimizes downtime during maintenance. The compact 15mm profile maximizes cabinet space efficiency, and multi-range voltage/current compatibility eliminates the need for multiple module variants. For operations where data integrity directly impacts product quality and safety compliance, the 6ES7134-4GB52-0AB0 delivers unmatched reliability.

Core Features & Business Value

✓ Ultra-Fast Signal Conversion (125μs/channel)
Capture transient events and rapid process changes that standard modules miss. Reduce quality defects by detecting anomalies 20× faster than conventional 2.5ms modules, enabling immediate corrective action in high-speed production environments.

✓ 15-Bit Measurement Resolution
Achieve ±0.003% accuracy across ±10V, ±5V, ±2.5V, and ±1V ranges. Eliminate costly over-specification of sensors while maintaining tight process tolerances—critical for pharmaceutical dosing, precision coating, and analytical instrumentation applications.

✓ Dual-Channel Architecture with Galvanic Isolation
Monitor two independent process variables simultaneously while protecting your S7 controller from ground loops and electrical interference. Reduce wiring costs and cabinet footprint compared to single-channel alternatives, with channel-to-backplane isolation up to 500V AC.

✓ Universal Signal Compatibility (Voltage & Current)
Interface directly with 4-20mA transmitters, 0-10V sensors, and ±10V measurement devices without external signal conditioning. Software-configurable input types via TIA Portal eliminate hardware modifications when sensor requirements change.

✓ Hot-Swap Capability & Diagnostic LEDs
Replace modules during operation without halting production—critical for 24/7 facilities. Instant visual status indication accelerates troubleshooting, reducing mean time to repair (MTTR) by up to 40% compared to systems requiring diagnostic software access.

✓ Compact DIN Rail Design (15mm Width)
Maximize I/O density in space-constrained control cabinets. Deploy up to 63 modules per ET 200S station, supporting complex multi-zone monitoring applications without requiring additional enclosures or infrastructure investment.

Application Scenarios & Industry Solutions

→ Automotive Manufacturing – Torque & Force Monitoring
In engine assembly and chassis welding operations, the module captures real-time torque signatures from nutrunners and force profiles from press-fit stations. The 125μs response time detects micro-variations that indicate tool wear or joint defects, triggering automatic rework flags before defective units reach final inspection. Result: 35% reduction in warranty claims related to fastener failures.

→ Chemical Processing – Reactor Temperature Control
Exothermic reaction monitoring demands split-second temperature tracking to prevent thermal runaway. The module's high-speed sampling detects temperature spikes within 0.5°C thresholds, activating emergency cooling protocols 18× faster than legacy systems. Pharmaceutical clients report zero batch losses due to temperature excursions since implementation.

→ Packaging Lines – Dynamic Weight Verification
Checkweigher systems operating at 300 packages/minute require instantaneous load cell signal processing. The 6ES7134-4GB52-0AB0 delivers stable weight readings even during high-speed conveyor vibration, maintaining ±0.1g accuracy at line speeds up to 5 meters/second. Reduces product giveaway by 2.3% annually for high-volume food producers.

→ Water Treatment – Flow Rate & Pressure Optimization
Municipal water systems use the module to monitor differential pressure across filtration stages and instantaneous flow rates in distribution networks. Rapid detection of pressure transients (water hammer events) enables predictive maintenance scheduling, extending pump service life by 25% and preventing catastrophic pipe failures.

→ Metal Forming – Hydraulic Press Position Control
Stamping and forging operations rely on precise ram position feedback for part dimensional consistency. The module's 15-bit resolution translates to 0.3mm positioning accuracy across 10-meter stroke lengths, ensuring formed parts meet aerospace tolerances without secondary machining operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES7134-4GB52-0AB0 when your application requires conversion times under 500μs or when monitoring signals with frequency content above 1 kHz. For standard process control (temperature, level, flow) where 2.5ms update rates suffice, the cost-optimized 6ES7134-4GB11-0AB0 variant may be appropriate. Applications involving vibration analysis, servo positioning, or quality inspection typically justify the high-speed model's premium.

Extended Functionality & Integration Options

PROFIBUS DP Connectivity: Seamless integration with SIMATIC S7-300/400 controllers and distributed ET 200S stations. Supports baud rates up to 12 Mbps with automatic address assignment via GSD file configuration in TIA Portal V13 or later.

TIA Portal Advanced Diagnostics: Real-time waveform capture and trend analysis directly within the engineering environment. Export measurement data to CSV for offline analysis or integration with third-party analytics platforms.

Redundancy Support: Deploy in redundant PROFIBUS configurations (Y-link topology) for safety-critical applications requiring SIL 2 compliance. Automatic failover ensures continuous operation during communication path failures.

Custom Scaling & Linearization: Built-in function blocks for thermocouple linearization, square-root extraction (flow calculation), and custom polynomial scaling. Reduces PLC program complexity and CPU load for mathematical operations.

IoT Gateway Compatibility: Integrate with SIMATIC IOT2050 edge devices for cloud-based predictive maintenance and remote monitoring. MQTT/OPC UA protocol support enables seamless data flow to enterprise MES/ERP systems.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for stock items shipped from our regional distribution centers. Express 24-hour delivery available for urgent breakdown situations (additional charges apply).

Custom Configuration Services: Pre-programmed modules with customer-specific parameter sets available within 7-10 business days. Includes factory acceptance testing (FAT) documentation and configuration backup files.

Warranty Coverage: 18-month comprehensive warranty covering manufacturing defects and component failures. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Unlimited phone and email support from certified Siemens automation specialists. Remote diagnostic assistance via secure VPN connection for complex troubleshooting scenarios.

Documentation Package: Includes operating manual (English/Chinese), GSD configuration file, TIA Portal sample project, and wiring diagrams. CAD models (STEP/IGES format) available for cabinet layout planning.

Frequently Asked Questions

Q: How does the 125μs conversion time compare to standard analog input modules for high-speed packaging applications?
A: Standard modules with 2.5ms conversion times sample at 400 Hz, which is inadequate for packaging lines exceeding 200 units/minute. The 6ES7134-4GB52-0AB0's 8 kHz sampling rate captures 40 data points per package at 300/min line speeds, enabling precise weight verification and reject triggering without false positives from conveyor vibration.

Q: Can this module interface with 3-wire RTD temperature sensors, or does it require separate signal conditioning?
A: This module accepts voltage and current signals only. For RTD sensors, pair it with the 6ES7134-4JB52-0AB0 (RTD-specific variant) or use an external RTD-to-4-20mA transmitter. The latter approach offers flexibility for mixed sensor types within the same ET 200S station.

Q: What's the maximum cable length between the module and field sensors without signal degradation?
A: For 4-20mA current loops, up to 500 meters of shielded twisted-pair cable is supported without repeaters. Voltage inputs should be limited to 100 meters to maintain specified accuracy; for longer distances, use 4-20mA transmitters at the sensor location to minimize noise susceptibility.

Q: Does the module support HART protocol for smart transmitter configuration and diagnostics?
A: No, the 6ES7134-4GB52-0AB0 does not include HART communication capability. For HART-enabled analog inputs, consider the 6ES7134-6JD00-0CA1 (ET 200SP series) or implement a separate HART multiplexer for transmitter configuration tasks.

Q: How do I configure different input ranges for each channel—can Channel 1 be 4-20mA while Channel 2 uses ±10V?
A: Yes, each channel is independently configurable via TIA Portal hardware configuration. Simply select the desired measuring range for each channel in the module properties dialog. Changes take effect immediately upon downloading the hardware configuration to the controller.

Q: Is this module compatible with older STEP 7 Classic (V5.x) programming environments, or does it require TIA Portal?
A: The module is fully compatible with STEP 7 V5.5 SP4 and later. Download the latest GSD file from Siemens Industry Online Support portal and install it in your STEP 7 hardware catalog. Configuration procedures are identical to other ET 200S analog modules.

Request Technical Consultation

Unsure whether the 6ES7134-4GB52-0AB0 meets your application requirements? Our automation engineers provide complimentary system design reviews, including signal conditioning recommendations, wiring schematics, and PLC program templates. Contact us with your process specifications for a detailed feasibility assessment within 24 hours.

Ready to upgrade your analog input performance? Request a formal quotation including quantity discounts, delivery schedules, and optional commissioning support. Volume pricing available for orders exceeding 10 units—ideal for multi-line expansions and standardization projects.
