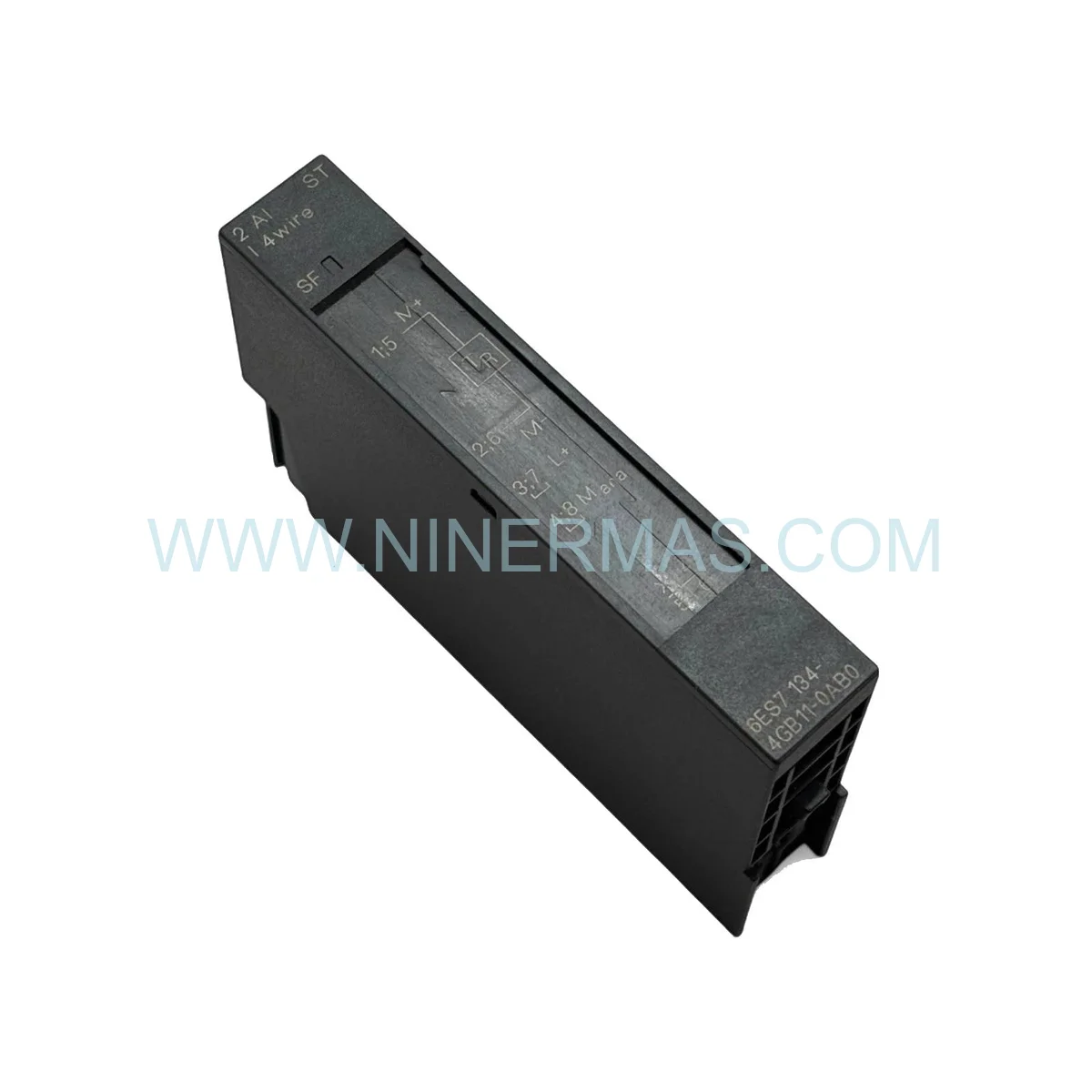

Siemens 6ES7134-4GB11-0AB0 | ET 200S Retrofit & Upgrade Module

Siemens 6ES7134-4GB11-0AB0 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing distributed I/O modernization across global manufacturing sites, the Siemens 6ES7134-4GB11-0AB0 stands out as a mission-critical enabler for performance enhancement in aging ET 200S architectures. This 2-channel analog input module delivers 15-bit + sign resolution with ±0.1% full-scale accuracy, directly addressing the signal degradation and diagnostic blind spots that plague legacy control infrastructure. By integrating the 6ES7134-4GB11-0AB0 into your existing ET 200S station, engineers can achieve measurable gains in measurement fidelity without dismantling the broader SIMATIC S7 framework.

Legacy compatibility is a cornerstone advantage of this module. Its standard I-4DMU configuration ensures backward-compatible drop-in replacement within existing ET 200S racks, eliminating the need for costly backplane redesigns or PLC reprogramming. The module supports a wide signal range rom ±80mV low-level thermocouple transmitters to ±10V industrial transducers ridging the gap between decades-old field instrumentation and modern PROFIBUS DP networks operating at up to 12 Mbps.

From a migration risk perspective, the 6ES7134-4GB11-0AB0 dramatically reduces project exposure. Its hot-swap capability allows channel-by-channel replacement during live production, while built-in diagnostics (wire break, short circuit, overrange) provide real-time fault visibility that legacy modules simply cannot offer. The result: lower downtime, reduced commissioning costs, and a clear, low-risk upgrade path from traditional analog wiring to modern distributed I/O architecture.

Upgrade Highlights & Compatibility

• Drop-In Legacy Compatibility: Standard I-4DMU form factor fits existing ET 200S racks with zero mechanical modification
• ✅ Performance Enhancement: 15-bit resolution vs. 13-bit on predecessor modules — 4 finer measurement granularity
• Wide Signal Range: Supports ±50mV to ±10V voltage and ±20mA current — interfaces with both legacy sensors and modern smart transmitters
• ✅ Future-Proofing: PROFIBUS DP at 12 Mbps ensures compatibility with current and next-generation SIMATIC S7 controllers
• Seamless Integration: Full STEP 7 parameterization support — no custom drivers or middleware required
• ✅ Diagnostic Upgrade: Wire break, short circuit, and overrange detection — capabilities absent in many legacy analog modules
• Compact Footprint: 15mm ultra-slim width maximizes rack density in space-constrained retrofit cabinets

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing Plants: A regional petrochemical facility operating a legacy SIMATIC S5-based DCS faced chronic signal drift from aging analog input cards. By migrating to the 6ES7134-4GB11-0AB0 within their ET 200S remote I/O stations, the engineering team achieved a 40% reduction in calibration interventions and eliminated three recurring process shutdowns per quarter. The module’s ±0.1% accuracy ensured compliance with updated process safety instrumented system (SIS) requirements without replacing field transmitters.

Turbine Supervisory Instrumentation (TSI) Retrofit: A power generation operator needed to extend the operational life of their gas turbine monitoring system by 8 years while meeting new vibration measurement standards. The 6ES7134-4GB11-0AB0’s ±80mV low-level input range enabled direct connection to existing proximity probe signal conditioners, preserving the original sensor investment. PROFIBUS DP integration allowed real-time vibration data to feed into a new SCADA platform without disrupting the turbine control loop — a textbook hardware upgrade with zero production impact.

Automotive Body Shop Retrofit: A Tier-1 automotive supplier modernizing a 15-year-old resistance spot welding line deployed the 6ES7134-4GB11-0AB0 to replace obsolete analog input cards. The module’s independent per-channel configuration allowed simultaneous voltage and current monitoring on the same unit, reducing the total module count by 30% and freeing critical rack space for new safety relay modules.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Full Part Number | **6ES7134-4GB11-0AB0** | | Module Family | Siemens ET 200S Distributed I/O | | Configuration Type | Standard I-4DMU | | Analog Input Channels | 2 Differential | | Resolution | 15-bit + sign (16-bit word) | | Measurement Accuracy | ±0.1% of full scale | | Voltage Input Ranges | ±10V, ±5V, ±2.5V, ±1V, ±500mV, ±250mV, ±80mV, ±50mV | | Current Input Range | ±20mA | | Conversion Time | 16.67ms/channel (configurable) | | Input Impedance | >10MΩ (voltage) / 50Ω (current) | | Module Width | 15mm (ultra-compact) | | Electrical Isolation | 500V AC channel-to-backplane | | Communication Protocol | PROFIBUS DP (up to 12 Mbps) | | Hot-Swap Support | Yes — zero-downtime replacement | | Diagnostic Functions | Wire break, short circuit, overrange | | Engineering Software | STEP 7 (full parameterization support) | | Lifecycle Status | Active / Available | | Country of Origin | Germany |

Supply Chain & Deployment Support

Original & Factory Sealed: Every 6ES7134-4GB11-0AB0 unit is sourced directly from authorized Siemens distribution channels and ships in original factory packaging with full traceability documentation. Anti-counterfeit verification is available upon request for critical infrastructure projects.

Expedited Global Logistics: We maintain strategic inventory buffers to support urgent retrofit timelines. Express air freight to North America, Europe, Southeast Asia, and the Middle East is available with typical lead times of 3-7 business days. DDP (Delivered Duty Paid) shipping options eliminate customs complexity for international retrofit projects.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy SIMATIC S7 and ET 200S ecosystems. We provide pre-sales compatibility assessments, STEP 7 configuration templates, and post-installation commissioning guidance — ensuring your retrofit project stays on schedule and within budget.

Retrofit FAQ — Upgrade Guide

Q1: Is the 6ES7134-4GB11-0AB0 physically compatible with older ET 200S racks installed 10+ years ago?
A: Yes. The standard I-4DMU form factor has remained consistent across ET 200S generations. The module slots directly into existing racks without mechanical adaptation. Verify the power module (PM) rating supports the additional current draw before installation.

Q2: How does this module communicate with legacy SIMATIC S5 or S7-300 controllers during a phased migration?
A: The 6ES7134-4GB11-0AB0 communicates via PROFIBUS DP, which is natively supported by S7-300/400 CPUs and accessible from S5 systems via CP 5431 communication processors. During phased migrations, the module can coexist on the same PROFIBUS segment as legacy I/O, allowing incremental cutover without full system shutdown.

Q3: Can this module replace the 6ES7134-4GB01-0AB0 as a direct spare in an existing installation?
A: Yes, with minor STEP 7 reconfiguration. The 4GB11 variant offers enhanced resolution (15-bit vs. 13-bit) and an extended low-level voltage range (down to ±50mV). Update the hardware catalog entry in your STEP 7 project and re-download the configuration — no field wiring changes required.

Q4: What is the recommended cable specification for long-distance analog signal runs in retrofit environments?
A: Use shielded twisted-pair (STP) cable with the shield grounded at the panel end only. For voltage inputs, keep total cable capacitance below 1nF; for current loops, total loop resistance must not exceed 100Ω. In high-EMI environments (near VFDs or welding equipment), use double-shielded cable and route analog cables in separate conduit from power wiring.

Q5: Does the module support integration with modern IIoT platforms or cloud-based SCADA systems?
A: Directly, the 6ES7134-4GB11-0AB0 interfaces with PROFIBUS DP masters. For IIoT integration, pair it with a Siemens IE/PB Link PN IO or a third-party PROFIBUS-to-OPC UA gateway. This architecture enables real-time analog data streaming to cloud SCADA platforms (e.g., Siemens MindSphere, Ignition, or OSIsoft PI) without replacing the existing ET 200S infrastructure.

Q6: What warranty and lifecycle support is available for this module in long-term retrofit projects?
A: The 6ES7134-4GB11-0AB0 carries a 12-month warranty covering component failures, calibration drift, and performance degradation. For projects requiring 5-10 year lifecycle assurance, we offer long-term supply agreements with guaranteed stock reservation and priority technical support — critical for power generation and petrochemical facilities with extended maintenance cycles.
