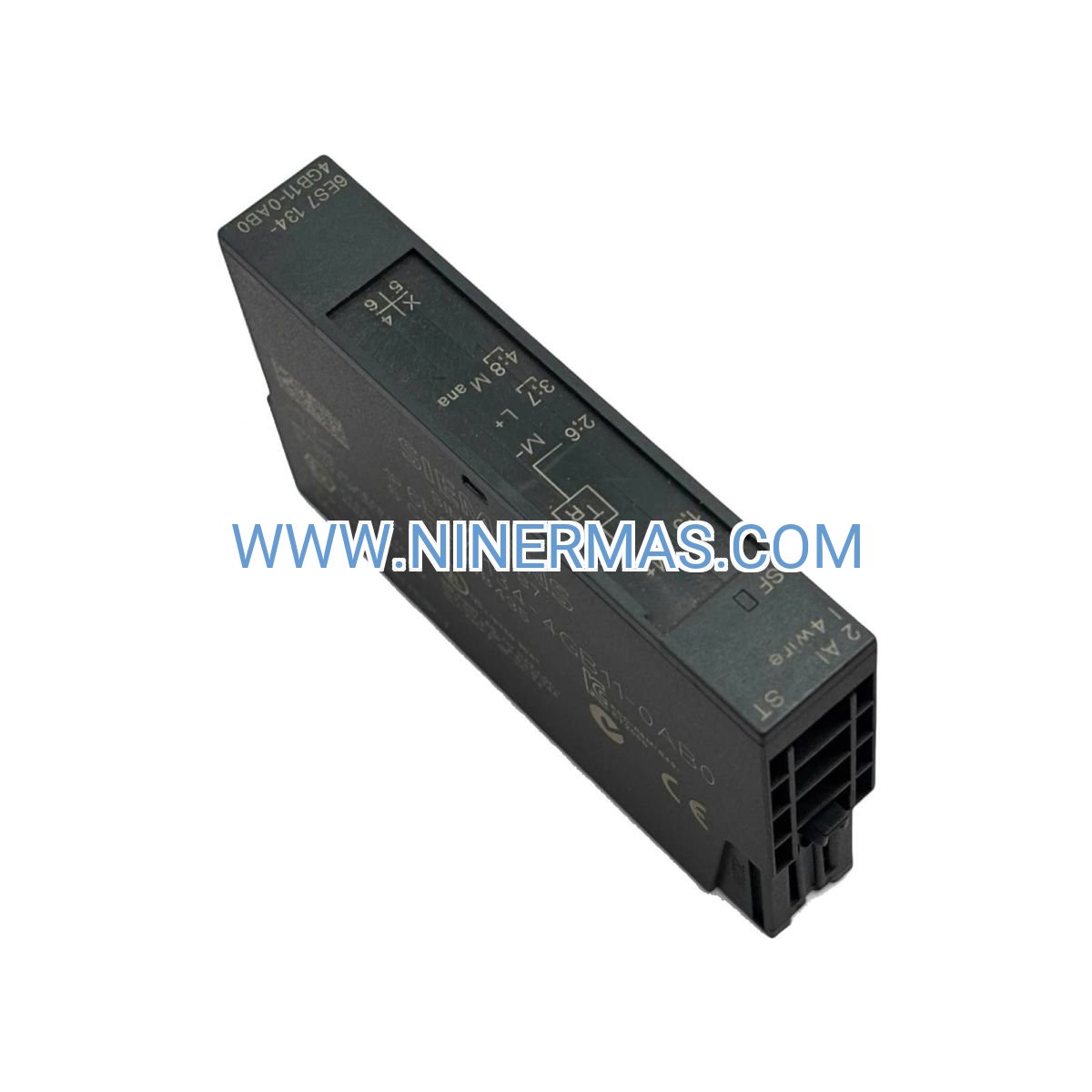

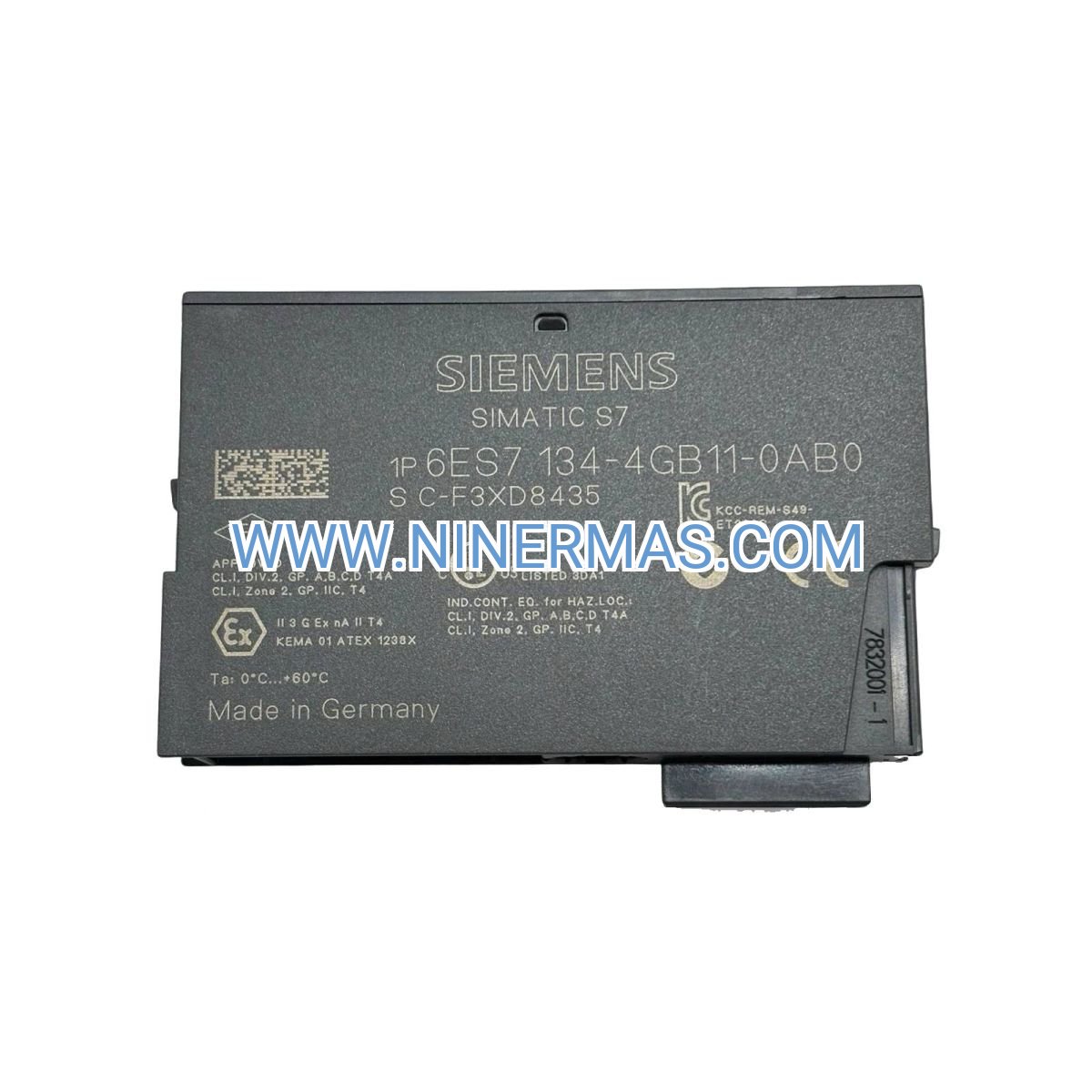

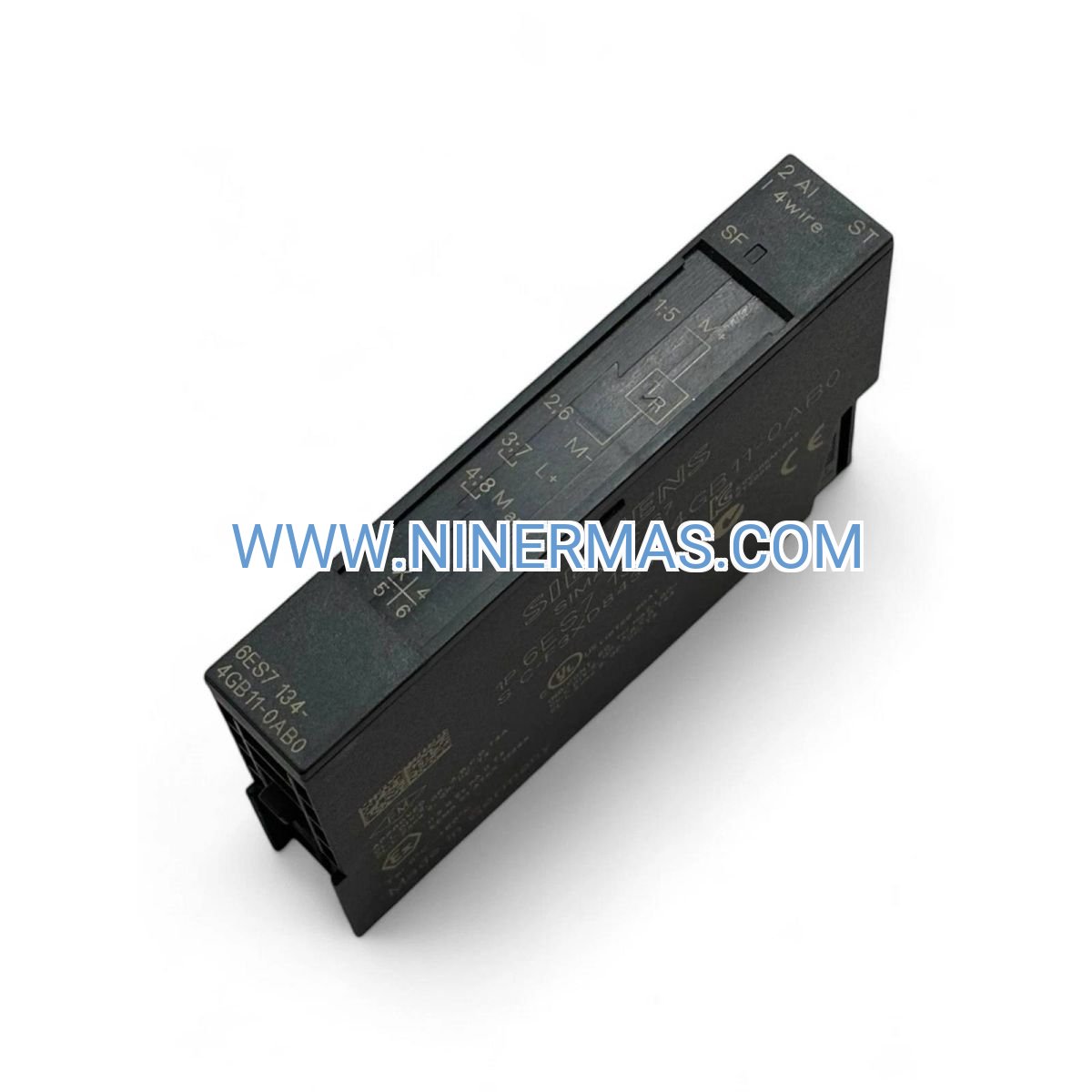

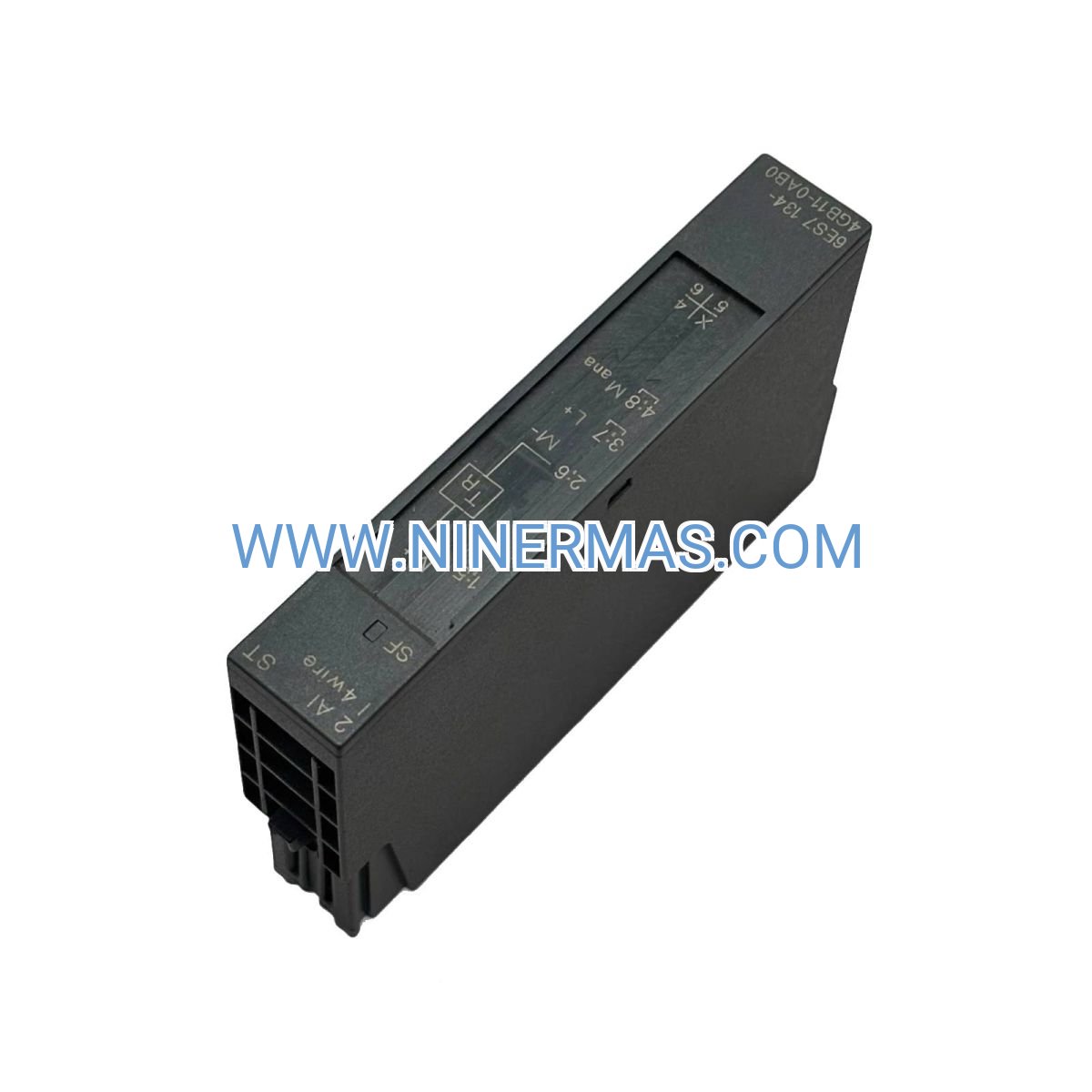

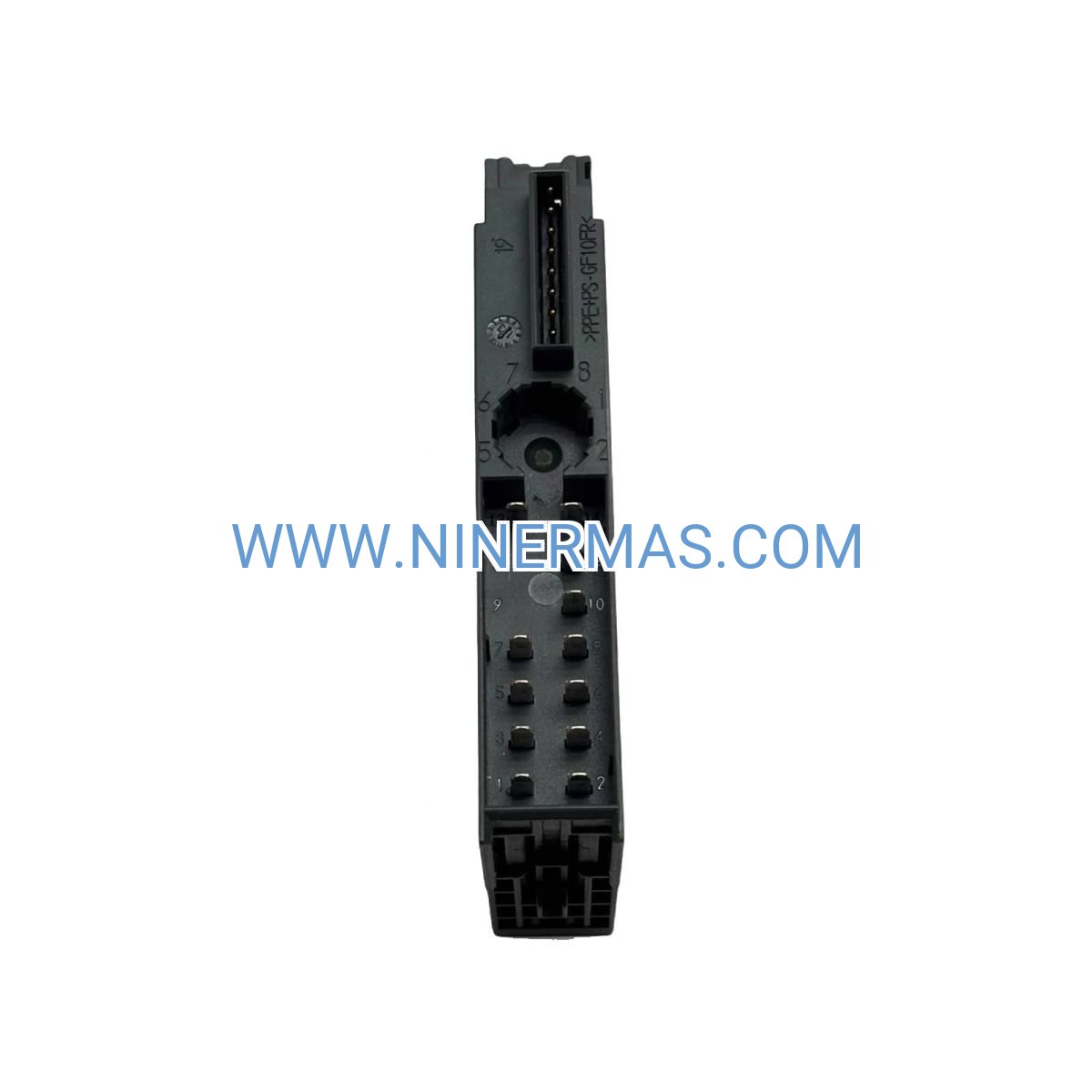

6ES7134-4GB11-0AB0 (Industrial-Grade Analog Signal Acquisition)

The 6ES7134-4GB11-0AB0 delivers precision analog signal conversion for distributed control architectures. As a core component of the ET 200S modular I/O platform, this dual-channel input module transforms field-level voltage and current signals into high-resolution digital data streams. Designed for space-critical installations, its 15mm profile accommodates up to 63 I/O modules per station while maintaining industrial-grade isolation and diagnostic intelligence. Process engineers rely on this module to bridge legacy 4-20mA transmitters and modern PROFIBUS networks without signal degradation.

Manufacturing facilities facing cabinet space constraints benefit from the ultra-compact architecture that reduces panel footprint by 40% compared to traditional terminal block wiring. Quality control laboratories leverage the 15-bit conversion accuracy to detect micro-variations in strain gauge outputs, while energy management systems utilize the wide input range to interface with diverse sensor types—from millivolt thermocouples to standard process transmitters. The module's hot-swappable design ensures production continuity during maintenance cycles.

Key advantages include wire-break detection that prevents false readings, configurable filtering to eliminate noise in VFD-heavy environments, and STEP 7 integration for rapid commissioning. Whether retrofitting existing S7-300 systems or designing greenfield automation projects, this module provides the reliability and flexibility demanded by mission-critical applications.

Core Features & Benefits

✓ Dual-Channel Differential Inputs
Simultaneously acquire two independent analog signals with galvanic isolation between channels and backplane. Eliminates ground loop interference in multi-sensor installations while reducing wiring complexity by 50%.

✓ Multi-Range Signal Compatibility
Supports nine voltage ranges (±50mV to ±10V) and ±20mA current input without hardware reconfiguration. Enables standardized spare parts inventory and simplifies sensor upgrades across production lines.

✓ 15-Bit + Sign Resolution
Captures signal variations down to 0.003% of full scale, critical for precision applications like pharmaceutical batching and semiconductor fabrication where measurement accuracy directly impacts product quality.

✓ Integrated Diagnostics
Real-time detection of open circuits, short circuits, and out-of-range conditions with automatic fault flagging to SCADA systems. Reduces troubleshooting time by 60% through pinpoint error localization.

✓ Space-Optimized Footprint
15mm width allows 24 analog input points in a standard 19-inch rack, maximizing I/O density for retrofit projects with limited panel space. Ideal for mobile machinery and skid-mounted systems.

→ Hot-Swap Capability
Replace modules during operation without system shutdown or data loss. Maintains production uptime in 24/7 facilities where scheduled maintenance windows are unavailable.

Typical Application Scenarios

Chemical Process Control
Monitor reactor temperature and pressure transmitters in batch production systems. The module's 16.67ms conversion time ensures rapid response to process deviations, while the ±0.1% accuracy maintains tight control over exothermic reactions. Prevents batch rejections caused by temperature excursions beyond ±2°C tolerances.

Water Treatment Facilities
Interface with pH sensors, turbidity meters, and flow transmitters across distributed pump stations. PROFIBUS DP connectivity consolidates data from remote sites up to 1200m away, eliminating costly analog cable runs and reducing installation costs by $15-25 per meter.

Automotive Assembly Lines
Capture torque wrench feedback and hydraulic press force measurements in quality verification stations. The module's vibration resistance (IEC 60068-2-6) ensures reliable operation in high-shock environments where traditional I/O cards fail within 18 months.

HVAC Energy Management
Aggregate chiller power consumption, airflow velocity, and differential pressure readings for building automation systems. Low-level signal support (±50mV) enables direct connection to thermopile sensors without external amplifiers, reducing BOM costs by $80-120 per point.

Food & Beverage Packaging
Track fill weight via load cell transmitters and monitor sterilization temperatures in aseptic processing lines. The module's IP20 rating and conformal coating withstand washdown environments, extending MTBF to 250,000+ hours in sanitary applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when you need high-resolution measurement (15-bit) for precision control loops or quality monitoring. For standard process applications where 13-bit resolution suffices, consider the 6ES7134-4GB01-0AB0 variant. If your application requires four input channels, the 6ES7134-4GB50-0AB0 provides doubled capacity in 30mm width. Verify that your ET 200S power module supplies adequate current—each analog module adds 1.5W to the total station load.

Extended Functions

Advanced Signal Conditioning: Configure digital low-pass filters (0.1Hz to 10kHz cutoff) via STEP 7 to suppress electromagnetic interference from nearby VFDs and welding equipment. Adjustable smoothing algorithms eliminate sensor noise without introducing phase lag in closed-loop control systems.

Scaling & Linearization: Apply custom scaling factors to convert raw ADC values directly to engineering units (PSI, °C, GPM) within the module firmware. Reduces CPU processing overhead by 15-20% compared to software-based scaling in the PLC program.

PROFINET Integration: When paired with IM 151-8 PN/DP CPU interface modules, the ET 200S station supports dual-protocol operation—maintaining legacy PROFIBUS connections while enabling PROFINET I/O for future expansion. Facilitates phased migration to Industrial Ethernet without forklift upgrades.

Redundancy Options: Deploy in Y-link configurations with redundant IM 151 interface modules for fault-tolerant architectures. Automatic switchover occurs within 100ms of primary module failure, ensuring continuous data acquisition in safety-critical applications.

Delivery & Service

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx Express. Custom-configured modules with factory programming require 7-10 business days. Expedited processing available for emergency shutdowns and unplanned outages.

Warranty Coverage: 18-month manufacturer's warranty covering material defects, calibration drift beyond ±0.2% FSR, and component failures. Warranty includes advance replacement service with pre-configured modules to minimize downtime.

Technical Support: Access to application engineers for wiring diagrams, STEP 7 configuration files, and troubleshooting assistance. Remote diagnostic support via TeamViewer for complex integration issues. Average response time: 4 hours during business hours.

Documentation Package: Includes installation manual (English/Chinese), dimensional drawings in AutoCAD DXF format, GSD file for PROFIBUS configuration, and sample STEP 7 function blocks for scaling and alarm management.

Frequently Asked Questions

How do I configure different input ranges for each channel on the 6ES7134-4GB11-0AB0?
Use STEP 7 hardware configuration to independently assign voltage or current ranges per channel. Navigate to the module properties, select Channel 0 or Channel 1, then choose from the dropdown menu of supported ranges. Changes take effect after downloading the configuration to the IM 151 interface module—no physical jumpers or DIP switches required.

What cable specifications ensure optimal signal integrity with this analog input module?
Specify shielded twisted-pair cables with drain wire, minimum 22 AWG conductors. For voltage inputs, maintain total cable capacitance below 1000pF to prevent signal attenuation. Current loop wiring should use 18-20 AWG to limit voltage drop below 2V over 100-meter runs. Ground shields at the module end only to avoid ground loops.

Can the 6ES7134-4GB11-0AB0 interface with 2-wire transmitters powered by loop supply?
No, this module provides measurement inputs only without integrated loop power. Use external 24V DC power supplies or the 6ES7138-4HA00-0AB0 power module to energize 2-wire transmitters. The module's 50Ω input impedance is compatible with standard 4-20mA loop circuits when externally powered.

What diagnostic capabilities help troubleshoot wiring errors during commissioning?
The module detects wire breaks (open circuit), short circuits to ground, and overrange conditions (signals exceeding ±12V or ±25mA). Diagnostic bits appear in the PLC's process image and trigger hardware interrupts for immediate fault notification. LED indicators on the module provide local status without requiring laptop connection.

How does conversion time affect control loop performance in process automation?
The default 16.67ms conversion time supports control loops up to 30Hz bandwidth, suitable for temperature, pressure, and flow applications. For faster processes like servo positioning or vibration monitoring, reduce conversion time to 2.5ms via parameter settings—though this decreases noise rejection by 10dB.

Is the module compatible with HART-enabled smart transmitters?
Yes for analog signal acquisition, but HART digital communication requires a separate HART modem or gateway. The module passes the 4-20mA analog signal without interference from the HART FSK modulation, allowing simultaneous use of both protocols on the same wire pair.

Request a Quote Today

Optimize your distributed I/O architecture with proven Siemens technology. Contact our automation specialists for application-specific recommendations, volume pricing, and integration support. We provide pre-sales engineering assistance to ensure proper module selection for your signal types and accuracy requirements.
