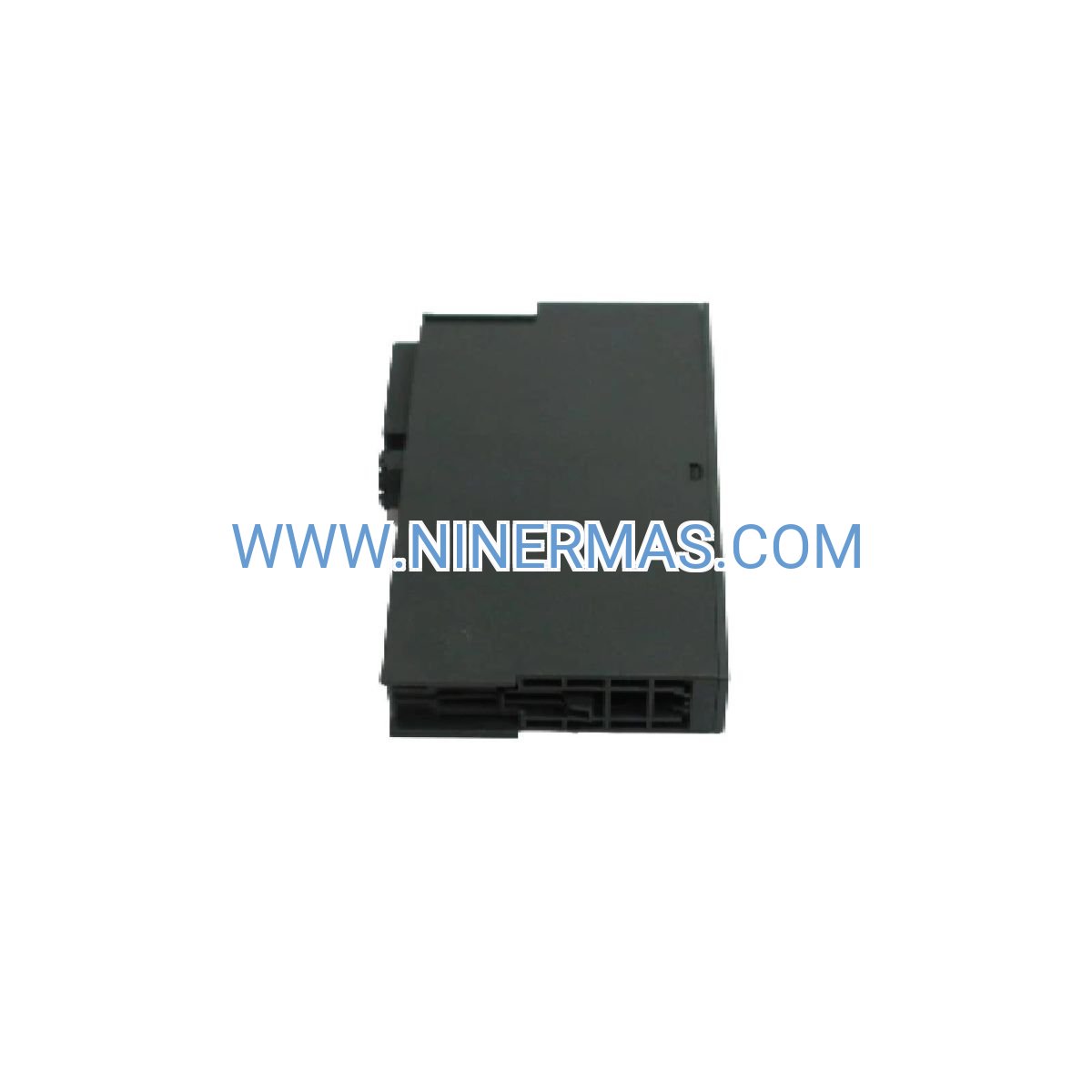

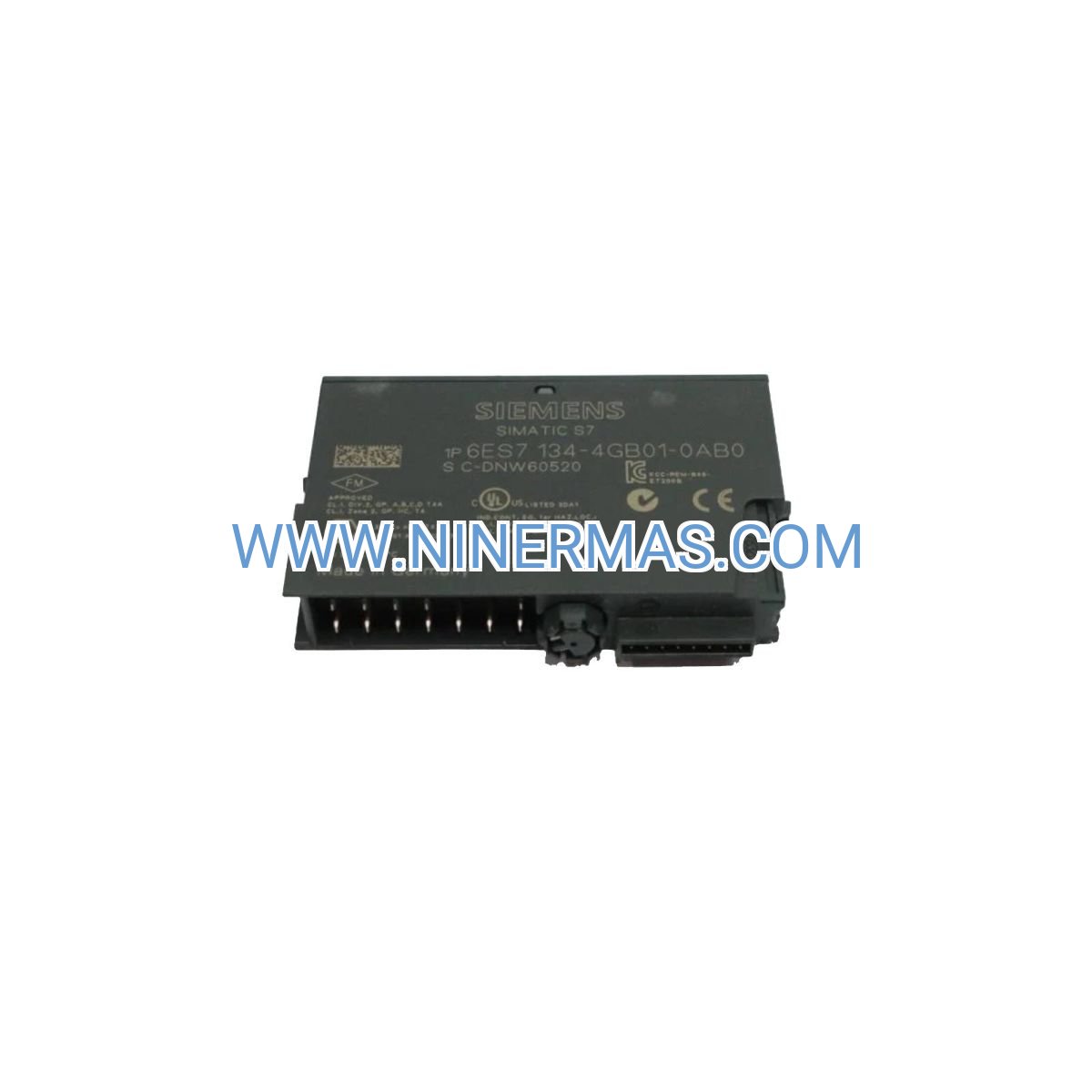

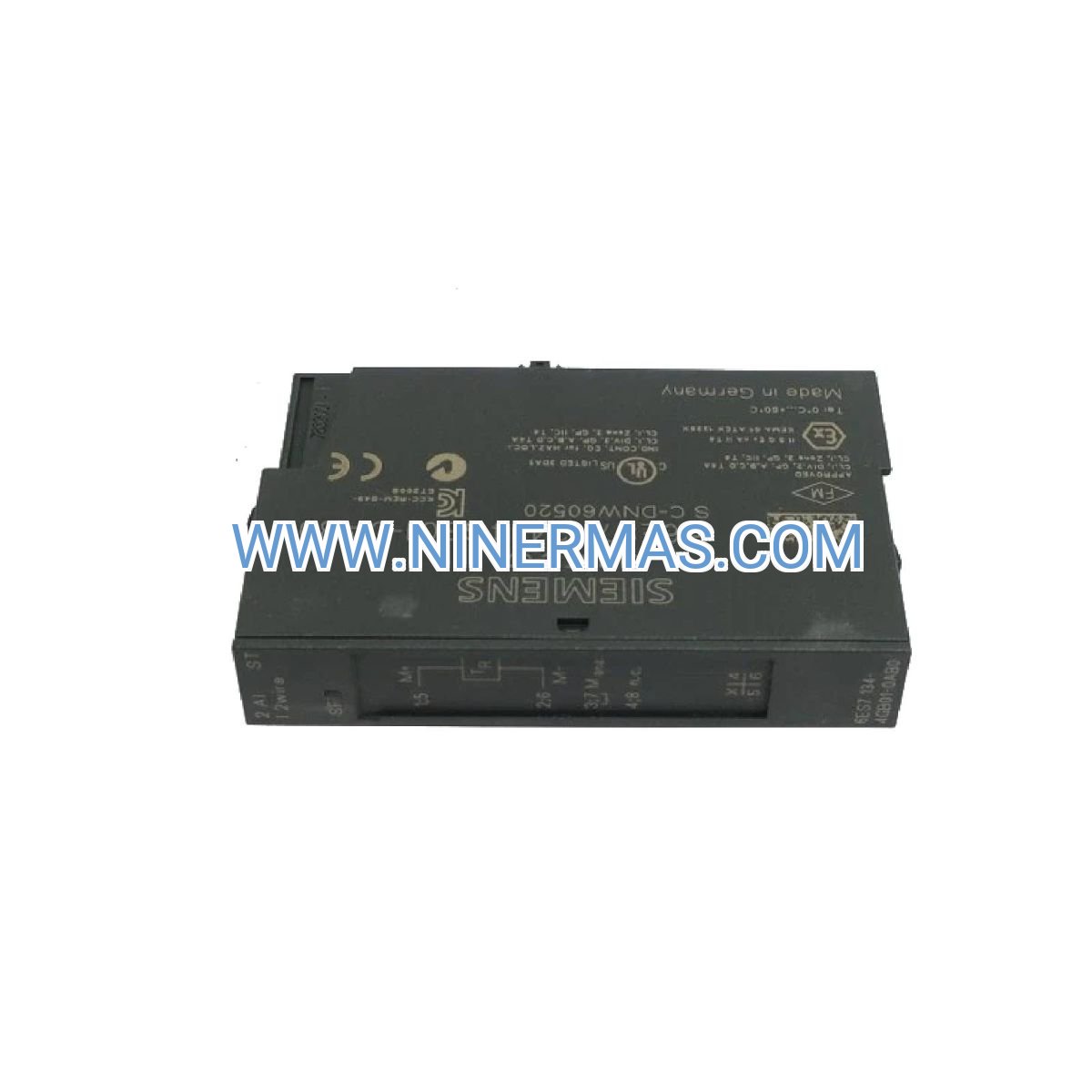

6ES7134-4GB01-0AB0 Analog Input Electronics Module (Industrial-Grade Signal Converter)

The Siemens 6ES7134-4GB01-0AB0 represents a compact yet powerful solution for industrial signal acquisition within ET 200S distributed I/O architectures. Engineered for process automation environments, this 2-channel analog input module transforms field signals—voltage or current—into digital data with 13-bit precision, enabling real-time monitoring and control across manufacturing, energy, and infrastructure sectors. Designed for system integrators and automation engineers who demand reliability in mission-critical applications, it delivers consistent performance in temperatures ranging from 0°C to +60°C while occupying just 15mm of DIN rail space.

Industrial facilities face persistent challenges: signal degradation over long cable runs, ground loop interference, and the complexity of managing mixed analog inputs. This module addresses these pain points through galvanic isolation (500V AC), flexible per-channel configuration, and hot-swap capability that eliminates costly production halts during maintenance. Whether you're retrofitting legacy systems or designing greenfield installations, the 6ES7134-4GB01-0AB0 integrates seamlessly with SIMATIC S7-300/400 controllers via PROFIBUS DP, reducing commissioning time by up to 50% compared to traditional centralized I/O.

Key advantages include diagnostic LEDs for instant fault identification, automatic hardware recognition in STEP 7 engineering software, and the ability to handle both voltage (±10V, 1-5V) and current (0-20mA, 4-20mA) inputs on a single module—cutting spare parts inventory and simplifying logistics. With proven Siemens quality and global support infrastructure, this module ensures your automation investment delivers measurable ROI through reduced downtime and enhanced process visibility.

Core Features & Technical Advantages

→ Dual-Channel Flexibility: Two independently configurable analog inputs support voltage or current signals, allowing one module to serve multiple sensor types—temperature transmitters, pressure transducers, flow meters—without additional hardware.

✓ 13-Bit Resolution with ±0.3% Accuracy: Capture subtle process variations that 12-bit systems miss. This precision translates to tighter quality control in pharmaceutical batching, chemical dosing, and HVAC optimization where every 0.1°C or 0.5 PSI matters.

→ Configurable Conversion Speed: Adjust sampling rates from 2.5ms to 100ms per channel based on application needs—fast response for motion control, slower rates for temperature monitoring to reduce noise.

✓ Galvanic Isolation (500V AC): Protects your PLC backplane from electrical faults and eliminates ground loops that cause measurement drift, particularly critical in multi-building facilities or systems with variable frequency drives.

→ Hot-Swap Design: Replace modules during operation without shutting down the entire I/O station, maintaining production continuity and reducing maintenance windows by 70%.

✓ Integrated Diagnostics: Onboard LEDs and STEP 7 diagnostic buffers pinpoint wire breaks, sensor failures, or out-of-range conditions within seconds, slashing troubleshooting time from hours to minutes.

Application Scenarios Across Industries

Chemical & Petrochemical Processing: Monitor reactor temperatures and pressures via 4-20mA transmitters. The module's isolation prevents ground potential differences between field instruments and control rooms, ensuring accurate readings even in electrically noisy refinery environments. Typical deployment: 8-12 modules per distillation column for multi-point temperature profiling.

Water & Wastewater Treatment: Track pH levels, flow rates, and tank levels across distributed pump stations. The compact 15mm width allows dense I/O packing in space-constrained control panels, while the wide operating temperature range suits outdoor enclosures in harsh climates.

Building Automation & HVAC: Integrate with BMS systems to collect data from VAV dampers, chilled water loops, and air quality sensors. The module's low 1.5W power consumption reduces heat buildup in crowded electrical rooms, extending component lifespan.

Food & Beverage Manufacturing: Ensure compliance with HACCP requirements by logging pasteurization temperatures and CIP (clean-in-place) flow rates. The module's ±0.3% accuracy meets FDA 21 CFR Part 11 data integrity standards when paired with appropriate validation protocols.

Energy & Utilities: Measure substation transformer temperatures, generator vibration levels, and solar inverter DC voltages. Supports both centralized control rooms and remote telemetry units (RTUs) via PROFIBUS DP networks spanning up to 1200 meters.

Technical Parameters & Selection Guide

Selection Criteria: Choose this 2-channel module when you need compact I/O density and have fewer than 4 analog points per location. For applications requiring 4+ inputs, consider the 4-channel variant (6ES7134-4GB50-0AB0) to reduce per-point costs. If your process demands fail-safe operation (SIL 2/3), specify the safety-rated version 6ES7134-4GB51-0AB0. For extreme environments (-25°C to +70°C), upgrade to the extended temperature range model.

Cable Recommendations: Use shielded twisted-pair cables—Belden 8761 or equivalent—with shield grounded at the module end only. Maximum cable length: 200m for 4-20mA current loops, 100m for voltage inputs to maintain specified accuracy. For outdoor runs, specify UV-resistant jacketing and conduit protection.

Extended Capabilities & Integration Options

PROFIBUS DP Communication: Transmit analog data to S7-300/400 PLCs at speeds up to 12 Mbps, supporting cycle times as fast as 1ms for time-critical control loops. The module auto-negotiates baud rates and supports GSD file integration for third-party SCADA systems.

STEP 7 Engineering Integration: Drag-and-drop configuration in TIA Portal or STEP 7 Classic. Pre-built function blocks (FCs) for scaling, linearization, and alarm handling reduce programming time by 60%. Hardware catalog includes detailed wiring diagrams and terminal assignments.

Redundancy Support: Deploy in redundant ET 200S configurations with automatic switchover for high-availability applications. Pair with redundant power modules (6ES7138-4DF11-0AB0) for complete system resilience.

Customization Services: Factory pre-configuration available for volume orders (100+ units). We can pre-load parameter sets, apply custom labels, and perform factory acceptance testing (FAT) to your specifications, reducing on-site commissioning by up to 40%.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 24-48 hours via DHL/FedEx Express. Typical delivery to North America: 5-7 business days; Europe: 3-5 days; Asia-Pacific: 4-6 days. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Custom Orders: Factory-configured modules require 2-3 weeks for programming and testing. Bulk orders (50+ units) may qualify for direct factory shipment with extended payment terms.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service—we ship a replacement unit before receiving the defective module to minimize your downtime.

Technical Support: Access our team of certified Siemens engineers via email (response within 4 hours) or phone (Monday-Friday, 8 AM-6 PM CST). Support includes STEP 7 configuration assistance, troubleshooting guidance, wiring verification, and RMA coordination.

Documentation Package: Every order includes operating manual (PDF), GSD file for PROFIBUS integration, AutoCAD DXF dimensional drawings, and sample STEP 7 code for common applications. Multilingual documentation available (English, German, Chinese, Spanish).

Frequently Asked Questions

Can I mix voltage and current inputs on the same 6ES7134-4GB01-0AB0 module?
Yes, each of the two channels can be independently configured for either voltage (±10V, 1-5V) or current (0-20mA, 4-20mA) input through software parameterization in STEP 7. This flexibility allows you to connect a 4-20mA pressure transmitter to Channel 0 and a ±10V temperature sensor to Channel 1 simultaneously.

What is the maximum cable distance for reliable analog signal transmission?
For 4-20mA current loop signals, you can use shielded twisted-pair cables up to 200 meters without signal degradation. Voltage inputs (±10V, 1-5V) should be limited to 100 meters to maintain the ±0.3% accuracy specification. Always use shielded cables with the shield grounded at the module end only to prevent ground loops.

Does this module support HART protocol for smart transmitter communication?
No, the 6ES7134-4GB01-0AB0 is a standard analog input module that reads 4-20mA signals but does not decode HART digital data. For HART-enabled applications, consider the Siemens 6ES7134-4JB51-0AB0 HART analog input module, which can extract both process variables and diagnostic information from HART transmitters.

How do I replace a module without disrupting the running process?
The ET 200S system supports hot-swapping: (1) Note the module's current position and configuration, (2) Pull the module straight out from the DIN rail while the system is powered, (3) Insert the replacement module in the same slot, (4) The system automatically recognizes the new module and applies the stored configuration from the interface module. Total swap time: under 30 seconds with zero process interruption.

Is this module compatible with fail-safe ET 200S systems for safety applications?
The 6ES7134-4GB01-0AB0 is a standard (non-safety) module suitable for process monitoring and control. For safety-related applications requiring SIL 2 or SIL 3 certification (emergency shutdown systems, burner management), you must use the fail-safe variant 6ES7134-4GB51-0AB0, which includes additional diagnostic coverage and safe state behavior.

What energy efficiency benefits does this module provide compared to older I/O systems?
At just 1.5W power consumption per module, the 6ES7134-4GB01-0AB0 uses 40-50% less energy than legacy analog input cards. In a typical installation with 50 analog points, this translates to 75W savings—reducing cooling requirements, lowering electrical costs by approximately $80/year, and contributing to LEED certification points for green building projects.

Take the Next Step in Process Optimization

Ready to enhance your automation system's signal acquisition capabilities? Contact our technical sales team for application-specific recommendations, volume pricing, or to request a detailed quotation. We offer free pre-sales engineering support to ensure the 6ES7134-4GB01-0AB0 meets your exact requirements—from cable sizing calculations to PROFIBUS network design.

Order now to receive: Fast global shipping, comprehensive warranty coverage, and access to our certified engineering support team. For urgent projects, ask about our expedited delivery service with guaranteed delivery dates.
