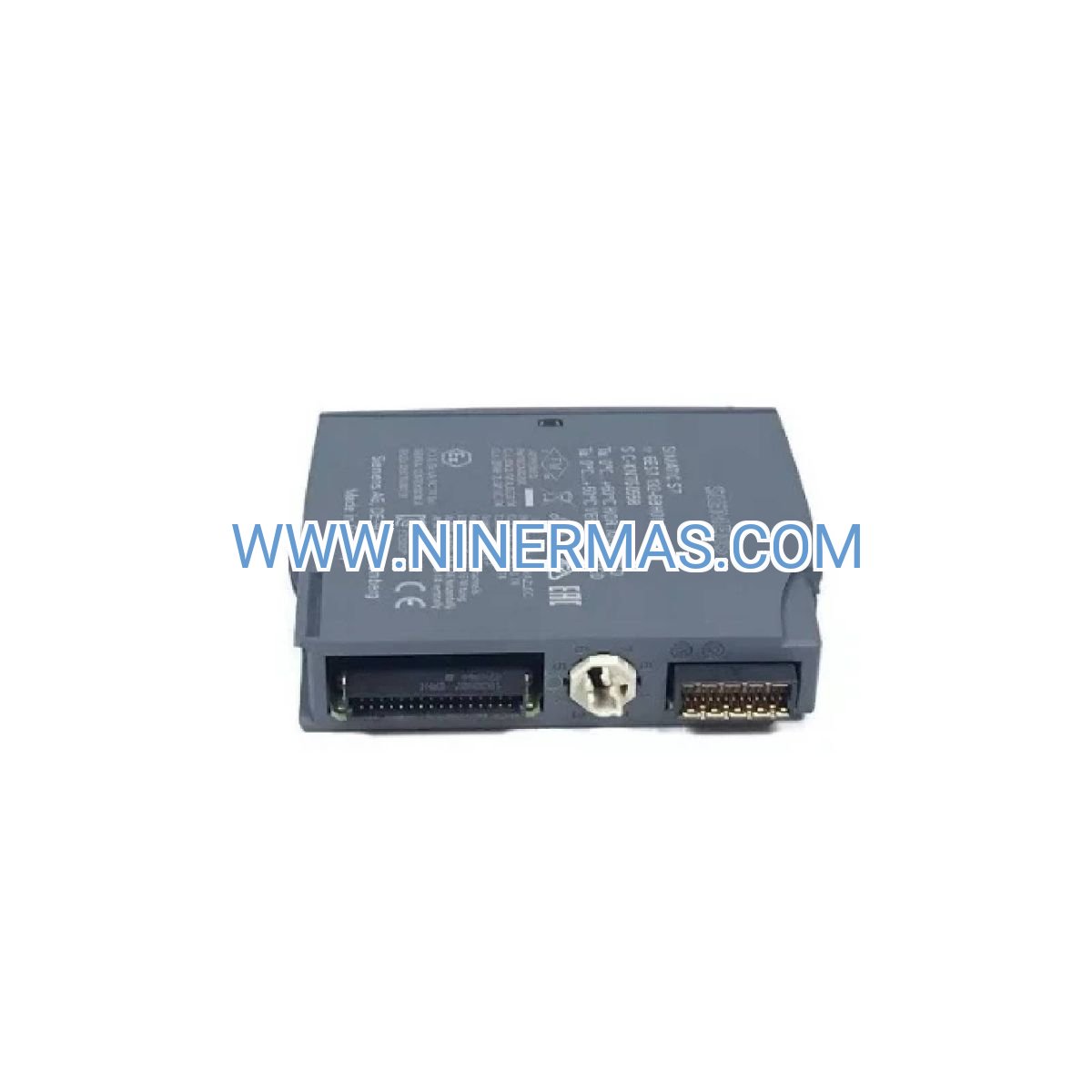

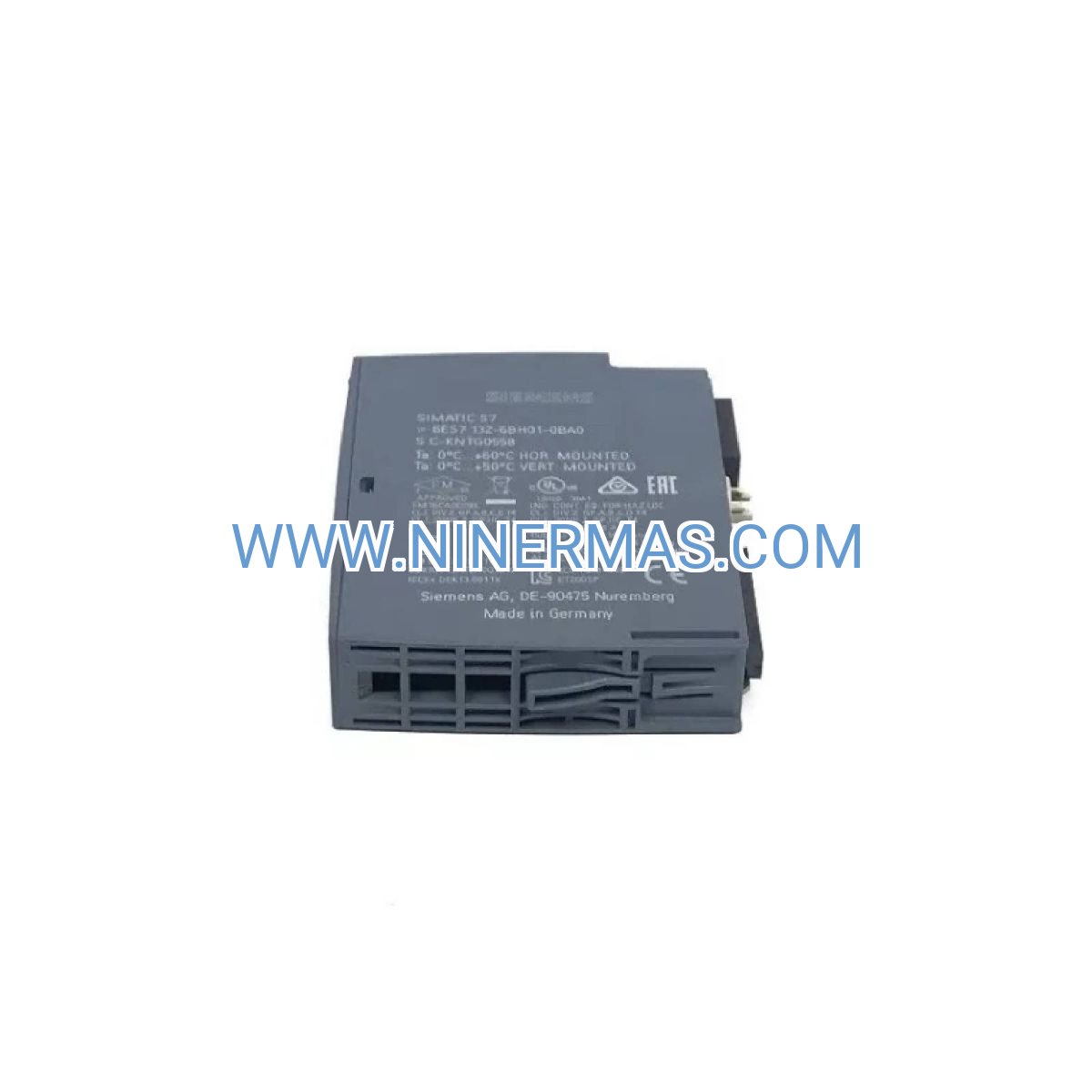

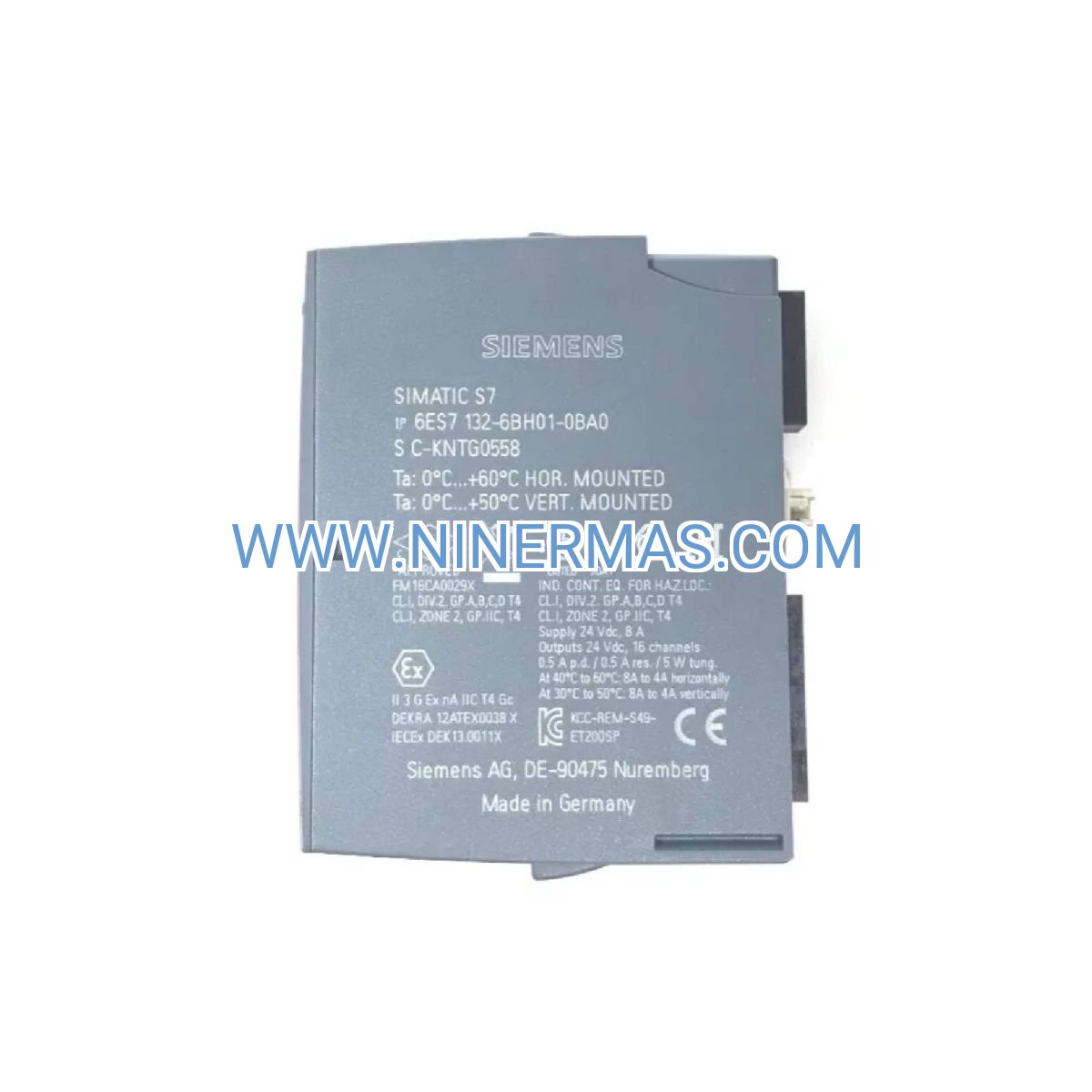

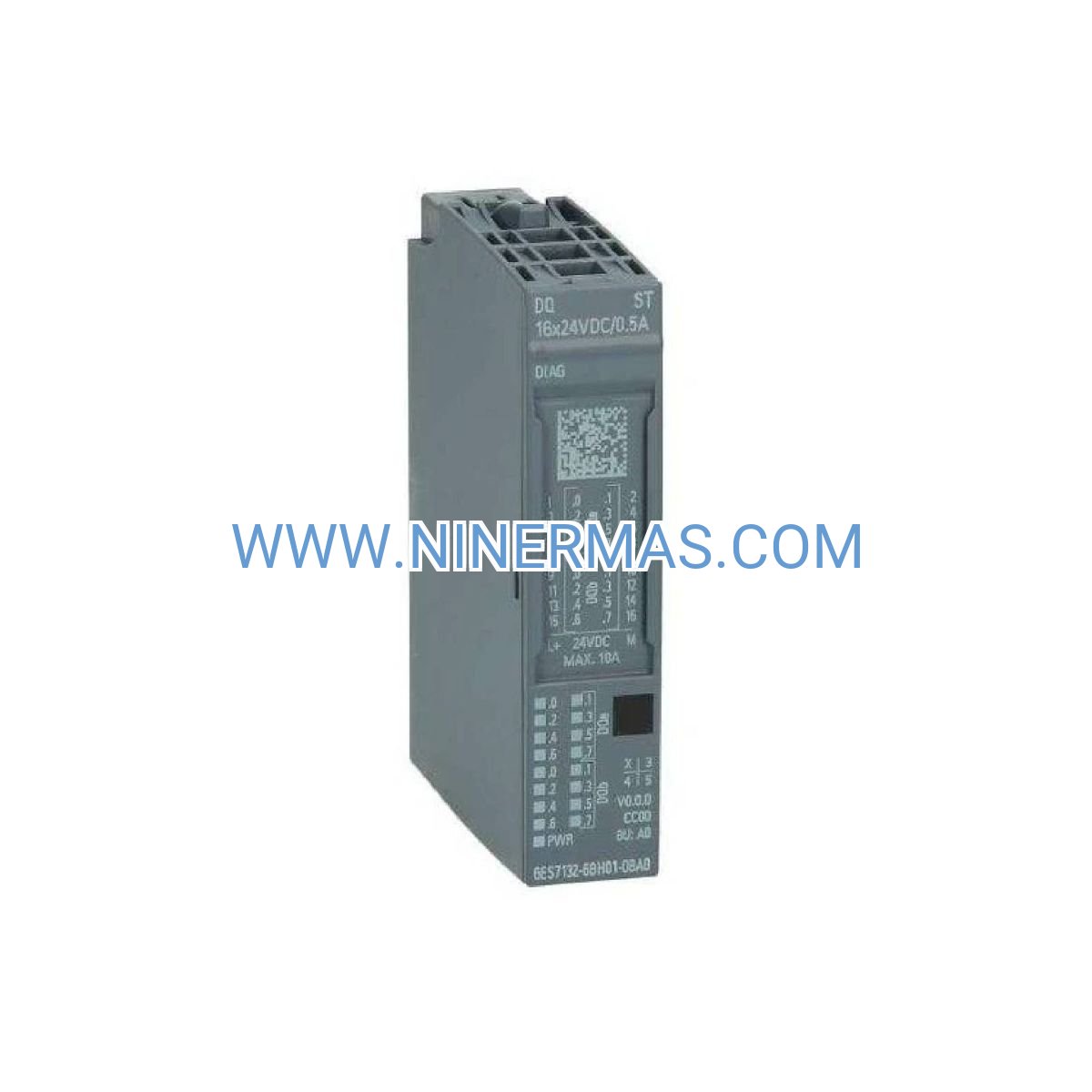

Siemens 6ES7132-6BH00-0BA0 – Industrial-Grade 16-Channel Digital Output Module

The Siemens 6ES7132-6BH00-0BA0 is a high-performance digital output module designed for the ET 200SP distributed I/O system. Engineered to deliver precise 24V DC switching control across 16 independent channels, this module serves as the critical interface between your SIMATIC controller and field actuators—including solenoid valves, motor contactors, indicator lamps, and relay coils. Its ultra-compact 15mm width enables maximum I/O density in space-constrained control cabinets while maintaining industrial-grade reliability for 24/7 operation in demanding manufacturing, process control, and infrastructure automation environments.

Built on Siemens' proven ET 200SP platform, this module integrates seamlessly with S7-1200, S7-1500, and distributed safety controllers via high-speed PROFINET communication. The hot-swappable BaseUnit architecture allows maintenance teams to replace modules during operation without system shutdown, minimizing costly production interruptions. Advanced channel-level diagnostics accessible through TIA Portal enable proactive fault detection and rapid troubleshooting, reducing mean time to repair (MTTR) by up to 60% compared to legacy I/O systems.

Whether you're modernizing existing automation infrastructure or designing greenfield installations, the 6ES7132-6BH00-0BA0 delivers the performance, flexibility, and long-term support that industrial operations demand. Contact our technical team today to discuss your specific application requirements and receive customized system integration guidance.

Core Features & Technical Advantages

This module combines cutting-edge hardware design with intelligent diagnostics to deliver measurable operational benefits:

• ✓ High-Density I/O Architecture: 16 independent output channels in just 15mm width—enabling up to 64 outputs per standard DIN rail segment while reducing cabinet footprint by 40% versus traditional terminal-based wiring
• ✓ Robust 24V DC Switching: Each channel delivers 0.5A continuous current with 20.4-28.8V operating range, providing reliable control for industrial loads including pneumatic valves, LED indicators, and low-power motor starters
• ✓ PROFINET RT/IRT Communication: Supports both Real-Time and Isochronous Real-Time protocols for applications requiring deterministic cycle times down to 250μs—ideal for synchronized motion control and high-speed packaging lines
• ✓ Hot-Swap Capability: Tool-free module replacement during operation via color-coded BaseUnit system—maintenance technicians can swap failed modules in under 60 seconds without disrupting adjacent I/O points
• ✓ Comprehensive Diagnostics: Channel-specific fault detection with LED status indicators and TIA Portal integration—instantly identify short circuits, wire breaks, and overload conditions to accelerate troubleshooting
• ✓ Extended Temperature Range: Operates reliably from -25°C to +60°C ambient temperature with conformal coating protection—suitable for harsh environments including outdoor enclosures and non-climate-controlled facilities

Industrial Application Scenarios

The 6ES7132-6BH00-0BA0 module delivers proven performance across diverse automation sectors:

→ Automotive Manufacturing: Controls pneumatic grippers, part ejectors, and quality inspection gates in body-in-white welding cells and final assembly stations. The module's fast switching frequency (up to 100 Hz) supports high-speed pick-and-place operations while channel isolation prevents electrical noise from disrupting adjacent sensor circuits.

→ Food & Beverage Processing: Manages filling valves, conveyor diverters, CIP spray ball actuators, and product reject mechanisms in bottling lines and packaging equipment. The module's IP20-rated housing with optional conformal coating meets hygiene standards for washdown environments when installed in appropriate enclosures.

→ Water Treatment Facilities: Operates chemical dosing pumps, isolation valves, mixer motors, and alarm beacons in municipal water treatment and wastewater management systems. The extended temperature rating ensures reliable operation in outdoor pump stations and unheated equipment buildings.

→ Material Handling Systems: Coordinates sortation gates, lift table hydraulics, AGV traffic signals, and barcode scanner triggers in distribution centers and automated warehouses. Multiple modules can be distributed along conveyor runs to minimize cable lengths and reduce installation costs.

→ Building Automation: Controls HVAC damper actuators, lighting contactors, access control door strikes, and fire suppression system valves in commercial facilities. The module's compact design fits within standard electrical panels alongside power distribution equipment.

Technical Specifications & Selection Guide

Selection Criteria: Choose this module when your application requires medium-current (≤0.5A) switching of 24V DC loads across 16 points. For higher current requirements (up to 2A per channel), consider the 6ES7132-4BD32-0AA0 variant. Applications involving safety-rated outputs should utilize the ET 200SP F-DQ modules with integrated safety functions. Verify that your selected BaseUnit type (BU type A0, dark-colored) matches the module's power requirements.

Advanced Integration Capabilities

The ET 200SP ecosystem extends beyond basic I/O functionality to support sophisticated automation architectures. This module integrates with SIMATIC Energy Suite for power consumption monitoring at the channel level, enabling energy optimization strategies in sustainability-focused facilities. When combined with ET 200SP HA (High Availability) interface modules, the system supports redundant controller configurations for mission-critical processes requiring 99.99% uptime.

TIA Portal V13 or later provides comprehensive engineering tools including automatic GSD file recognition, graphical hardware configuration, and integrated diagnostics. The shared device view allows simultaneous configuration of I/O modules, controller programs, and HMI screens—reducing engineering time by up to 30% compared to separate tool workflows. Cloud connectivity via SIMATIC IOT2050 gateways enables remote monitoring and predictive maintenance analytics using Siemens Industrial Edge or third-party SCADA platforms.

Delivery Timeline & Technical Support

Standard Lead Time: In-stock items ship within 1-3 business days via express courier (DHL, FedEx, UPS). Custom configurations or large-volume orders typically require 2-4 weeks for factory fulfillment and quality verification.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer's warranty covering material defects and workmanship failures. Extended warranty programs and advance replacement services are available for critical infrastructure applications.

Technical Assistance: Our certified Siemens specialists provide complimentary pre-sales consultation including system architecture review, I/O point calculations, and cable length verification. Post-sales support includes TIA Portal configuration assistance, PROFINET troubleshooting, and firmware update guidance.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and GSD file download instructions. Complete technical manuals, CAD drawings (EPLAN, AutoCAD), and 3D STEP models are available via our online resource center.

Frequently Asked Questions

Q: What BaseUnit configuration is required for the 6ES7132-6BH00-0BA0 output module?
A: This module requires a dark-colored BaseUnit (BU type A0) designed for digital output applications. The BaseUnit provides power distribution and mechanical mounting—ensure you order the appropriate quantity as BaseUnits are sold separately from I/O modules.

Q: Can this module control inductive loads such as solenoid valves and relay coils?
A: Yes, each output channel includes integrated freewheeling diodes to safely dissipate inductive energy when switching solenoid valves, contactors, and relay coils. For highly inductive loads, external suppression circuits may improve switching life and reduce electrical noise.

Q: What is the maximum cable distance between the module and field devices?
A: Shielded cables up to 1000 meters are supported for 24V DC loads, though practical distance depends on cable gauge, load current, and electromagnetic environment. For distances exceeding 100 meters, use twisted-pair shielded cable (minimum 0.5mm² conductor) and verify voltage drop calculations.

Q: Does the ET 200SP system support redundant PROFINET communication?
A: Yes, when using ET 200SP HA interface modules with Media Redundancy Protocol (MRP), the system supports ring topology with automatic failover in case of cable breaks or switch failures—typically achieving switchover times under 200ms.

Q: How do I update firmware on ET 200SP I/O modules?
A: Firmware updates are managed through the ET 200SP interface module via TIA Portal. Individual I/O modules like the 6ES7132-6BH00-0BA0 do not require separate firmware updates—all intelligence resides in the interface module and controller.

Q: Is this module suitable for outdoor installation or harsh industrial environments?
A: The module itself is rated IP20 and designed for installation within protective enclosures. For outdoor or washdown environments, install the ET 200SP system in IP65/IP67-rated junction boxes or stainless steel cabinets with appropriate environmental sealing and temperature management.

Start Your Automation Project Today

Ready to optimize your distributed I/O architecture with proven Siemens technology? Our technical team is standing by to assist with system design, product selection, and integration planning. Contact us now for a customized quotation, technical datasheet package, or to schedule a consultation with our automation specialists. We maintain strategic inventory across global distribution centers to support both urgent replacement needs and large-scale project deployments.
