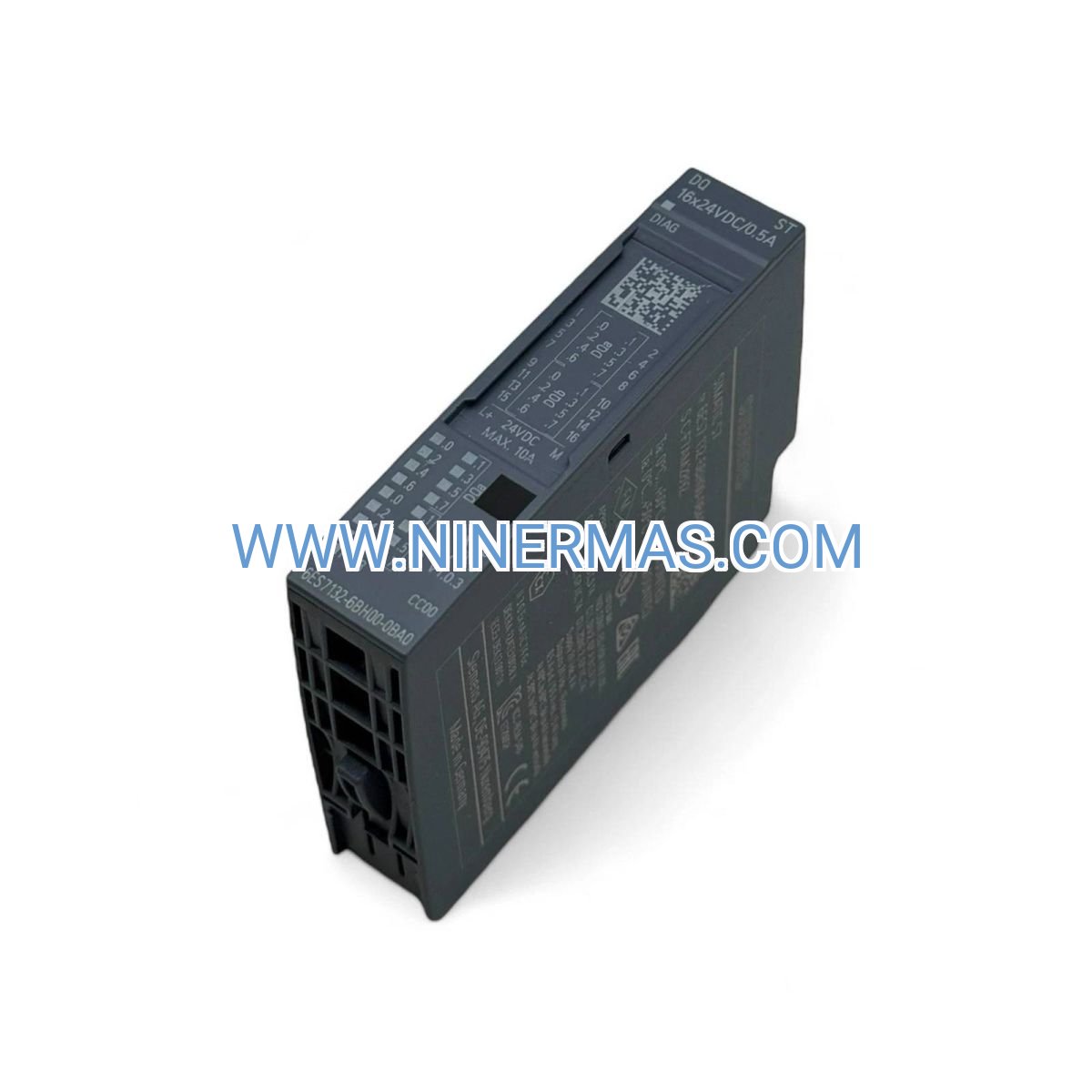

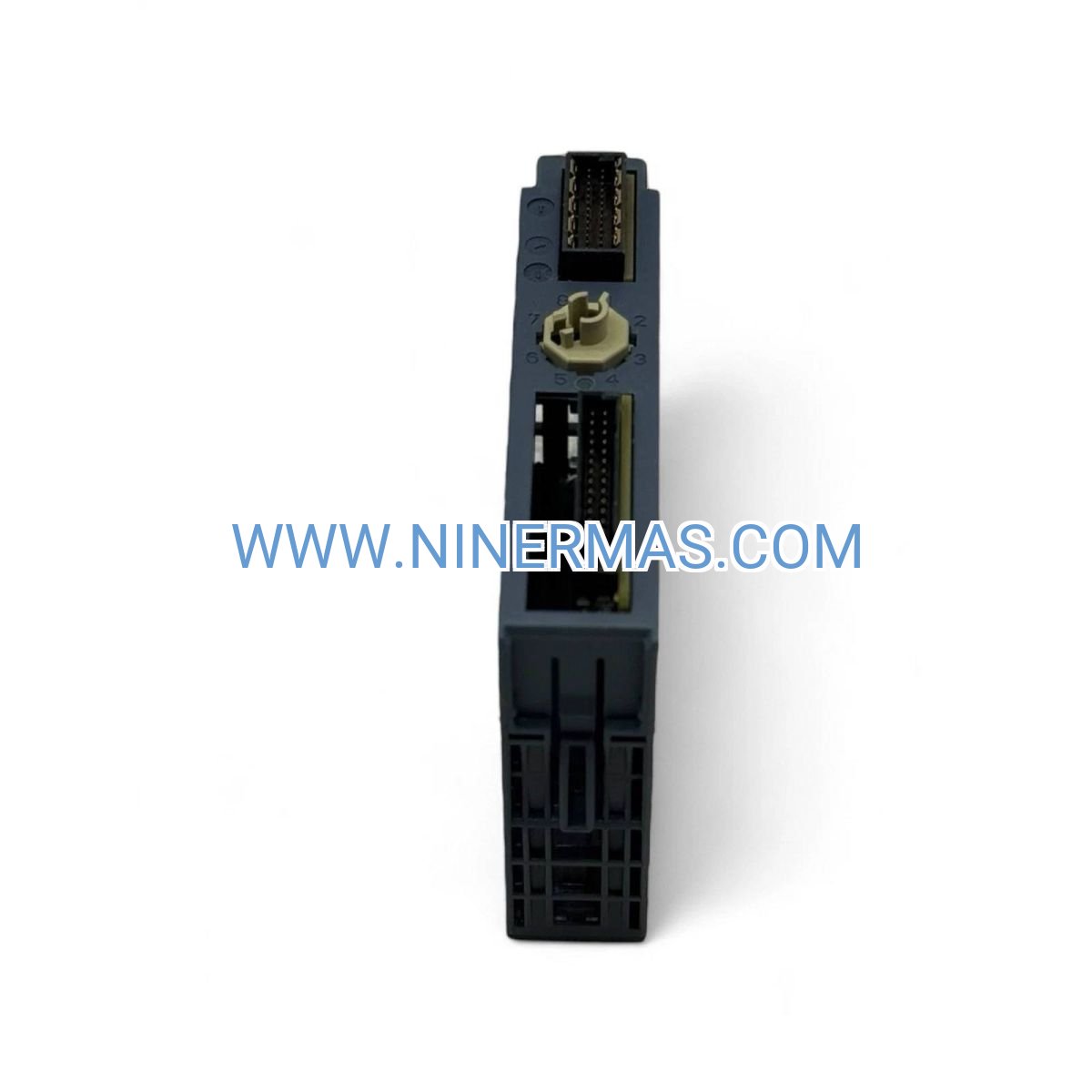

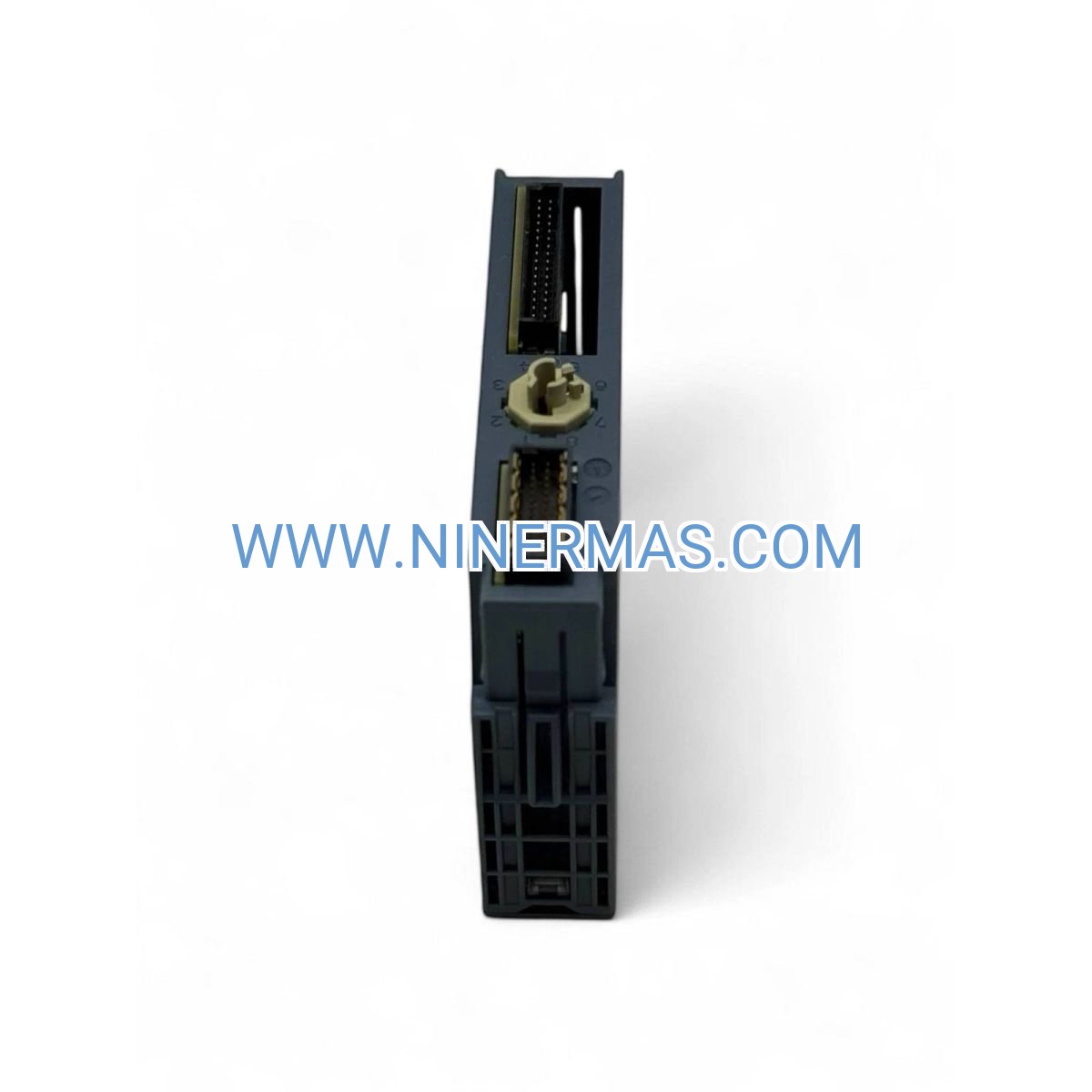

6ES7132-6BH00-0BA0 – Industrial-Grade 16-Channel Digital Output Module

The Siemens 6ES7132-6BH00-0BA0 is a high-density digital output module engineered for the ET 200SP distributed I/O platform. Designed to drive industrial actuators, solenoid valves, indicator lamps, and relay coils, this module delivers 16 independent 24V DC output channels in an ultra-compact 15mm footprint. Built for demanding manufacturing, process control, and infrastructure automation environments, it combines robust performance with intelligent diagnostics to maximize system uptime and operational efficiency.

Ideal for machine builders, system integrators, and plant engineers seeking scalable, space-efficient control solutions, the 6ES7132-6BH00-0BA0 integrates seamlessly with SIMATIC S7-1200/S7-1500 controllers via high-speed PROFINET networks. Its hot-swappable BaseUnit architecture enables maintenance without production interruption, while channel-level fault detection ensures rapid troubleshooting and predictive maintenance capabilities.

Whether you're modernizing legacy systems, expanding production lines, or designing greenfield automation projects, this module provides the reliability, flexibility, and performance required for mission-critical industrial applications. Backed by Siemens' global engineering excellence and our comprehensive technical support, it represents a future-proof investment in your automation infrastructure.

Core Features & Benefits

✓ High-Density Output Configuration
16 independent digital outputs deliver maximum control density while minimizing cabinet space requirements. Each channel supports 0.5A continuous current, suitable for driving standard industrial loads including pneumatic valve manifolds, motor contactors, and signaling devices. This high channel count reduces module quantity and simplifies system architecture.

✓ Space-Optimized Mechanical Design
At just 15mm width per module, the 6ES7132-6BH00-0BA0 enables up to 60% cabinet space savings compared to conventional terminal-based I/O systems. The compact form factor reduces panel costs, improves cooling efficiency, and facilitates dense machine layouts without compromising accessibility or serviceability.

✓ PROFINET IRT Communication
Supports Isochronous Real-Time (IRT) communication for deterministic control with cycle times down to 250μs. This precision timing capability makes the module suitable for synchronized motion control, high-speed packaging lines, and coordinated multi-axis applications where output timing accuracy is critical.

✓ Intelligent Diagnostic Capabilities
Integrated channel-level diagnostics detect short circuits, overload conditions, and wire breaks in real-time. Status LEDs provide immediate visual feedback, while detailed diagnostic data accessible through TIA Portal enables condition-based maintenance strategies that reduce unplanned downtime by up to 35%.

✓ Tool-Free Hot-Swap Maintenance
The innovative BaseUnit concept allows module replacement during operation without tools or wiring changes. Simply unlock, remove the faulty module, and insert a replacement – configuration is automatically restored from the controller. This feature dramatically reduces mean time to repair (MTTR) in 24/7 production environments.

✓ Wide Environmental Operating Range
Rated for -25°C to +60°C ambient temperatures with conformal coating protection against humidity, dust, and chemical exposure. Meets stringent industrial standards including CE, UL, cULus, and ATEX Zone 2 certification for use in potentially explosive atmospheres.

Application Scenarios

→ Automotive Manufacturing & Assembly
In automotive body shops and final assembly lines, the 6ES7132-6BH00-0BA0 controls pneumatic clamping fixtures, part presence sensors, quality gate actuators, and conveyor routing mechanisms. Its fast switching frequency (up to 100 Hz) supports high-speed pick-and-place operations, while robust construction withstands welding spatter and electromagnetic interference common in automotive environments. System integrators report 40% faster commissioning times compared to traditional hardwired I/O.

→ Food & Beverage Processing
Food production facilities utilize this module to manage filling valve banks, CIP (Clean-In-Place) system actuators, product diverters, and reject mechanisms. The module's stainless-steel compatible mounting and IP20 protection support hygienic design principles. Galvanic isolation between channels prevents cross-contamination of control signals, critical for maintaining product quality and regulatory compliance in FDA-regulated environments.

→ Chemical & Pharmaceutical Batch Processing
Batch control systems leverage the 6ES7132-6BH00-0BA0 for precise sequencing of isolation valves, dosing pump controls, reactor agitator motors, and emergency shutdown devices. The module's diagnostic capabilities integrate with DCS/SCADA systems to provide complete audit trails for 21 CFR Part 11 compliance. Redundant configuration options ensure continuous operation in critical process control applications.

→ Warehouse Automation & Logistics
Distribution centers deploy multiple modules to orchestrate sortation systems, automated storage/retrieval systems (AS/RS), conveyor networks, and AGV traffic management. The compact design enables distributed control architectures that reduce wiring costs by up to 50% in large facilities. PROFINET's deterministic communication ensures synchronized operation across hundreds of output points.

→ Water Treatment & Infrastructure
Municipal water treatment plants use the module to control pump stations, valve actuators, chemical dosing systems, and alarm annunciators. Its wide temperature range and robust construction suit outdoor installations and harsh industrial environments. Integration with SIMATIC S7-1500 controllers enables remote monitoring and predictive maintenance through cloud connectivity.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 6ES7132-6BH00-0BA0 when your application requires high-density 24V DC output control with standard current ratings (0.5A/channel). For higher current loads (up to 2A), consider the 6ES7132-4BD32-0AA0 4-channel variant. If your system demands fail-safe operation, select the equivalent F-module (6ES7136-6BA00-0CA0) with integrated safety functions. Ensure your ET 200SP system includes an appropriate interface module (IM 155-6 PN ST or IM 155-6 PN HF) and sufficient power budget for total output load current.

Extended Functions

IoT Integration & Cloud Connectivity
When paired with SIMATIC S7-1500 controllers and SIMATIC Edge devices, output data can be streamed to MindSphere or third-party cloud platforms for advanced analytics. Monitor switching cycles, detect abnormal load patterns, and implement predictive maintenance algorithms that forecast component failures before they impact production.

Advanced Diagnostic Capabilities
Beyond basic fault detection, the module supports parametrizable reaction modes for overload conditions. Configure individual channels to automatically disable on fault, trigger controller alarms, or continue operation with reduced current limits. Diagnostic buffers store historical fault events for root cause analysis and compliance documentation.

Customization & OEM Solutions
For high-volume OEM applications, Siemens offers customized module variants with pre-configured parameters, customer-specific labeling, and extended temperature ranges. Contact our engineering team to discuss application-specific modifications, volume pricing, and technical co-development opportunities.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. For bulk orders (50+ units) or custom configurations, typical lead time is 4-6 weeks. Expedited shipping options available for urgent project requirements.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer warranty covering material defects and workmanship. Extended warranty programs (up to 36 months) available for critical infrastructure applications.

Technical Support: Our certified Siemens specialists provide pre-sales application consulting, system design review, commissioning assistance, and lifetime technical support. Access includes phone/email support, remote diagnostics, and on-site service in major industrial regions.

Documentation Package: Each module ships with installation manual, wiring diagrams, GSD file for TIA Portal integration, and compliance certificates. Comprehensive technical documentation available in 12 languages through Siemens Industry Online Support portal.

Frequently Asked Questions

What BaseUnit configuration is required for the 6ES7132-6BH00-0BA0 output module?
This module requires a dark-colored BaseUnit type A0 (part number 6ES7193-6BP00-0DA0 or 6ES7193-6BP00-0DA1 with push-in terminals). The BaseUnit provides power distribution, output protection circuits, and mechanical mounting. Each BaseUnit accommodates one I/O module and connects to adjacent units via the shared backplane bus.

Can this digital output module drive inductive loads like solenoid valves?
Yes, each output channel includes integrated freewheeling diodes to safely switch inductive loads such as solenoid valves, relay coils, and contactor coils. For highly inductive loads, external surge suppression (RC snubbers or varistors) may improve switching performance and extend contact life. Consult the technical manual for specific inductive load ratings.

How does hot-swap functionality work during module replacement?
The ET 200SP system supports online module replacement without stopping the controller or interrupting other I/O modules. To replace: (1) Unlock the module using the integrated release mechanism, (2) Pull the module straight out while BaseUnit remains powered, (3) Insert the replacement module until it clicks into place. The controller automatically detects the new module and downloads the stored configuration – no manual programming required.

What is the maximum cable length for connecting output devices?
For shielded cables with 0.5mm² cross-section, maximum recommended length is 1000 meters for resistive loads and 600 meters for inductive loads. Actual distance depends on cable quality, electromagnetic environment, and load characteristics. Use twisted-pair shielded cables with 360° shield termination at the BaseUnit for optimal noise immunity in industrial environments.

Is the module compatible with SIMATIC S7-300/S7-400 controllers?
No, the ET 200SP system is designed exclusively for SIMATIC S7-1200, S7-1500, and S7-1500F controllers using PROFINET communication. For S7-300/S7-400 systems, use the ET 200M or ET 200S distributed I/O families with PROFIBUS DP connectivity. Migration from S7-300/400 to S7-1500 enables access to ET 200SP's advanced features.

Does the module support energy-efficient standby modes?
Yes, when integrated with energy-transparent PROFINET configurations, the module supports coordinated power management. Unused output channels can be parametrized to low-power states during production pauses, reducing overall system energy consumption by 15-25% in applications with intermittent operation cycles.

Start Your Automation Project Today

Ready to enhance your control system with proven Siemens technology? Our technical team is available to discuss your specific application requirements, provide system design recommendations, and deliver competitive quotations for single modules or complete ET 200SP solutions. Contact us via email at sale@ninermas.com or call +0086 187 5021 5667 to speak with an automation specialist. Request detailed datasheets, CAD drawings, or sample configurations for your project evaluation.
