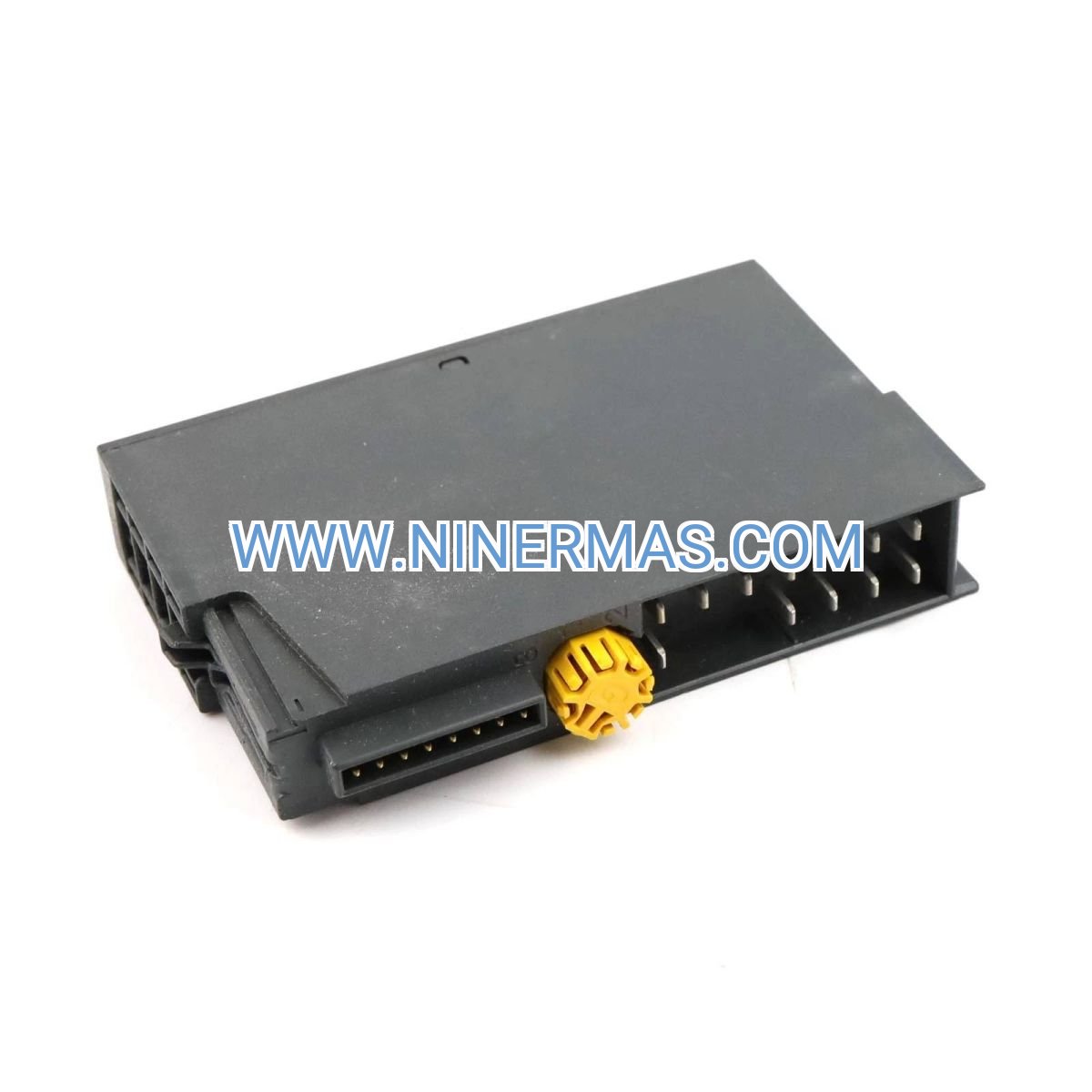

Siemens 6ES7132-4HB12-0AB0 Relay Output Module (Industrial-Grade ET 200S Component)

The Siemens 6ES7132-4HB12-0AB0 represents a proven relay-based digital output solution engineered for the ET 200S distributed I/O platform. This dual-channel module delivers dependable switching performance across mixed AC and DC voltage environments, making it the preferred choice for industrial control applications requiring galvanic isolation and robust load handling. Designed for seamless PROFIBUS DP integration, it serves automation engineers seeking reliable actuation control in manufacturing, process industries, and infrastructure systems.

Process engineers and system integrators face persistent challenges with output modules that lack voltage flexibility or fail under inductive load conditions. The 6ES7132-4HB12-0AB0 addresses these pain points through relay contact technology that handles both 24-48V DC and 24-230V AC loads up to 2A per channel, while providing complete electrical isolation between control logic and field devices. This versatility eliminates the need for multiple module types and simplifies spare parts inventory management.

Key differentiators include hot-swap capability for zero-downtime maintenance, integrated diagnostics with channel-level status indication, and spring-loaded terminal options that accelerate installation while ensuring vibration-resistant connections. Whether you're retrofitting legacy systems or designing new automation architectures, this module delivers the reliability and flexibility demanded by mission-critical industrial operations.

Core Features & Benefits

→ Dual Voltage Compatibility: Switch both AC (24-230V) and DC (24-48V) loads with a single module type, reducing inventory complexity and enabling mixed-voltage panel designs without additional interface relays.

→ Galvanic Isolation Architecture: Complete electrical separation between backplane bus and output channels protects sensitive PLC logic from field-side voltage transients and ground potential differences in distributed installations.

→ Hot-Swap Serviceability: Replace modules during live operation when paired with compatible ET 200S interface units, minimizing production interruptions and enabling predictive maintenance strategies.

→ Inductive Load Handling: Relay contacts withstand the inrush currents and back-EMF generated by solenoid valves, motor contactors, and electromagnetic actuators without requiring external suppression circuits.

✓ Integrated Protection Systems: Built-in short-circuit detection and overload safeguards prevent module damage during fault conditions, while LED indicators provide instant visual confirmation of output states.

✓ STEP 7 Configuration Integration: Rapid commissioning through TIA Portal or STEP 7 Classic with pre-configured hardware catalogs, automatic address assignment, and comprehensive diagnostic data access.

Application Scenarios

Packaging Line Pneumatic Control: Actuate solenoid valves controlling product positioning, sealing mechanisms, and reject gates in high-speed packaging operations. The module's 2A switching capacity handles standard industrial valve coils, while galvanic isolation prevents electrical noise from affecting recipe management logic.

Water Treatment Pump Sequencing: Control motor starter contactors for multi-pump installations in municipal water systems. Relay outputs provide the necessary isolation between low-voltage PLC signals and 230V AC contactor coils, meeting electrical code requirements for safety-critical infrastructure.

Conveyor Interlock Systems: Implement safety interlocks and emergency stop circuits across distributed conveyor networks. The module's proven relay technology ensures fail-safe operation, while PROFIBUS diagnostics enable rapid fault localization during troubleshooting.

HVAC Damper Actuation: Drive motorized dampers and zone control actuators in building automation systems. Dual voltage capability accommodates both 24V AC damper motors and 230V AC fan contactors within a unified control architecture.

Process Alarm Annunciation: Activate visual and audible alarm devices in chemical processing facilities. Relay isolation protects control systems from voltage surges in long cable runs to remote alarm panels.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires switching loads between 24-230V with current demands up to 2A per channel. For higher channel density, consider the 4DO or 8DO variants. If faster switching speeds are critical (>10 Hz), evaluate solid-state output modules. For safety-rated applications, verify compatibility with fail-safe ET 200S configurations.

Extended Functions

Remote Diagnostics Integration: Access real-time output status, switching cycle counters, and fault history through PROFINET-enabled SCADA systems or cloud-based monitoring platforms when integrated with appropriate ET 200S gateways.

Predictive Maintenance Enablement: Monitor relay contact wear through switching cycle tracking available in advanced STEP 7 diagnostic buffers, enabling condition-based replacement before failures occur.

Custom Load Configurations: Factory configuration services available for specialized voltage ranges, contact materials optimized for specific load types, or conformal coating for harsh environmental conditions.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days via express courier services. Custom configurations or bulk orders (>50 units) typically require 4-6 weeks from order confirmation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to application engineers with ET 200S expertise for configuration assistance, troubleshooting guidance, and system optimization recommendations. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module includes installation manual, wiring diagrams, STEP 7 GSD files, and dimensional drawings. Complete technical data sheets and certification documents (CE, UL, ATEX where applicable) provided upon request.

Frequently Asked Questions

What is the maximum cable length for connecting field devices to this relay output module?
Relay outputs can drive loads over cable distances up to 300 meters when using appropriate wire gauges (minimum 0.75mm² recommended). For longer runs, consider voltage drop calculations and potential need for local power supplies.

How does this module handle inductive load suppression for solenoid valves?
Relay contacts inherently tolerate inductive switching without external suppression in most applications. For highly inductive loads (>50mH), install varistor or RC snubber circuits across the load terminals to maximize contact life.

Can I mix AC and DC loads on the same module simultaneously?
Yes, each of the two channels operates independently. Channel 1 can switch a 230V AC contactor while Channel 2 controls a 24V DC solenoid valve without interference or special configuration.

What are the installation requirements for hot-swap functionality?
Hot-swapping requires an ET 200S interface module with integrated electronic keying (such as IM 151-1 variants with hot-swap support). Verify your specific interface module supports this feature before attempting live replacement.

How do I monitor relay contact wear for preventive maintenance scheduling?
STEP 7 diagnostic buffers track switching cycle counts when enabled in hardware configuration. Set up threshold-based alarms in your SCADA system to trigger maintenance notifications at 80% of rated contact life (typically 80,000-800,000 cycles depending on load).

Is this module suitable for safety-rated emergency stop circuits?
While the module provides reliable switching, it is not safety-rated per IEC 61508 or ISO 13849. For safety functions, use certified fail-safe ET 200S modules (F-series) designed for SIL 2/3 or PLd/e applications.

Take the Next Step

Ready to integrate the 6ES7132-4HB12-0AB0 into your automation project? Contact our technical sales team for application-specific guidance, volume pricing, or to request sample units for evaluation. Our engineers can assist with system design reviews, compatibility verification, and configuration optimization to ensure successful deployment.
