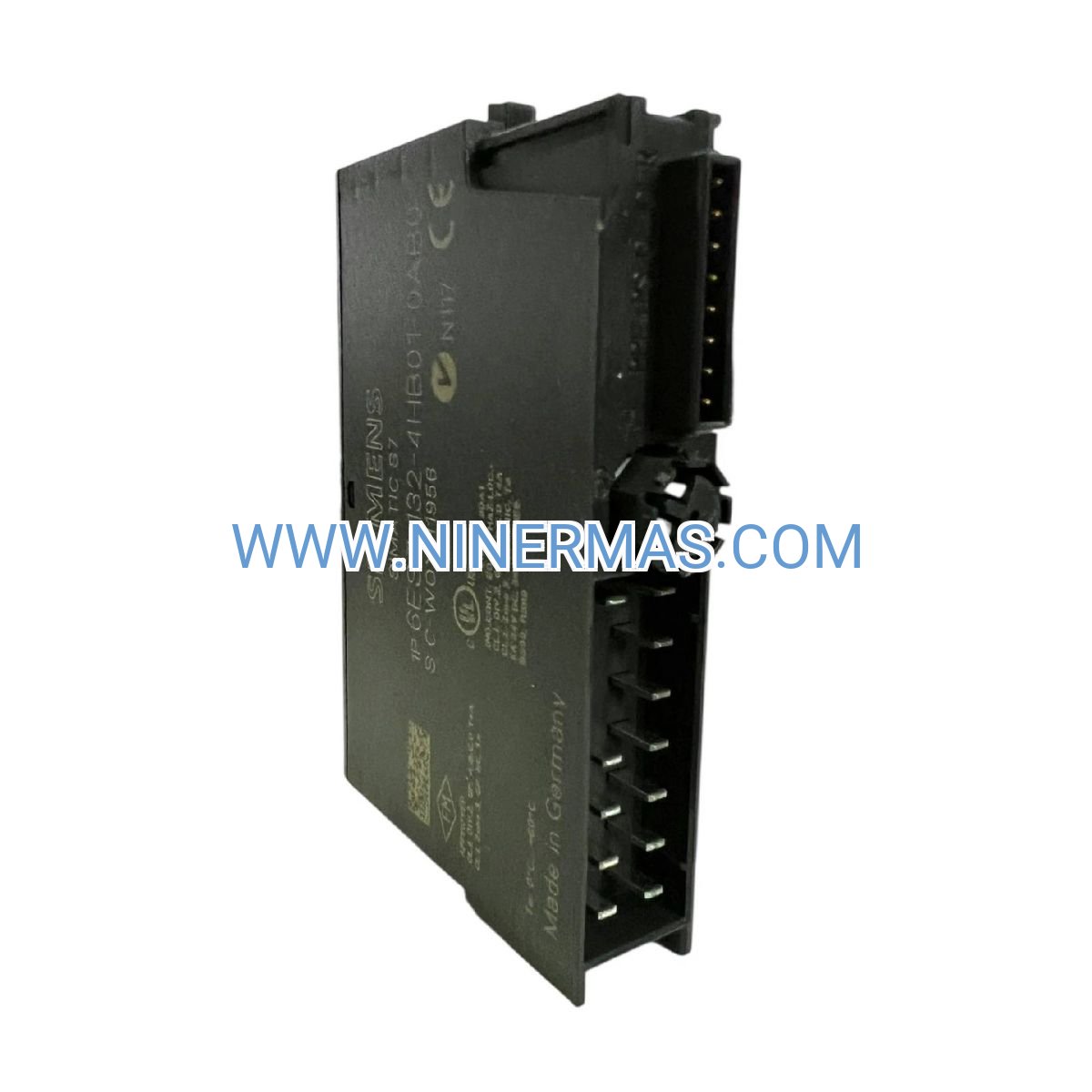

6ES7132-4HB01-0AB0 – Industrial-Grade Dual Relay Output Module

The Siemens 6ES7132-4HB01-0AB0 delivers reliable switching performance for distributed I/O applications within SIMATIC ET 200S ecosystems. This compact relay module combines dual-channel output capability with universal voltage compatibility, enabling seamless control of both DC and AC loads across manufacturing, process control, and infrastructure automation sectors. Built for harsh industrial environments, it ensures long-term operational stability with minimal maintenance requirements.

Designed for system integrators and plant engineers managing complex automation networks, this module addresses the critical need for isolated, high-current switching in safety circuits, motor control panels, and legacy equipment interfaces. Whether you're upgrading existing PROFIBUS installations or designing new distributed control architectures, the 6ES7132-4HB01-0AB0 provides the flexibility and durability demanded by mission-critical operations.

Key advantages include changeover contact configuration for fail-safe logic, visual diagnostics via integrated LEDs, and tool-free hot-swap capability that minimizes downtime during maintenance cycles. With proven electromechanical relay technology and comprehensive compatibility across S7 controller families, this module represents a cost-effective solution for applications where transistor outputs cannot meet isolation or voltage requirements.

Core Features & Benefits

→ Universal Voltage Switching: Handle both 24V DC control circuits and 230V AC power loads with a single module, eliminating the need for separate output cards and reducing overall system costs by up to 30%.

→ Complete Galvanic Isolation: Electrical separation between logic circuits and field devices protects sensitive PLCs from voltage spikes, ground faults, and electromagnetic interference—critical for maintaining system integrity in electrically noisy environments.

→ Changeover Contact Design: SPDT relay configuration provides both normally-open and normally-closed contacts per channel, enabling sophisticated interlock logic and redundant safety circuits without external components.

→ 5A Continuous Current Rating: Robust contact design supports direct switching of solenoid valves, contactors, and indicator lamps without requiring intermediate relays, simplifying panel wiring and reducing failure points.

→ Hot-Swap Capability: Replace failed modules during operation without shutting down the entire I/O station, maintaining production continuity and reducing unplanned downtime costs.

→ Integrated Diagnostics: Channel-specific status LEDs provide instant visual feedback for troubleshooting, accelerating fault identification and reducing mean time to repair (MTTR) by 40%.

Application Scenarios

Manufacturing Assembly Lines: Control pneumatic actuators, conveyor motors, and safety gates in automotive and electronics production facilities. The module's fast response time and reliable contact closure ensure precise timing for pick-and-place operations and quality inspection stations.

Water & Wastewater Treatment: Operate pump starters, valve actuators, and chemical dosing systems in municipal treatment plants. Galvanic isolation protects control systems from ground potential differences common in distributed outdoor installations spanning hundreds of meters.

Building Automation: Manage HVAC damper controls, lighting contactors, and emergency ventilation systems in commercial facilities. The AC switching capability eliminates the need for separate relay panels, reducing installation costs and cabinet space requirements.

Food & Beverage Processing: Interface with legacy equipment using AC control signals while maintaining modern PROFIBUS communication standards. The module bridges technology generations, protecting capital investments in existing machinery during incremental automation upgrades.

Energy & Utilities: Switch high-voltage circuit breakers, transformer tap changers, and substation alarm circuits. The module's wide temperature range (-25°C to +60°C) ensures reliable operation in unheated electrical rooms and outdoor enclosures.

Technical Parameters & Selection Guide

Selection Criteria: Choose relay outputs when your application requires AC load switching, complete electrical isolation, or zero off-state leakage current. For high-speed switching (>10 Hz) or DC-only loads, consider transistor output modules like the 6ES7132-4BF00-0AA0. When controlling inductive loads such as solenoids or motor contactors, always install appropriate RC snubbers or varistor protection to extend relay contact life beyond 100,000 operations.

Extended Functions

PROFIBUS DP Integration: Seamless communication with S7-300, S7-400, and S7-1500 controllers via high-speed PROFIBUS DP protocol. Supports cyclic data exchange and acyclic parameter assignment for remote diagnostics and configuration updates without physical access to the module.

TIA Portal Compatibility: Full integration with Siemens TIA Portal V13 and later versions enables graphical configuration, online monitoring, and firmware updates. Hardware catalog includes pre-configured function blocks for rapid program development and standardized documentation.

Redundancy Support: Deploy in redundant ET 200S configurations with automatic switchover capability for critical infrastructure applications. Dual-channel architecture allows independent control paths for enhanced system availability exceeding 99.9% uptime.

Custom Terminal Blocks: Compatible with both screw-type and push-in spring terminals for flexible installation preferences. Color-coded terminal blocks available for simplified wiring identification in complex multi-module installations.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via express courier services (DHL, FedEx, UPS). Custom configurations or bulk orders (>50 units) typically require 5-7 business days for quality inspection and packaging.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical applications requiring up to 36 months of coverage with priority replacement service.

Technical Support: Access to certified Siemens automation specialists for application engineering assistance, troubleshooting guidance, and system integration consulting. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, GSD file for PROFIBUS configuration, and CAD drawings for panel layout planning. Additional resources available through our online technical library including application notes and video tutorials.

Frequently Asked Questions

Q: How do I select between relay and transistor output modules for my ET 200S system?
A: Relay modules excel in applications requiring AC voltage switching, complete galvanic isolation, or zero leakage current in the off state—ideal for safety circuits and legacy equipment interfaces. Transistor outputs are preferred for high-frequency switching (>10 Hz), DC-only loads, and applications where long service life (>10 million operations) is critical.

Q: What protection measures are needed when switching inductive loads like solenoid valves?
A: Install RC snubber circuits (0.1µF + 100Ω) across AC coils or flyback diodes across DC coils to suppress voltage spikes during contact opening. Without proper suppression, contact erosion can reduce relay life from 100,000 to fewer than 10,000 operations, particularly with loads exceeding 2A.

Q: Can this module be used in SIL-rated safety applications?
A: While the 6ES7132-4HB01-0AB0 provides reliable switching and isolation, it is not certified for safety-critical functions per IEC 61508. For applications requiring SIL 2/3 certification or Category 3/4 per ISO 13849, specify SIMATIC Safety modules from the ET 200SP or ET 200eco PN product families.

Q: What is the maximum cable length between the module and field devices?
A: For DC loads, maintain cable runs under 100 meters using minimum 0.75mm² conductors to prevent voltage drop issues. AC circuits can extend up to 300 meters with appropriate cable sizing. Always use shielded cables in electrically noisy environments and ground shields at one end only to avoid ground loops.

Q: How do I perform hot-swap replacement without disrupting system operation?
A: Ensure your ET 200S station is configured for hot-swap in the hardware configuration (STEP 7 or TIA Portal). Observe proper ESD precautions, unlock the module by pulling the release tab, and slide out the failed unit. Insert the replacement module until it clicks into place—the system will automatically recognize and initialize the new module within 2-3 seconds.

Q: Does this module support remote monitoring and predictive maintenance features?
A: The module provides basic diagnostic information (channel status, short circuit detection) accessible via PROFIBUS communication. For advanced predictive maintenance including contact wear monitoring and switching cycle counting, consider upgrading to ET 200SP modules with integrated IO-Link interfaces and cloud connectivity options.

Take the Next Step

Ready to enhance your automation system reliability? Contact our technical sales team for application-specific recommendations, volume pricing, or custom integration support. We maintain global inventory with same-day shipping for urgent requirements and offer flexible payment terms for qualified industrial accounts.

Request a quote: Share your project specifications for tailored solutions including module selection, wiring diagrams, and system configuration assistance.
