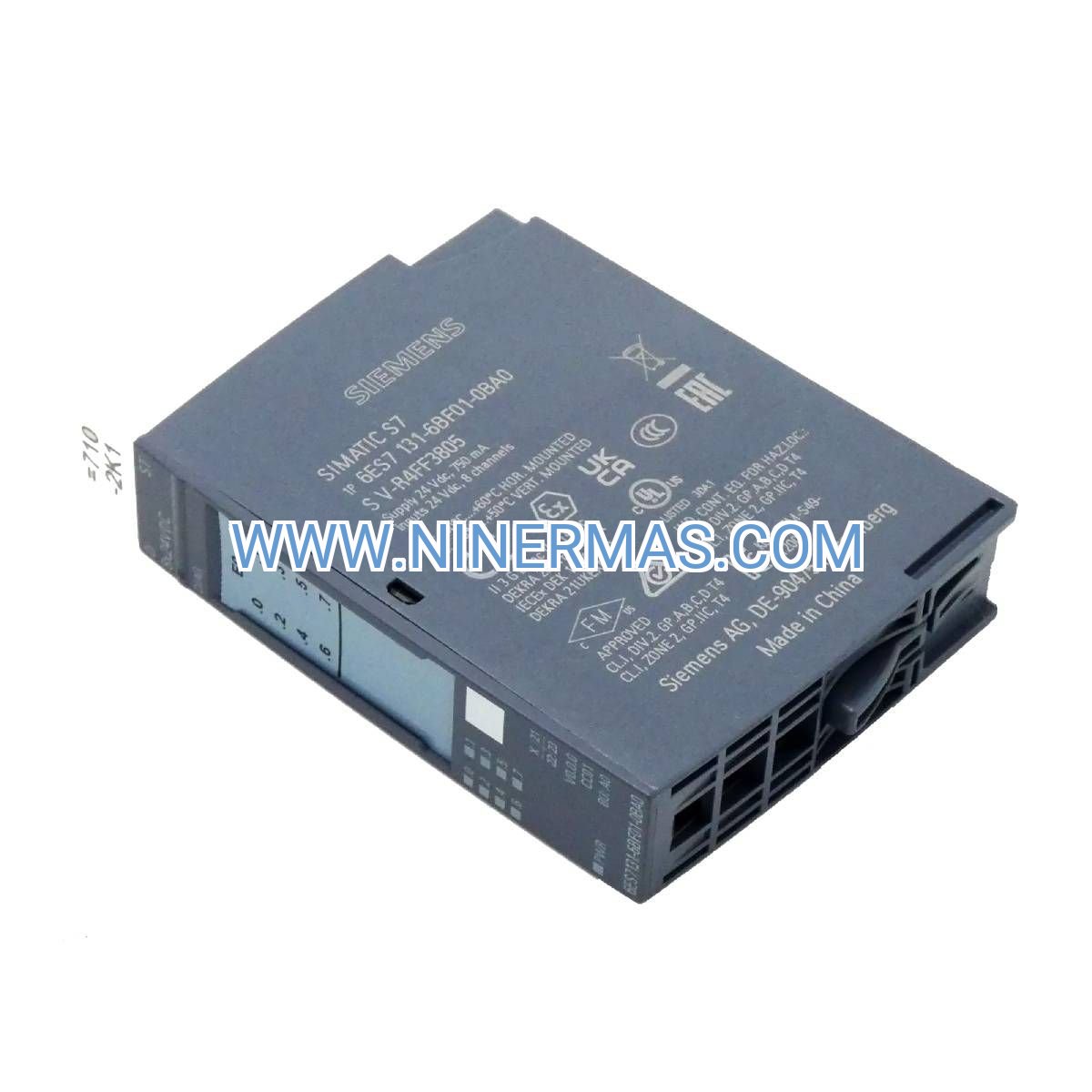

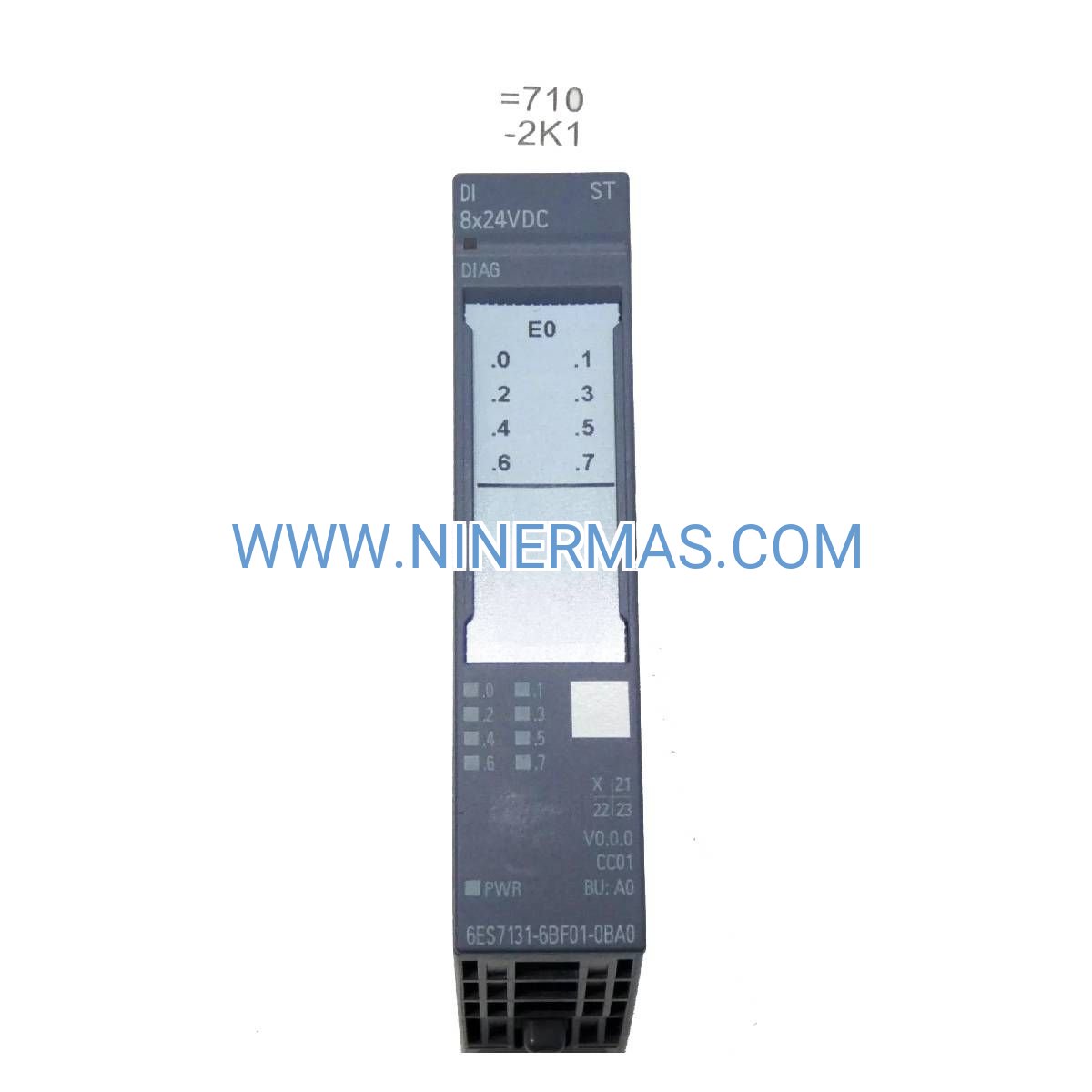

Siemens 6ES7131-6BF01-0BA0 Digital Input Module (Industrial-Grade ET 200SP Series)

The Siemens 6ES7131-6BF01-0BA0 is an 8-channel digital input module engineered for the SIMATIC ET 200SP distributed I/O platform. Designed to interface with 24V DC sensors and switches, this Type 3 sink input module delivers reliable signal acquisition in space-constrained industrial cabinets. Its ultra-compact 15mm width, hot-swap capability, and PROFINET integration make it the preferred choice for machine builders, system integrators, and plant engineers seeking scalable automation architectures.

Whether you're upgrading legacy I/O systems or designing greenfield installations, this module solves critical challenges: cabinet space limitations, commissioning time pressures, and the need for diagnostic transparency. Target users include OEMs in packaging machinery, process engineers in chemical plants, and maintenance teams managing distributed control systems across manufacturing facilities.

Key advantages include 40% footprint reduction versus traditional terminal blocks, tool-free push-in wiring that cuts installation time by 60%, and per-channel LED diagnostics for rapid fault isolation. With proven reliability in temperatures from -25°C to +60°C and 500V galvanic isolation, this module ensures continuous operation in harsh industrial environments.

Core Features & Business Value

→ Ultra-Compact Architecture
15mm module width enables high-density I/O configurations, reducing cabinet size and material costs while maximizing available space for power distribution and safety components.

→ Hot-Swap Maintenance
Replace modules during live operation without system shutdown, eliminating costly production interruptions and enabling predictive maintenance strategies that reduce unplanned downtime by up to 35%.

→ Configurable Input Filtering
Adjustable delay from 0.1ms to 20ms accommodates diverse sensor types—from high-speed proximity switches to mechanical limit switches—ensuring signal integrity across mixed automation environments.

✓ Push-In Spring Terminals
Tool-free wiring accepts solid and stranded conductors (0.5-1.5mm²), accelerating commissioning and reducing labor costs. Color-coded connection points minimize wiring errors during installation.

✓ Integrated Channel Diagnostics
Individual LED status indicators and TIA Portal diagnostic views provide real-time visibility into wire breaks, short circuits, and sensor failures, cutting troubleshooting time from hours to minutes.

✓ PROFINET IRT Communication
Supports isochronous real-time cycles down to 250µs for motion control applications, while maintaining compatibility with standard PROFINET RT for general automation tasks.

Typical Application Scenarios

Automotive Assembly Lines
Scenario: Monitor position sensors, safety gates, and part-present detectors across multi-station robotic welding cells.
Pain Point Solved: Eliminates cabinet congestion in space-limited production areas while providing diagnostic data for predictive maintenance programs.
Value Delivered: Reduces cabinet footprint by 40%, enables 24/7 operation with hot-swap capability, and integrates seamlessly with S7-1500 safety controllers.

Food & Beverage Processing
Scenario: Acquire signals from level switches, valve position indicators, and conveyor sensors in bottling and packaging lines.
Pain Point Solved: Withstands washdown environments and temperature fluctuations common in food-grade facilities.
Value Delivered: IP20-rated housing with conformal coating resists moisture ingress; wide temperature range supports refrigerated and cooking zones.

Water Treatment Facilities
Scenario: Interface with pump status contacts, float switches, and flow sensors in remote lift stations and filtration plants.
Pain Point Solved: Provides reliable operation in unmanned installations with limited maintenance access.
Value Delivered: 500V isolation protects against electrical noise from VFD-driven pumps; diagnostic alerts enable remote troubleshooting via SCADA integration.

Material Handling & Logistics
Scenario: Connect to photoelectric sensors, inductive proximity switches, and barcode scanner triggers in automated warehouse systems.
Pain Point Solved: Supports high-speed sorting operations requiring sub-millisecond response times.
Value Delivered: Configurable 0.1ms input filter eliminates false triggers; PROFINET IRT ensures deterministic communication for synchronized conveyor control.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose this module when interfacing with PNP (sourcing) sensors. For NPN sensors, select the 6ES7131-6BH01-0BA0 source input variant.
• Type 3 Standard is ideal for general automation; upgrade to High Feature modules (6BF00 series) only if you require timestamp capture or oversampling.
• Verify sensor voltage compatibility: 24V DC nominal required (11-30V DC acceptable range).
• For hazardous area installations (Zone 1/Div 1), pair with ET 200SP HA BaseUnits and certified barriers.

Extended Functions

IoT & Industry 4.0 Integration
Connect to Siemens MindSphere via SIMATIC Cloud Connector for remote monitoring, predictive analytics, and asset performance management. Export diagnostic data to third-party SCADA platforms using OPC UA or MQTT gateways.

Advanced Diagnostic Capabilities
Beyond basic channel status, TIA Portal provides wire-break detection, supply voltage monitoring, and historical alarm logs. Configure email/SMS notifications for critical faults via integrated web server functionality.

Customization Options
Factory pre-configuration services available for volume orders: custom parameter sets, labeled terminals, and pre-assembled BaseUnit mounting. Contact our engineering team for project-specific requirements.

Delivery & Service Assurance

Lead Time:
→ Standard Orders: 3-5 business days (in-stock items)
→ Custom Configurations: 10-15 business days
→ Express Shipping: Next-day delivery available for urgent replacements

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations. Advance replacement program ensures minimal downtime for critical applications.

Technical Support:
Access to certified Siemens automation engineers for pre-sales consultation, configuration assistance, and troubleshooting. Support available via email, phone, and remote desktop sessions.

Documentation Package:
Each module ships with:
• Product data sheet and dimensional drawings
• TIA Portal GSD file and sample configuration
• Wiring diagrams and terminal layout
• CE/UL certification documents

Frequently Asked Questions

How do I connect PNP sensors to this sink input module?
Wire the sensor's output (brown wire) to the input terminal, connect the blue wire to the common (M) terminal, and supply +24V DC to the black wire. The module's sink input configuration requires sensors to source current when active.

What is the maximum cable length for reliable signal transmission?
Shielded cable up to 1000 meters is supported for standard industrial environments. In high-EMI areas (near VFDs or welding equipment), limit cable runs to 300 meters and use twisted-pair shielded cable with 360° shield termination.

Can this module operate in hazardous area applications?
The standard module is rated for Zone 2 / Class I Div 2 locations. For Zone 1 / Class I Div 1, use the ET 200SP HA variant (6ES7131-6FB00-0BA0) with certified intrinsic safety barriers.

Does the module support redundant PROFINET configurations?
Yes, when used with S7-1500R redundant controllers and ET 200SP HA interface modules. System redundancy (MRP ring topology) ensures seamless failover with bumpless transfer.

What software version is required for configuration?
TIA Portal V13 SP1 or later. The module is also compatible with STEP 7 V5.5 via GSD file import, though advanced diagnostics require TIA Portal.

How does energy consumption compare to traditional I/O systems?
The module draws only 30 mA from the backplane bus (0.72W), reducing overall cabinet heat load and enabling smaller power supplies. Compared to relay-based I/O, energy savings exceed 85%.

Ready to Optimize Your Distributed I/O Architecture?

Contact our automation specialists for application-specific guidance, volume pricing, or technical consultation. Whether you're designing a new machine or retrofitting existing systems, we'll help you select the optimal ET 200SP configuration for your requirements.

Request a Quote: sales@indctrlhub.com
Technical Inquiries: +0086 187 5021 5667
Order Tracking: Available 24/7 via customer portal
