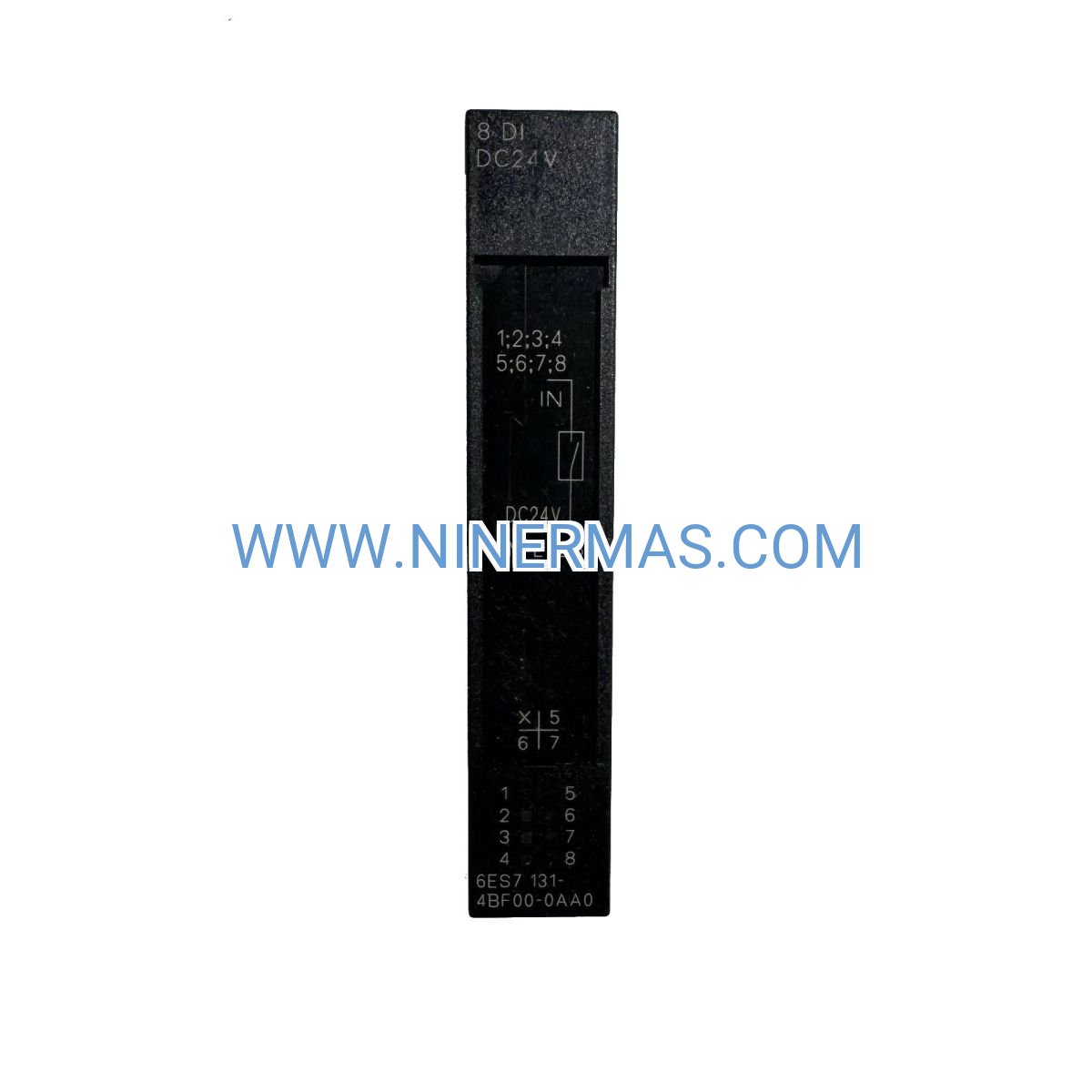

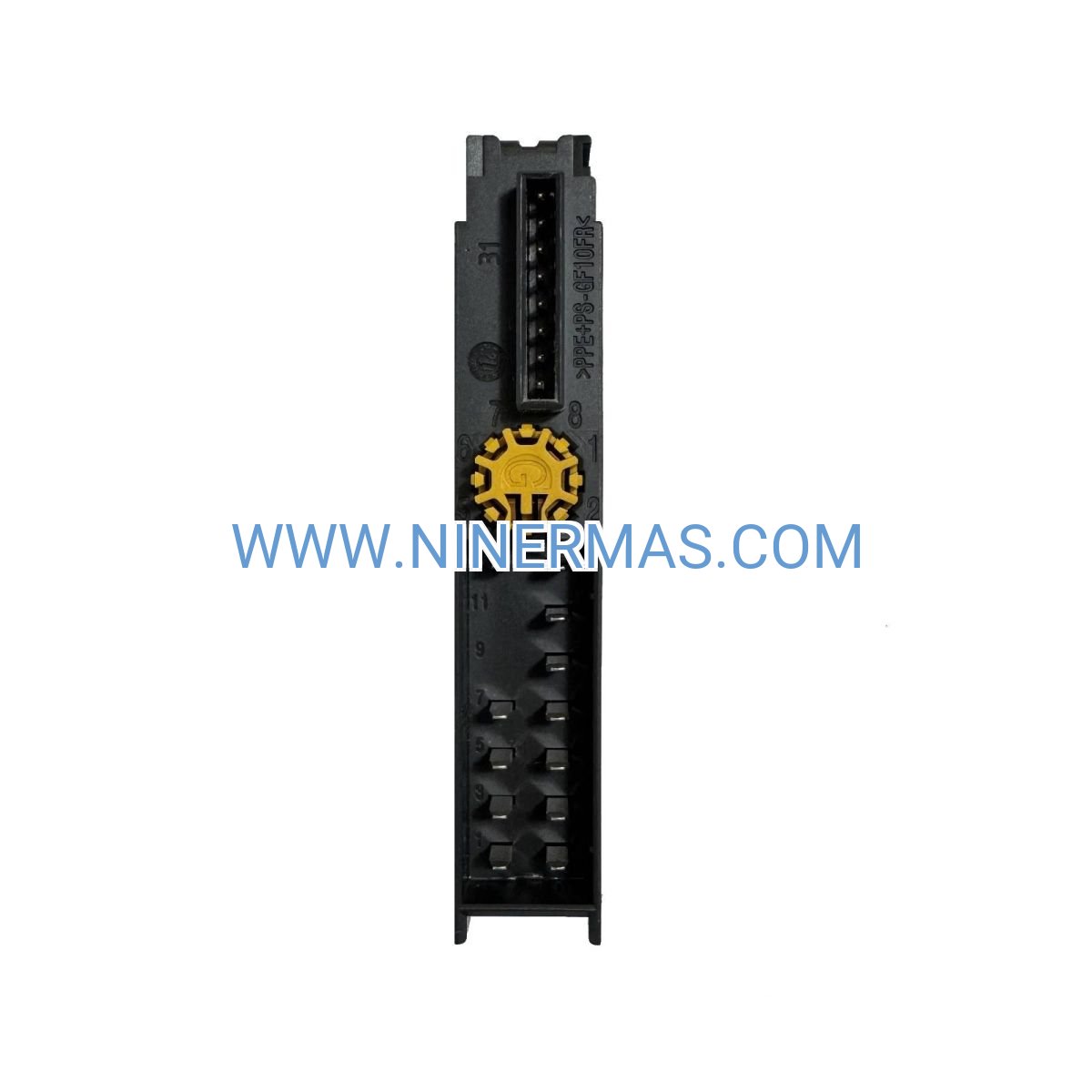

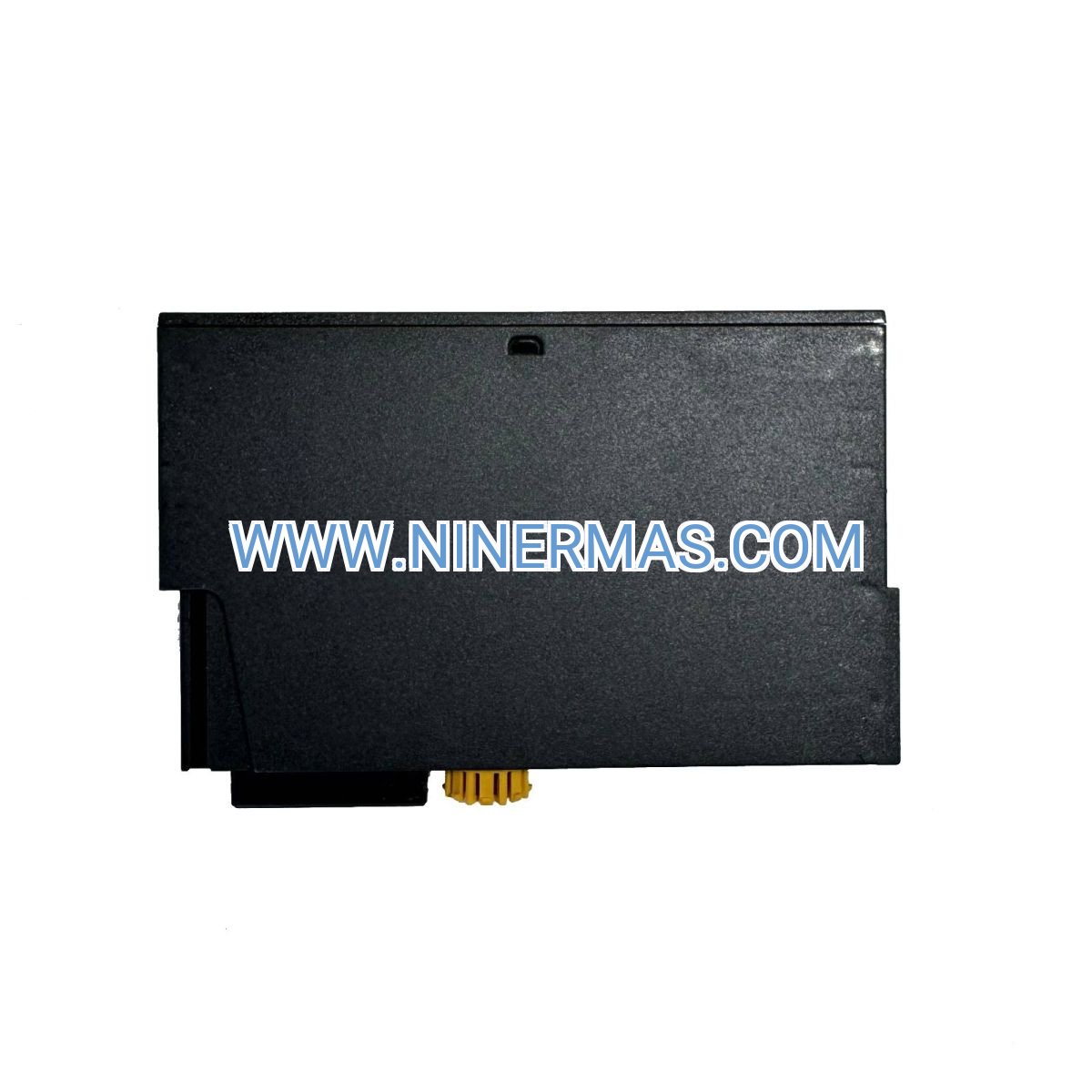

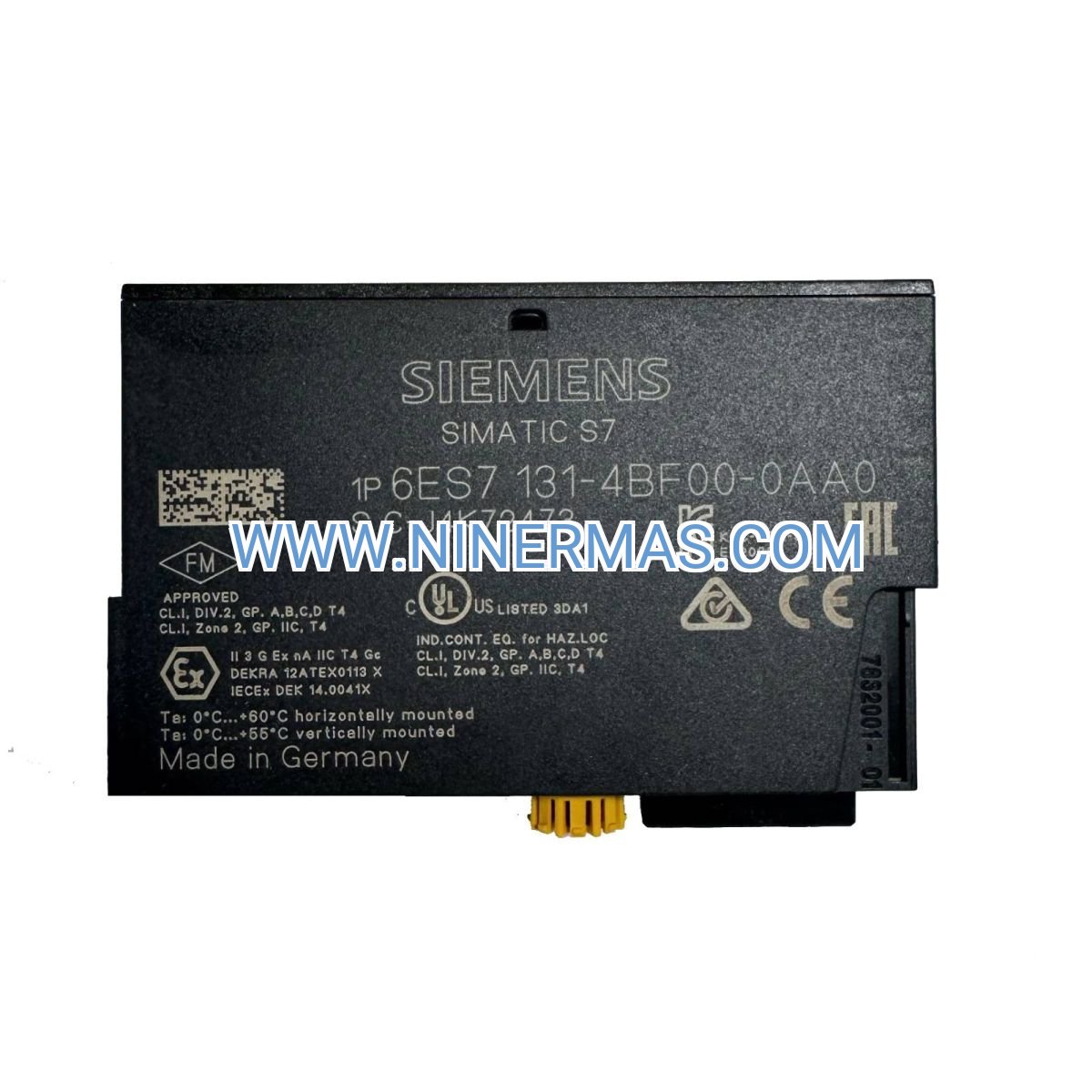

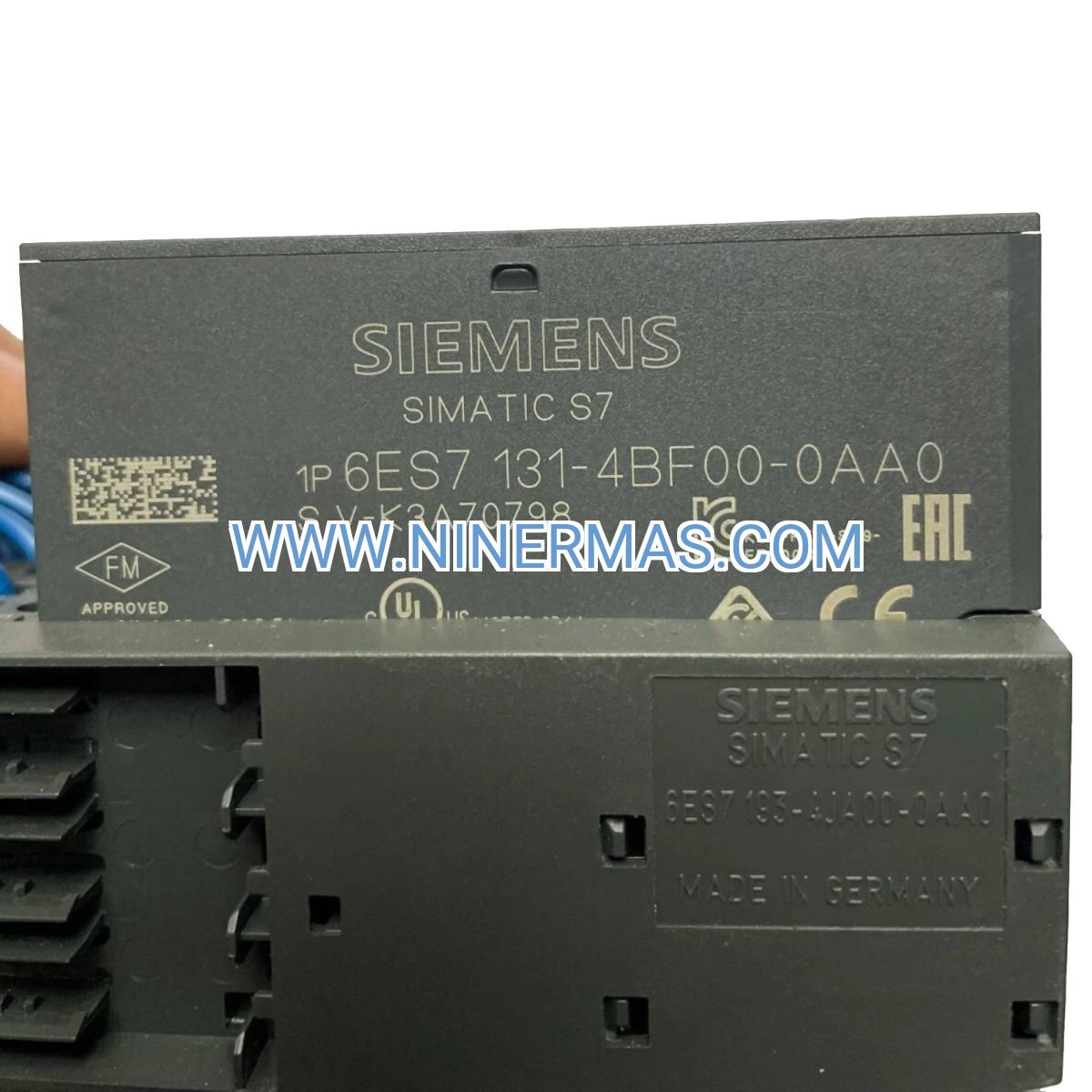

6ES7131-4BF00-0AA0 Digital Input Module (Industrial-Grade ET 200S Platform)

The 6ES7131-4BF00-0AA0 is an 8-channel digital input module engineered for the Siemens SIMATIC ET 200S distributed I/O system. This module addresses the critical challenge of maximizing signal density in space-constrained control cabinets while maintaining industrial-grade reliability. Designed for automation engineers and system integrators managing high-volume discrete sensor networks, it delivers twice the input capacity of standard modules within the same 15mm footprint. Key advantages include reduced wiring complexity, lower installation labor costs, and seamless integration with S7-300/400/1500 controller families via PROFIBUS DP or PROFINET communication protocols.

Core Features & Benefits

→ Double-Density Signal Acquisition: 8 digital inputs in 15mm width provide 100% higher channel density versus conventional 4DI modules, enabling up to 504 I/O points per ET 200S station for large-scale sensor integration.

→ Installation Cost Reduction: Consolidating 8 inputs into a single module eliminates redundant terminal blocks and reduces field wiring by approximately 40%, cutting commissioning time and material expenses significantly.

→ Live Module Replacement: Hot-swap functionality allows technicians to replace failed modules during active production without system shutdown, maintaining operational continuity in 24/7 manufacturing environments.

→ Channel-Level Diagnostics: Integrated fault detection monitors wire breaks, short circuits, and voltage anomalies on each input channel, transmitting diagnostic data to STEP 7 or TIA Portal for predictive maintenance workflows.

→ Proven Industrial Reliability: Designed for harsh factory environments with IP20 protection, RoHS compliance, and MTBF exceeding 500,000 hours under standard operating conditions.

→ Flexible System Scaling: Modular architecture supports incremental expansion from 8 to 504 I/O points without controller hardware changes, protecting long-term automation investments.

Typical Application Scenarios

✓ Automotive Manufacturing: Monitor extensive arrays of proximity sensors, safety interlocks, and quality inspection gates across robotic welding cells and multi-stage assembly lines where cabinet space is at a premium.

✓ Food & Beverage Processing: Acquire signals from level switches, valve position feedback, conveyor zone sensors, and CIP (clean-in-place) status indicators in hygienic production environments requiring compact stainless-steel enclosures.

✓ Building Automation: Interface with HVAC damper positions, occupancy sensors, fire alarm contacts, and access control systems in distributed BMS installations spanning multiple floors or buildings.

✓ Material Handling Networks: Track package presence detectors, diverter confirmations, emergency stop chains, and sortation system feedback across warehouse automation systems with hundreds of discrete I/O points.

✓ Machine Tool Integration: Connect tool breakage sensors, limit switches, coolant level alarms, and door interlocks in CNC machining centers where panel space is limited by machine footprint constraints.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES7131-4BF00-0AA0 when your application requires maximum I/O density in limited panel space, particularly for sensor-intensive processes with 50+ discrete inputs per control zone. For lower-density applications (≤32 inputs), the 4-channel variant 6ES7131-4BD00-0AA0 may offer better cost-efficiency. Verify sensor compatibility—this module supports PNP (sourcing) sensors; NPN (sinking) sensors require alternative module variants or external signal conditioning.

Extended Functions

Isochronous Mode Support: The module operates in deterministic isochronous mode for motion control applications requiring synchronized update cycles as fast as 1ms, ideal for multi-axis packaging machines and coordinated conveyor systems.

Interrupt-Driven Diagnostics: Configure diagnostic interrupts to trigger immediate controller response when faults occur, enabling automated alarm notifications via HMI systems or SCADA platforms for rapid troubleshooting.

Redundant Power Options: Combine with redundant ET 200S power modules to achieve 99.9%+ system availability in mission-critical applications where unplanned downtime results in significant production losses.

TIA Portal Integration: Leverage automatic hardware detection and graphical configuration tools in TIA Portal V13 or later, reducing engineering time by up to 50% compared to legacy STEP 7 Classic workflows.

Delivery & Service Assurance

Standard Lead Time: 3-7 business days for in-stock units; custom configurations or bulk orders (50+ modules) typically ship within 10-15 business days.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and component failures under normal industrial operating conditions.

Technical Support: Access to application engineers with expertise in ET 200S system design, PROFIBUS/PROFINET troubleshooting, and TIA Portal configuration. Support available via email, phone, and remote desktop assistance.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, GSD files for network configuration, and links to complete technical manuals in PDF format.

Frequently Asked Questions

How does the 8-channel module compare to using two 4-channel modules?
The 6ES7131-4BF00-0AA0 occupies 15mm versus 30mm for two 4DI modules, saving 50% panel space. It also requires only one terminal module instead of two, reducing wiring labor by 30-40% and lowering total installed cost by approximately 25%.

What terminal modules are compatible with this digital input module?
Use 6ES7193-4C series terminal modules: 6ES7193-4CD30-0AA0 (push-in connectors for fast wiring) or 6ES7193-4CB20-0AA0 (screw terminals for vibration-prone environments). Both support the 15mm module width and 8-channel configuration.

Can I integrate this module with non-Siemens controllers?
Yes, via PROFIBUS DP or PROFINET protocols. Third-party controllers supporting these standards (e.g., Rockwell, Schneider, Mitsubishi) can communicate with ET 200S stations using standard GSD files. Verify protocol compatibility and cycle time requirements before deployment.

What is the typical power consumption per module?
The 6ES7131-4BF00-0AA0 draws approximately 40mA from the ET 200S backplane power supply. When sizing power modules, calculate total current draw including all I/O modules, communication interfaces, and a 20% safety margin for future expansion.

Does this module support remote monitoring via Industrial IoT platforms?
Indirectly—diagnostic data is accessible through the S7 controller, which can publish information to SCADA systems, cloud platforms (e.g., MindSphere), or third-party IoT gateways via OPC UA, MQTT, or REST APIs for remote condition monitoring.

How do I troubleshoot intermittent input signal issues?
Check cable shielding and grounding (EMI interference), verify 24V DC supply voltage stability (±10% tolerance), inspect terminal connections for looseness, and review diagnostic buffers in STEP 7 for wire break or short circuit events. Use a multimeter to confirm sensor output voltage under load.

Ready to Optimize Your I/O Architecture?

Contact our automation specialists for application-specific guidance on ET 200S system design, module selection, and integration with your existing SIMATIC infrastructure. Request a detailed quotation or technical consultation today.
