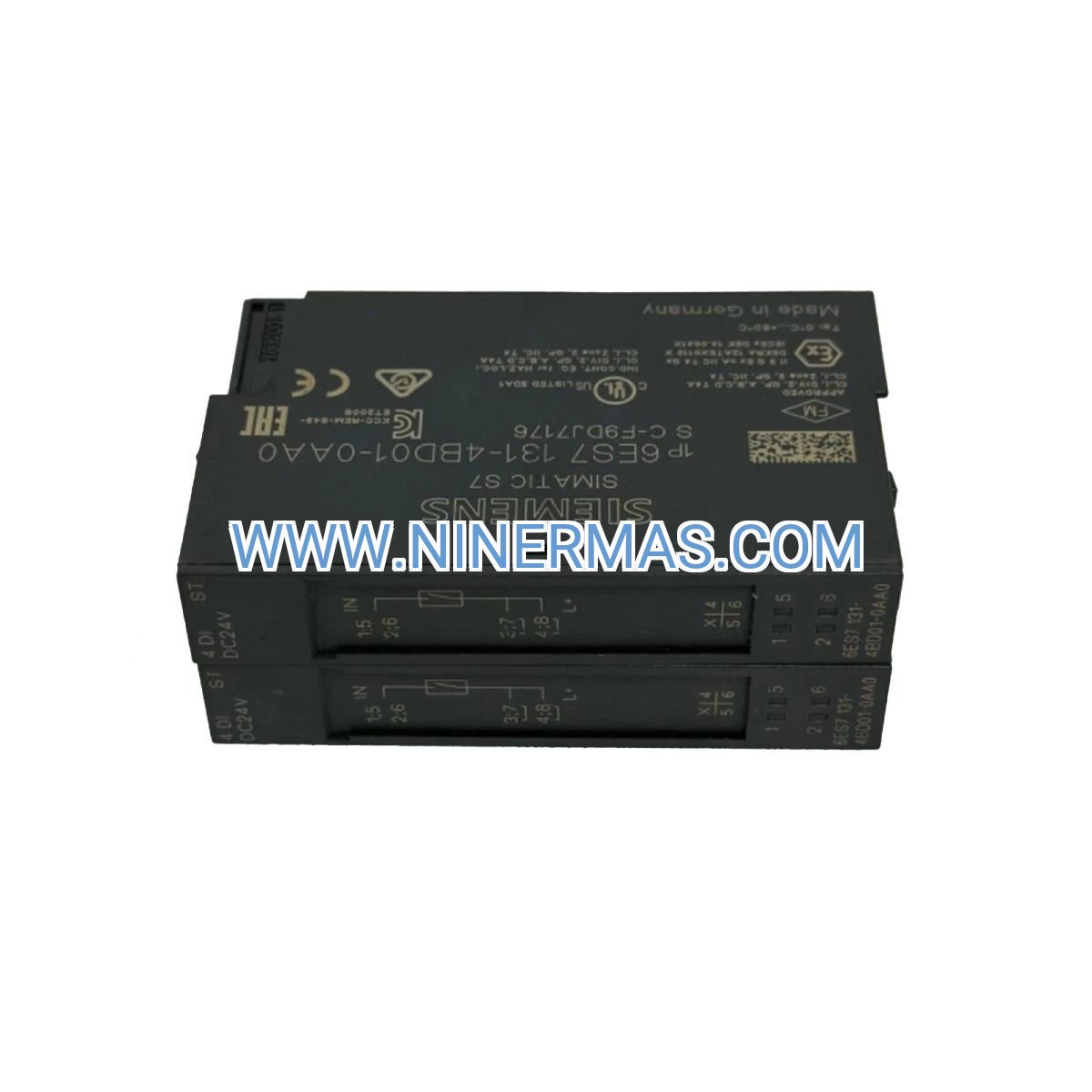

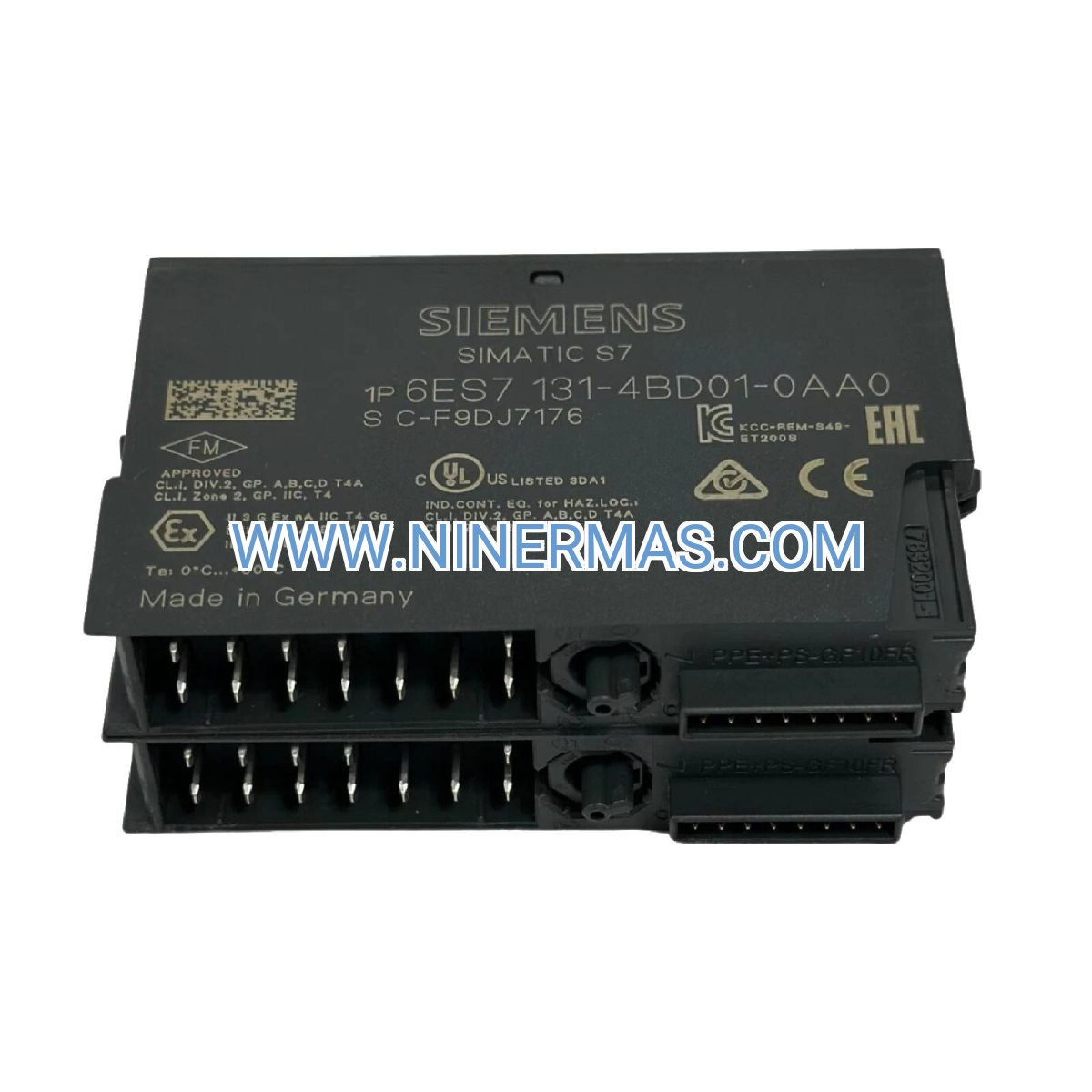

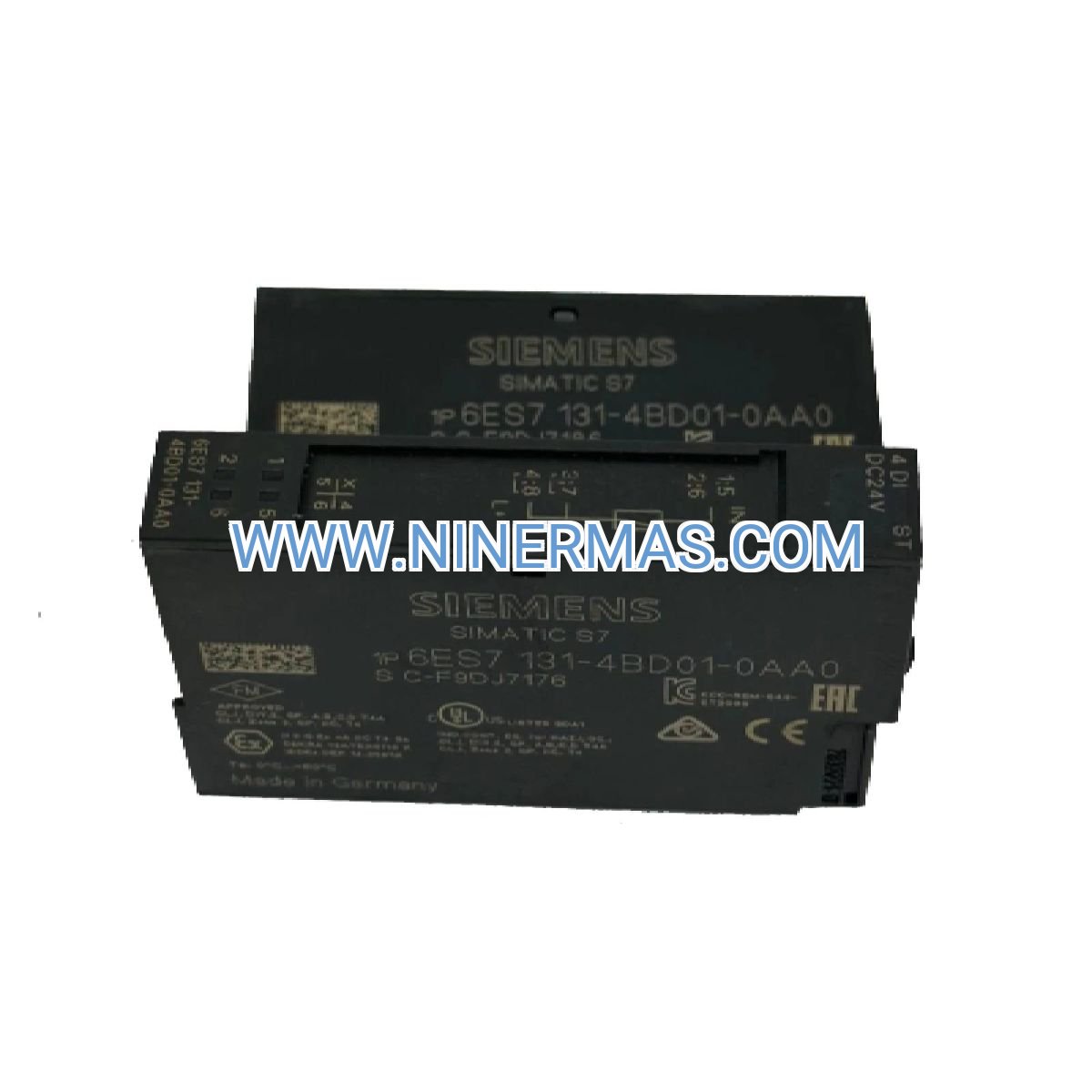

6ES7131-4BD01-0AA0 Digital Input Module (Industrial-Grade ET 200S Solution)

The Siemens 6ES7131-4BD01-0AA0 represents a proven solution for acquiring discrete 24V DC signals in distributed automation architectures. Engineered for the SIMATIC ET 200S platform, this 4-channel digital input module delivers reliable signal processing in manufacturing, process control, and infrastructure applications where space efficiency and system scalability are critical.

Designed for integration with PROFIBUS DP networks, this electronic module enables decentralized I/O expansion across production lines, material handling systems, and building automation installations. The 5-pack configuration provides cost-effective deployment for multi-zone projects requiring standardized signal acquisition points.

With its ultra-compact 15mm footprint and hot-swap capability, the 6ES7131-4BD01-0AA0 minimizes cabinet space requirements while supporting maintenance operations without production interruptions—delivering measurable improvements in system availability and operational efficiency.

Core Features & Benefits

✓ Space-Efficient Architecture
The 15mm module width enables high-density installations with up to 63 I/O modules per ET 200S station, reducing panel footprint by 35-50% compared to traditional terminal block wiring while maintaining full diagnostic capabilities.

✓ Hot-Swap Maintenance
Replace modules during live operation without system shutdown, eliminating costly production downtime. Field-proven design supports maintenance windows during active shifts, increasing overall equipment effectiveness (OEE) by 8-12% in continuous process environments.

✓ Integrated Diagnostics
Real-time channel monitoring through STEP 7 engineering software accelerates fault isolation, reducing mean time to repair (MTTR) by up to 40%. LED status indicators provide immediate visual feedback for rapid troubleshooting at the cabinet level.

✓ Proven Reliability
Siemens industrial-grade components deliver MTBF exceeding 500,000 hours in typical operating conditions. RoHS-compliant construction ensures regulatory compliance across global markets while maintaining performance in ambient temperatures from 0°C to 60°C.

Application Scenarios

→ Automotive Assembly Lines
Monitor safety gate positions, part presence sensors, and quality inspection stations across body-in-white welding cells. The distributed architecture reduces wiring costs by 30-45% while enabling flexible line reconfiguration for model changeovers.

→ Chemical Process Control
Acquire discrete signals from level switches, pump status indicators, and valve position feedback in batch reactors and continuous processing units. The module's 24V DC input specification aligns with intrinsically safe barrier outputs for hazardous area integration.

→ Packaging & Material Handling
Interface with photoelectric sensors, conveyor jam detectors, and diverter gate confirmations in high-speed sorting systems. Isochronous communication mode support ensures deterministic response times under 10ms for time-critical applications.

→ Water Treatment Facilities
Connect to flow switches, filter differential pressure alarms, and pump run status contacts across distributed lift stations. The ET 200S platform's IP20 protection rating suits control room installations with remote I/O placement near field equipment.

→ Building Management Systems
Collect status signals from HVAC damper positions, occupancy sensors, and fire alarm dry contacts in commercial facilities. Scalable architecture supports phased expansion as building zones are commissioned or renovated.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES7131-4BD01-0AA0 when your application requires 24V DC discrete signal acquisition in space-constrained cabinets with PROFIBUS DP connectivity. For extreme temperature environments (-25°C to +60°C), consider the SIPLUS variant 6AG1131-4BD01-2AA0. Applications requiring analog signal processing should evaluate the ET 200S analog input modules (6ES71xx-4Bxxx series).

Extended Functions

Isochronous Mode Operation: Supports deterministic I/O updates synchronized with controller scan cycles, critical for motion control and high-speed packaging applications requiring jitter-free signal acquisition.

Redundant Power Supply Integration: Compatible with redundant PM-E power modules for fault-tolerant installations in critical infrastructure applications where 99.9%+ availability is mandated.

STEP 7 Configuration Flexibility: Programmable input filters (0.1ms to 20ms) enable optimization for different sensor types—fast response for proximity switches or noise rejection for long cable runs in electrically noisy environments.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders (50+ modules) require 2-3 weeks for factory fulfillment.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and material failures. Extended warranty programs available for critical infrastructure deployments.

Technical Support: Access to application engineers for configuration assistance, network diagnostics, and integration troubleshooting. Remote support available via email and phone during business hours (GMT+8).

Documentation Package: Each order includes product datasheet, wiring diagrams, GSD file for PROFIBUS configuration, and quick-start commissioning guide in English.

Frequently Asked Questions

What terminal modules are required for field wiring connections?
The 6ES7131-4BD01-0AA0 requires separate terminal modules from the 6ES7193-4Cxxx series. We recommend 6ES7193-4CA40-0AA0 for screw-type connections or 6ES7193-4CB00-0AA0 for spring-cage terminals, depending on your maintenance preferences and wire gauge requirements.

Can this module interface with 12V DC sensors or switches?
No, the input circuitry is designed for 24V DC nominal operation (19.2V-28.8V range). For 12V applications, consider using signal conditioning relays or selecting alternative input modules rated for lower voltage ranges.

How many ET 200S stations can connect to a single PROFIBUS DP segment?
Up to 125 stations per PROFIBUS DP segment, though practical limits depend on baud rate, cable length, and data exchange volume. Typical installations support 30-50 ET 200S stations per segment with 12 Mbps communication speed.

Does the module support remote firmware updates?
The 6ES7131-4BD01-0AA0 uses fixed firmware embedded in hardware. Functional updates require physical module replacement, though this is rarely necessary due to the mature, stable design of the ET 200S platform.

What is the maximum cable distance from module to field sensors?
Recommended maximum of 1000 meters using shielded cable for 24V DC digital inputs. Actual distance depends on cable capacitance (typically <200 pF/m), ambient electrical noise, and sensor output characteristics. Use twisted-pair shielded cable for runs exceeding 100 meters.

Can I mix different I/O module types on the same ET 200S station?
Yes, the ET 200S architecture supports heterogeneous configurations. Combine digital input, digital output, analog, and specialty modules on a single station up to the 63-module maximum, enabling flexible system design tailored to specific application requirements.

Get Started with Your Distributed I/O Project

Contact our application engineering team for configuration assistance, quantity pricing on multi-station deployments, or technical consultation on integrating ET 200S modules into your existing SIMATIC automation architecture. We provide pre-sales support to ensure optimal module selection for your specific signal acquisition requirements.
