Siemens 6ES5951-7LD21 Service-Ready Spare Part for Industrial Maintenance

Siemens 6ES5951-7LD21 Service-Ready Spare Part for Industrial Maintenance

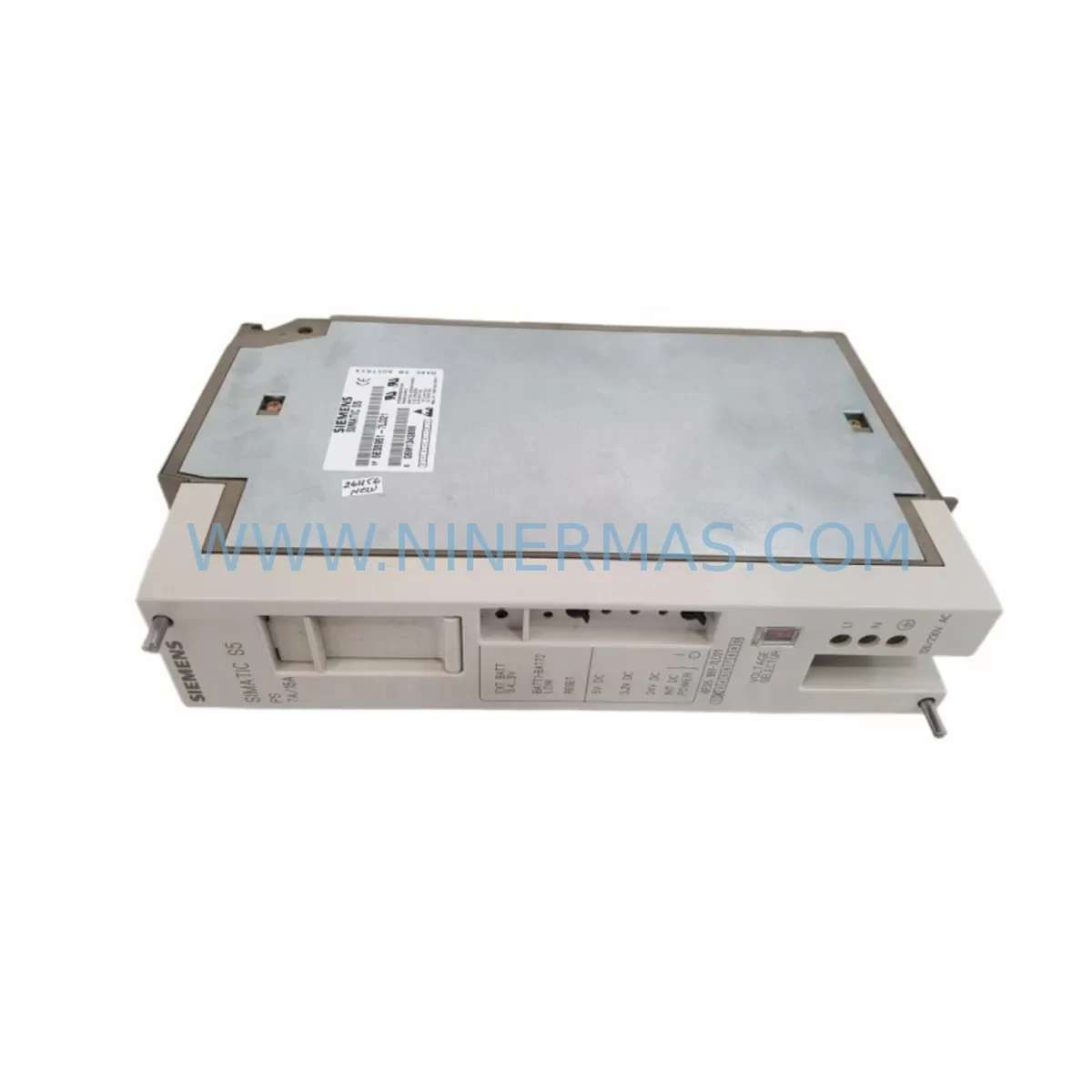

The Siemens 6ES5951-7LD21 is a ruggedized DC power supply module designed for the SIMATIC S5 programmable controller series, engineered to operate reliably in harsh industrial environments including high-vibration, high-temperature, and electrically noisy plant floors. As a critical power backbone for S5-based control cabinets, this module supplies stable regulated DC voltage to the CPU, I/O racks, and peripheral modules. When this unit fails or degrades, the entire PLC system is at risk of unplanned shutdown — making rapid spare parts availability a top priority for maintenance and procurement engineers managing aging automation infrastructure.

NINERMAS stocks the 6ES5951-7LD21 as a service-ready replacement unit, pre-tested and verified before shipment, backed by a 12-month warranty. Whether you are responding to an emergency breakdown, executing a planned annual overhaul, or building a strategic spare parts inventory for long-term system lifecycle extension, this module ships promptly to minimize your downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES5951-7LD21 power supply module in a SIMATIC S5 control cabinet, a thorough site inspection of the surrounding electrical system is essential to prevent repeat failures and ensure stable resumed operation. Maintenance engineers should treat this replacement as an opportunity for a full cabinet health check.

Begin by verifying the incoming AC supply quality and checking the upstream isolation transformer or line filter — degraded input power is a leading cause of premature power supply failure. Inspect the S5 backplane bus connectors for oxidation or mechanical wear, as poor backplane contact can cause intermittent voltage drops that stress the replacement unit. The CPU module (such as the 6ES5941-7UA13 or 6ES5942-7UB11) should be checked for battery backup status and memory integrity after any power interruption.

I/O modules installed in the same rack — including digital input modules like the 6ES5420-7LA11 and analog output modules such as the 6ES5470-7AA12 — should be inspected for blown fuses and correct addressing. Signal isolators and barriers protecting analog loops from field-side transients are frequently overlooked during power supply replacements; verify that any installed 4–20 mA signal isolators remain within calibration. Terminal blocks and wiring harnesses within the cabinet should be checked for loose connections, which can cause voltage fluctuations that damage the new module.

Communication modules such as the 6ES5734-2BD20 (SINEC L2 interface) or CP modules handling PROFIBUS connections should be re-initialized after power restoration and their diagnostic LEDs confirmed normal. If the system includes an IM (interface module) for rack expansion — for example the 6ES5314-3UA11 — verify that the inter-rack power distribution is balanced and within specification. HMI panels connected to the S5 system, whether legacy OP series operator panels or modern replacement touch panels, should be power-cycled and communication re-established after the module swap.

For facilities running extended S5 lifecycles, it is advisable to maintain at least one spare 6ES5951-7LD21 on-site alongside spare fuse sets, a replacement CPU battery module, and a set of commonly failed I/O modules specific to your installed rack configuration. This proactive inventory strategy is the most effective way to reduce mean time to repair (MTTR) and protect production continuity.

Site Replacement Workflow

Replacing the 6ES5951-7LD21 follows a structured procedure to minimize downtime and avoid secondary damage to the control system:

Step 1 — Safe Isolation: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the control cabinet and confirm zero voltage at the power supply input terminals using a calibrated multimeter.

Step 2 — Document Current State: Before removal, photograph the wiring connections, note any diagnostic LED states, and record the CPU memory status. If the CPU uses a RAM memory module (6ES5374-1KH21 or similar), ensure it is seated and the battery is functional to preserve the program.

Step 3 — Module Removal: Loosen the front panel retaining screws, disconnect the DC output wiring harness, and slide the module out of the rack slot. Inspect the slot contacts for debris or corrosion before installing the replacement.

Step 4 — Install 6ES5951-7LD21 Replacement: Slide the new module into the rack slot, reconnect the DC output wiring to the correct terminals (observe polarity markings), and secure the retaining screws. Do not over-torque terminal screws.

Step 5 — Power-Up and Verification: Re-energize the cabinet and observe the power supply status LEDs. Measure output voltage under load to confirm it is within the specified tolerance. Verify that the CPU enters RUN mode and all I/O modules report normal status.

Step 6 — System Functional Test: Execute a full I/O scan and confirm process signals are within expected ranges. Re-establish any communication links and confirm HMI displays are updating correctly before returning the system to production.

This workflow is compatible with direct replacement of earlier 6ES5951-7LD21 variants and is designed to maintain full backward compatibility with existing S5 rack wiring without modification.

Spare Parts Support FAQ

Q1: Is the 6ES5951-7LD21 still available as a new original unit, and what is the warranty coverage?
The 6ES5951-7LD21 is part of the legacy SIMATIC S5 product line, which Siemens officially discontinued. NINERMAS supplies original surplus and refurbished-to-OEM-specification units that have been fully tested prior to shipment. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q2: How do I confirm compatibility with my existing S5 rack before ordering?
The 6ES5951-7LD21 is designed for use in SIMATIC S5-115U, S5-135U, and S5-155U rack systems. To confirm compatibility, provide your rack model number, existing power supply slot configuration, and DC load requirements. Our technical team will verify fit and electrical compatibility before shipment. We recommend cross-referencing your cabinet wiring diagram and the rack’s power budget to ensure the replacement unit meets your load demands.

Q3: What pre-shipment testing is performed on each unit?
Every 6ES5951-7LD21 unit undergoes functional power-on testing, output voltage verification under simulated load, and visual inspection for physical damage, capacitor condition, and connector integrity. Units that do not meet OEM output specifications are rejected. A test report is available upon request for quality-critical procurement processes.

Q4: Can NINERMAS support long-term supply agreements for this module?
Yes. For facilities operating multiple S5 systems or managing multi-site maintenance programs, NINERMAS offers long-term supply arrangements including reserved stock allocation, scheduled delivery programs, and priority fulfillment for emergency breakdown orders. Contact our team to discuss a spare parts support agreement tailored to your maintenance cycle and annual consumption requirements.
