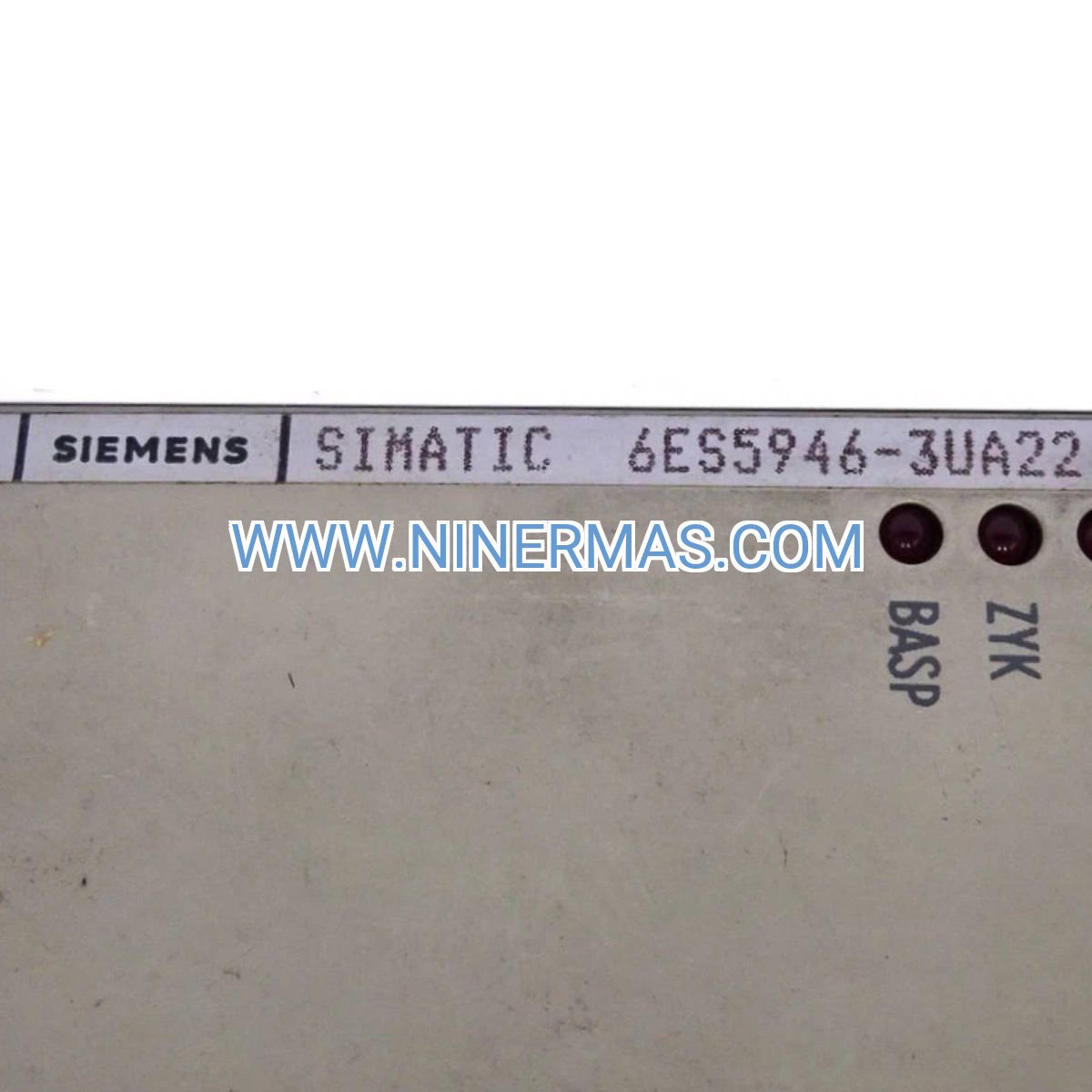

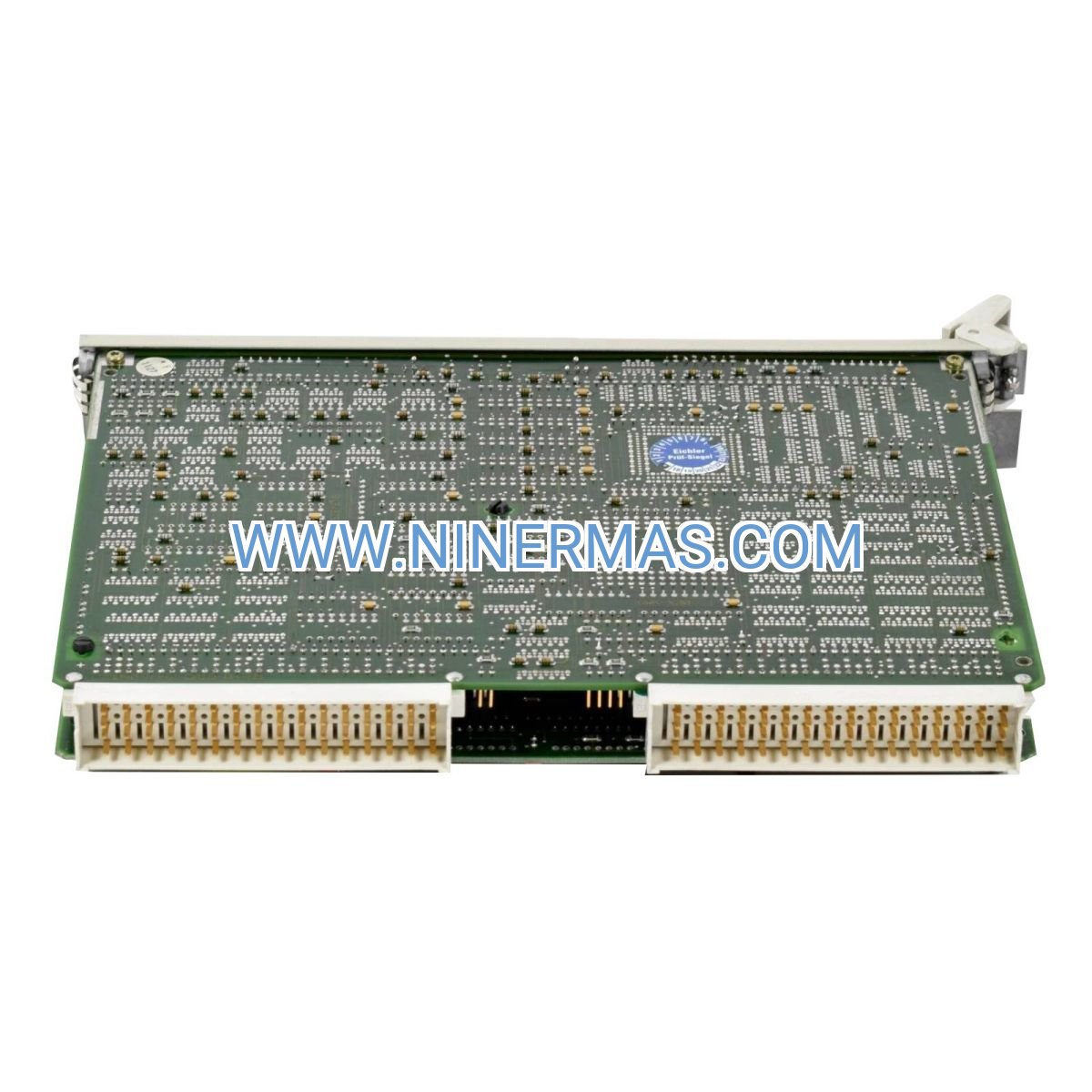

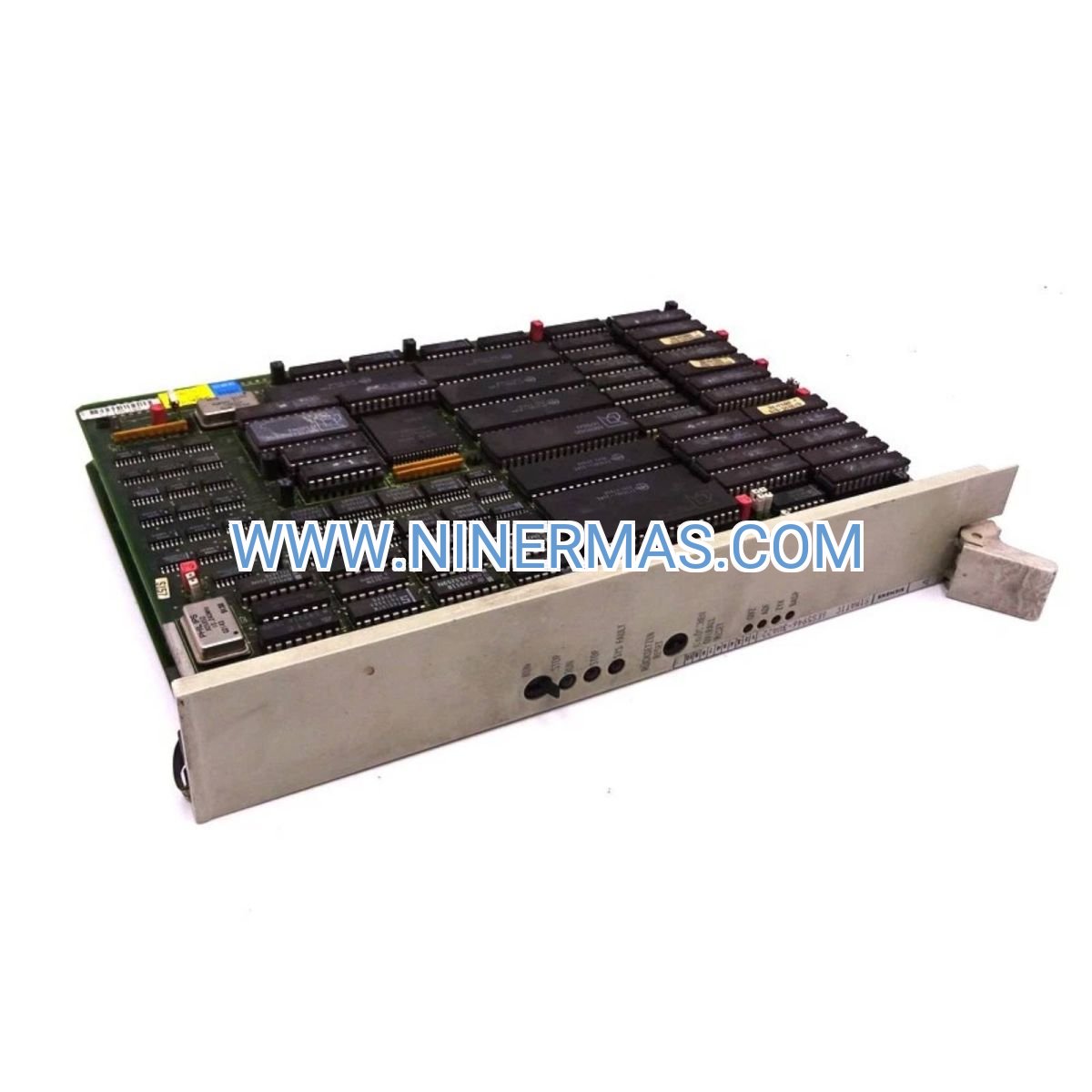

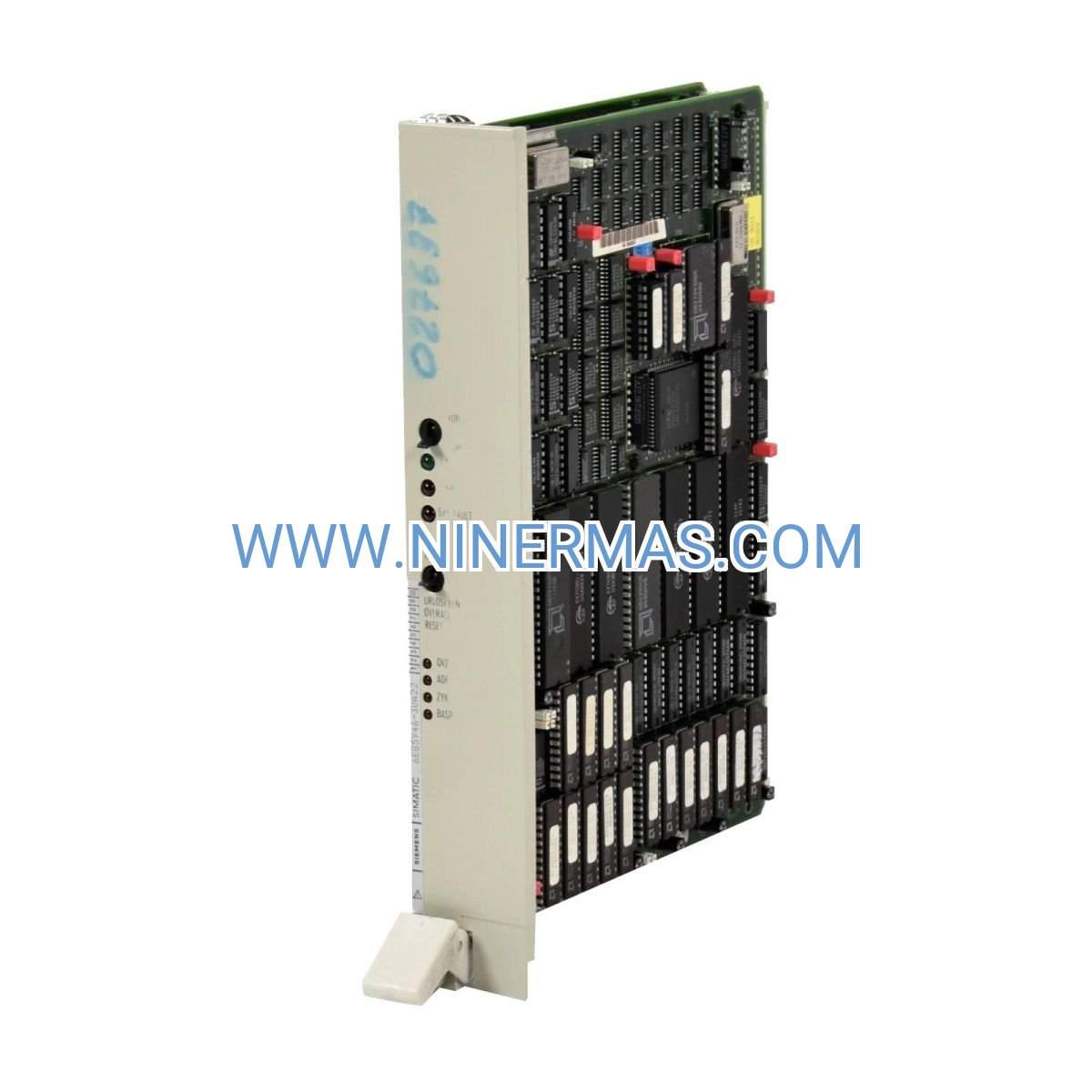

CPU 946 Module 6ES5946-3UA22 (Industrial-Grade S5-155U Processor)

The CPU 946 module (part number 6ES5946-3UA22) delivers mission-critical processing power for SIMATIC S5-155U programmable logic controller architectures. Engineered for continuous operation in harsh industrial environments, this central processing unit combines deterministic scan cycles with extensive I/O handling capacity to orchestrate complex automation sequences across manufacturing, process control, and infrastructure applications. Designed for system integrators and plant engineers managing legacy S5 installations, the CPU 946 ensures operational continuity while supporting gradual modernization strategies.

Industrial facilities face mounting pressure to maintain aging control systems without sacrificing uptime or performance. The 6ES5946-3UA22 addresses this challenge by providing drop-in compatibility with existing S5-155U racks while offering superior computational throughput compared to earlier CPU generations. Whether you're sustaining a pharmaceutical batch reactor, coordinating automotive assembly robotics, or managing petrochemical distillation columns, this processor delivers the reliability and precision timing your operations demand.

Key differentiators include expandable memory architecture for growing program complexity, multi-protocol communication interfaces for enterprise integration, and built-in diagnostic capabilities that reduce mean time to repair. The CPU 946 represents a strategic investment in operational resilience, allowing you to extend asset lifecycles while planning systematic migration to next-generation platforms.

Core Capabilities & Business Value

→ High-Speed Instruction Execution: Optimized processor architecture delivers sub-millisecond scan times for time-critical control loops, ensuring precise coordination of multi-axis motion systems and rapid response to process deviations.

✓ Scalable Memory Configuration: Expandable RAM supports program libraries exceeding 100KB, accommodating sophisticated recipe management, statistical process control algorithms, and comprehensive alarm handling without performance degradation.

→ Extensive I/O Addressing: Manages up to thousands of digital and analog I/O points through distributed rack configurations, enabling centralized control of plant-wide operations from a single CPU module.

✓ Fault-Tolerant Design: Integrated watchdog timers, battery-backed memory retention, and self-diagnostic routines minimize unplanned downtime by detecting anomalies before they cascade into system failures.

→ Legacy Program Compatibility: Executes existing STEP 5 ladder logic and statement lists without modification, protecting decades of application engineering investment during phased upgrade projects.

✓ Multi-Protocol Connectivity: Native support for PROFIBUS, AS-Interface, and proprietary Siemens protocols facilitates data exchange with SCADA systems, HMI panels, and enterprise MES platforms.

Typical Application Scenarios

Automotive Manufacturing Lines: Coordinates welding robots, conveyor systems, and quality inspection stations in body-in-white assembly operations. Solves synchronization challenges across 50+ actuators while maintaining cycle times under 60 seconds. Delivers 99.7% uptime through predictive diagnostics and hot-standby redundancy options.

Pharmaceutical Batch Processing: Manages temperature ramps, ingredient dosing sequences, and clean-in-place cycles for API synthesis reactors. Addresses regulatory compliance requirements through audit-trail logging and recipe version control. Achieves ±0.5°C temperature stability and 21 CFR Part 11 data integrity.

Petrochemical Refinery Units: Controls distillation column reflux ratios, heat exchanger networks, and emergency shutdown systems in crude oil processing. Resolves safety instrumented function requirements with certified response times. Provides continuous operation through harsh ambient conditions (-20°C to +60°C).

Water Treatment Facilities: Orchestrates pump sequencing, chemical dosing, and filtration backwash cycles across municipal wastewater plants. Eliminates manual intervention through adaptive control algorithms that respond to influent quality variations. Reduces energy consumption by 15-25% through optimized equipment staging.

Food & Beverage Packaging: Synchronizes filling heads, capping machines, and labeling applicators in high-speed bottling lines. Overcomes product changeover complexity with stored recipe parameters for 100+ SKU variants. Minimizes material waste through precise volume control (±2ml accuracy).

Technical Parameters & Selection Guide

Selection Criteria: Choose the CPU 946 when your application requires more than 32KB program memory, supports over 1024 I/O points, or demands scan cycles faster than 5ms. For smaller S5-135U systems with limited I/O (under 512 points), consider the CPU 928 alternative. If your process requires redundant hot-standby configurations, evaluate the S5-155H platform with CPU 948 modules. Verify compatibility with existing power supply modules (6ES5930 series) and communication processors before ordering.

Extended Functions

Advanced Diagnostic Capabilities: The CPU 946 provides real-time monitoring of scan cycle overruns, memory utilization, and I/O module health status through integrated diagnostic buffers. System integrators can access detailed fault logs via programming terminals or SCADA interfaces, enabling predictive maintenance strategies that identify failing components before production impact.

Recipe Management & Data Logging: Supports structured data blocks for storing up to 200 product recipes with parameter sets including setpoints, tolerances, and sequencing logic. Timestamped event logging captures process deviations, operator interventions, and alarm conditions for quality traceability and continuous improvement analysis.

Customization Options: Available with factory-configured memory expansions, specialized communication modules (Ethernet, DeviceNet adapters), and application-specific firmware for industries with unique regulatory requirements. Contact our engineering team for tailored solutions including pre-loaded program templates and commissioning support.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days via express courier (DHL/FedEx). Custom-configured units or bulk orders (10+ pieces) require 2-3 weeks for factory preparation and quality verification. Expedited processing available for emergency replacement scenarios.

Warranty Coverage: Every CPU 946 module includes a comprehensive 12-month warranty against manufacturing defects and component failures under normal operating conditions. Warranty encompasses parts replacement and return shipping costs, with optional extended coverage plans available for critical infrastructure applications.

Technical Support: Access to multilingual application engineers (English, German, Mandarin) via email, phone, and remote desktop assistance. Support includes STEP 5 programming guidance, system integration troubleshooting, and migration planning consultations. Average response time: 4 hours during business days.

Documentation Package: Each unit ships with original Siemens technical manual (PDF format), wiring diagrams, memory configuration worksheets, and quick-start commissioning checklist. Additional resources include sample ladder logic programs for common applications and firmware update procedures.

Frequently Asked Questions

What programming software is compatible with the CPU 946 for S5-155U systems?
Use Siemens STEP 5 programming software (versions V7.x or later) running on Windows-based PCs with appropriate communication adapters (USB-to-MPI or Ethernet gateways). The software supports ladder logic (LAD), statement list (STL), and function block diagram (FBD) programming languages. Legacy DOS-based STEP 5 versions may require virtual machine environments for modern hardware compatibility.

Can this CPU module replace earlier 945 series processors in existing installations?
Yes, the CPU 946 offers mechanical and electrical compatibility with S5-155U racks designed for 945-series modules. However, program migration requires validation due to enhanced instruction sets and memory addressing differences. Expect 2-4 hours of commissioning time for program upload, parameter verification, and I/O checkout. Backup existing programs before attempting replacement.

How does the CPU 946 perform in high-temperature industrial environments?
The module operates reliably within 0°C to +60°C ambient temperature ranges, suitable for most climate-controlled electrical rooms. For extreme environments (foundries, outdoor enclosures), install supplementary cooling (forced ventilation or air conditioning) to maintain cabinet temperatures below 50°C. Thermal monitoring via cabinet-mounted sensors recommended for preventive maintenance.

What is the maximum I/O expansion capacity for this processor?
The CPU 946 addresses up to 4096 digital I/O points and 512 analog channels through distributed rack configurations using S5-155U expansion units. Practical limits depend on scan cycle requirements—maintaining sub-10ms cycles typically constrains systems to 2000-2500 I/O points. Consult system loading calculations based on your specific program complexity and communication overhead.

Does the CPU support remote monitoring and SCADA integration?
Yes, through optional communication processors (CP modules) that provide Ethernet TCP/IP, PROFIBUS DP, or serial protocols (Modbus RTU). The CPU 946 exchanges data via shared memory regions accessible to communication modules, enabling real-time process visualization, alarm notification, and production reporting to enterprise systems. OPC server software facilitates integration with third-party SCADA platforms.

What backup power requirements ensure program retention during outages?
The CPU 946 uses a lithium battery (typically CR2032 or equivalent) to maintain RAM contents during power interruptions. Battery life ranges from 2-5 years depending on ambient temperature and memory size. Implement UPS (uninterruptible power supply) systems for critical applications requiring graceful shutdown procedures. Battery status monitoring available through diagnostic functions.
