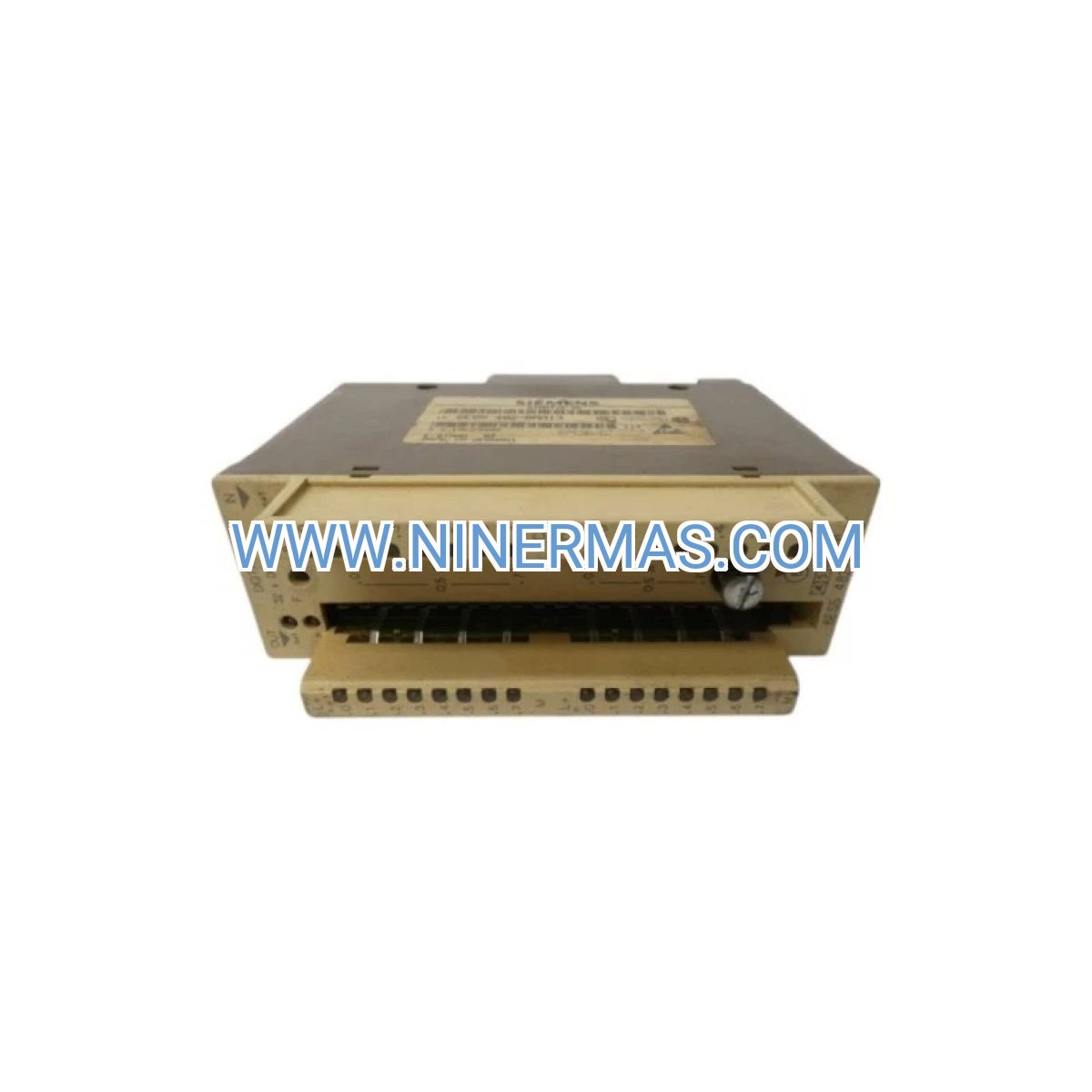

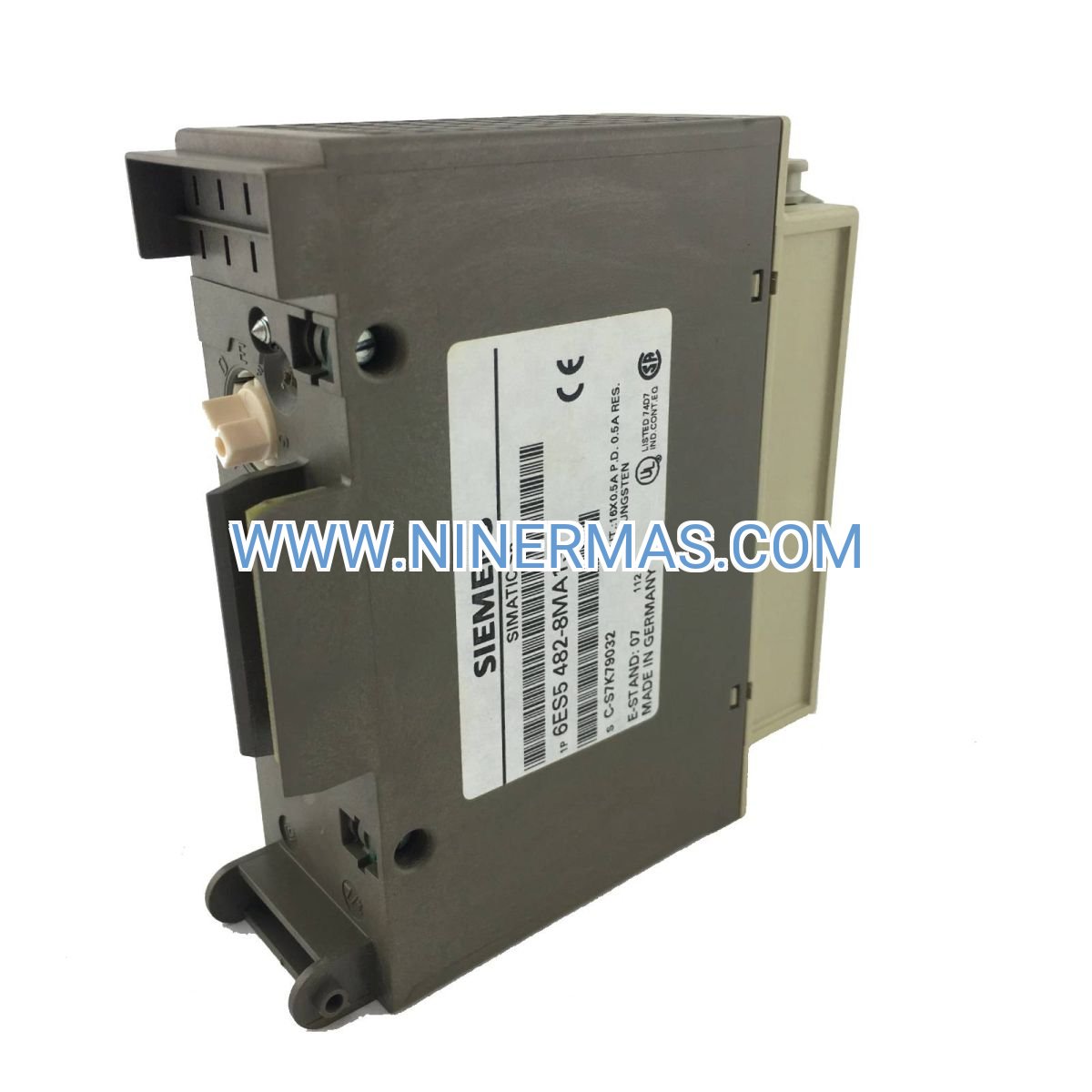

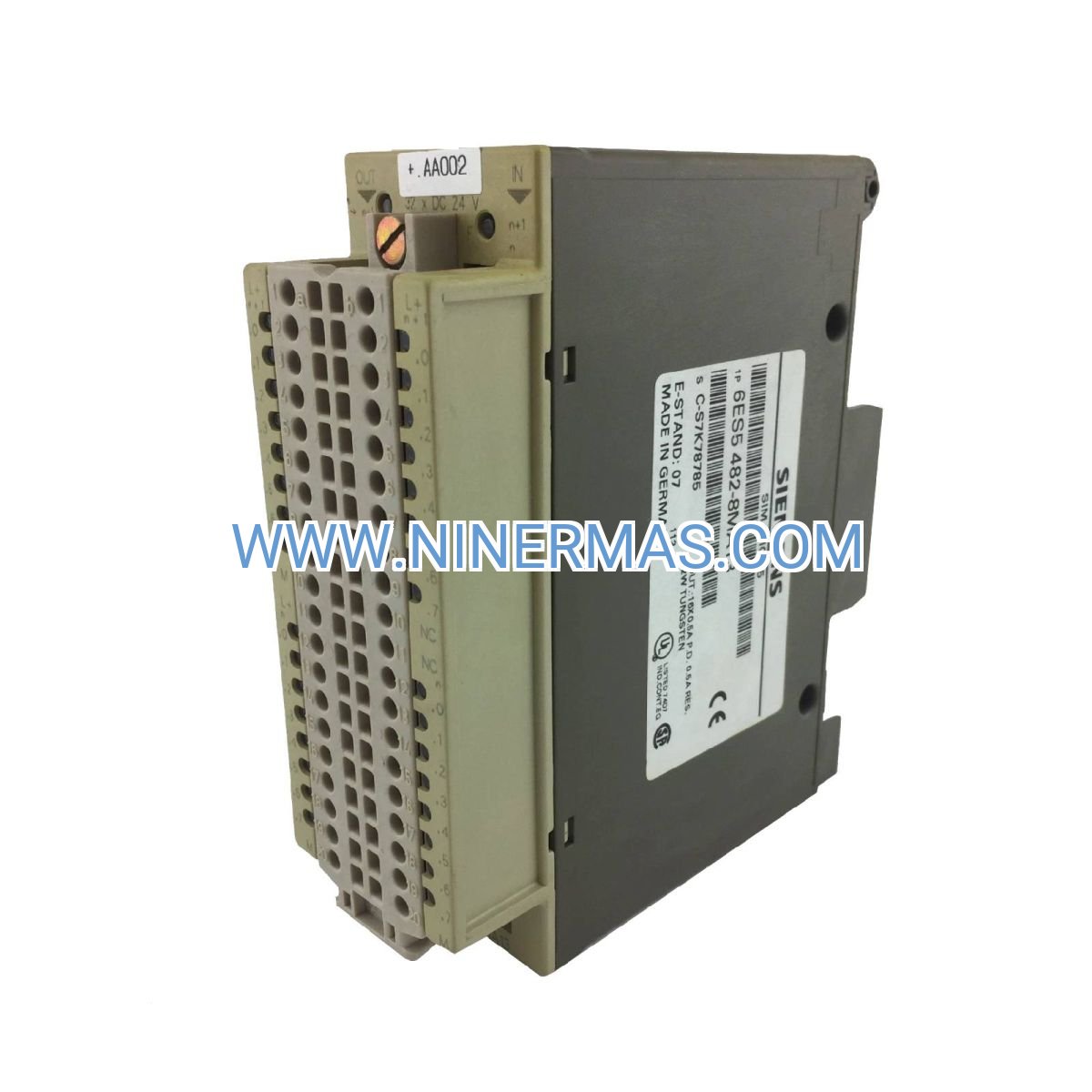

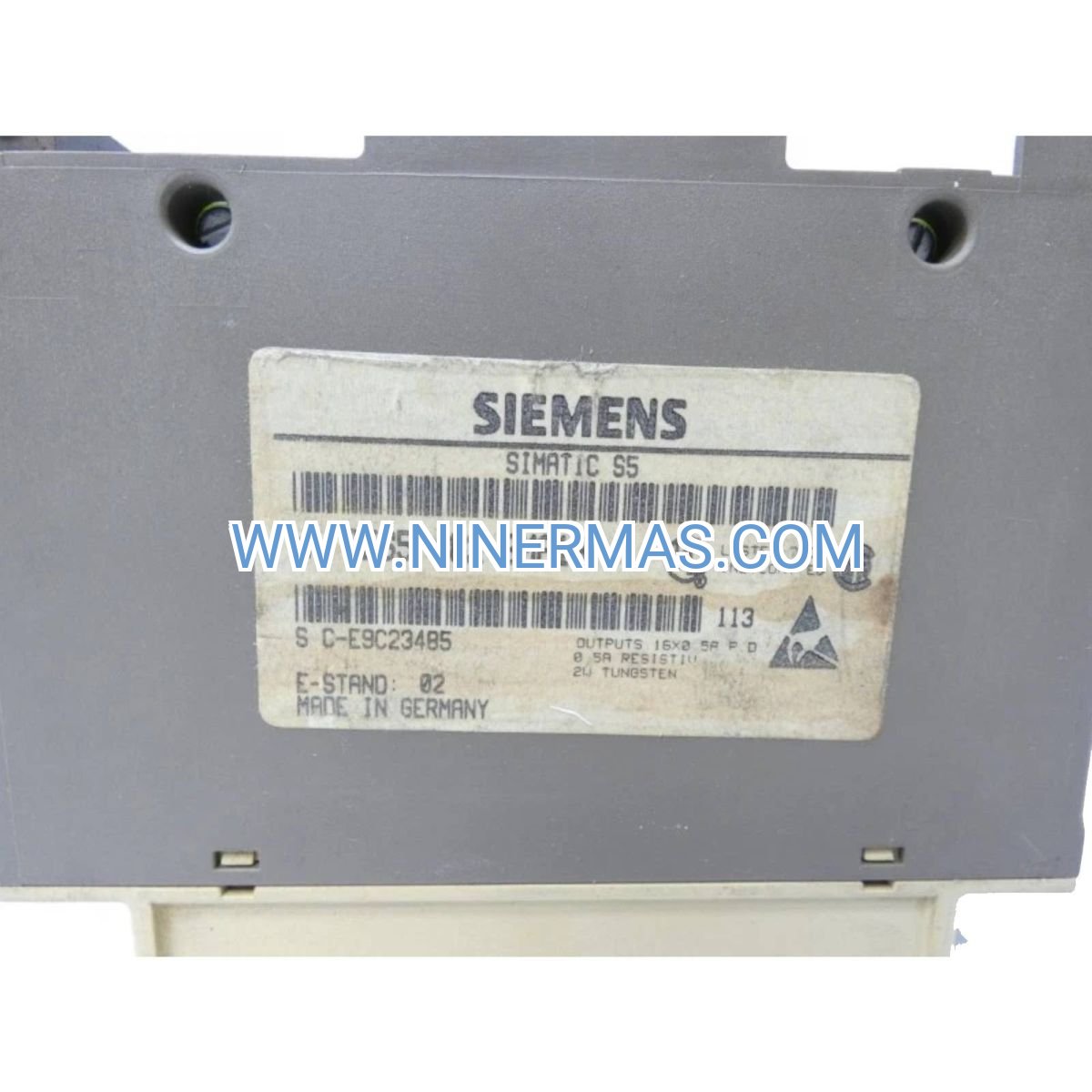

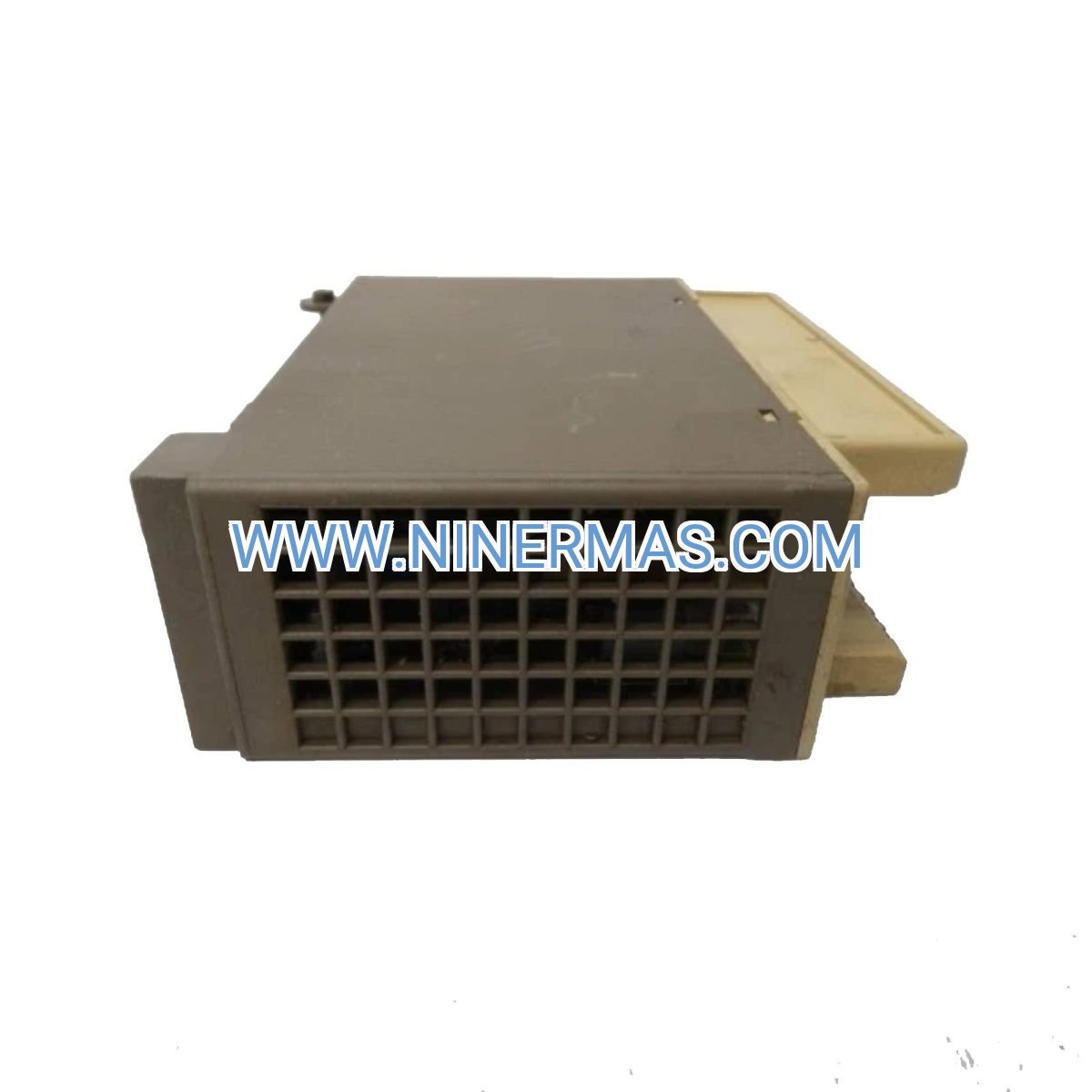

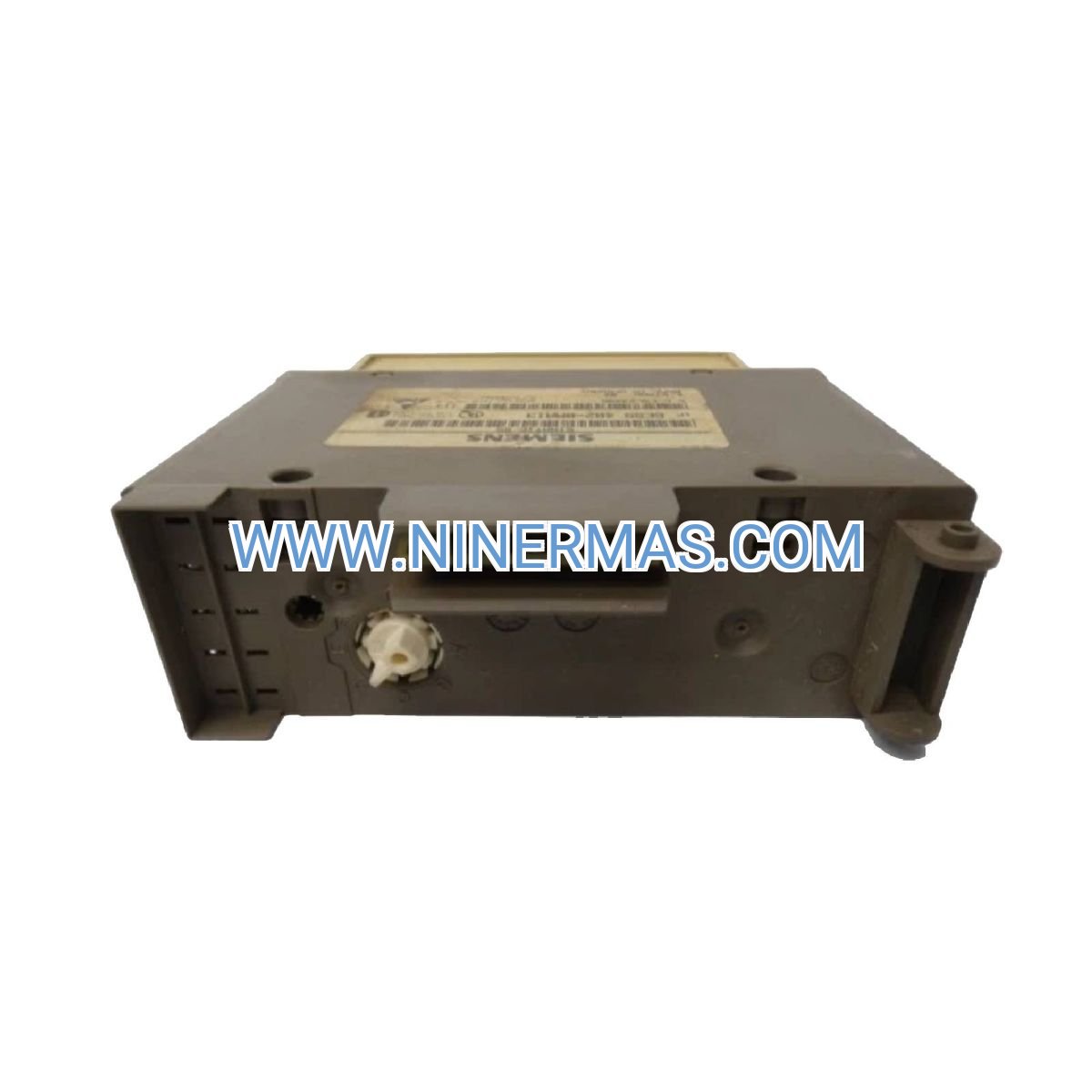

Siemens 6ES5482-8MA13 Digital I/O Module (Industrial-Grade 32-Point Controller Interface)

The Siemens 6ES5482-8MA13 represents a proven solution for high-density discrete signal processing in SIMATIC S5 automation architectures. Engineered with 16 digital inputs and 16 digital outputs operating at 24VDC, this non-isolated module maximizes rack utilization while delivering microsecond-level response times essential for time-critical manufacturing processes.

Designed for system integrators managing legacy S5 installations, this module addresses the dual challenge of maintaining operational continuity while optimizing cabinet space. Its compact single-slot footprint consolidates 32 I/O points that would traditionally require multiple modules, reducing wiring complexity and improving system maintainability.

Whether you're retrofitting aging production lines or extending existing S5 control systems, the 6ES5482-8MA13 delivers field-proven reliability backed by Siemens' industrial engineering standards. The module's non-isolated architecture makes it ideal for common-ground applications where cost efficiency and signal density are paramount.

Core Capabilities & Technical Advantages

→ Space-Optimized Architecture: Consolidates 32 discrete I/O points into a single module slot, freeing up rack positions for analog modules, communication processors, or future expansion while reducing overall system footprint by up to 50% compared to traditional 8-point modules.

→ Rapid Signal Processing: Input scan cycles under 5 milliseconds combined with 2ms output response ensure real-time synchronization with high-speed conveyors, pick-and-place robots, and precision positioning systems where timing accuracy directly impacts production throughput.

→ Universal 24VDC Compatibility: Interfaces seamlessly with industry-standard sensors (inductive, capacitive, photoelectric), actuators (solenoid valves, pneumatic cylinders), and signaling devices without requiring voltage conversion or signal conditioning hardware.

✓ Cost-Effective Non-Isolated Design: Eliminates channel-to-channel isolation circuitry to reduce per-point costs by 30-40% while maintaining full performance specifications for applications with common electrical reference—ideal for budget-conscious retrofits and OEM machine builds.

✓ Front-Access Diagnostics: Individual LED indicators for all 32 channels enable rapid fault identification during commissioning and troubleshooting, reducing mean time to repair (MTTR) and minimizing unplanned downtime in 24/7 production environments.

✓ Industrial Environmental Rating: Operates reliably across 0°C to +60°C ambient temperatures with IP20 protection, suitable for climate-controlled control rooms and semi-protected industrial enclosures without additional thermal management.

Industrial Application Scenarios

Automotive Assembly Automation: Coordinate multi-station welding cells by monitoring fixture clamps, part-present sensors, and robot ready signals while controlling pneumatic actuators, coolant valves, and status indicators—reducing wiring runs by 40% compared to distributed I/O approaches.

Food & Beverage Packaging Lines: Interface with metal detectors, checkweighers, and reject mechanisms on high-speed filling equipment. The module's fast input response captures product defects at line speeds exceeding 300 units/minute, preventing contaminated products from reaching distribution.

Warehouse Material Handling Systems: Manage sortation conveyors with photoelectric sensors detecting package presence, diverter solenoids routing items to designated lanes, and motor contactors controlling belt drives—all from a centralized S5 controller reducing PLC count and programming complexity.

Machine Tool Control Panels: Read limit switches for axis homing, tool magazine positions, and safety door interlocks while driving hydraulic pump motors, coolant circulation, and chip conveyor systems. The module's 0.5A output capacity directly controls pilot relays without intermediate amplification.

Water Treatment Facilities: Monitor tank level switches, flow sensors, and chemical feed alarms across multi-stage filtration processes. Control dosing pumps, valve actuators, and alarm beacons to maintain water quality parameters within regulatory compliance thresholds.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this module when your application requires maximum I/O density in limited rack space and all field devices share a common 24VDC power supply. For applications requiring channel-to-channel isolation, voltage level translation, or ground loop prevention, consider isolated I/O alternatives. Verify that total output load does not exceed 8A aggregate current (16 channels × 0.5A).

Advanced Integration Features

Backward Compatibility: Fully compatible with S5-90U, S5-95U, S5-100U, S5-115U, and S5-135U central processing units. Supports both STEP 5 programming environments and third-party configuration tools, enabling seamless integration into existing automation projects without software upgrades.

Modular Expansion: Combine with analog input modules (6ES5460 series), communication processors (6ES5524 series), and specialty function modules to build comprehensive control solutions. The module's standardized backplane interface ensures plug-and-play installation without custom wiring harnesses.

Diagnostic Capabilities: Provides channel-level status feedback to the CPU for integration with SCADA systems and predictive maintenance platforms. Monitor input signal quality, output short-circuit conditions, and module health metrics through standard S5 diagnostic data blocks.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via express courier services (DHL, FedEx, UPS). Custom configurations or volume orders (10+ units) typically require 5-7 business days for quality verification and packaging.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes free replacement for failed modules and technical support for installation troubleshooting.

Technical Support: Access to application engineers with S5 platform expertise for wiring diagrams, address mapping assistance, and integration guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module ships with original Siemens datasheet, wiring terminal diagrams, and I/O address configuration templates. Digital copies of STEP 5 sample programs and CAD drawings available upon request.

Frequently Asked Questions

How does non-isolated I/O architecture affect system grounding requirements?
Non-isolated modules require all connected field devices to share the same electrical ground reference as the PLC backplane. This simplifies wiring but necessitates careful attention to ground loop prevention. Use star-point grounding topology and avoid connecting devices powered by separate transformers to prevent circulating currents that can cause erratic input readings.

What is the maximum recommended cable distance for 24VDC digital signals?
For standard unshielded cables, maintain runs under 50 meters to prevent voltage drop and noise pickup. Shielded twisted-pair cables extend this to 100+ meters in electrically noisy environments. For longer distances, consider using remote I/O modules with fieldbus communication or 4-20mA signal converters.

Can this module interface with both PNP and NPN sensor outputs?
The module's inputs are designed for PNP (sourcing) sensors where the sensor switches +24VDC to the input terminal. For NPN (sinking) sensors, external pull-up resistors or signal inverters may be required. Consult the sensor datasheet to verify output type compatibility before wiring.

How do I determine the I/O address assignment for this module?
I/O addresses are determined by the module's physical slot position in the S5 rack. Use STEP 5 software's hardware configuration tool to view the address map. Typically, each module occupies consecutive byte addresses (e.g., inputs at IB0-IB1, outputs at QB0-QB1). Refer to your CPU's address allocation table for slot-to-address mapping.

What protection is needed for inductive loads like solenoid valves?
Inductive loads generate voltage spikes during de-energization that can damage output transistors. Install flyback diodes (1N4007 or equivalent) across each inductive load with cathode connected to +24VDC. For AC-operated solenoids controlled via intermediate relays, use RC snubber networks rated for the relay coil voltage.

Is this module suitable for safety-critical applications?
No. This is a standard I/O module without safety certification (SIL rating). For emergency stop circuits, safety light curtains, or other protective functions, use certified safety I/O modules compliant with IEC 61508 or ISO 13849 standards. Standard I/O can be used for non-safety monitoring and control functions within the same system.

Request Technical Consultation

Our automation specialists provide complimentary pre-sales engineering support to ensure optimal module selection for your application. Contact us with your I/O count requirements, field device specifications, and environmental conditions for personalized recommendations and system architecture review.

Ready to optimize your S5 control system? Add the 6ES5482-8MA13 to your cart or request a formal quotation for volume pricing and custom delivery schedules.
