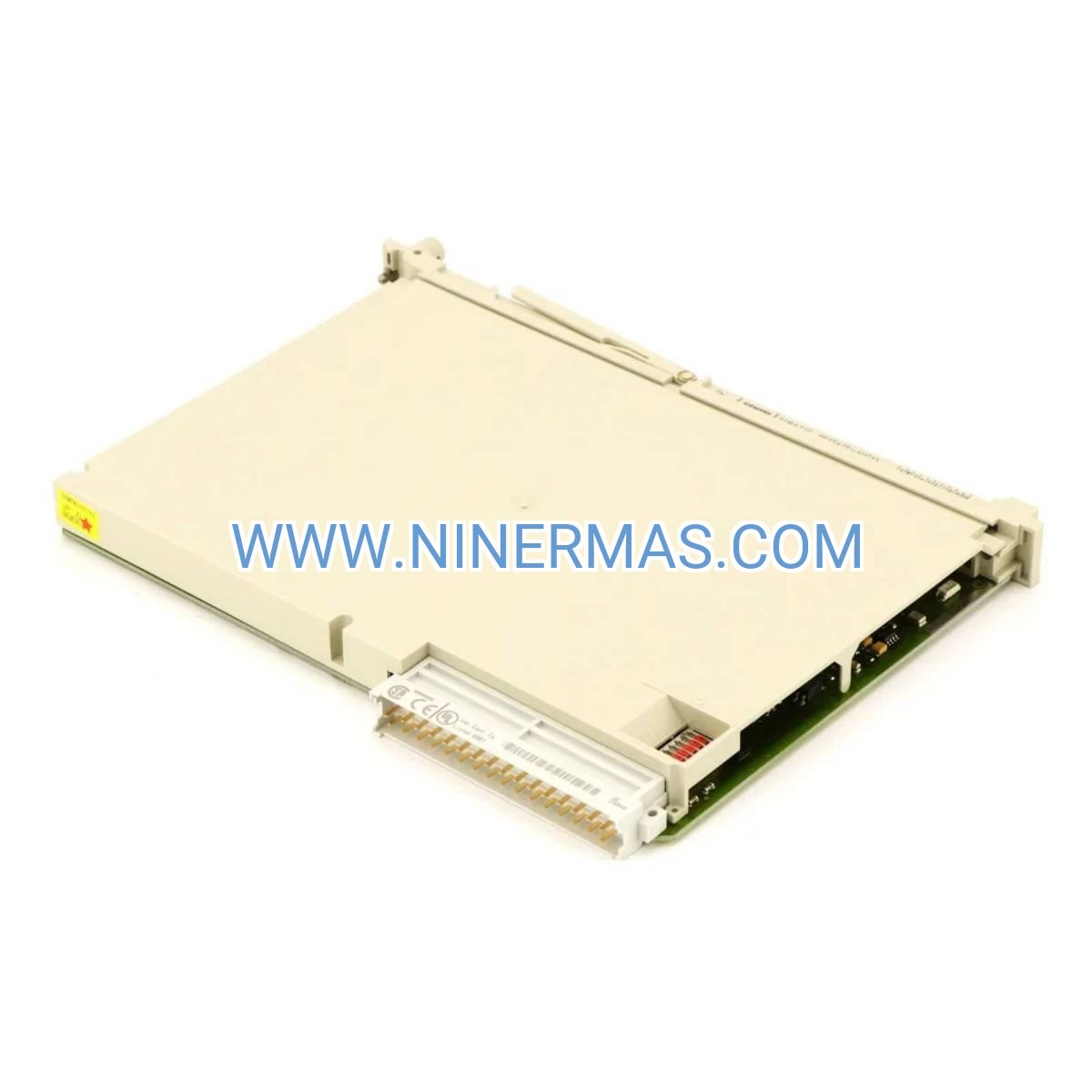

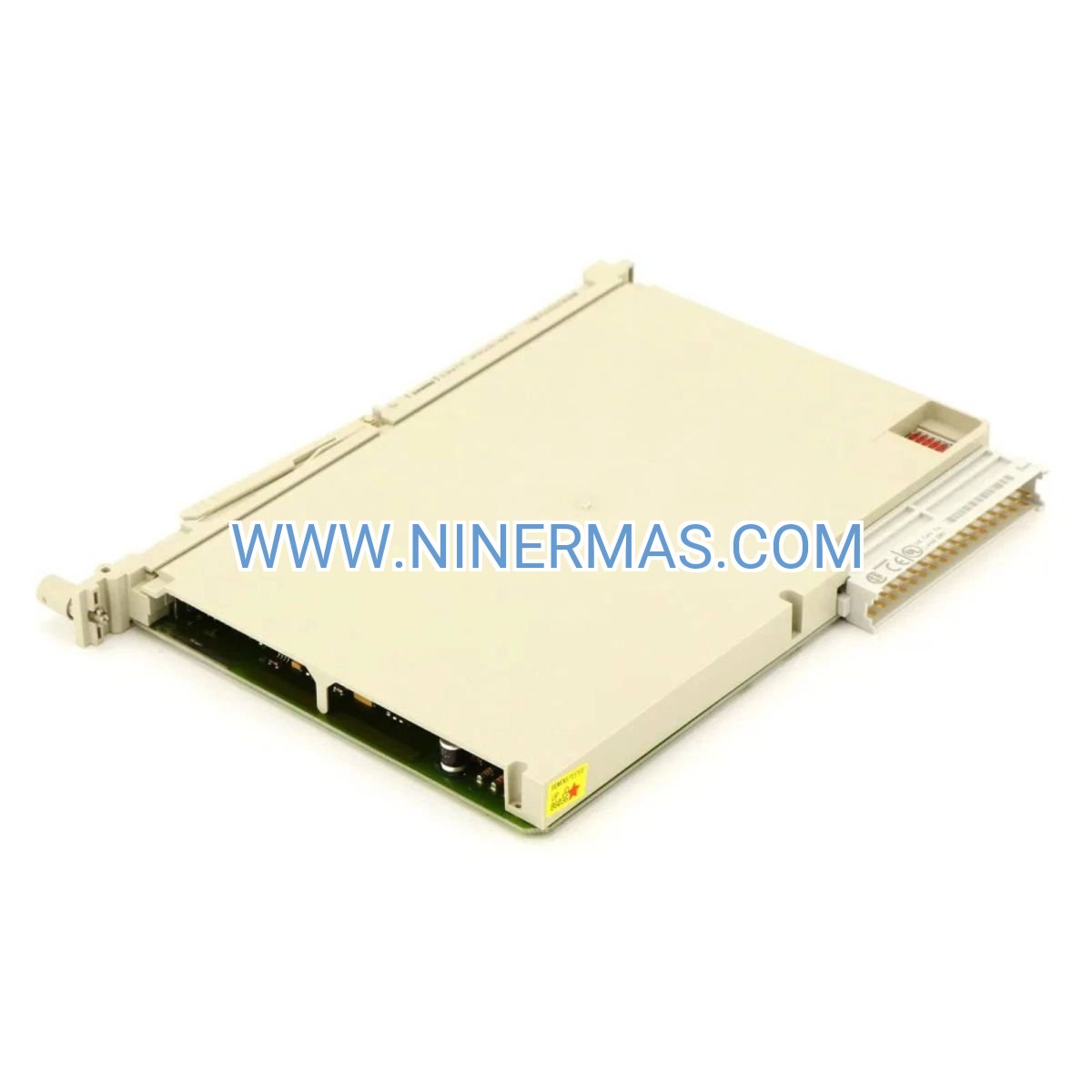

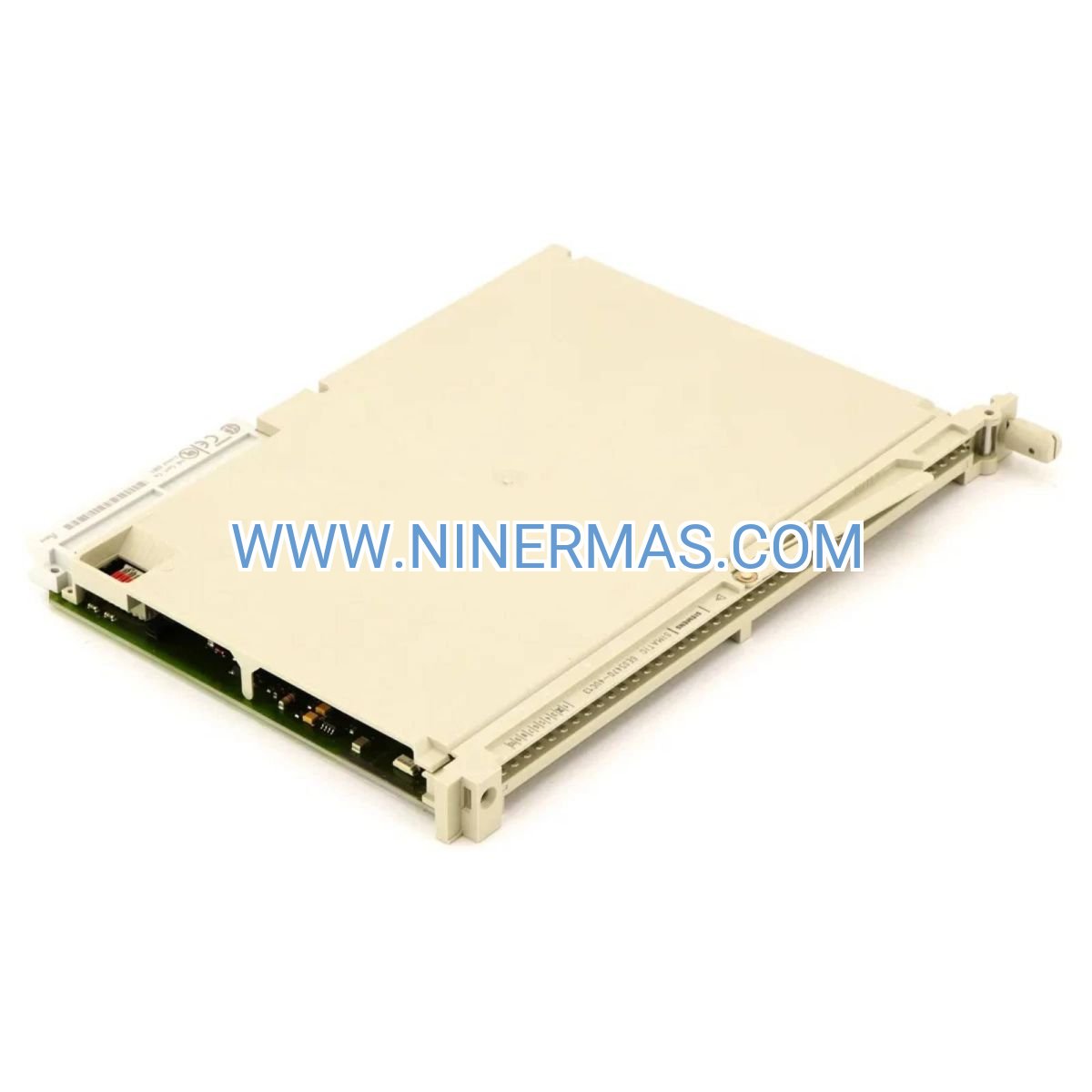

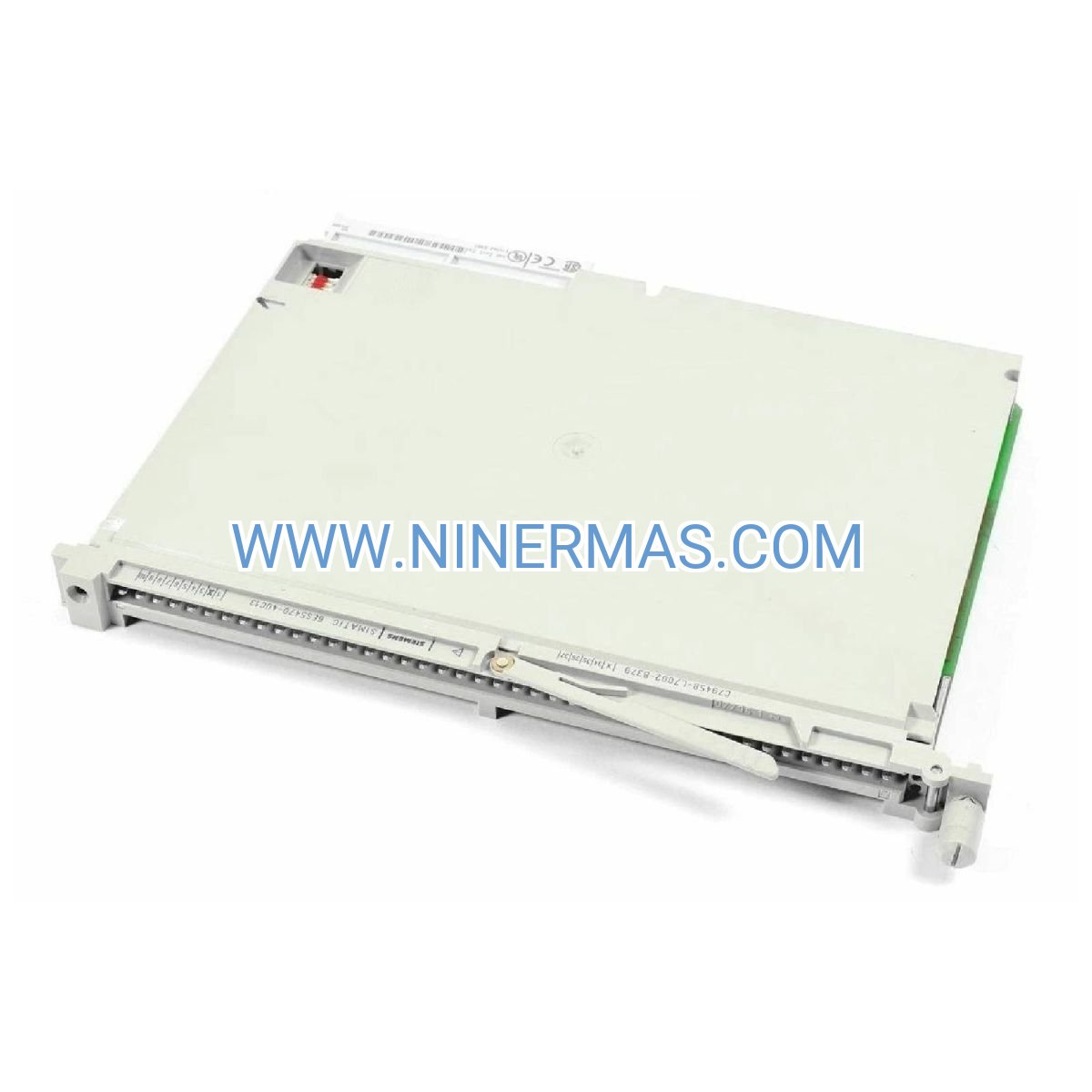

6ES5470-4UC13 Industrial Analog Output Module (8-Channel Isolated Design)

The 6ES5470-4UC13 represents a professional-grade analog output solution specifically engineered for SIMATIC S5-115U programmable logic controller environments. This compact design U module integrates 8 galvanically isolated output channels, delivering precise voltage and current signal generation for mission-critical industrial automation workflows. Designed for system integrators and OEMs requiring reliable analog control in legacy PLC infrastructures, this module ensures signal integrity through advanced isolation technology while maintaining compatibility with existing S5-115U rack configurations.

Industrial facilities operating S5-115U control systems face ongoing challenges in maintaining analog output capabilities for process control, motion coordination, and instrumentation interfaces. The 6ES5470-4UC13 addresses these requirements through multi-channel flexibility, dual output mode configuration, and robust construction suitable for harsh manufacturing environments. Whether upgrading existing installations or maintaining long-term operational continuity, this module provides the precision and reliability demanded by modern industrial applications.

Key advantages include galvanic isolation protecting sensitive circuits from electrical interference, space-efficient footprint optimizing rack utilization, and proven Siemens engineering ensuring decades of dependable service. With 12-bit resolution and configurable voltage/current outputs per channel, the 6ES5470-4UC13 delivers the performance specifications required for demanding process control scenarios across chemical processing, HVAC systems, and automated manufacturing lines.

Core Features & Technical Advantages

✓ 8 Independent Isolated Channels: Galvanic isolation between each output and system backplane eliminates ground loops and electrical noise, ensuring clean signal transmission to field devices and actuators in electrically noisy industrial environments.

✓ Dual Output Configuration: Each channel independently supports voltage mode (0-10V DC) or current mode (0-20mA/4-20mA) operation, providing maximum flexibility for interfacing with diverse analog devices including valve positioners, VFDs, and instrumentation systems.

✓ 12-Bit Digital-to-Analog Conversion: High-resolution signal generation delivers 4096 discrete output levels, enabling precise proportional control for applications requiring fine-tuned process regulation and smooth motion coordination.

✓ Compact Design U Architecture: Space-optimized module format maximizes I/O density within S5-115U racks, reducing cabinet footprint and installation costs while maintaining full functionality and serviceability.

✓ Industrial Temperature Range: Rated for continuous operation from 0°C to +60°C ambient temperature, ensuring reliable performance in demanding manufacturing environments without additional cooling requirements.

✓ Backplane Power Integration: Direct power draw from S5-115U rack eliminates external power supply requirements, simplifying installation and reducing component count for streamlined system architecture.

Industrial Application Scenarios

Chemical Process Control: In batch processing and continuous flow operations, the 6ES5470-4UC13 generates precise control signals for pneumatic control valves, regulating flow rates, pressure levels, and mixing ratios. The isolated outputs prevent process ground potentials from affecting control accuracy, critical in multi-zone reactor systems.

HVAC Environmental Management: Building automation systems utilize the module's voltage outputs to drive damper actuators, modulating valves, and variable air volume (VAV) controllers. Current loop outputs interface with temperature transmitters and humidity sensors, creating closed-loop climate control systems for pharmaceutical cleanrooms and data centers.

Motion Control Integration: Manufacturing lines employ the 6ES5470-4UC13 to command variable frequency drives (VFDs) controlling conveyor speeds, robotic positioning systems, and material handling equipment. The 4-20mA current outputs provide noise-immune speed references over extended cable runs in electrically harsh factory floors.

Energy Management Systems: Power generation facilities use the module's analog outputs to regulate turbine governors, boiler feedwater controls, and emissions monitoring equipment. Galvanic isolation ensures measurement accuracy in high-voltage switchyard environments where ground potential differences exist.

Water Treatment Operations: Municipal and industrial water treatment plants deploy the 6ES5470-4UC13 for chemical dosing pump control, pH adjustment systems, and filtration process regulation. The module's reliability supports 24/7 continuous operation in critical infrastructure applications.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 6ES5470-4UC13, verify compatibility with your S5-115U CPU model and available rack slots. Calculate total power budget including all installed modules to ensure adequate power supply capacity. For applications requiring more than 8 outputs, multiple modules can be installed in adjacent rack positions. Consider current output mode for long cable runs or electrically noisy environments; voltage mode offers simpler wiring for short-distance, low-noise applications.

Extended Functionality & Integration

STEP 5 Programming Integration: The module maps directly into the S5-115U address space as standard analog output words, accessible through STEP 5 programming software using standard analog output instructions. No special function blocks required for basic operation.

Diagnostic Capabilities: Built-in self-monitoring detects wire breaks, short circuits, and overload conditions on current outputs. Diagnostic information accessible through PLC program for predictive maintenance strategies.

Calibration & Accuracy: Factory-calibrated outputs maintain ±0.5% accuracy across full temperature range. Field recalibration procedures documented in technical manual for applications requiring tighter tolerances.

Retrofit & Modernization: Direct replacement for existing 6ES5470-4UC13 modules in legacy systems. Compatible with S5-115U migration strategies transitioning to modern S7 platforms through gateway solutions.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock modules ship within 1-2 business days via express courier services. International shipments typically arrive within 5-7 business days depending on customs clearance and destination country.

Warranty Coverage: Every 6ES5470-4UC13 module includes comprehensive 12-month warranty covering manufacturing defects and component failures. Warranty service includes replacement module shipment and technical support for installation verification.

Technical Support: Our automation specialists provide configuration assistance, wiring guidance, and troubleshooting support throughout the product lifecycle. STEP 5 programming examples and integration documentation available upon request.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and technical specifications. Complete user manual and programming reference available for download from manufacturer documentation portal.

Frequently Asked Questions

What is the maximum load resistance for voltage outputs on the 6ES5470-4UC13 module?
Voltage outputs (0-10V) require minimum load resistance of 1kΩ. For optimal performance, maintain load resistance above 5kΩ to minimize output current draw and ensure accuracy across the full output range.

Can this analog output module operate in S5-100U or S5-135U controller systems?
No, the 6ES5470-4UC13 is mechanically and electrically designed exclusively for S5-115U architecture. For S5-100U systems, specify the 6ES5470-4UA12 variant; S5-135U systems require different module families with compatible backplane interfaces.

How do I configure individual channels for voltage versus current output mode?
Output mode selection is performed via hardware jumpers located on the module front panel. Consult the technical manual for jumper position diagrams. Each channel can be independently configured; no software configuration required for basic voltage/current selection.

What cable specifications are recommended for 4-20mA current loop connections?
Use shielded twisted-pair cable with minimum 18 AWG (0.75mm²) conductor size for current outputs. Shield should be grounded at one end only (typically at the module) to prevent ground loops. Maximum loop resistance including cable and load should not exceed 600Ω.

Does the module support hot-swapping during PLC operation?
No, the S5-115U architecture does not support hot-swap functionality. Always power down the rack before installing or removing modules to prevent backplane damage and ensure proper module initialization during startup.

Are replacement modules available for long-term system support?
Yes, we maintain inventory of 6ES5470-4UC13 modules specifically for legacy system support and emergency replacement scenarios. Contact our team for volume pricing and long-term availability agreements for critical infrastructure applications.

Take the Next Step

Ensure your S5-115U control system maintains peak performance with genuine Siemens analog output modules. Our technical team is ready to assist with compatibility verification, system integration planning, and volume pricing for multi-site deployments. Contact us today for detailed specifications, wiring diagrams, or to request a formal quotation for your automation project.
