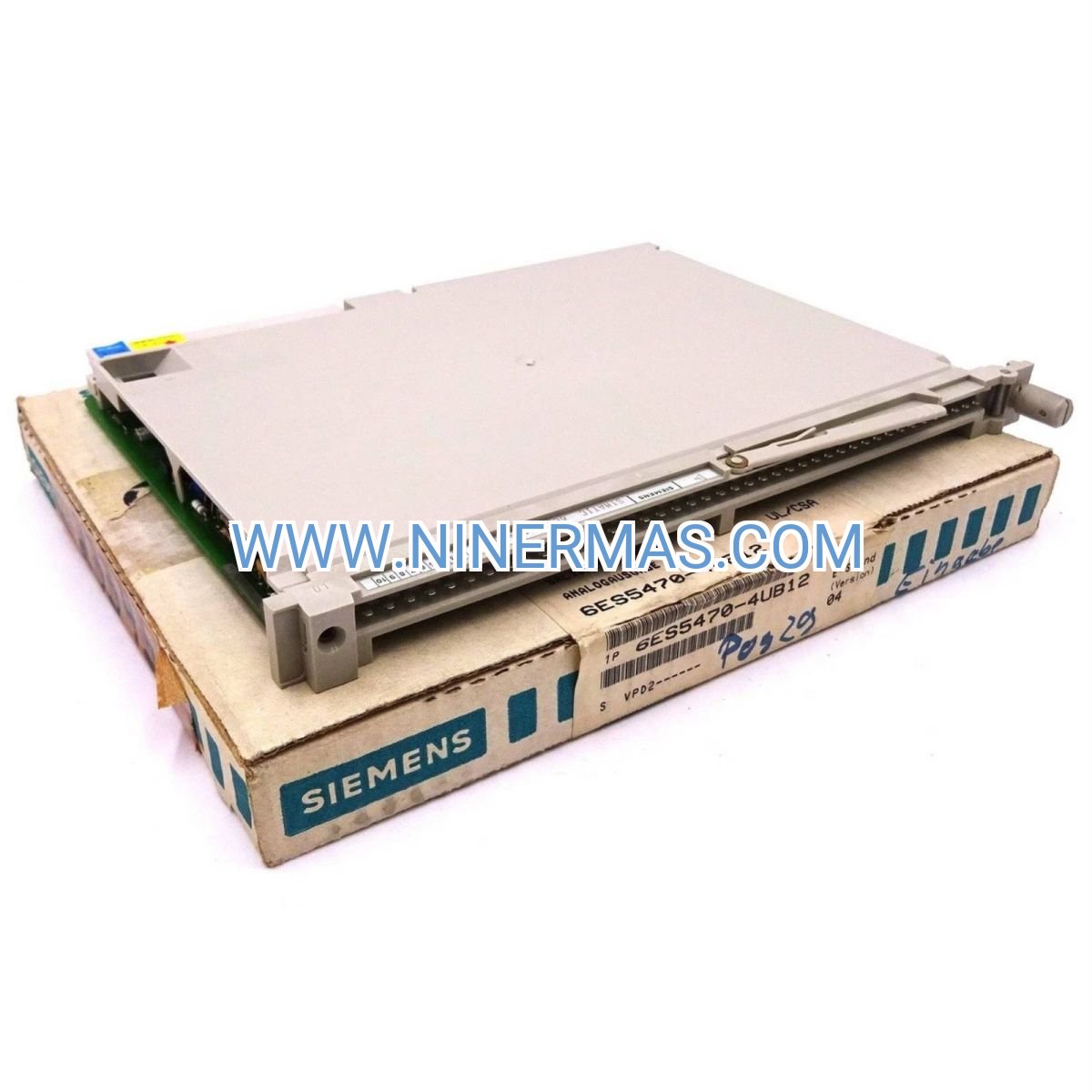

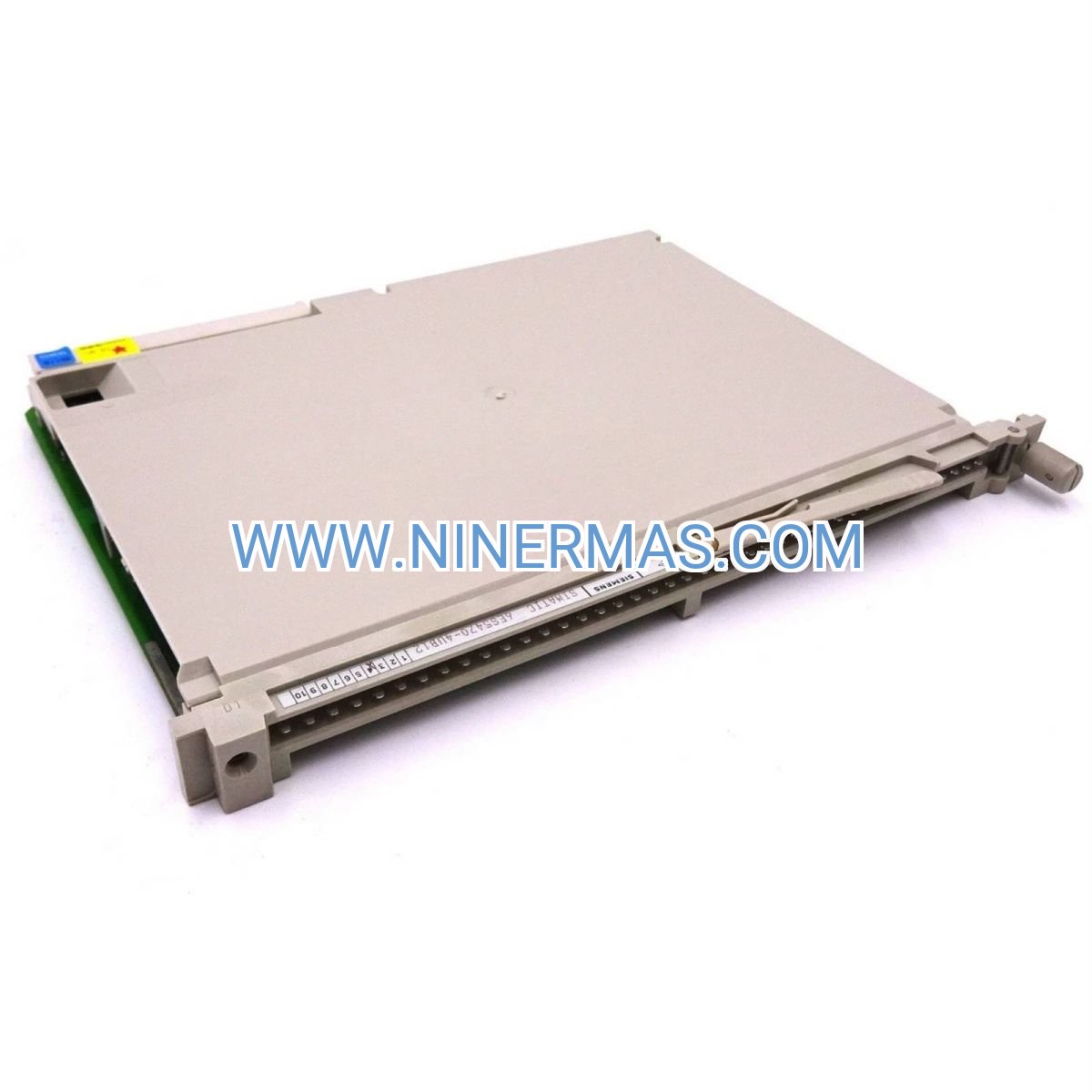

6ES5470-4UB12 Analog Output Module (Industrial-Grade S5 Control Interface)

The 6ES5470-4UB12 represents a proven solution for analog signal generation in SIMATIC S5 programmable logic controller environments. Engineered for S5-115U and S5-135U platforms, this module converts digital control signals into precise ±10V analog outputs, enabling seamless integration with field devices across process industries.

Designed to address the challenge of maintaining legacy automation infrastructure, this module serves system integrators, maintenance engineers, and plant operators who require reliable replacement components for aging S5 installations. Whether you're sustaining critical production lines or extending the operational life of proven control systems, the 6ES5470-4UB12 delivers consistent performance without forcing costly platform migrations.

Key differentiators include floating output architecture for superior noise rejection, 12-bit resolution for smooth process control, and drop-in compatibility with existing STEP 5 programming—preserving your automation investment while maintaining production continuity.

Core Features & Benefits

✓ Eight Floating Analog Outputs
Provides independent ±10V signal channels with electrical isolation, eliminating ground loop interference in multi-device installations while reducing troubleshooting time by up to 40%.

✓ 12-Bit Conversion Precision
Delivers 4,096 discrete output steps for stepless control of proportional valves, VFDs, and actuators—critical for maintaining product quality in batch processing and continuous manufacturing.

✓ S5-115U/135U Native Compatibility
Integrates directly into existing S5 rack configurations without adapter hardware or firmware updates, enabling same-day replacement with zero programming modifications.

✓ Industrial Temperature Range (0°C to +60°C)
Operates reliably in harsh factory environments including foundries, chemical plants, and outdoor enclosures where ambient conditions fluctuate seasonally.

✓ Compact Rack-Mount Design
Occupies minimal cabinet space while supporting high-density I/O configurations, allowing up to 64 analog outputs per rack for complex control strategies.

✓ Proven Long-Term Availability
Backed by established supply chains for legacy components, ensuring replacement parts remain accessible throughout your system's planned lifecycle.

Application Scenarios

Chemical Processing & Batch Control
In pharmaceutical manufacturing and specialty chemical production, the 6ES5470-4UB12 drives precision dosing pumps and control valves. A European chemical plant reduced batch variance by 18% after replacing aging analog modules, achieving tighter recipe adherence through improved signal stability.

Water & Wastewater Treatment
Municipal treatment facilities use these modules to regulate chemical feed systems, pH adjustment, and flow control. The floating output design prevents measurement errors caused by electrical noise from high-power pumps and mixers operating in the same control panel.

Food & Beverage Production Lines
Conveyor speed control, mixer motor regulation, and packaging machine synchronization rely on smooth analog signals. The 12-bit resolution eliminates the jerky motion associated with lower-resolution modules, extending mechanical component life by reducing wear.

HVAC & Building Automation
Legacy building management systems controlling damper actuators, variable air volume boxes, and chilled water valves benefit from the module's stable output characteristics, maintaining occupant comfort while optimizing energy consumption.

Retrofit & Modernization Projects
When upgrading portions of a control system while preserving functional S5 infrastructure, the 6ES5470-4UB12 bridges old and new equipment—allowing phased migration strategies that spread capital investment over multiple budget cycles.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES5470-4UB12 when your application requires voltage-based analog control (±10V) with floating outputs. If your field devices require current signals (4-20mA), consider alternative S5 analog output modules. For isolated channel requirements in electrically noisy environments, evaluate the 6ES5470-4UC13 variant. Verify rack slot availability and power budget before ordering—each module consumes one slot and draws power from the S5 backplane supply.

Extended Functions

Multi-Module Scaling: Deploy multiple 6ES5470-4UB12 modules in a single rack to create high-density analog output systems supporting up to 64 channels, ideal for complex process control applications with numerous control loops.

Signal Conditioning Integration: Pair with external signal conditioners to convert ±10V outputs to 4-20mA current loops when interfacing with long-distance field devices or equipment requiring current-based inputs.

Diagnostic Capabilities: Monitor module status through S5 diagnostic functions, enabling predictive maintenance strategies that identify failing modules before they impact production.

Customization Options: For OEM applications or large-scale retrofits, consult our technical team regarding volume pricing, extended testing protocols, or application-specific configuration services.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. For quantity orders exceeding 10 units or custom-tested modules, allow 10-15 business days for fulfillment and quality verification.

Warranty Coverage: Every 6ES5470-4UB12 module includes a comprehensive 12-month warranty against manufacturing defects and functional failures. Warranty covers replacement or repair at our discretion, including return shipping costs.

Technical Support: Access our applications engineering team for configuration assistance, troubleshooting guidance, and integration planning. Support includes STEP 5 programming consultation, wiring diagram review, and startup commissioning advice.

Documentation Package: Each module ships with installation instructions, technical specifications, and wiring diagrams. Complete datasheets and CAD drawings available for download from our technical library.

Frequently Asked Questions

How do I verify compatibility with my existing S5 rack configuration?
The 6ES5470-4UB12 fits standard S5-115U and S5-135U racks. Check your rack model number and available slot positions. If you're unsure, send us your rack configuration details at sale@ninermas.com for compatibility verification.

What's the maximum cable length for connecting field devices to the analog outputs?
For ±10V signals, we recommend maximum cable runs of 100 meters using shielded twisted-pair cable. Longer distances may require signal amplification or conversion to 4-20mA current loops to maintain signal integrity.

Can this module replace the 6ES5470-4UA12 in my existing system?
The 6ES5470-4UB12 and 4UA12 have different output configurations. Verify your application's voltage range requirements before substituting. Contact our technical team with your current module part number for replacement recommendations.

Does the module require calibration after installation?
Factory calibration is performed before shipment. Field calibration is typically unnecessary unless your application demands extreme precision (±0.1% or better). Calibration procedures are documented in the technical manual if required.

What power supply modules are compatible with this analog output module?
Standard S5 power supplies (6ES5 930-series) provide adequate power for analog modules. Ensure your power supply has sufficient capacity for all installed modules—consult the power budget calculation in your S5 system manual.

Is remote monitoring possible with S5 analog modules?
While S5 systems lack native IoT connectivity, you can implement remote monitoring by interfacing the PLC with modern SCADA systems via serial communication or third-party gateways that bridge S5 protocols to Ethernet networks.

Take the Next Step

Ensure your critical S5 control systems maintain peak performance with genuine Siemens components. Contact our industrial automation specialists today for technical consultation, volume pricing, or expedited delivery options. Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements.
