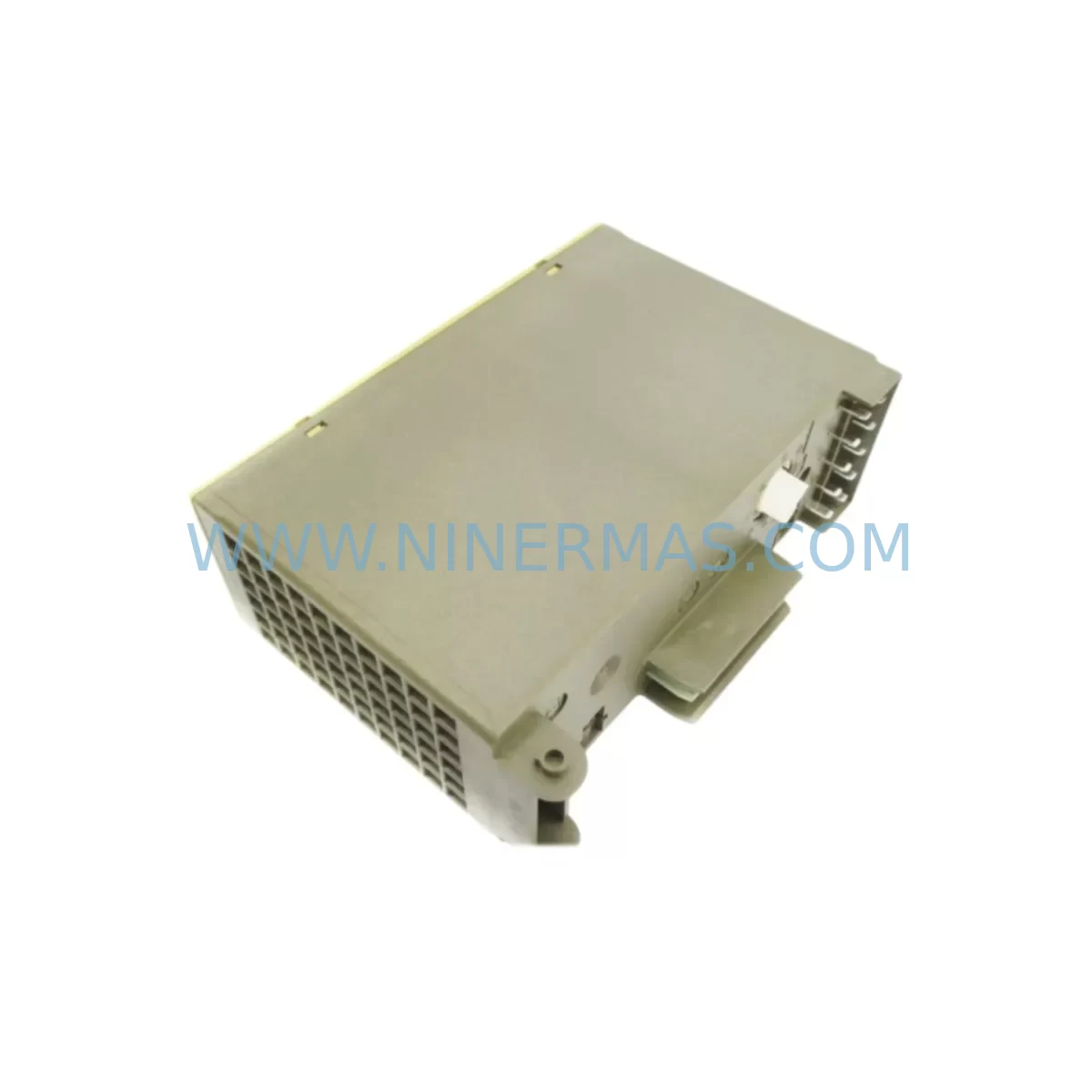

The Siemens 6ES5464-8MA21 is an original analog input module designed for the SIMATIC S5 programmable logic controller platform — one of the most widely deployed legacy control architectures in process manufacturing, chemical plants, power generation, and heavy industry. As production facilities continue to extend the operational life of their S5-based control systems, maintaining a reliable inventory of service-ready spare parts such as the 6ES5464-8MA21 is essential for minimizing unplanned downtime and sustaining process continuity.

This module provides multi-channel analog signal acquisition, converting field-level process signals — including voltage and current inputs from transmitters, sensors, and transducers — into digital values readable by the S5 CPU. Its role in the control cabinet is critical: a failed analog input module can blind the controller to key process variables such as temperature, pressure, flow, and level, triggering emergency shutdowns or unsafe operating conditions. Stocking a verified replacement unit ensures that maintenance engineers can execute a rapid swap during scheduled outages or emergency fault isolation without waiting weeks for procurement.

At NINERMAS, every 6ES5464-8MA21 unit is sourced from verified supply channels, functionally tested prior to shipment, and backed by a 12-month warranty. We support long-term spare parts programs for facilities that depend on SIMATIC S5 infrastructure and cannot afford the risk of sourcing untested or counterfeit components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES5464-8MA21 analog input module during a scheduled maintenance window or emergency fault response, experienced maintenance engineers treat this as an opportunity to inspect the broader analog signal chain and associated control cabinet components. A single failed analog input card is rarely an isolated event — corrosion, vibration fatigue, power fluctuation, or aging backplane connectors often affect neighboring modules simultaneously.

During the replacement procedure, it is strongly recommended to inspect and verify the following associated components:

• SIMATIC S5 Power Supply Module (e.g., 6ES5955-3LC41 or 6ES5951-7LD21) — Verify output voltage stability under load. A degraded power supply is a common root cause of intermittent analog module faults.
• S5 Backplane / Subrack (e.g., 6ES5700-series) — Inspect edge connectors for oxidation or mechanical damage. A worn backplane slot can cause unreliable module seating and signal dropout.
• Analog Output Module (e.g., 6ES5470-8MA12) — If the control loop includes analog output for valve or actuator control, verify the AO module is functioning correctly alongside the replacement AI module.
• Signal Isolators and Barriers — Field transmitters connected to the 6ES5464-8MA21 typically pass through galvanic isolators or Zener barriers. Inspect these for drift or failure, particularly in hazardous area installations.
• Digital Input / Output Modules (e.g., 6ES5421-8MA11, 6ES5441-8MA11) — Confirm DI/DO modules in the same subrack are operating correctly, especially those handling interlock and alarm signals tied to the same process loop.
• S5 CPU Module (e.g., 6ES5948-3UA23) — Check CPU diagnostic buffer for any persistent hardware fault entries that may indicate deeper system issues beyond the analog input card.
• Terminal Blocks and Field Wiring — Inspect screw terminals on the front connector for loose connections, corrosion, or insulation breakdown. Re-torque all field wiring connections after module replacement.
• Communication Processor (e.g., 6ES5523-3UA11) — If the S5 system communicates upstream to a SCADA or DCS via SINEC or serial protocol, verify the CP module is unaffected and communication links are stable post-replacement.
• Fuse and Surge Protection Devices — Check inline fuses and SPDs on the analog input field circuits. A field-side surge event is a common cause of analog input module damage.
• HMI / OP Panel (e.g., Siemens OP7, OP17) — Confirm that process variable displays on the operator panel are updating correctly after the module swap, validating end-to-end signal integrity.

Incorporating these checks into a structured replacement workflow reduces the risk of repeat failures and supports a more comprehensive maintenance record for regulatory compliance and asset management purposes.

Site Replacement Workflow

Replacing the Siemens 6ES5464-8MA21 in a live industrial environment requires careful coordination between the maintenance engineer, process operator, and procurement team. The following workflow is recommended for minimizing downtime and ensuring a safe, verified restoration of analog input functionality:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number matches exactly — 6ES5464-8MA21. Verify firmware revision compatibility if applicable. Inspect the unit visually for transit damage before installation.
2. Process Isolation: Coordinate with the control room to place the affected control loop in manual mode. Isolate field transmitters connected to the module’s input channels to prevent spurious signals during the swap.
3. Module Extraction: Power down the subrack if hot-swap is not supported. Carefully extract the faulty module using the ejector levers. Retain the front connector wiring harness for reuse or document terminal assignments before disconnection.
4. Replacement Installation: Seat the 6ES5464-8MA21 replacement module firmly into the backplane slot. Reconnect the front connector. Verify all field wiring terminals are correctly torqued.
5. Power-Up and Diagnostics: Restore subrack power. Monitor the CPU diagnostic buffer and module status LEDs. Confirm the module is recognized by the S5 CPU without hardware fault entries.
6. Signal Verification: Apply known reference signals to each input channel and verify correct engineering unit readings in the CPU data blocks and HMI displays. Compare against pre-fault baseline values.
7. Return to Automatic: Once all channels are verified, return the control loop to automatic mode. Monitor process variables for stability over the first 30 minutes of operation.
8. Documentation: Record the replacement in the maintenance management system (CMMS), including the failed module’s serial number, fault symptoms, replacement date, and post-replacement test results.

This structured approach supports rapid downtime recovery while maintaining system integrity and providing a clear audit trail for maintenance compliance.
