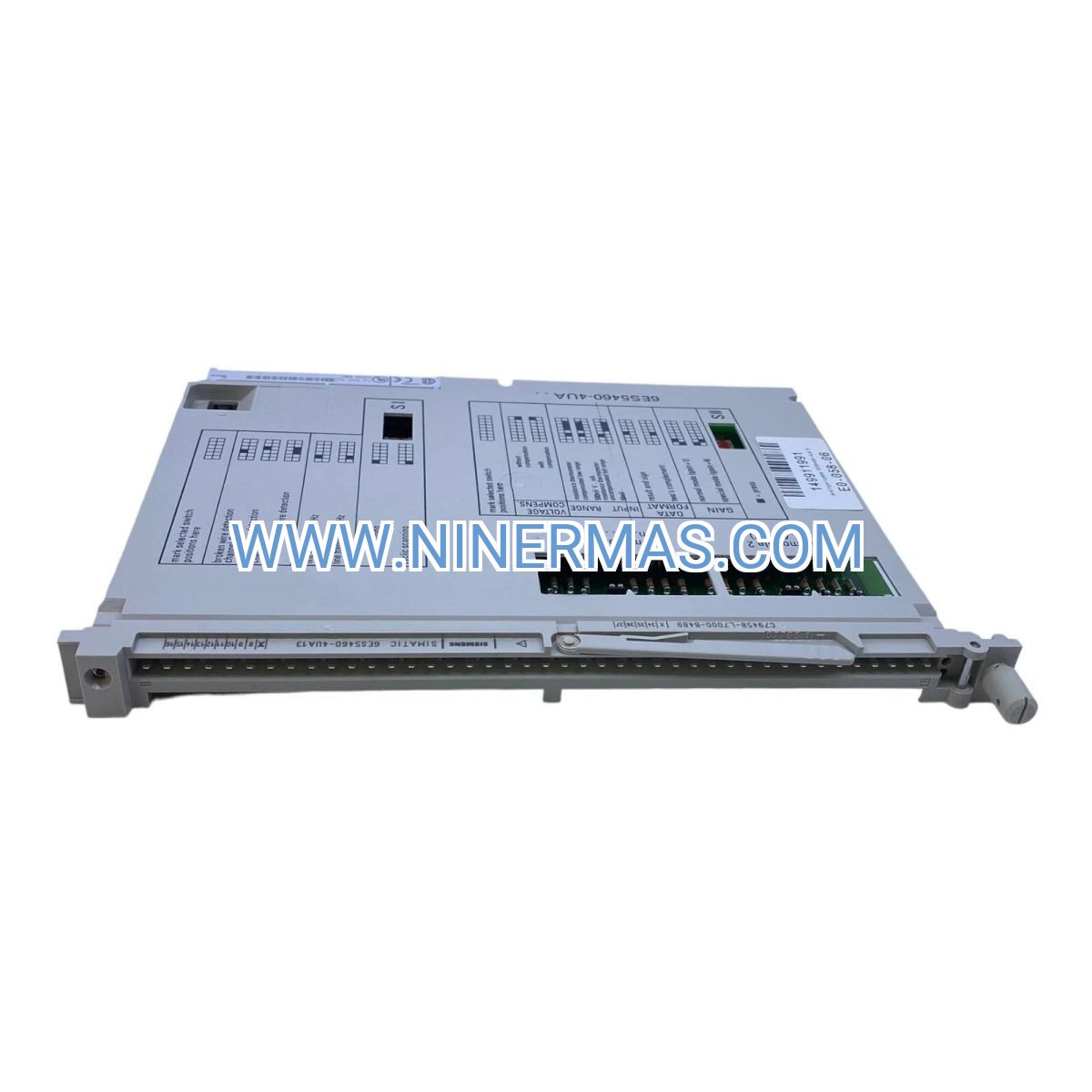

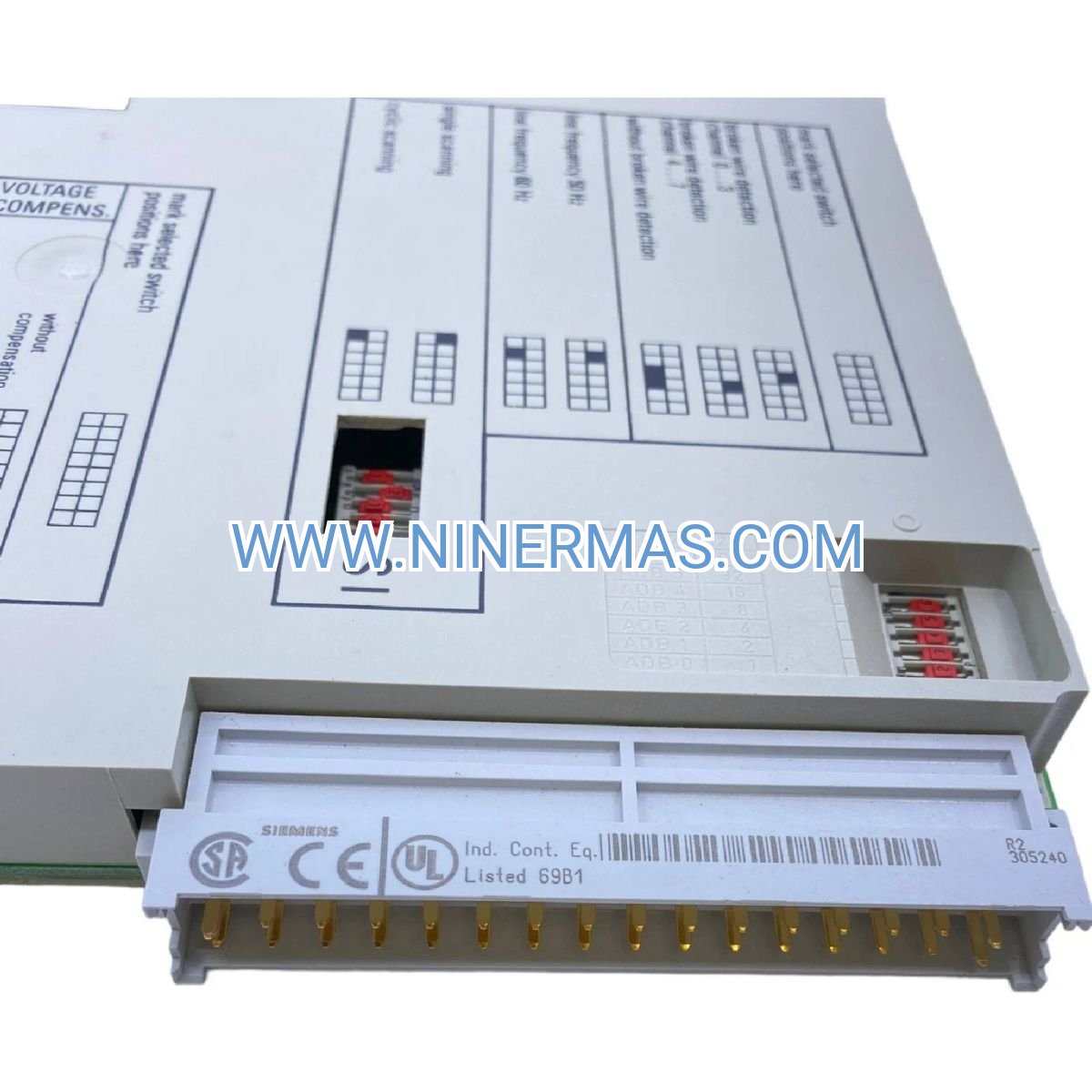

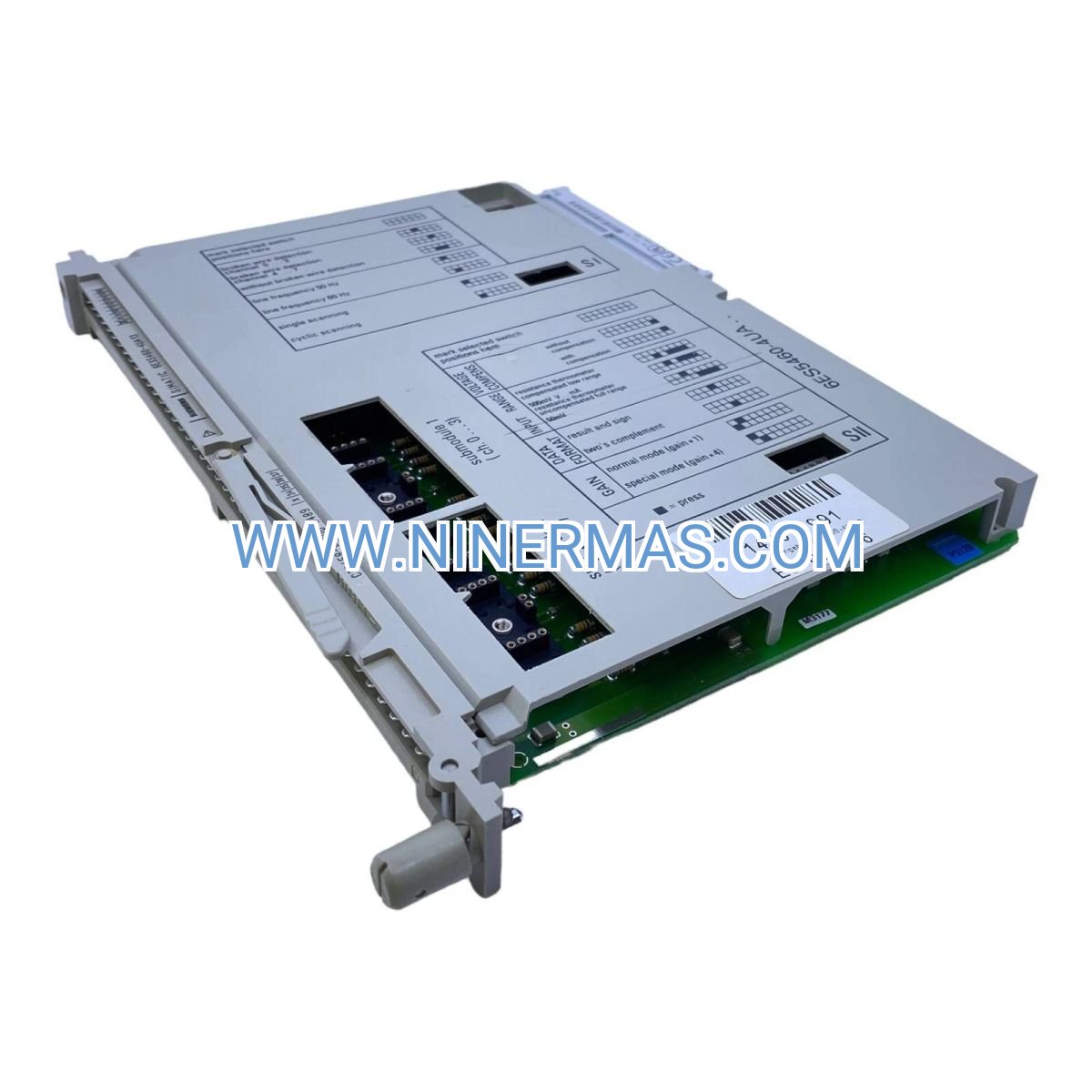

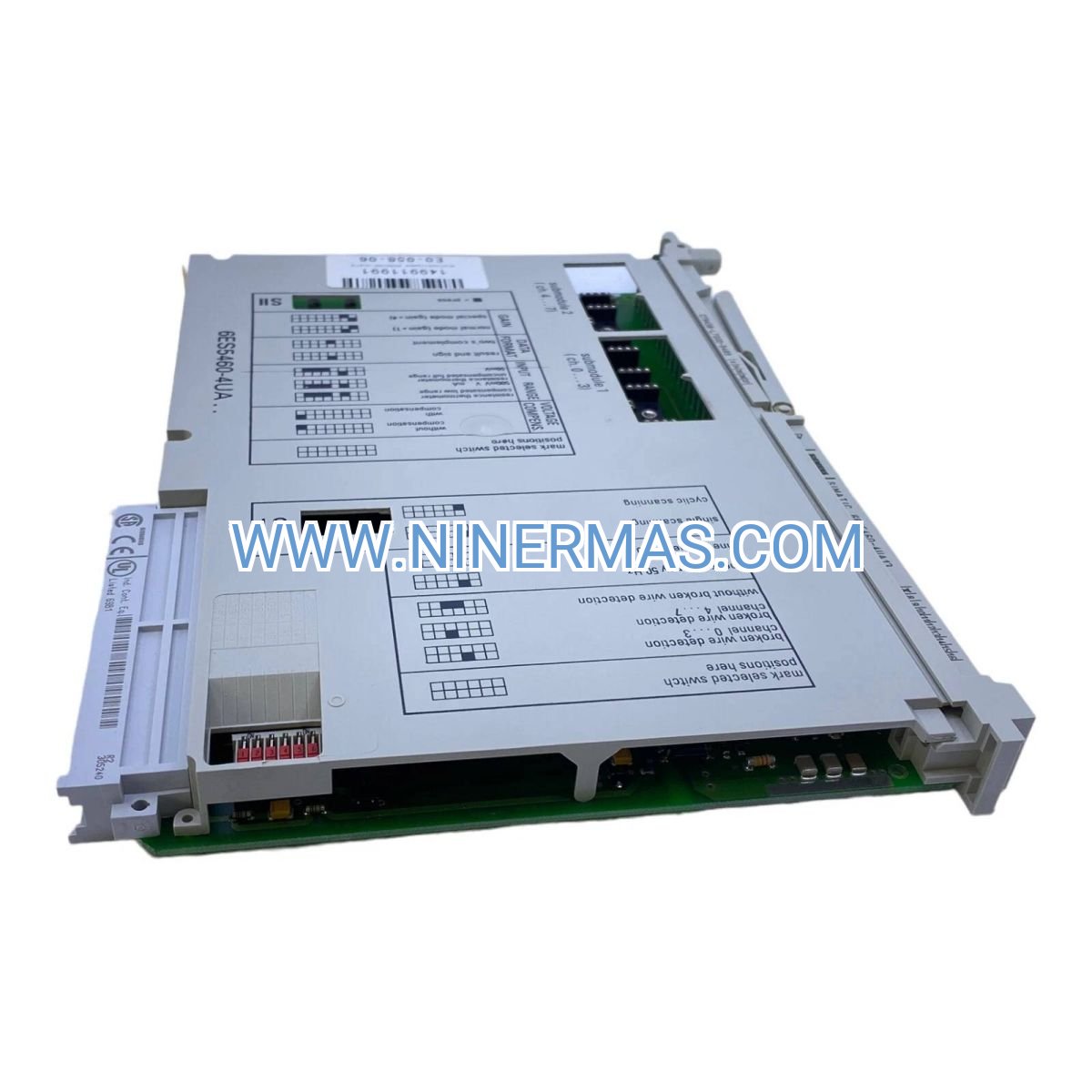

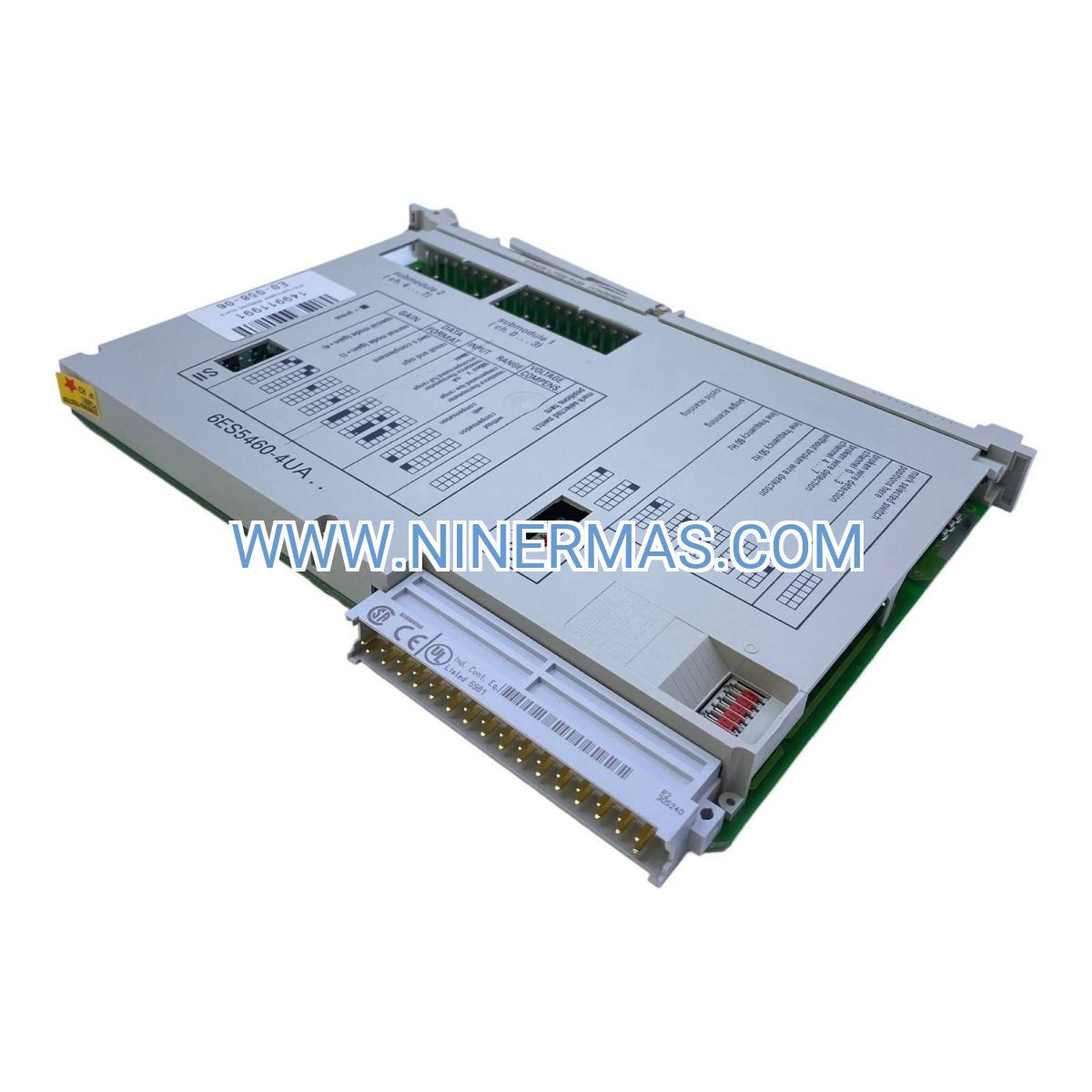

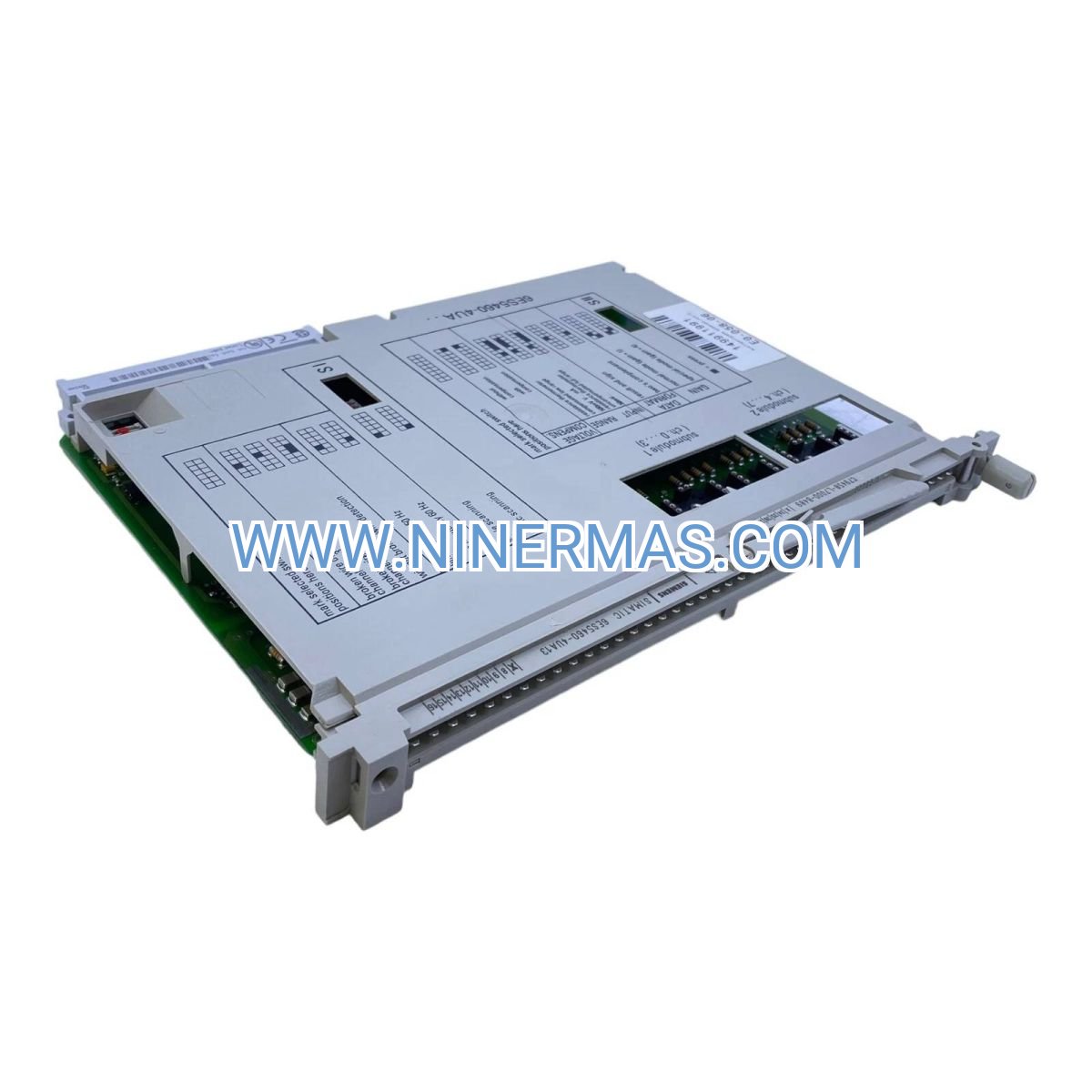

6ES5460-4UA13 Isolated Analog Input Module (Industrial-Grade Signal Processing)

The Siemens 6ES5460-4UA13 delivers enterprise-level analog signal acquisition for SIMATIC S5 control platforms, combining eight galvanically isolated input channels with compact U-format architecture. Engineered for process industries requiring noise immunity and measurement accuracy, this module transforms field instrumentation signals into reliable digital data for supervisory control and regulatory compliance documentation.

Designed for brownfield automation environments where S5 infrastructure remains mission-critical, the 6ES5460-4UA13 solves three operational challenges: eliminating ground-loop interference through channel-to-backplane isolation, maximizing rack density with single-width construction, and ensuring long-term parts availability as OEM production phases out. Plant engineers rely on this module to maintain uptime in chemical processing, power generation, and water treatment facilities where unplanned downtime costs exceed $10,000 per hour.

Whether you're expanding existing S5 capacity, replacing failed modules, or maintaining spare parts inventory for deferred S7 migration projects, the 6ES5460-4UA13 provides proven compatibility with S5-115U, S5-135U, and S5-155U controllers. Our technical team verifies firmware compatibility and provides parameterization support to accelerate commissioning timelines.

Core Capabilities & Engineering Value

→ Multi-Range Signal Flexibility
Accepts voltage (±10V, 0-10V) and current (0-20mA, 4-20mA) inputs with per-channel configuration, enabling direct interface to pressure transmitters, temperature converters, flow meters, and level sensors without external signal conditioning. Reduces installation costs by 15-25% compared to universal transmitter approaches.

✓ Galvanic Isolation Architecture
Provides electrical separation between each input channel and the PLC backplane, protecting CPU circuitry from voltage transients and eliminating measurement errors caused by ground potential differences. Critical for multi-building installations where field devices reference different earth grounds.

→ 12-Bit + Sign Resolution
Delivers 13-bit total resolution (±4096 counts) for precise representation of process variables, supporting ±0.1% accuracy requirements in pharmaceutical batch control and food safety applications governed by FDA 21 CFR Part 11 compliance.

✓ Compact Design U Format
Occupies single slot width in S5 racks, allowing eight analog inputs in the same footprint as standard digital I/O modules. Ideal for cabinet retrofits where physical space constraints prevent rack expansion.

→ Industrial Temperature Rating
Operates reliably across 0°C to +60°C ambient range without derating, suitable for control rooms lacking precision HVAC or located in semi-conditioned industrial environments.

✓ Proven Legacy Platform Support
Maintains full backward compatibility with STEP 5 programming environments and existing function block libraries, eliminating software revalidation costs when replacing obsolete modules.

Industrial Deployment Scenarios

Chemical Batch Processing
Monitor reactor temperature, pressure, and pH levels in multi-stage synthesis operations. The module's isolated inputs prevent cross-contamination of measurement signals when sensors share common wiring trays, ensuring accurate endpoint detection for batch release decisions. Typical deployment: 3-5 modules per reactor skid supporting 24-40 analog process variables.

Water & Wastewater Treatment
Acquire turbidity, dissolved oxygen, chlorine residual, and flow rate signals from distributed treatment stages. Galvanic isolation protects PLC hardware from lightning-induced surges in outdoor sensor installations, reducing annual maintenance costs by preventing module failures during storm events.

Power Generation & Distribution
Capture voltage, current, and frequency measurements from generator protection relays and transformer monitoring systems. The 4-20mA current loop capability supports long cable runs (up to 1000m) without signal degradation, essential for substation automation where sensors are geographically dispersed.

HVAC & Building Automation
Interface with chilled water temperature sensors, steam pressure transmitters, and airflow measurement devices in central plant control systems. The module's 20-40ms conversion time supports typical 1-5 second control loop update rates for thermal comfort and energy optimization applications.

Food & Beverage Manufacturing
Integrate pasteurization temperature, CIP (clean-in-place) conductivity, and filling line pressure sensors into recipe-driven production control. Isolated inputs ensure measurement integrity when stainless steel equipment creates multiple ground reference points across processing lines.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 6ES5460-4UA13 when your application requires channel-to-backplane isolation to prevent ground loops or protect PLC circuitry from field transients. For applications where common-mode voltage is not a concern, consider non-isolated alternatives to reduce costs. Verify that your S5 power supply can support the additional 1.5W load per module when planning multi-module installations.

Advanced Integration Features

SCADA System Connectivity
Seamlessly integrates with WinCC, InTouch, and iFIX supervisory platforms via S5 communication processors (CP 5431, CP 5412-A2). Analog values are accessible through standard data blocks, enabling real-time trending, alarm management, and historical archiving for regulatory compliance reporting.

Calibration & Linearization
Supports software-based offset and gain correction through STEP 5 function blocks, compensating for sensor drift without field recalibration. Linearization tables can be implemented for non-linear sensors (thermocouples, RTDs) to improve measurement accuracy across the full operating range.

Diagnostic Capabilities
Provides wire-break detection for current loop inputs and over-range indication for voltage inputs, simplifying troubleshooting during commissioning and reducing mean-time-to-repair (MTTR) during production outages. Diagnostic bits are accessible via standard I/O addressing for integration into alarm management systems.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-7 business days for in-stock units; 15-25 business days for factory-sourced modules requiring verification testing.
Warranty Coverage: 12-month comprehensive warranty covering material defects and functional performance under normal operating conditions.
Technical Support: Pre-sales application engineering assistance, post-installation troubleshooting, and STEP 5 programming consultation included at no additional charge.
Documentation Package: Installation manual, wiring diagrams, STEP 5 sample code, and dimensional drawings provided in PDF format upon shipment.

Frequently Asked Questions

Can I mix voltage and current signals on the same module?

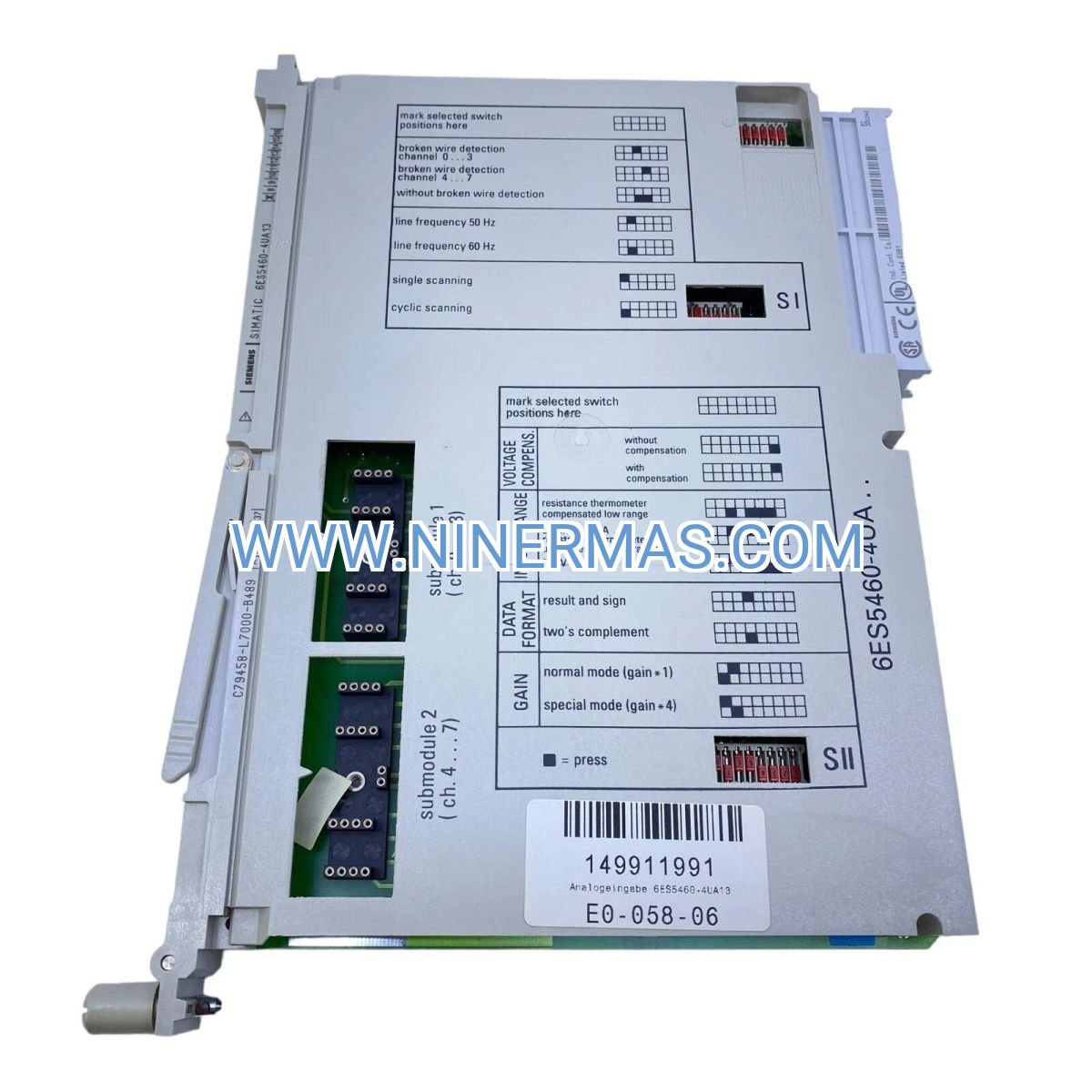

Yes, each of the eight input channels can be independently configured for voltage (±10V, 0-10V) or current (0-20mA, 4-20mA) operation through jumper settings. This flexibility allows a single module to interface with diverse sensor types without requiring separate signal conditioning hardware.

What distinguishes isolated from floating analog input modules in S5 systems?
Isolated modules like the 6ES5460-4UA13 provide galvanic separation between the input channels and the PLC backplane, preventing ground loops and protecting CPU circuitry. Floating modules offer channel-to-channel isolation but share a common reference point. Choose isolated modules when sensors are distributed across multiple buildings or when lightning protection is required.

How do I perform initial calibration after installation?
Calibration is executed through STEP 5 programming using dedicated function blocks (FB/FC) that apply offset and gain corrections. Connect a precision calibrator to each input channel, apply known reference signals (e.g., 0V, 10V for voltage mode), and adjust software parameters until displayed values match calibrator readings within ±0.1% tolerance.

Is external power supply required for the analog inputs?
No, the module draws all necessary power from the S5 backplane. However, ensure your rack power supply has sufficient capacity to support the total analog I/O load. Each 6ES5460-4UA13 module consumes approximately 1.5W; a typical S5-135U rack with 10 modules requires a minimum 2A @ 24VDC power supply.

Can this module be used with S7-300 or S7-1500 controllers?
No, the 6ES5460-4UA13 is mechanically and electrically compatible only with SIMATIC S5 systems. For S7 platform migrations, Siemens offers equivalent functionality through SM 331 (S7-300) or SM 1231 (S7-1200) analog input modules with enhanced diagnostics and hot-swap capability.

What is the maximum cable length for 4-20mA current loop sensors?
Current loop inputs support cable runs up to 1000 meters (3280 feet) using shielded twisted-pair cable, making the module ideal for distributed sensor installations in large facilities. Voltage inputs should be limited to 100 meters to minimize noise pickup and signal attenuation.

Request Technical Consultation

Our automation specialists are available to discuss your specific S5 system requirements, verify compatibility with existing infrastructure, and provide application-specific configuration guidance. Contact our team to receive detailed wiring diagrams, STEP 5 programming examples, and integration support for your next project.
