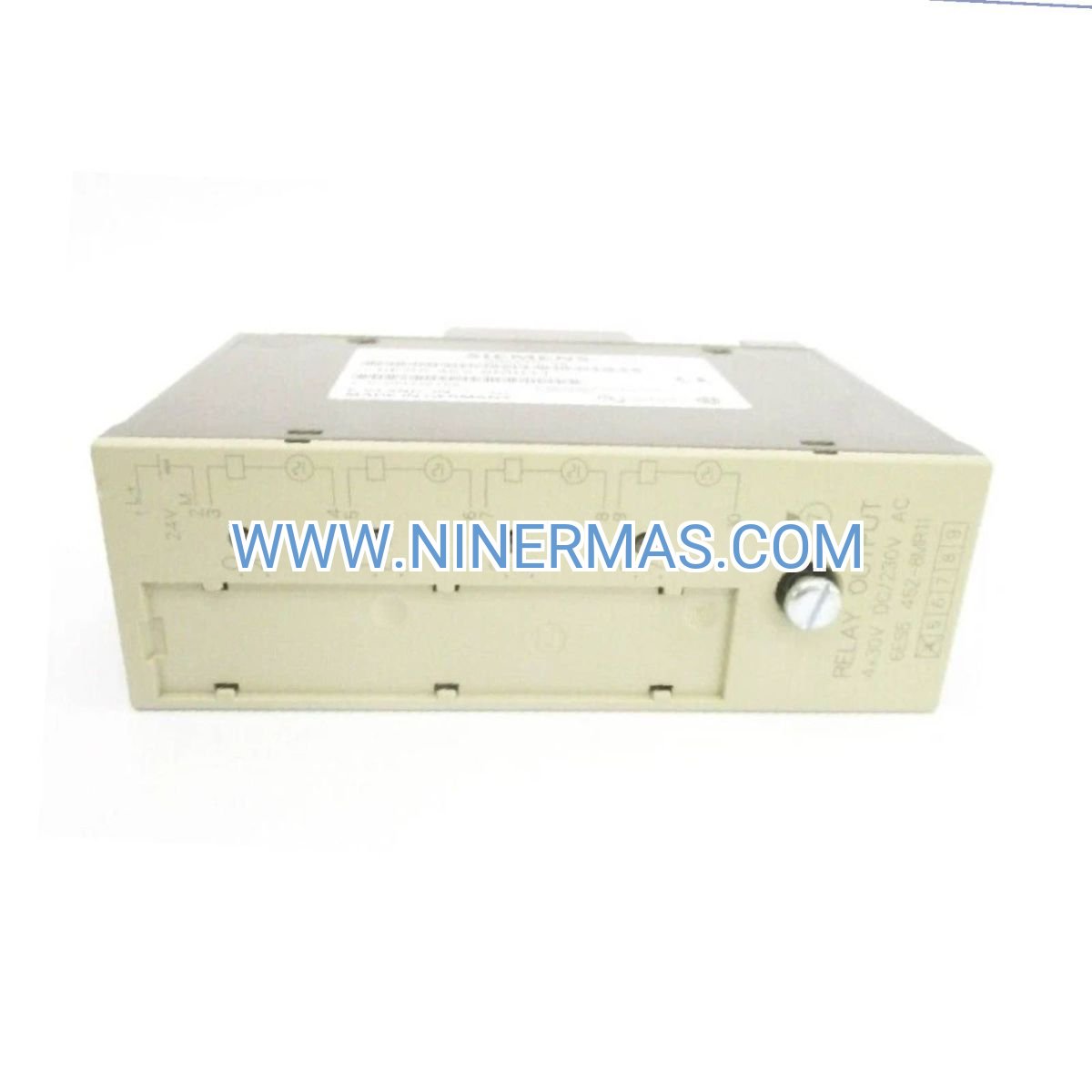

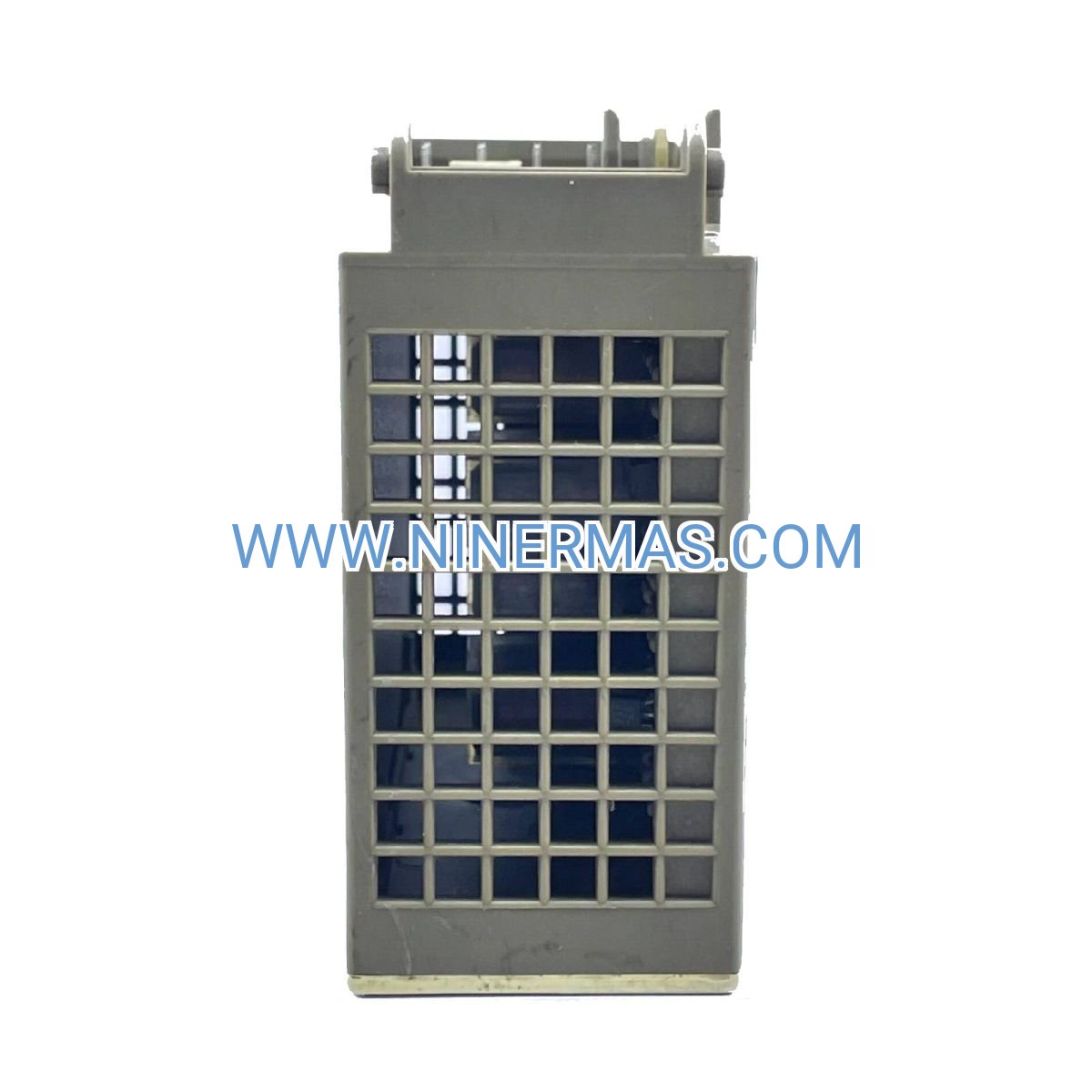

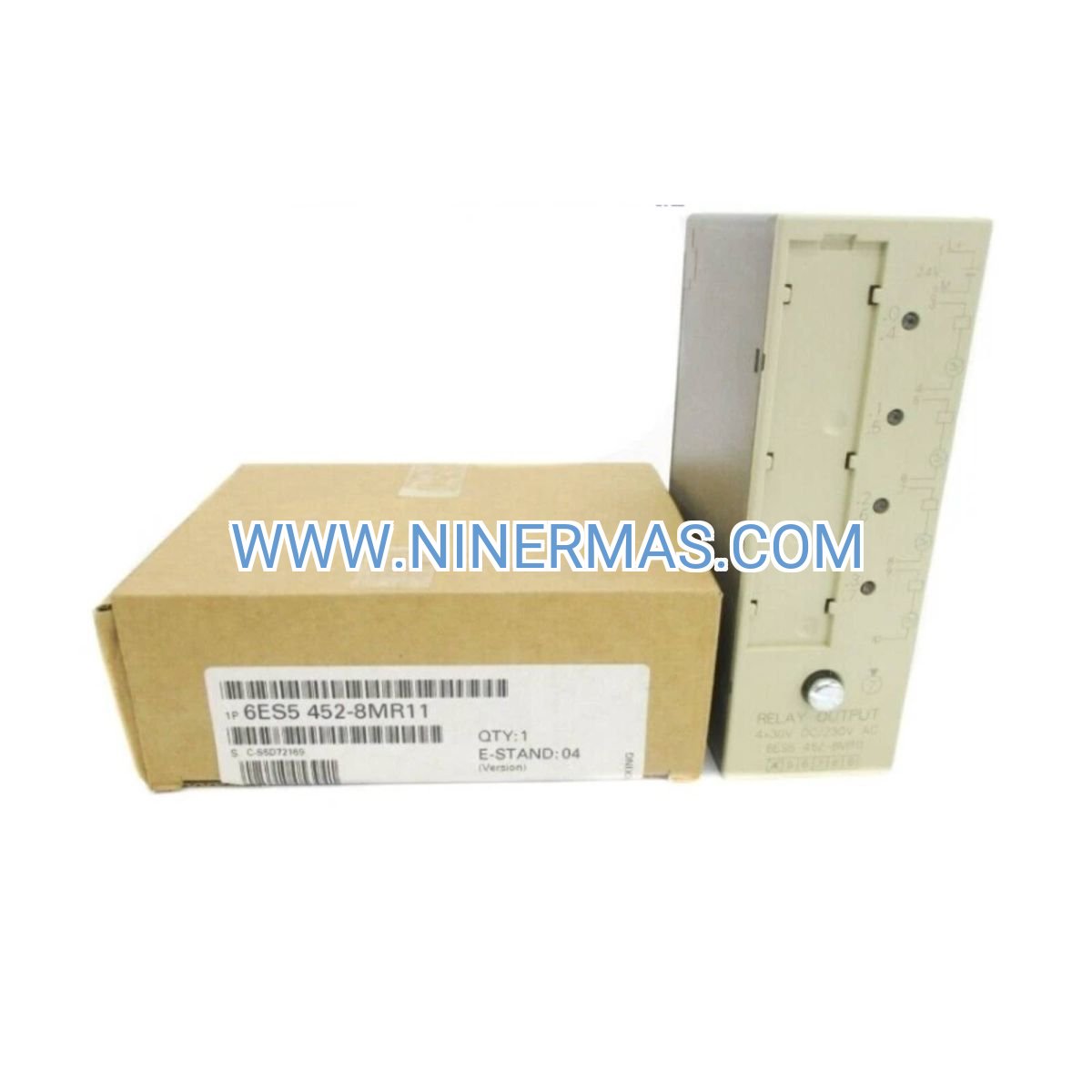

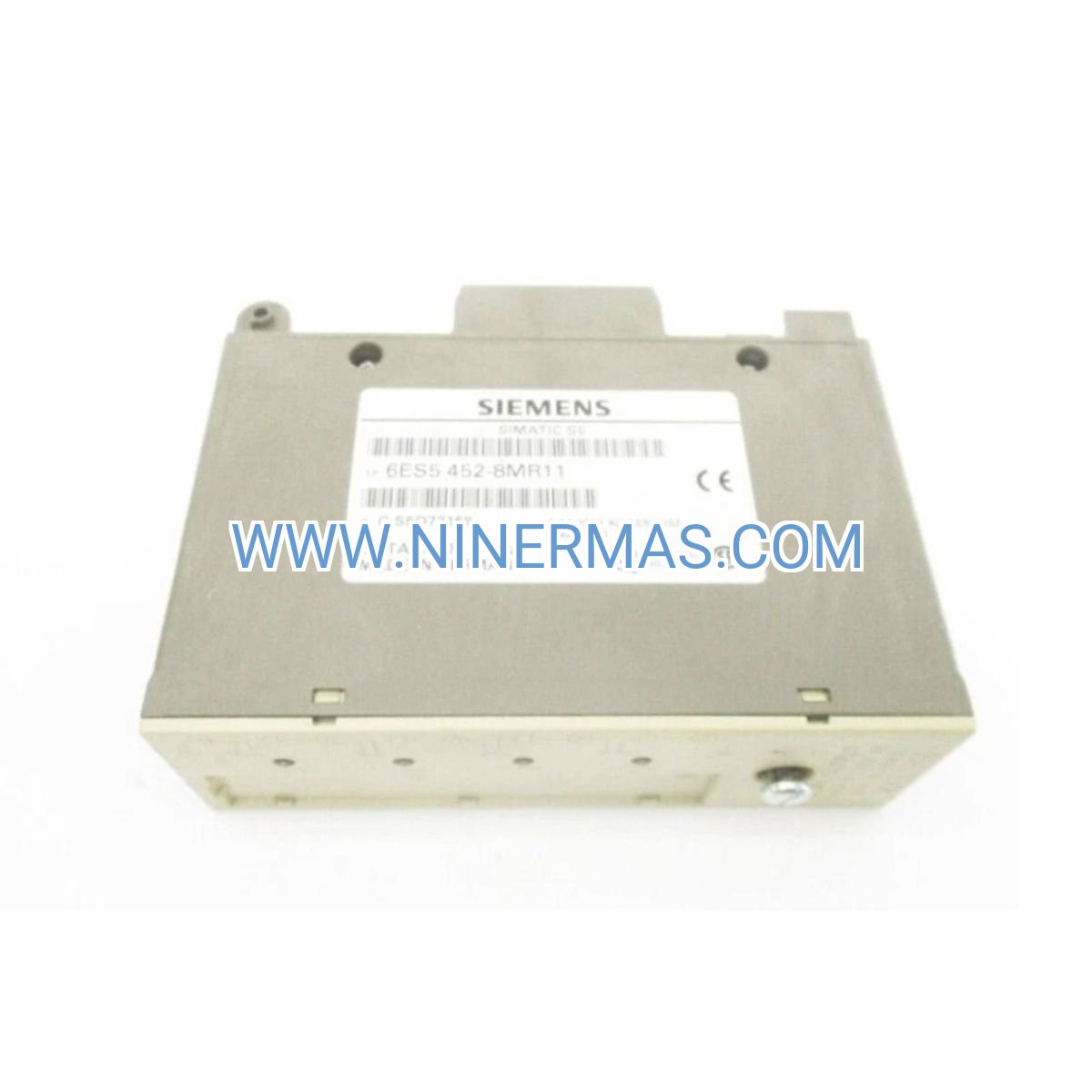

6ES5452-8MR11 Relay Output Module (Industrial-Grade S5 Interface Solution)

Designed for mission-critical control applications, the 6ES5452-8MR11 serves as a versatile relay-based output interface for SIMATIC S5 programmable controllers. This module bridges digital logic signals to high-power switching operations, enabling direct control of motors, valves, contactors, and signaling devices across dual-voltage environments. Built for industrial operators managing legacy automation infrastructure, it combines proven relay technology with robust electrical isolation to ensure system reliability in demanding production settings. Whether you're maintaining existing S5 installations or integrating new control points into established architectures, this module delivers the switching performance and protection features essential for uninterrupted operations.

Core Features & Benefits

✓ Dual-Voltage Switching Capability
Handles both DC 30V and AC 230V loads through a single module design, eliminating the need for external interface relays and reducing panel complexity while cutting installation costs by up to 40%.

✓ Galvanic Isolation Architecture
Provides complete electrical separation between output contacts and PLC backplane circuitry, protecting sensitive controller electronics from voltage transients, ground loops, and electromagnetic interference in harsh industrial environments.

✓ Changeover Contact Configuration
Offers normally-open and normally-closed contact pairs for each output channel, enabling fail-safe circuit designs and flexible wiring strategies that adapt to diverse safety requirements.

✓ High Mechanical Endurance
Relay contacts rated for 10 million mechanical operations ensure long service intervals, reducing maintenance frequency and minimizing unplanned downtime in continuous-process applications.

✓ Standard S5 Module Format
Drop-in compatibility with existing SIMATIC S5 racks and backplanes allows rapid replacement during maintenance windows without system reconfiguration or programming changes.

Application Scenarios

→ Process Automation & Chemical Manufacturing
Controls pneumatic valves, dosing pumps, and mixing motors in batch processing systems where galvanic isolation prevents ground-loop interference from affecting recipe accuracy and product quality.

→ Building Management Systems
Switches HVAC contactors, damper actuators, and circulation pumps in commercial facilities, with dual-voltage capability simplifying integration of 24VDC control devices and 230VAC power equipment within unified control panels.

→ Water Treatment & Distribution
Operates solenoid valves, chlorination pumps, and alarm beacons in municipal water systems, where relay isolation protects PLC investments from lightning-induced surges common in outdoor installations.

→ Manufacturing Line Control
Drives conveyor motors, robotic grippers, and safety interlocks on assembly lines, with changeover contacts enabling both start/stop logic and emergency shutdown circuits from a single output point.

→ Legacy System Modernization
Maintains operational continuity during phased S5-to-S7 migrations by providing reliable output functionality while new control strategies are developed and tested in parallel with production systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires electrical isolation between control logic and field devices, when switching both low-voltage DC and line-voltage AC loads from a single controller, or when maintaining S5 systems where relay output technology is specified for safety compliance. For high-frequency switching (>1 Hz continuous), consider solid-state alternatives to maximize contact service life.

Extended Functions

Retrofit Integration: The 6ES5452-8MR11 supports seamless integration into existing S5 control cabinets without backplane modifications. Its standardized footprint and connector pinout ensure compatibility across S5-90U, S5-95U, S5-100U, and S5-115U controller families.

Diagnostic Capabilities: While the module itself operates as a passive switching device, its relay status can be monitored through PLC program logic by reading back output image registers, enabling predictive maintenance strategies that track switching cycles and identify potential contact degradation before failures occur.

Customization Options: For applications requiring specialized contact ratings, environmental protection beyond IP20, or integration with third-party monitoring systems, consult our engineering team for custom module configurations and application-specific validation testing.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules or bulk orders (>10 units) typically require 2-3 weeks for preparation and quality verification.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty includes functional replacement and technical support for installation troubleshooting.

Technical Support: Our automation specialists provide pre-sales application consulting, wiring diagram review, and post-installation commissioning assistance via phone, email, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, terminal wiring diagrams, electrical specifications datasheet, and compliance certificates (CE, UL where applicable).

Frequently Asked Questions

How do I wire changeover relay contacts for fail-safe operation?
Connect your safety circuit to the normally-closed (NC) contact terminal. In the event of PLC power loss or relay coil failure, the NC contact returns to its closed state, activating your alarm or shutdown sequence. Refer to terminal block labeling for COM, NO, and NC identification.

What is the maximum inductive load this module can switch reliably?
For AC inductive loads (motors, solenoids), derate contact capacity to 30-40% of resistive rating and install RC snubber networks across coil terminals. DC inductive loads require flyback diodes to suppress back-EMF and extend contact life. Consult datasheet for specific load curves.

Can this module interface with modern S7-1200 or S7-1500 controllers?
The 6ES5452-8MR11 is mechanically and electrically compatible only with S5-series backplanes. For S7 systems, specify equivalent relay output modules from the ET 200S or SM 322 product families that match your controller generation.

Does the module support hot-swapping during system operation?
No. S5 architecture does not support hot-swap functionality. Always de-energize the rack power supply and discharge backplane capacitors before removing or installing modules to prevent backplane damage and data corruption.

What environmental conditions affect relay contact performance?
High humidity (>85% RH) can cause contact oxidation; install modules in climate-controlled enclosures. Excessive vibration (>2G) may cause contact chatter; use vibration-damping mounts in mobile or high-vibration environments. Temperature extremes beyond 0-60°C require thermal management.

How do I verify module functionality after installation?
Use your PLC programming software to force output bits ON/OFF while measuring continuity across relay contacts with a multimeter. Audible relay click confirms coil energization; contact resistance should measure <50 milliohms when closed.

Take the Next Step

Ensure your S5 control system maintains peak reliability with genuine Siemens output modules. Contact our team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements, request technical datasheets, or place your order today. Our engineers are ready to assist with module selection, wiring consultation, and integration planning.
