6ES5451-8MA11 Industrial-Grade Isolated Output Module

The Siemens 6ES5451-8MA11 represents a proven solution for isolated digital output control within SIMATIC S5 programmable logic controller architectures. Engineered with galvanic isolation technology, this 8-channel module ensures reliable switching performance while protecting critical control circuits from electrical interference, ground loops, and voltage transients commonly encountered in industrial environments.

Designed for system integrators and maintenance engineers managing legacy S5 installations, this module addresses the challenge of maintaining operational continuity in aging automation infrastructure. Whether you're expanding existing capacity, replacing failed components, or implementing isolated control strategies, the 6ES5451-8MA11 delivers the electrical separation and diagnostic capabilities essential for mission-critical applications.

With individual channel isolation, LED status indication, and direct rack compatibility, this output module streamlines installation while providing the visual feedback necessary for rapid troubleshooting—reducing downtime and maintenance costs in 24/7 production environments.

Core Features & Technical Advantages

✓ Galvanic Isolation Architecture
Each output channel features electrical isolation from the backplane bus, preventing ground potential differences from disrupting control signals. This isolation barrier protects sensitive PLC logic from voltage spikes, electromagnetic interference, and fault conditions in connected field devices—critical for applications in electrically noisy environments such as welding operations, motor control centers, and high-voltage switching applications.

✓ 8 Independent Output Channels
Provides eight discrete 24V DC outputs, each rated for 1A continuous current. This channel density optimizes rack space utilization while delivering sufficient capacity for solenoid valves, indicator lamps, relay coils, and other standard industrial actuators. The independent channel design allows flexible load distribution without cross-channel interference.

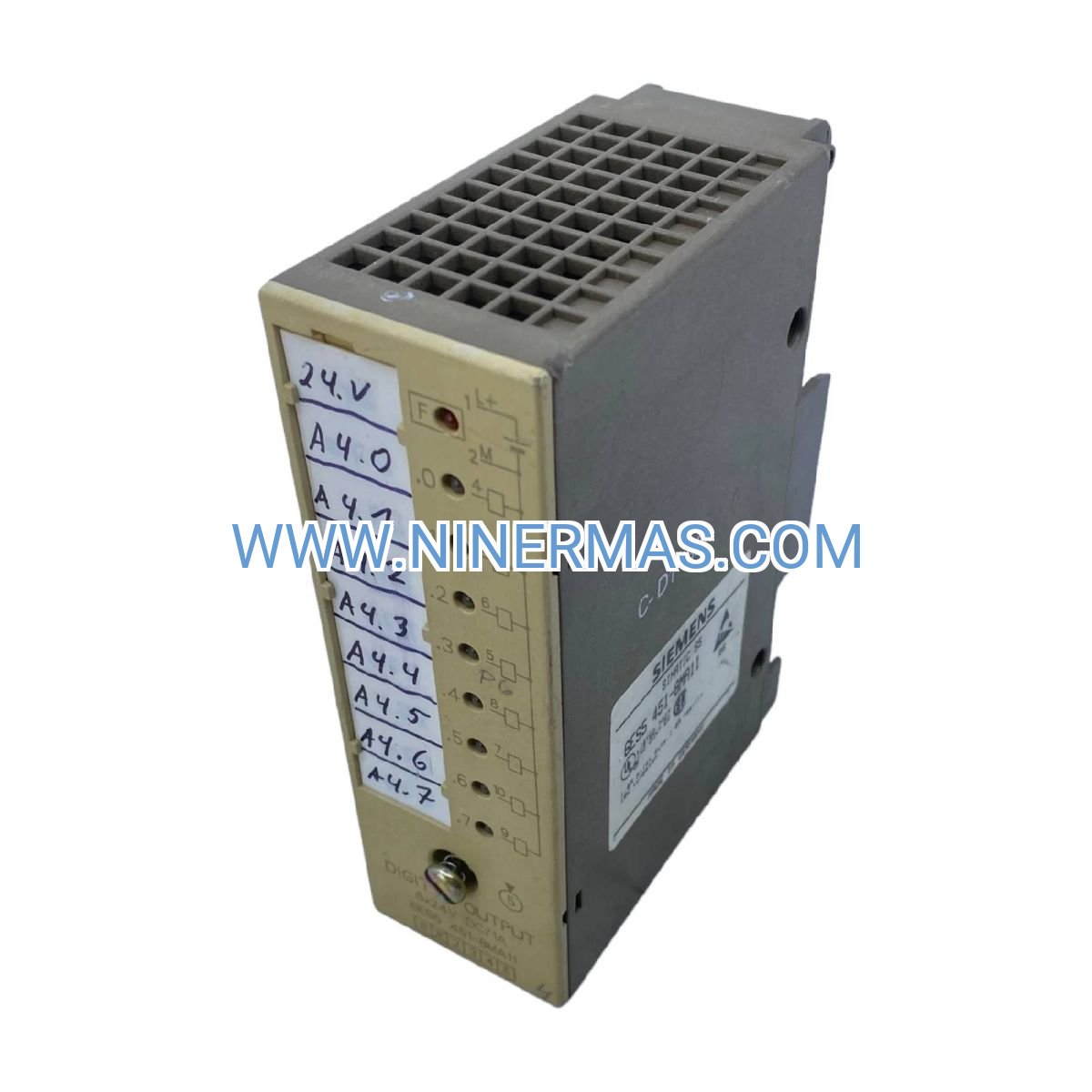

✓ Real-Time LED Diagnostics
Integrated status LEDs for each output channel enable instant visual verification of switching states without requiring diagnostic software or measurement equipment. This feature accelerates commissioning, simplifies troubleshooting, and reduces mean time to repair during production emergencies.

✓ Plug-and-Play S5 Integration
Direct compatibility with SIMATIC S5 mounting racks eliminates custom wiring or adapter requirements. The module's standardized form factor and backplane connector ensure seamless installation alongside existing S5 components, supporting both new installations and retrofit projects.

✓ Industrial-Grade Construction
Built to withstand harsh factory conditions including temperature extremes, vibration, and dust exposure. The robust housing and industrial-rated components ensure reliable operation in demanding applications from automotive assembly to chemical processing.

Industrial Application Scenarios

→ Process Control & Chemical Manufacturing
In chemical batch processing and pharmaceutical production, isolated outputs prevent ground loops between control panels and field instrumentation located across large facilities. The 6ES5451-8MA11 enables safe control of isolation valves, dosing pumps, and process indicators while maintaining electrical separation required by safety standards and hazardous area classifications.

→ Material Handling & Conveyor Systems
Conveyor networks spanning multiple zones often encounter varying ground potentials due to distributed power supplies and motor drives. Isolated outputs eliminate circulating currents that can cause erratic behavior, false triggering, or premature component failure in diverter gates, stop gates, and zone transfer controls.

→ Packaging Machinery Control
High-speed packaging lines require precise coordination of multiple actuators—filling nozzles, cutting blades, labeling applicators, and reject mechanisms. The module's isolated architecture prevents electrical noise from servo drives and variable frequency drives from corrupting output signals, ensuring consistent machine timing and product quality.

→ Legacy System Maintenance & Expansion
For facilities maintaining SIMATIC S5 installations due to validated processes, regulatory compliance, or capital constraints, the 6ES5451-8MA11 provides a reliable source for replacement modules and capacity expansion. This extends the operational lifespan of proven automation systems while deferring costly migration projects.

→ Multi-Vendor Integration Projects
When interfacing Siemens S5 controllers with third-party equipment from different manufacturers, isolated outputs provide the electrical buffering necessary to prevent ground reference conflicts and protect both systems from fault propagation.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 6ES5451-8MA11 when your application requires electrical isolation between control logic and field devices. This is particularly important when controlling loads with separate power supplies, interfacing with equipment at different ground potentials, or operating in environments with significant electrical noise. For non-isolated applications where cost optimization is prioritized and electrical interference is minimal, consider standard output modules. Always verify load current requirements do not exceed 1A per channel and that 24V DC supply voltage matches your field device specifications.

Extended Capabilities & Integration Options

Distributed Control Strategies
While the S5 platform predates modern distributed I/O architectures, the 6ES5451-8MA11 can be integrated into hybrid control schemes where centralized S5 logic coordinates with remote I/O systems via protocol converters or gateway devices.

Redundancy Configurations
For critical control points requiring fault tolerance, multiple modules can be configured with parallel outputs and external voting logic to ensure continued operation during single-point failures.

Custom Load Interfacing
The isolated outputs can drive external relay modules, solid-state switches, or signal converters to interface with non-standard loads including AC devices, high-current actuators, or analog control systems requiring discrete enable signals.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier with tracking. International shipments typically arrive within 5-10 business days depending on customs clearance and destination.

Warranty Coverage: All modules include a comprehensive 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Warranty service includes replacement or repair at our discretion.

Technical Support: Our automation specialists provide pre-sales consultation for application suitability, integration guidance, and troubleshooting assistance. Support is available via email, phone, and remote diagnostic sessions.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and access to complete technical manuals including electrical specifications, programming examples, and maintenance procedures.

Frequently Asked Questions

Can this isolated output module interface with modern S7-1200 or S7-1500 controllers?
No, the 6ES5451-8MA11 is exclusively compatible with SIMATIC S5 series PLCs due to different backplane architectures and communication protocols. For S7 systems, we recommend the ET 200SP or ET 200MP distributed I/O families which offer similar isolated output functionality with enhanced diagnostics.

What is the maximum cable length between the module and connected field devices?
For 24V DC outputs at 1A load current, cable runs up to 100 meters are typically acceptable using 0.75mm² wire. Longer distances may require voltage drop calculations and potentially larger wire gauges to maintain adequate voltage at the load. Always follow local electrical codes and Siemens installation guidelines.

How does galvanic isolation improve system reliability compared to non-isolated outputs?
Galvanic isolation creates an electrical barrier that prevents ground loops, blocks common-mode noise, and protects the PLC backplane from voltage surges originating in field wiring. This is especially valuable when controlling devices powered by separate supplies, interfacing with equipment in different buildings, or operating in electrically noisy environments with VFDs, welders, or high-power switching.

Are replacement parts and technical documentation still available for S5 systems?
While Siemens discontinued S5 production years ago, the industrial automation aftermarket maintains inventory of critical components including the 6ES5451-8MA11. Technical documentation, programming software, and integration support remain available through specialized suppliers and automation service providers.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
Each output channel features an individual LED indicator that illuminates when the output is energized. This provides instant visual confirmation of PLC program execution and output driver status without requiring multimeter measurements or software monitoring—particularly valuable during initial startup and fault diagnosis.

Can I mix isolated and non-isolated output modules in the same S5 rack?
Yes, S5 racks support heterogeneous module configurations. However, proper grounding practices must be observed, and isolated modules should be used specifically for circuits requiring electrical separation. Consult Siemens installation manuals for grounding and shielding recommendations to maximize noise immunity.

Get Expert Guidance for Your Automation Project

Unsure whether isolated outputs are necessary for your application? Our technical team can review your system architecture, electrical environment, and control requirements to recommend the optimal I/O configuration. Contact us today for personalized consultation and competitive pricing on volume orders.
