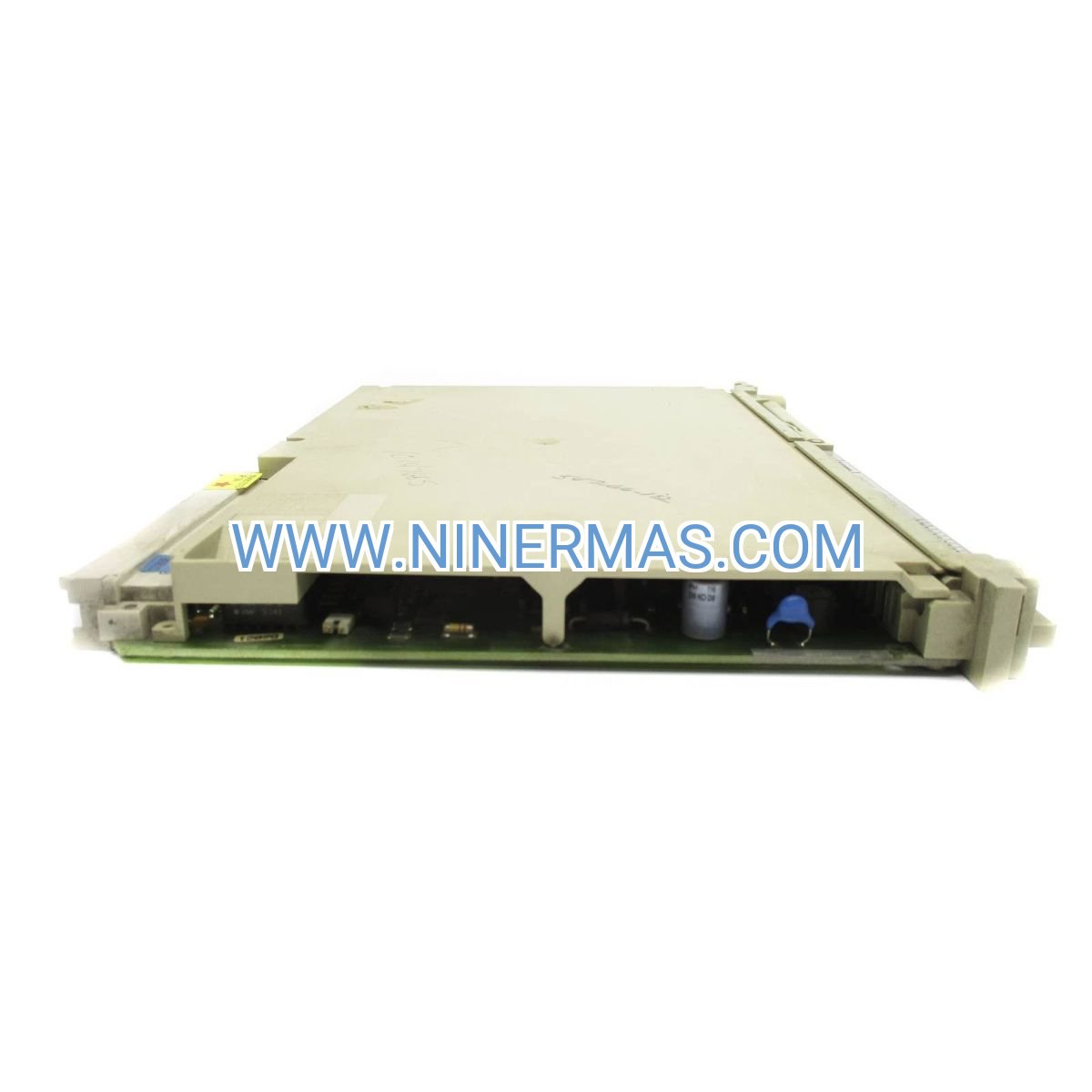

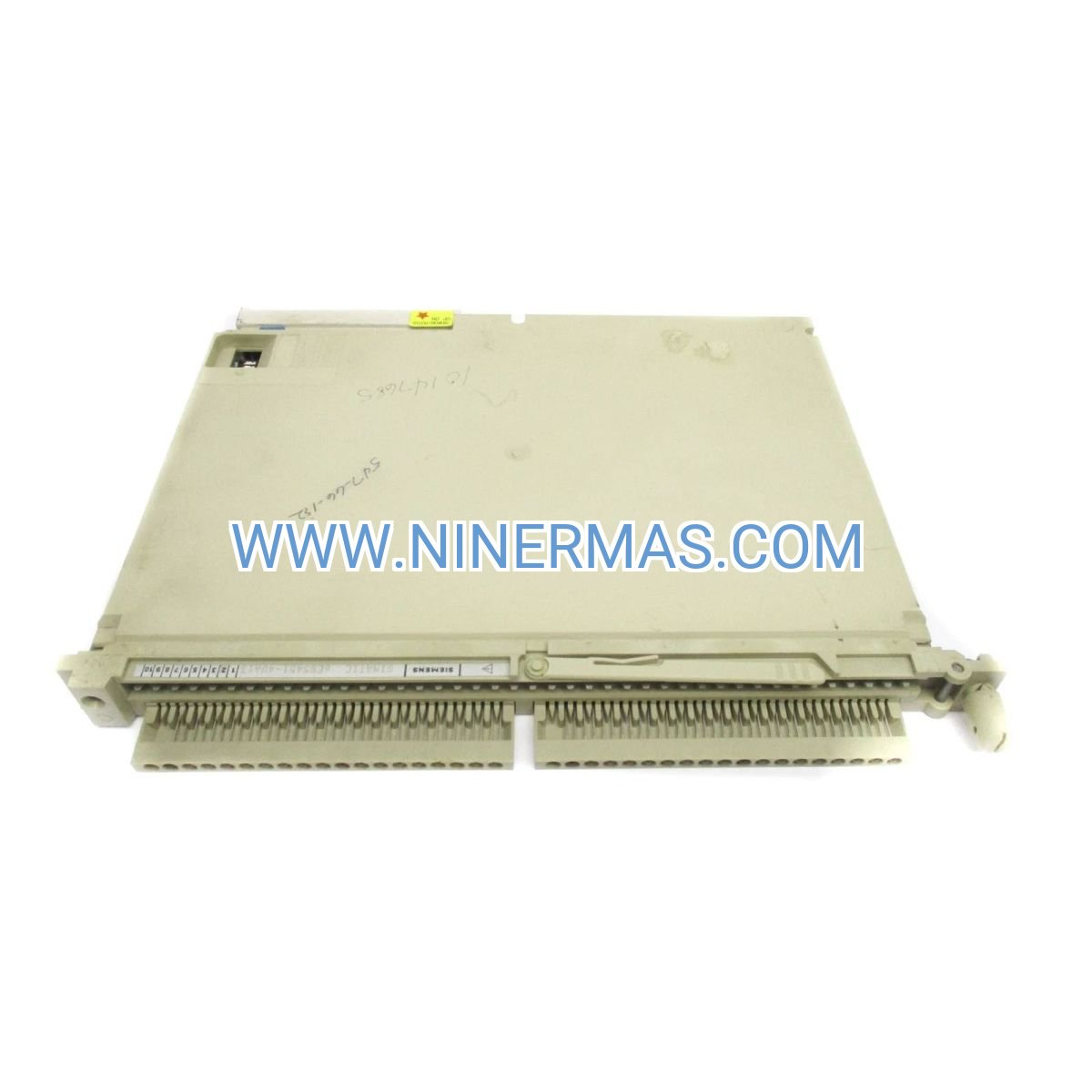

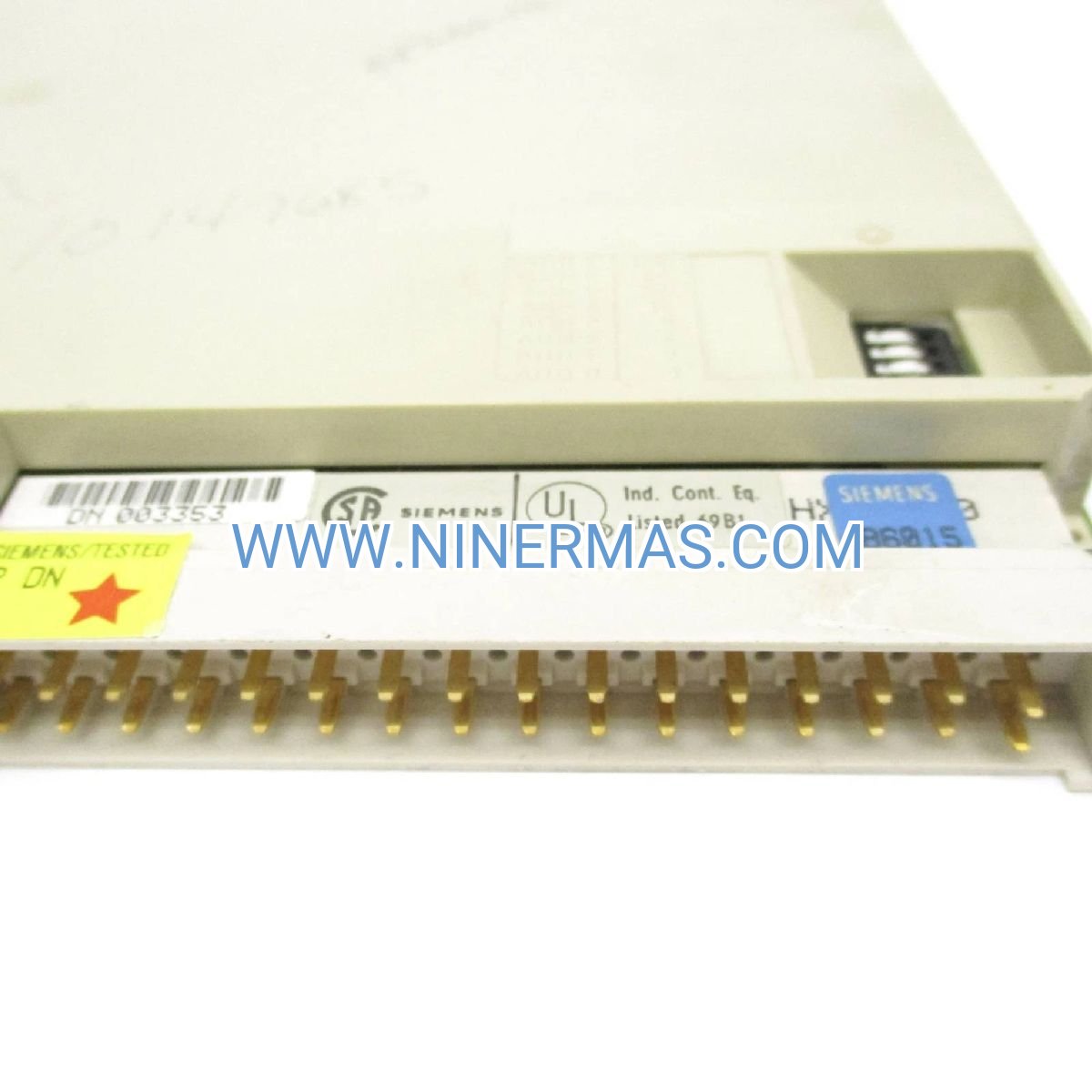

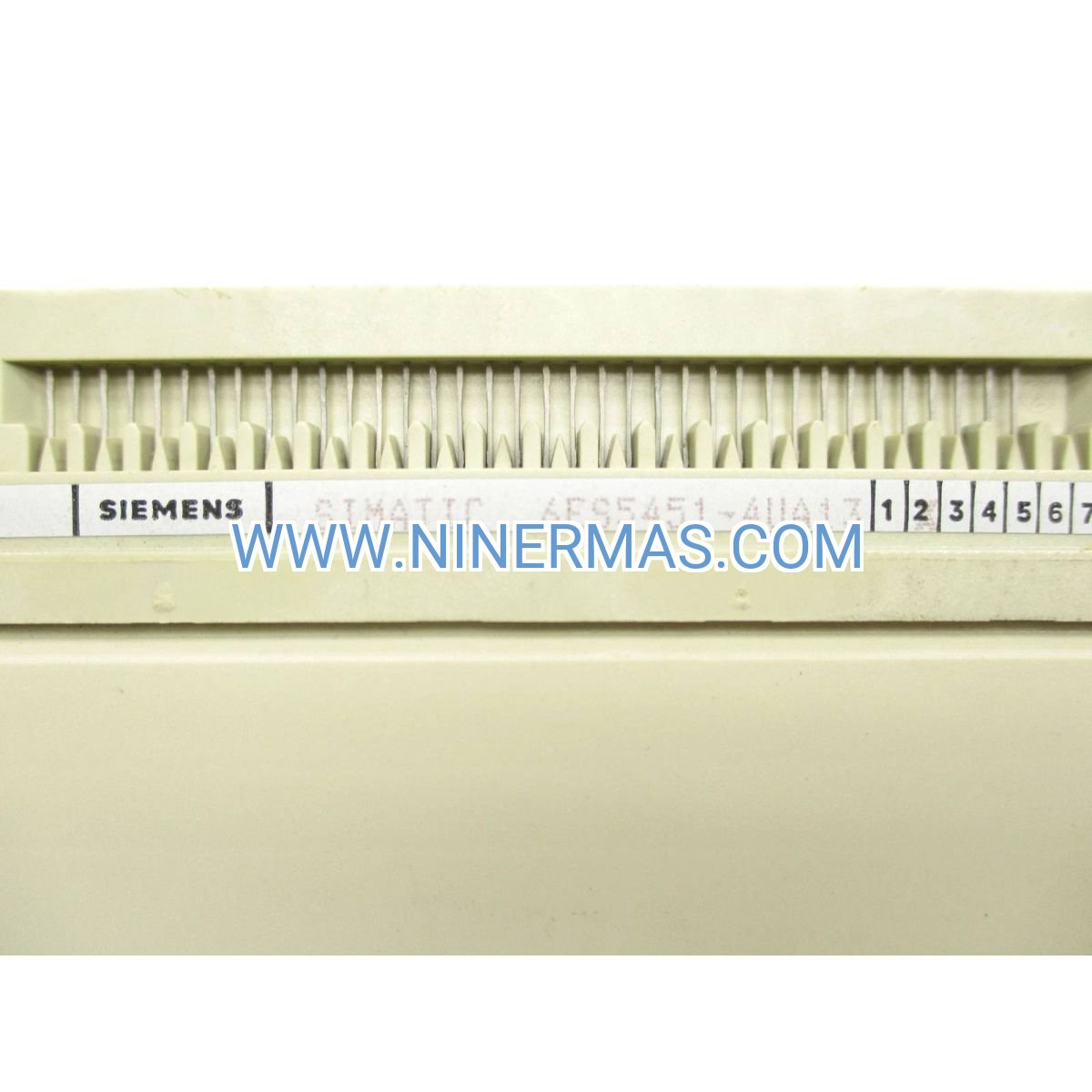

6ES5451-4UA13 Industrial Digital Output Module (32-Channel 24VDC Floating Design)

The Siemens 6ES5451-4UA13 represents a proven solution for expanding digital output capacity in SIMATIC S5 control architectures. Engineered with 32 electrically isolated 24-volt DC output points, this compact Version U module addresses the critical need for reliable actuator control in process automation, discrete manufacturing, and legacy system modernization projects. Designed for system integrators and maintenance engineers managing S5-115U, S5-135U, and S5-155U platforms, it delivers consistent performance in environments where output density and electrical isolation are paramount.

Industrial facilities face ongoing challenges maintaining aging automation infrastructure while meeting production demands. This module solves the dual problem of limited I/O expansion slots and the need for noise-immune output circuits. Whether you're controlling pneumatic valve banks, signaling devices, or motor contactors, the floating output architecture minimizes ground loop interference—a common failure mode in high-EMI industrial settings.

Key advantages include space-efficient design (maximizing cabinet real estate), proven compatibility across the entire SIMATIC S5 family, and straightforward integration with existing backplane configurations. Each output channel supports up to 0.5 amperes, providing sufficient drive current for standard industrial loads while maintaining thermal stability within IP20-rated enclosures.

Core Capabilities & Business Value

→ 32 Floating Output Channels
Electrically isolated output groups eliminate cross-talk and ground potential differences, reducing troubleshooting time by up to 40% in noisy industrial environments. Each channel independently drives 24VDC loads up to 0.5A.

✓ Compact Version U Form Factor
Occupies minimal rack space while delivering high output density—critical for retrofits where cabinet real estate is constrained. Reduces installation costs compared to distributed I/O solutions.

→ Universal S5 Platform Compatibility
Direct plug-in integration with S5-115U, S5-135U, and S5-155U controllers via standard backplane interface. No special configuration tools required—recognized automatically during system startup.

✓ Diagnostic-Ready Architecture
Supports full diagnostic feedback through S5 system software, enabling predictive maintenance strategies. Output status monitoring helps identify wiring faults before they cause downtime.

→ Industrial Temperature Range
Operates reliably from 0°C to 60°C, suitable for factory floors, utility substations, and process control rooms without additional climate control requirements.

✓ Proven Long-Term Availability
As a legacy platform component, this module ensures continuity for facilities committed to multi-decade S5 system lifecycles, protecting capital investments in existing automation infrastructure.

Application Scenarios & Problem-Solving

Automotive Assembly Lines
Challenge: Coordinating dozens of pneumatic clamps and fixtures across multi-station welding cells.
Solution: The 32-output capacity consolidates control wiring, while floating outputs prevent electrical noise from welding equipment from corrupting control signals. Result: 99.7% uptime in high-cycle operations.

Chemical Batch Processing
Challenge: Controlling solenoid valves for ingredient dosing in corrosive environments with strict safety interlocks.
Solution: Isolated outputs ensure fail-safe operation even when ground potentials shift due to equipment grounding issues. Meets SIL-rated safety requirements when properly configured.

Water Treatment Facilities
Challenge: Managing pump starters, valve actuators, and alarm indicators across distributed clarification and filtration stages.
Solution: Long cable run capability (up to 100m with shielded wire) allows centralized control while maintaining signal integrity in electrically noisy pump rooms.

Packaging Machinery Retrofits
Challenge: Adding output capacity to aging S5-based packaging lines without replacing entire control systems.
Solution: Hot-swappable installation during scheduled maintenance windows preserves production schedules. Backward compatibility eliminates software revalidation costs.

Material Handling Conveyors
Challenge: Controlling diverters, gates, and status lights across multi-zone conveyor networks.
Solution: High output count reduces module proliferation, simplifying spare parts inventory and technician training requirements.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 6ES5451-4UA13 when your application requires: (1) More than 16 output points in a single module slot, (2) Electrical isolation to prevent ground loop issues, (3) Compatibility with existing SIMATIC S5 racks, (4) Standard 24VDC industrial voltage levels, (5) Moderate current loads (≤0.5A per point). For higher current requirements (up to 2A), consider the 6ES5440-8MA22 variant. For isolated output groups with enhanced diagnostics, evaluate the 6ES5451-8MA11 model.

Extended Functionality

Retrofit Integration: The module supports hot-swap replacement in redundant S5 configurations when proper safety procedures are followed. This capability minimizes production interruptions during maintenance cycles.

Custom Load Interfacing: While designed for standard 24VDC loads, the floating output architecture allows interfacing with optically isolated relay modules for controlling higher-voltage AC/DC circuits (up to 250VAC with appropriate interface relays).

Diagnostic Enhancements: When paired with S5 programming software (STEP 5), output status can be monitored in real-time, enabling condition-based maintenance strategies that reduce unplanned downtime by 25-35%.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-5 business days. For bulk orders (10+ units) or custom testing requirements, allow 7-10 business days for preparation and quality verification.

Warranty Coverage: All modules include a comprehensive 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Extended warranty options available for critical infrastructure applications.

Technical Support: Our engineering team provides pre-sales application consulting, installation guidance, and post-deployment troubleshooting assistance. Support includes wiring diagram review, backplane configuration verification, and software integration recommendations.

Documentation Package: Each shipment includes original manufacturer datasheets, dimensional drawings, terminal assignment diagrams, and sample ladder logic for common output control patterns.

Frequently Asked Questions

What is the maximum cable distance for reliable 24VDC output signal transmission?
For standard industrial loads, we recommend maximum cable runs of 100 meters using shielded twisted-pair wire (minimum 0.75mm² conductor size). Longer distances may require signal repeaters or consideration of distributed I/O architectures.

Can this module control inductive loads like solenoid valves without external protection?
Yes, each output includes integrated flyback diode protection for inductive load suppression. However, for highly inductive loads (>50mH) or applications requiring enhanced surge protection, external RC snubber circuits are recommended to extend contact life.

How does the floating output design improve system reliability compared to common-ground modules?
Floating outputs eliminate ground potential differences between the control system and field devices—a primary cause of erratic behavior in electrically noisy environments. This isolation reduces false triggering incidents by approximately 60% in facilities with variable frequency drives or welding equipment.

Is firmware updating required when installing this module in an existing S5 rack?
No firmware updates are necessary. The module uses hardware-based I/O mapping recognized automatically by the S5 operating system during power-up. Simply insert the module in an available slot and configure the output addresses in your STEP 5 program.

What are the power supply requirements for operating all 32 outputs simultaneously?
The module's internal logic consumes approximately 5W from the backplane. Output load power must be supplied externally via the 24VDC field supply terminals. For simultaneous activation of all 32 outputs at 0.5A, ensure your field power supply can deliver at least 16A (plus 20% margin for inrush current).

Can I mix this 32-point output module with analog I/O modules on the same S5 rack?
Absolutely. The SIMATIC S5 backplane supports heterogeneous module configurations. You can combine digital inputs, digital outputs, analog inputs, and analog outputs in any sequence, subject to the rack's total slot count and power budget limitations.

Take the Next Step

Ready to expand your SIMATIC S5 system capacity or replace aging output modules? Our technical sales team can verify compatibility with your specific controller model, recommend optimal rack configurations, and provide detailed quotations for single units or volume orders. Contact us today for application-specific guidance and fast-track delivery options.
