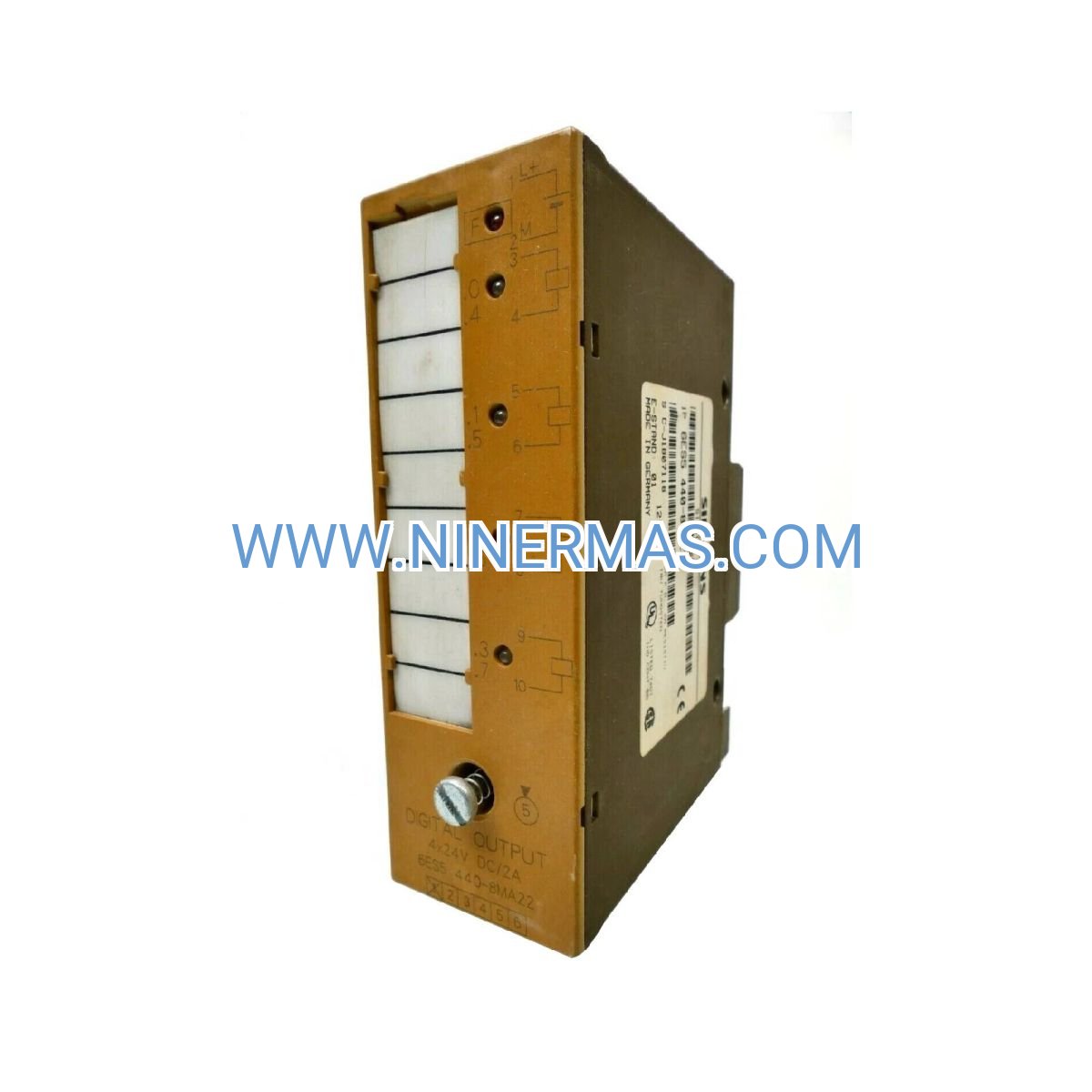

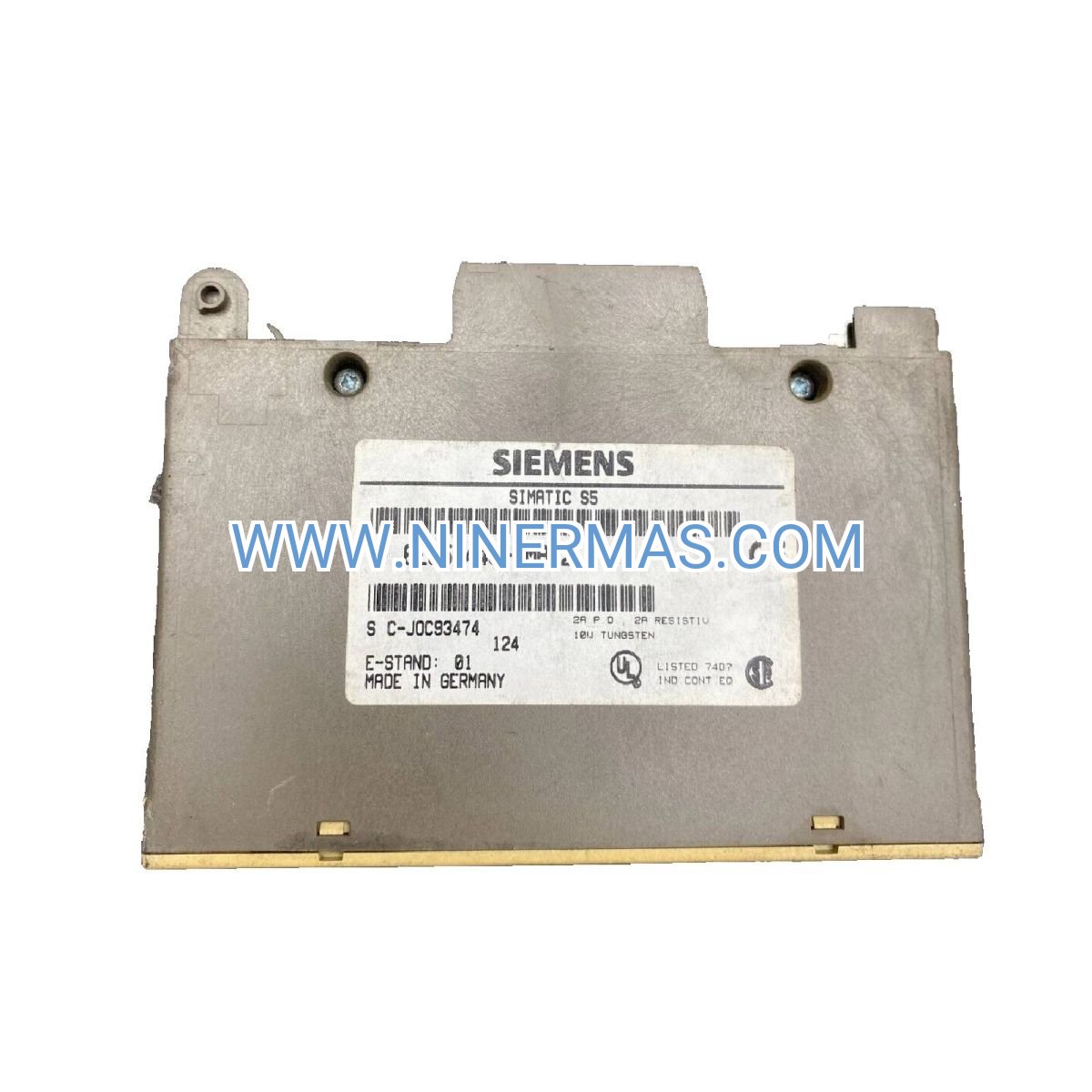

Siemens 6ES5440-8MA22 Digital Output Module (Industrial-Grade S5 Control Solution)

The Siemens 6ES5440-8MA22 represents a proven digital output interface designed specifically for SIMATIC S5 programmable logic controllers. This non-isolated 4-channel module provides dependable 24V DC switching at 2A per output, serving as a critical component in legacy industrial automation systems that demand continuous operation and long-term parts availability.

Built for facilities maintaining SIMATIC S5 infrastructure, this module addresses the challenge of sourcing reliable replacement components for aging control systems. Whether you're managing a production line commissioned decades ago or supporting process control equipment in chemical plants, the 6ES5440-8MA22 ensures your operations continue without forced migration to newer platforms.

Key advantages include drop-in compatibility with S5-90U, S5-95U, S5-100U, ET 100U, and ET 200U systems, German-engineered durability for harsh industrial environments, and cost-effective maintenance that extends your existing automation investment while you plan strategic upgrades on your timeline.

Core Features & Benefits

→ Four Independent 24V DC Outputs (2A Each)
Drive solenoid valves, motor contactors, indicator lamps, and relay coils with sufficient current capacity for industrial-grade actuators. Each channel handles up to 2 amperes, eliminating the need for external amplification in most applications.

→ Non-Isolated Architecture for Common-Ground Systems
Shares backplane ground reference, simplifying wiring in installations where all controlled devices operate at the same voltage level. Reduces installation complexity and lowers material costs compared to isolated alternatives.

→ S5 Family Universal Compatibility
Seamlessly integrates with S5-90U/95U/100U controllers and ET 100U/200U distributed I/O systems. Plug-and-play installation requires no firmware updates or configuration changes—simply insert into available slot and power cycle.

✓ Compact DIN-Rail Mounting (141×111×55mm)
Fits standard control cabinet layouts with minimal footprint. At just 210 grams, the module won't overload mounting rails or require structural reinforcement in existing enclosures.

✓ German Manufacturing Standards
Produced in Germany with rigorous quality control, ensuring consistent performance across temperature extremes (-25°C to +60°C ambient), vibration, and electrical noise common in factory environments.

✓ Legacy System Life Extension
Avoid premature replacement of functional S5 systems by maintaining spare parts inventory. Defer capital expenditure on complete system overhauls while maintaining production uptime and regulatory compliance.

Application Scenarios

Packaging & Assembly Lines
Control pneumatic cylinder actuators, conveyor drive contactors, and product diverter solenoids in high-speed packaging operations. The module's 2A output capacity handles standard 24V DC industrial solenoids without external relays, reducing failure points in time-critical processes.

Chemical Process Control
Operate motorized isolation valves, dosing pump starters, and multi-stage alarm indicators in batch processing and continuous flow systems. Non-isolated outputs work efficiently in installations with centralized 24V DC power distribution and common grounding.

Water & Wastewater Treatment
Manage level control valves, chemical feed pump contactors, and status indication panels in municipal and industrial treatment facilities. Proven reliability in humid, corrosive environments where equipment replacement windows are limited by operational constraints.

Building HVAC & Access Control
Drive damper actuators, fan starter relays, and electromagnetic door locks in industrial facility management systems. Maintains compatibility with legacy building automation protocols while supporting gradual modernization strategies.

Material Handling & Warehousing
Activate sorting gates, positioning cylinders, and transfer line diverters in automated storage and retrieval systems. Supports 24/7 operation requirements with field-proven component longevity exceeding 15 years in typical industrial duty cycles.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES5440-8MA22 when your application requires non-isolated outputs for devices sharing a common 24V DC ground. If your system controls mixed-voltage loads or requires electrical isolation between channels, consider the 6ES5451-8MA11 isolated variant instead. Verify that your total load current per channel does not exceed 2A continuous duty, and confirm compatibility with your specific S5 controller model using the technical manual.

Extended Functions

Diagnostic LED Indicators: Each output channel features individual status LEDs for real-time troubleshooting. Quickly identify energized outputs during commissioning or fault diagnosis without external test equipment.

Hot-Swap Capability: In ET 100U/200U distributed I/O configurations, modules can be replaced during operation without shutting down the entire system, minimizing downtime during maintenance activities.

Parallel Output Expansion: Combine multiple modules in the same rack to scale output capacity. S5 systems support up to 32 I/O modules per rack, allowing flexible configuration for large-scale control applications.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 3-5 business days. Typical delivery to major industrial centers ranges from 7-15 days depending on destination and customs clearance.

Custom Orders: Bulk quantities (10+ units) or special packaging requests may require 20-30 days. Contact our sales team for volume pricing and expedited logistics options.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty begins from delivery date and includes replacement or repair at our discretion.

Technical Support: Our engineering team provides pre-sales compatibility verification, installation guidance, and post-sales troubleshooting assistance. Support includes wiring diagrams, configuration examples, and integration with existing S5 programs.

Documentation Package: Each unit ships with installation instructions, technical datasheet, and compliance certificates. Full programming manuals and CAD drawings available for download from our technical library.

Frequently Asked Questions

Can this module interface with SIMATIC S7 controllers?
No, the 6ES5440-8MA22 is engineered exclusively for SIMATIC S5 architecture. S7 systems require ET 200SP, ET 200M, or SM 322 digital output modules with different backplane communication protocols.

What distinguishes non-isolated from isolated output modules in practical applications?
Non-isolated modules share electrical ground with the PLC backplane, making them suitable when all controlled devices operate at the same voltage and ground reference. Isolated modules provide channel-to-channel separation, necessary when controlling devices with different ground potentials or when electrical noise isolation is critical.

Is the module compatible with 12V DC or 48V DC loads?
The module is optimized for 24V DC operation. While it can switch lower-voltage loads (12V DC), verify that load current remains within the 2A limit and consult technical documentation for minimum switching thresholds. 48V DC loads exceed the voltage rating and may damage the module.

How do I determine the correct output current for my application?
Sum the inrush current of all devices connected to a single channel. Solenoid valves typically draw 0.5-1.5A, contactors 0.3-0.8A, and indicator lamps 0.05-0.2A. Ensure total continuous current plus 20% safety margin stays below 2A per channel.

What is the expected service life in continuous industrial operation?
Under typical industrial duty cycles (ambient temperature ≤40°C, proper ventilation, clean power supply), the module demonstrates mean time between failures (MTBF) exceeding 150,000 hours. Actual lifespan varies with environmental conditions and switching frequency.

Do you provide installation and commissioning services?
We offer remote technical support for installation guidance and troubleshooting. For on-site commissioning, we can recommend certified Siemens system integrators in your region with S5 expertise.

Ready to Maintain Your S5 System Uptime?

Secure your spare parts inventory today and avoid costly production interruptions. Contact our industrial automation specialists for compatibility verification, volume pricing, or technical consultation on your specific S5 configuration.

Request a Quote: Email sale@ninermas.com with your system details
Technical Inquiries: Call +0086 187 5021 5667 (English/Mandarin support)
Bulk Orders: Volume discounts available for 10+ units
