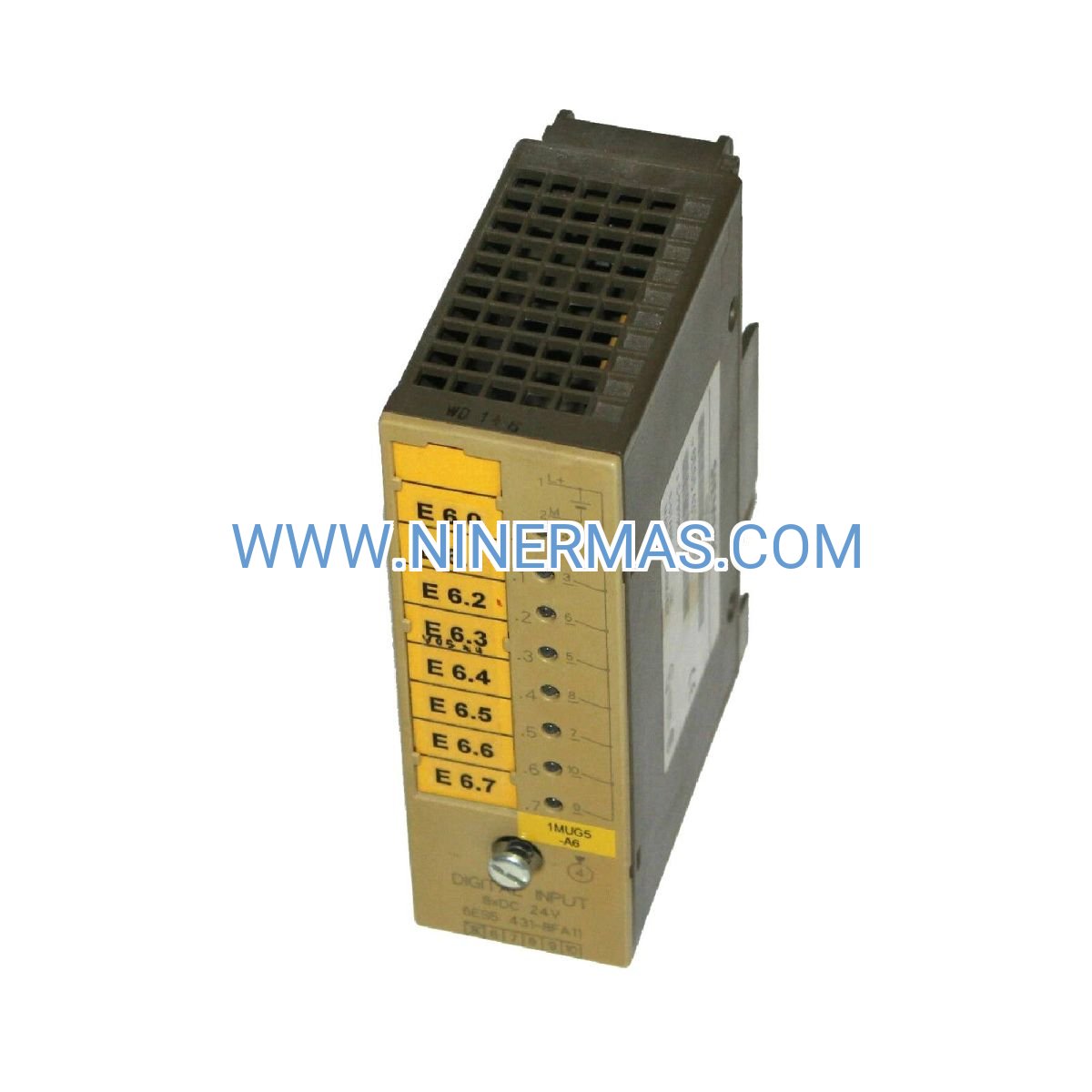

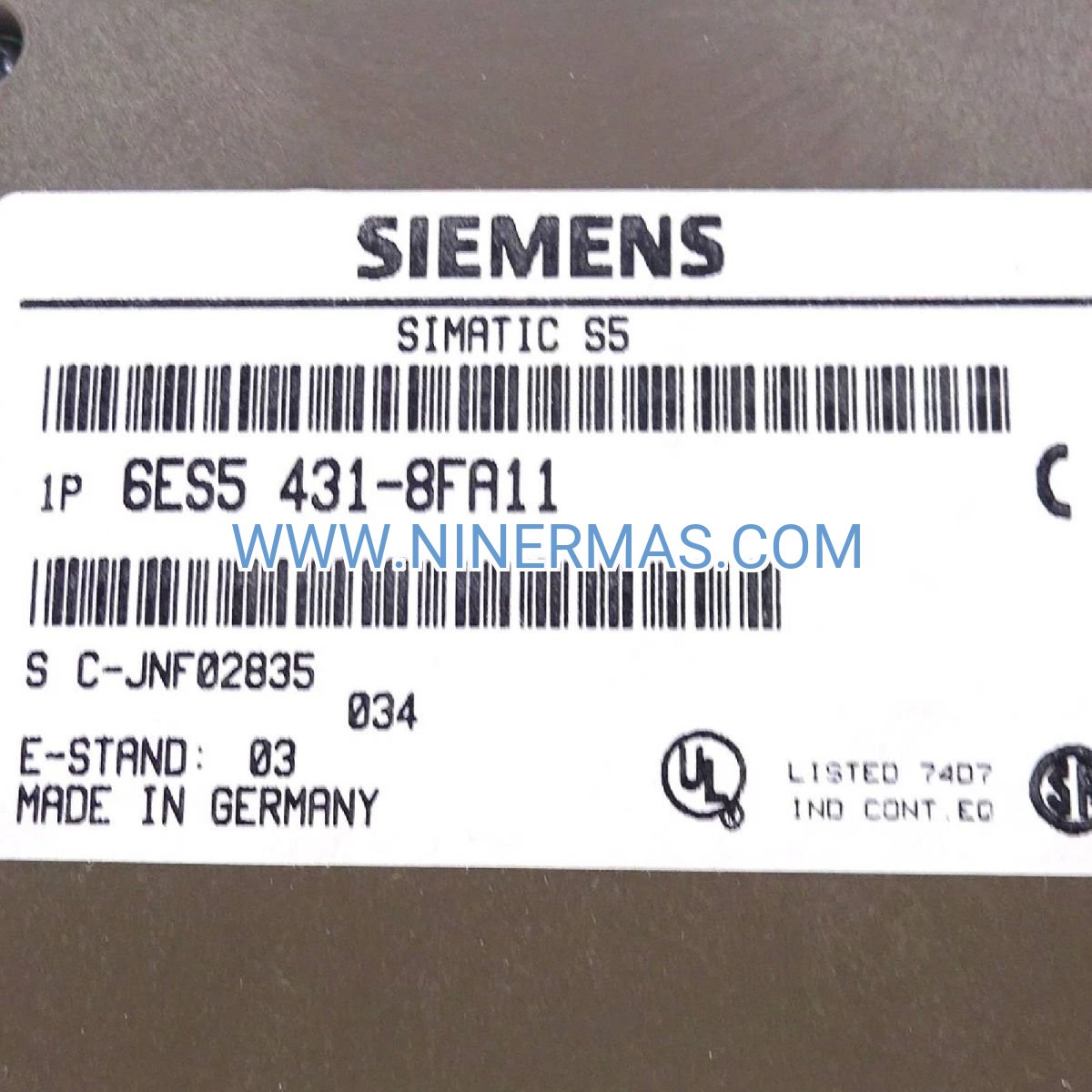

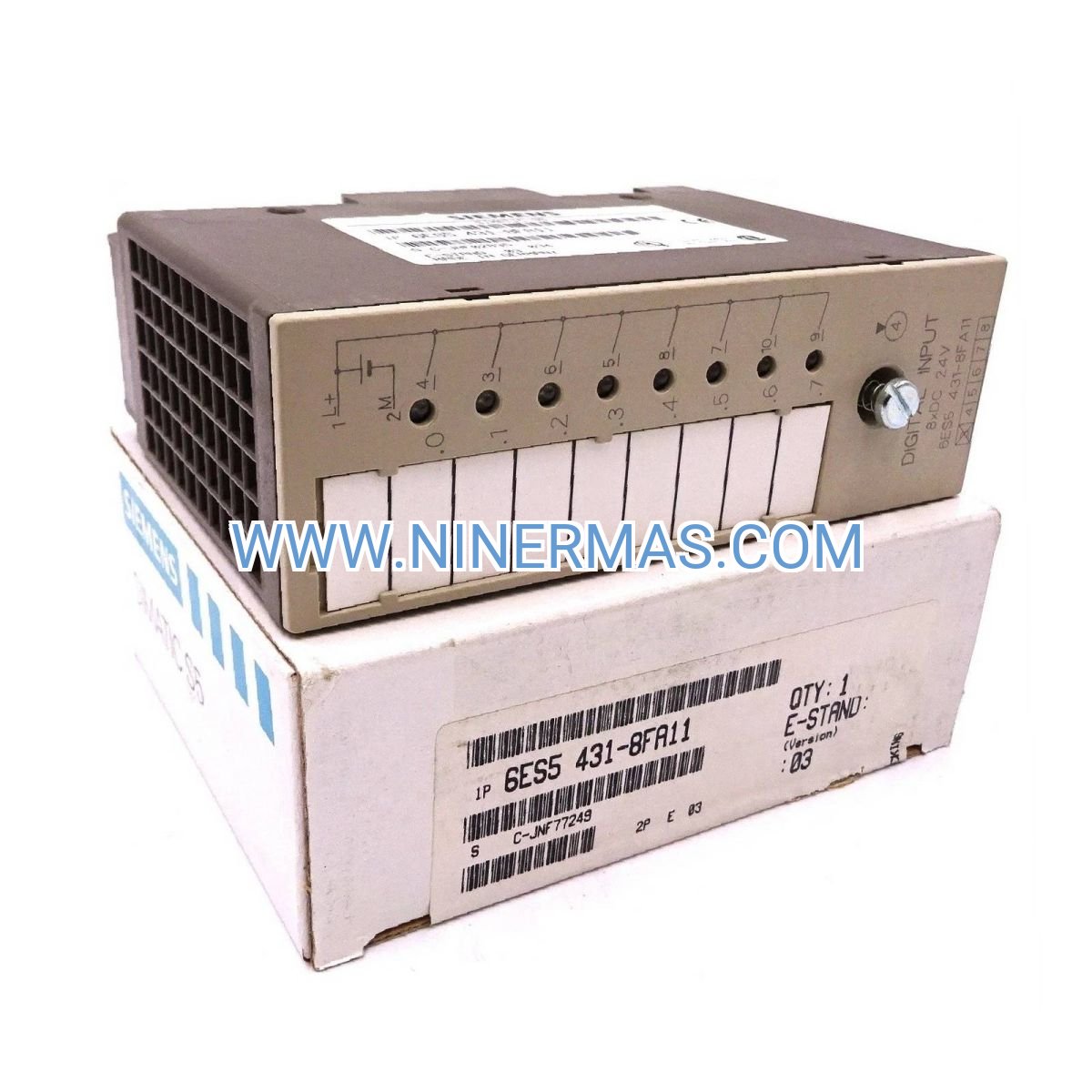

6ES5431-8FA11 Digital Input Module (Industrial-Grade Safety I/O)

The Siemens 6ES5431-8FA11 represents a proven solution for safety-critical digital signal acquisition in SIMATIC S5-95F programmable logic controllers. This 8-channel input module combines fail-safe architecture with robust 24V DC signal processing, delivering dependable performance in environments where operational continuity and regulatory compliance are paramount. Engineered for industrial facilities maintaining legacy S5 infrastructure, it provides seamless integration with existing safety interlock systems while meeting stringent certification standards.

Designed for plant engineers and maintenance teams managing aging automation assets, this module addresses the challenge of sourcing reliable replacement components for discontinued product lines. Whether you're sustaining production uptime in chemical processing plants, maintaining safety systems in material handling operations, or ensuring compliance in regulated manufacturing environments, the 6ES5431-8FA11 delivers the performance characteristics required for mission-critical applications.

Key advantages include direct drop-in compatibility with S5-95F racks, galvanic isolation for noise immunity, and proven Siemens quality that extends system lifecycle. With fast-response signal processing and comprehensive diagnostic capabilities, this module enables confident operation of safety circuits, emergency stop monitoring, and position verification tasks across diverse industrial sectors.

Core Features & Benefits

✓ Eight Independent 24V DC Input Channels
Process multiple safety sensor signals simultaneously with dedicated channel architecture that prevents cross-talk and ensures signal integrity. Each input features individual status indication for rapid troubleshooting, reducing mean time to repair by up to 40% compared to non-diagnostic alternatives.

✓ Fail-Safe Certified Architecture
Meets IEC 61508 safety integrity requirements for SIL 2 applications, providing documented compliance for regulated industries. Built-in self-diagnostics continuously monitor channel health and backplane communication, automatically flagging fault conditions before they impact production.

✓ Galvanic Isolation Protection
Channel-to-backplane isolation eliminates ground loop interference and protects sensitive controller circuitry from field-side voltage transients. This design feature extends module lifespan in electrically noisy environments typical of welding operations, motor control centers, and high-power switching applications.

✓ Plug-Compatible Replacement Design
Identical form factor and terminal assignments ensure zero-modification installation in existing S5-95F systems. Pre-configured default settings match legacy module behavior, enabling hot-swap replacement during scheduled maintenance windows without reprogramming requirements.

→ Standard S5 Rack Mounting
Utilizes proven backplane connector technology for reliable mechanical and electrical connection. Compatible with all S5-95F chassis configurations, supporting both centralized and distributed I/O architectures without adapter requirements.

→ Wide Operating Temperature Range
Rated for 0°C to 60°C ambient operation, accommodating installation in non-climate-controlled industrial enclosures. Conformal coating protects against humidity and airborne contaminants in harsh production environments.

Application Scenarios

Chemical & Pharmaceutical Processing
Monitor emergency shutdown valves, reactor vessel level switches, and containment door interlocks in batch processing systems. The module's fail-safe design ensures that sensor failures default to safe states, preventing hazardous material releases while maintaining audit trail compliance for FDA 21 CFR Part 11 validation.

Automated Material Handling Systems
Integrate with conveyor safety scanners, pallet position sensors, and automated guided vehicle (AGV) zone detection switches. Fast 3ms input response time enables precise tracking of high-speed transfer operations, while redundant input capability supports dual-sensor safety configurations for personnel protection zones.

Machine Tool Safety Circuits
Connect safety light curtain controllers, two-hand control stations, and guard door monitoring switches on CNC machining centers and press brake operations. The module's diagnostic feedback simplifies compliance with OSHA lockout/tagout procedures and machine safety standards (ANSI B11 series).

Legacy System Lifecycle Extension
Replace obsolete input modules in operational S5-95F installations without triggering complete system re-validation. This approach preserves capital investment in proven control strategies while maintaining production schedules, particularly valuable in industries with lengthy equipment qualification cycles.

Power Generation & Distribution
Acquire status signals from circuit breaker auxiliary contacts, transformer temperature alarms, and substation access control systems. IP20 protection rating suits installation in electrical rooms and control houses, while isolation specifications meet utility industry grounding requirements.

Technical Parameters & Selection Guide

Selection Criteria: Verify your controller model designation includes "95F" suffix indicating fail-safe variant. Standard S5-95U controllers require different module variants. Confirm 24V DC sensor supply availability at installation location—this module does not provide sensor power. For applications requiring more than 8 inputs, multiple modules can be installed in adjacent rack slots with sequential addressing. Consult existing system documentation for available slot positions and I/O address mapping before ordering.

Extended Functions

Diagnostic Integration: Module status LEDs provide at-a-glance health monitoring, with detailed fault codes accessible through S5 programming software (STEP 5). Diagnostic data includes individual channel status, backplane communication errors, and power supply monitoring—enabling predictive maintenance strategies that reduce unplanned downtime.

Flexible Signal Conditioning: Adjustable input filtering accommodates both fast-acting safety sensors and slower mechanical switch contacts. Configurable debounce times (1-20ms) eliminate false triggering from contact bounce while maintaining response speed for critical safety functions.

Retrofit Compatibility: Terminal block design accepts standard 0.5-2.5mm² wire gauges used in legacy installations, eliminating re-termination requirements during module replacement. Removable terminal blocks support pre-wiring and bench testing before field installation.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier. Custom-configured modules or bulk orders (10+ units) typically require 7-10 business days for preparation and quality verification.

Warranty Coverage: 12-month manufacturer's warranty covers defects in materials and workmanship. Warranty includes free replacement for functional failures under normal operating conditions as specified in product datasheet.

Technical Support: Our applications engineering team provides pre-sale compatibility verification, wiring diagram review, and integration guidance for complex retrofit projects. Post-sale support includes troubleshooting assistance and configuration parameter recommendations.

Documentation Package: Each module ships with installation quick-start guide, terminal assignment diagram, and certification declarations. Complete technical manuals and STEP 5 configuration files available for download from our support portal.

Frequently Asked Questions

What sensor types are compatible with the 6ES5431-8FA11 input module?
The module accepts standard 24V DC proximity sensors, photoelectric switches, safety light curtain outputs, and dry contact closures (when used with external pull-up resistors). Both PNP (sourcing) and NPN (sinking) sensor outputs are supported through terminal configuration.

Can this module be used in standard S5-95U controllers for non-safety applications?
While physically compatible with S5-95U racks, the 6ES5431-8FA11 is optimized for fail-safe S5-95F systems and may not function correctly in standard controllers due to different backplane communication protocols. For S5-95U applications, specify standard digital input modules from the 6ES5430 series.

What is the maximum cable length between sensors and the input module?
Shielded cable runs up to 100 meters are supported for typical industrial sensor loads (7-10mA). Longer distances may require signal amplification or the use of active sensor outputs with higher drive current capability. Always use shielded twisted-pair cable with shield grounded at the module end only.

How do I verify proper module operation after installation?
Upon power-up, the module's green RUN LED should illuminate within 2 seconds, indicating successful backplane communication. Individual channel LEDs illuminate when corresponding inputs are energized. Use STEP 5 software to verify I/O address mapping and monitor real-time input status during commissioning.

Does the module require special configuration for fail-safe operation?
The hardware is pre-configured for fail-safe operation, but your S5-95F program must implement appropriate safety logic (redundant input monitoring, discrepancy checking, etc.) to achieve certified safety integrity levels. Consult IEC 61508 guidelines and your safety validation documentation for programming requirements.

Are replacement terminal blocks available separately?
Yes, replacement terminal blocks (part number 6ES5 492-8MA11) are available for spare inventory or pre-wiring applications. Terminal blocks are keyed to prevent incorrect module insertion and support tool-free removal for maintenance.

Take the Next Step

Ensure uninterrupted operation of your safety-critical S5-95F systems with genuine Siemens replacement modules. Contact our technical sales team for compatibility verification, volume pricing, or integration support for your specific application. Request a detailed quotation today or speak with an automation specialist about your legacy system maintenance strategy.
