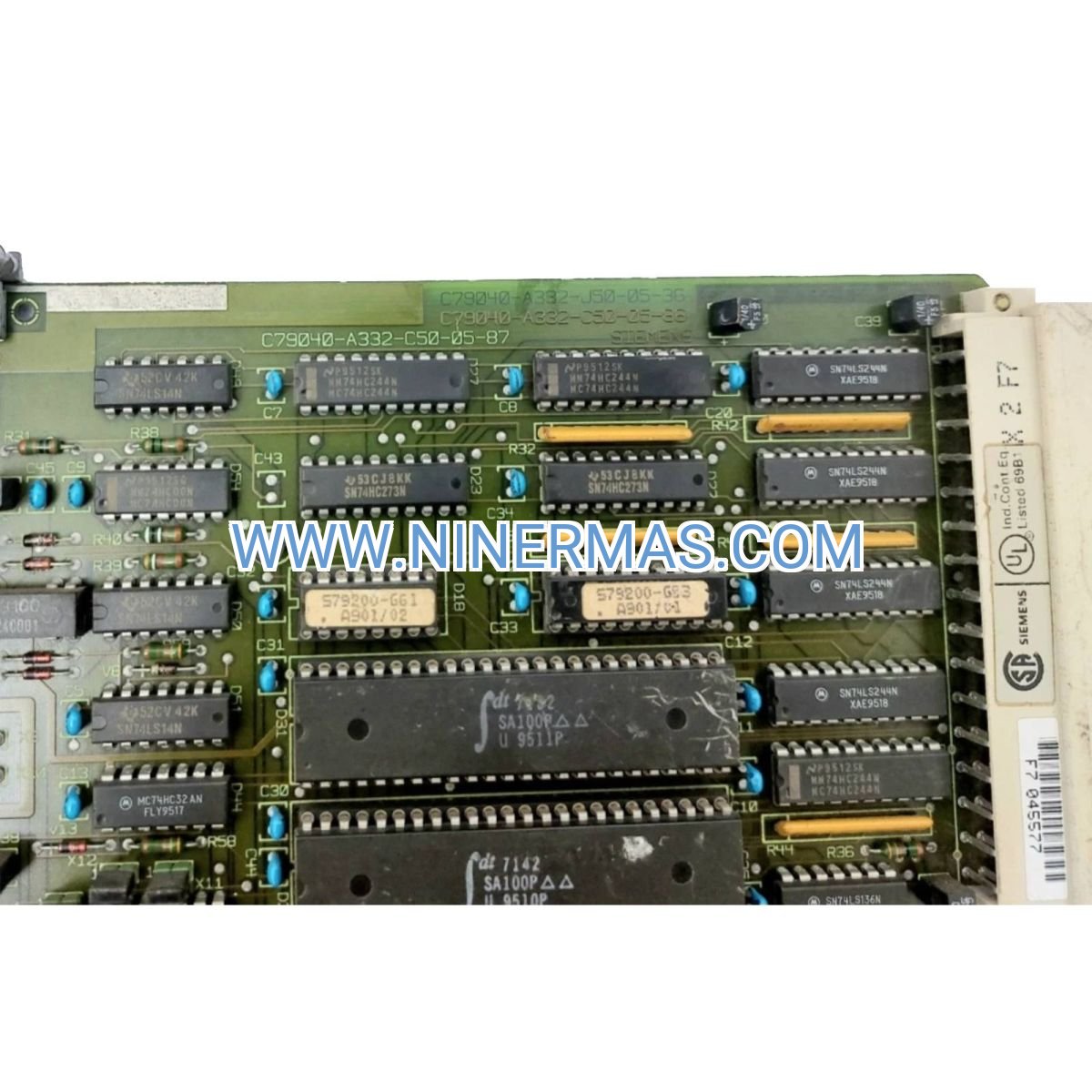

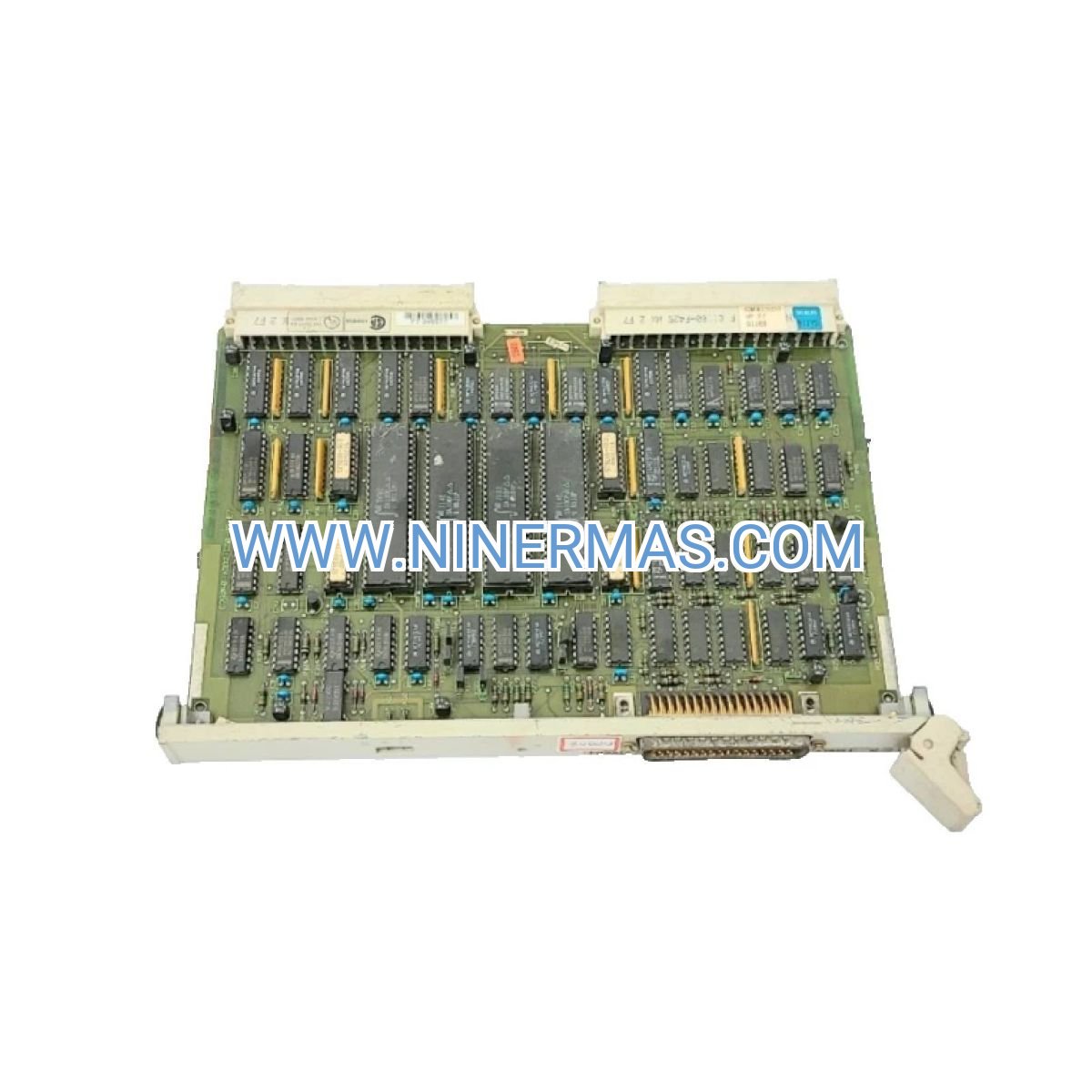

6ES5324-3UR11 IM 324R Interface Module (Industrial-Grade Redundancy Solution)

The Siemens 6ES5324-3UR11 IM 324R represents a critical infrastructure component engineered for fault-tolerant automation architectures. Designed exclusively for SIMATIC S5-155H and S5-115H redundant controller platforms, this interface module establishes synchronized communication pathways between dual processors, delivering millisecond-level failover response that protects mission-critical operations from unplanned downtime. Industries requiring 99.99% uptime—including power distribution, chemical processing, and municipal utilities—depend on this proven technology to maintain operational continuity during component failures, scheduled maintenance, or emergency conditions.

Unlike standard PLC configurations where single-point failures halt production, the IM 324R enables hot-standby redundancy where primary and backup controllers execute identical programs simultaneously. Real-time state synchronization ensures seamless control transfer without process interruption, safeguarding against revenue loss, safety incidents, and regulatory non-compliance. For facilities managing legacy S5 infrastructure, securing replacement modules like the 6ES5324-3UR11 has become essential as Siemens phases out production in favor of newer platforms.

Whether you're maintaining existing redundant systems or implementing fault tolerance in critical control loops, this interface module delivers the reliability industrial operations demand. Backed by comprehensive technical documentation and 12-month warranty coverage, the IM 324R provides long-term asset protection for automation investments spanning decades of continuous service.

Core Capabilities & Technical Advantages

→ Hot-Standby Redundancy Architecture: Both S5 controllers operate concurrently with synchronized I/O states, internal flags, and timer values. The IM 324R continuously cross-checks processor health, enabling sub-100ms switchover when primary controller faults are detected—fast enough to prevent batch disruptions in most process applications.

✓ Zero-Configuration Backplane Integration: Installs directly into S5-155H/115H central racks without external wiring requirements. Power and communication signals route through the backplane bus, simplifying installation and reducing potential failure points compared to cable-dependent redundancy schemes.

→ Diagnostic LED Indicators: Front-panel status lights provide instant visibility into module health, synchronization quality, and communication activity. Maintenance teams can verify redundancy status without connecting programming devices, accelerating troubleshooting during critical events.

✓ STEP 5 Software Compatibility: Redundancy parameters configure through familiar STEP 5 programming environment using system data blocks. Engineers experienced with S5 platforms can implement fault-tolerant control without learning new development tools or migration to S7 architecture.

→ Distributed I/O Support: Works seamlessly with remote I/O configurations through additional interface modules, allowing redundant control of geographically dispersed equipment across plant floors, utility substations, or campus-wide infrastructure.

✓ Legacy System Longevity: Extends operational lifespan of proven S5 installations by 10-15 years, deferring costly migration projects while maintaining compliance with safety standards requiring redundant control in hazardous process areas.

Industrial Application Scenarios

Power Generation & Distribution Networks
Electrical utilities deploy S5 redundant systems to control turbine governors, generator excitation, and substation switchgear. The IM 324R synchronizes dual controllers managing grid frequency regulation and load balancing—operations where millisecond response times prevent cascading blackouts. During scheduled controller maintenance, technicians service one unit while the redundant partner maintains uninterrupted grid stability, eliminating the need for costly generation shutdowns.

Petrochemical Refining Operations
Crude distillation columns, catalytic crackers, and alkylation units require continuous control to maintain product specifications and prevent runaway reactions. Redundant S5 systems with IM 324R modules protect against controller failures that could trigger emergency shutdowns costing millions in lost production and restart expenses. The module's hot-standby architecture ensures temperature, pressure, and flow control loops never lose supervision.

Municipal Water & Wastewater Treatment
Public utilities serving populations of 100,000+ residents cannot tolerate control system outages affecting drinking water quality or environmental discharge compliance. The 6ES5324-3UR11 enables redundant automation of clarifiers, filtration systems, and chemical dosing pumps—guaranteeing service continuity during equipment failures while meeting regulatory uptime requirements for critical infrastructure.

Pharmaceutical Manufacturing Clean Rooms
Batch reactors producing active pharmaceutical ingredients operate under strict FDA validation protocols requiring documented control system reliability. Redundant S5 configurations with IM 324R modules provide the fault tolerance necessary for 21 CFR Part 11 compliance, ensuring batch records remain intact and process parameters stay within validated ranges even during controller component failures.

Automotive Assembly Line Automation
Body welding stations, paint booth conveyors, and final assembly robots depend on PLC control for synchronized motion and quality tracking. Implementing redundancy with the IM 324R protects against production line stoppages that idle hundreds of workers and disrupt just-in-time delivery schedules, delivering ROI through improved equipment availability metrics.

Technical Parameters & Selection Criteria

Selection Guidance: Verify your existing S5 system operates in redundant configuration (S5-155H or S5-115H models) before ordering. Standard S5-115U or S5-135U controllers cannot utilize the IM 324R module—these systems require different interface modules for expansion. Consult your STEP 5 system configuration documentation to confirm redundancy hardware requirements and available rack slot positions.

Advanced Integration & Customization Options

Remote Monitoring Connectivity: While the IM 324R itself doesn't provide network interfaces, redundant S5 systems can integrate communication processors (CP modules) for SCADA connectivity, enabling remote redundancy status monitoring through Ethernet/IP, PROFIBUS, or serial protocols. Operations teams receive real-time alerts when synchronization quality degrades or failover events occur.

Hybrid Redundancy Architectures: Advanced configurations combine IM 324R controller redundancy with redundant I/O modules and dual power supplies, creating fully fault-tolerant systems with no single points of failure. This approach suits applications where even brief control interruptions pose safety risks or environmental hazards.

Migration Path Planning: For facilities planning eventual S7 upgrades, the IM 324R extends S5 system viability during multi-year transition projects. Phased migration strategies allow gradual replacement of non-critical loops while maintaining redundant control on essential processes until complete platform conversion.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 2-3 business days via international courier services. Delivery to most global destinations completes within 7-10 business days, with expedited options available for emergency replacement scenarios.

Warranty Coverage: Every 6ES5324-3UR11 module includes a comprehensive 12-month warranty protecting against manufacturing defects and functional failures. Warranty terms cover replacement or repair at our discretion, with return shipping costs covered for verified defects.

Technical Support Access: Our automation specialists provide pre-sales compatibility verification, installation guidance, and post-installation troubleshooting assistance. Support requests receive response within 24 hours during business days, with emergency support available for critical system failures.

Documentation Package: Shipments include original Siemens technical documentation (when available), installation quick-start guides, and compatibility reference charts. Additional resources such as STEP 5 configuration examples and redundancy programming templates are available upon request.

Frequently Asked Questions

How does the IM 324R module handle synchronization between redundant S5 controllers?
The module establishes a high-speed parallel communication link through the S5 backplane, continuously exchanging I/O states, memory contents, and program execution status between primary and standby controllers. Proprietary synchronization algorithms detect discrepancies within microseconds, triggering fault alarms if controllers drift out of alignment beyond configured tolerance thresholds.

What installation requirements must be met before deploying the 6ES5324-3UR11?
Your S5 system must include redundant CPU modules (S5-155H or S5-115H models), matching firmware versions on both controllers, and available rack slots in the central processing unit. STEP 5 programming software version 7.0 or higher is required for redundancy parameter configuration. Physical installation requires no special tools—the module inserts into standard S5 rack slots with locking levers.

Can this redundancy module reduce energy consumption in existing automation systems?
While the IM 324R itself consumes minimal power (approximately 5W from the 24V backplane), redundant architectures inherently require dual controllers and associated infrastructure, increasing overall system power draw by 40-60% compared to simplex configurations. The business case for redundancy centers on avoiding downtime costs rather than energy efficiency improvements.

Is the IM 324R compatible with modern S7-1500 redundancy systems?
No—the 6ES5324-3UR11 is exclusively designed for legacy SIMATIC S5 platforms and cannot interface with S7-300, S7-400, or S7-1500 controllers. Siemens S7 redundancy requires different hardware (such as Y-link modules for S7-400H systems). Migration from S5 to S7 redundant architectures necessitates complete hardware replacement and program conversion.

How do I verify the IM 324R module is maintaining proper synchronization?
The module's front-panel LEDs provide immediate visual confirmation: green indicates healthy synchronization, yellow signals degraded communication quality, and red denotes synchronization failure requiring intervention. Additionally, STEP 5 software includes diagnostic function blocks (OB 81, OB 82) that monitor redundancy status and log failover events for maintenance analysis.

What happens if the IM 324R fails while the system is operating?
Loss of the interface module breaks synchronization between redundant controllers, triggering fault alarms in both CPUs. Depending on system configuration, one controller may continue operating in simplex mode while the other enters a safe state, or both may halt and transfer control to manual operation. The module is field-replaceable, but best practice recommends controlled shutdown procedures to prevent synchronization errors during replacement.

Secure Your Redundant S5 Infrastructure Today

As Siemens discontinues S5 component production, availability of critical modules like the 6ES5324-3UR11 becomes increasingly constrained. Facilities dependent on redundant automation should establish spare parts inventory now to ensure long-term system supportability. Our current stock includes factory-tested units ready for immediate deployment in your fault-tolerant control applications.

Request a compatibility assessment for your specific S5 configuration, or place your order today to secure replacement modules before supply exhaustion. Our team stands ready to support your redundant automation requirements with technical expertise spanning three decades of SIMATIC S5 experience.
