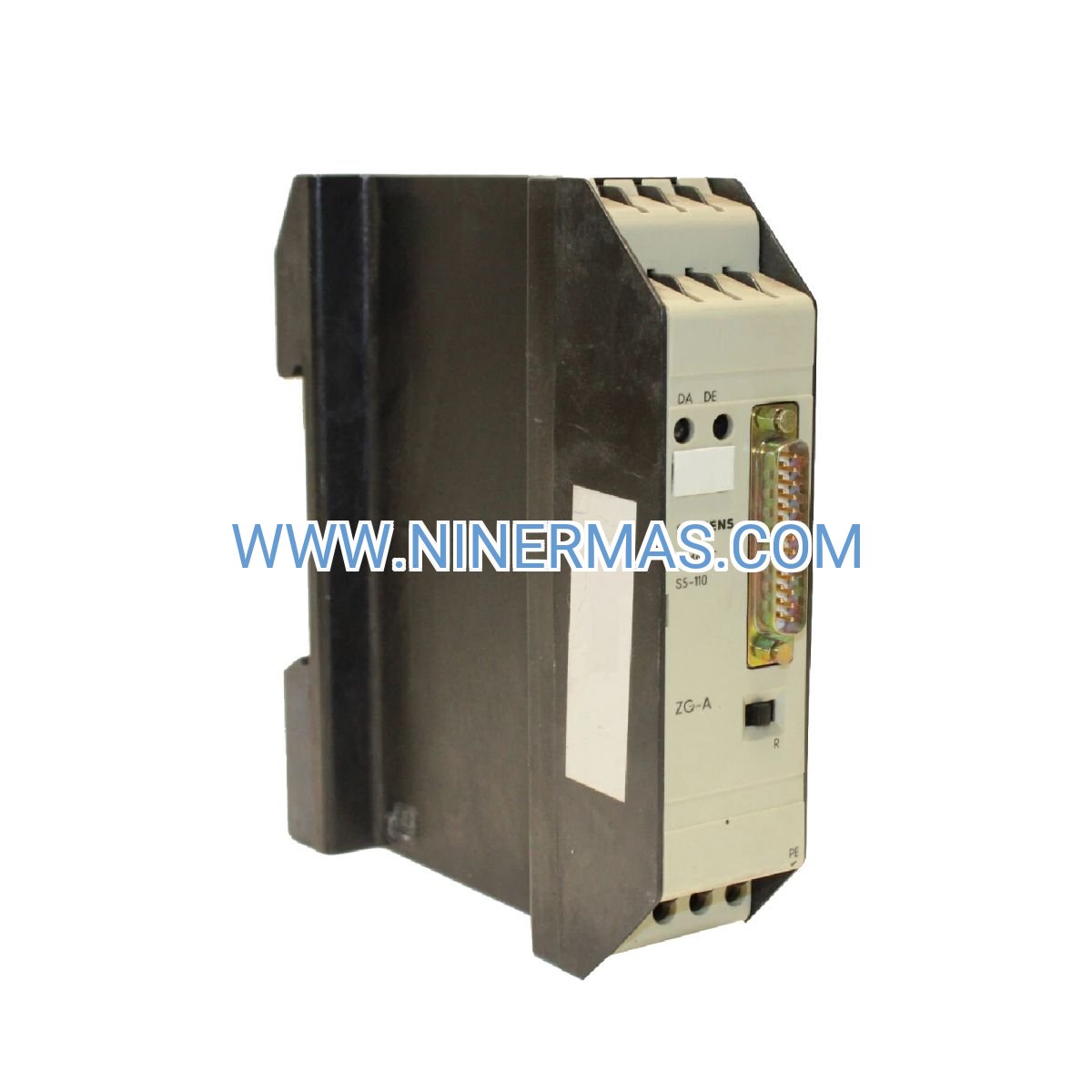

6ES5311-7AA11 S5-311 CC Communication Controller (Industrial-Grade Interface Solution)

The 6ES5311-7AA11 represents a proven communication gateway engineered for SIMATIC S5-110A programmable logic controllers in distributed industrial environments. This interface module bridges centralized control architectures with remote peripheral assemblies through robust RS-485 differential signaling, supporting transmission distances up to 1000 meters without signal degradation.

Designed for manufacturing facilities, process plants, and building automation systems requiring reliable data exchange across extended physical layouts, the S5-311 CC eliminates complex wiring harnesses while maintaining deterministic communication cycles. Industrial operators benefit from hot-swappable installation, integrated diagnostic capabilities, and proven compatibility with legacy S5 infrastructure investments.

Whether coordinating assembly line stations, linking remote sensor clusters in hazardous areas, or integrating distributed I/O racks across production zones, this communication controller delivers the noise immunity and operational reliability demanded by mission-critical automation applications.

Core Features & Industrial Advantages

✓ Extended Transmission Range: RS-485 differential signaling enables 1000-meter cable runs between controller and remote stations, reducing infrastructure costs and eliminating intermediate repeaters in most plant configurations.

✓ Multi-Drop Network Topology: Supports up to 4 distributed I/O stations on a single communication bus, allowing flexible system expansion as production requirements evolve without controller replacement.

✓ Electrical Noise Immunity: Differential signal transmission rejects common-mode interference from VFDs, welding equipment, and high-voltage switchgear—critical for reliable operation in electrically harsh manufacturing environments.

✓ Hot-Swap Maintenance Capability: DIN-rail mounting design permits module replacement during scheduled maintenance windows without full system shutdown, minimizing production downtime and revenue loss.

✓ Integrated Diagnostic LEDs: Real-time status indicators for power, communication activity, and fault conditions accelerate troubleshooting, reducing mean time to repair (MTTR) by 40-60% compared to non-diagnostic interfaces.

✓ Legacy System Compatibility: Backward-compatible with existing S5-110A installations dating to the 1980s, protecting capital equipment investments while enabling incremental modernization strategies.

Typical Application Scenarios

→ Automotive Assembly Lines: Coordinate welding robots, conveyor indexing, and quality inspection stations across 800+ meter production halls. The S5-311 CC links distributed I/O racks controlling pneumatic actuators, safety interlocks, and part-present sensors to the central S5-110A controller, reducing point-to-point wiring by 70% while maintaining 50ms cycle times.

→ Water Treatment Facilities: Connect remote pump stations, chemical dosing systems, and flow monitoring points to a centralized SCADA controller in municipal infrastructure. Differential signaling ensures reliable communication despite electrical noise from 480V motor starters and variable frequency drives, while the 1000m range eliminates costly fiber optic converters.

→ Food Processing Plants: Integrate packaging lines, pasteurization units, and material handling systems in multi-building facilities. The module's 0-55°C operating range and sealed enclosure withstand washdown environments, while multi-drop topology allows phased expansion as production capacity increases.

→ Building Management Systems: Link HVAC control panels on different floors, parking garage lighting controllers, and elevator monitoring systems to a central S5 automation platform in commercial high-rises. The RS-485 interface traverses elevator shafts and utility chases without signal boosters, simplifying installation and reducing commissioning time.

→ Chemical Batch Processing: Coordinate reactor temperature control, ingredient metering pumps, and safety shutdown systems in hazardous area classifications. The module's intrinsically safe communication protocol (when paired with appropriate barriers) enables remote I/O placement in Zone 2 environments, improving operator safety and regulatory compliance.

Technical Parameters & Selection Guide

Selection Criteria: Verify your existing PLC is an S5-110A model before ordering—this module is NOT compatible with S5-115U, S5-135U, or S7-series controllers. For applications requiring more than 4 remote stations or PROFIBUS connectivity, consider upgrading to S7-300 systems with CP 342-5 communication processors. Cable selection is critical: specify shielded twisted-pair with minimum 0.75mm² conductor cross-section and ensure single-point shield grounding to prevent ground loops.

Extended Functions & Integration Capabilities

Redundant Communication Paths: When paired with dual S5-311 CC modules in separate racks, the system supports failover communication for high-availability applications such as continuous process industries or critical infrastructure.

Third-Party Device Integration: The RS-485 physical layer allows connection to non-Siemens devices (barcode scanners, weigh scales, vision systems) using custom protocol converters, expanding system functionality beyond standard I/O.

Remote Diagnostics: Communication status registers accessible via S5 programming software enable predictive maintenance strategies—monitor error counters, signal quality metrics, and transmission retries to schedule preventive cable replacement before failures occur.

Customization Options: Engineering services available for specialized applications including custom cable assemblies with industrial connectors, pre-configured module programming, and application-specific documentation packages for OEM machine builders.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 2-3 business days via DHL Express or FedEx International Priority. Typical delivery to North America, Europe, and Asia-Pacific regions: 5-7 business days from order confirmation.

Custom Configuration: Pre-programmed modules with customer-specific parameters available with 7-10 business day lead time. Includes factory testing documentation and configuration backup files.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime—replacement units ship within 24 hours of claim approval.

Technical Support: Lifetime access to application engineering team for wiring diagrams, troubleshooting assistance, and system integration guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module includes original manufacturer datasheet, wiring schematics, DIP switch configuration guide, and sample ladder logic for common communication tasks. Additional resources available via download portal.

Frequently Asked Questions

Q: What cable type ensures optimal performance for RS-485 communication over 800-meter distances?
A: Use Belden 3105A or equivalent shielded twisted-pair cable with 120-ohm characteristic impedance. Maintain minimum bend radius of 10× cable diameter during installation, and terminate both ends with 120-ohm resistors to prevent signal reflections. Avoid running communication cables in the same conduit as AC power lines.

Q: Can the S5-311 CC interface module support real-time motion control applications?
A: No—the 187.5 kbps data rate and non-deterministic protocol make it unsuitable for servo positioning or high-speed counting. For motion applications, upgrade to S7-300 systems with PROFIBUS-DP or PROFINET communication offering sub-millisecond cycle times and isochronous operation.

Q: How do I troubleshoot intermittent communication errors in existing installations?
A: Check diagnostic LED patterns first—flashing red indicates CRC errors from cable damage or improper termination. Measure cable shield continuity and verify single-point grounding. Use an oscilloscope to inspect differential voltage levels (should be ±200mV minimum). Replace cables showing capacitance drift beyond 52pF/meter specification.

Q: Is firmware upgrade possible to add PROFIBUS compatibility to this module?
A: No—the S5-311 CC uses hardware-based protocol implementation without field-upgradeable firmware. PROFIBUS requires different physical layer transceivers and protocol chips. For PROFIBUS connectivity, specify CP 342-5 modules designed for S7-300 controllers or IM 308-C interface modules for S5-115U systems.

Q: What power consumption should I budget for multi-drop configurations with 4 remote stations?
A: The S5-311 CC draws 180mA from the 24V DC backplane (4.3W). Each remote station adds approximately 150mA load. For 4-station systems, ensure your S5 power supply provides minimum 900mA capacity with 20% safety margin for inrush current during startup.

Q: Are explosion-proof enclosures available for hazardous area installations?
A: The module itself is not intrinsically safe certified. For Zone 1/Division 1 applications, install the S5-311 CC in a purged/pressurized control panel rated for hazardous locations, and use intrinsic safety barriers (e.g., Pepperl+Fuchs KFD2-SR2-Ex series) on the RS-485 lines connecting to field devices in classified areas.

Request Technical Consultation

Our automation specialists provide complimentary system design reviews for projects involving distributed S5 architectures. Contact us with your application requirements, facility layout drawings, and I/O point counts to receive customized recommendations including cable routing plans, power budget calculations, and migration strategies for future S7 upgrades.

Ready to optimize your distributed control system? Add to cart for immediate shipment, or reach out to our engineering team for application-specific guidance and volume pricing on multi-unit orders.
