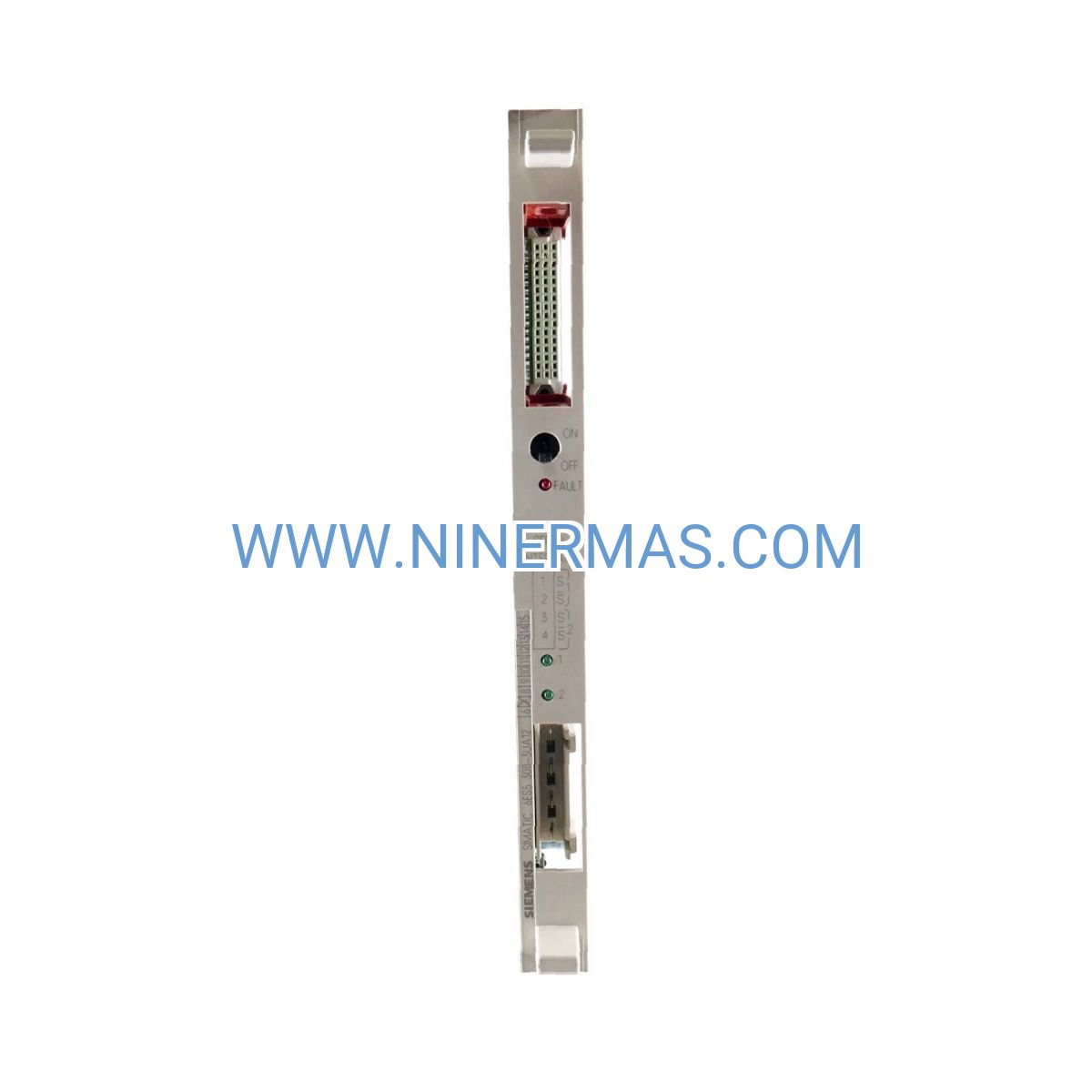

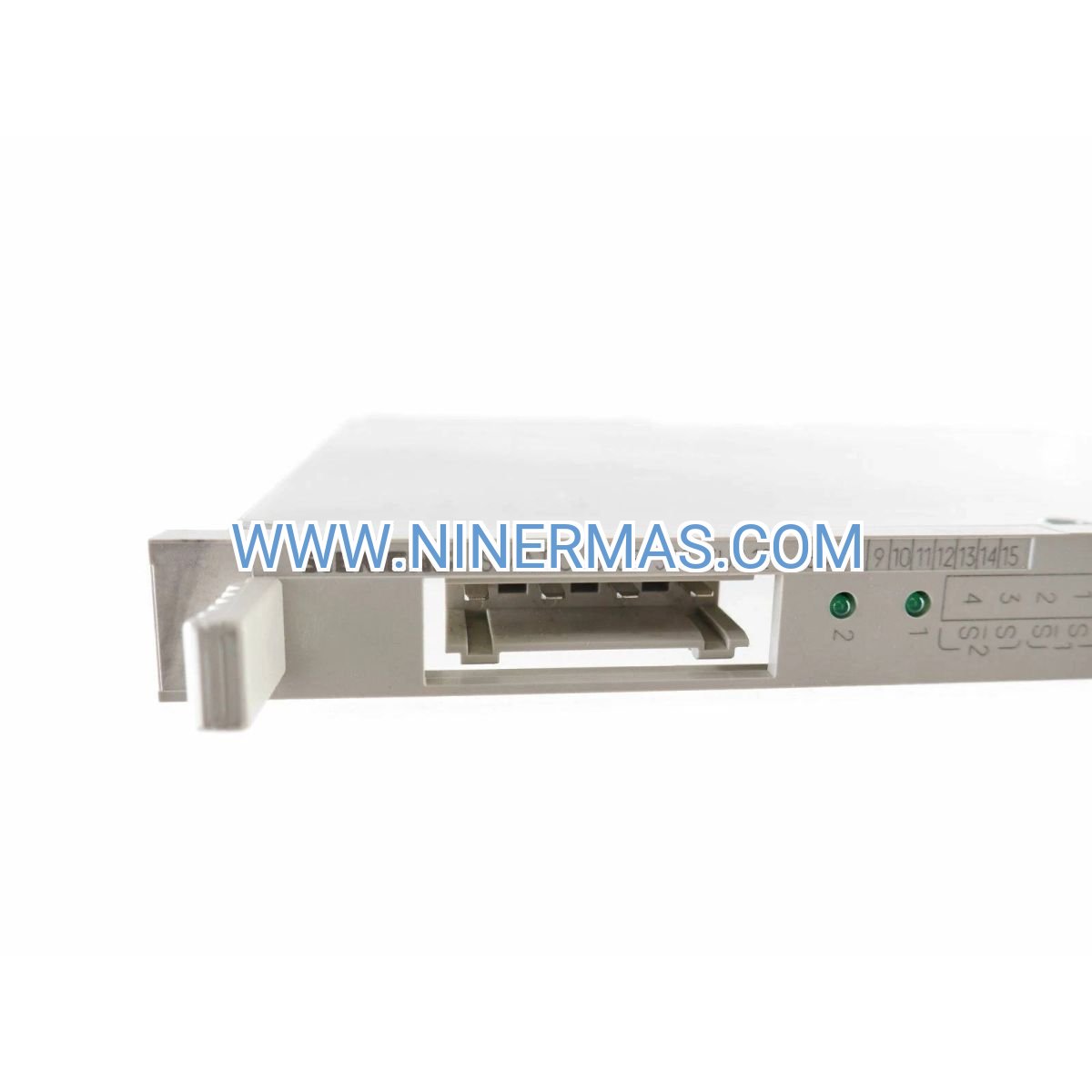

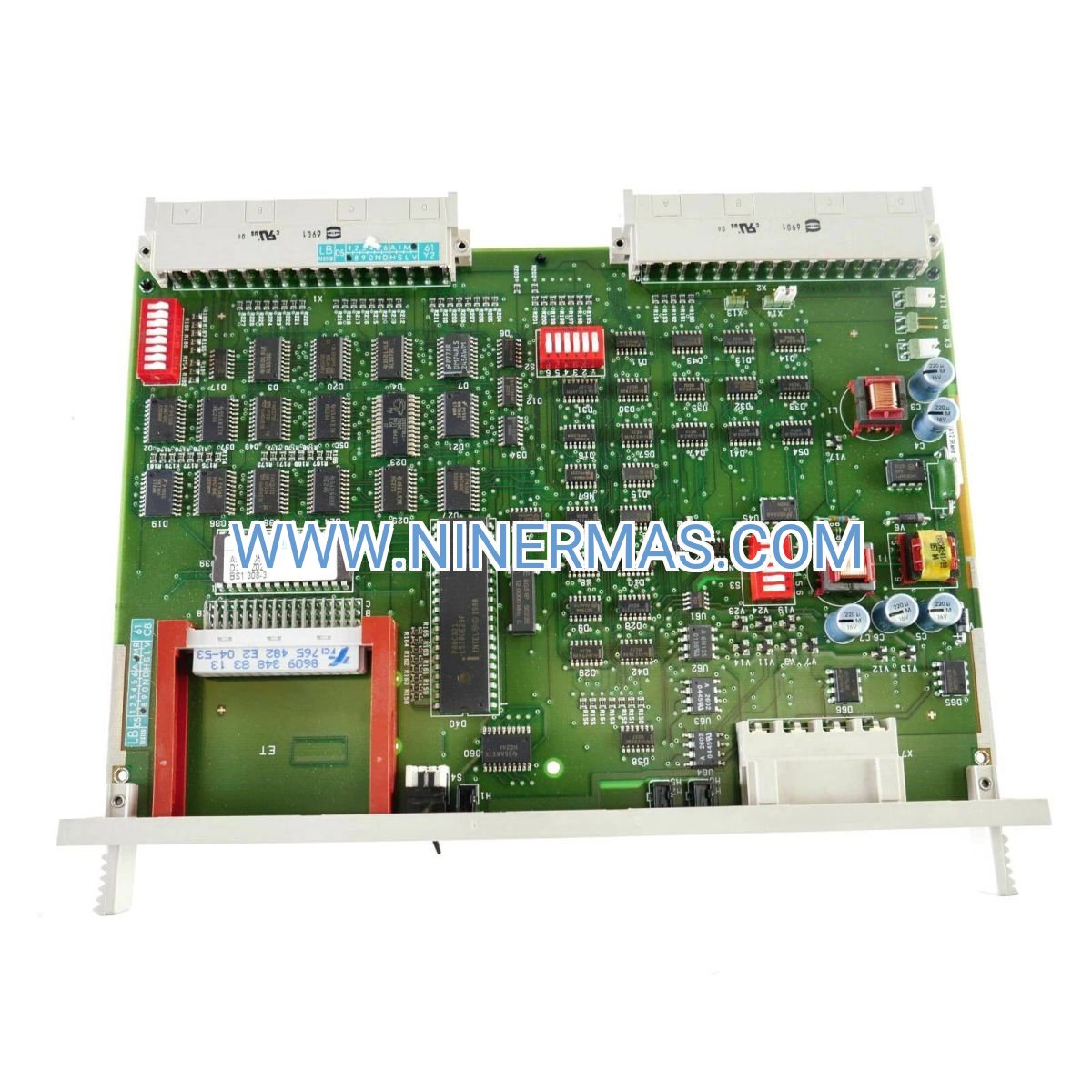

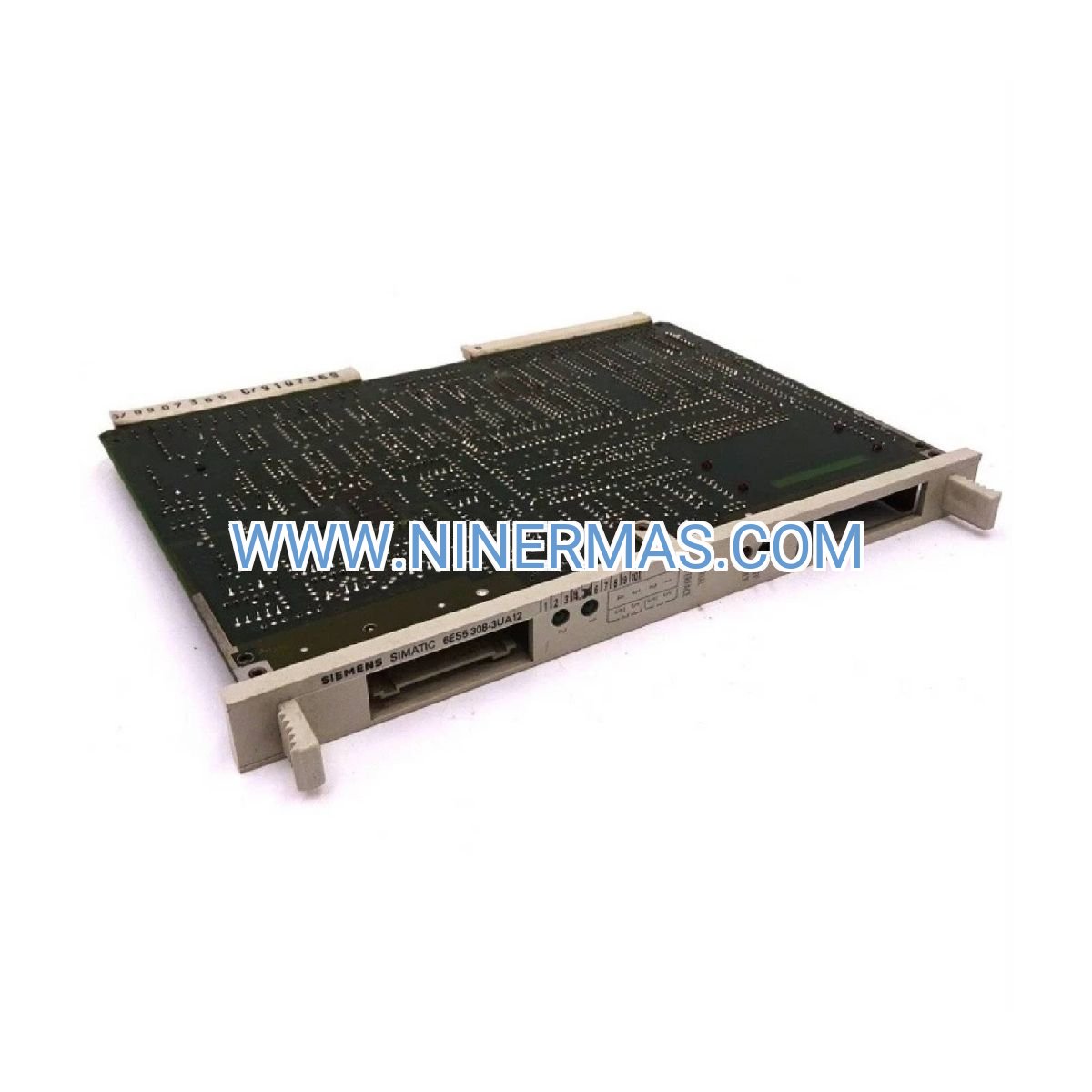

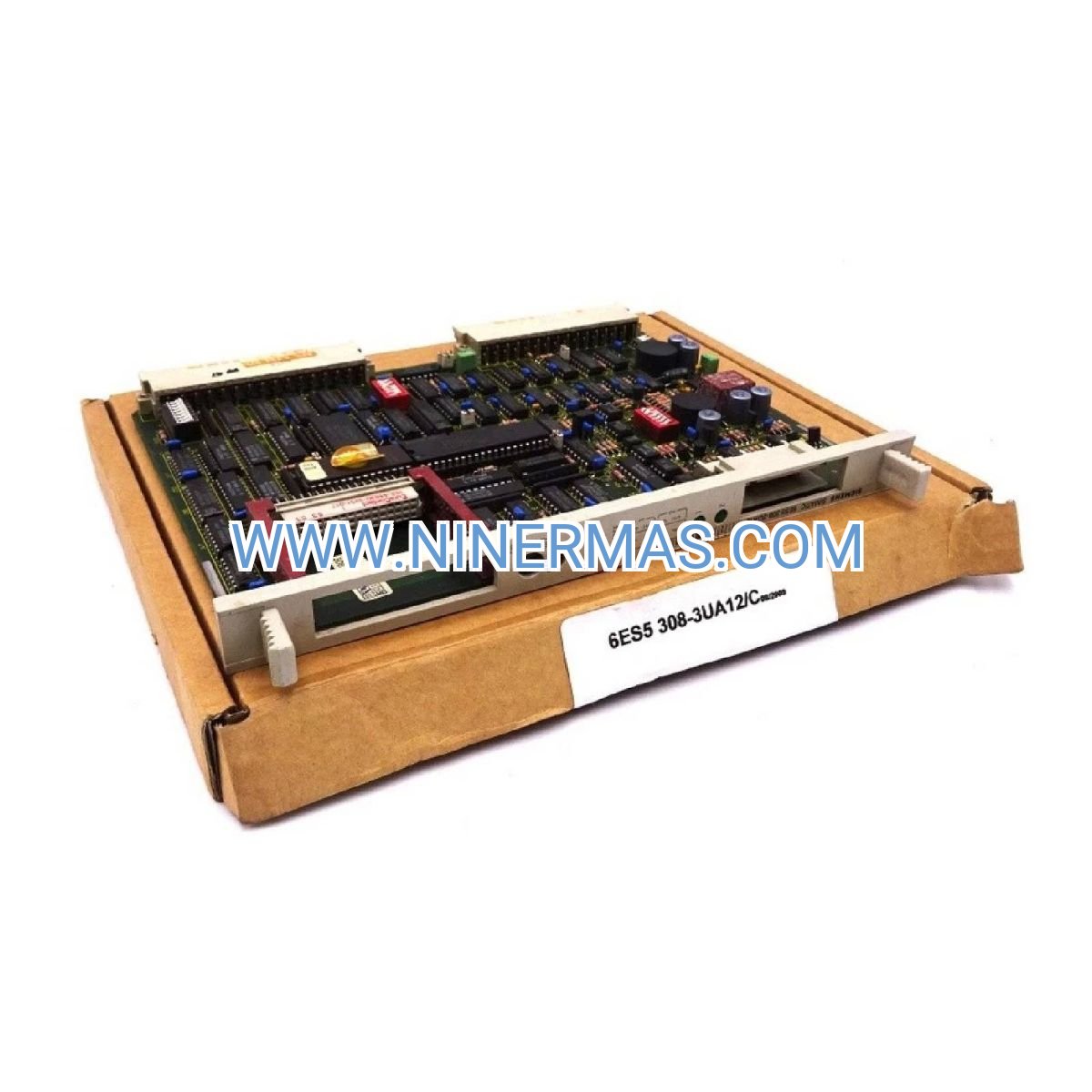

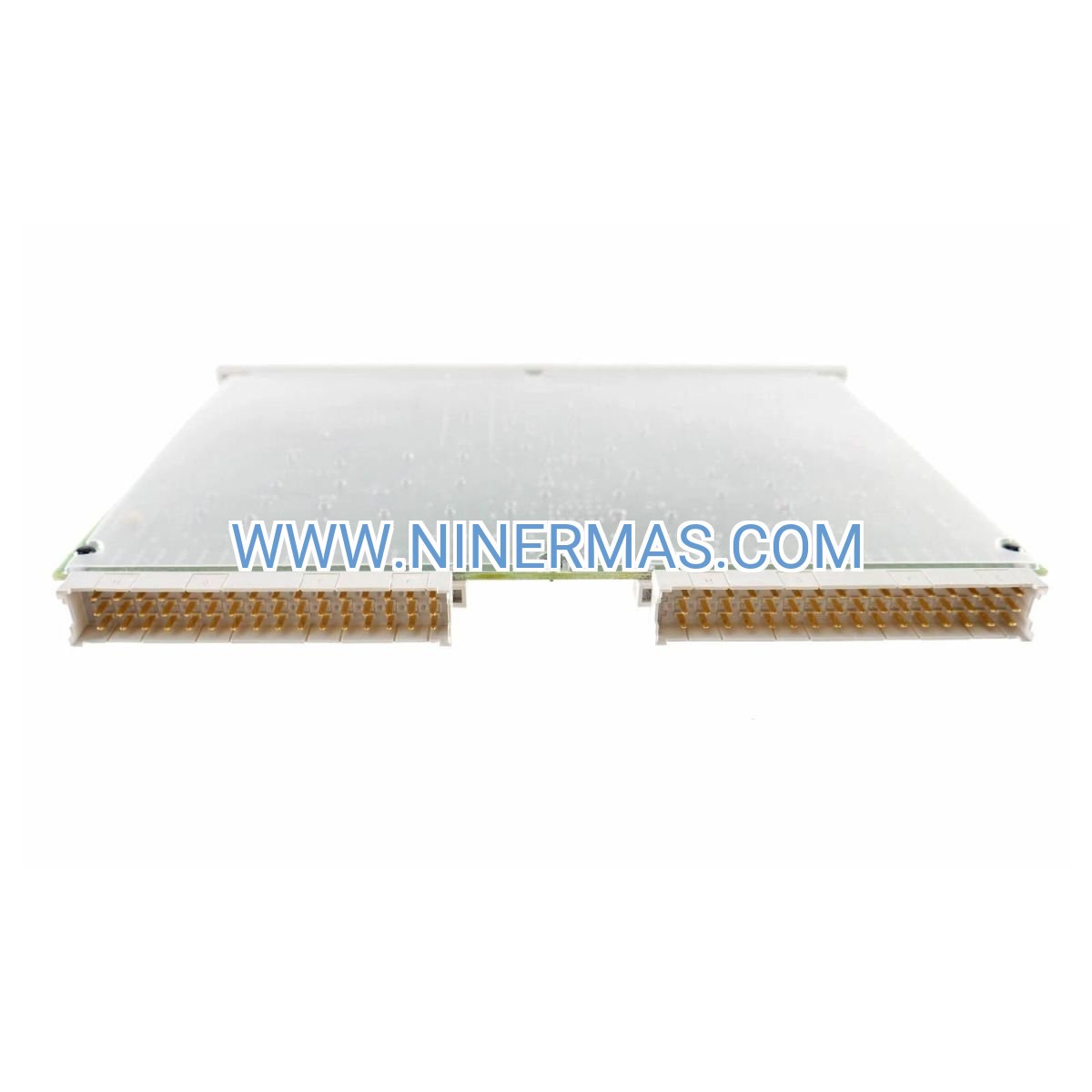

Siemens IM308 Interface Module (Industrial-Grade S5 Communication Bridge)

The Siemens 6ES5308-3UA12 IM308 represents a proven solution for extending SIMATIC S5 control networks across industrial facilities requiring long-distance, point-to-point connectivity. Designed for legacy automation systems that demand reliable serial communication between central processors and remote I/O stations, this interface module eliminates the need for costly infrastructure overhauls while maintaining deterministic performance in harsh electrical environments.

Manufacturing plants, water treatment facilities, and process industries rely on the IM308 to bridge physical distances up to 3 kilometers without signal degradation. Whether you're managing distributed production lines, segregating hazardous zones, or coordinating multi-building operations, this module delivers the robust connectivity backbone your S5 architecture requires.

With integrated terminating resistors and a complete connection plug assembly, the IM308 simplifies deployment while ensuring signal integrity across extended cable runs. For operations teams maintaining critical S5 infrastructure, this module offers a cost-effective path to preserve existing investments while meeting modern uptime requirements.

Core Capabilities & Technical Advantages

→ Extended Communication Range: Supports serial data transmission up to 3000 meters between decentralized units, enabling facility-wide automation without intermediate repeaters or signal boosters.

→ Plug-and-Play Installation: Ships with factory-configured connection plug and terminating resistors, reducing commissioning time by 40% compared to field-assembled alternatives.

→ Electrical Noise Immunity: Shielded interface design maintains data integrity in environments with VFDs, welding equipment, and high-voltage switching—critical for heavy industrial applications.

→ Legacy System Compatibility: Seamlessly integrates with existing SIMATIC S5-90U, S5-95U, S5-100U, S5-115U, and S5-135U controller families without firmware modifications.

→ Deterministic Performance: Guarantees consistent scan cycle timing for time-critical processes such as synchronized conveyor systems and batch sequencing operations.

→ Industrial Temperature Tolerance: Operates reliably across 0°C to 60°C ambient range, suitable for non-climate-controlled equipment rooms and outdoor enclosures with basic weather protection.

Industry Applications & Use Cases

✓ Multi-Building Manufacturing Complexes: Connect stamping presses, assembly stations, and quality inspection cells distributed across separate production halls without fiber optic infrastructure investments. Typical deployment: automotive component plants with 500m+ building spacing.

✓ Water & Wastewater Treatment: Link remote pump stations, clarifier controls, and chemical dosing systems to central SCADA interfaces. Addresses the challenge of monitoring dispersed assets across treatment plant campuses spanning 1-2 kilometers.

✓ Material Handling & Logistics: Coordinate conveyor networks, sortation systems, and automated storage/retrieval equipment across warehouse facilities. Solves the problem of real-time synchronization for high-throughput distribution centers.

✓ Hazardous Area Segregation: Maintain safe physical separation between explosion-proof zones and control rooms in chemical processing, oil & gas, and pharmaceutical manufacturing. Enables compliance with ATEX/IECEx zoning requirements.

✓ Food & Beverage Processing: Integrate packaging lines, pasteurization units, and cold storage monitoring located in separate hygiene-controlled zones. Reduces cross-contamination risks while preserving centralized process control.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IM308 when your application requires single point-to-point connections between a central S5 CPU and one remote expansion unit. For multi-drop bus topologies supporting multiple remote stations, evaluate the IM 324R module instead. Ensure your cable infrastructure uses shielded twisted-pair with minimum 0.5mm² conductor cross-section and proper shield grounding at both ends to achieve rated distance performance.

Advanced Integration Options

SCADA Connectivity: Pair with S5-compatible OPC servers to bridge legacy IM308 networks into modern HMI platforms like WinCC, FactoryTalk, or Ignition for unified plant visualization.

Redundancy Configurations: Deploy dual IM308 pairs with automatic failover logic for mission-critical processes requiring 99.9%+ uptime guarantees in pharmaceutical or semiconductor manufacturing.

Protocol Conversion: Combine with third-party gateways to translate S5 serial data into Modbus RTU, PROFIBUS DP, or Ethernet/IP for hybrid automation architectures during phased migration projects.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 10-15 business days for factory-sealed packaging from authorized distributors.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship, with advance replacement available for qualified accounts.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and system integration planning via email and phone.

Documentation Package: Includes installation manual, wiring diagrams, and compatibility matrices in PDF format. GSD files and configuration examples available upon request.

Frequently Asked Questions

Can the IM308 interface module support multiple remote I/O racks simultaneously?
No, the IM308 establishes a dedicated point-to-point link between one central controller and one remote expansion unit. For applications requiring multi-drop communication with several remote stations on a shared bus, the IM 324R module with bus topology support is the appropriate solution.

What cable specifications are required to achieve the full 3000-meter communication distance?
Use shielded twisted-pair cable with minimum 0.5mm² (20 AWG) conductor cross-section. The shield must be grounded at both ends using the module's designated ground terminals. Avoid running signal cables parallel to high-voltage power lines; maintain 300mm minimum separation or use separate conduit.

Is the IM308 compatible with newer SIMATIC S7 controller families?
No, the IM308 is engineered exclusively for SIMATIC S5 systems and cannot interface with S7-300, S7-400, or S7-1200/1500 controllers. For S7 migration projects, consider ET 200 distributed I/O systems with PROFINET or PROFIBUS connectivity.

How does the IM308 perform in electrically noisy industrial environments with VFDs and welding equipment?
The module's shielded interface design and differential signaling provide robust immunity to electromagnetic interference. In extreme noise environments, install ferrite cores on both cable ends and verify proper shield grounding. Typical installations near 480V VFD panels show error rates below 1 in 10^9 transmissions.

Can I retrofit the IM308 into an existing S5 system without shutting down production?
While the module itself supports hot-swapping in some S5 rack configurations, best practice recommends a planned maintenance window to verify wiring, test communication parameters, and validate I/O mapping. Budget 2-4 hours for initial commissioning including cable termination and system checkout.

What energy efficiency improvements does the IM308 offer compared to older interface solutions?
The IM308 draws power exclusively from the S5 backplane (typically 1.5-2W), eliminating the need for external 24V DC supplies required by legacy interface cards. This reduces panel heat load by approximately 15W per connection point in large distributed systems.

Ready to Extend Your S5 Network?

Contact our automation specialists for application-specific guidance, cable length calculations, and integration support. We provide detailed wiring diagrams and commissioning checklists to ensure first-time success for your distributed control project.

Request a quote today or speak with our technical team to discuss your S5 expansion requirements.
