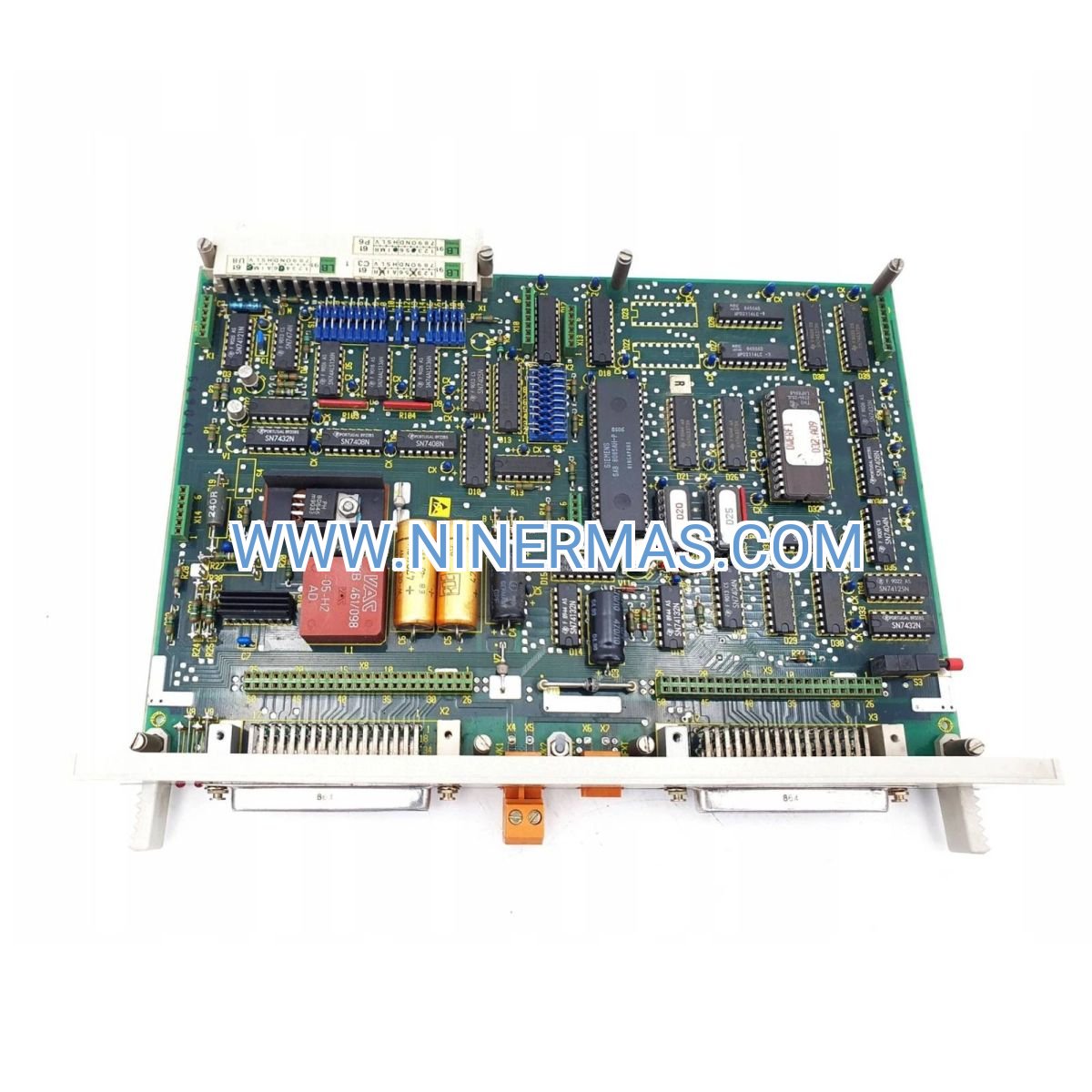

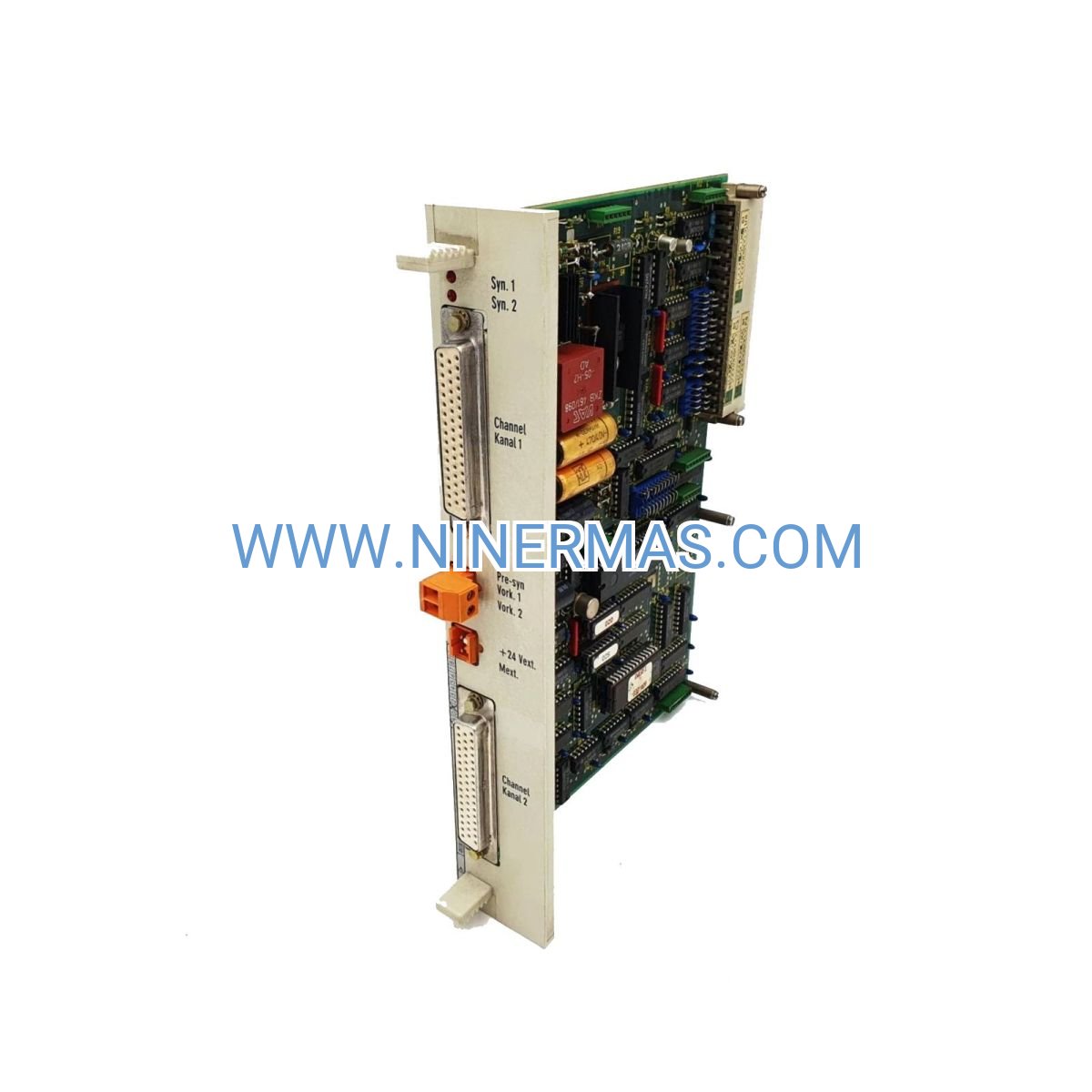

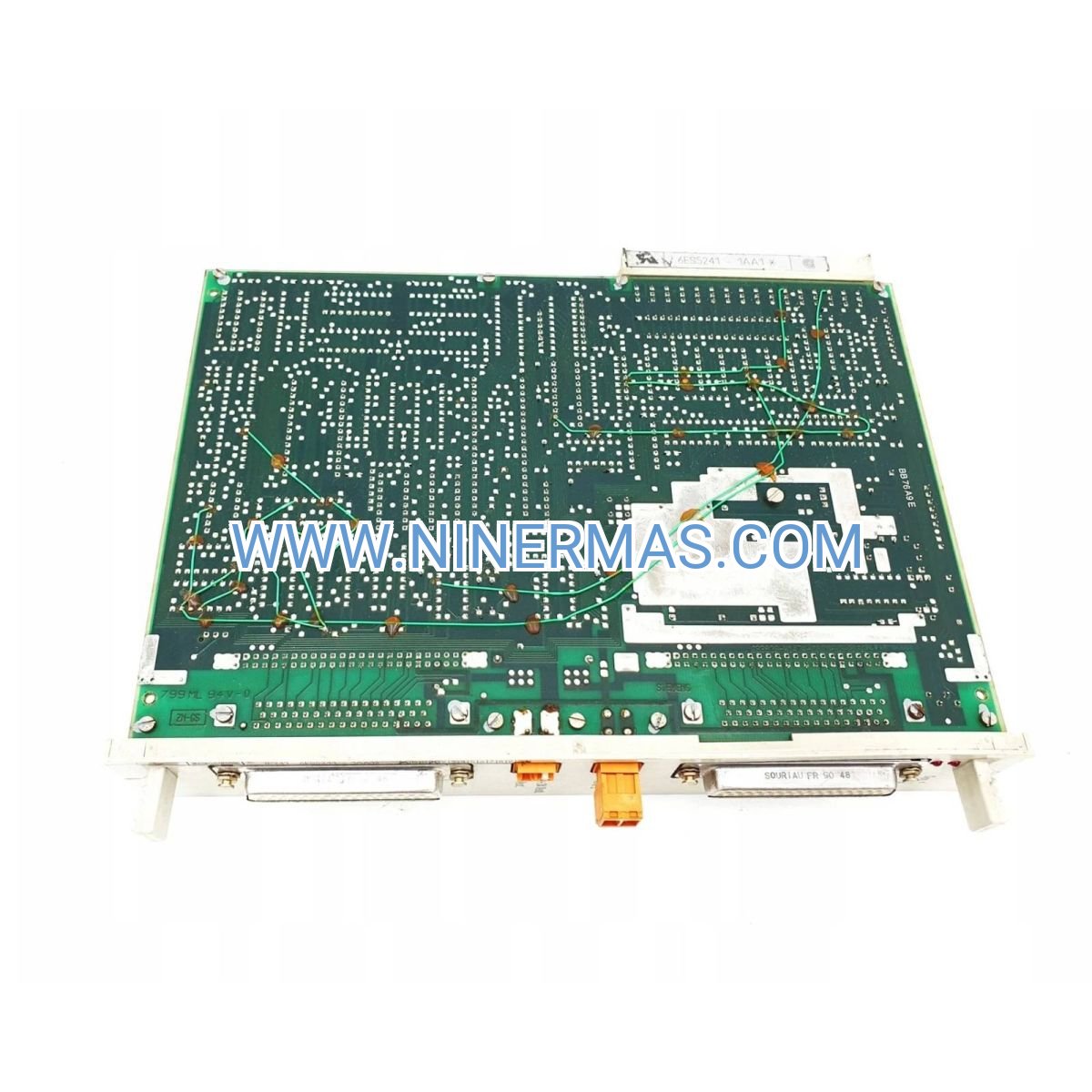

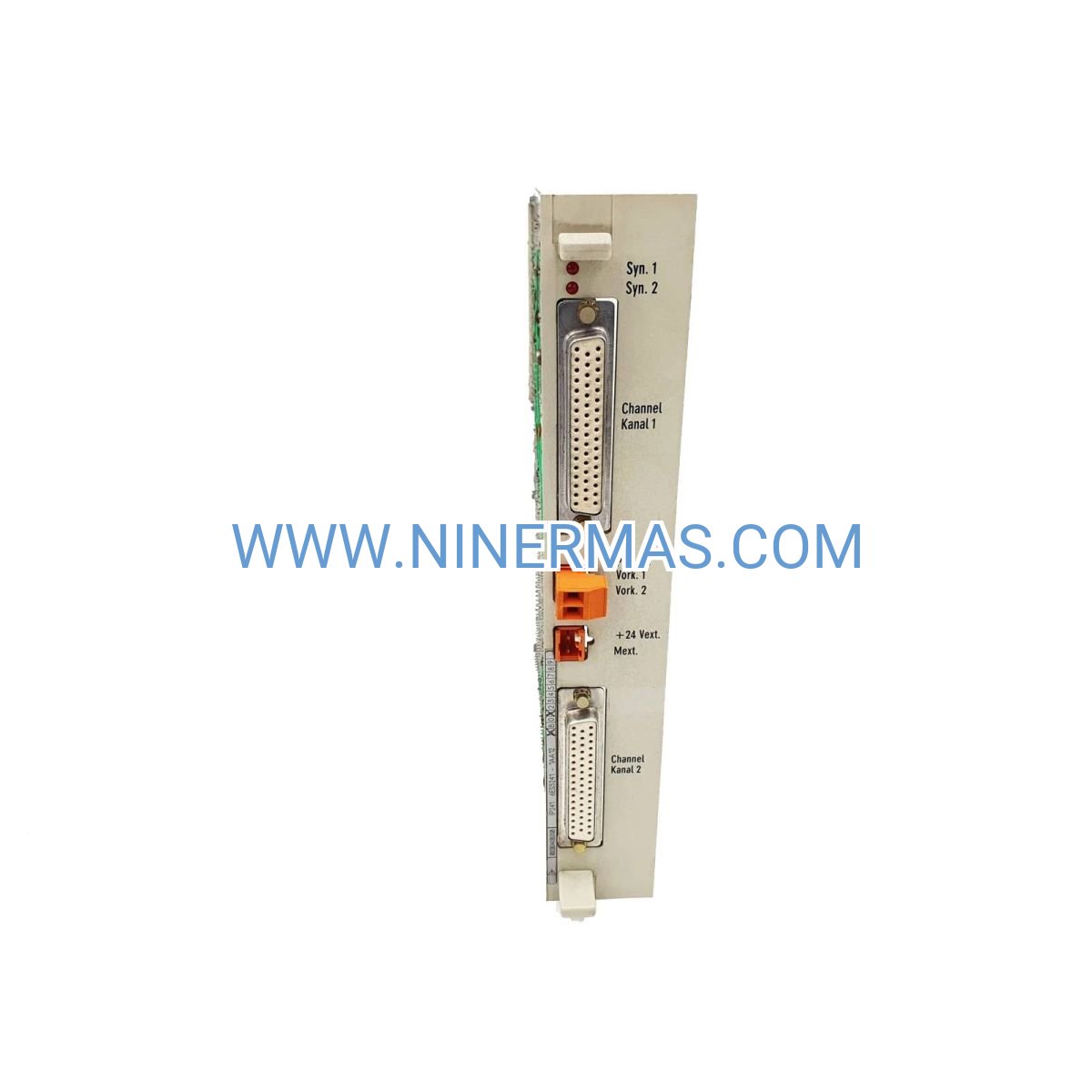

6ES5241-1AA12 Digital Position Decoder (Industrial-Grade S5 Encoder Interface)

The 6ES5241-1AA12 IP 241 module serves as a precision encoder interface for SIMATIC S5 programmable logic controllers, delivering dual-channel position tracking capabilities essential for motion control and material handling operations. Engineered for continuous-duty industrial environments, this compact decoder translates incremental encoder pulses into actionable position data that S5 processors can leverage for synchronized automation sequences. Organizations maintaining legacy S5 infrastructure rely on this module to sustain production uptime while deferring costly platform migrations.

Core Capabilities & Technical Advantages

This position decoder combines proven Siemens engineering with specialized functionality tailored to aging automation ecosystems:

• ✓ Dual-Channel Architecture: Simultaneous processing of two independent encoder inputs enables multi-axis coordination or redundant position verification across critical production zones
• ✓ S5 Native Integration: Direct compatibility with SIMATIC S5-90U, S5-95U, S5-100U, S5-115U, and S5-135U families eliminates protocol conversion overhead and reduces commissioning complexity
• ✓ Compact Footprint Design: Space-efficient form factor preserves valuable rack real estate in densely populated control cabinets typical of brownfield installations
• ✓ Industrial Noise Immunity: Differential input circuitry and optical isolation reject electromagnetic interference from VFDs, welders, and high-current switching devices
• ✓ Hot-Swap Serviceability: Field-replaceable design minimizes mean time to repair during unplanned maintenance events, critical for 24/7 manufacturing operations
• ✓ German Manufacturing Standards: Siemens quality protocols ensure consistent performance across temperature extremes (-25°C to +60°C) and vibration-prone environments

Industry Application Scenarios

Automotive Assembly Lines: Tracks conveyor position for precise part delivery to robotic welding stations, ensuring ±0.5mm placement accuracy required for body-in-white operations. Resolves synchronization drift that causes quality defects in multi-stage assembly processes.

Paper & Pulp Manufacturing: Monitors web position on high-speed coating lines where encoder feedback controls tension and registration. Prevents material waste from misalignment while maintaining production speeds exceeding 1,200 meters/minute.

Food & Beverage Packaging: Provides rotary encoder input for fill-seal-cut machines requiring phase-locked operation. Eliminates package length variation that triggers downstream rejection, improving overall equipment effectiveness (OEE) by 8-12%.

Steel Processing: Decodes position feedback from rolling mill encoders to coordinate coil tension and speed profiles. Addresses the challenge of maintaining dimensional tolerances in harsh environments with metal dust and thermal cycling.

Warehouse Automation: Interfaces with AS/RS crane encoders to track vertical and horizontal positioning for automated storage retrieval systems. Solves legacy system obsolescence without requiring complete material handling infrastructure replacement.

Technical Parameters & Selection Criteria

Selection Guidance: Verify your S5 CPU model supports IP 241 modules via the system configuration manual. Confirm encoder output voltage matches module input specifications (5V TTL or 24V HTL variants available). For applications requiring more than two axes, multiple modules can be installed in adjacent slots with unique addressing.

Extended Integration Options

SCADA Connectivity: Position data can be mapped to S5 data blocks accessible via CP communication processors, enabling real-time monitoring through WinCC or third-party HMI platforms for production analytics and predictive maintenance algorithms.

Retrofit Compatibility: When paired with modern incremental encoders featuring push-pull outputs, this module bridges 1980s-era control architecture with current sensor technology, extending system viability by 5-10 years while migration strategies are finalized.

Customization Services: Our engineering team provides pre-configured modules with customer-specific parameter settings, reducing on-site commissioning time by up to 40% for multi-unit deployments across distributed facilities.

Delivery Timeline & Service Commitments

Standard Availability: In-stock units ship within 2-3 business days via DHL/FedEx with full tracking. Typical transit to North America: 5-7 days; Europe: 3-5 days; Asia-Pacific: 4-6 days.

Custom Sourcing: For discontinued or allocation-constrained variants, our global procurement network locates certified surplus inventory within 10-15 business days, subject to availability verification.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects and functional failures. Advance replacement available for critical applications to minimize production impact.

Technical Support: Complimentary installation guidance includes wiring diagrams, parameter configuration worksheets, and troubleshooting decision trees. Phone/email support available in English, German, and Mandarin.

Documentation Package: Each module ships with original Siemens datasheet, CE declaration of conformity, and quick-start integration guide compatible with STEP 5 programming software.

Frequently Asked Questions

What encoder pulse frequencies can this position decoder module handle reliably?
The 6ES5241-1AA12 processes encoder frequencies up to 100 kHz per channel, suitable for most industrial rotary and linear encoders. For ultra-high-speed applications exceeding this threshold, consult our team for alternative S5-compatible solutions or signal conditioning options.

How does this module integrate with existing STEP 5 ladder logic programs?
Position values appear in dedicated input image registers that your STEP 5 code accesses via standard I/O addressing. No special function blocks required—simply read the position word and implement your control algorithm using conventional comparison and math instructions.

Can I achieve energy savings by upgrading to this decoder from older S5 position modules?
While the IP 241 series offers improved noise immunity and diagnostic capabilities compared to first-generation S5 decoders, power consumption remains comparable at ~5W per module. Energy optimization in S5 systems typically focuses on motor drive efficiency rather than control module upgrades.

What installation precautions prevent encoder signal interference in electrically noisy environments?
Route encoder cables in dedicated conduit separated from power wiring by minimum 300mm. Use shielded twisted-pair cable with 360° shield termination at the module end only. Verify proper cabinet grounding and consider ferrite suppression on encoder power lines if VFDs operate nearby.

Does this position decoder support absolute encoder protocols for position retention after power loss?
No, the 6ES5241-1AA12 exclusively processes incremental encoder signals (A/B quadrature with optional Z-index). For absolute position requirements, consider migrating to SIMATIC S7 platforms with PROFIBUS/PROFINET-capable absolute encoder interfaces.

How do I verify module functionality before installing in a production system?
Connect a pulse generator or spare encoder to the module inputs while monitoring position registers via a programming device. Confirm count direction matches encoder rotation and verify Z-pulse resets position counter as expected. Our technical team provides bench test procedures upon request.

Take the Next Step

Secure your SIMATIC S5 system continuity with genuine Siemens position decoder technology. Contact our automation specialists at sale@ninermas.com or +0086 187 5021 5667 for availability confirmation, volume pricing, or technical consultation on your specific encoder integration requirements. Request a detailed quotation today and receive complimentary configuration support to accelerate your deployment timeline.
