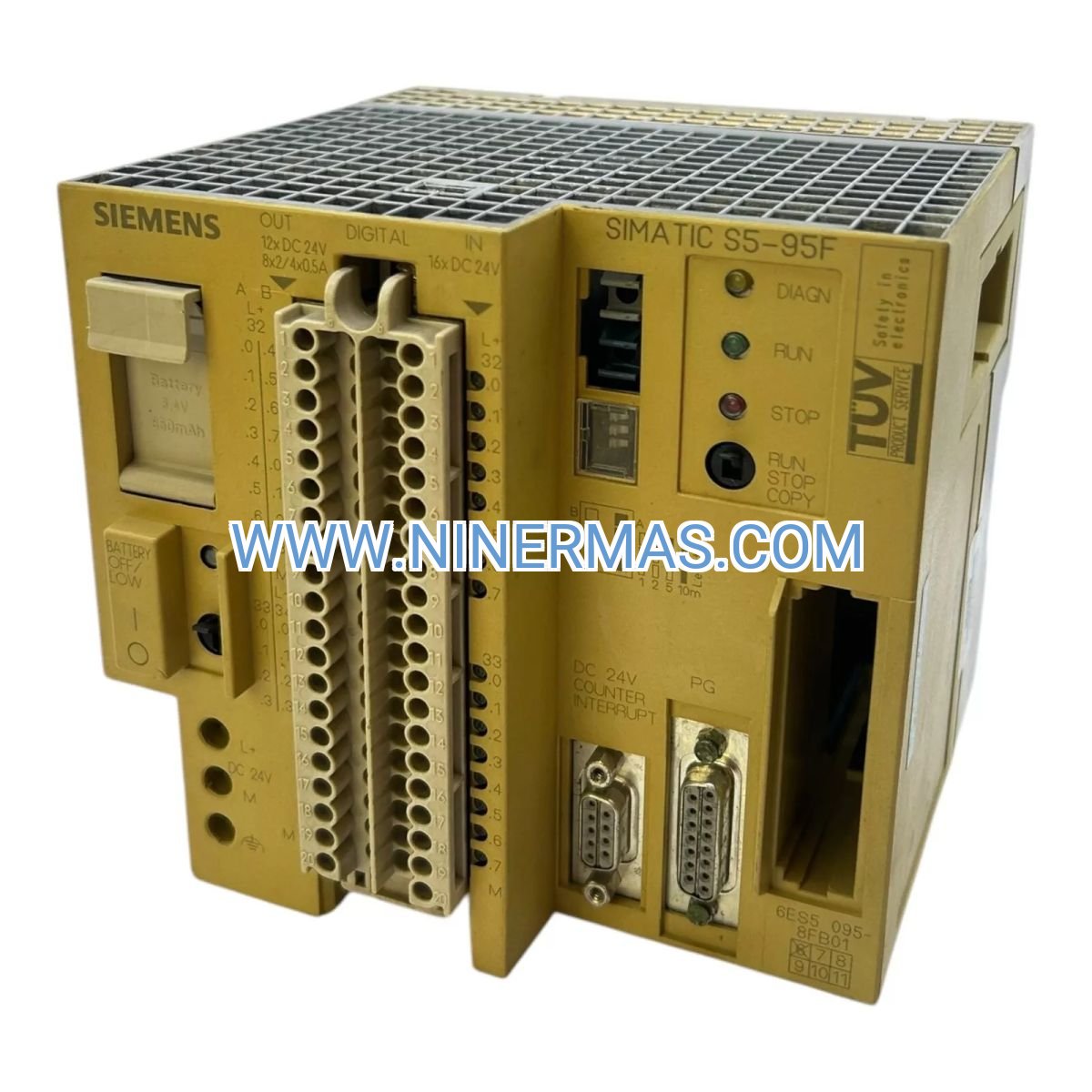

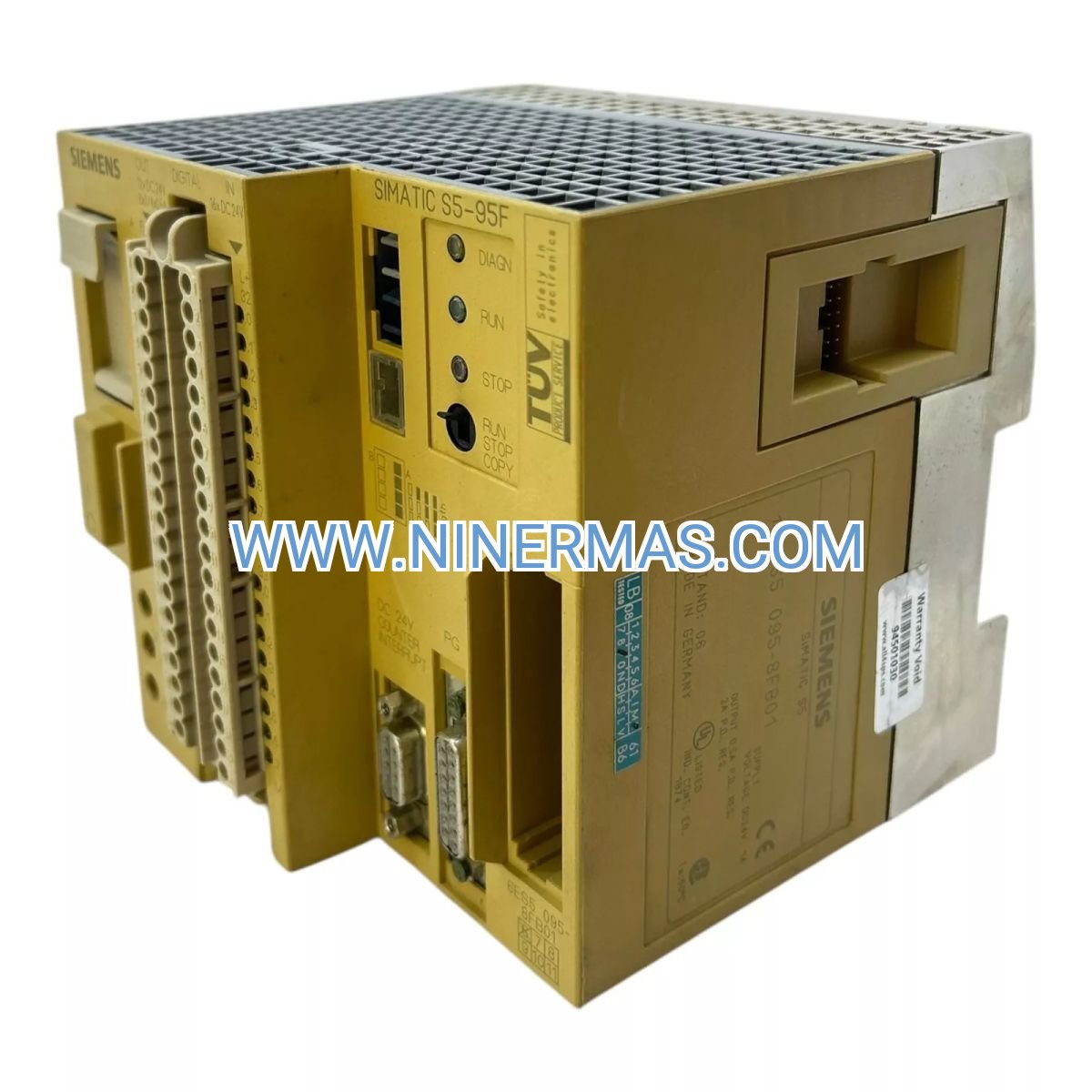

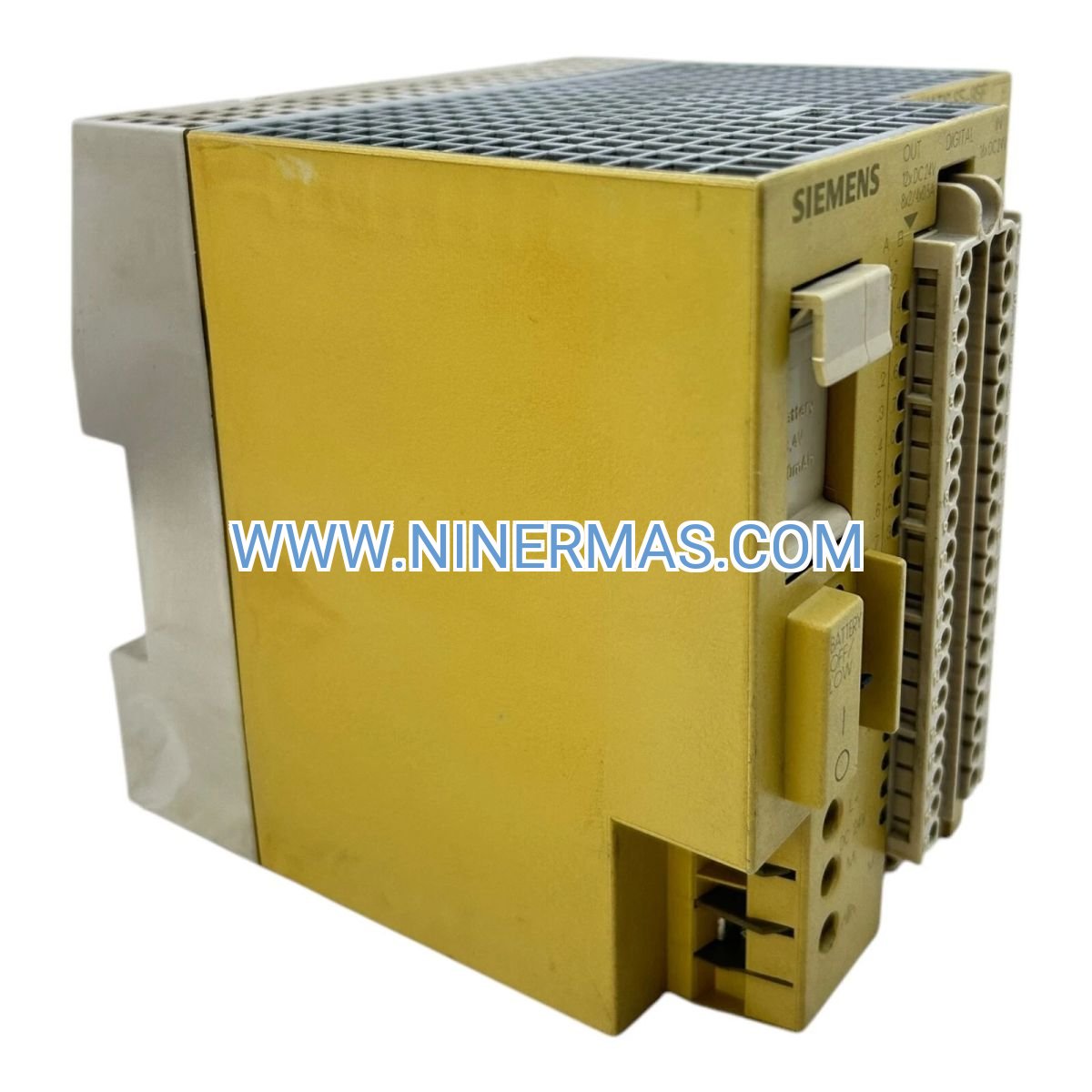

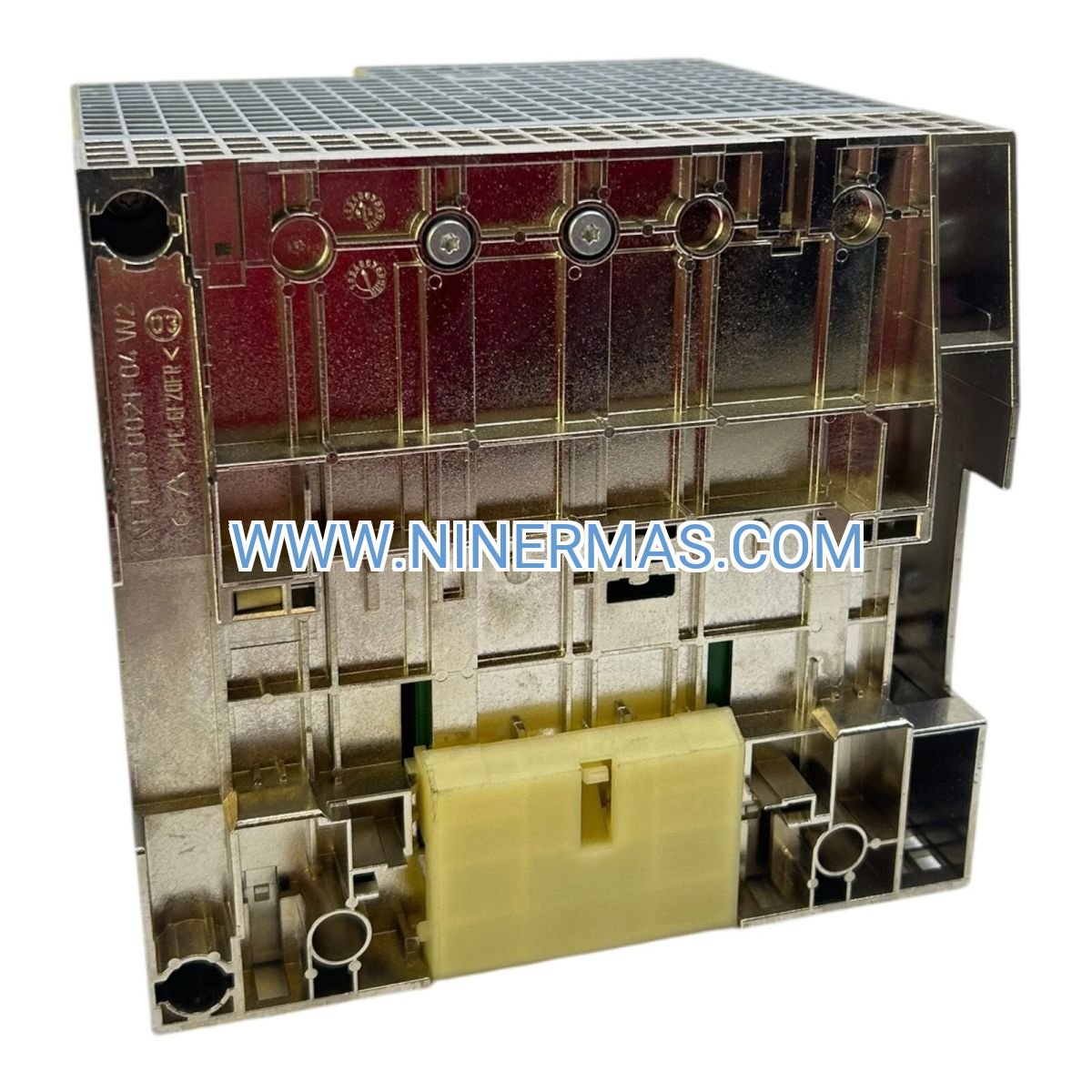

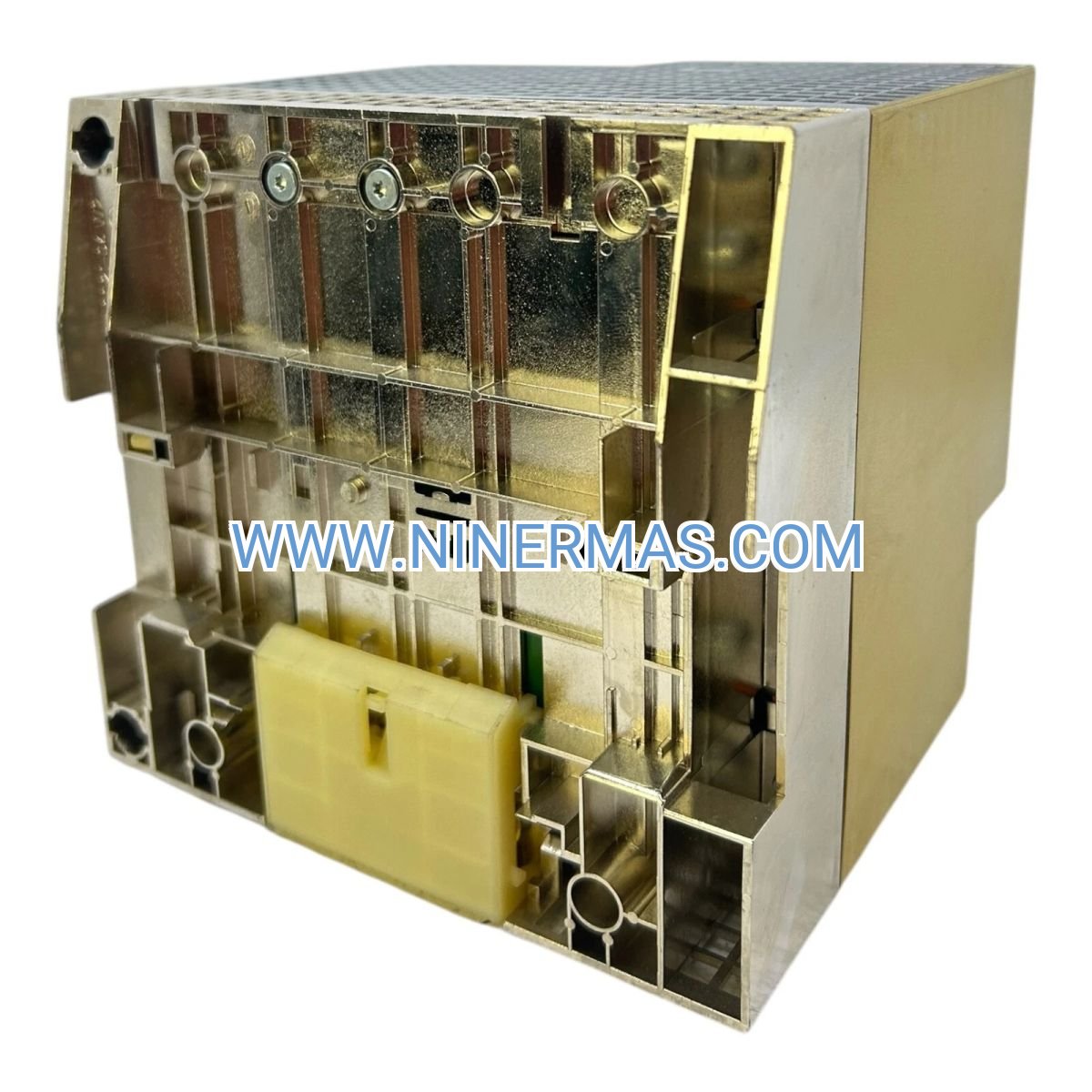

6ES5095-8FB01 Redundant Safety Subunit (Industrial-Grade Fail-Safe Component)

The Siemens 6ES5095-8FB01 represents a mission-critical safety subunit designed exclusively for SIMATIC S5-95F fail-safe programmable logic controllers. Engineered with dual-channel redundant architecture, this component delivers certified SIL 2/3 protection for process industries where operational failures pose significant risks to personnel safety, environmental integrity, and asset protection. Built to withstand demanding industrial conditions, it ensures deterministic safety responses in emergency shutdown scenarios across chemical processing, power generation, and heavy manufacturing sectors.

Organizations operating legacy S5-95F safety systems rely on this subunit to maintain compliance with international safety standards while extending the operational lifespan of proven control architectures. The module's self-diagnostic capabilities and fault-tolerant design minimize unplanned downtime while providing the reliability required for continuous process operations. Whether you're maintaining existing safety instrumented systems or supporting critical infrastructure, the 6ES5095-8FB01 delivers the performance and certification documentation necessary for regulatory audits and risk assessments.

With comprehensive cross-comparison logic and automatic fault detection, this safety subunit provides peace of mind for safety engineers and plant operators managing high-consequence processes. Its proven-in-use certification and compatibility with established S5-95F programming environments make it an essential component for facilities requiring long-term safety system support without complete platform migration.

Core Capabilities & Technical Advantages

✓ Dual-Channel Redundant Processing
Independent safety logic execution across two separate processing channels with continuous cross-verification ensures single-point failure tolerance. Each channel monitors the other, automatically triggering safe-state transitions when discrepancies are detected, providing reliability levels exceeding 99.9% availability in safety-critical applications.

✓ SIL 2/3 Safety Certification
TÜV-approved for Safety Integrity Level 2 and 3 applications per IEC 61508 standards, enabling deployment in high-risk processes requiring certified risk reduction. Complete safety validation documentation supports regulatory compliance audits and functional safety assessments for process industries.

✓ Comprehensive Self-Diagnostics
Built-in diagnostic coverage exceeding 99% detects internal faults, communication errors, power supply anomalies, and logic execution discrepancies. Real-time fault annunciation with detailed error codes accelerates troubleshooting and reduces mean time to repair during maintenance activities.

✓ Deterministic Safety Response
Guaranteed shutdown response time under 50 milliseconds ensures rapid transition to safe state during emergency conditions. Predictable timing characteristics meet stringent process safety time requirements for fast-acting shutdown valves, emergency stops, and burner management systems.

→ Hot-Swappable Maintenance Design
Rack-mount architecture supports online replacement without system shutdown, minimizing production interruptions during scheduled maintenance. Automatic configuration restoration from redundant partner module enables rapid service with minimal operator intervention.

→ Proven S5-95F Ecosystem Integration
Seamless compatibility with existing STEP 5 safety programs, function blocks, and configuration tools protects software investment while maintaining validated safety logic. Supports both 1oo2 and 2oo2 voting architectures for flexible risk mitigation strategies.

Industrial Application Scenarios

Chemical Process Emergency Shutdown Systems
In chemical manufacturing facilities handling hazardous materials, the 6ES5095-8FB01 manages emergency isolation valves, reactor cooling systems, and pressure relief sequences. When process parameters exceed safe operating limits—such as runaway exothermic reactions or containment breaches—the dual-channel architecture ensures reliable shutdown even if one processing channel fails, preventing catastrophic releases and protecting personnel.

Power Generation Burner Management
Boiler control systems in power plants utilize this safety subunit to monitor flame detection, fuel valve sequencing, and purge cycle verification. The module's deterministic response time ensures fuel cutoff within milliseconds of flame failure detection, preventing explosive gas accumulation and protecting multi-million-dollar turbine assets from damage.

Robotic Work Cell Safety Interlocks
Automated manufacturing lines deploy the 6ES5095-8FB01 to control safety light curtains, emergency stop circuits, and zone isolation systems around collaborative robots. When personnel enter restricted zones, the certified safety logic halts robotic motion with guaranteed response times, meeting machinery directive requirements for personnel protection.

Oil & Gas Pressure Relief Control
Offshore platforms and pipeline compression stations implement this fail-safe subunit for high-integrity pressure protection systems (HIPPS). By monitoring pressure transmitters through redundant channels, the module activates shutdown valves before mechanical relief devices operate, preventing product loss and environmental contamination.

Machine Guarding & Access Control
Heavy equipment manufacturers integrate the safety subunit into press brakes, stamping machines, and material handling systems. Dual-channel monitoring of guard door positions, two-hand control stations, and safety mats ensures machinery cannot operate when personnel are at risk, reducing workplace injuries and liability exposure.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 6ES5095-8FB01 when your application requires certified safety performance in existing S5-95F installations. Verify compatibility with your current controller rack configuration and ensure STEP 5 programming tools are available for safety logic validation. For new installations, consider migration to S7-1500F platforms for enhanced diagnostics and modern programming environments while maintaining this module for legacy system support during transition periods.

Advanced Integration & Customization Options

Safety Program Migration Support
While the S5-95F platform remains operational in many facilities, long-term sustainability planning should evaluate migration paths to contemporary safety controllers such as SIMATIC S7-400FH or S7-1500F series. These modern platforms offer TIA Portal integration, enhanced communication protocols including PROFIsafe, and compliance with current IEC 61511 process safety standards. Migration services can preserve validated safety logic while upgrading hardware infrastructure.

Redundant Communication Architectures
For distributed safety systems spanning multiple control rooms or geographic locations, the 6ES5095-8FB01 supports fiber optic communication links that provide electrical isolation and extended distance capabilities. Redundant communication paths ensure safety system availability even during network failures or maintenance activities.

Custom Safety Function Blocks
Engineering services can develop application-specific safety function blocks for unique process requirements, including multi-variable voting logic, sequential shutdown procedures, and complex permissive interlocks. All custom logic undergoes validation testing and documentation to maintain safety certification integrity.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 3-5 business days via international courier with full tracking and insurance coverage. Express shipping options available for urgent replacement requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and functional performance issues. Warranty includes replacement unit shipment and return logistics coordination.

Technical Support: Access to application engineers with S5-95F expertise for configuration assistance, troubleshooting guidance, and safety validation questions. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each unit includes original Siemens technical manuals, safety certification documents, installation guidelines, and validation test reports required for regulatory compliance audits and functional safety assessments.

Frequently Asked Questions

What distinguishes the S5-95F fail-safe controller from standard S5-95U automation controllers?
The S5-95F incorporates dual-channel redundant processing with continuous cross-comparison, comprehensive self-diagnostics, and TÜV safety certification for SIL 2/3 applications. Standard S5-95U controllers provide automation functionality without safety rating or redundant architecture, making them unsuitable for safety instrumented functions.

Can the 6ES5095-8FB01 subunit operate independently without the primary S5-95F controller module?
No, this component functions as a redundant subunit within a complete S5-95F system architecture. It requires the primary controller module and safety backplane communication to perform its redundancy and cross-comparison functions. Standalone operation would compromise the safety integrity of the system.

How frequently should proof testing be performed on safety instrumented functions using this module?
Proof test intervals depend on your safety instrumented function (SIF) calculations, required risk reduction factors, and regulatory requirements. Typical intervals range from 12 to 36 months based on probability of failure on demand (PFD) targets. Consult your facility's safety integrity level assessment documentation for specific testing schedules.

Does this safety subunit support PROFIBUS safety communication protocols?
The S5-95F platform uses proprietary fail-safe communication over the dedicated safety backplane. PROFIBUS safety protocols (PROFIsafe) are implemented on newer S7 safety controller families. For PROFIBUS integration with S5-95F systems, standard communication processors can handle non-safety data exchange.

What migration options exist for facilities planning to upgrade from S5-95F platforms?
Siemens offers migration paths to S7-400FH and S7-1500F safety controllers with tools to convert STEP 5 safety programs to STEP 7 or TIA Portal environments. Migration projects typically involve hardware replacement, software conversion, validation testing, and updated safety documentation while maintaining operational continuity.

Are replacement parts and technical support still available for S5-95F systems?
While the S5-95F platform is considered legacy technology, replacement modules including the 6ES5095-8FB01 remain available through authorized distributors and the secondary market. Technical support focuses on maintenance and troubleshooting rather than new application development, with migration planning recommended for long-term sustainability.

Request Technical Consultation

Our safety system specialists provide application engineering support for S5-95F installations, migration planning, and compliance documentation. Contact our team to discuss your specific safety requirements, obtain detailed technical specifications, or request quotations for volume orders and system upgrades.

Ready to secure your safety-critical processes? Contact our technical sales team for availability confirmation, application guidance, and expedited shipping options. We support global industrial facilities with certified safety components and expert consultation.
