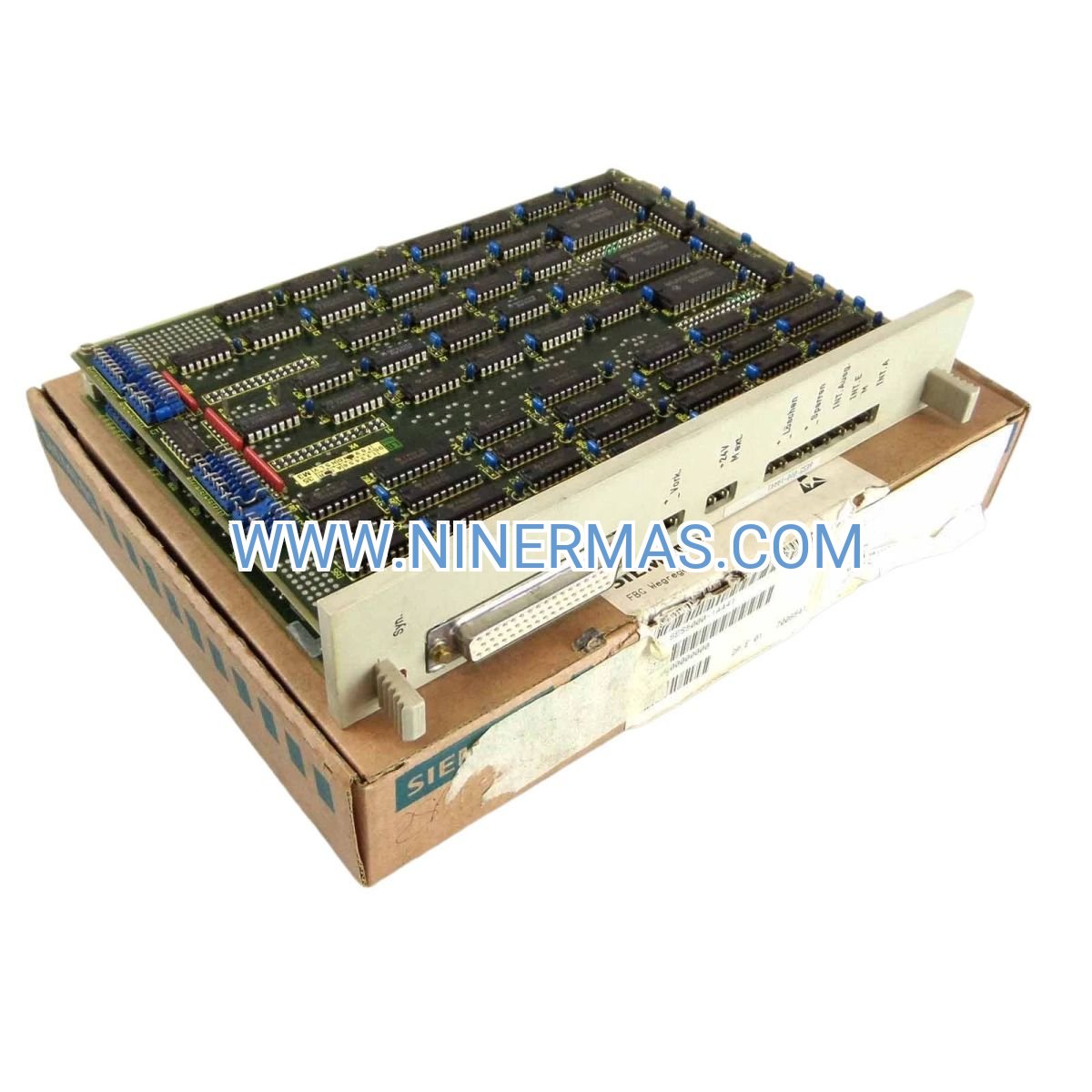

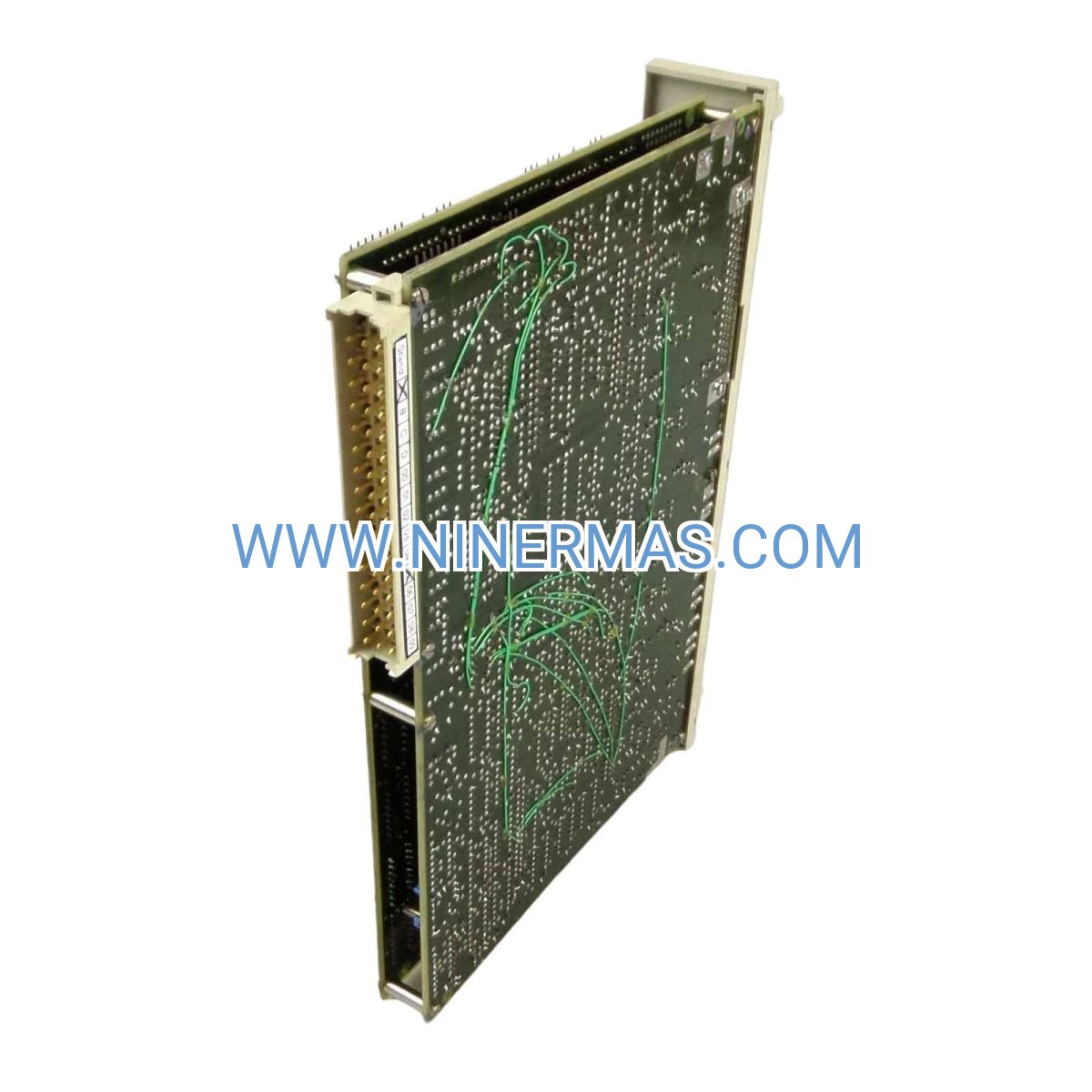

6ES5000-1AA41 SIMATIC S5 Counter Module (Industrial-Grade Precision Counting)

The 6ES5000-1AA41 represents a proven solution for high-speed event counting and frequency measurement within SIMATIC S5 programmable logic controller ecosystems. Engineered for manufacturing environments demanding long-term component availability, this counter module delivers reliable performance in legacy automation architectures where uptime and compatibility are mission-critical.

Designed for facilities operating S5-100U through S5-155U controller families, this module addresses the challenge of maintaining aging automation infrastructure while preserving operational continuity. Industrial operators benefit from a field-tested component that integrates seamlessly into existing control cabinets without requiring system-wide upgrades or costly downtime.

With 16-bit counting capacity and 20 kHz input frequency handling, the 6ES5000-1AA41 serves as a dependable interface between physical processes and control logic, enabling accurate production tracking, quality assurance, and process optimization across diverse industrial applications.

Core Features & Benefits

✓ 20 kHz High-Speed Input Processing – Captures rapid pulse trains from encoders, proximity sensors, and photoelectric devices without signal loss, ensuring accurate event registration in fast-moving production lines.

✓ 16-Bit Binary Counting Range – Provides counting capacity up to 65,535 events per cycle, suitable for batch processing, material tracking, and production quota monitoring applications.

✓ Bidirectional Count Operation – Supports both up-counting and down-counting modes with gate control functionality, enabling flexible implementation in reversible conveyor systems and inventory management scenarios.

✓ Industrial-Hardened Construction – Built to IP20 protection standards with 0°C to 60°C operating temperature range, ensuring reliable operation in typical factory floor environments with dust and temperature variations.

✓ Direct S5 Backplane Integration – Standard rack-mount design eliminates external power requirements and simplifies installation, reducing commissioning time and minimizing potential failure points.

✓ Diagnostic LED Indicators – Real-time visual feedback for operational status and fault conditions accelerates troubleshooting and reduces mean time to repair during maintenance activities.

Typical Application Scenarios

→ Production Line Piece Counting
Manufacturing facilities track output quantities in real-time by connecting the module to optical sensors monitoring product flow. This enables automatic batch completion signaling, shift production reporting, and quality control sampling triggers based on precise count thresholds.

→ Conveyor Belt Speed Monitoring
Material handling systems utilize the module's frequency measurement capability to monitor belt speed via encoder feedback. Deviations from target speeds trigger alarms or automatic adjustments, preventing product damage and maintaining process consistency.

→ Rotary Encoder Position Tracking
Packaging and assembly machinery integrate the counter with incremental encoders to track rotational position of shafts, turntables, and indexing mechanisms. Accurate position data enables synchronized multi-axis operations and precise material placement.

→ Batch Process Control
Chemical processing and food production environments use preset count values to control filling operations, ingredient dosing, and packaging sequences. The module's gate control feature allows external process signals to enable or disable counting based on operational conditions.

→ Machine Cycle Tracking
Maintenance planning systems leverage cycle count data to implement predictive maintenance schedules. By monitoring total machine cycles, operators can schedule component replacements before failure, reducing unplanned downtime.

Technical Parameters & Selection Guide

Selection Criteria: Verify your S5 controller series and available slot positions before ordering. For applications requiring frequencies above 20 kHz or multi-channel counting, consider migration to S7-300 FM 350 series modules. Ensure your rack power supply unit has sufficient reserve capacity to support additional module current draw.

Extended Functions

Preset Value Configuration – Program target count values directly through your S5 control logic, enabling automatic process termination or sequencing when counts reach specified thresholds without external timer dependencies.

Gate Control Integration – External digital signals can enable or disable counting operations, allowing synchronization with upstream process conditions such as material presence detection or safety interlock status.

Quadrature Encoder Support – When paired with appropriate signal conditioning, the module processes A/B phase encoder outputs for directional counting in bidirectional conveyor and positioning applications.

Delivery & Service Assurance

Standard Lead Time: 3-7 business days for in-stock units; 15-25 business days for special order configurations requiring factory sourcing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and functional failures under normal operating conditions as specified in product documentation.

Technical Support: Pre-sales compatibility verification, installation guidance, and troubleshooting assistance provided by experienced automation engineers familiar with SIMATIC S5 architectures.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and parameter reference sheets. Complete technical manuals available for download upon request.

Frequently Asked Questions

What controller models are compatible with the 6ES5000-1AA41 counter module?
This module is designed for S5-100U, S5-115U, S5-135U, and S5-155U controller families. It is not compatible with S5-90U or S5-95U compact controllers due to different backplane architectures. Always verify your specific controller model and firmware version before ordering.

Can this module handle incremental encoder signals for position tracking?
Yes, the 6ES5000-1AA41 supports incremental encoder inputs when configured for quadrature pulse processing. Ensure proper signal conditioning and shielded cabling to maintain signal integrity, especially for encoder cable runs exceeding 50 meters.

What is the maximum recommended cable length for input connections?
For optimal signal integrity at frequencies approaching 20 kHz, limit input cable runs to 100 meters using shielded twisted-pair cable with proper grounding. Longer distances may require signal amplification or fiber optic conversion to prevent noise-induced counting errors.

Does the counter module require a separate external power supply?
No external power supply is needed. The module draws operating power directly from the S5 rack backplane. However, verify that your power supply unit has adequate current capacity to support all installed modules, including this counter.

How do I migrate from S5 counter modules to modern S7 platforms?
For long-term modernization, consider the S7-300 FM 350-1 or S7-1500 TM Count modules as functional equivalents. Migration requires TIA Portal programming environment and may involve control logic conversion from STEP 5 to STEP 7 languages. Our technical team can provide migration planning assistance.

What diagnostic features are available for troubleshooting?
The module includes LED indicators for power status, count enable state, and fault conditions. Advanced diagnostics require monitoring through your S5 programming software to read internal status words and error flags for detailed fault analysis.

Ready to Maintain Your S5 Automation System?

Contact our industrial automation specialists for compatibility verification, technical specifications, or volume pricing. We provide expert guidance to ensure the 6ES5000-1AA41 integrates seamlessly into your existing control architecture.

Request a quote today or speak with our technical team about your specific application requirements.
