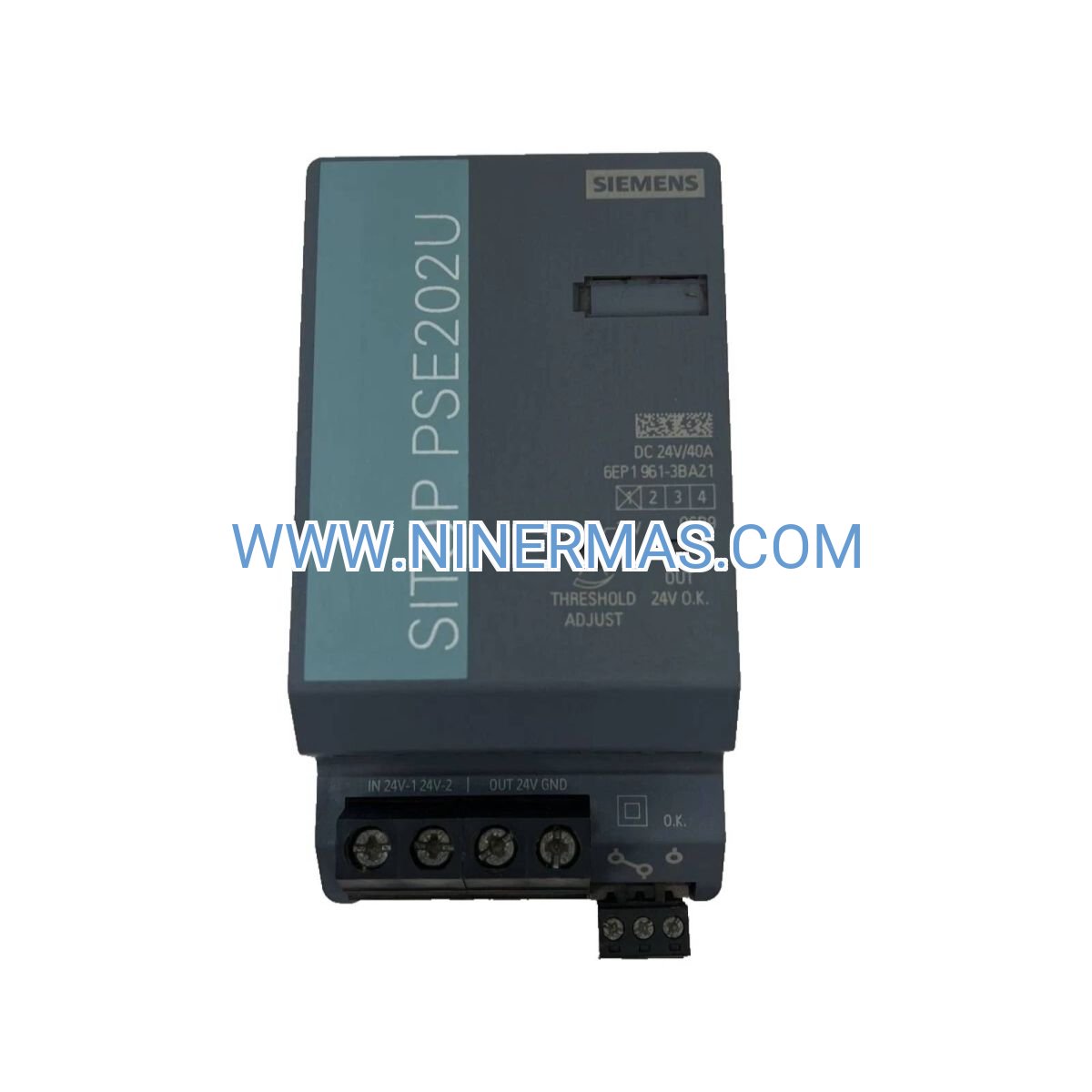

6EP1961-3BA21 SITOP PSE202U Redundancy Module (Industrial-Grade 40A Dual Power Decoupling)

The Siemens 6EP1961-3BA21 represents a critical infrastructure component for industrial automation systems demanding zero-downtime 24V DC power delivery. Engineered with active ORing MOSFET technology, this SITOP PSE202U redundancy module intelligently manages dual power supply inputs—each supporting up to 20A—to deliver a consolidated 40A output with instantaneous automatic failover capability.

Designed for mission-critical control environments where power interruption translates to production loss, safety risks, or system failure, the 6EP1961-3BA21 ensures seamless power continuity through intelligent load balancing and fault isolation. Its compact DIN rail architecture integrates effortlessly into standard industrial control cabinets while maintaining operational reliability across extreme temperature ranges from -25°C to +70°C.

Whether you're protecting PLC-based process control systems, safety instrumented systems, or distributed I/O networks, this redundancy module provides the foundation for resilient power architecture. Combine with complementary SITOP power supplies to build a fully redundant, maintenance-free power distribution system backed by Siemens' proven industrial automation heritage.

Core Capabilities & Technical Advantages

→ Dual-Channel Automatic Failover Protection
Active monitoring of both input channels with sub-millisecond switchover response ensures uninterrupted power delivery even during complete power supply failure. MOSFET-based decoupling eliminates mechanical relay wear and provides maintenance-free operation for years of continuous service.

→ High-Efficiency Power Decoupling (≤0.5V Drop)
Advanced semiconductor technology minimizes voltage loss across the redundancy module, preserving power quality for sensitive automation equipment. Typical voltage drop remains below 0.5V at nominal current, maximizing system efficiency and reducing heat generation.

→ 40A Combined Output Capacity
Supports demanding industrial applications requiring high current delivery from redundant sources. Each input channel accommodates up to 20A, enabling flexible power supply pairing while maintaining full redundancy protection across the entire load spectrum.

✓ Real-Time Visual Diagnostics
Integrated LED indicators provide instant status feedback for both input channels and output condition. Simplifies troubleshooting and enables rapid fault identification without requiring external diagnostic tools or system interruption.

✓ Industrial-Hardened Construction
Operates reliably in harsh industrial environments with extended temperature tolerance (-25°C to +70°C), vibration resistance, and IP20 protection class. Compact 70×125×120mm footprint optimizes control cabinet space utilization.

✓ Universal SITOP Compatibility
Seamlessly integrates with the complete Siemens SITOP power supply family, enabling flexible system design with mixed power supply models. Supports both PSU and POWER series units for maximum configuration versatility.

Industrial Application Scenarios

Process Automation & SCADA Systems
In chemical processing, water treatment, and oil & gas facilities, the 6EP1961-3BA21 protects critical DCS and SCADA infrastructure from power supply failures that could trigger emergency shutdowns or environmental incidents. Pair with dual 20A SITOP power supplies to create a fully redundant power backbone for distributed control nodes, ensuring continuous process monitoring and control even during maintenance or component failure.

Manufacturing Production Lines
Automotive assembly lines, packaging systems, and material handling equipment rely on uninterrupted PLC operation to maintain production throughput. The redundancy module eliminates costly downtime by automatically switching to backup power during supply failures, protecting work-in-progress and preventing production schedule disruptions that can cost thousands per minute.

Safety-Critical Control Systems
Emergency shutdown systems (ESD), fire & gas detection networks, and safety instrumented systems (SIS) require fail-safe power redundancy to maintain protective functions. The 6EP1961-3BA21 ensures safety controllers and emergency stop circuits remain operational during power anomalies, meeting stringent safety integrity level (SIL) requirements for hazardous area installations.

Infrastructure & Utilities Management
Electric substations, water pumping stations, and transportation control systems demand 24/7 power availability. This redundancy module provides the reliability foundation for supervisory control equipment, remote terminal units (RTUs), and communication gateways that cannot tolerate power interruptions without risking service disruption or public safety.

Data Center & Telecom Facilities
Building management systems, access control networks, and telecom equipment rooms utilize 24V DC power distribution for auxiliary systems. The 6EP1961-3BA21 protects these secondary control systems with the same redundancy standards applied to primary IT infrastructure, ensuring complete facility operational continuity.

Technical Parameters & Selection Guide

Selection Criteria for Optimal Performance:

When designing redundant power architectures with the 6EP1961-3BA21, ensure each connected power supply does not exceed 20A output capacity. For systems requiring more than 40A total current, deploy multiple redundancy modules in parallel distribution configurations. Always account for the ≤0.5V forward voltage drop when calculating system voltage budgets—sensitive loads may require voltage adjustment at the power supply level to compensate.

For applications demanding current monitoring or selective circuit protection, consider pairing with SITOP selectivity modules that provide individual branch overcurrent protection and diagnostic feedback. In safety-critical installations, verify that the combined redundancy solution meets applicable SIL rating requirements through proper system integration and periodic testing protocols.

Extended Functionality & System Integration

IoT-Ready Monitoring Integration
While the 6EP1961-3BA21 provides local LED status indication, it can be integrated into broader power monitoring systems through companion SITOP diagnostic modules. These modules offer Ethernet/IP, PROFINET, or Modbus TCP connectivity for remote status monitoring, predictive maintenance alerts, and integration with SCADA or building management systems.

Battery Backup & UPS Coordination
For applications requiring bridging power during complete AC mains failure, the redundancy module works seamlessly with SITOP DC UPS modules and battery systems. This three-tier power architecture (dual AC supplies + battery backup + redundancy decoupling) provides maximum protection against all common power failure modes.

Scalable Redundancy Architectures
Large distributed control systems can deploy multiple 6EP1961-3BA21 modules in hierarchical power distribution topologies. Combine with SITOP selectivity modules to create zone-based power distribution with fault isolation, preventing single-point failures from cascading across the entire control network.

Custom Configuration Services
For OEM applications or specialized installations requiring pre-configured redundant power assemblies, consult with our technical team regarding custom panel integration, extended temperature testing, or application-specific certification documentation.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock units via express courier service to major industrial regions. Expedited 2-3 day delivery available upon request for urgent replacement requirements.

Custom Orders: Pre-configured redundancy assemblies or bulk quantity orders typically ship within 10-15 business days, depending on configuration complexity and current production schedules.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship under normal industrial operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to certified Siemens automation specialists for application engineering assistance, system design consultation, and troubleshooting support. Documentation package includes installation manual, wiring diagrams, and integration guidelines.

Included Documentation: Product datasheet, installation instructions, CE/UL certification declarations, and ATEX compliance documentation for hazardous area installations.

Frequently Asked Questions

How does the automatic failover mechanism work during power supply failure?
The 6EP1961-3BA21 continuously monitors both input channels through active ORing circuitry. When one power supply fails or its output voltage drops below threshold, the MOSFET decoupling circuit instantly isolates the failed supply while maintaining full current delivery from the remaining operational unit. This transition occurs in less than 1 millisecond—imperceptible to connected automation equipment—ensuring zero interruption to PLC operation, I/O scanning, or communication networks.

Can I mix different SITOP power supply models in a redundant configuration?
Yes, the redundancy module supports heterogeneous power supply pairing as long as each unit maintains 24V DC output and does not exceed 20A capacity. For example, you can combine a SITOP PSU100S with a SITOP POWER 40 unit, or pair modular and compact power supplies based on availability and cost optimization. However, for optimal load sharing and predictable behavior, using identical power supply models is recommended.

What monitoring capabilities are available for remote diagnostics?
The base 6EP1961-3BA21 module provides local LED status indication for both input channels and output condition. For remote monitoring, integrate with SITOP diagnostic modules (such as the 6EP1961-2BA00) that offer industrial Ethernet connectivity, enabling real-time status reporting to SCADA systems, email alerts for power supply failures, and historical logging for predictive maintenance analysis.

Is this redundancy module suitable for outdoor or extreme environment installations?
The IP20 protection rating requires installation within enclosed control cabinets or electrical enclosures. However, the extended operating temperature range (-25°C to +70°C) makes it suitable for outdoor cabinet installations in most climates when properly enclosed. For corrosive atmospheres or high-humidity environments, ensure adequate cabinet sealing and consider conformal coating options for enhanced environmental protection.

How do I size the redundancy module for my application?
Calculate total system current draw including all connected loads (PLCs, I/O modules, HMIs, sensors, actuators). Add 20-30% safety margin for inrush currents and future expansion. If total current exceeds 40A, deploy multiple redundancy modules in parallel distribution architecture. Remember to account for the ≤0.5V voltage drop when calculating system voltage budgets—sensitive analog devices may require compensation.

What happens during simultaneous failure of both power supplies?
If both input power supplies fail simultaneously, the redundancy module cannot maintain output—this scenario requires additional protection through battery backup systems or DC UPS modules. For maximum resilience, implement a three-tier architecture: dual redundant AC power supplies + DC UPS with battery backup + redundancy decoupling module. This configuration protects against AC mains failure, power supply failure, and provides bridging time for controlled shutdown or generator startup.
