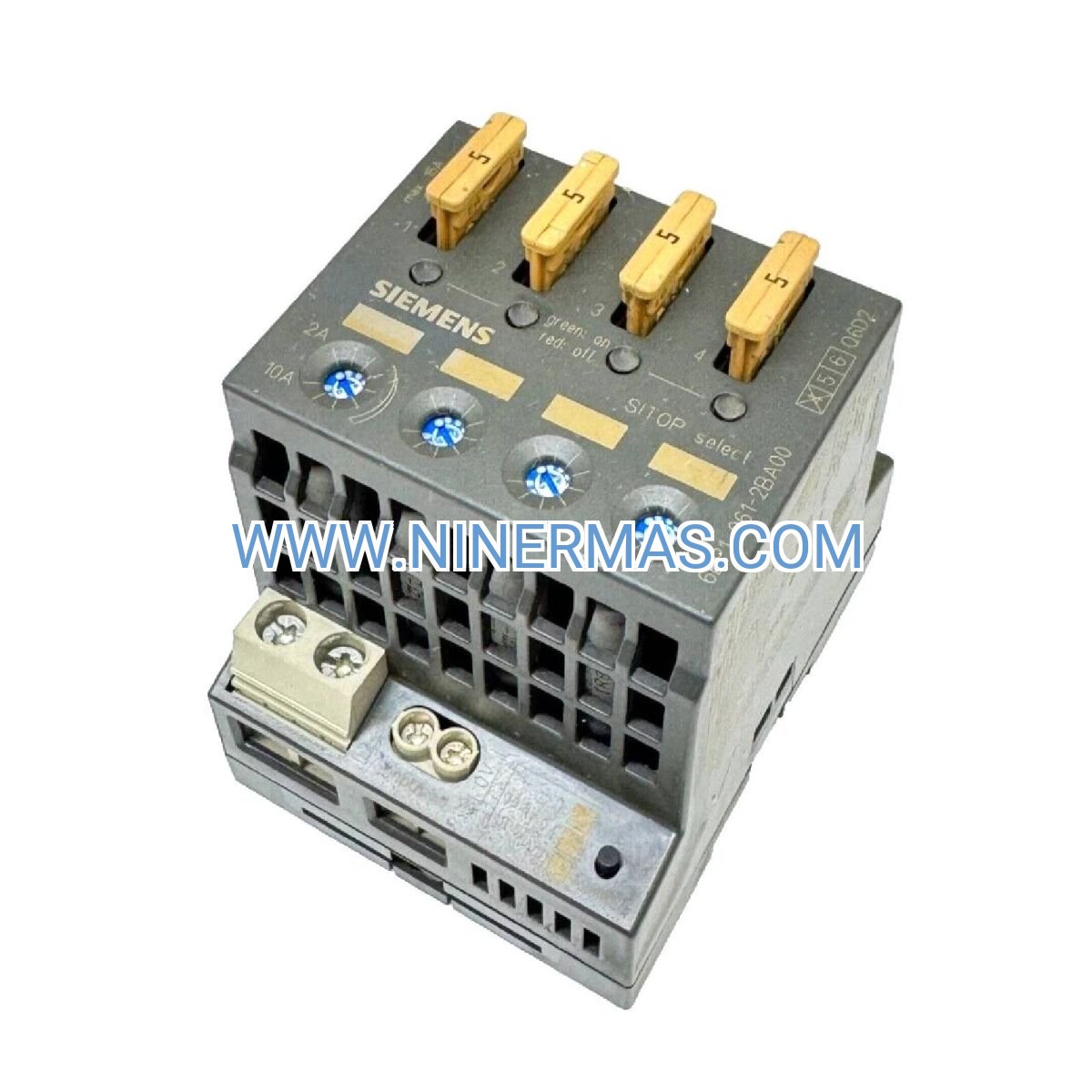

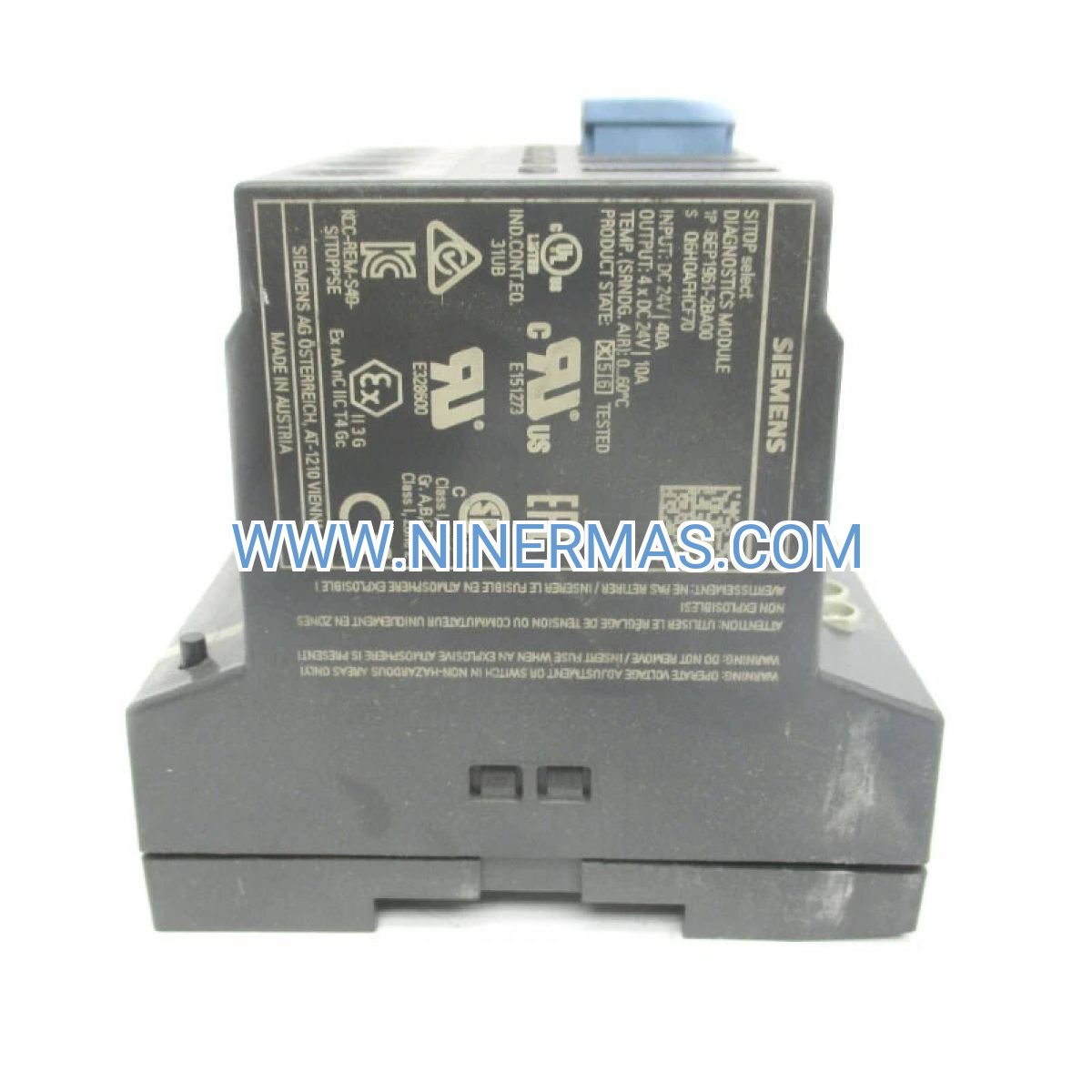

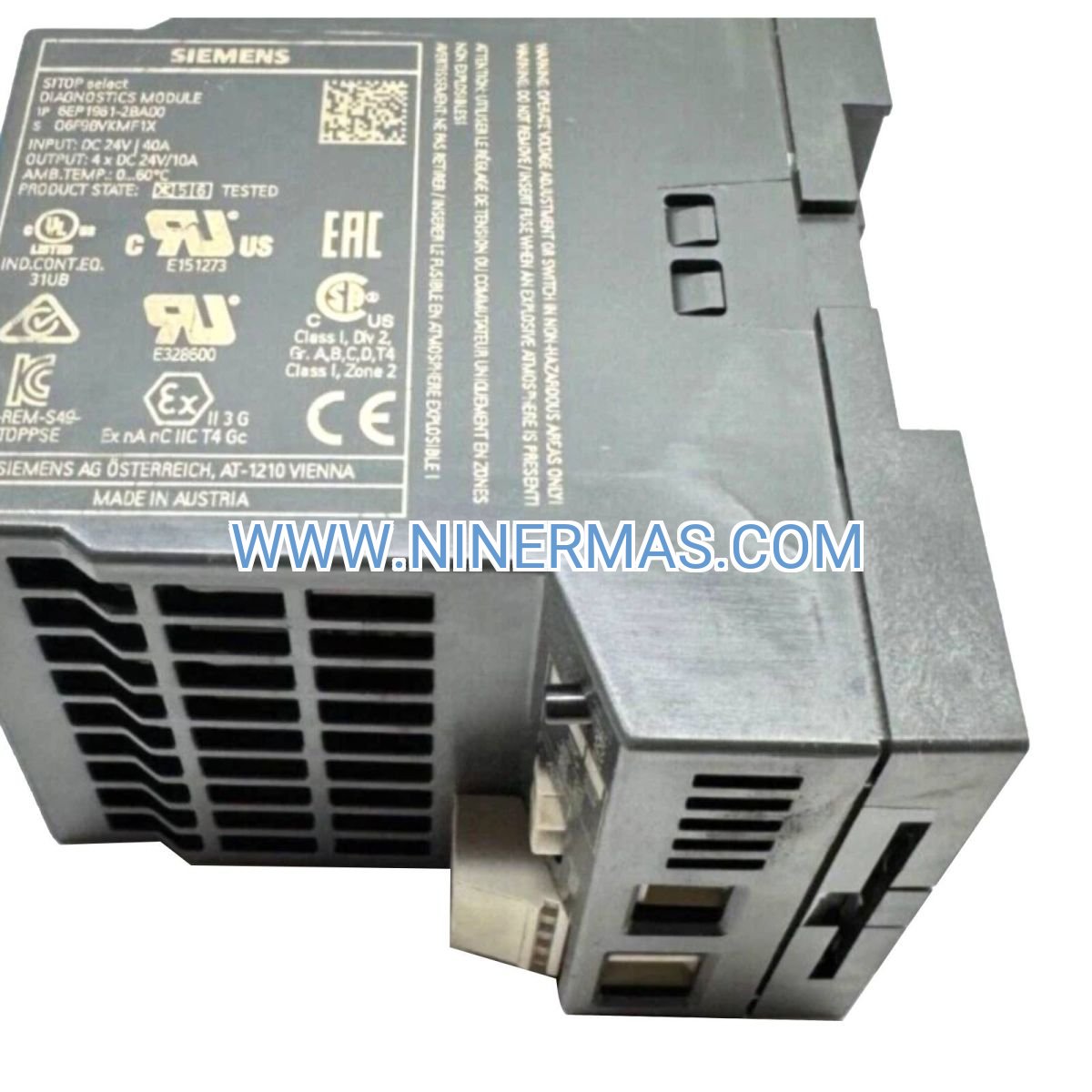

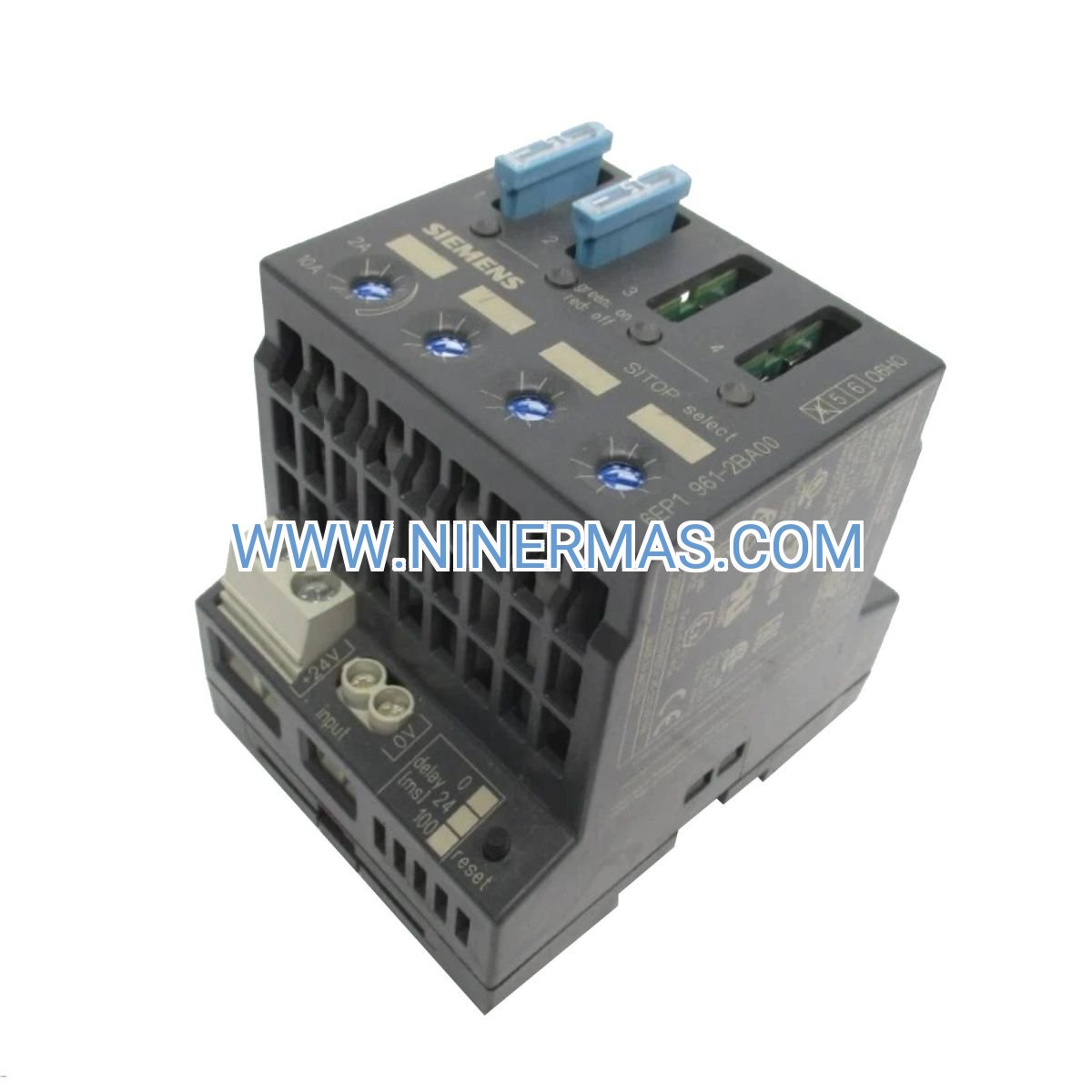

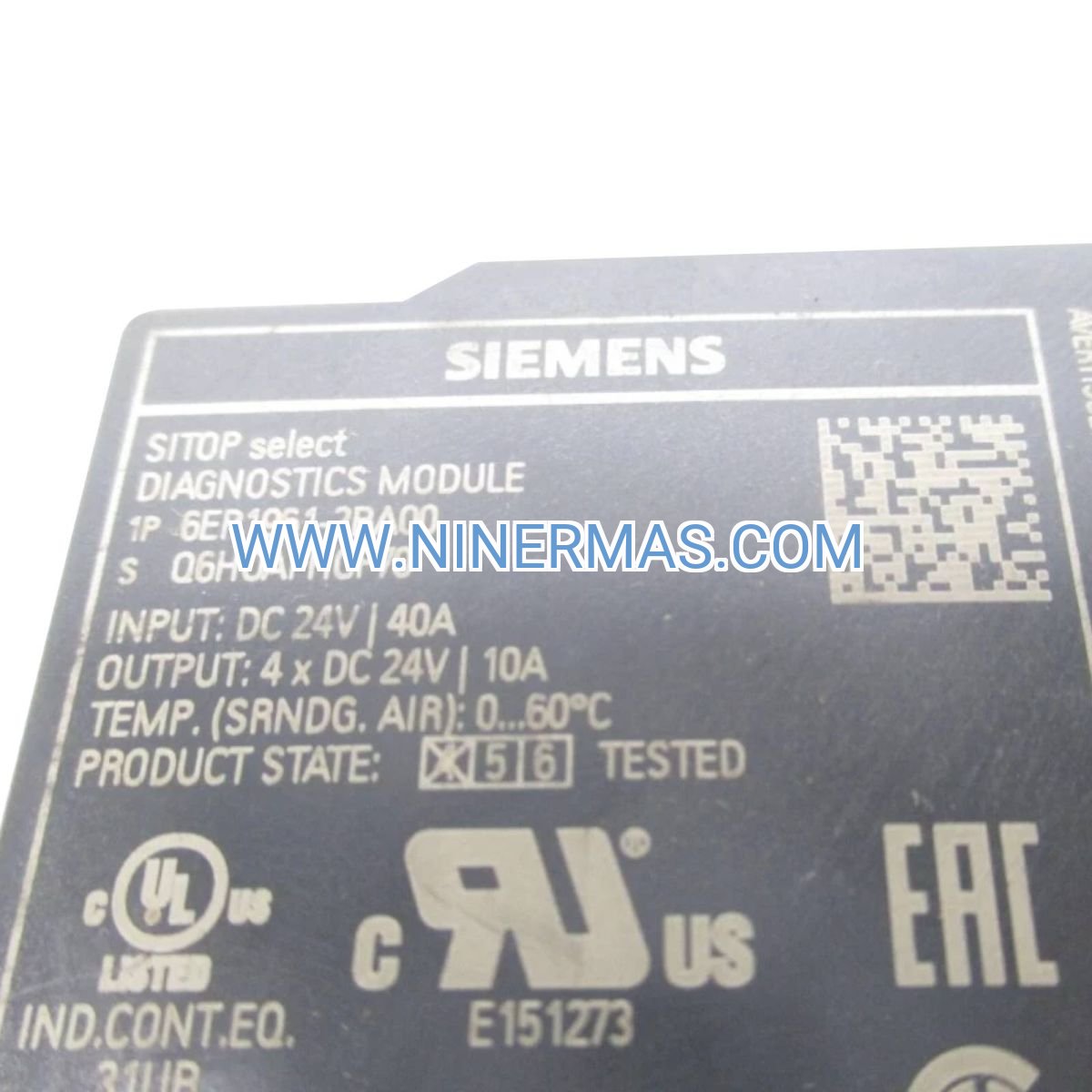

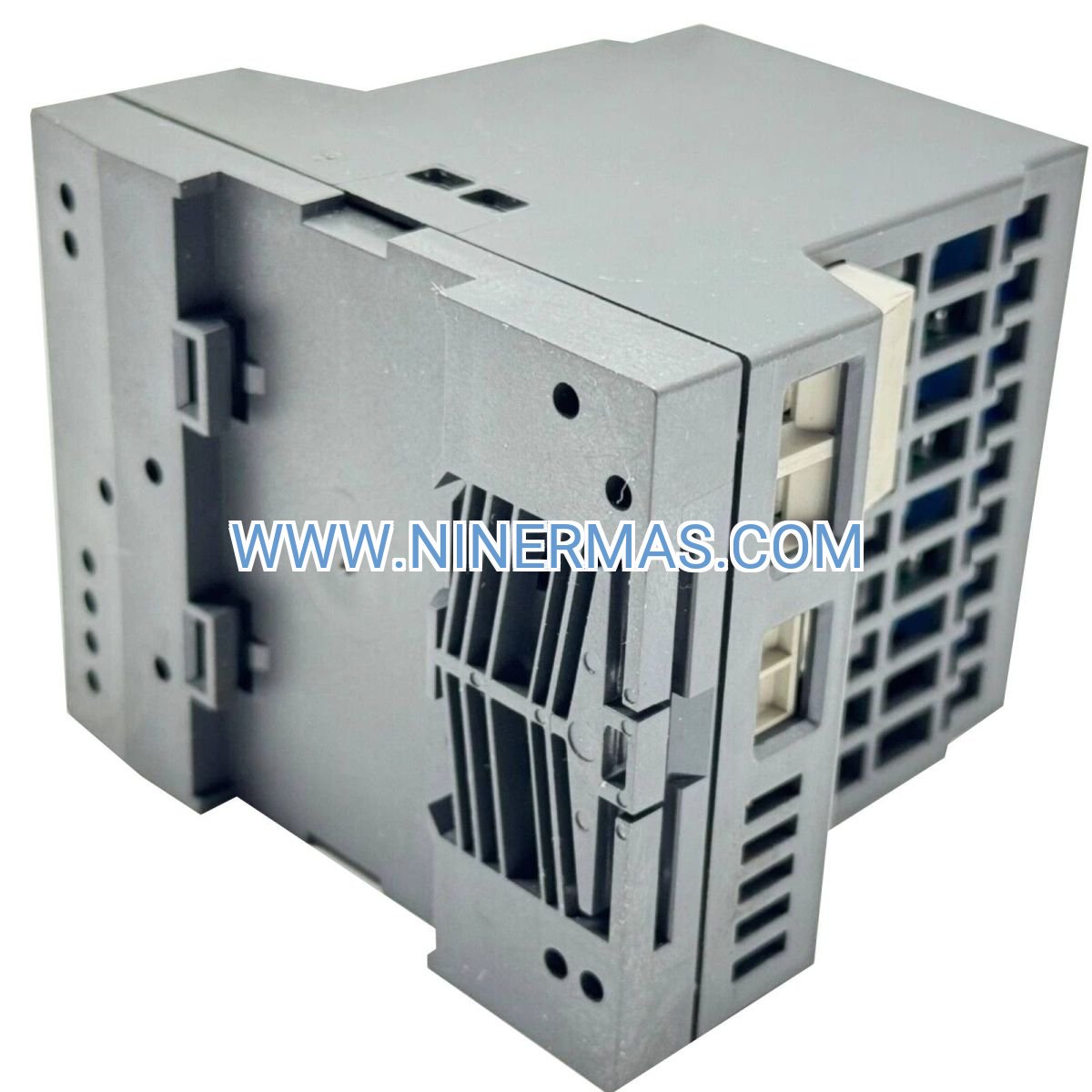

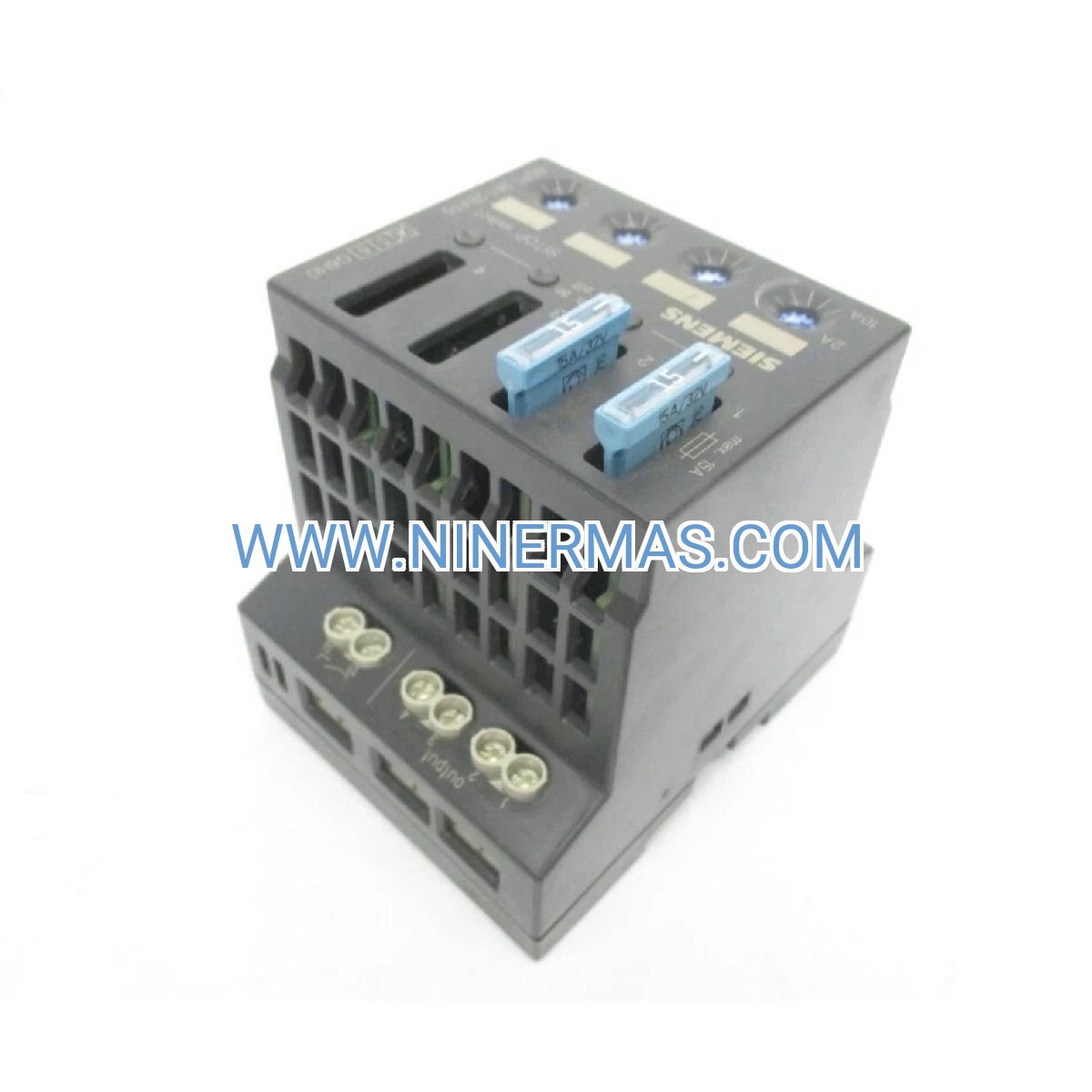

Siemens 6EP1961-2BA00 SITOP Select Diagnostics Module (Industrial-Grade Power Monitoring)

The Siemens 6EP1961-2BA00 is a precision-engineered 4-channel diagnostics module designed to safeguard industrial 24V DC power distribution networks. This intelligent monitoring solution detects overload conditions, short circuits, and wire breaks in real-time, preventing unplanned downtime in automation systems, manufacturing lines, and process control environments.

Built for demanding industrial applications, this module serves as the critical link between your power supply infrastructure and control systems. Whether you're managing a complex PLC network, distributed I/O architecture, or motor control center, the 6EP1961-2BA00 provides the visibility and protection needed to maintain continuous operations. With adjustable current thresholds from 2A to 10A per channel and sub-millisecond fault response, it delivers the reliability that mission-critical systems demand.

Engineered to integrate seamlessly with SITOP power supplies and redundancy modules, this diagnostics solution transforms reactive maintenance into proactive power management. LED status indicators and relay outputs enable both local troubleshooting and remote SCADA integration, empowering your team to address potential issues before they impact production.

Core Features & Technical Advantages

✓ Four Independent Monitoring Channels
Each channel operates autonomously with dedicated threshold adjustment, allowing customized protection for different load types within a single module. Monitor mixed loads—from sensor circuits to actuator banks—with precision-tailored current limits.

✓ Adjustable Current Thresholds (2-10A per Channel)
Front-panel potentiometers enable on-site calibration without system shutdown. Fine-tune protection levels to match actual load requirements, eliminating nuisance trips while maintaining robust fault detection.

✓ Sub-Millisecond Fault Detection
Response time under 1ms ensures rapid isolation of fault conditions, protecting downstream equipment and preventing cascade failures across your power distribution network.

✓ Comprehensive Diagnostic Feedback
Dual-mode indication through LED status lights and relay contact outputs. Visual confirmation for field technicians combined with electrical signals for PLC integration and remote monitoring systems.

✓ Wide Operating Temperature Range (-25°C to +70°C)
Reliable performance in harsh industrial environments, from cold storage facilities to high-temperature manufacturing zones, without derating or performance degradation.

✓ DIN Rail Mounting & Compact Footprint
Space-efficient design fits standard 35mm DIN rails, maximizing cabinet density while maintaining accessibility for wiring and adjustment.

Industrial Application Scenarios

→ Automated Manufacturing Lines
In automotive assembly plants and electronics manufacturing, the 6EP1961-2BA00 monitors power distribution to robotic cells, conveyor systems, and vision inspection stations. When a servo drive begins drawing excessive current due to mechanical binding, the module isolates the affected circuit before motor damage occurs, while maintaining power to adjacent production zones.

→ Process Control & Chemical Plants
Chemical processing facilities deploy this module to protect instrumentation loops, valve actuators, and analyzer systems. Real-time monitoring of field device power consumption identifies failing transmitters or corroded wiring before process upsets occur, supporting predictive maintenance strategies.

→ Water Treatment & Utilities
Municipal water systems use the diagnostics module to supervise pump control panels, SCADA remote terminal units, and telemetry equipment. Early detection of ground faults in outdoor installations prevents equipment damage from moisture ingress and lightning-induced surges.

→ Building Automation & HVAC
Commercial building management systems leverage the module's selective protection for BACnet controllers, damper actuators, and sensor networks. Isolating faulted zones maintains climate control in unaffected building areas during troubleshooting.

→ Material Handling & Logistics
Distribution centers and warehousing operations protect sortation systems, barcode scanners, and automated storage/retrieval equipment. The module's fast fault response prevents damage to high-value automation components during jam conditions or mechanical failures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6EP1961-2BA00 when your application requires individual channel monitoring with adjustable protection levels. For systems with uniform load characteristics across all circuits, consider fixed-threshold alternatives. If total system current exceeds 40A, deploy multiple modules or upgrade to higher-capacity SITOP redundancy solutions. Ensure your power supply can deliver sufficient current for all connected loads plus 20% margin for inrush conditions.

Extended Functionality & Integration Options

SCADA & PLC Integration: Relay contact outputs (normally closed, opens on fault) connect directly to digital input modules on Siemens S7-1200/1500 PLCs, Allen-Bradley CompactLogix, or Modicon M580 controllers. Program fault handling logic to trigger alarms, initiate controlled shutdowns, or activate backup circuits.

Redundant Power Architecture: Combine with Siemens 6EP1961-3BA20 redundancy modules to create N+1 power supply configurations. The diagnostics module monitors individual supply outputs, while the redundancy module ensures seamless failover during primary supply faults.

Distributed Power Networks: Deploy multiple 6EP1961-2BA00 modules across large facilities to create zone-based power monitoring. Each module protects a specific machine group or process area, simplifying troubleshooting and reducing mean time to repair (MTTR).

Customization Options: While the standard module covers most applications, contact our engineering team for custom threshold ranges, alternative relay configurations, or integration with proprietary control systems. Minimum order quantities apply for customized variants.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier. Typical transit time to major industrial centers: 3-5 business days (Asia-Pacific), 5-7 business days (Europe/Americas).

Custom Configuration: Factory-programmed threshold settings or special packaging available with 2-3 week lead time. Consult with our technical sales team for project-specific requirements.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to application engineers for configuration assistance, troubleshooting guidance, and integration planning. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, dimensional drawings, and certification documents. CAD files (STEP, DXF) and PLC sample code available for download from our technical library.

Frequently Asked Questions

Q: How do I adjust the current threshold settings on each monitoring channel?
A: Each channel features a front-panel potentiometer accessible without removing the module from the DIN rail. Rotate clockwise to increase the trip threshold (up to 10A), counterclockwise to decrease (down to 2A). Use a small flathead screwdriver for adjustment. We recommend setting thresholds 15-20% above normal operating current to prevent nuisance trips while maintaining protection.

Q: Can this diagnostics module work with power supplies from manufacturers other than Siemens?
A: Yes, the 6EP1961-2BA00 monitors any 24V DC power source within the 19.2-30V input range. While engineered for optimal compatibility with SITOP power supplies, it functions correctly with Phoenix Contact, Weidmüller, Puls, or TDK-Lambda units. Verify that your power supply can deliver the required current capacity for all connected loads.

Q: What happens when the module detects an overcurrent fault condition?
A: Upon detecting current exceeding the set threshold, the affected channel's relay contact opens within 1ms, disconnecting power to the faulted circuit. Simultaneously, the corresponding LED illuminates (red), providing visual indication. The relay contact state change can trigger alarms in your PLC or SCADA system. Other channels continue normal operation, maintaining power to unaffected loads.

Q: Is it possible to monitor total system current rather than individual channels?
A: The 6EP1961-2BA00 is designed for selective channel monitoring, not aggregate current measurement. For total system current monitoring, consider the Siemens 6EP1961-3BA20 redundancy module with integrated current measurement, or add a separate current transducer to your power distribution panel.

Q: What installation clearances are required for proper thermal management?
A: Maintain minimum 10mm spacing above and below the module for convection cooling. Side-by-side mounting is acceptable with no spacing required. Ensure cabinet ambient temperature does not exceed 60°C when fully loaded. For installations in high-temperature environments (>50°C), consider forced ventilation or derating current capacity by 10%.

Q: Does the module support remote monitoring via Ethernet or fieldbus protocols?
A: The 6EP1961-2BA00 provides hardwired relay outputs for fault signaling but does not include native Ethernet or fieldbus connectivity. For remote monitoring, connect relay outputs to a PLC or remote I/O module with network capability. Alternatively, consider the SITOP PSE200U series (6EP1961-2BA11) which offers enhanced diagnostics with optional communication modules.

Take the Next Step in Power System Protection

Protect your industrial automation investment with proven diagnostics technology trusted by manufacturers worldwide. The Siemens 6EP1961-2BA00 delivers the reliability, precision, and integration flexibility your critical systems demand.

Ready to enhance your power monitoring strategy? Contact our technical sales team for application-specific guidance, system design support, or volume pricing. Our engineers are available to discuss your project requirements and recommend the optimal configuration for your facility.

Request a Quote: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with an automation specialist. Mention product code 6EP1961-2BA00 for expedited processing.
