Industrial-Grade 24V DC Stabilized Power Supply (240W Continuous Output)

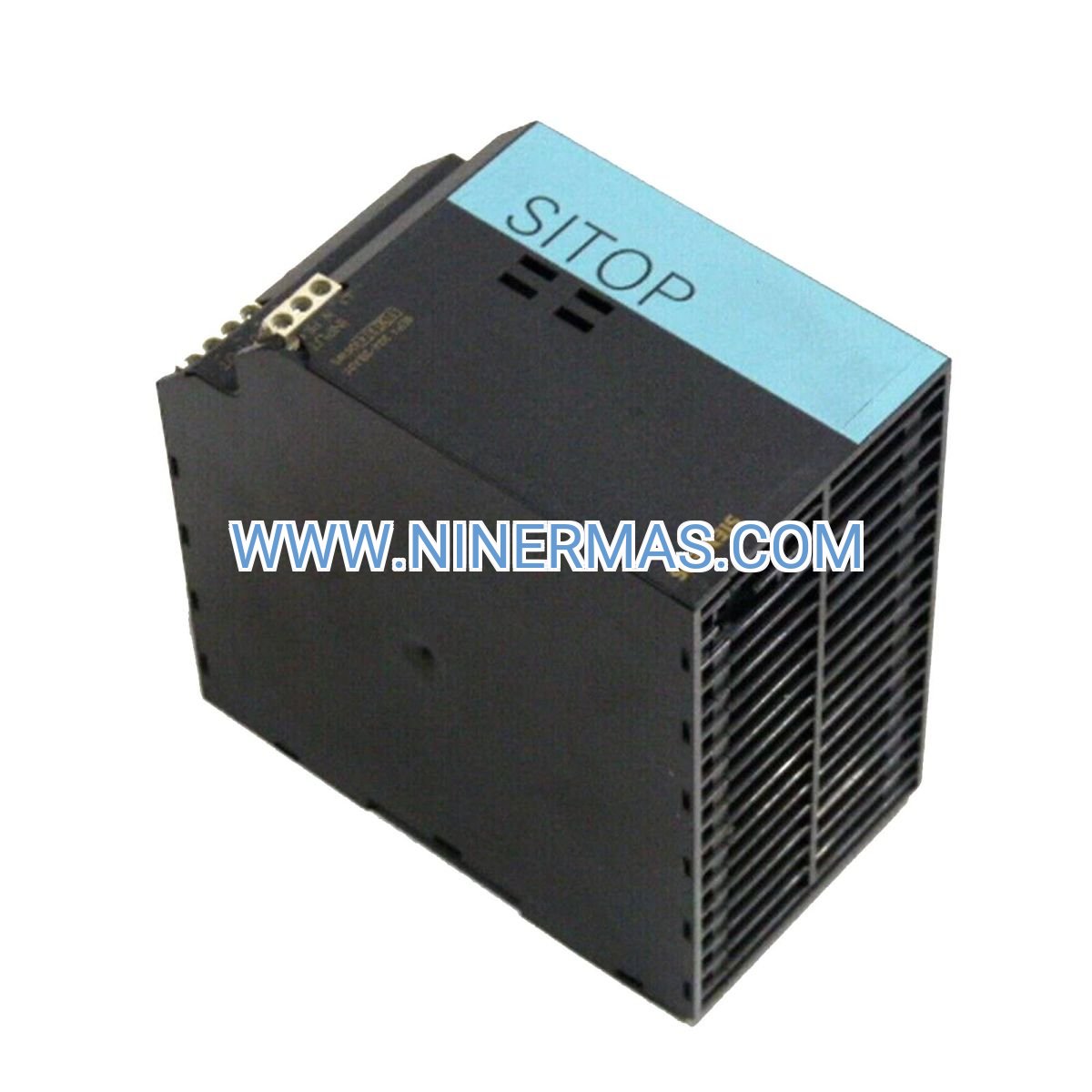

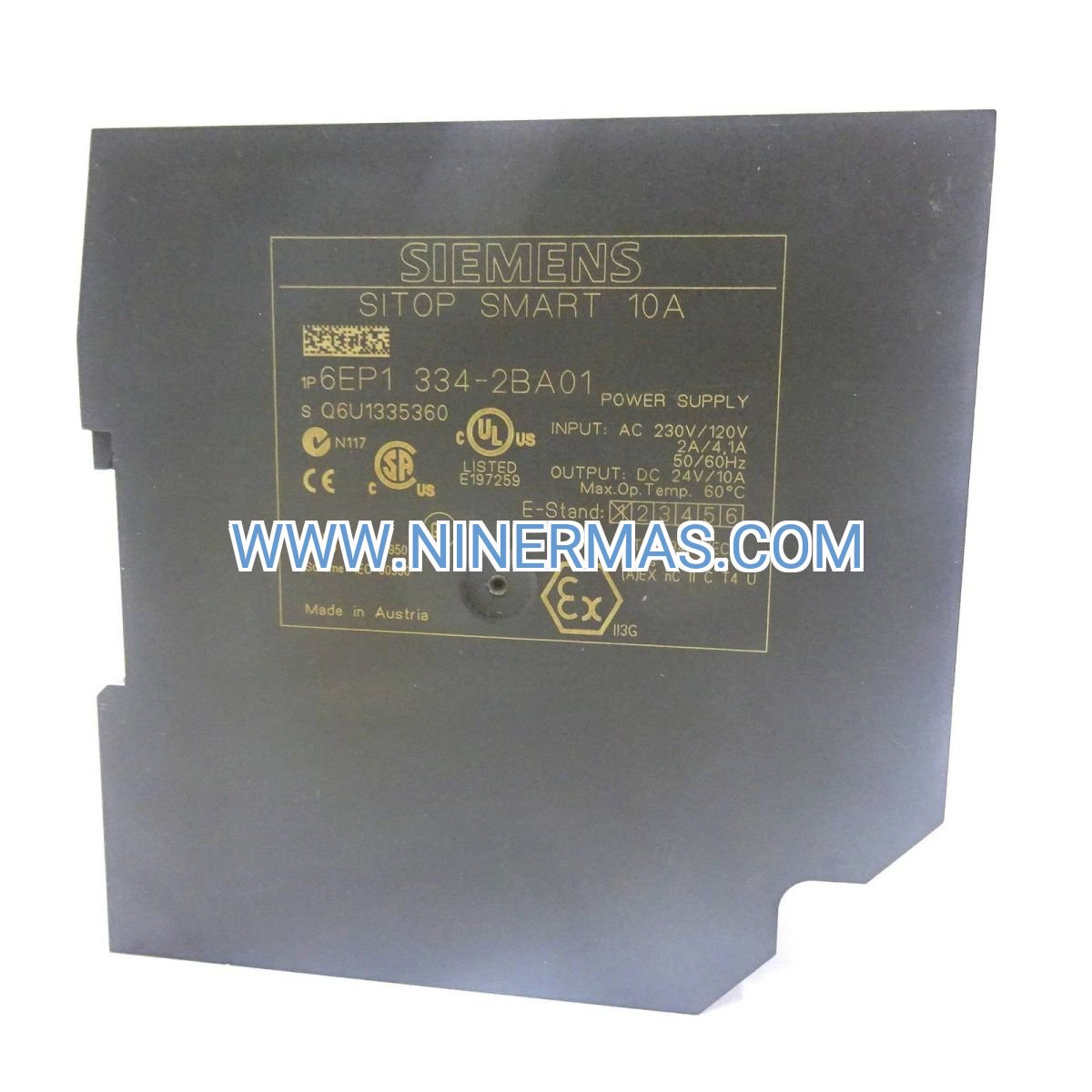

The Siemens 6EP1334-2BA01 represents a professional-grade power solution engineered specifically for mission-critical automation environments. This SITOP Smart series unit converts universal AC input (120-230V) into precisely regulated 24V DC output, delivering up to 10 amperes of continuous current with exceptional stability and efficiency. Built on decades of Siemens engineering excellence, this power supply addresses the fundamental challenge of maintaining consistent voltage levels in industrial settings where electrical noise, load fluctuations, and environmental extremes can compromise system reliability.

Manufacturing facilities, process automation plants, and building control systems depend on uninterrupted 24V DC power to keep PLCs, sensors, actuators, and communication networks operational. The 6EP1334-2BA01 solves voltage instability issues through active Power Factor Correction technology, achieving >0.95 power factor while minimizing harmonic distortion on input lines. Its wide operating temperature range (-25°C to +70°C) and comprehensive protection mechanisms ensure continuous operation even under harsh industrial conditions.

Designed for system integrators, automation engineers, and maintenance professionals who require dependable power infrastructure, this DIN rail-mounted unit combines compact dimensions (70mm width) with robust 240-watt capacity. Whether you're upgrading legacy control panels, designing new machine control systems, or expanding existing automation networks, the SITOP Smart 6EP1334-2BA01 delivers the performance consistency and installation flexibility that modern industrial applications demand.

Core Features & Technical Advantages

✓ Universal Input Voltage Compatibility
Accepts 120-230V AC ±15% at 50/60 Hz, eliminating the need for voltage-specific models when deploying equipment across different regions or countries. This wide-range capability simplifies inventory management and enables standardized designs for global machinery manufacturers.

✓ Active Power Factor Correction (PFC)
Achieves >0.95 power factor across the entire load range, reducing reactive power consumption and minimizing utility costs. Active PFC also ensures compliance with international energy efficiency standards while reducing thermal stress on upstream electrical infrastructure.

✓ Enhanced Overload Reserve Capacity
Provides 120% rated current (12A) for 5-second intervals to handle inrush currents during motor startup, capacitive charging, or simultaneous activation of multiple loads. This dynamic headroom prevents nuisance shutdowns during normal operational transients.

✓ Multi-Layer Protection Architecture
Integrated safeguards against overload, short-circuit, overvoltage, and overtemperature conditions protect both the power supply and connected equipment. Automatic recovery functionality restores operation once fault conditions clear, minimizing downtime.

✓ High Conversion Efficiency
Operates at up to 91% efficiency at full load, converting more input power into usable DC output while generating less waste heat. Lower thermal output extends component lifespan and reduces cooling requirements in enclosed control cabinets.

✓ Compact DIN Rail Installation
Snap-on mounting to standard 35mm DIN rails enables tool-free installation and removal. The 70mm width allows multiple units to be positioned side-by-side with minimal spacing, optimizing panel real estate in space-constrained applications.

Application Scenarios & Industry Solutions

Manufacturing Automation & Assembly Lines
Powers SIMATIC S7-1200/1500 PLCs, distributed I/O modules, and HMI operator panels in automotive assembly, electronics manufacturing, and packaging machinery. The stable 24V output ensures precise sensor readings and reliable actuator control, critical for maintaining production quality and throughput rates. System integrators benefit from the unit's compatibility with TIA Portal programming environment and seamless integration with Siemens automation ecosystems.

Process Control & Chemical Plants
Supplies consistent power to field instruments, valve positioners, and transmitters in continuous process industries where voltage fluctuations can trigger false alarms or process deviations. The wide temperature rating (-25°C to +70°C) accommodates installation in non-climate-controlled equipment rooms or outdoor enclosures common in oil & gas, water treatment, and chemical processing facilities.

Building Management Systems (BMS)
Energizes HVAC controllers, access control panels, lighting control modules, and fire alarm interfaces in commercial buildings and data centers. The high power factor reduces electrical infrastructure costs in large installations, while the compact form factor simplifies retrofits into existing electrical rooms with limited space.

Machine Control & Robotics
Provides reliable power for servo drives, safety relays, and communication gateways in CNC machines, robotic work cells, and material handling equipment. The 12A peak current capability handles the dynamic loads typical of motion control applications without requiring oversized power supplies.

Renewable Energy & Infrastructure
Supports monitoring and control systems in solar inverter installations, wind turbine control cabinets, and electric vehicle charging stations. The universal input voltage range accommodates grid variations in remote locations or developing markets where power quality may be inconsistent.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total current draw of all connected 24V DC loads, including sensors, I/O modules, relays, and communication devices. Add 20-30% safety margin to account for inrush currents and future expansion. For loads exceeding 8A continuous, consider this 10A model. For redundant configurations, combine with SITOP redundancy modules (6EP1961 series). Verify that input voltage matches local electrical standards (120V in North America, 230V in Europe/Asia).

Extended Functions & System Integration

Redundancy & High-Availability Configurations
When paired with Siemens 6EP1961 redundancy modules, multiple 6EP1334-2BA01 units can operate in parallel N+1 configurations, ensuring continuous power availability even if one supply fails. The diode-OR redundancy approach prevents backfeed between units while load-sharing across active supplies.

Remote Monitoring & Diagnostics
Integrate with SITOP PSE200U monitoring modules to enable real-time voltage, current, and status monitoring via PROFINET or Modbus TCP networks. Predictive maintenance alerts notify operators of declining performance before failures occur, reducing unplanned downtime.

TIA Portal Ecosystem Compatibility
Seamlessly integrates with Siemens TIA Portal engineering software for unified configuration, diagnostics, and documentation alongside SIMATIC controllers, HMI panels, and drive systems. Standardized communication protocols simplify troubleshooting and reduce commissioning time.

Customization Options
Available with optional DC-OK relay contact output for remote status signaling to PLCs or alarm systems. Consult factory for extended temperature variants (-40°C to +70°C) or conformal coating options for harsh chemical or marine environments.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 1-3 business days via express courier (DHL/FedEx/UPS). Typical delivery to major cities: 3-7 days internationally, 1-3 days domestic China.

Custom Configurations: Factory-configured redundancy kits or special voltage variants require 2-4 weeks production time. Contact our technical sales team for expedited processing options.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to Siemens-certified application engineers for sizing calculations, panel layout reviews, and troubleshooting assistance. Support available via email, phone, and remote diagnostics during business hours (GMT+8).

Documentation Package: Each unit includes installation manual, technical datasheet, CE/UL certification documents, and wiring diagrams. CAD models (STEP/DXF) and TIA Portal library files available for download from product support portal.

Frequently Asked Questions

What is the recommended input circuit breaker rating for this power supply?
Install a 6-10A Type C circuit breaker on the AC input side to provide overcurrent protection per NEC/IEC standards. The power supply's internal inrush limiting circuitry prevents nuisance tripping during startup.

Can I connect this unit directly to solar panel DC output?
No, the 6EP1334-2BA01 requires AC input (120-230V AC). For DC input applications, consider Siemens SITOP DC-UPS modules or DC/DC converter models from the 6EP1332 series designed for battery or solar DC sources.

How much energy savings can I expect compared to older linear power supplies?
Switching power supplies like the SITOP Smart series achieve 85-91% efficiency versus 50-60% for linear designs. In a 240W application running 24/7, this translates to approximately 350-450 kWh annual savings, reducing operating costs by $35-60 USD per year at typical industrial electricity rates.

What wire gauge should I use for output connections to minimize voltage drop?
For 10A loads, use minimum 14 AWG (2.5mm²) copper wire for runs up to 10 meters. For longer distances or higher currents, consult voltage drop calculators: target <3% drop (0.72V) to maintain regulation within connected equipment specifications.

Is this power supply suitable for outdoor installation in weatherproof enclosures?
Yes, when installed inside NEMA 4X or IP65-rated enclosures with adequate ventilation. Ensure ambient temperature inside the enclosure remains within -25°C to +70°C range. Consider adding ventilation fans or heat exchangers in direct sunlight or high-temperature climates.

Does the unit support hot-swapping in redundant configurations?
When used with SITOP redundancy modules, individual power supplies can be removed and replaced without interrupting power to the load, enabling maintenance without system shutdown. Ensure redundant supply capacity exceeds total load current before performing hot-swap operations.
