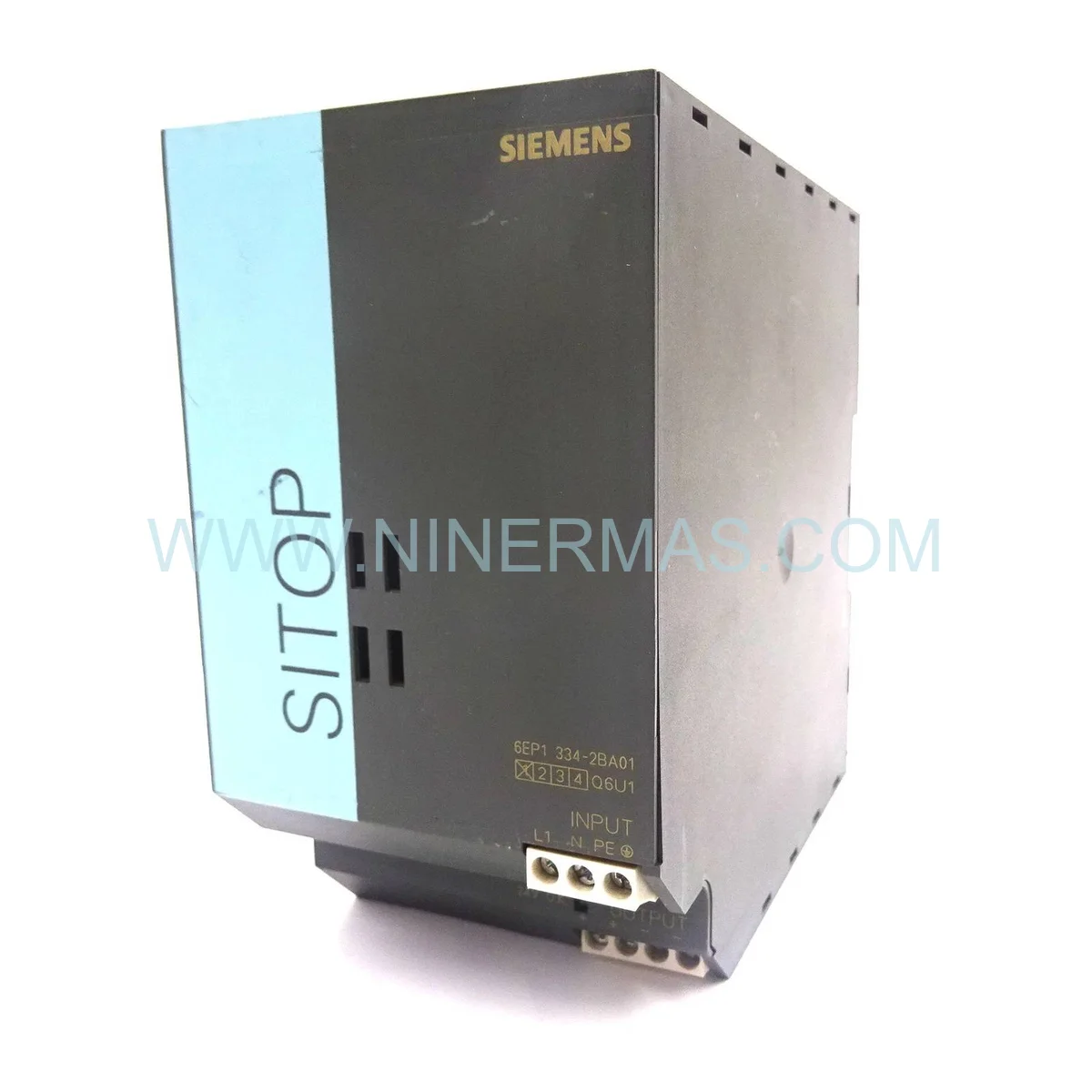

Siemens 6EP1334-2BA01 SITOP Smart 240W Power Supply for Industrial Retrofit

Siemens 6EP1334-2BA01 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Siemens 6EP1334-2BA01 stands out as a cornerstone component in any power system modernization initiative. This SITOP Smart 240W stabilized power supply delivers a regulated 24V DC / 10A output that directly addresses the performance gaps found in aging control architectures — from unstable voltage rails to inadequate overload protection. By integrating the Siemens 6EP1334-2BA01 into your retrofit plan, facilities can achieve measurable improvements in system uptime, energy efficiency (up to 91% at full load), and overall control reliability without requiring a full panel redesign.

One of the most compelling advantages of this unit in a migration context is its broad backward compatibility. The wide-range AC input (120-230V AC ±15%, 50/60 Hz) allows it to slot directly into legacy electrical environments that were originally designed for older, less efficient power conversion equipment. Whether you are replacing a failed proprietary PSU in a 1990s-era DCS cabinet or standardizing power distribution across a multi-site manufacturing network, this unit serves as the ideal hardware upgrade bridge — eliminating the need for costly infrastructure rewiring.

From a risk and cost perspective, deploying this component as part of a phased retrofit strategy significantly reduces migration complexity. Its DIN rail snap-on form factor (35mm standard) ensures mechanical compatibility with virtually all existing control enclosures, while its comprehensive protection suite — covering overload, short-circuit, overvoltage, and overtemperature conditions — safeguards both new and legacy downstream devices during the transition period.

Upgrade Highlights & Compatibility

✅ Seamless Integration: Direct DIN rail replacement for legacy 24VDC PSUs — no panel modification required
Enhanced Performance: 91% efficiency vs. typical 75-80% in older-generation supplies — measurable energy savings
? Legacy Compatibility: Wide AC input range supports both 120V (North America) and 230V (Europe/Asia) legacy panels
Future-Proofing: Active PFC (>0.95) meets modern grid quality standards and prepares systems for smart grid integration
? Overload Resilience: 120% peak capacity (12A / 5 sec) protects legacy actuators and motors during startup transients
Redundancy Ready: Compatible with SITOP 6EP1961-series redundancy modules for N+1 fault-tolerant configurations

Modernization Use Cases & Success Stories

DCS Cabinet Power Standardization: In distributed control system (DCS) modernization projects — particularly those migrating from obsolete Honeywell TDC 3000 or Foxboro I/A Series platforms — the 6EP1334-2BA01 is frequently specified as the standard 24VDC power backbone. Its compact 70 x 125 x 120 mm footprint allows multiple units to be installed side-by-side in existing marshalling cabinets, enabling a Performance Upgrade without expanding the physical footprint.

Turbine Supervisory Instrumentation (TSI) Retrofit: When upgrading Bently Nevada 3500-series or older Vibro-Meter TSI systems to modern condition monitoring platforms, stable and clean 24VDC power is non-negotiable. The SITOP Smart’s low ripple output and active PFC eliminate the interference that legacy linear supplies introduce into sensitive vibration and proximity probe circuits — a critical factor in achieving Seamless Integration between old sensor wiring and new signal processing hardware.

Machine Control Panel Modernization: For OEMs and system integrators retrofitting older relay-logic panels to SIMATIC S7-1200/1500 PLC-based architectures, this power supply provides the Hardware Upgrade foundation. Its plug-and-play DIN rail installation dramatically reduces commissioning time, while the built-in diagnostic LED indicators simplify troubleshooting during the cutover phase.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: All units are sourced as genuine Siemens OEM product — factory sealed with full traceability documentation, ensuring authenticity for critical infrastructure deployments and audit compliance.

Expedited Global Logistics: Stocked inventory enables rapid dispatch to support emergency retrofit timelines. Air freight and express courier options available for urgent plant shutdown windows or unplanned equipment failures in legacy systems.

Technical Support for Obsolete/Legacy Hardware: Our engineering team specializes in cross-referencing the 6EP1334-2BA01 against discontinued PSU models from multiple vendors. We provide wiring diagrams, compatibility matrices, and commissioning guidance to ensure a smooth System Migration — even when original documentation is unavailable.

Retrofit FAQ (Upgrade Guide)

Q1: Will the 6EP1334-2BA01 physically fit in my existing control cabinet without modification?
A: In the vast majority of retrofit scenarios, yes. The standard 35mm DIN rail mounting and compact 70mm width allow direct installation in cabinets originally designed for older PSU formats. If your legacy cabinet uses a proprietary mounting rail, DIN rail adapter kits are widely available and require no drilling or structural changes.

Q2: How does this unit communicate with modern SCADA or PLC systems during a phased migration?
A: The 6EP1334-2BA01 is a power conversion device and does not require protocol-level integration. Its diagnostic LED and optional signaling contact (on compatible SITOP variants) can be wired to a PLC digital input for remote power-good monitoring — enabling Seamless Integration with SIMATIC, Allen-Bradley, or any other PLC platform without additional gateways.

Q3: Can this power supply replace my existing non-Siemens legacy PSU as a direct substitute?
A: Yes, provided your legacy PSU outputs 24V DC and your load does not exceed 10A continuous. The universal AC input eliminates voltage compatibility concerns. Always verify the output connector type and terminal block pitch before installation — standard M4 screw terminals on this unit are compatible with most industrial wiring practices.

Q4: What is the recommended spare parts strategy for aging DCS systems using this PSU?
A: For critical process environments, we recommend maintaining a minimum 1:4 hot-spare ratio (one spare per four installed units). Since the 6EP1334-2BA01 is an Active lifecycle product, multi-year blanket purchase orders are available to lock in pricing and ensure supply continuity for long-term plant maintenance programs.

Q5: How does the active PFC feature benefit legacy electrical infrastructure?
A: Older plant electrical systems often suffer from harmonic distortion caused by non-PFC switching supplies. The active PFC (>0.95) in the 6EP1334-2BA01 dramatically reduces harmonic injection back into the supply network — a key Performance Enhancement that protects other sensitive legacy instrumentation sharing the same distribution panel.

Q6: Is there a newer-generation replacement if this model reaches end-of-life in the future?
A: The SITOP PSU8200 series (e.g., 6EP3334-8SB00-0AY0) represents the next-generation upgrade path within the Siemens SITOP ecosystem, offering enhanced diagnostics and PROFINET connectivity. Our team can provide a full migration roadmap comparing both platforms to support your long-term capital planning.
