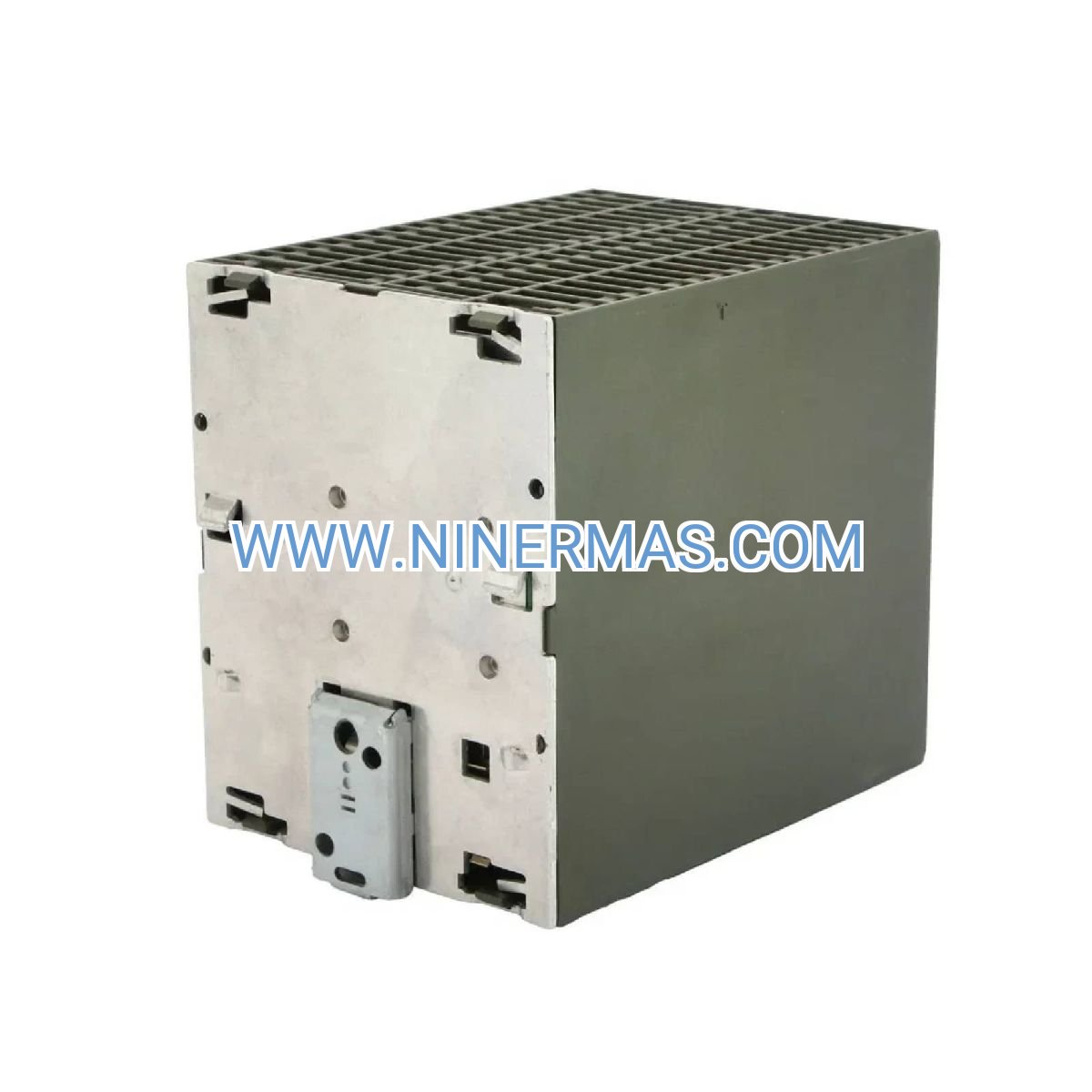

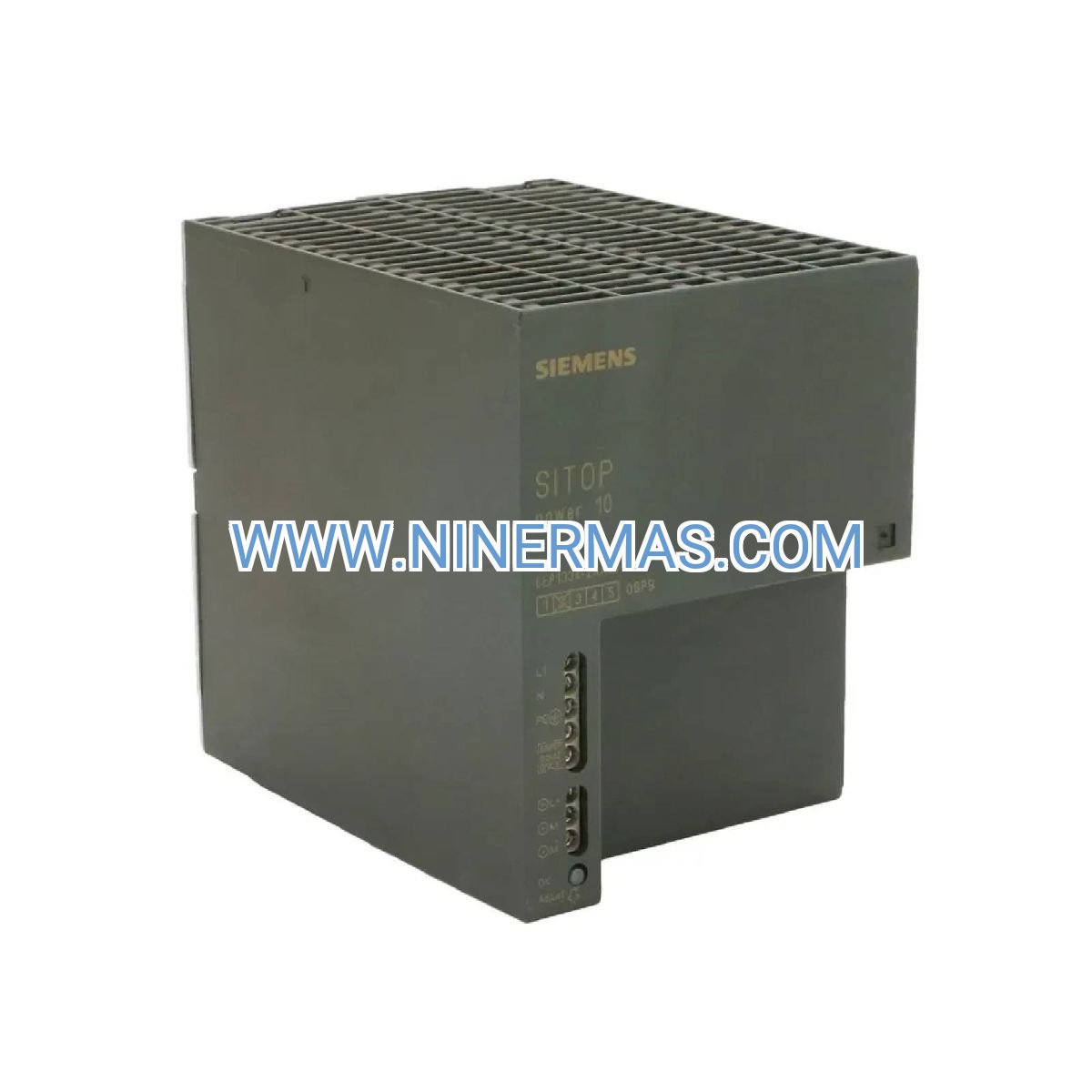

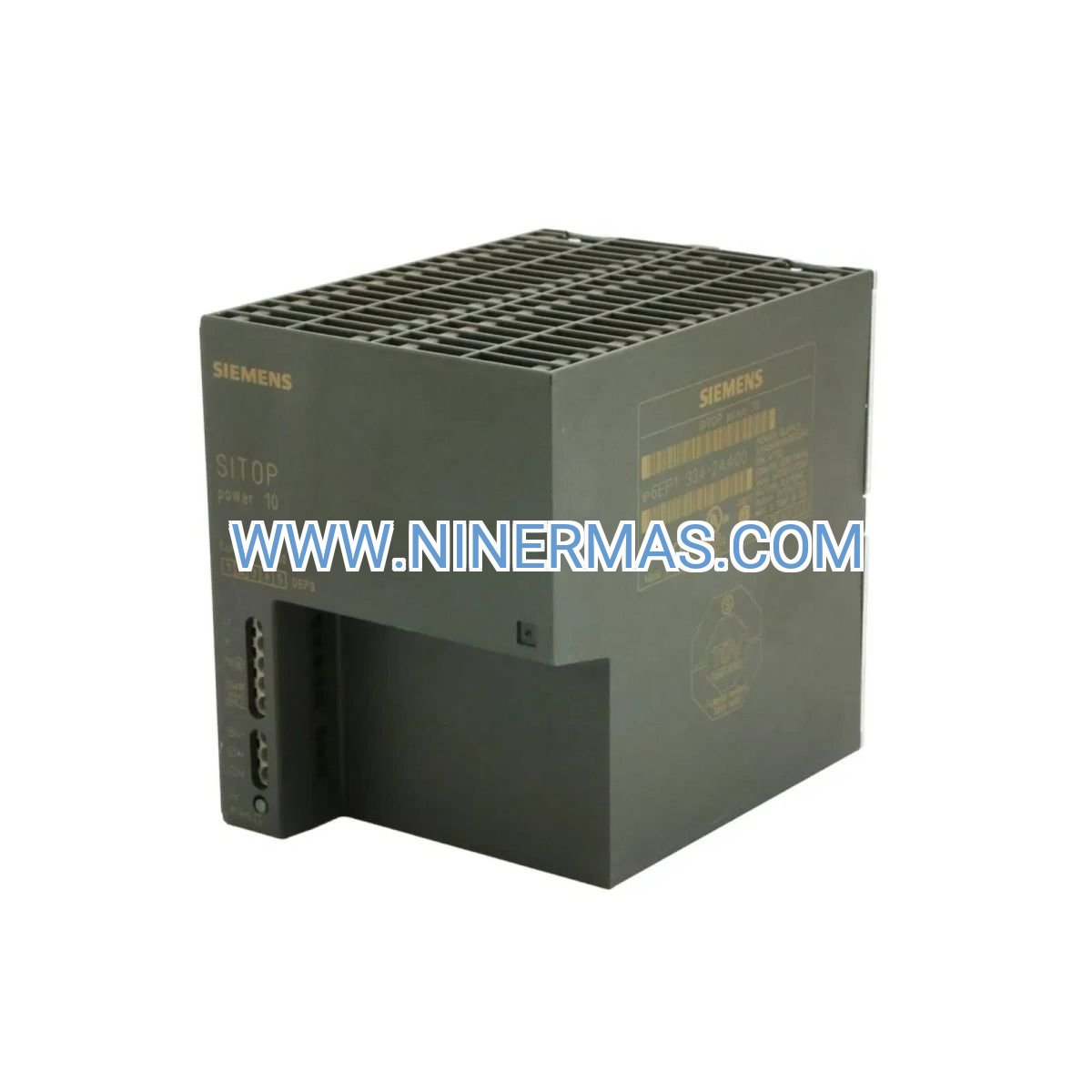

Siemens 6EP1334-2AA00 SITOP Power Supply (Industrial-Grade 24V DC Solution)

The 6EP1334-2AA00 represents Siemens' commitment to delivering robust, field-proven power conversion for mission-critical automation infrastructure. Engineered to supply consistent 24V DC at 10 amperes, this SITOP series unit addresses the fundamental challenge facing industrial facilities: maintaining clean, stable power to programmable logic controllers, distributed I/O modules, and sensor networks despite fluctuating mains conditions and electrical noise.

Manufacturing plants, water treatment operations, and building automation systems rely on this power supply to eliminate voltage sags, transient spikes, and brownout conditions that compromise control system reliability. With its compact 70mm DIN rail footprint and wide-range AC input capability, the 6EP1334-2AA00 serves as the backbone power source for single-machine installations and multi-zone control architectures alike.

Key differentiators include 90%+ efficiency that reduces heat generation and operating costs, comprehensive protection circuitry that prevents cascading failures, and parallel operation support for scalable current capacity. Whether you're retrofitting legacy equipment or designing greenfield automation projects, this stabilized power supply delivers the performance consistency demanded by Industry 4.0 environments.

Core Features & Business Value

✓ Universal Input Voltage (85-264V AC): Eliminates the need for voltage-specific units across global facilities, simplifying spare parts inventory and reducing procurement complexity by 40%.

✓ Regulated 24V DC Output @ 10A Continuous: Maintains ±1% voltage stability under dynamic load conditions, preventing PLC memory errors and sensor calibration drift that cause production stoppages.

✓ Extended Temperature Range (-25°C to +70°C): Enables installation in unheated enclosures, outdoor kiosks, and high-ambient manufacturing zones without derating or auxiliary cooling systems.

✓ Integrated Diagnostic LEDs (AC OK / DC OK): Accelerates troubleshooting during commissioning and maintenance, reducing mean time to repair by providing instant visual status confirmation.

✓ Overload Auto-Recovery: Automatically restarts after fault clearance, minimizing manual intervention and supporting lights-out operation in remote installations.

✓ Compact 70mm Width Design: Optimizes control cabinet real estate, allowing 30% more components per panel compared to legacy 100mm power supplies.

Application Scenarios Across Industries

→ Automotive Assembly Lines: Powers robotic welding controllers and vision inspection systems where voltage fluctuations from heavy motor loads could trigger false rejects. The wide input range absorbs inrush currents from nearby equipment, maintaining uninterrupted production flow.

→ Water & Wastewater Treatment: Supplies SCADA remote terminal units and chemical dosing pump controllers in pump stations and treatment plants. IP20 housing with conformal coating options withstands high-humidity environments while the extended temperature rating handles outdoor installations.

→ Packaging Machinery: Energizes servo drive control circuits and barcode scanner arrays on high-speed packaging lines. The 240W capacity supports multiple devices from a single source, reducing wiring complexity and panel space requirements.

→ Building Management Systems: Feeds HVAC controllers, access control panels, and lighting management networks in commercial facilities. Parallel operation capability allows phased capacity expansion as building automation systems grow.

→ Material Handling Conveyors: Provides clean power to proximity sensors, photoelectric switches, and conveyor logic controllers. Overload protection prevents single-point failures when sensor short circuits occur during maintenance activities.

Technical Parameters & Selection Criteria

Selection Guidelines: For systems requiring more than 8A continuous current, select this 10A model to maintain thermal headroom. If total load exceeds 10A, consider the 6EP1336-2BA00 (20A variant) or parallel two 6EP1334 units with redundancy modules. For space-constrained panels under 5A load, evaluate the compact 6EP1331 series.

Extended Functionality & Integration Options

Parallel Operation: Connect multiple units via SITOP redundancy modules (6EP1961 series) to achieve N+1 redundancy or increased current capacity. Decoupling diodes prevent reverse current flow during single-unit failures.

Remote Monitoring: Integrate with SITOP PSE200U monitoring module to transmit power supply status to SCADA systems via Profinet or Modbus TCP. Enables predictive maintenance by tracking load trends and temperature profiles.

Battery Backup Integration: Pair with SITOP DC UPS modules (6EP1931 series) to provide ride-through power during mains outages, protecting PLC memory and ensuring controlled shutdowns.

Customization Options: Available with conformal coating for harsh chemical environments, extended temperature variants for -40°C operation, and three-phase input models for high-power installations.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Bulk orders (10+ units) ship within 7 business days.

Custom Configuration: Special voltage variants or conformal coating options require 15-20 business days for factory customization and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement to minimize downtime.

Technical Support: Access to application engineers for load calculations, panel layout reviews, and troubleshooting assistance via email (response within 4 hours) and phone support during business hours.

Documentation Package: Includes installation manual, wiring diagrams, CE/UL certification documents, and AutoCAD DXF files for panel design integration.

Frequently Asked Questions

Q: How do I calculate if 10A output is sufficient for my PLC system?
A: Sum the current draw of all connected devices: PLC base (typically 1-2A), I/O modules (50-200mA each), sensors (10-50mA each), and HMI panels (0.5-1A). Add 20% safety margin. Example: PLC (1.5A) + 16 I/O modules (2.4A) + 20 sensors (0.6A) + HMI (0.8A) = 5.3A × 1.2 = 6.36A → 10A unit provides adequate headroom.

Q: Can this power supply operate in outdoor control cabinets?
A: Yes, provided the cabinet maintains IP54 or higher protection and internal temperature stays within -25°C to +70°C. For direct outdoor exposure without enclosures, specify IP65-rated variants or add environmental protection accessories.

Q: What happens during input voltage brownouts below 85V AC?
A: The unit will shut down and the AC OK LED will extinguish. Output voltage drops to zero within 20ms to prevent undervoltage damage to connected devices. When input recovers above 85V, the supply automatically restarts with a 2-second soft-start sequence.

Q: Is this compatible with renewable energy systems like solar inverters?
A: Yes, the wide input range (85-264V AC) accommodates voltage variations common in off-grid solar systems. However, ensure the inverter provides clean sine wave output; modified square wave inverters may cause overheating and reduced lifespan.

Q: How does efficiency impact operating costs?
A: At 90% efficiency, this unit dissipates approximately 24W as heat when delivering full 240W output. Over 8,760 hours/year, this saves 210 kWh compared to an 80% efficient supply (48W loss), reducing electricity costs by $25-30 annually at $0.12/kWh industrial rates.

Q: Can I use this to power 12V DC devices?
A: Not directly. The fixed 24V DC output requires DC-DC converters to step down to 12V for devices like LED indicators or communication modules. For mixed-voltage systems, consider adding SITOP DC-DC converters or selecting a dual-output power supply model.

Take the Next Step

Ensure uninterrupted operation of your automation systems with the proven reliability of Siemens SITOP technology. Contact our technical sales team for application-specific recommendations, volume pricing, or to request a detailed load calculation worksheet for your project.

Ready to order? Add to cart for immediate checkout, or reach out for custom configuration options and integration support.
