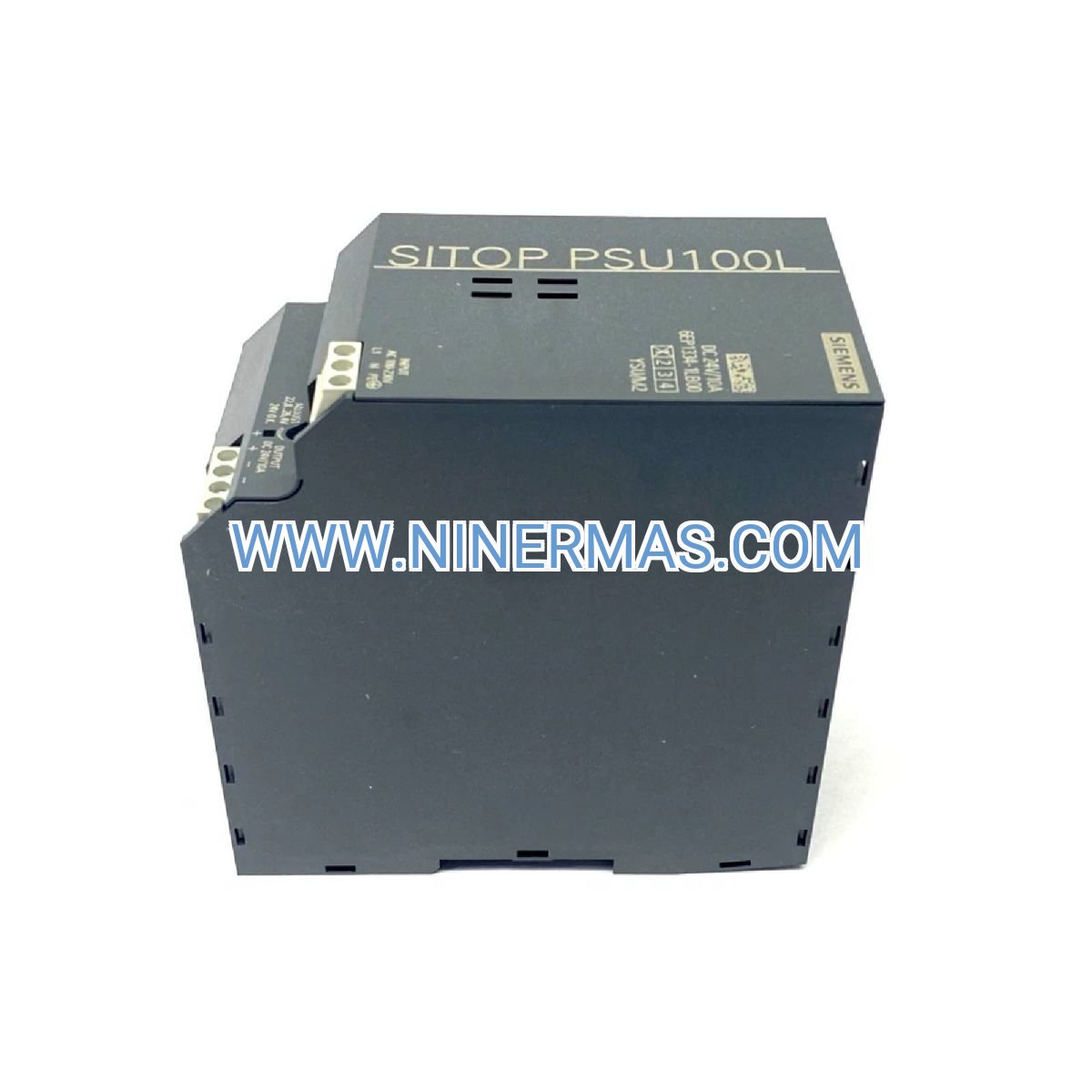

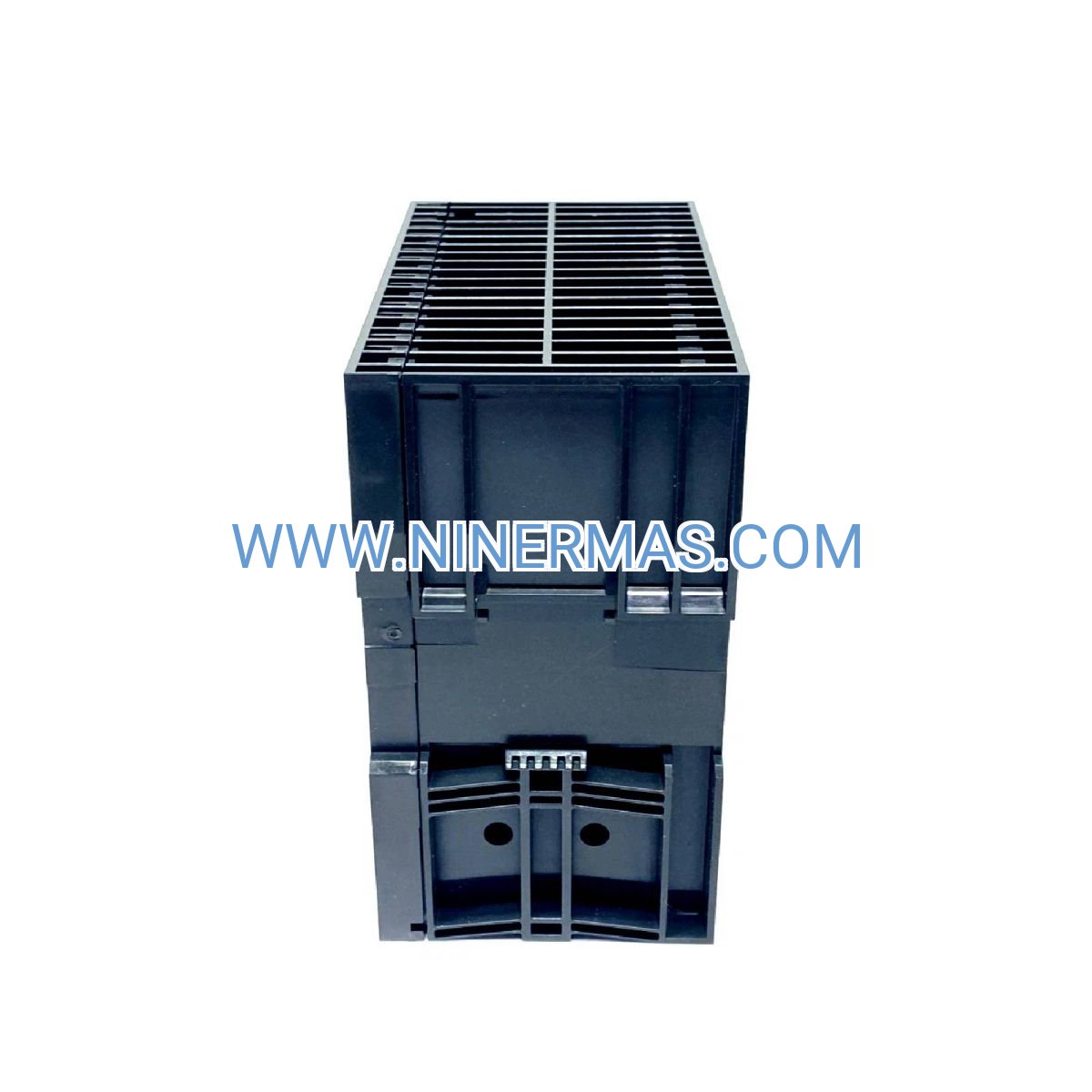

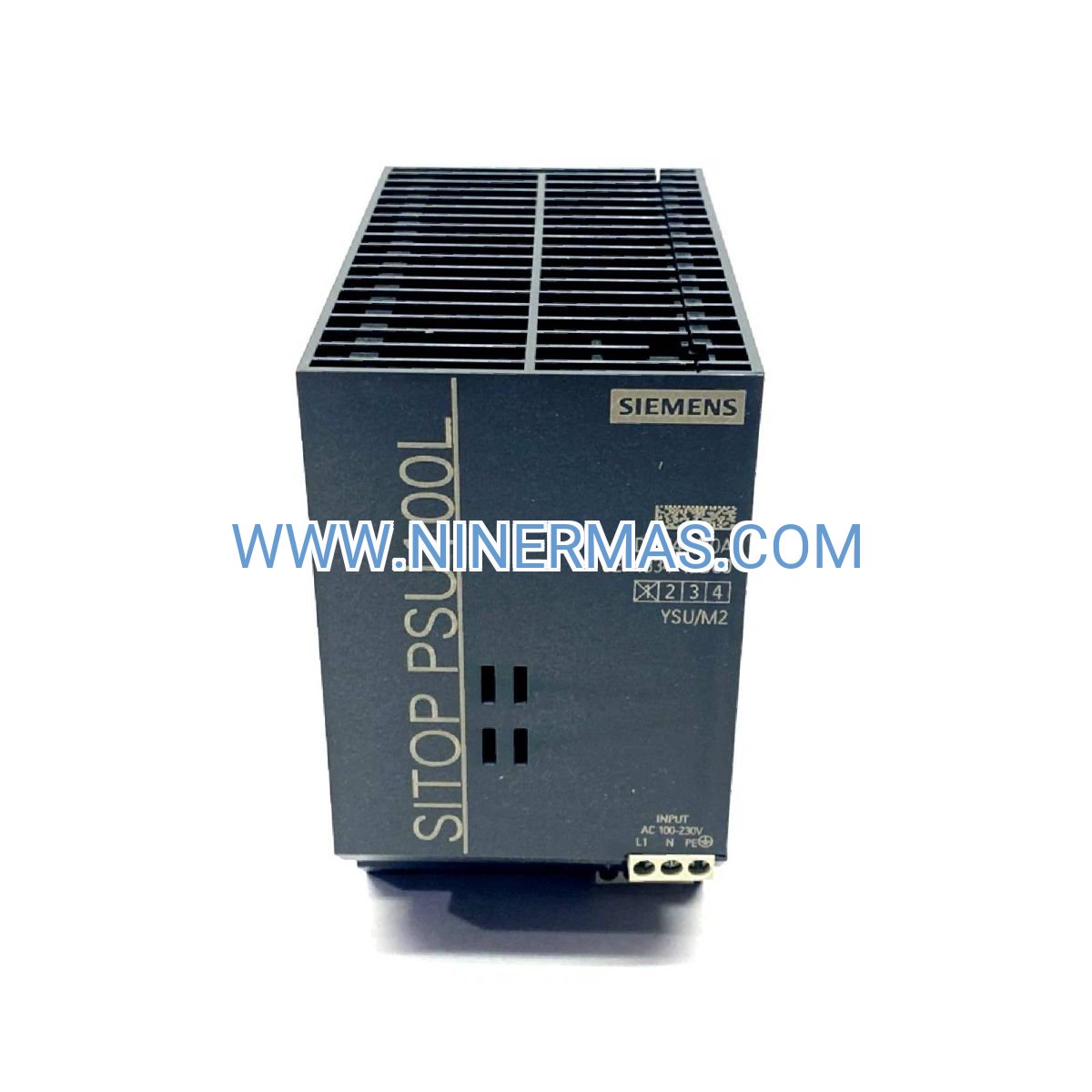

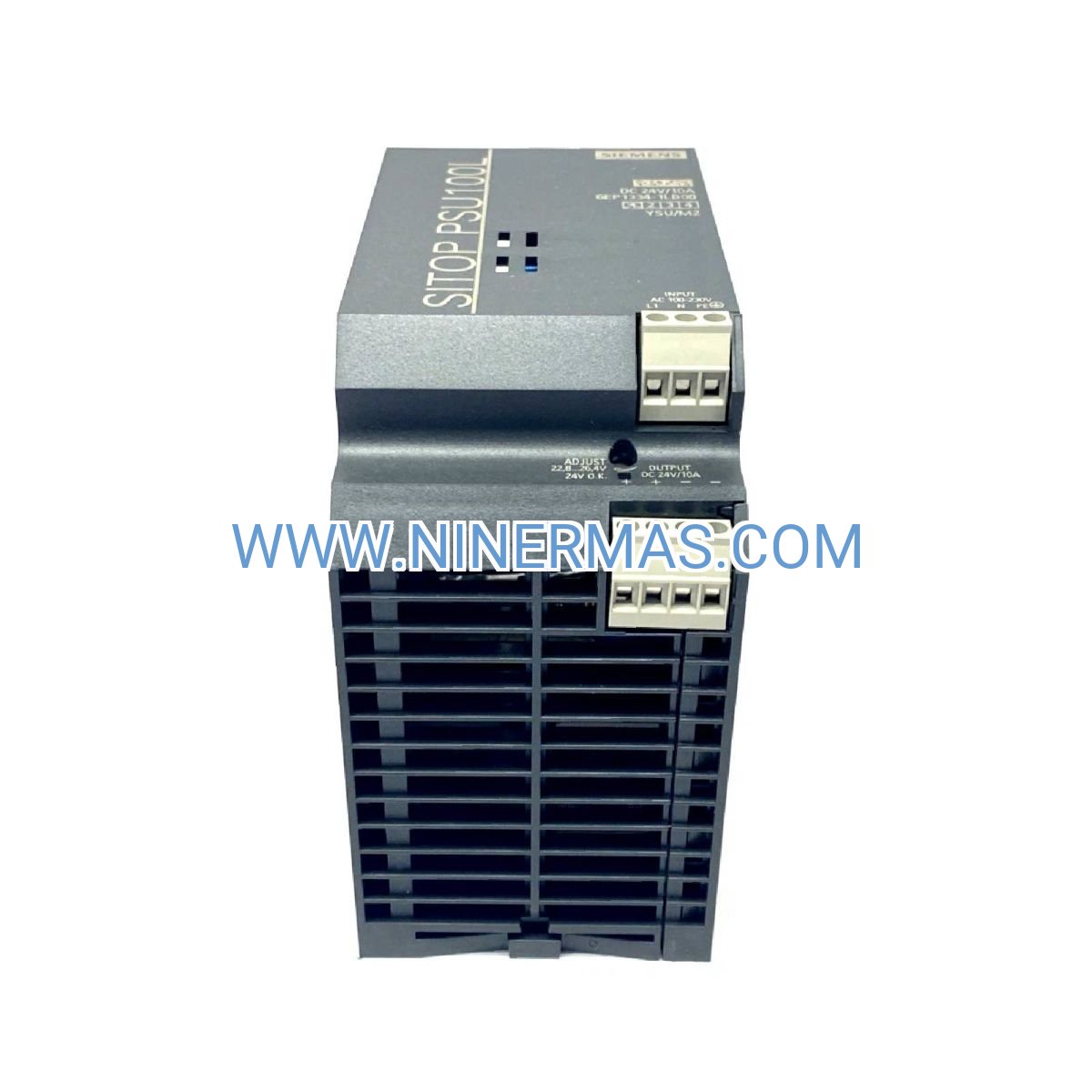

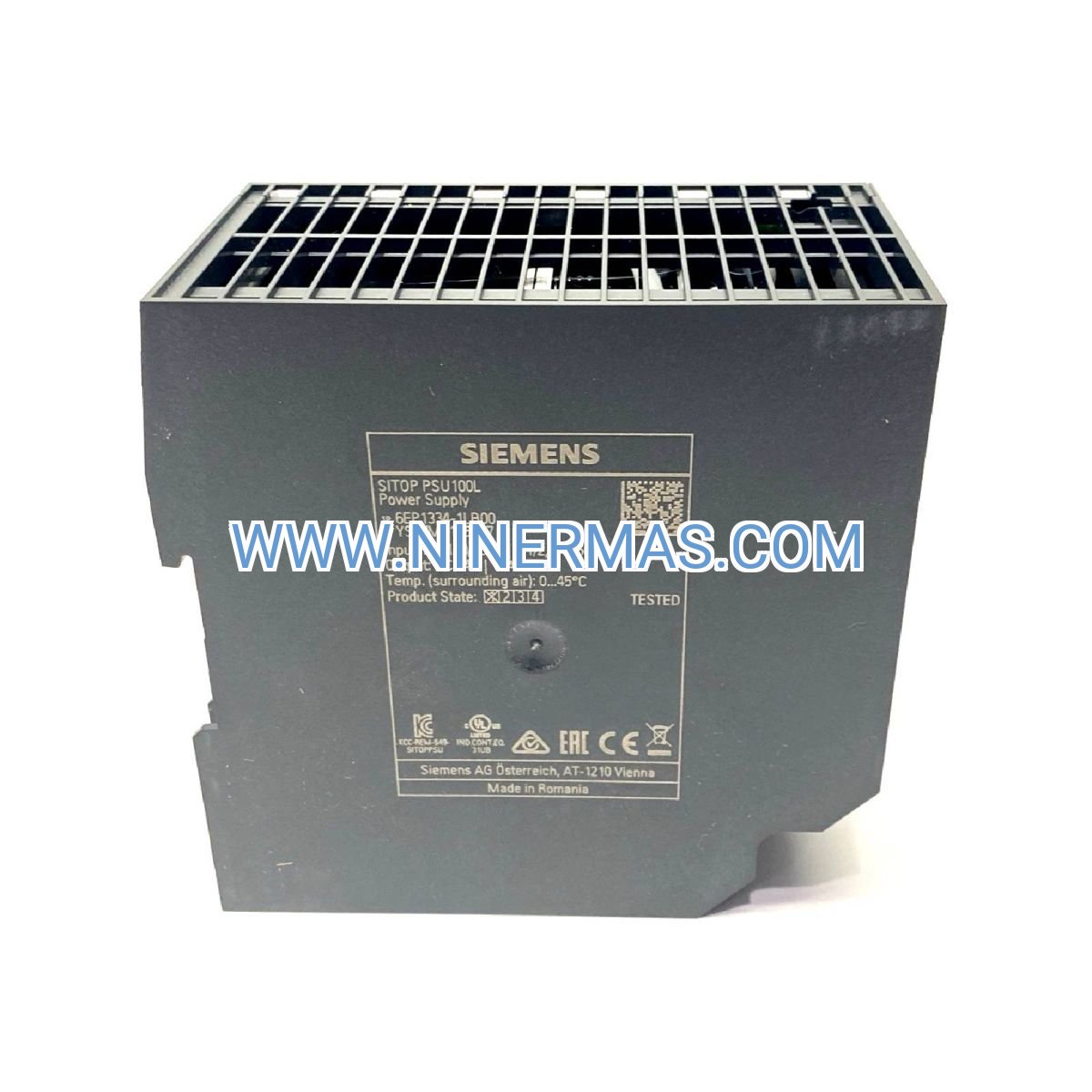

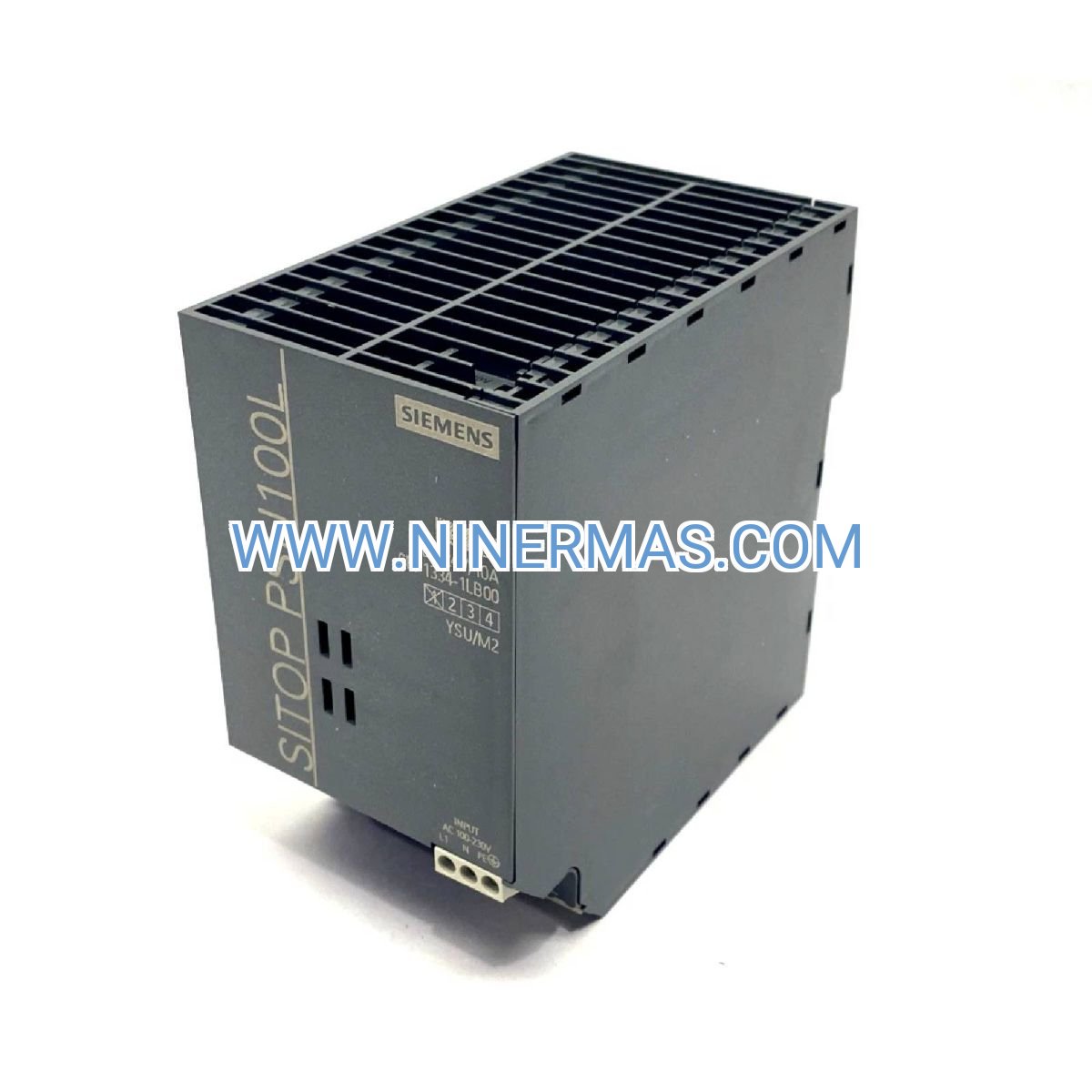

SITOP PSU100L 24V/10A Stabilized Power Supply (Industrial-Grade Performance)

The Siemens 6EP1334-1LB00 SITOP PSU100L is a high-performance 24V DC stabilized power supply designed for mission-critical industrial automation applications. Delivering 10 amperes of continuous output current with exceptional voltage regulation, this unit ensures your programmable logic controllers, distributed I/O systems, and field instrumentation operate reliably under varying load conditions and input voltage fluctuations.

Built for manufacturing facilities, process plants, and infrastructure systems where downtime translates to revenue loss, the PSU100L addresses the fundamental challenge of maintaining clean, stable DC power in electrically noisy industrial environments. Whether you're powering a single PLC cabinet or distributing voltage across multiple control zones, this power supply provides the foundation for dependable automation system performance.

With universal AC input acceptance (120-230V), compact DIN rail mounting, and comprehensive protection features, the 6EP1334-1LB00 simplifies installation while delivering enterprise-grade reliability. Advanced thermal management and >90% conversion efficiency enable continuous operation in ambient temperatures ranging from -25°C to +70°C without derating.

Core Features & Technical Advantages

✓ Universal Input Voltage Range: Automatically adapts to 120-230V AC ±15% at 50/60 Hz, eliminating manual voltage selection switches and reducing installation errors across multi-site deployments with varying electrical infrastructure.

✓ Precision Voltage Regulation: Maintains 24V DC output within ±1% tolerance across full load range, preventing logic errors in sensitive microprocessor-based controllers and ensuring consistent sensor excitation voltage for accurate measurements.

✓ Peak Current Capability: Provides 12A surge current for 5 seconds during motor starts, valve actuations, or simultaneous device initialization, preventing nuisance shutdowns during normal operational transients.

✓ Multi-Layer Protection Architecture: Integrated electronic overload limiting, short-circuit shutdown with auto-recovery, and input/output overvoltage suppression protect both the power supply and connected equipment from fault conditions and electrical disturbances.

✓ Diagnostic Status Indication: Dual-color LED indicators provide real-time visibility of AC input presence and DC output status, enabling rapid fault identification without test equipment during commissioning or troubleshooting.

✓ Space-Efficient Design: 70mm width footprint allows high-density mounting on standard 35mm DIN rails, maximizing available panel space in compact control enclosures while maintaining proper thermal clearances.

Industrial Application Scenarios

→ Automated Manufacturing Lines: Powers S7-1200/1500 PLCs, distributed I/O racks, and safety relay modules in automotive assembly, electronics production, and food processing facilities. Stable voltage prevents program execution errors and maintains precise timing for synchronized multi-axis motion control.

→ Water & Wastewater Treatment: Energizes SCADA remote terminal units, level transmitters, flow meters, and chemical dosing pump controllers in municipal treatment plants. Voltage stability ensures accurate 4-20mA signal transmission over long cable runs, critical for regulatory compliance monitoring.

→ Building Management Systems: Supplies 24V DC to HVAC zone controllers, VAV damper actuators, lighting control panels, and access control readers in commercial facilities. Reliable operation reduces service calls and maintains occupant comfort through consistent environmental control.

→ Material Handling & Logistics: Drives conveyor control systems, barcode scanners, sortation logic, and warehouse automation equipment. Peak current capability handles inductive loads from solenoid valves and relay coils without voltage sag that could cause missed reads or sorting errors.

→ Energy & Utilities Infrastructure: Powers substation automation equipment, pipeline monitoring systems, and renewable energy inverter controls. Extended temperature rating (-25°C to +70°C) enables outdoor cabinet installations without supplemental heating or cooling.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total current draw of all connected 24V devices including 20-30% safety margin for future expansion. For loads exceeding 10A, consider parallel operation using SITOP redundancy modules or upgrade to higher-capacity PSU100L models (20A/40A variants available). Verify ambient temperature conditions—units installed in sealed outdoor enclosures may require forced ventilation above 60°C.

Extended Functionality & System Integration

Redundant Power Architectures: Combine with Siemens 6EP1961-3BA00 redundancy modules to create N+1 or N+N configurations where multiple power supplies share the load. If one unit fails, remaining supplies automatically assume full current delivery, eliminating single points of failure in critical processes.

Remote Monitoring Integration: Output status signals can interface with PLC digital inputs or SCADA systems for centralized power monitoring. Implement predictive maintenance strategies by tracking load current trends and detecting gradual performance degradation before failures occur.

Voltage Drop Compensation: Adjustable output voltage (24-28V) compensates for resistive losses in long cable runs. For distributed systems with remote devices 100+ meters from the power supply, increase output to 26-27V to ensure end-point voltage remains within device specifications.

Customization Options: Available with conformal coating for harsh chemical environments, extended temperature variants for extreme climates, and DC input versions for battery-backed UPS systems. Contact our engineering team for application-specific configurations.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days domestic, 7-10 business days international.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes free replacement unit and return shipping for verified manufacturing defects.

Technical Support: Pre-sales application engineering assistance for system design, load calculations, and product selection. Post-sales troubleshooting support via email and phone during business hours (GMT+8, 9:00-18:00 weekdays).

Documentation Package: Each unit includes installation manual, wiring diagrams, dimensional drawings, and certification documents. CAD models and EPLAN macros available for download to accelerate panel design workflows.

Frequently Asked Questions

Q: What input circuit protection is recommended for the 6EP1334-1LB00 power supply?
A: Install a 6-10A Type C miniature circuit breaker on the AC input side. The unit's inrush current is limited to <20A for <5ms, compatible with standard MCB trip characteristics. Avoid slow-blow fuses which may not provide adequate short-circuit protection.

Q: Can I parallel multiple SITOP PSU100L units to increase total current capacity?
A: Direct paralleling without load-sharing modules is not recommended due to slight voltage tolerance differences between units. Use Siemens 6EP1961-3BA00 redundancy modules which actively balance current distribution and provide diode-OR isolation for proper parallel operation.

Q: How much voltage drop is acceptable in 24V DC distribution wiring?
A: Limit voltage drop to <5% (1.2V) under full load conditions. For 10A load over 50 meters, use minimum 2.5mm² copper wire. The adjustable output voltage feature allows compensation for calculated voltage drop—set output to 25-26V for long cable runs.

Q: Does the SITOP PSU100L support operation in hazardous area classifications?
A: The unit carries ATEX Zone 2 certification for installation in control rooms adjacent to hazardous areas. For Zone 1 or Division 1 installations, the power supply must be located outside the classified area with only DC wiring entering the hazardous zone through appropriate sealing methods.

Q: What maintenance procedures are required for long-term reliability?
A: The PSU100L uses maintenance-free electrolytic capacitors rated for >100,000 hours at 40°C. Quarterly inspections should verify cooling air path is unobstructed, terminal connections remain tight, and no dust accumulation on heat sinks. No internal component replacement is required during normal service life.

Q: How do I troubleshoot a no-output condition on the power supply?
A: First verify AC input voltage is present and within 120-230V range using a multimeter. Check input circuit breaker has not tripped. If AC OK LED is illuminated but DC OK LED is off, disconnect all loads and attempt restart—persistent fault indicates internal protection activation requiring unit replacement.

Get Your Industrial Power Solution Today

Ensure uninterrupted operation of your automation systems with the proven reliability of Siemens SITOP technology. Our technical team is ready to assist with application questions, system design consultation, and volume pricing for multi-unit projects.

Request a quote now: Contact our sales team with your project requirements, delivery timeline, and quantity needs. We provide detailed technical proposals including load calculations, redundancy recommendations, and total cost of ownership analysis.
