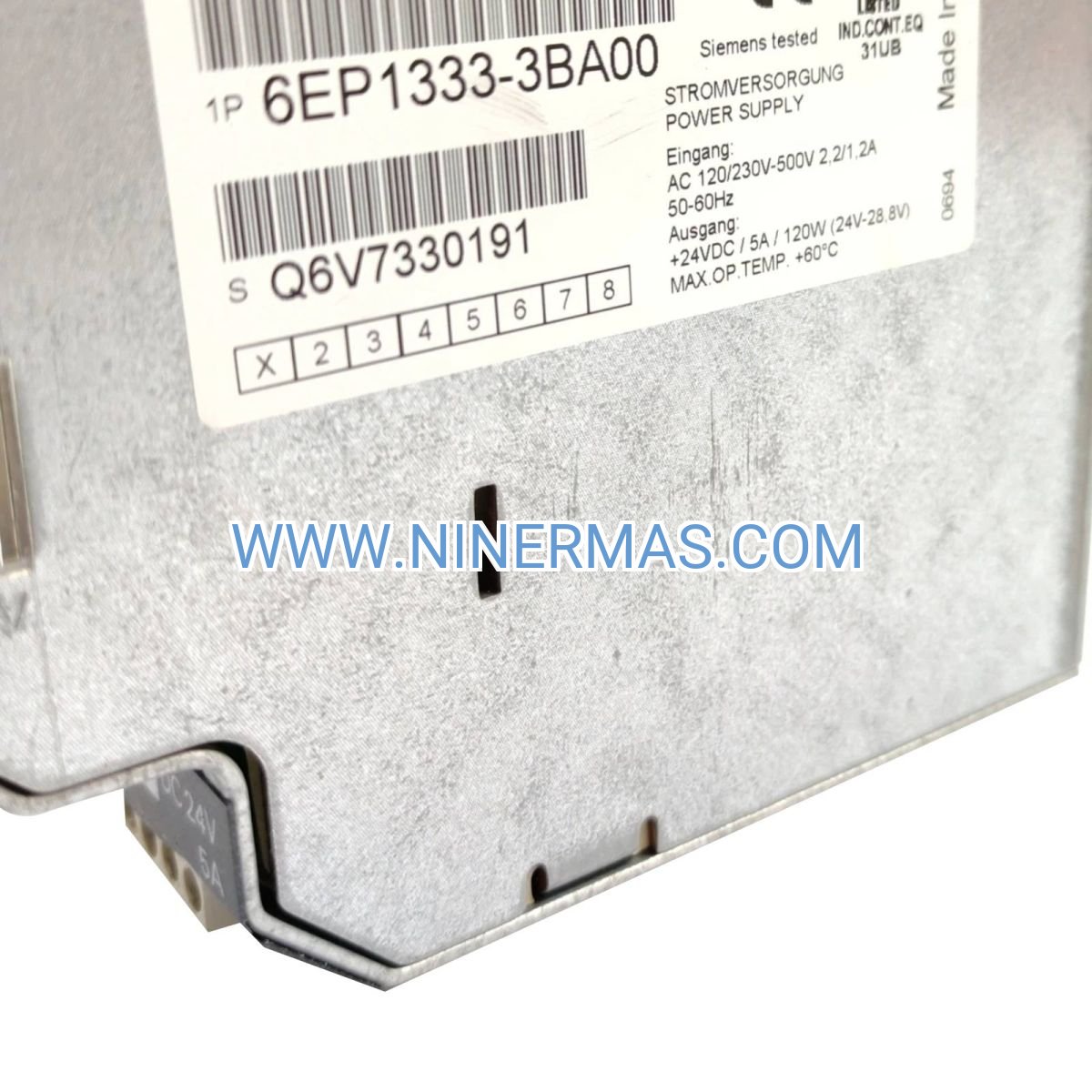

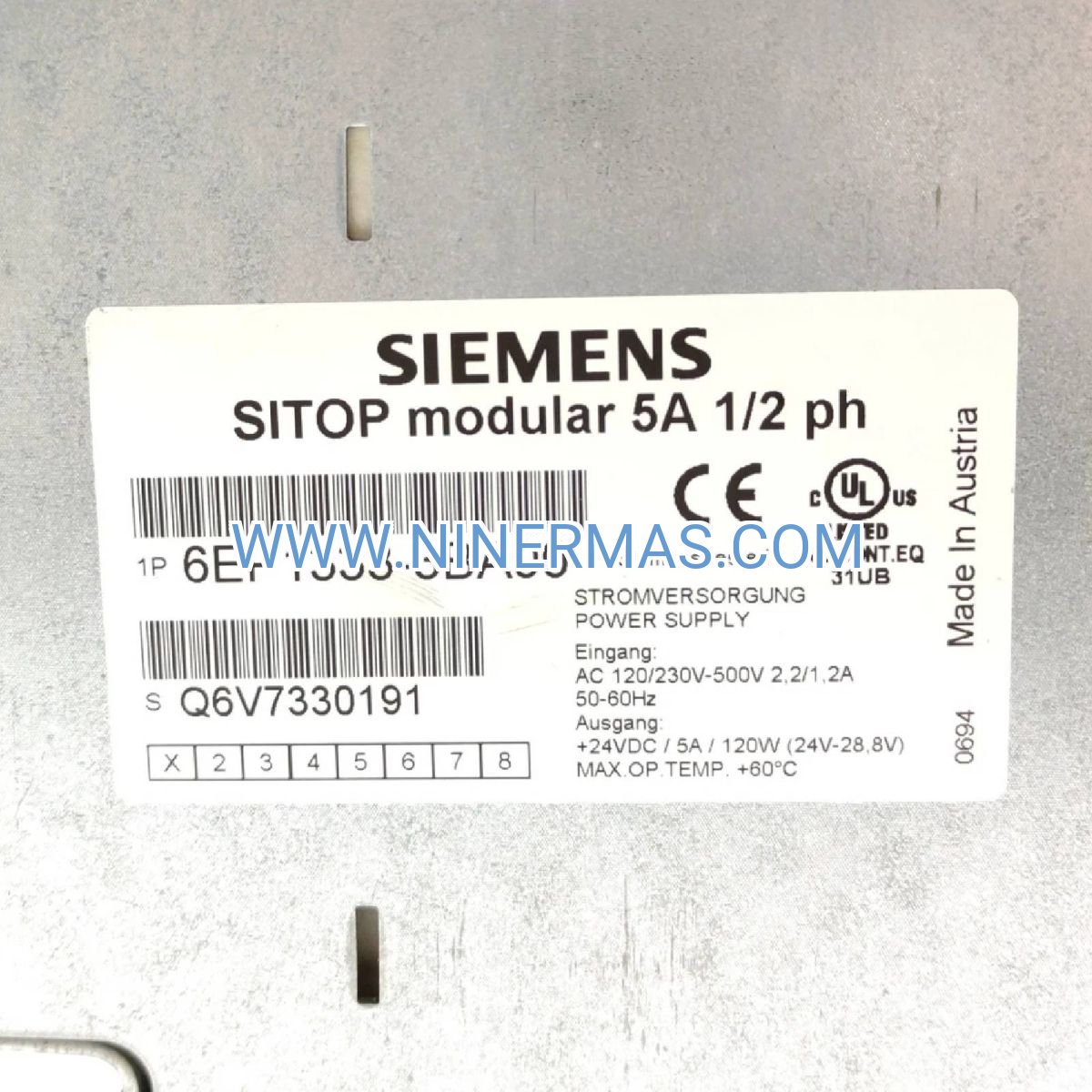

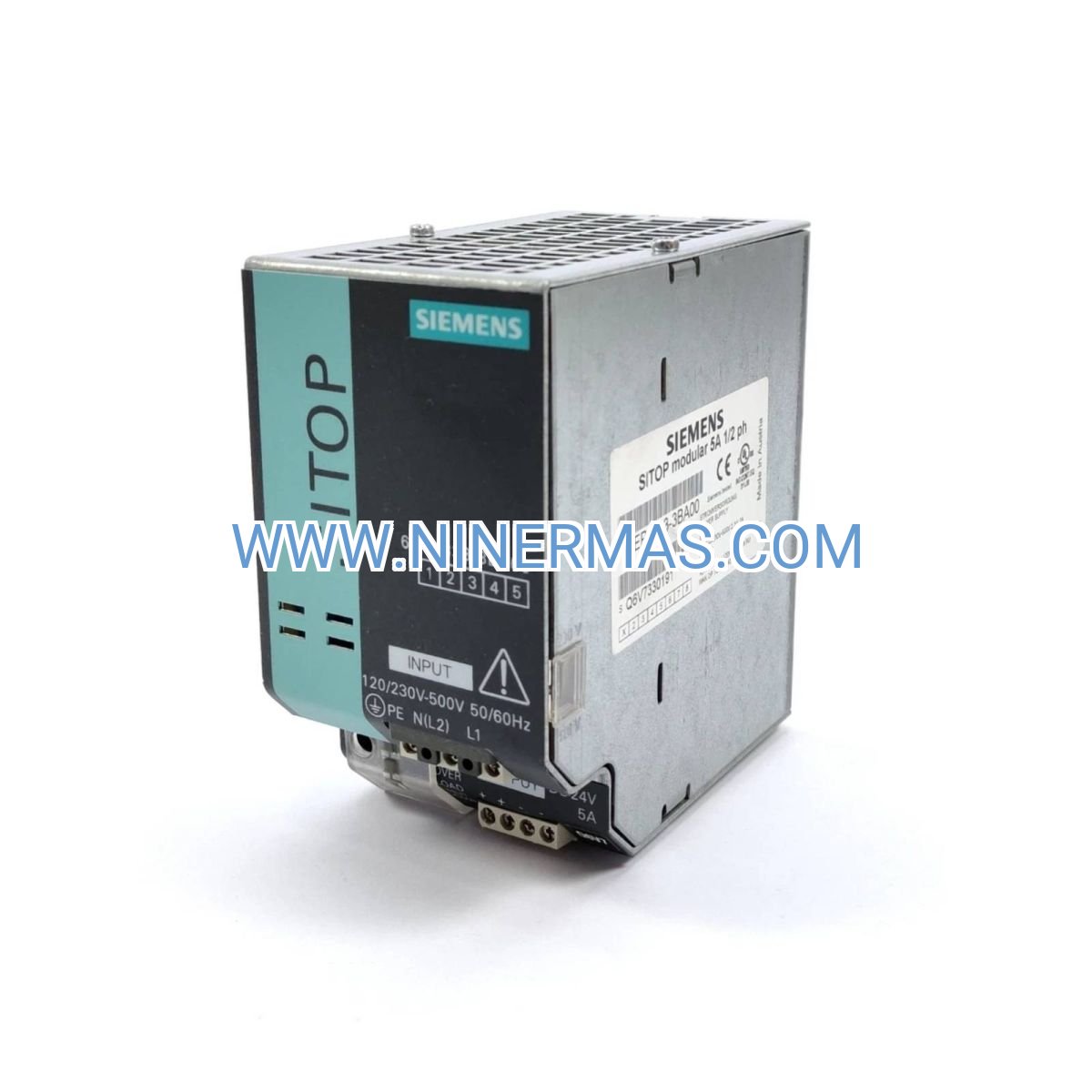

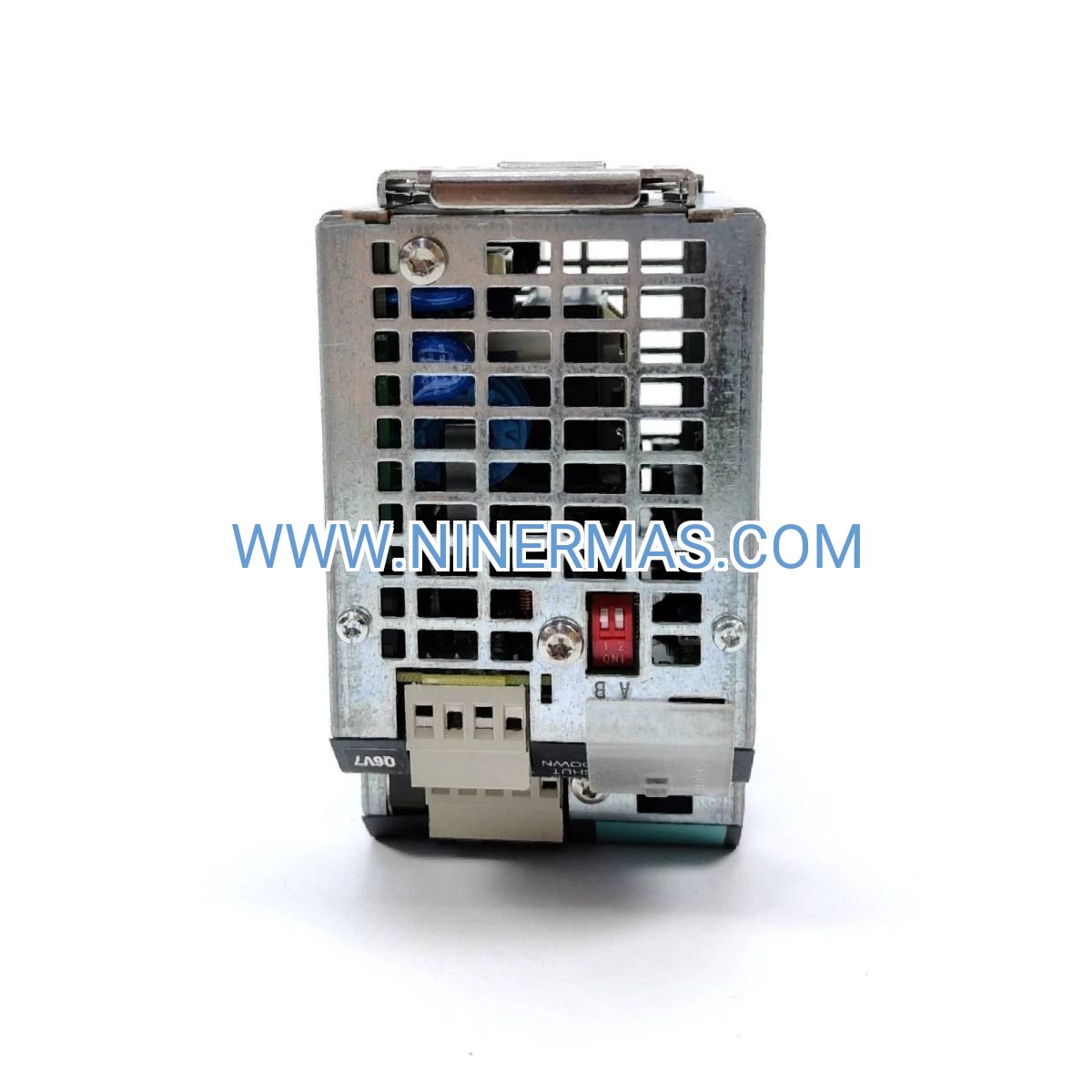

SITOP PSU200M 6EP1333-3BA00 – Industrial-Grade 24V DC Power Supply

The Siemens 6EP1333-3BA00 represents a professional-grade stabilized power solution engineered for continuous 24V DC delivery in automation-intensive environments. This SITOP PSU200M unit combines universal input flexibility with robust 5-ampere output capacity, addressing the critical power demands of modern industrial control systems. Built on Siemens' proven SITOP platform, it serves as the backbone for PLC networks, distributed I/O architectures, and sensor arrays where voltage stability directly impacts operational reliability.

Designed for system integrators and plant engineers, this power supply eliminates voltage compatibility concerns through its 120/230-500V AC universal input range. Whether deployed in North American 120V facilities, European 230V installations, or specialized 500V industrial grids, the unit auto-adjusts without manual intervention. The compact DIN rail form factor optimizes panel space utilization while maintaining thermal performance across -25°C to +70°C ambient conditions.

With 91% typical efficiency and comprehensive protection circuitry, the 6EP1333-3BA00 delivers measurable advantages: reduced energy costs, extended component lifespan, and minimized downtime through intelligent fault management. Its parallel-ready architecture supports scalable redundancy configurations, making it the strategic choice for mission-critical applications demanding five-nines availability.

Core Capabilities & Technical Advantages

✓ Universal Input Voltage Architecture
Accepts 120V, 230V, or 500V AC single-phase input without configuration changes. Eliminates the need for voltage-specific inventory and simplifies multi-site deployments across different power grids. Automatic input detection reduces installation errors and commissioning time by up to 40%.

✓ Precision-Regulated 24V DC Output
Maintains ±3% voltage regulation under full load conditions, ensuring consistent performance for voltage-sensitive automation components. The 5-ampere continuous rating supports up to 120 watts of connected load with built-in current limiting to prevent cascade failures during short-circuit events.

✓ Advanced Multi-Layer Protection
Integrated overload shutdown, short-circuit immunity, and thermal monitoring safeguard both the power supply and downstream equipment. Auto-restart functionality restores operation once fault conditions clear, reducing manual intervention requirements in remote installations.

✓ High-Efficiency Energy Conversion
Achieves up to 91% efficiency at nominal load, translating to lower heat generation and reduced cooling requirements. Over a 10-year operational lifecycle, this efficiency advantage can save hundreds of dollars in energy costs per unit while extending component longevity.

✓ Parallel Operation & Redundancy Support
Compatible with SITOP redundancy modules for N+1 configurations, enabling seamless failover protection. Multiple units can be paralleled to increase total current capacity or create fault-tolerant power architectures for critical process control applications.

✓ Industrial-Hardened Construction
IP20-rated enclosure with conformal coating protection resists humidity, dust, and chemical exposure common in manufacturing environments. Vibration-resistant terminal blocks and wide operating temperature range (-25°C to +70°C) ensure reliable performance in harsh conditions.

Application Scenarios & Industry Solutions

→ Programmable Logic Controller (PLC) Systems
Provides stable 24V DC power for Siemens S7-1200, S7-1500, S7-300, and LOGO! controller families. The regulated output prevents voltage sag during high inrush current events, eliminating false triggers and program execution errors. Ideal for distributed control systems requiring multiple power zones with centralized monitoring.

→ Manufacturing Process Automation
Supports distributed I/O modules, proximity sensors, photoelectric sensors, and pneumatic valve manifolds in assembly lines and packaging equipment. The unit's fast transient response maintains voltage stability during rapid load changes, critical for high-speed production environments where millisecond-level precision matters.

→ Building Management & HVAC Control
Powers BACnet/Modbus controllers, damper actuators, variable air volume (VAV) boxes, and lighting control panels in commercial facilities. The wide input range accommodates aging building electrical infrastructure while the compact footprint fits existing control cabinets without panel redesign.

→ Machine Tool & CNC Equipment
Ensures uninterrupted power to servo drive control circuits, tool changers, coolant pumps, and safety interlock systems. The parallel operation capability allows hot-swappable redundancy configurations, enabling maintenance without production shutdown in 24/7 machining operations.

→ Water Treatment & Pumping Stations
Delivers reliable power for remote telemetry units (RTUs), level transmitters, flow meters, and chemical dosing controllers in unmanned facilities. The extended temperature rating and protection features withstand outdoor enclosure installations and corrosive atmospheres typical of wastewater applications.

Technical Specifications & Selection Criteria

Selection Guidelines: Calculate total current consumption of all connected 24V DC devices and add 25-30% safety margin. For applications requiring more than 4 amperes continuous draw, select this 5A model. If total load exceeds 5A, consider the 10A variant (6EP1334-3BA00) or parallel multiple units. For outdoor installations or temperatures below -25°C, consult factory for extended-range options.

Extended Integration Capabilities

SITOP Manager Software Integration: When paired with SITOP diagnostics modules, the power supply provides real-time monitoring of output voltage, current, and temperature via PROFINET or Modbus TCP. Predictive maintenance alerts notify operators of degraded capacitors or cooling issues before failure occurs, reducing unplanned downtime by up to 60%.

Redundancy Module Compatibility: Combine with SITOP redundancy modules (6EP1961-3BA00 series) to create diode-OR configurations where two power supplies share the load. If one unit fails, the second automatically assumes full load without voltage interruption, critical for pharmaceutical manufacturing and data center applications.

Customization Options: Available with factory-configured output voltage settings (22V, 26V, 28V) for specialized equipment requirements. Extended temperature variants (-40°C to +70°C) and conformal coating levels (2C, 3C) can be specified for extreme environment deployments.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major cities: 3-5 business days domestic, 7-10 business days international.

Custom Configuration Lead Time: Factory-programmed voltage settings or extended temperature variants require 3-4 weeks production time plus shipping.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes free replacement unit and return shipping for verified failures.

Technical Support: Access to application engineers for sizing calculations, wiring diagrams, and troubleshooting assistance. Phone and email support available Monday-Friday, 8:00 AM - 6:00 PM CST.

Documentation Package: Each unit includes installation manual, wiring diagrams, CE declaration of conformity, and dimensional drawings. CAD files (STEP, DXF) and EPLAN macros available for download.

Frequently Asked Questions

Q: What is the maximum cable length between the power supply and connected PLC?
A: For 24V DC distribution, limit cable runs to 100 meters using 1.5mm² wire to maintain voltage drop below 5%. For longer distances, use 2.5mm² wire or install additional power supplies closer to the load. Always calculate voltage drop based on total current and wire gauge.

Q: Can this power supply operate in parallel with different SITOP models?
A: Parallel operation requires identical output voltage settings and must use SITOP redundancy modules. Mixing different current ratings (5A + 10A) is supported, but total load should not exceed the smaller unit's capacity for balanced current sharing. Direct paralleling without redundancy modules is not recommended.

Q: How much energy cost savings can I expect compared to older linear power supplies?
A: Switching power supplies like the 6EP1333-3BA00 achieve 91% efficiency versus 50-60% for linear designs. For a 100W continuous load running 24/7, this translates to approximately $45-65 annual savings per unit at $0.12/kWh electricity rates, with payback period under 2 years.

Q: What installation clearances are required for proper cooling?
A: Maintain 50mm (2 inches) clearance above and below the unit for convection cooling. Side-by-side mounting is acceptable with no spacing required. For ambient temperatures above 60°C, derate output current by 2.5% per degree or add forced ventilation.

Q: Is remote monitoring possible without additional hardware?
A: The base 6EP1333-3BA00 model provides DC OK relay contact for basic status monitoring. For voltage/current measurement and SCADA integration, add the SITOP PSE200U diagnostics module (6EP1961-2BA21), which communicates via PROFINET, Modbus TCP, or Ethernet/IP.

Q: What protection exists against input voltage surges or lightning strikes?
A: Built-in varistor protection handles transient overvoltages up to 2.5kV per IEC 61000-4-5. For installations in lightning-prone areas or with overhead power lines, add external surge protection devices (SPD) rated for the specific threat level.

Order Your SITOP PSU200M Power Supply Today

Ensure uninterrupted operation of your automation systems with the proven reliability of Siemens SITOP technology. Contact our technical sales team for application-specific sizing assistance, volume pricing, or custom configuration options. All orders include comprehensive documentation and access to our engineering support resources.
