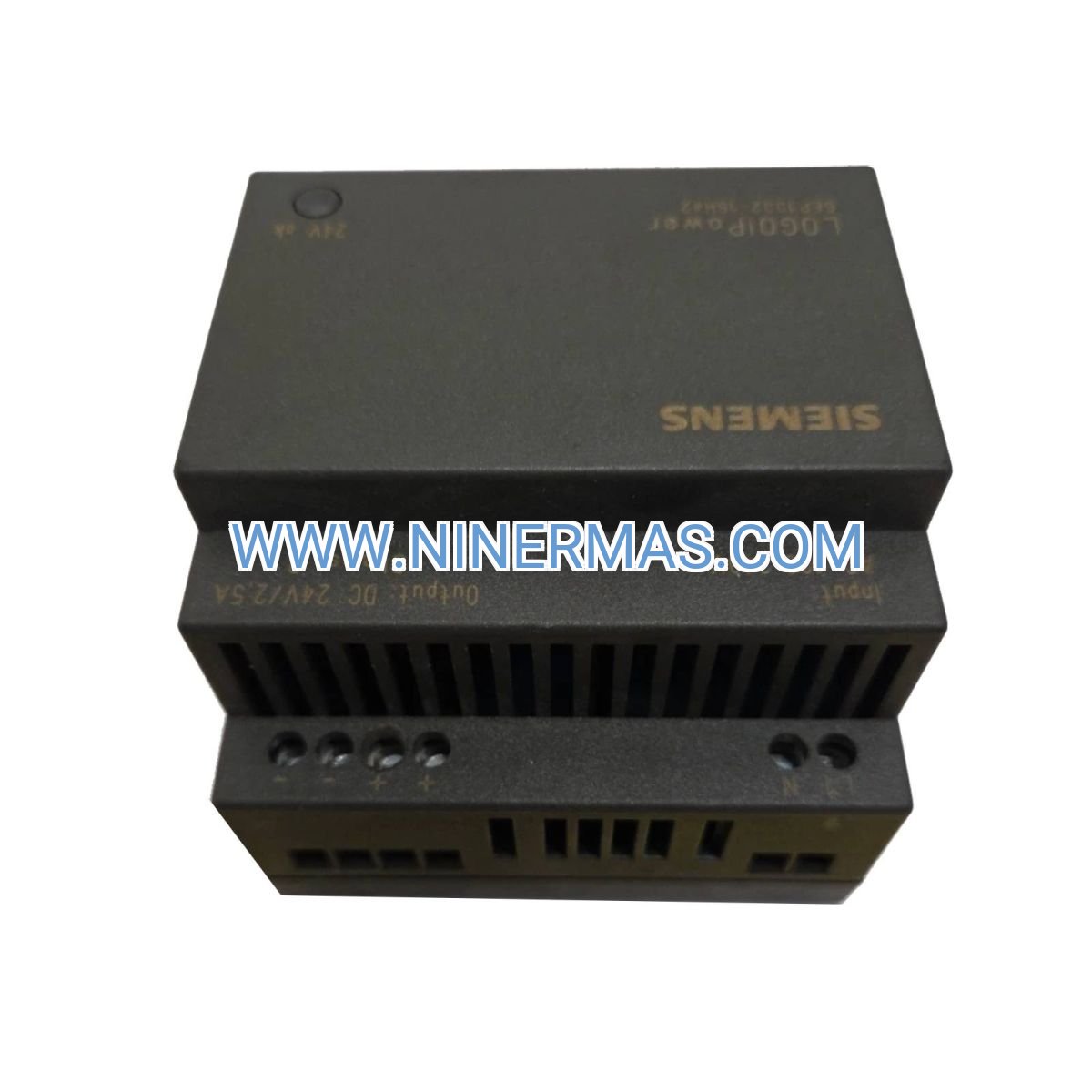

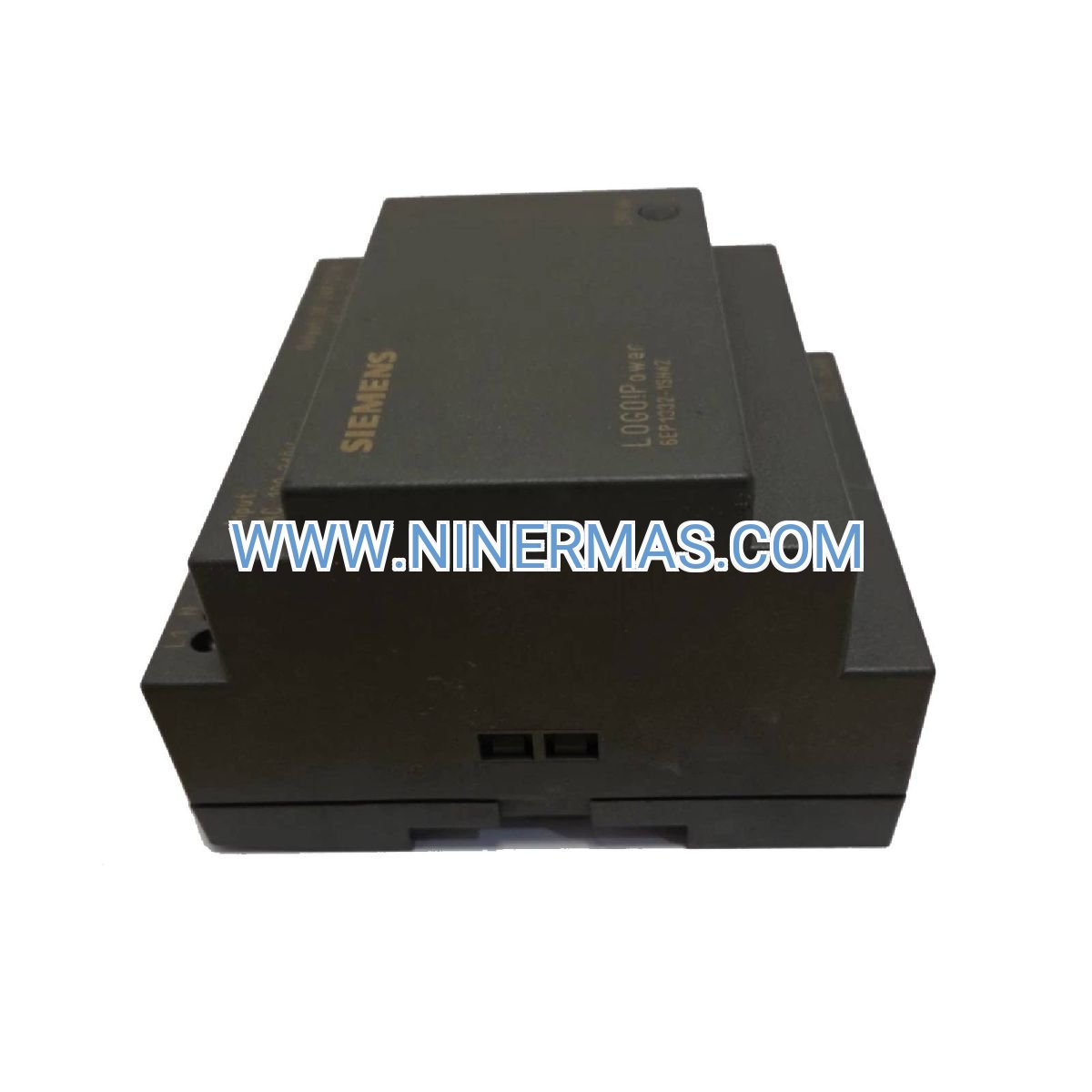

Siemens 6EP1332-1SH42 LOGO!Power (Industrial-Grade 24V DC Stabilized Supply)

The Siemens 6EP1332-1SH42 represents a proven solution for delivering consistent, regulated 24-volt DC power to industrial control architectures. Engineered for continuous operation in demanding manufacturing, process control, and building automation environments, this compact DIN-rail power module converts universal 100–240V AC mains into clean 2.5-ampere DC output with minimal ripple and exceptional load regulation.

Designed to support LOGO! programmable logic relays, distributed I/O systems, sensor networks, and auxiliary control circuits, the 6EP1332-1SH42 addresses the critical need for reliable, space-efficient power in modern automation panels. Its wide input tolerance and built-in protection mechanisms ensure uninterrupted operation even under fluctuating grid conditions or transient faults.

Whether you're retrofitting legacy control cabinets or designing new installations, this LOGO!Power unit delivers the performance, safety certifications, and global compatibility required for mission-critical industrial applications across manufacturing, infrastructure, and facility management sectors.

Core Features & Technical Advantages

✓ Universal Input Compatibility: Accepts 100–240V AC (±10%) at 50/60 Hz, enabling deployment across global voltage standards without modification—ideal for multinational facilities and OEM equipment exports.

✓ Precision Voltage Regulation: Maintains 24V DC output within ±3% tolerance across full load range, protecting sensitive microprocessor-based controllers and analog instrumentation from voltage-induced errors.

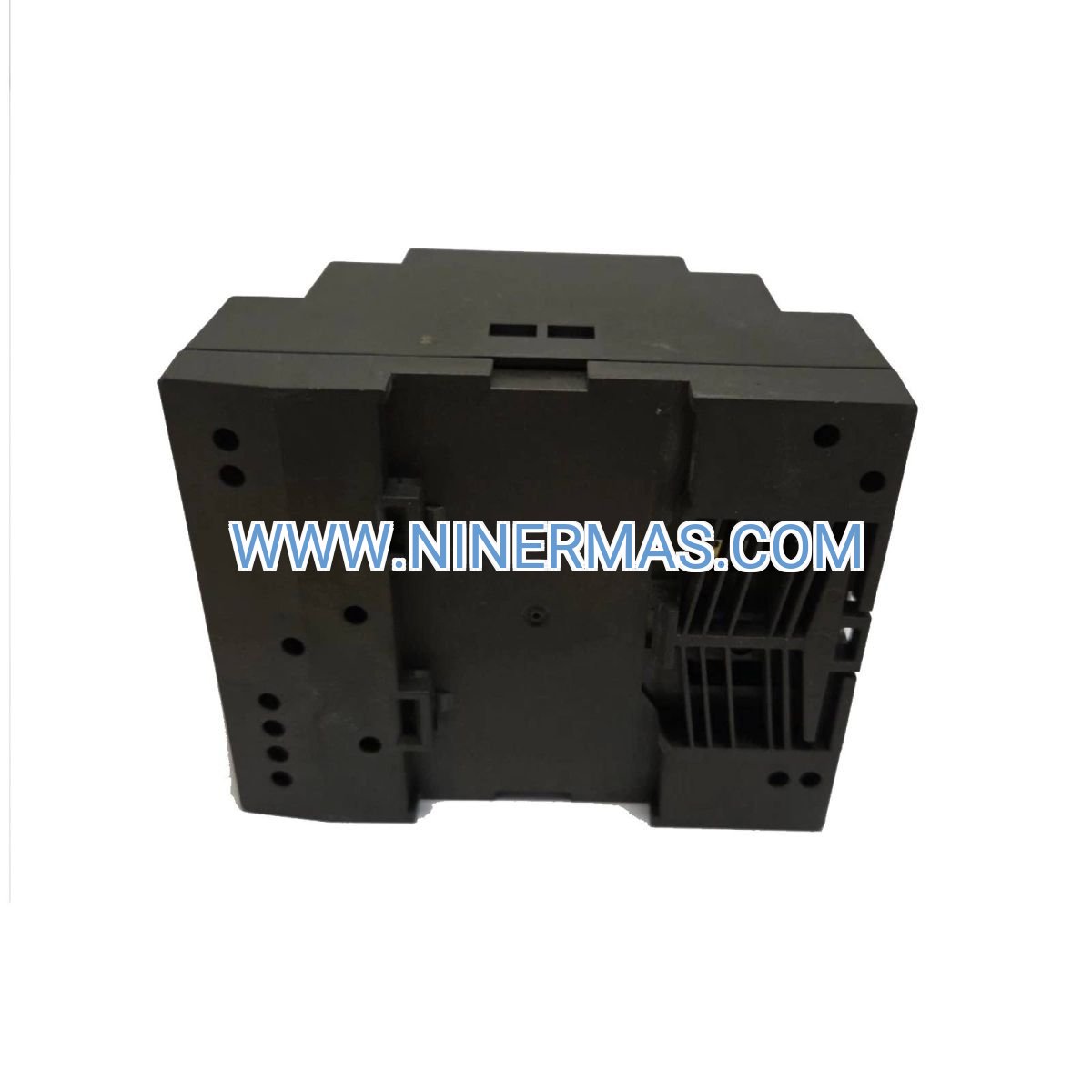

✓ Compact DIN-Rail Architecture: 72×90×58mm footprint mounts directly to standard 35mm DIN rail, maximizing usable panel space while simplifying installation and future maintenance access.

✓ Multi-Layer Circuit Protection: Integrated short-circuit shutdown, overload limiting, and overvoltage suppression safeguard both the power supply and connected equipment from fault conditions and electrical anomalies.

✓ Extended Temperature Performance: Operates reliably from -25°C to +70°C ambient without derating, supporting installations in unheated warehouses, outdoor enclosures, and high-temperature process areas.

✓ High-Efficiency Conversion: Achieves >88% efficiency at rated load, reducing heat generation, lowering energy costs, and extending component lifespan through reduced thermal stress.

Industrial Application Scenarios

→ Building Automation & HVAC Control: Powers LOGO! logic modules managing lighting sequences, access control, and climate regulation in commercial buildings. Solves the challenge of distributed control points requiring localized, reliable DC power without oversized centralized supplies.

→ Water & Wastewater Treatment: Energizes pump controllers, level sensors, and valve actuators in treatment facilities. Addresses the need for corrosion-resistant, humidity-tolerant power sources in harsh chemical environments with wide temperature swings.

→ Manufacturing Line Control: Supplies conveyor controllers, safety relays, and HMI panels in production equipment. Resolves space constraints in compact machine control cabinets while meeting stringent EMC requirements for noise-sensitive environments.

→ Renewable Energy Systems: Supports monitoring and control circuits in solar inverter installations and wind turbine control panels. Provides stable auxiliary power independent of variable renewable generation, ensuring continuous system supervision.

→ Infrastructure & Transportation: Powers signaling equipment, barrier controllers, and communication modules in parking systems, toll gates, and railway applications. Delivers the reliability and certification compliance required for public safety installations.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total current draw of all connected devices and add 20–30% safety margin. For loads exceeding 2.0A continuous, consider the 6EP1332-1SH43 (4A) or 6EP3333-6SB00-0AY0 (4A) models. Verify ambient temperature does not exceed +70°C; for higher temperatures, implement forced ventilation or select a derated higher-capacity unit. Ensure panel layout provides minimum 10mm clearance above and below unit for convection cooling.

Extended Functionality & Integration

Parallel Operation Capability: Multiple units can be connected in parallel using decoupling diodes to increase total available current for redundant or high-power applications, providing N+1 backup power architecture.

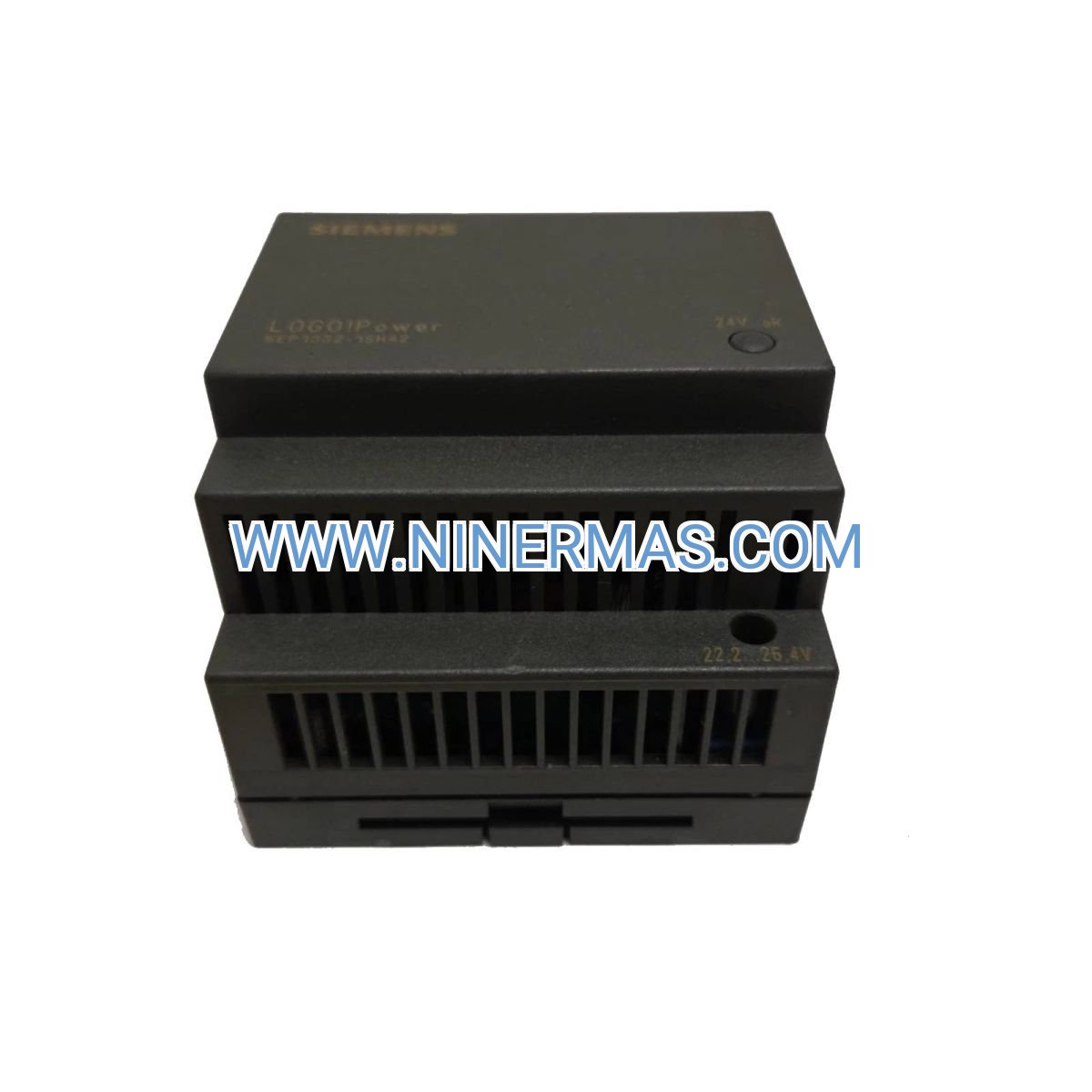

Status Monitoring: Green LED indicator provides instant visual confirmation of normal operation; LED extinguishes during output fault conditions, enabling rapid troubleshooting during commissioning or maintenance.

Global Compliance: Meets international safety and EMC standards including EN 60950-1, EN 55011 Class B, and marine certifications (GL, DNV), supporting equipment deployment in regulated industries and export markets.

Maintenance-Free Design: Electrolytic capacitor technology rated for 100,000+ hours MTBF at 40°C, eliminating scheduled replacement intervals and reducing lifecycle ownership costs.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1–3 business days via express courier. Typical delivery to major Asia-Pacific cities: 3–5 days; Europe/Americas: 5–7 days.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes replacement unit shipment and return logistics support.

Technical Support: Pre-sales application engineering assistance available for system design, load calculation, and product selection. Post-sales support includes installation guidance, troubleshooting protocols, and integration documentation.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, and certification declarations. Additional resources including CAD models and compliance certificates available upon request.

Frequently Asked Questions

Q: What is the maximum inrush current during power-on, and will it trip upstream circuit breakers?
A: Inrush current is limited to <20A for <5ms duration. Standard 10A Type C circuit breakers will not trip. For sensitive installations, consider soft-start modules or higher-rated breakers.

Q: Can this power supply operate continuously at 2.5A output in a 60°C ambient environment?
A: Yes, the unit is rated for full 2.5A continuous operation up to +70°C ambient without derating, provided minimum ventilation clearances are maintained per installation guidelines.

Q: How does the 6EP1332-1SH42 differ from the 6EP1332-1SH43 model in the same series?
A: Both deliver identical 24V/2.5A output. The SH43 variant includes enhanced diagnostic LED indicators and improved EMC filtering for installations with stringent electromagnetic compatibility requirements.

Q: Is this power supply suitable for powering non-Siemens PLCs and control equipment?
A: Absolutely. This is a universal 24V DC regulated supply compatible with any industrial equipment requiring 24V power within the 2.5A rating, including Allen-Bradley, Schneider, Omron, and Mitsubishi controllers.

Q: What wire gauge should be used for input and output connections to minimize voltage drop?
A: For input: 18 AWG (0.75mm²) minimum for runs <3 meters. For output: 16 AWG (1.5mm²) recommended for 2.5A loads; use 14 AWG (2.5mm²) for runs exceeding 10 meters to maintain regulation at load.

Q: Does the unit require external fusing, or is overcurrent protection integrated?
A: Internal electronic current limiting and short-circuit protection are built-in. However, input-side fusing (2A slow-blow recommended) is required per electrical codes for branch circuit protection and isolation.

Ready to Ensure Reliable Power for Your Control Systems?

The Siemens 6EP1332-1SH42 LOGO!Power supply delivers the proven performance and global certifications your industrial applications demand. Contact our technical team today for application-specific guidance, volume pricing, or to request a detailed quotation for your project.
