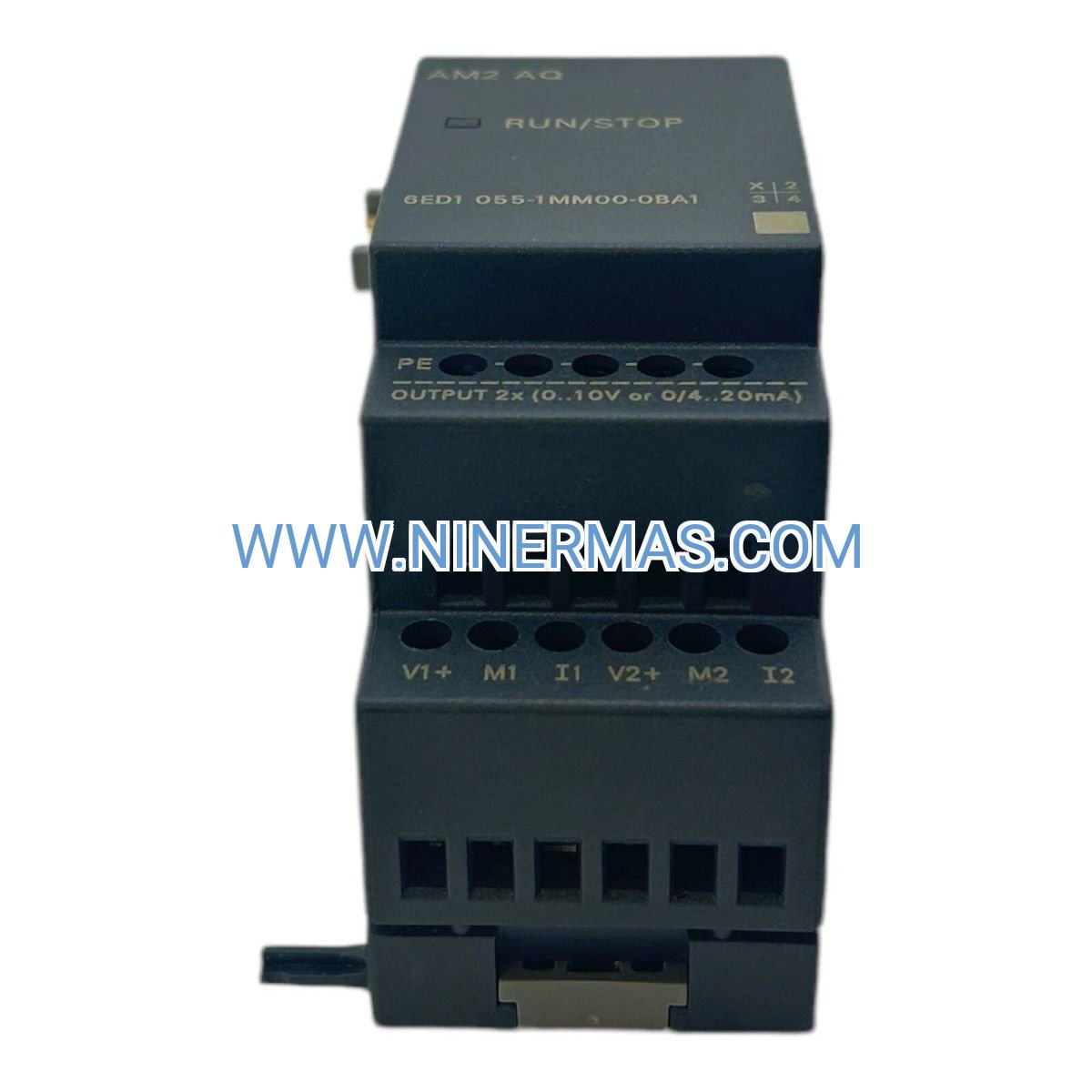

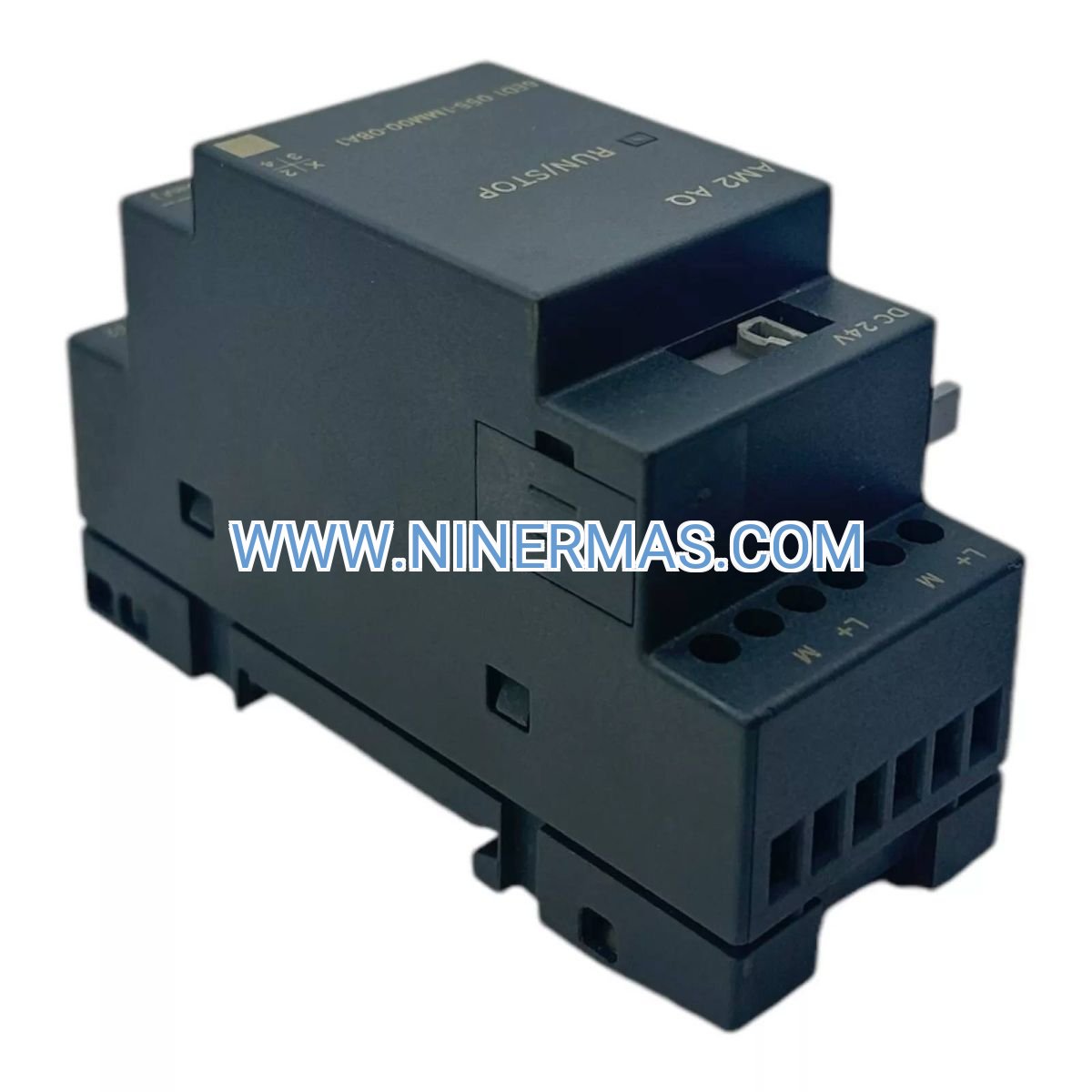

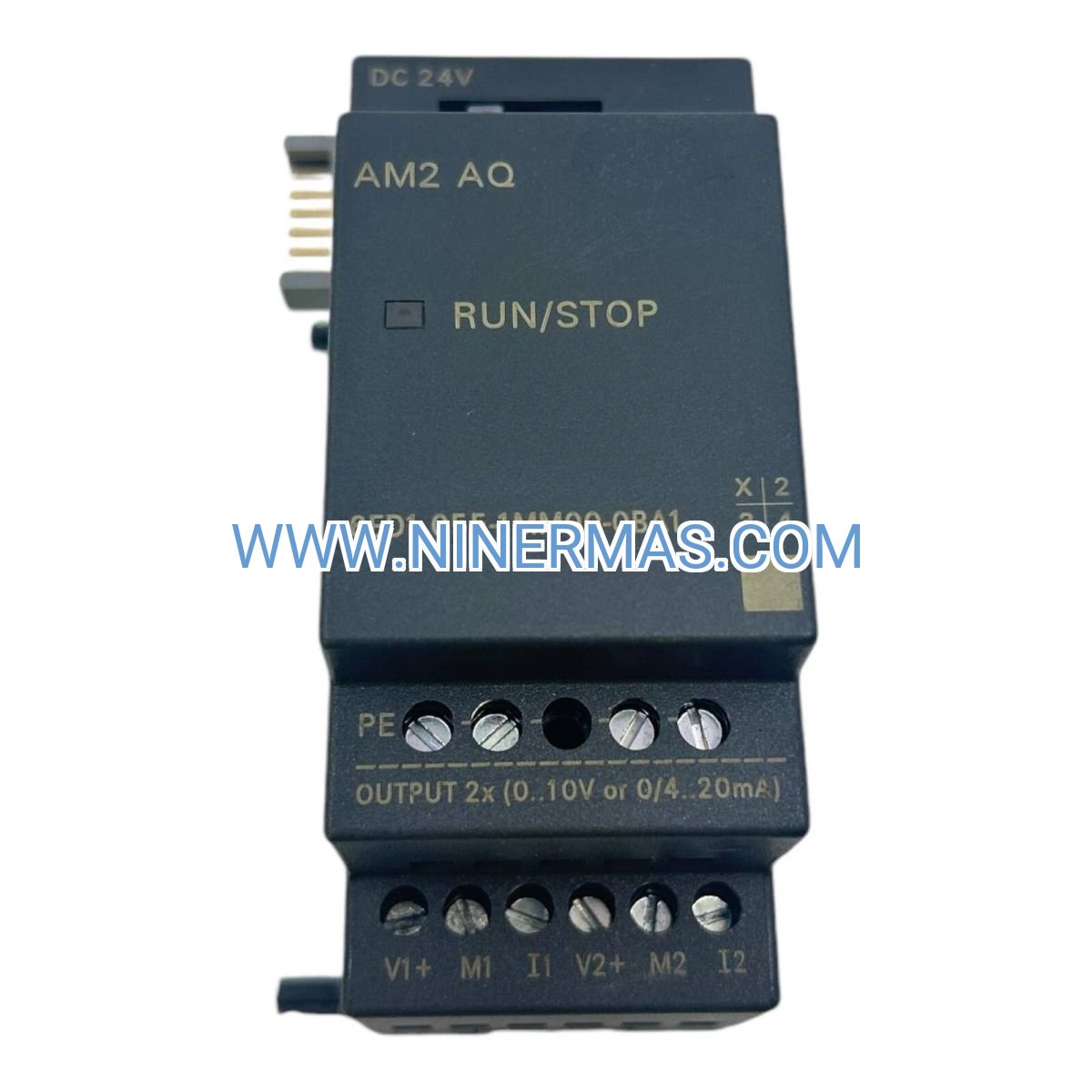

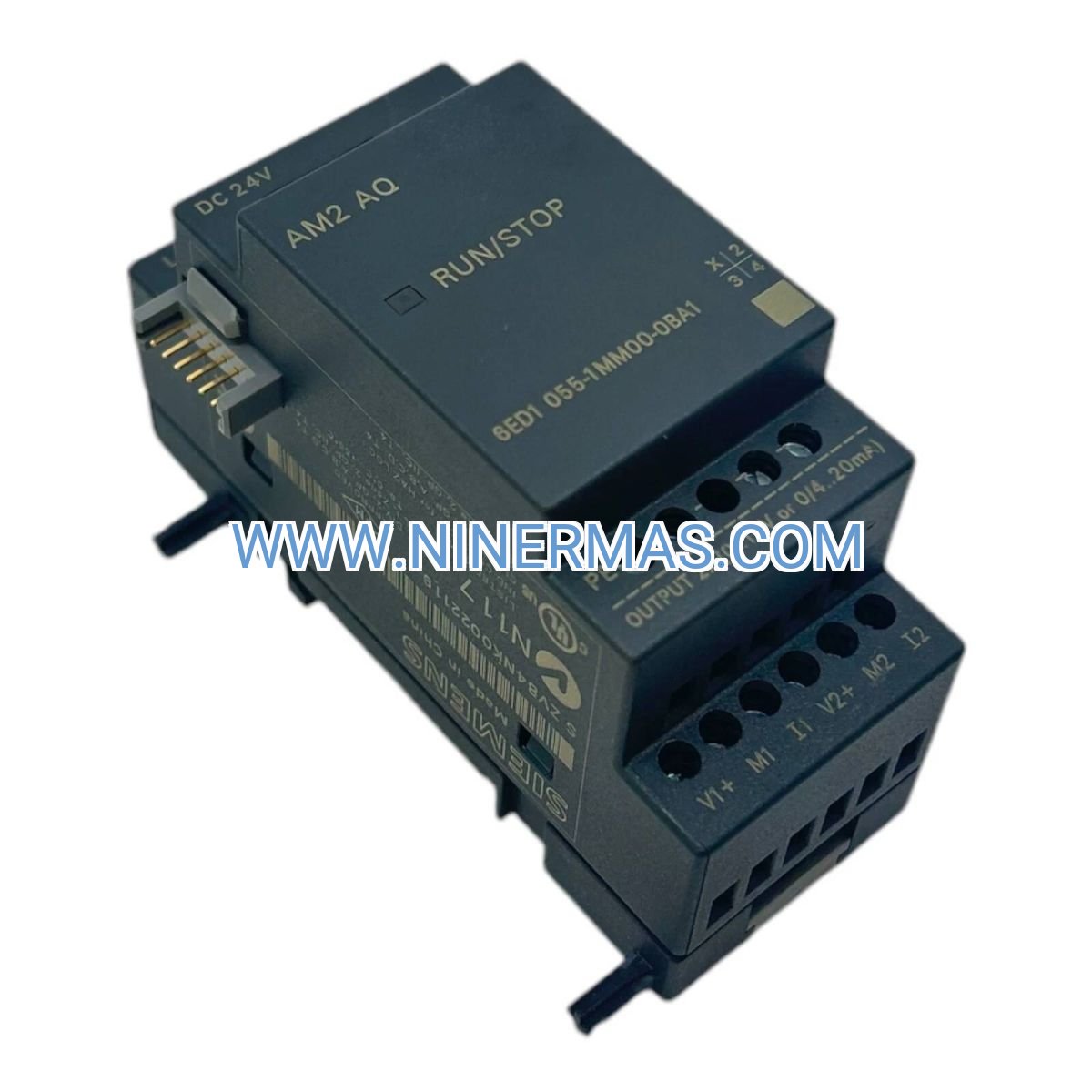

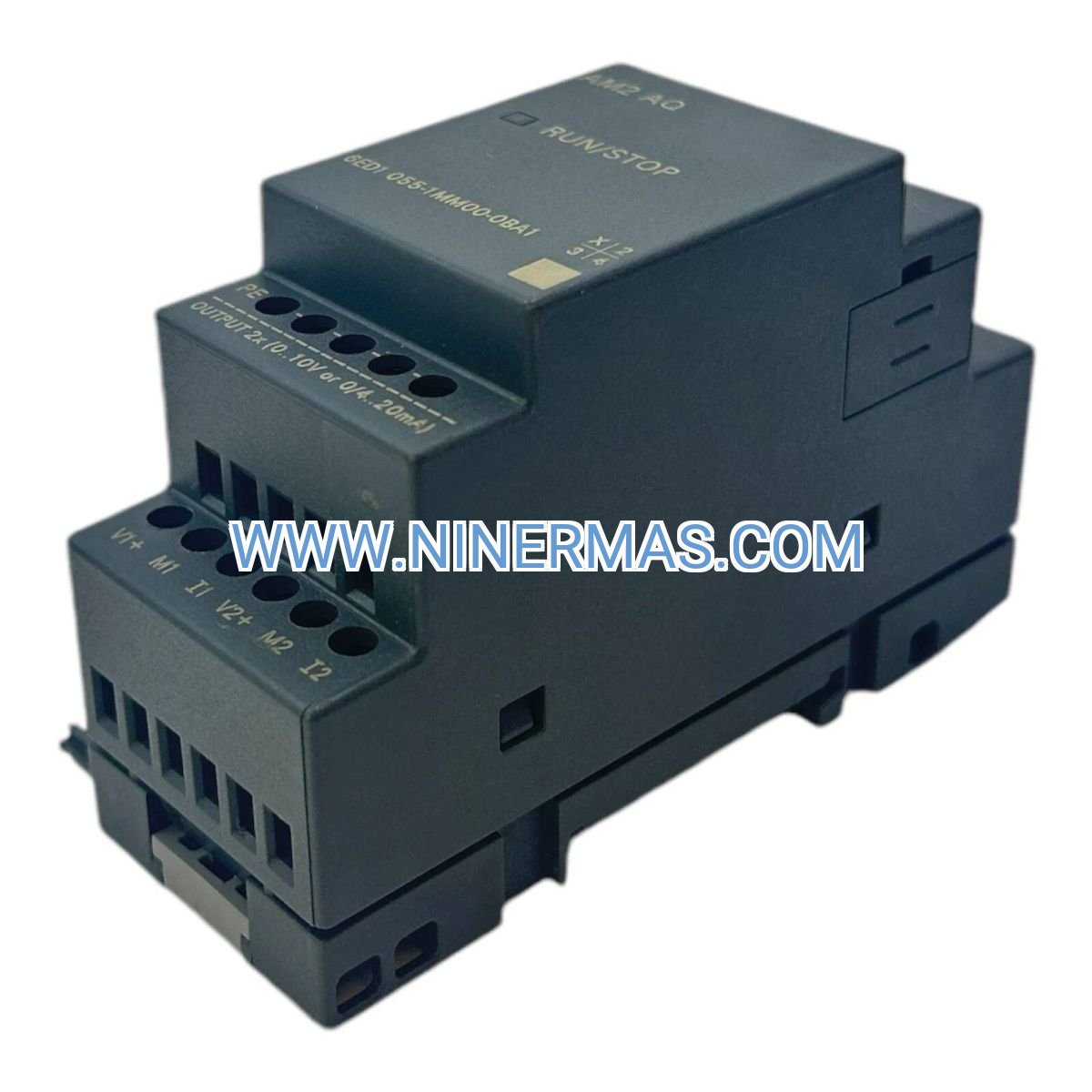

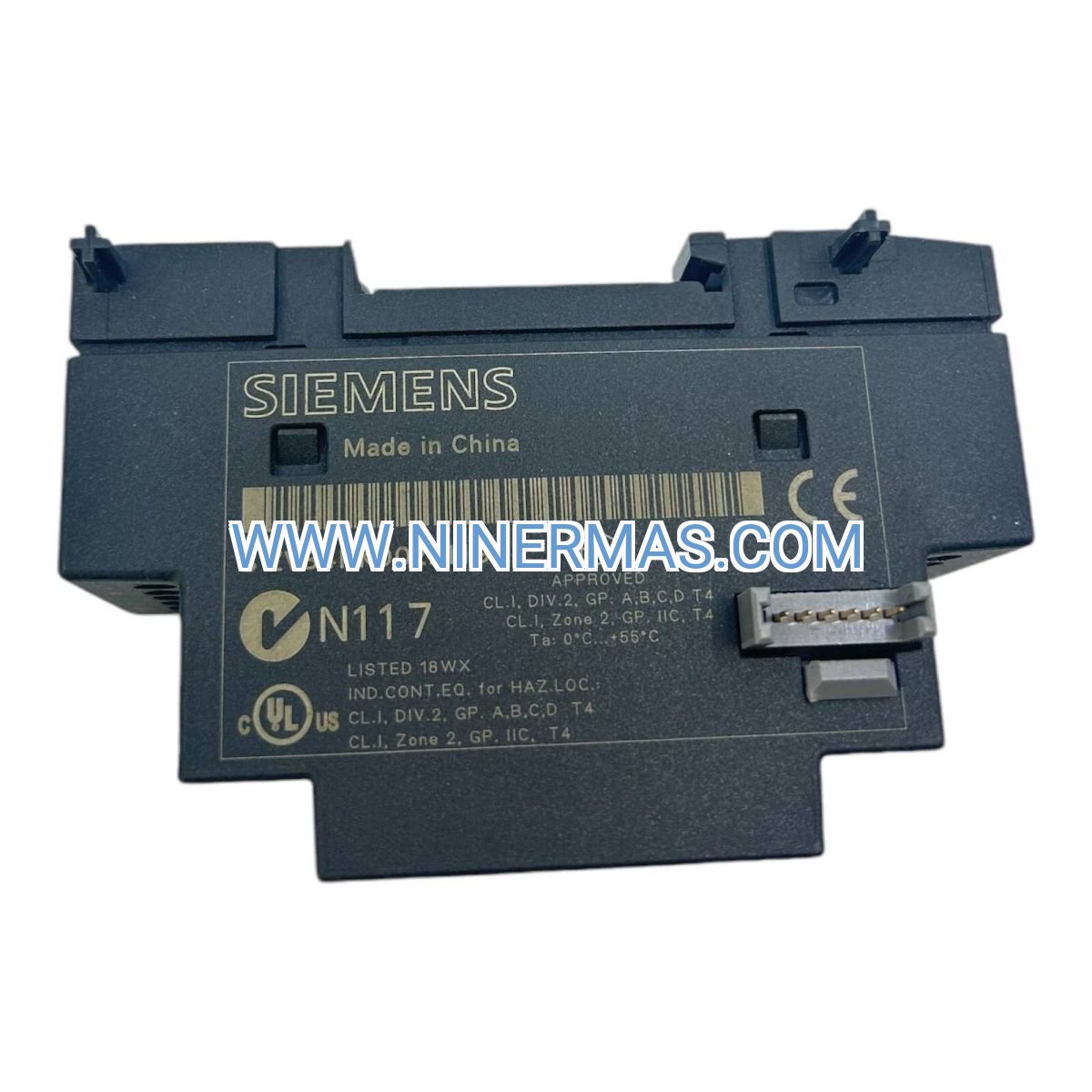

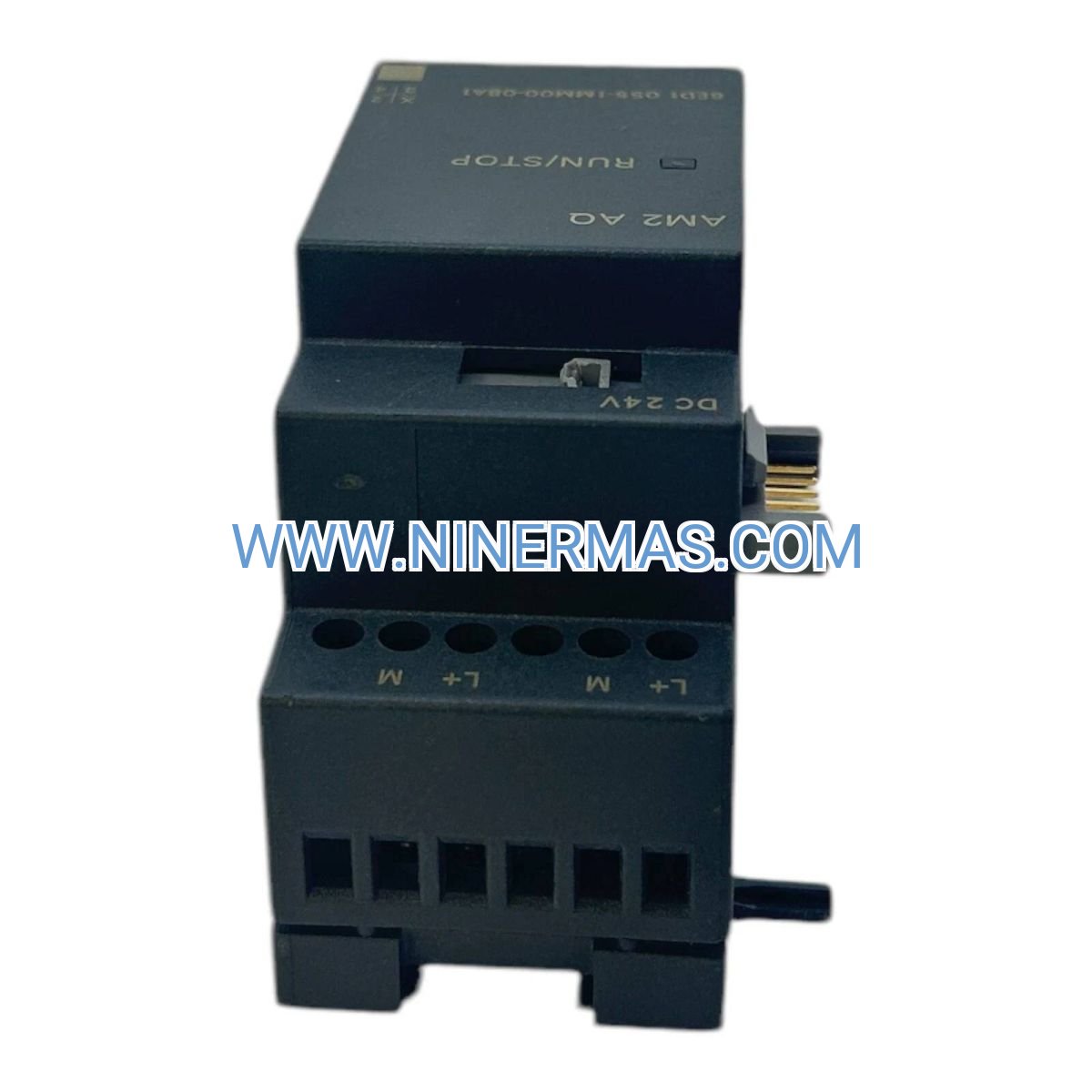

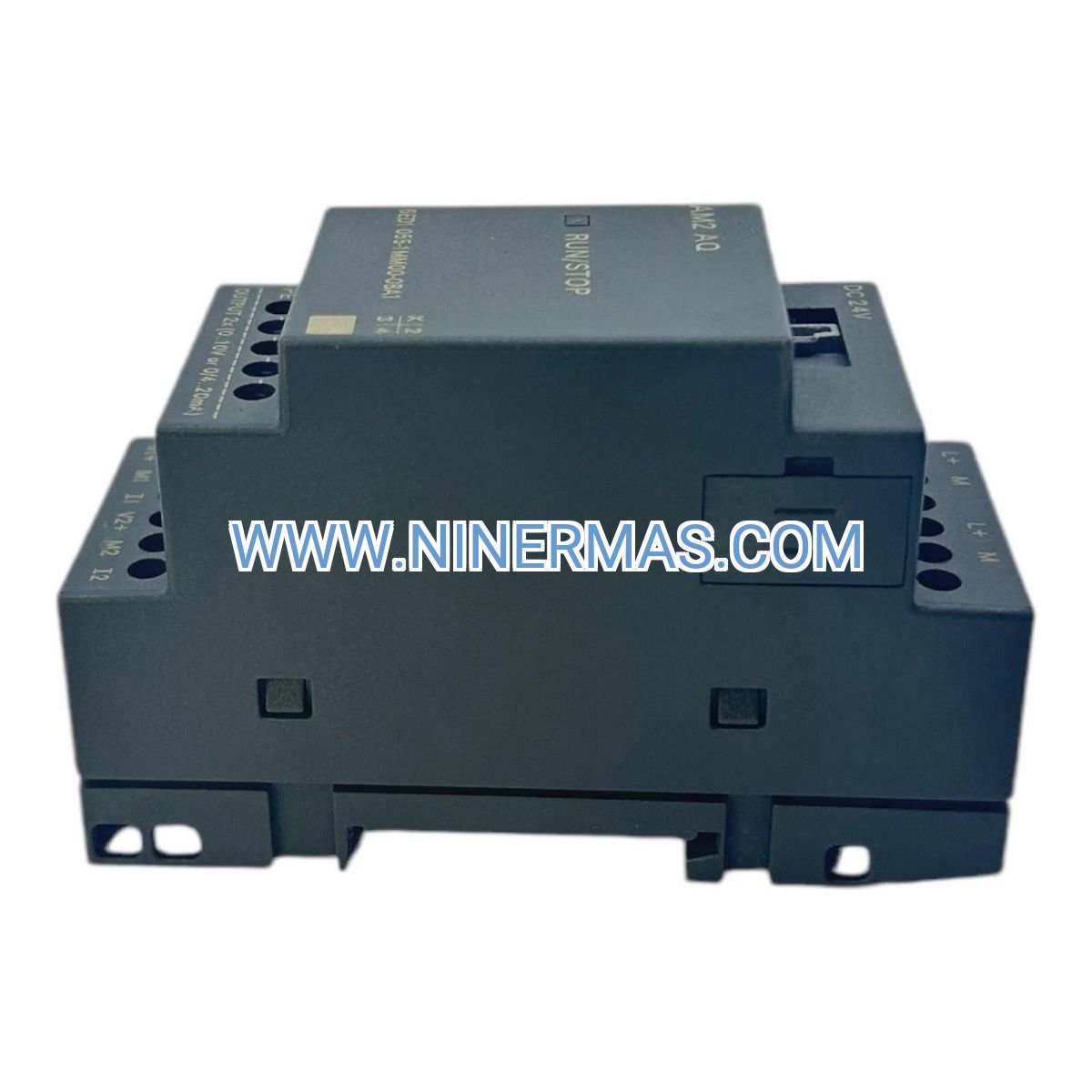

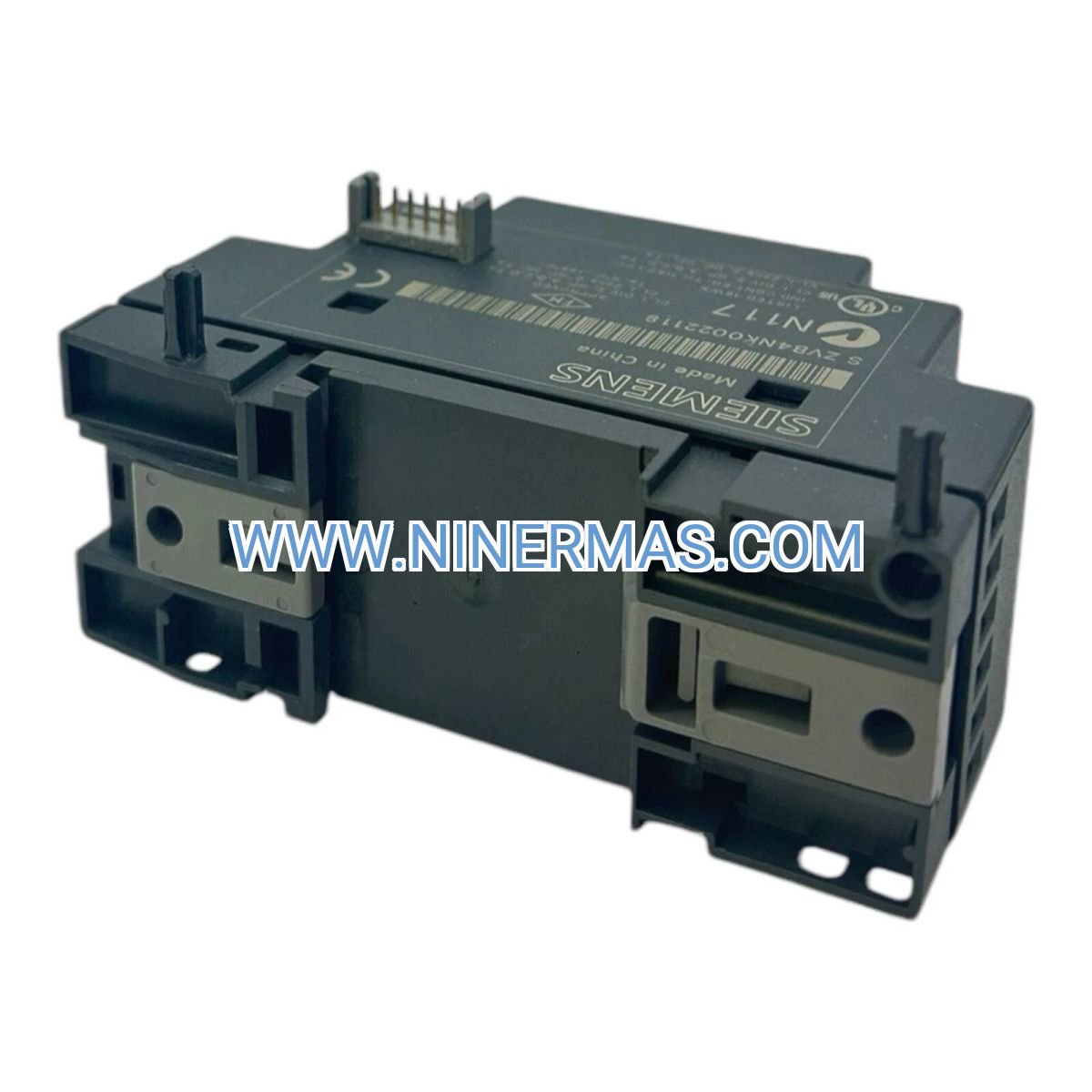

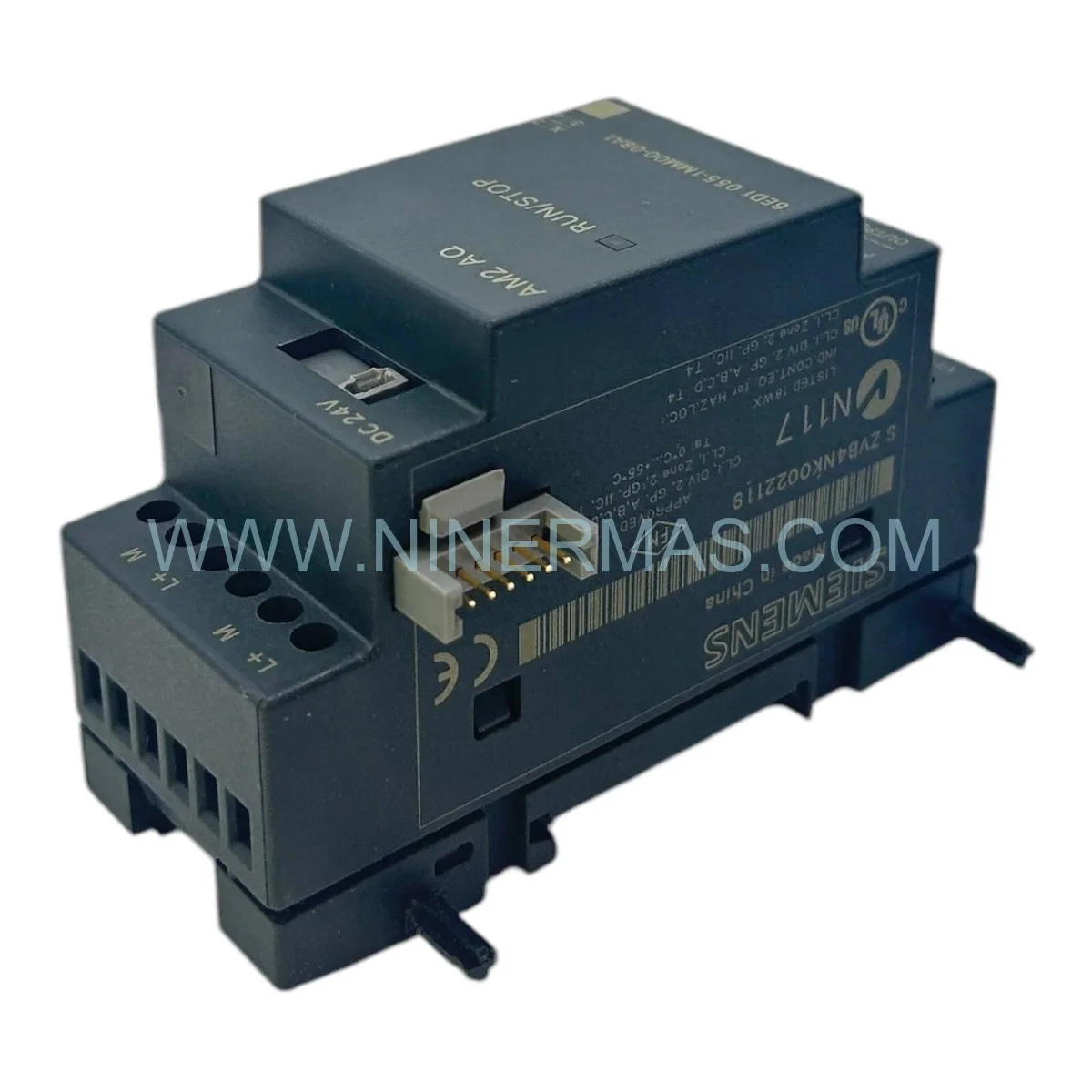

Siemens AM2 AQ Analog Output Module (Industrial-Grade Control Interface)

The Siemens 6ED1055-1MM00-0BA1 represents a professional-grade analog output solution engineered for LOGO! programmable logic controllers. This dual-channel expansion module transforms digital control signals into precise 0-10V analog outputs, bridging the gap between logic-based automation and proportional control devices. Designed for industrial environments demanding reliable signal conversion, the AM2 AQ module serves as the critical interface between your LOGO! controller and variable-speed equipment, positioning actuators, or process instrumentation.

Manufacturing facilities, building management systems, and process automation engineers rely on this module to achieve granular control over motors, valves, and drives that require continuous modulation rather than simple on/off switching. The compact DIN rail form factor integrates seamlessly into control cabinets alongside LOGO! 12/24RC and 230RC base units, while plug-in terminal blocks simplify field wiring and maintenance procedures.

With 10-bit resolution delivering 1024 discrete output levels across the voltage range, the AM2 AQ module enables smooth transitions and precise setpoint tracking essential for temperature loops, flow regulation, and speed control applications. Hot-swap capability and diagnostic LED indicators minimize downtime during troubleshooting and component replacement operations.

Core Capabilities & Technical Advantages

✓ Dual Independent Channels: Two isolated 0-10V outputs allow simultaneous control of separate devices—regulate damper position while modulating pump speed from a single module, reducing hardware costs and cabinet space requirements.

→ Plug-and-Expand Architecture: Direct connection to LOGO! expansion bus eliminates external communication wiring; configuration through LOGO!Soft Comfort software with drag-and-drop function blocks cuts programming time by 60% compared to traditional PLC analog modules.

✓ Industrial Temperature Range: Certified operation from 0°C to +55°C ensures reliable performance in unheated warehouses, rooftop HVAC installations, and production floor environments without climate control.

→ 10-Bit Signal Resolution: 1024-step output granularity provides smooth control transitions critical for applications like lighting dimming (preventing visible flicker) and motor ramping (reducing mechanical stress on driven equipment).

✓ Low Power Consumption: Maximum 5mA per channel output current draws minimal power from the LOGO! base unit, preserving capacity for additional expansion modules and reducing heat generation in compact enclosures.

→ Maintenance-Friendly Design: Hot-swappable installation allows module replacement during system operation; removable terminal blocks enable pre-wiring of replacement units for sub-5-minute changeover during emergency repairs.

Industry Applications & Problem-Solving Scenarios

Building HVAC Systems: Control variable air volume (VAV) dampers and fan speed drives in commercial buildings. The module receives temperature deviation signals from the LOGO! controller and outputs proportional 0-10V commands to actuators, maintaining zone temperatures within ±1°C while reducing energy consumption by 25-40% compared to fixed-speed systems.

Water Treatment Facilities: Regulate chemical dosing pumps based on pH or chlorine sensor feedback. Analog output modulates pump stroke frequency to maintain precise chemical concentrations, preventing over-treatment waste and ensuring regulatory compliance in municipal water systems.

Manufacturing Process Control: Adjust conveyor belt speeds in packaging lines to match upstream production rates. The module enables dynamic speed synchronization between multiple conveyors, eliminating product jams and maintaining consistent spacing for automated inspection systems.

Greenhouse Climate Management: Modulate shade screen positioning and ventilation fan speeds based on light intensity and temperature sensors. Proportional control prevents sudden environmental changes that stress plants, improving crop yields by 15-20% in controlled agriculture operations.

Compressed Air Systems: Control variable frequency drives (VFDs) on air compressors to match demand fluctuations. The analog output adjusts compressor speed in real-time, reducing idle running time and cutting electrical costs by 30-50% in facilities with variable pneumatic tool usage.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the AM2 AQ module when your application requires proportional control of 1-2 devices with 0-10V input requirements. For applications needing 4-20mA current loop outputs, consider the AM2 RTD variant instead. Verify that your LOGO! base unit power supply can support the total current draw of all planned expansion modules—each AM2 AQ adds approximately 50mA to system consumption. When controlling high-power equipment, ensure the receiving device (VFD, actuator) has sufficient input impedance (typically >10kΩ) to prevent signal loading errors.

Advanced Integration Features

LOGO!Soft Comfort Programming: Configure output scaling, offset adjustments, and fault behavior through graphical function blocks. Built-in linearization functions convert non-linear sensor inputs to proportional outputs—for example, mapping logarithmic pH sensor signals to linear valve positioning commands.

Diagnostic Capabilities: Real-time status LEDs indicate module power, communication health, and output activity. The LOGO! controller monitors output current draw to detect open-circuit or short-circuit faults, triggering configurable alarms or switching to backup control modes.

Expansion Bus Communication: Proprietary high-speed serial protocol updates output values every 10ms, enabling responsive control loops for fast-changing processes. The bus architecture supports mixed expansion modules—combine AM2 AQ analog outputs with DM8/DM16 digital modules and AM2 PT100 temperature inputs in a single system.

Customization Options: Factory configuration services available for OEM applications requiring pre-programmed modules or custom terminal labeling. Bulk orders (50+ units) qualify for application-specific firmware modifications and extended temperature range testing.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 1-2 business days via express courier. Typical transit time: 3-5 days for domestic shipments, 7-12 days for international orders. All modules undergo functional testing and firmware verification before dispatch.

Custom Configuration: Pre-programmed modules with customer-specific logic require 10-15 business days for engineering review, programming, and validation testing. Expedited 5-day service available for urgent project requirements (additional fees apply).

Warranty Coverage: 12-month manufacturer warranty covers defects in materials, workmanship, and electronic components. Warranty includes free replacement shipping and technical support for troubleshooting suspected defects.

Technical Support: Lifetime email and phone support for configuration assistance, wiring diagrams, and application troubleshooting. Response time: 4 hours for critical system-down issues, 24 hours for general inquiries. Access to LOGO!Soft Comfort programming examples and sample code library.

Documentation Package: Each module includes installation manual, wiring diagrams, technical datasheet, and CE/UL certification documents. Digital resources: CAD drawings (DWG/STEP formats), EPLAN macros, and PLC program templates available for download.

Frequently Asked Questions

How many AM2 AQ modules can I connect to a single LOGO! controller?
The LOGO! expansion bus supports up to 8 modules total (any combination of digital, analog, and communication modules). With AM2 AQ modules providing 2 outputs each, you can achieve a maximum of 16 analog outputs if all 8 slots use AM2 AQ modules. Verify your base unit's power supply capacity can support the total module count.

What is the output voltage accuracy under varying load conditions?
The module maintains ±0.5% accuracy (±50mV at 10V) with load impedances above 1kΩ at 25°C ambient temperature. Accuracy degrades to ±1% across the full 0-55°C operating range. For applications requiring tighter tolerances, implement software calibration using the LOGO!Soft Comfort offset adjustment function.

Can this module control 4-20mA devices or only 0-10V equipment?
The 6ED1055-1MM00-0BA1 provides voltage outputs only. For current loop applications, use an external V-to-I converter (250Ω precision resistor creates 0-40mA from 0-10V) or specify the AM2 RTD module variant with native 4-20mA outputs. Voltage outputs offer advantages for short cable runs (<50m) and multiple parallel loads.

Does the module require external power or draw from the LOGO! base unit?
All power comes from the LOGO! controller via the expansion connector—no separate 24V supply needed. Each AM2 AQ module consumes approximately 50mA plus output load current (max 10mA for both channels). Ensure your LOGO! power supply has sufficient reserve capacity; 12/24RC models provide 400mA for expansion modules.

Is hot-swapping supported for maintenance without shutting down the system?
Yes, the module supports hot-swap replacement while the LOGO! system remains powered. The controller automatically detects module removal and insertion, re-establishing communication within 2 seconds. Best practice: use the LOGO!Soft Comfort "safe state" function to set outputs to 0V before physical removal to prevent equipment damage.

What cable types and maximum distances are recommended for output wiring?
Use shielded twisted-pair cable (22-18 AWG) for analog signals to minimize electrical noise interference. Maximum recommended distance: 50 meters for 0-10V signals with high-impedance loads (>10kΩ). For longer runs or noisy environments, consider 4-20mA current loop modules which offer superior noise immunity over distances up to 300 meters.

Start Your Precision Control Project

Ready to implement proportional control in your LOGO! automation system? Our technical team can assist with module selection, wiring diagrams, and programming support to ensure successful integration. Contact us for application-specific recommendations, volume pricing for multi-module projects, or to request sample LOGO!Soft Comfort programs for common control scenarios.
