Industrial DM16 230R Digital Expansion Module (8DI/8RO Configuration)

The Siemens 6ED1055-1FB10-0BA2 represents a professional-grade digital I/O expansion solution engineered specifically for LOGO! 8 programmable logic controllers. This DM16 230R module extends system capability with 8 discrete digital inputs and 8 independent relay outputs, delivering reliable 230V AC switching performance for mission-critical industrial control applications across manufacturing, building automation, and process control environments.

Designed for system integrators and automation engineers who demand scalable I/O architecture, this expansion module addresses the challenge of limited controller capacity while maintaining compact footprint and simplified wiring. Whether you're upgrading existing LOGO! installations or designing new control systems, the DM16 230R provides the flexibility to handle complex multi-zone control, sequential operations, and distributed switching requirements without compromising reliability or performance.

With hot-swappable connectivity, DIN rail mounting, and daisy-chain expansion capability, the 6ED1055-1FB10-0BA2 delivers industrial-grade reliability backed by Siemens engineering excellence. Each relay output handles up to 10A switching current, making it suitable for direct motor control, solenoid actuation, lighting circuits, and HVAC equipment management.

Core Features & Technical Advantages

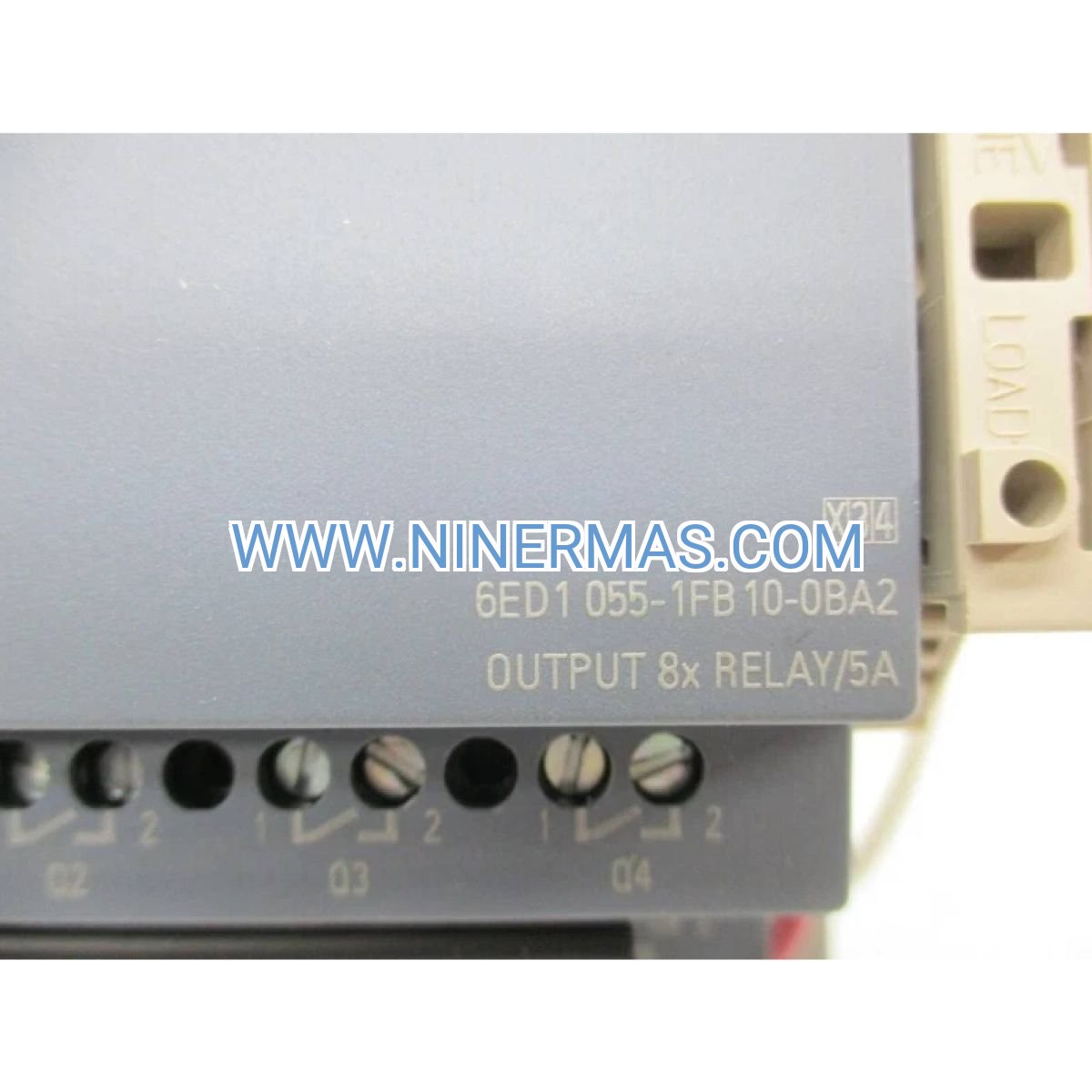

✓ Dual I/O Architecture: 8 digital inputs monitor sensors, switches, and field devices while 8 relay outputs drive loads up to 10A per channel, eliminating the need for external contactors in most applications.

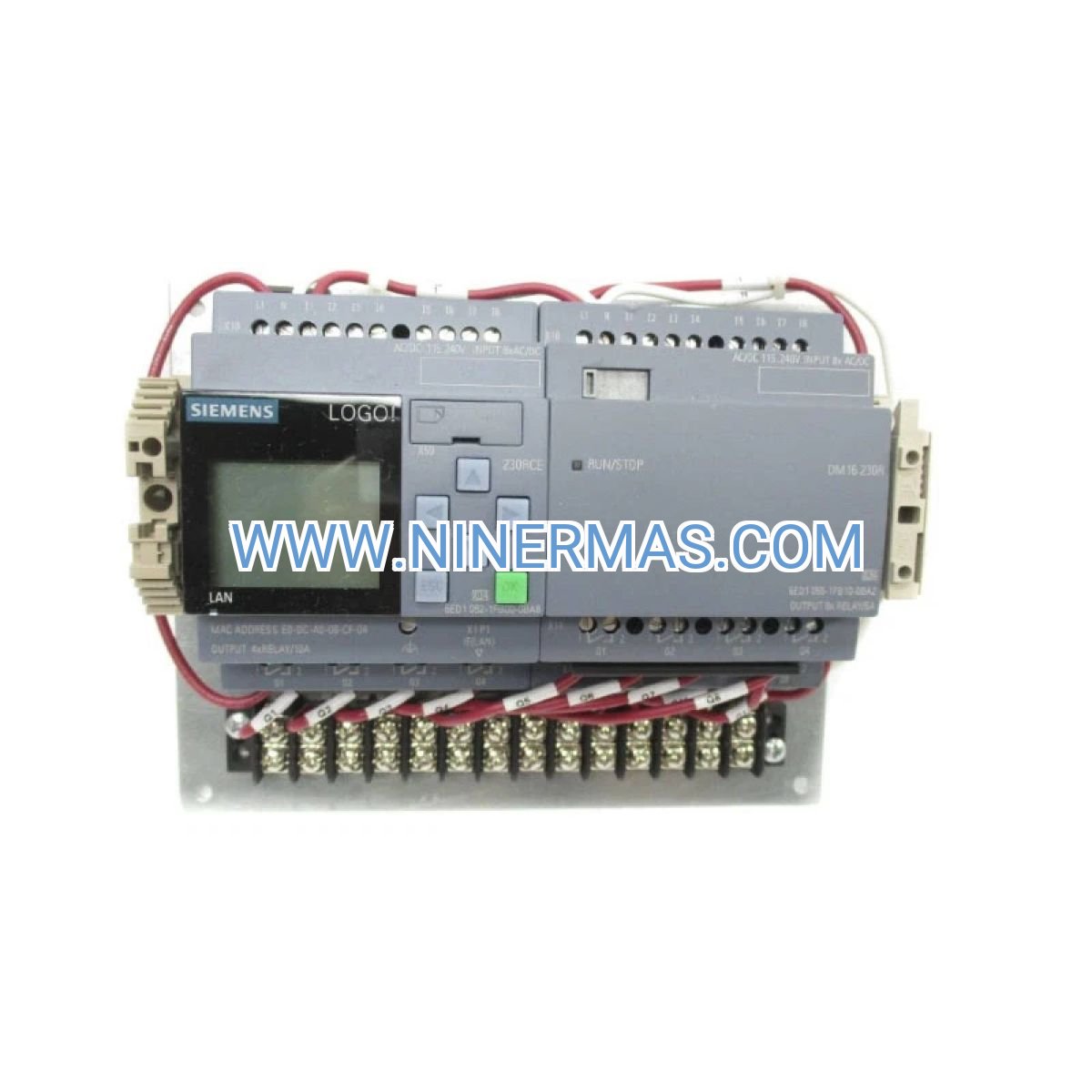

✓ LOGO! 8 Native Integration: Plug-and-play connectivity via integrated expansion bus ensures automatic recognition and simplified programming through LOGO! Soft Comfort software.

✓ Industrial Environmental Rating: IP20 protection with 0°C to +55°C operating range and robust relay contacts rated for 100,000 mechanical operations guarantee long-term reliability in demanding environments.

✓ Space-Optimized Design: Compact DIN rail form factor (90mm width) allows up to 3 expansion modules per controller, maximizing panel density while maintaining service accessibility.

✓ Maintenance-Friendly Architecture: Hot-swap capability enables module replacement during operation without system shutdown, reducing downtime and maintenance costs by up to 40%.

→ Power-Efficient Operation: Bus-powered design draws energy directly from LOGO! base unit, eliminating external power supplies and reducing installation complexity.

Application Scenarios & Industry Solutions

Building Automation & HVAC Control: Manage multi-zone climate systems with independent temperature sensor inputs and relay-switched damper actuators, fan motors, and heating elements. The module's 230V relay outputs directly control standard HVAC equipment without intermediate relays, reducing component count and improving system reliability in commercial buildings, hotels, and institutional facilities.

Manufacturing Process Control: Coordinate conveyor systems, sorting equipment, and material handling operations with discrete input monitoring of limit switches, proximity sensors, and safety interlocks. Relay outputs drive pneumatic valves, indicator lights, and small motors in packaging lines, assembly stations, and quality control checkpoints.

Water & Wastewater Management: Implement pump control strategies with level sensor inputs and relay-switched pump contactors. The module's robust relay contacts handle inductive loads associated with pump motors, while digital inputs monitor float switches, pressure transducers, and alarm conditions in lift stations, treatment plants, and irrigation systems.

Access Control & Security Systems: Integrate card readers, motion detectors, and door contacts as digital inputs while controlling electromagnetic locks, barrier gates, and alarm sirens through relay outputs. The 230V switching capability supports direct control of access control hardware in parking facilities, warehouses, and restricted areas.

Lighting Management Networks: Deploy intelligent lighting control with occupancy sensor inputs and relay-switched lighting circuits. Each relay output independently controls lighting zones, enabling energy-saving strategies such as daylight harvesting, scheduled operation, and occupancy-based switching in warehouses, parking structures, and commercial spaces.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DM16 230R when your application requires 230V AC relay switching with moderate current capacity (up to 10A per output). For higher current loads, consider external contactors. If your system operates on 24V DC logic, evaluate the DM16 24R variant instead. Verify LOGO! 8 base unit compatibility before ordering—this module does not support LOGO! 7 or earlier generations.

Extended Functions & Integration Capabilities

LOGO! Web Server Integration: When paired with LOGO! 8 controllers featuring Ethernet connectivity, monitor input states and control relay outputs remotely via standard web browsers. No additional software required for basic visualization and control.

LOGO! Soft Comfort Programming: Configure input filtering, output pulse functions, and diagnostic monitoring through intuitive graphical programming environment. Built-in function blocks simplify implementation of timers, counters, and logic operations.

Modbus TCP Communication: Integrate with SCADA systems and building management platforms using standard Modbus TCP protocol when connected to Ethernet-enabled LOGO! 8 controllers, enabling centralized monitoring and data logging.

Customization Options: Factory configuration services available for high-volume OEM applications requiring pre-programmed logic, custom labeling, or specialized testing protocols. Contact technical sales for project-specific requirements.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 2-3 business days via express courier with tracking. Typical delivery time to major industrial centers: 5-7 business days.

Custom Configuration: Pre-programmed or tested modules require 10-15 business days for preparation and quality verification before shipment.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty includes replacement module and return shipping.

Technical Support: Complimentary application engineering support available for system design consultation, programming assistance, and troubleshooting. Email and phone support during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, technical datasheet, and quick-start guide. LOGO! Soft Comfort software and programming examples available for download.

Frequently Asked Questions

Q: How many DM16 expansion modules can I connect to a single LOGO! 8 controller?
A: You can daisy-chain up to 3 expansion modules per LOGO! 8 base unit, providing a maximum of 24 additional relay outputs and 24 digital inputs when using three DM16 230R modules.

Q: What is the maximum cable length between the LOGO! controller and expansion modules?
A: Expansion modules connect via integrated bus connector with no external cabling required. Modules mount directly adjacent to each other on the DIN rail, ensuring reliable communication without distance limitations.

Q: Can the relay outputs switch DC loads or only AC loads?
A: The DM16 230R relay contacts are rated for both AC and DC switching. For DC loads, observe derating curves in the technical manual—typical DC switching capacity is 5A at 24V DC per contact.

Q: Does this module support high-speed counting or pulse input functions?
A: Digital inputs on the DM16 230R are designed for standard discrete sensing applications. For high-speed counting (>2kHz) or pulse measurement, use dedicated LOGO! analog modules or high-speed counter variants.

Q: Is the module compatible with LOGO! 7 controllers or earlier versions?
A: No, the 6ED1055-1FB10-0BA2 is exclusively compatible with LOGO! 8 series controllers. For LOGO! 7 systems, specify the 0BA0 generation expansion modules.

Q: What type of input sensors can I connect to the digital inputs?
A: The 230V AC digital inputs accept dry contacts, proximity switches, photoelectric sensors, float switches, and any two-wire sensor compatible with 230V AC sensing voltage. Ensure sensors are rated for the input voltage.
