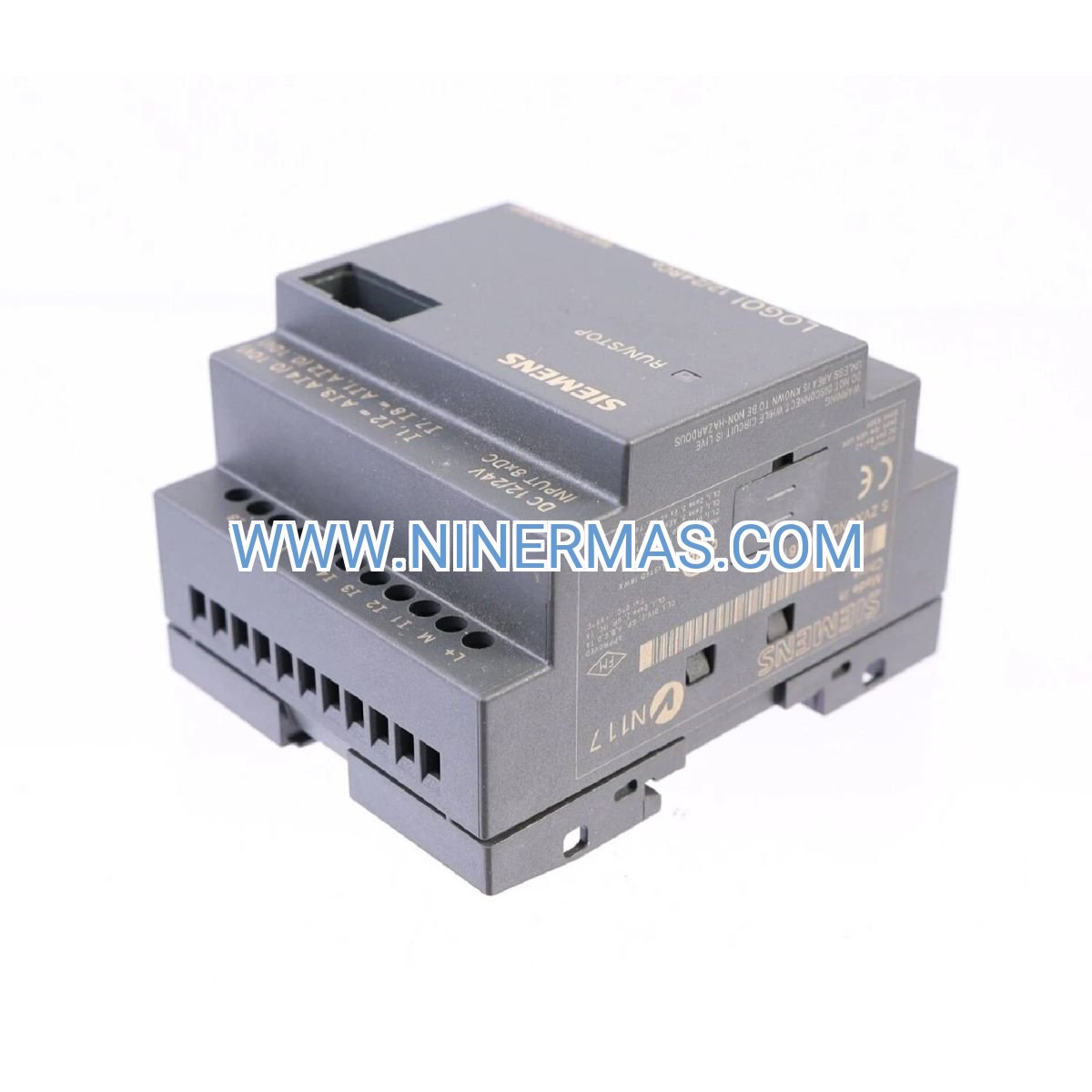

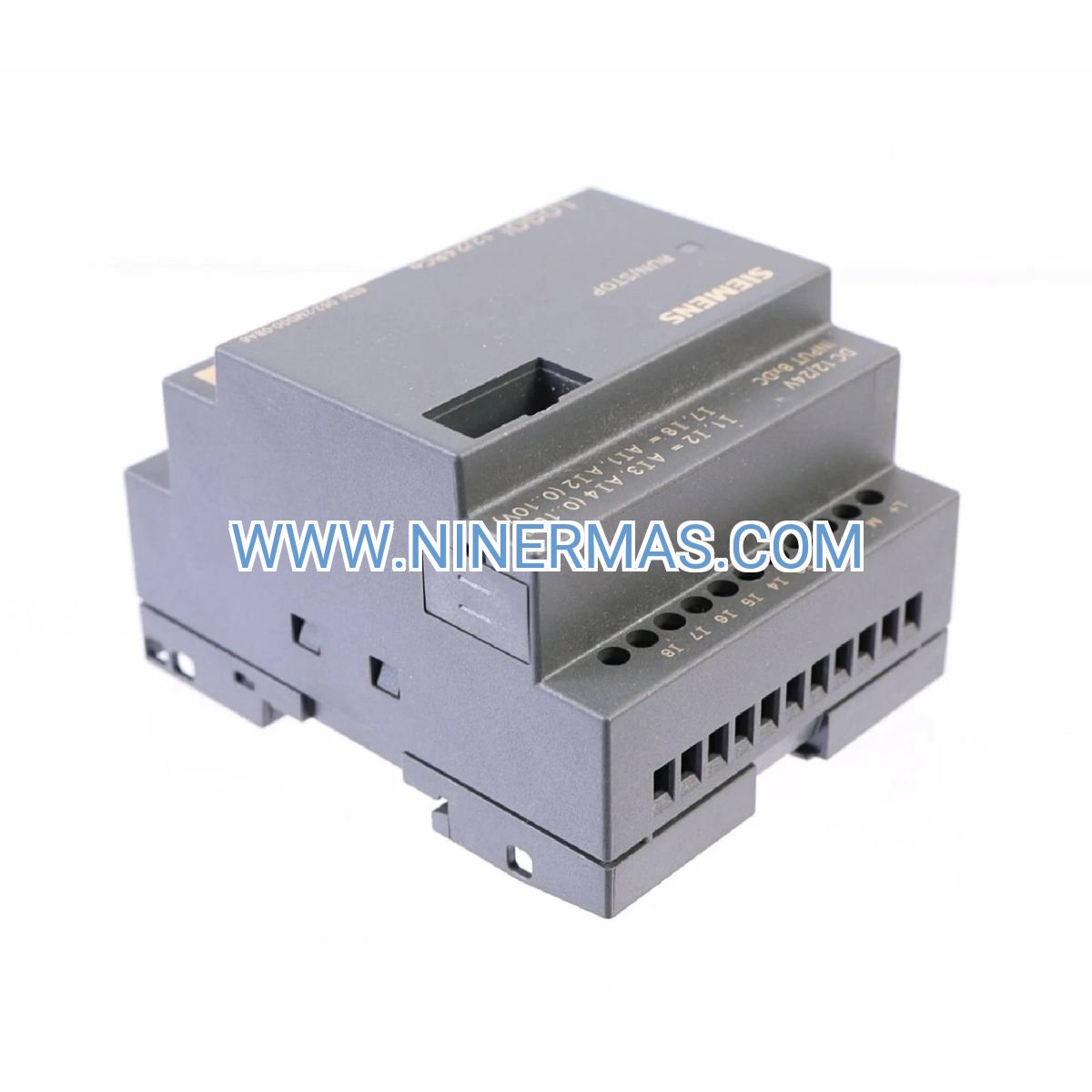

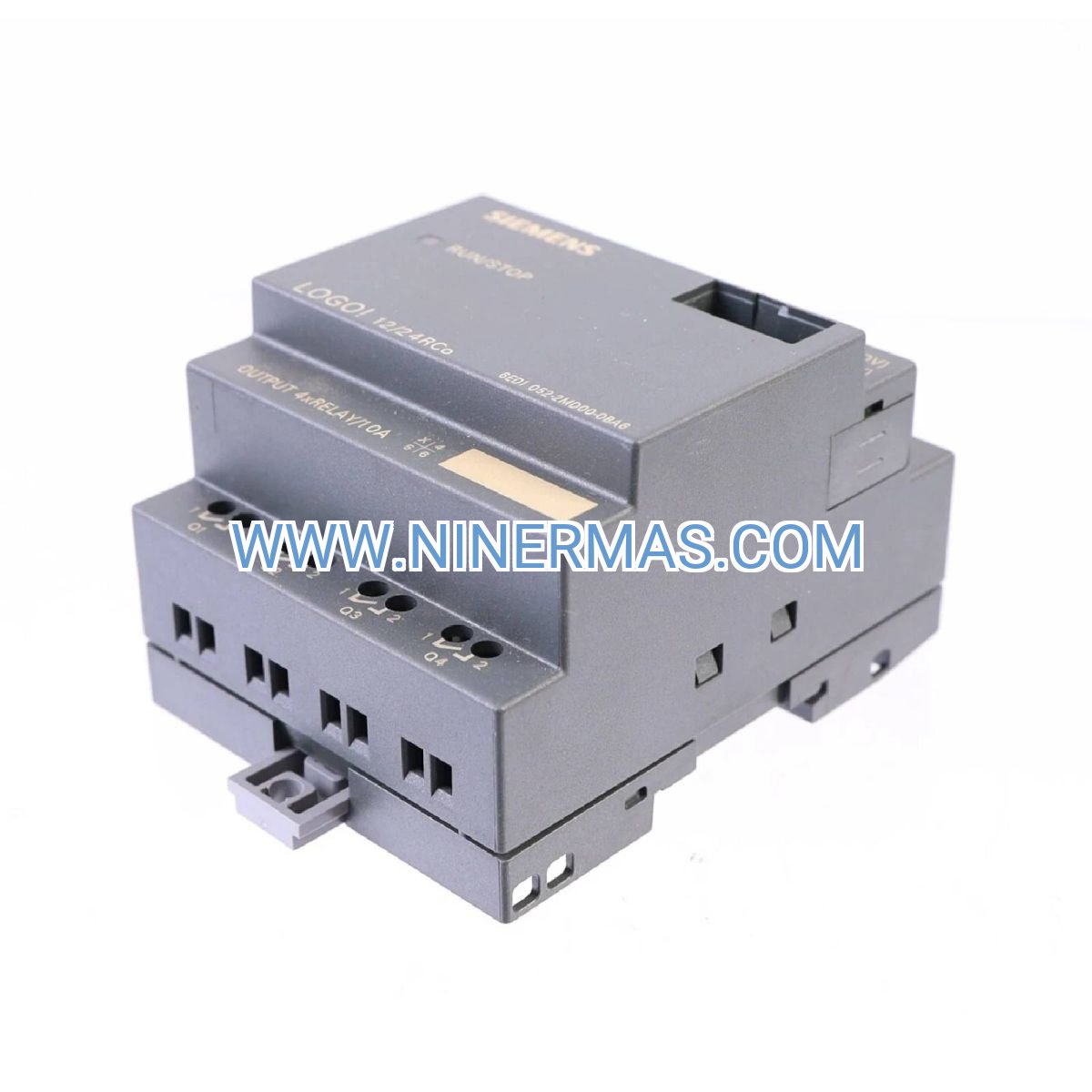

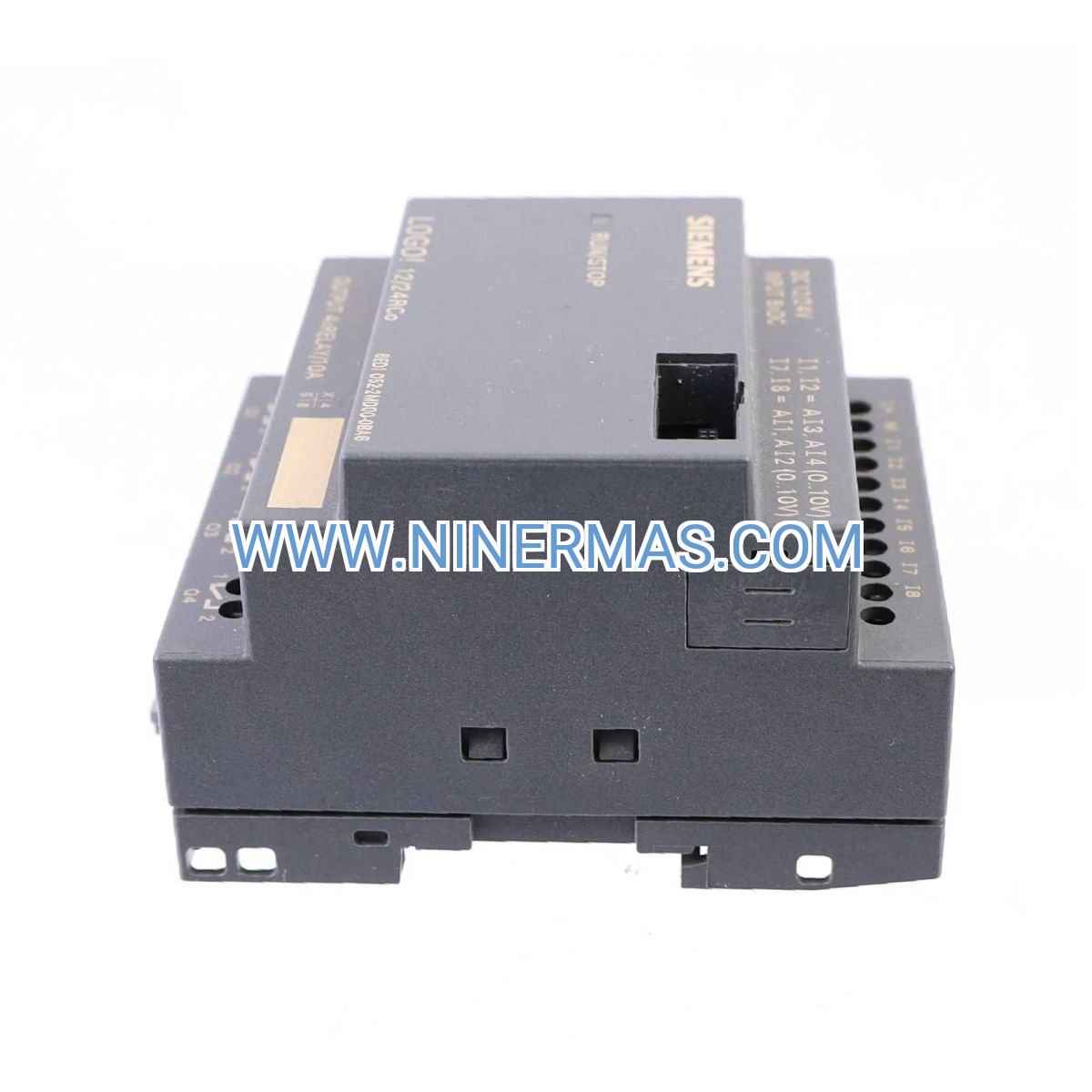

LOGO! 6ED1052-2MD00-0BA6 – Industrial-Grade Programmable Logic Controller

The Siemens 6ED1052-2MD00-0BA6 LOGO! 12/24RCO delivers intelligent automation control for space-constrained industrial and commercial installations. Engineered for reliability in demanding environments, this compact logic controller combines powerful processing capabilities with intuitive programming, making it the preferred choice for system integrators, facility managers, and OEM equipment manufacturers seeking cost-effective automation without compromising performance.

Designed to replace complex relay panels and traditional hardwired logic, this controller streamlines installation workflows while providing flexibility for future system modifications. Whether you're automating a single machine or coordinating multiple building systems, the 6ED1052-2MD00-0BA6 offers the perfect balance of functionality, durability, and value.

With proven Siemens engineering and global support infrastructure, this LOGO! module ensures long-term operational continuity for mission-critical control applications across manufacturing, infrastructure, and commercial sectors.

Core Features & Business Value

✓ Dual-Voltage Flexibility (12/24V DC)
Operates seamlessly across standard industrial voltage ranges, eliminating the need for dedicated power supplies in mixed-voltage environments. Reduces installation costs by 15-25% compared to fixed-voltage alternatives while enabling deployment in mobile equipment and renewable energy systems.

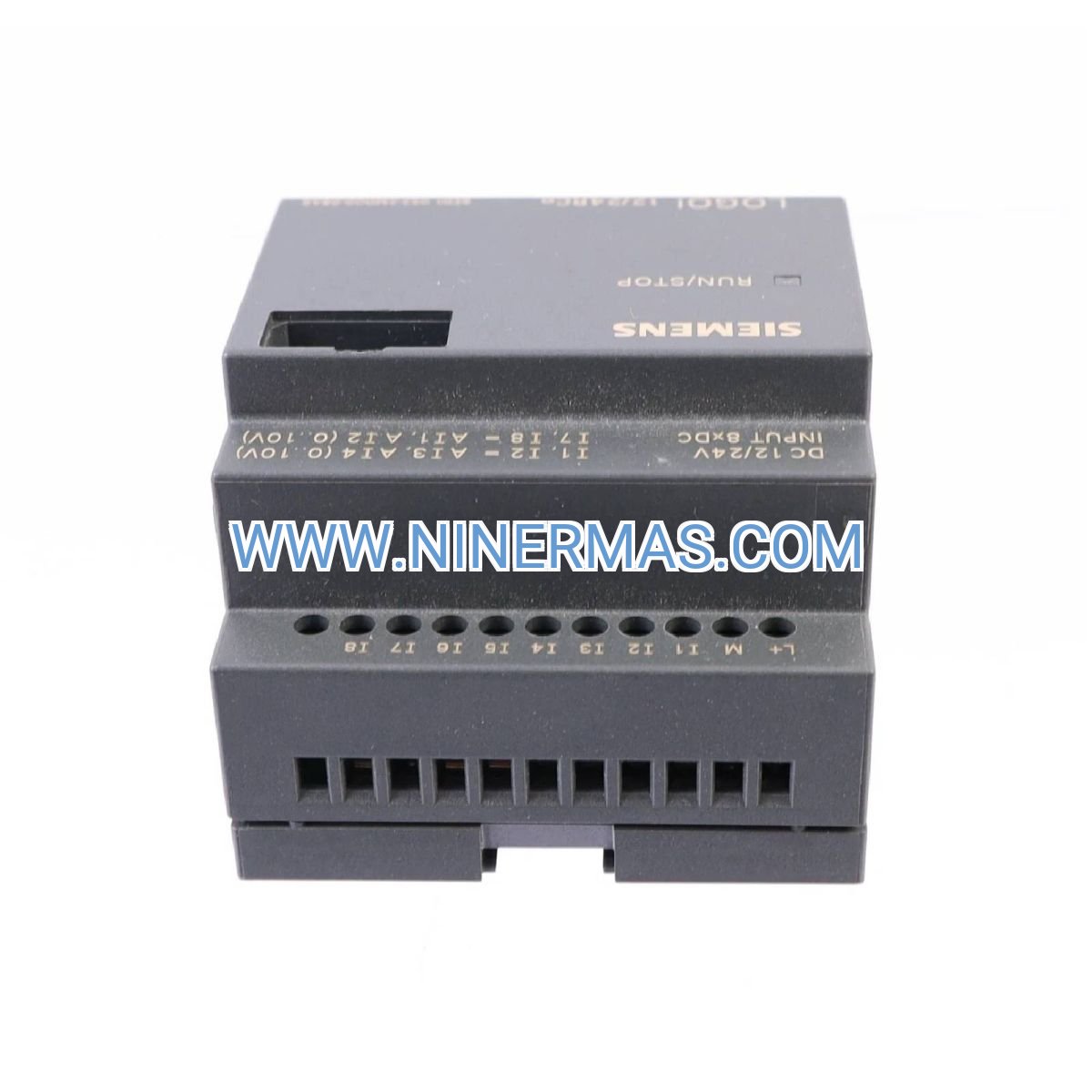

✓ 8 Universal Digital Inputs
Accepts signals from sensors, switches, and field devices without external signal conditioning. Configurable input filtering prevents false triggering from electrical noise, ensuring 99.9% signal accuracy in high-EMI industrial environments.

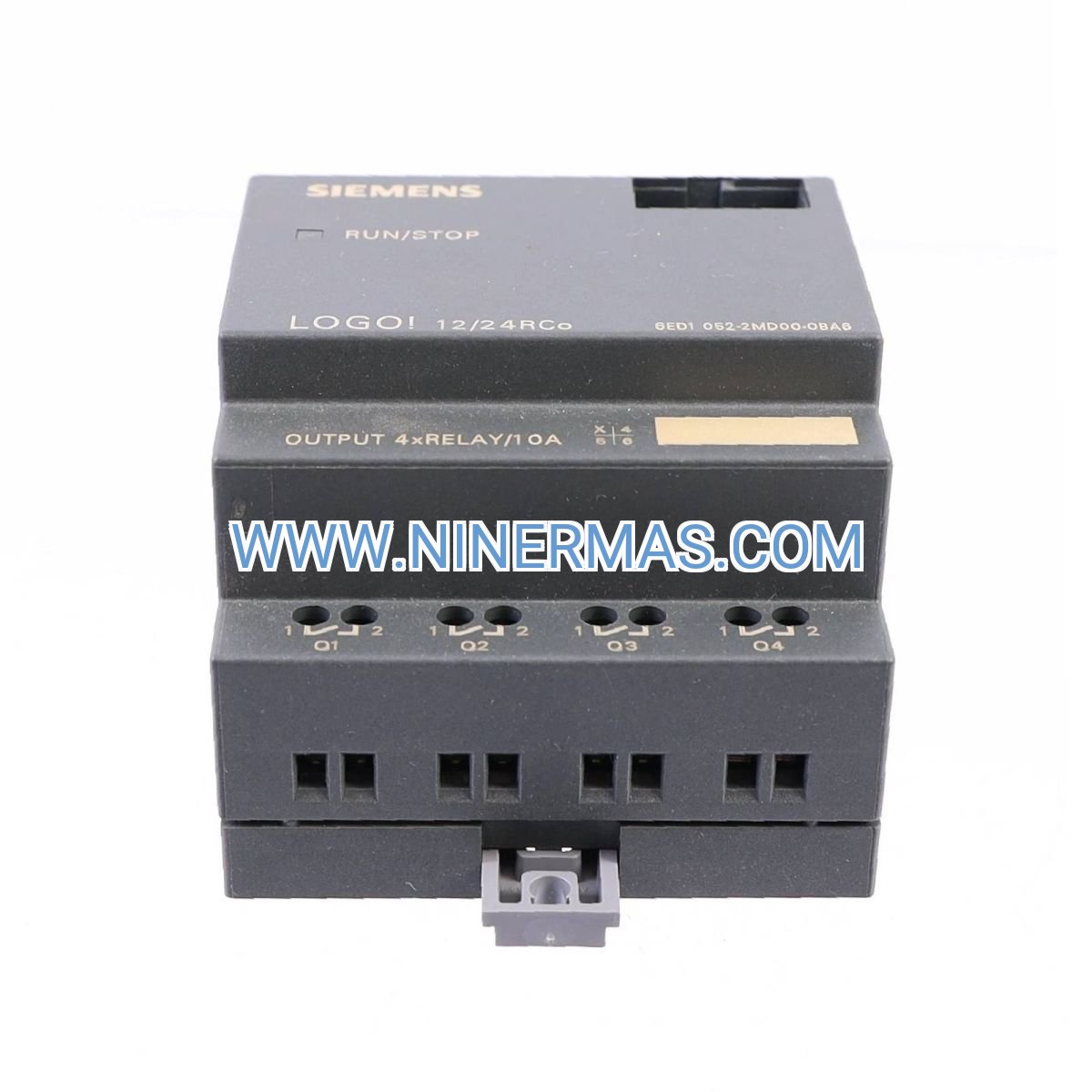

✓ 4 High-Capacity Relay Outputs (10A Each)
Drives motors, solenoids, contactors, and lighting loads directly without intermediate relays. Galvanic isolation protects control circuits from power-side faults, reducing maintenance interventions by up to 40% compared to solid-state outputs in harsh conditions.

✓ 400-Block Program Memory
Supports complex automation sequences with timers, counters, comparators, and mathematical functions. Sufficient capacity for typical applications while maintaining fast scan times under 10ms for responsive control performance.

✓ Integrated LCD Display & Keypad
Enables on-site programming and real-time diagnostics without external tools. Backlit display ensures visibility in low-light industrial settings, reducing commissioning time by 30-50% versus PC-dependent controllers.

✓ Non-Volatile Memory Protection
Retains programs and operational data through power interruptions without battery backup. Automatic resume functionality minimizes downtime during utility fluctuations, critical for 24/7 operations.

Application Scenarios & Solutions

→ Commercial Building Automation
Controls HVAC sequencing, lighting schedules, and access systems in office buildings, retail spaces, and educational facilities. Replaces multiple time switches and photocells with a single programmable unit, reducing panel space by 60% while adding remote monitoring capabilities through optional communication modules.

→ Manufacturing Process Control
Manages conveyor interlocks, material handling sequences, and quality inspection stations in production lines. Coordinates multi-stage operations with precise timing control, improving throughput consistency and reducing operator intervention in repetitive tasks.

→ Water & Wastewater Management
Automated pump alternation, level control, and alarm monitoring in lift stations, treatment plants, and irrigation systems. Extends pump service life through balanced runtime distribution while providing early warning of system anomalies before critical failures occur.

→ Energy Management Systems
Implements load shedding, demand response, and generator control in distributed power applications. Integrates with solar inverters and battery systems for microgrid coordination, optimizing energy costs through time-of-use scheduling.

→ Machine OEM Integration
Embedded control for packaging equipment, material processing machines, and test stands. Compact footprint fits within tight enclosure constraints while providing standardized programming environment familiar to global service technicians.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ED1052-2MD00-0BA6 when your application requires 12/24V DC operation with relay outputs for switching inductive loads or high-current devices. For applications needing 230V AC supply voltage, consider the LOGO! 230RC variant. If Ethernet connectivity is essential for remote access or SCADA integration, evaluate the 12/24RCE model with built-in Ethernet interface. For applications exceeding 8 inputs or 4 outputs, plan for LOGO! expansion modules which connect seamlessly to the base unit.

Extended Capabilities & Integration

Modular Expansion Architecture: Add up to 8 expansion modules for analog inputs (0-10V, 4-20mA), additional digital I/O, or specialized functions like PT100 temperature measurement. Hot-swappable module design allows system upgrades without rewiring existing connections.

Communication Options: Optional CM modules enable Ethernet/IP, Modbus RTU/TCP, and KNX protocol support for integration with building management systems, SCADA platforms, and IoT gateways. Web server functionality provides browser-based monitoring and control without dedicated software.

Advanced Programming Functions: Built-in PID control, astronomical clock (sunrise/sunset calculation), data logging, and recipe management extend capabilities beyond simple logic control. LOGO! Soft Comfort software includes simulation mode for offline testing before deployment.

Text Display Integration: Connect LOGO! TD text displays for custom operator interfaces with multi-language support, parameter adjustment, and alarm acknowledgment. Ideal for OEM machines requiring user-friendly HMI without full-scale touchscreen investment.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations with pre-loaded programs available with 5-7 day lead time.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Access to application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations. Email and phone support available during business hours with 4-hour response commitment.

Documentation Package: Includes quick start guide, complete technical manual (PDF), wiring diagrams, and sample programs. LOGO! Soft Comfort programming software available as free download from Siemens support portal.

Training Resources: Online video tutorials, application notes, and certification courses available through Siemens Industry Online Support (SIOS) platform.

Frequently Asked Questions

Q: How does the LOGO! controller compare to traditional relay panels for cost and reliability?
A: The 6ED1052-2MD00-0BA6 typically reduces installation costs by 40-60% compared to equivalent relay logic through simplified wiring and reduced panel space. Reliability improves significantly as there are no mechanical relay coils to fail in the control logic—only the output relays which are rated for 10 million operations. Program changes take minutes versus hours of rewiring, reducing commissioning and modification costs substantially.

Q: What programming knowledge is required to configure this logic module effectively?
A: Basic familiarity with ladder logic or function block diagrams is sufficient for most applications. The LOGO! Soft Comfort software provides drag-and-drop programming with pre-built function libraries for timers, counters, and common automation tasks. Most users complete initial training in 2-4 hours. For simple applications, direct keypad programming is possible without a PC, though software programming is recommended for complex sequences.

Q: Can this controller handle motor starting applications and what are the inductive load limitations?
A: The relay outputs are rated for 10A resistive loads but should be derated to 3-5A for inductive loads like motor contactors and solenoid valves. For direct motor control, use the relay outputs to drive appropriately-sized motor starters or contactors rather than connecting motors directly. The outputs include arc suppression for extended contact life when switching inductive loads within rated parameters.

Q: Is remote monitoring and control possible with this base model?
A: The 6ED1052-2MD00-0BA6 base unit does not include built-in Ethernet or wireless connectivity. However, you can add a LOGO! CMR communication module to enable Ethernet, Modbus, or cloud connectivity for remote access. Alternatively, consider the 12/24RCE variant which includes integrated Ethernet. Both options support web-based monitoring and control through standard browsers.

Q: What happens to the control program and real-time clock during power outages?
A: The program and all parameter settings are stored in non-volatile EEPROM memory and are retained indefinitely without power. The real-time clock continues running for approximately 80 hours during power loss using an internal supercapacitor (no battery required). Upon power restoration, the controller resumes operation based on configured startup behavior—either continuing from the last state or executing a defined initialization sequence.

Q: How do I expand the system if I need more inputs or outputs in the future?
A: The 6ED1052-2MD00-0BA6 supports up to 8 expansion modules connected via the right-side expansion port. Available modules include digital input/output expansion (DM8, DM16), analog input modules (AM2 AQ, AM2 PT100), and communication modules (CMR, CMK). Modules are hot-swappable and automatically recognized by the base unit. Total system capacity can reach 24 digital inputs, 20 digital outputs, and 8 analog channels depending on module selection.

Ready to Streamline Your Automation?

The Siemens 6ED1052-2MD00-0BA6 LOGO! controller delivers proven performance for your control applications. Contact our technical team for application-specific guidance, custom programming services, or volume pricing for OEM integration projects.

Request a Quote: Email your application requirements for same-day technical consultation and pricing.
