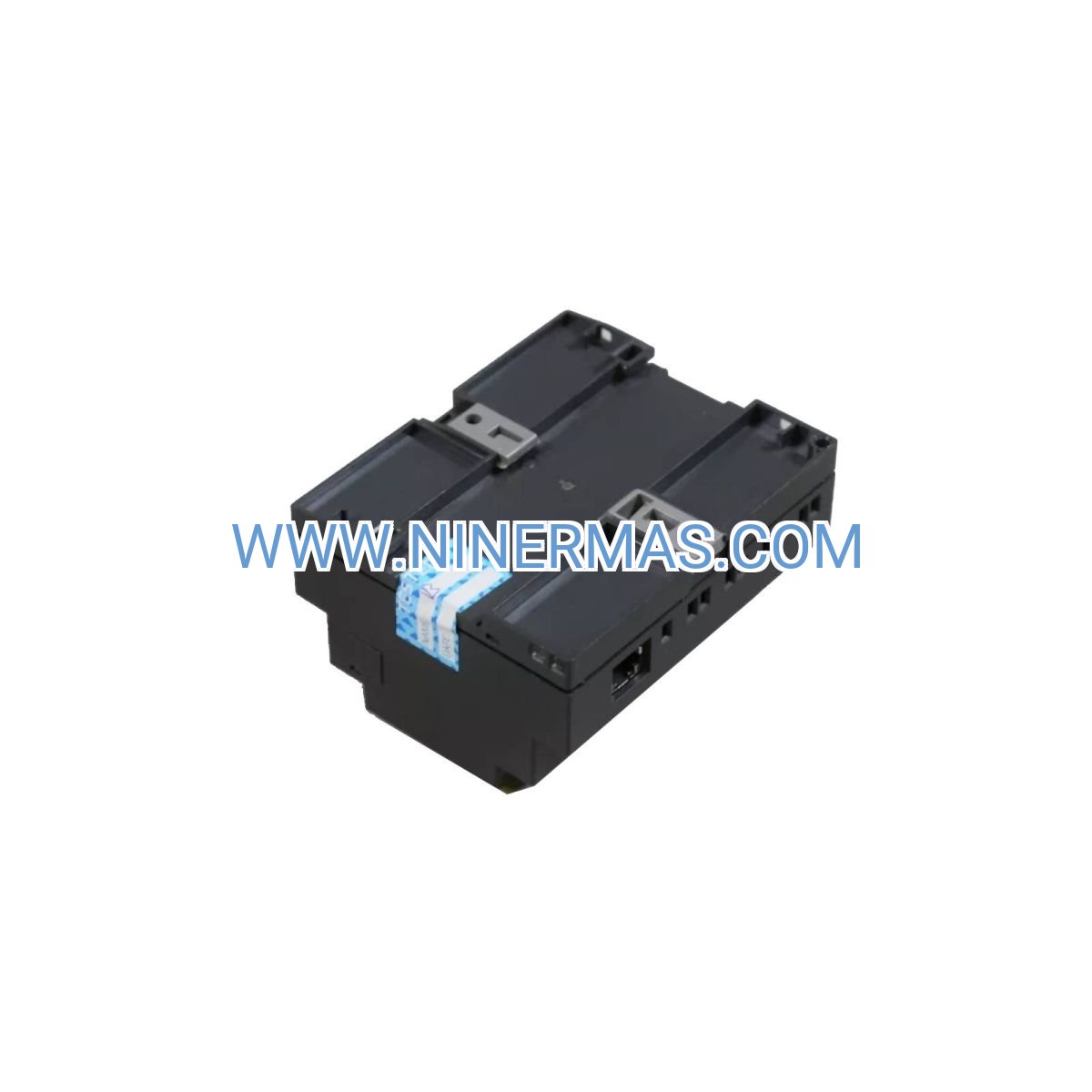

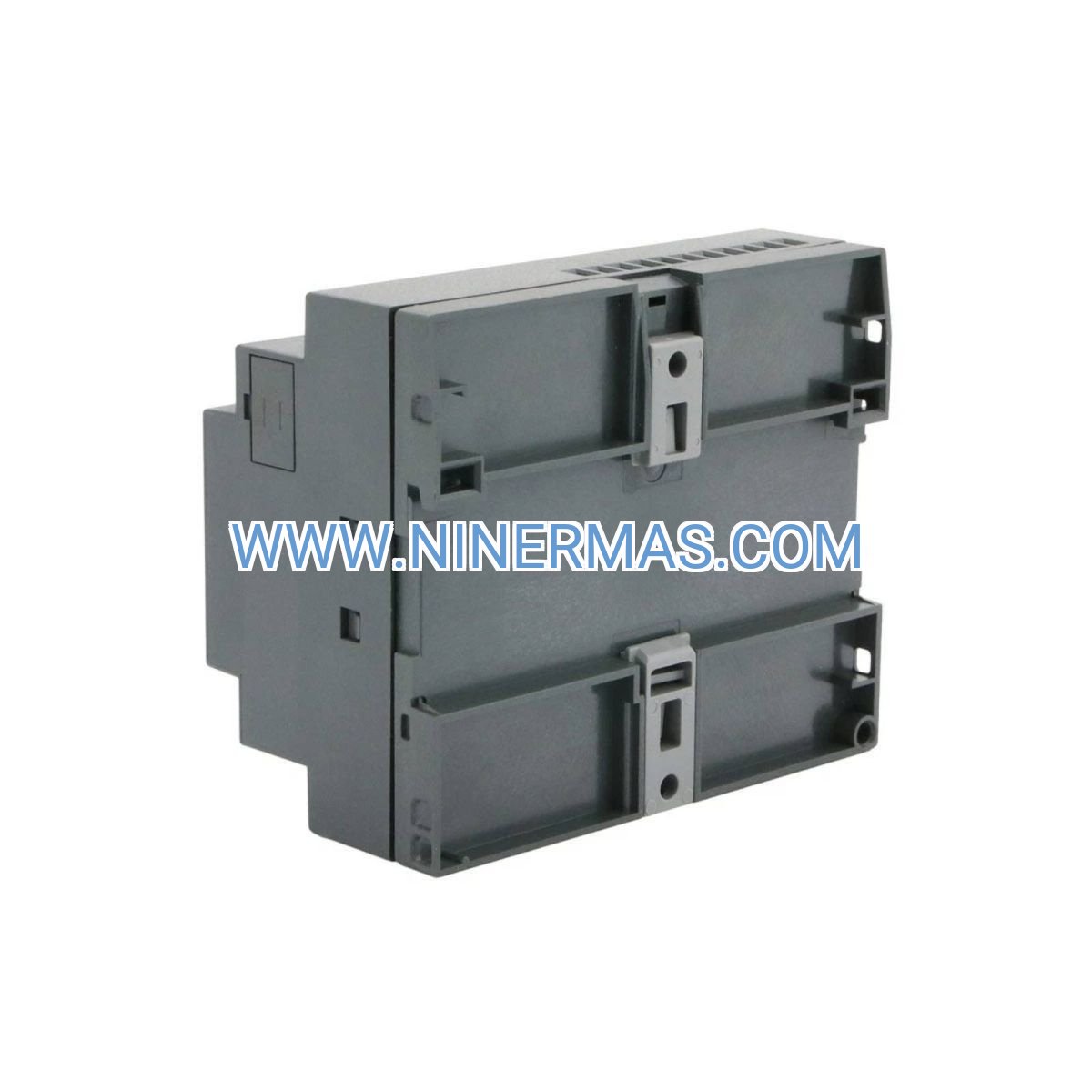

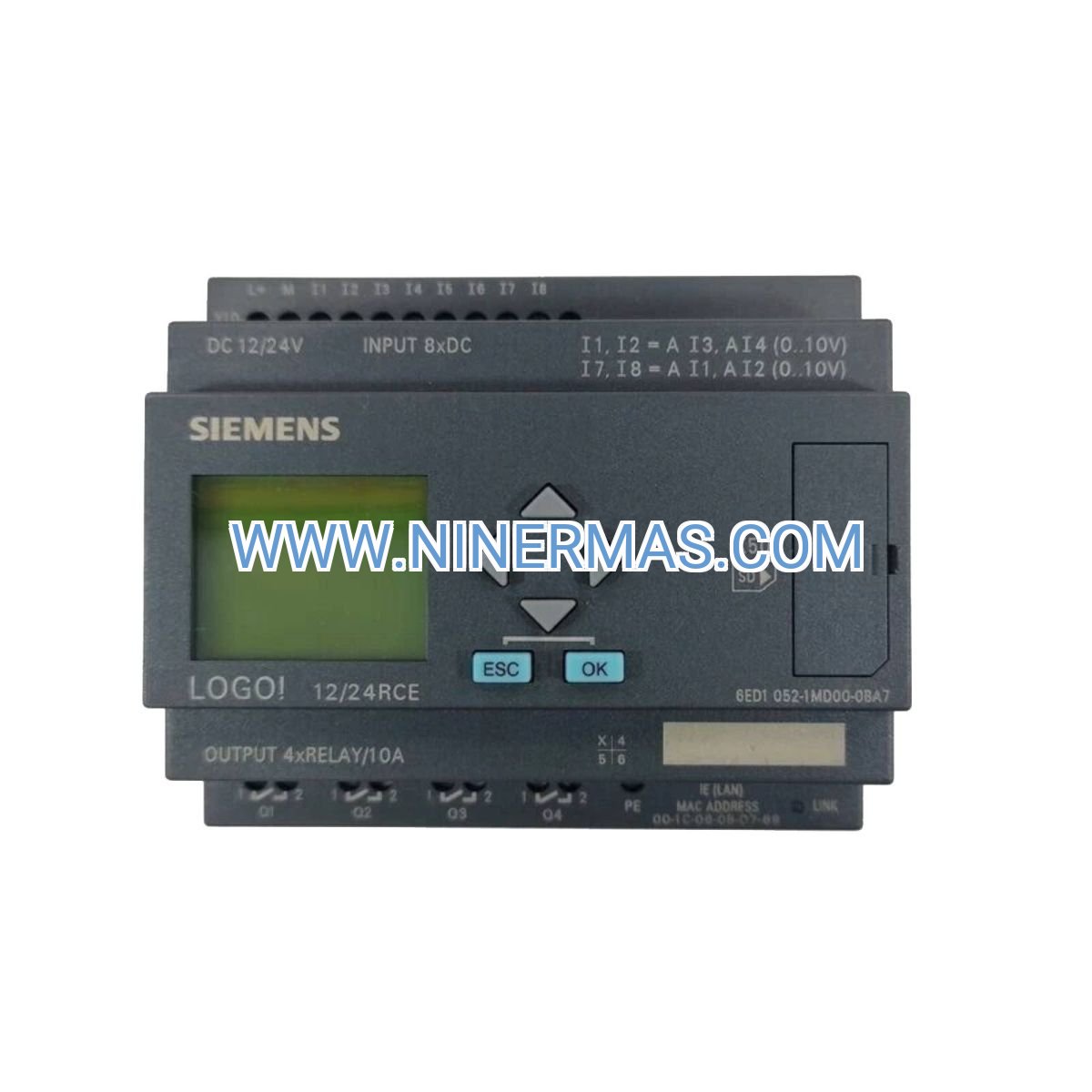

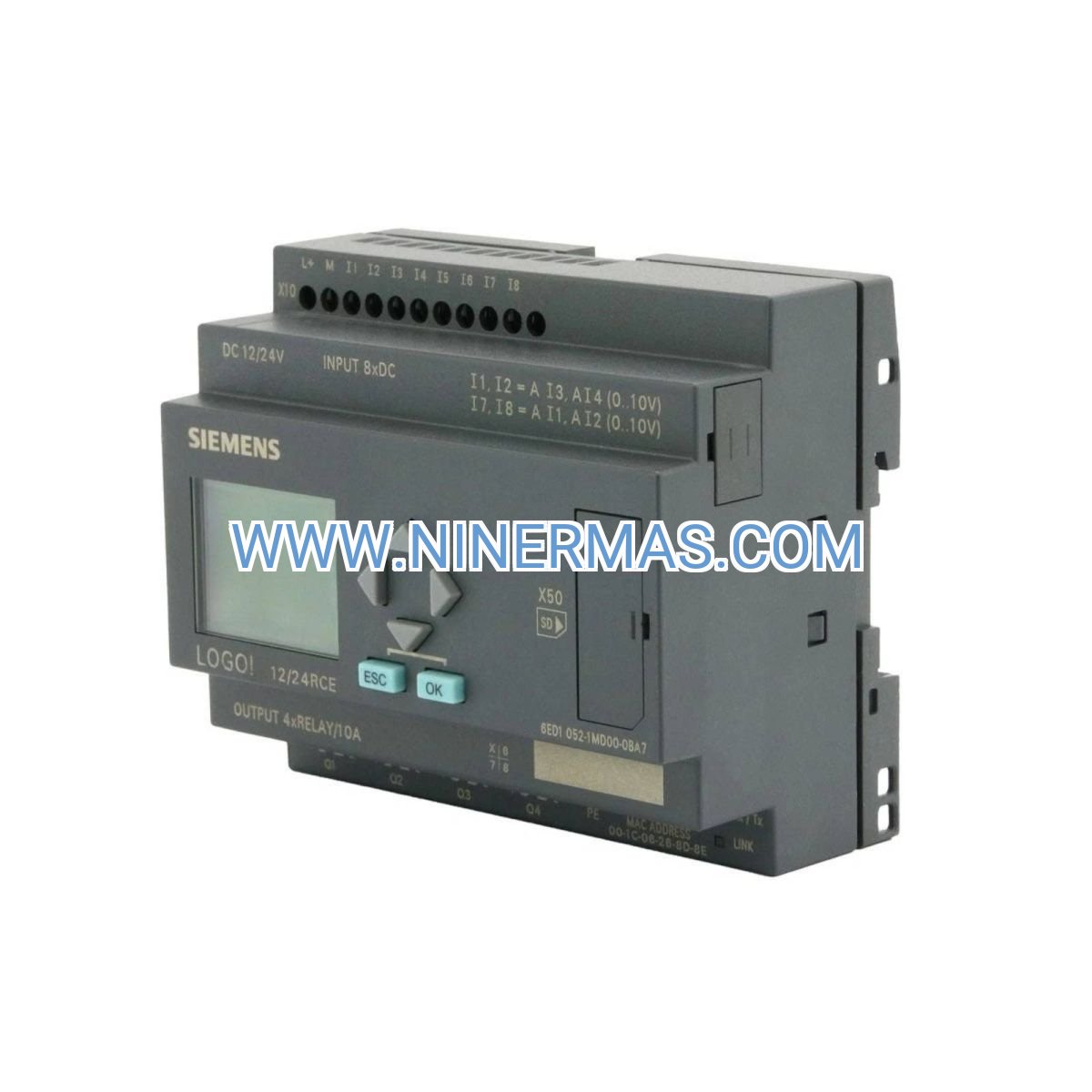

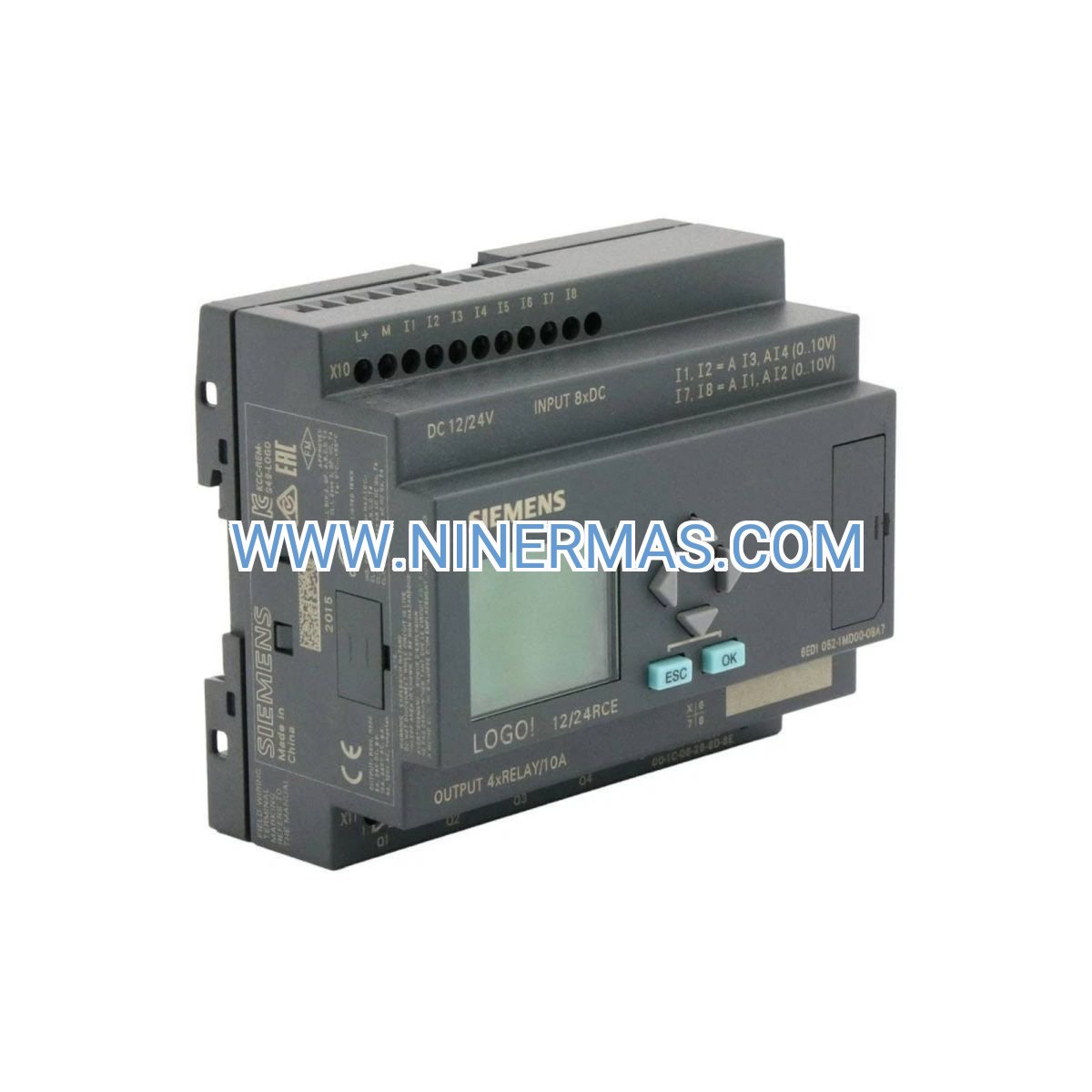

LOGO! 12/24RCE Programmable Logic Relay (Industrial-Grade Automation Controller)

The Siemens 6ED1052-1MD00-0BA7 delivers intelligent automation control for industrial machinery, building management systems, and process applications requiring reliable, programmable logic execution. Engineered with integrated Ethernet connectivity and an intuitive LCD interface, this compact controller eliminates the complexity of traditional PLC installations while maintaining enterprise-grade performance standards. Designed for system integrators, facility managers, and OEM manufacturers seeking cost-effective automation without compromising functionality or scalability.

This logic module addresses critical challenges in distributed control environments: excessive wiring costs, limited remote accessibility, and inflexible legacy relay systems. Target users include manufacturing engineers automating production cells, building operators managing HVAC and lighting networks, and water treatment facilities requiring precise pump sequencing and level control.

Key competitive advantages include native web server capability for browser-based monitoring, hybrid I/O configuration supporting both digital and analog signals, and backward compatibility with existing LOGO! infrastructure—enabling phased upgrades without complete system replacement. The 400-function-block capacity handles complex logic sequences while maintaining cycle times under 10ms for time-critical applications.

Core Features & Benefits

✓ Dual-Voltage Flexibility (12/24V DC/AC)
Operates across wide voltage ranges, reducing inventory requirements and simplifying global deployments. Eliminates need for voltage-specific models in multi-site installations.

✓ Integrated Ethernet Interface
Enables real-time data exchange with SCADA systems, remote HMI panels, and cloud platforms. Reduces commissioning time by 40% through network-based programming and diagnostics.

✓ Hybrid I/O Architecture
8 digital inputs (4 reconfigurable as 0-10V analog) plus 4 relay outputs (10A rated) provide versatile signal handling. Connects directly to sensors, actuators, and variable-speed drives without external signal converters.

✓ Backlit LCD Display
On-board visualization of process values, alarm states, and runtime parameters. Facilitates troubleshooting without laptop connection, reducing mean-time-to-repair by 60%.

✓ Modular Expansion Capability
Supports up to 3 expansion modules (DM8/DM16/AM2 series) for scaling I/O capacity to 32 digital inputs, 20 digital outputs, or 12 analog channels. Future-proofs installations against changing requirements.

✓ LOGO! Soft Comfort Programming
Graphical function-block programming environment reduces development time versus ladder logic. Pre-built libraries for timers, counters, and communication protocols accelerate project delivery.

Application Scenarios

Commercial Building Automation
Controls multi-zone HVAC systems, occupancy-based lighting circuits, and access control interlocks in office complexes and retail facilities. Solves energy waste from 24/7 equipment operation by implementing time-of-day scheduling and demand-based control. Delivers 25-35% energy cost reduction through optimized runtime management.

Water & Wastewater Treatment
Manages pump sequencing, chemical dosing systems, and level control in lift stations and treatment plants. Addresses pump wear from continuous operation by alternating lead/lag configurations and implementing soft-start sequences. Extends equipment lifespan by 40% while maintaining regulatory compliance for discharge parameters.

Food & Beverage Processing
Automated conveyor systems, mixing tank control, and CIP (clean-in-place) sequences in packaging lines and production facilities. Eliminates manual valve operation errors and inconsistent batch timing. Improves product consistency and reduces material waste by 15% through precise recipe execution.

Machine Tool & Manufacturing
Coordinates multi-axis positioning, coolant circulation, and safety interlocks in CNC machines and assembly stations. Resolves safety compliance gaps in legacy equipment by adding two-hand control, light curtain integration, and emergency stop monitoring. Achieves SIL 1 safety ratings for machinery upgrades.

Renewable Energy Systems
Monitors solar inverter status, battery charge controllers, and backup generator transfer switches in off-grid installations. Prevents battery over-discharge and generator runtime waste through intelligent load shedding and priority-based power distribution. Maximizes renewable energy utilization while ensuring critical load availability.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 12/24RCE variant when Ethernet connectivity is required for remote monitoring, SCADA integration, or multi-controller networking. For applications requiring only local control without network communication, consider the standard 12/24RC model. If analog signal processing is essential (temperature sensors, pressure transducers, flow meters), verify that 4 analog inputs meet your requirements—otherwise specify additional AM2 analog expansion modules. For output loads exceeding 10A or requiring transistor switching speeds, evaluate relay contact ratings and consider supplementary contactors or solid-state relays.

Extended Functions

Web Server & Remote Access: Built-in HTTP server enables browser-based monitoring from any network-connected device. Configure alarm notifications, trend logging, and manual override controls without proprietary software installations.

Cloud Integration: Compatible with Siemens MindSphere and third-party IoT platforms via Modbus TCP or OPC UA gateways. Stream process data to analytics engines for predictive maintenance and performance optimization.

Customization Options: Factory programming services available for volume orders (>50 units). Custom firmware configurations include pre-loaded logic programs, network settings, and display messages—reducing field commissioning time by 70%.

Redundancy & Failover: Implement hot-standby configurations using dual LOGO! controllers with heartbeat monitoring. Automatic switchover maintains process continuity during controller failures or maintenance activities.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days. Custom-configured units require 10-15 business days for programming and testing. Expedited processing available for critical projects (contact sales team).

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) available for mission-critical installations.

Technical Support: Pre-sales application engineering assistance for system design and component selection. Post-sales support includes configuration troubleshooting, firmware updates, and replacement part identification. Email response within 4 business hours; phone support during regional business hours.

Documentation Package: Each unit includes quick-start guide, wiring diagrams, and digital access to full technical manual (PDF). LOGO! Soft Comfort programming software available as free download from Siemens support portal.

Frequently Asked Questions

How do I connect the LOGO! 12/24RCE to my existing Ethernet network?
Use standard RJ45 Ethernet cable to connect the module's Ethernet port to your network switch or router. Assign a static IP address via the front-panel menu or LOGO! Soft Comfort software. Default IP is 192.168.0.10 (subnet mask 255.255.255.0). Ensure firewall rules permit TCP port 502 (Modbus) and port 80 (HTTP) if using web server functions.

What is the maximum I/O capacity when using expansion modules?
The base 12/24RCE supports up to 3 expansion modules connected via the right-side expansion bus. Maximum configuration: 32 digital inputs (base 8 + three DM8 modules), 20 digital outputs (base 4 + two DM8 modules), or 12 analog inputs (base 4 + two AM2 modules). Total system I/O limited by 400 function-block program capacity.

Can this controller reduce energy consumption in my facility?
Yes—implementing time-based scheduling, occupancy sensors, and demand-responsive control typically reduces HVAC and lighting energy use by 25-40%. The analog input capability enables temperature-based setpoint optimization and variable-speed drive control for pumps and fans, delivering additional 15-20% energy savings compared to on/off control strategies.

What installation environment is required for reliable operation?
Install in climate-controlled enclosures maintaining 0-55°C ambient temperature. Avoid direct sunlight, condensation, and corrosive atmospheres. Provide minimum 50mm clearance above and below for convection cooling. Use shielded cables for analog signals and separate power wiring from I/O cables to minimize electrical noise interference.

Is remote programming and monitoring possible without on-site visits?
Yes—once connected to your network, use LOGO! Soft Comfort software to upload/download programs, monitor real-time values, and adjust parameters remotely. The integrated web server provides read-only monitoring via standard browsers. For secure remote access over the internet, implement VPN connections or industrial firewall solutions.

How does this compare to traditional relay panels for cost and flexibility?
Initial hardware cost is 30-50% higher than equivalent relay panels, but total installed cost is typically 20% lower due to reduced wiring (single cable vs. point-to-point), faster commissioning (software vs. physical wiring changes), and elimination of timer/counter components. Modification costs are 80% lower—logic changes via software updates vs. panel rewiring and component replacement.

Take the Next Step

Ready to modernize your control system? Contact our automation specialists for application-specific recommendations, system sizing assistance, and volume pricing. Request a technical consultation to review your project requirements and receive a customized solution proposal within 24 hours.
