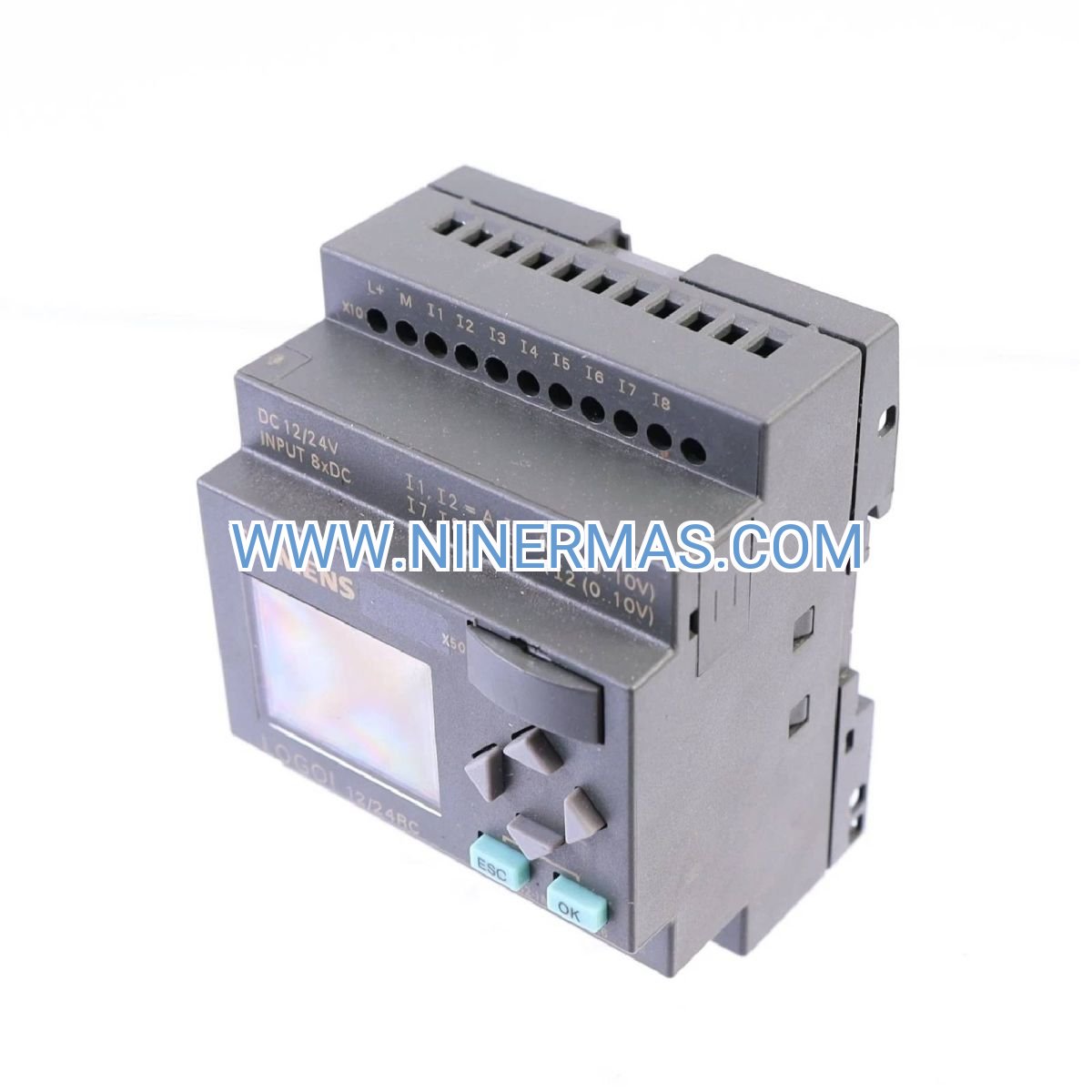

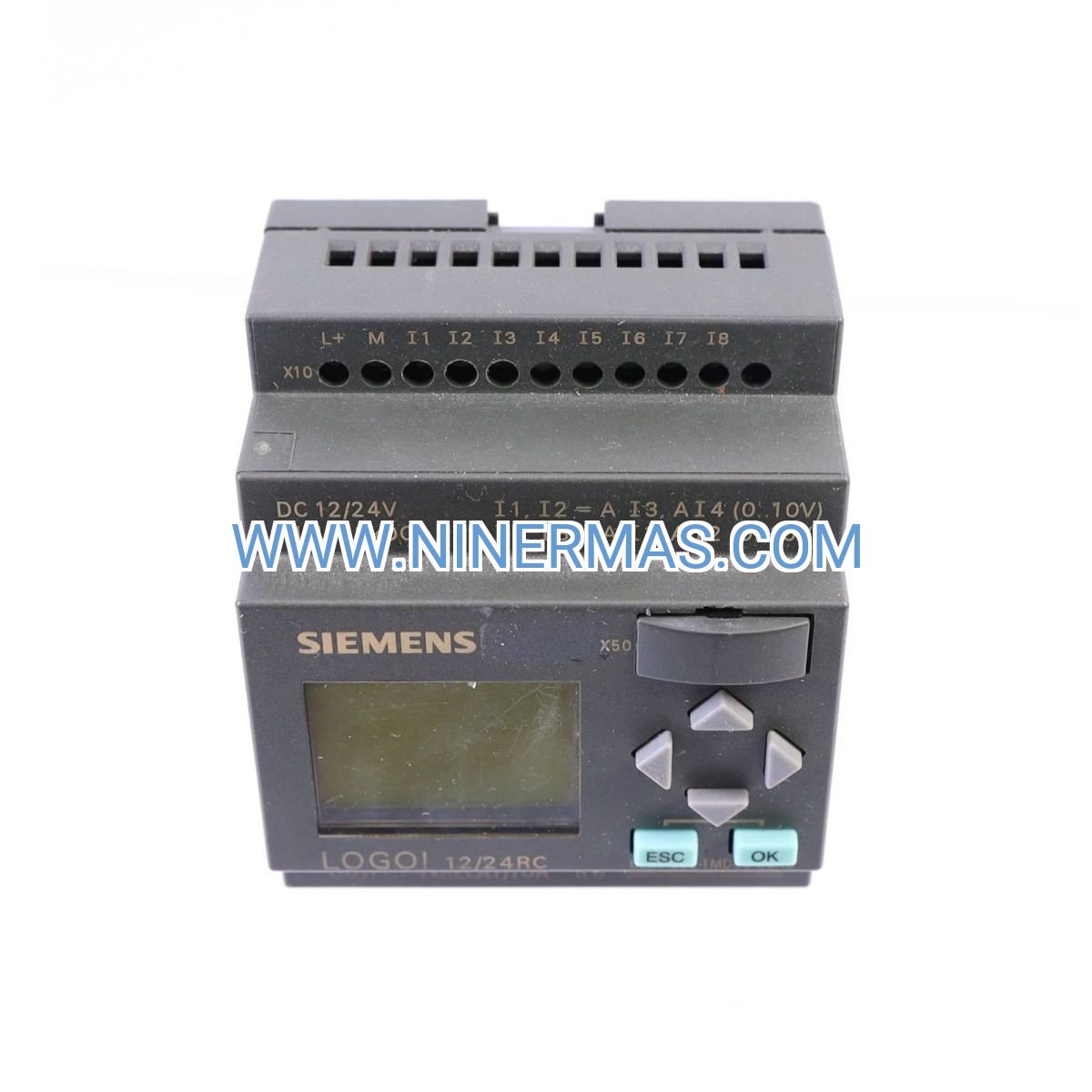

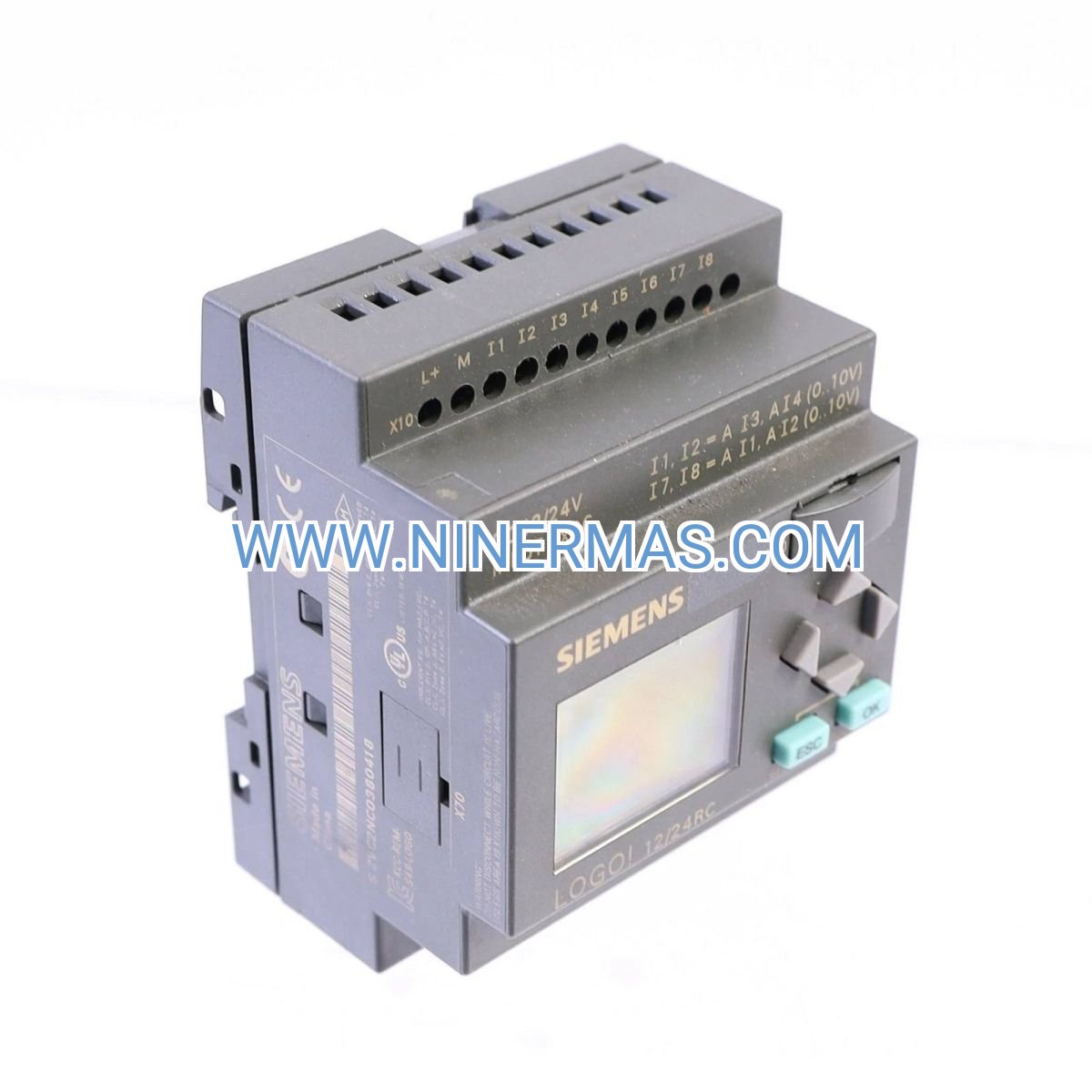

LOGO! 12/24RC Programmable Logic Controller (Industrial-Grade Automation Solution)

The Siemens 6ED1052-1MD00-0BA6 represents a breakthrough in compact automation technology, delivering enterprise-level control capabilities in a space-efficient form factor. Engineered for demanding industrial environments, this programmable logic controller bridges the gap between simple relay logic and complex PLC systems, offering intuitive programming combined with robust performance.

Designed for facility managers, system integrators, and automation engineers who require reliable control without the complexity of traditional PLCs, this module streamlines everything from basic switching operations to sophisticated multi-zone management. Whether you're retrofitting legacy systems or deploying new automation infrastructure, the LOGO! 12/24RC delivers proven Siemens quality with exceptional value.

With its versatile 12-24V DC power compatibility and industrial-rated relay outputs, this controller excels in applications where reliability cannot be compromised. The intelligent design combines analog sensing capabilities with digital precision, enabling comprehensive monitoring and control across diverse operational scenarios.

Core Features & Technical Advantages

✓ Flexible I/O Architecture: 8 digital inputs with 4 configurable as analog (0-10V) enable hybrid sensing strategies, reducing component count while expanding monitoring capabilities across temperature, pressure, and level detection applications.

✓ Industrial Relay Outputs: Four relay-type outputs rated for 10A switching handle demanding loads including motor contactors, solenoid valves, and lighting circuits, eliminating the need for external interface relays in most installations.

✓ Dual Programming Methods: Program via intuitive front-panel function blocks for rapid deployment, or leverage LOGO! Soft Comfort PC software for complex logic development, simulation, and documentation—ideal for both field technicians and engineering teams.

→ Modular Expansion Capability: Seamlessly integrate additional I/O modules as system requirements evolve, protecting your initial investment while accommodating future growth without controller replacement.

→ Wide Operating Range: Certified for 0°C to +55°C ambient temperatures with 12-24V DC supply tolerance, ensuring consistent performance across challenging industrial environments from cold storage to process heating applications.

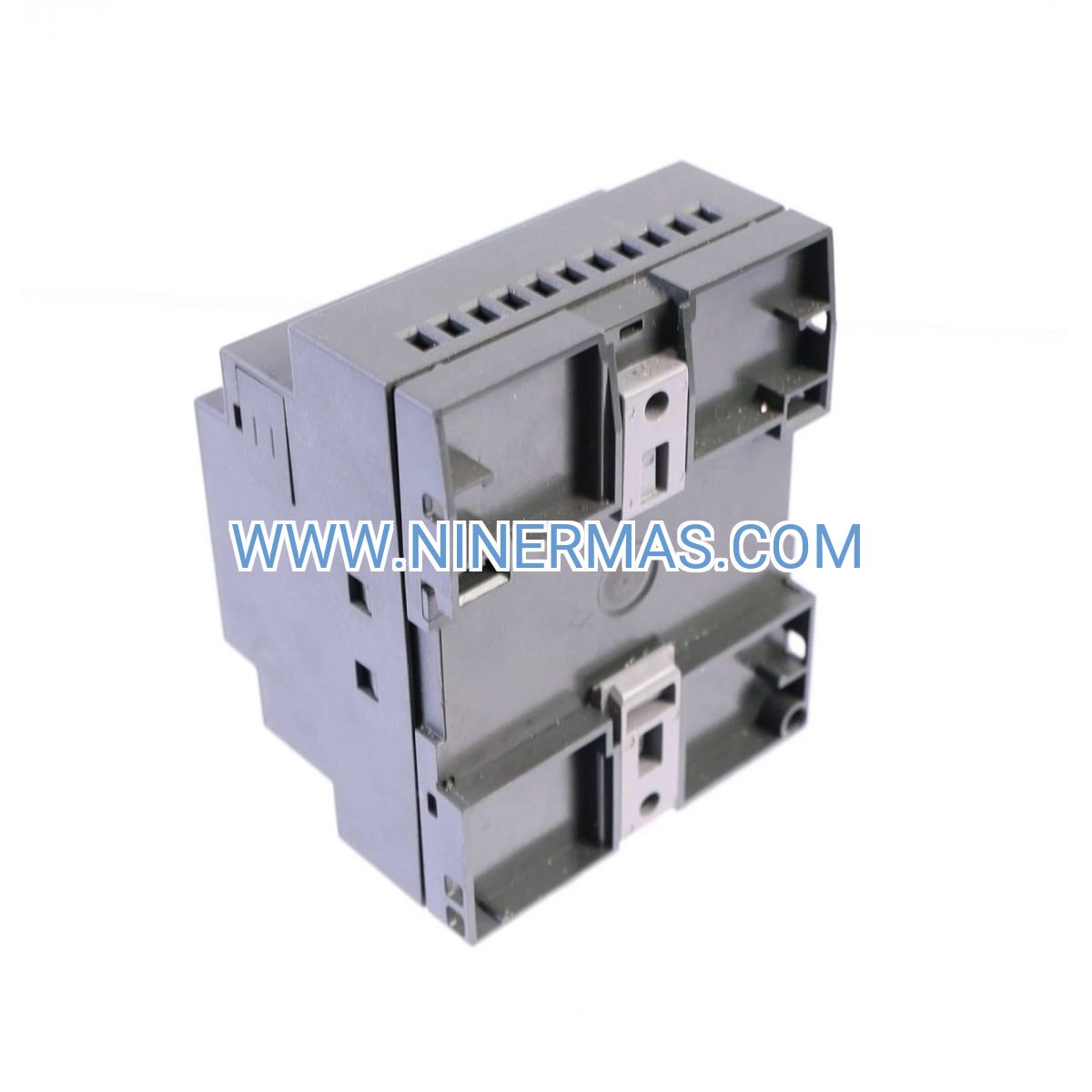

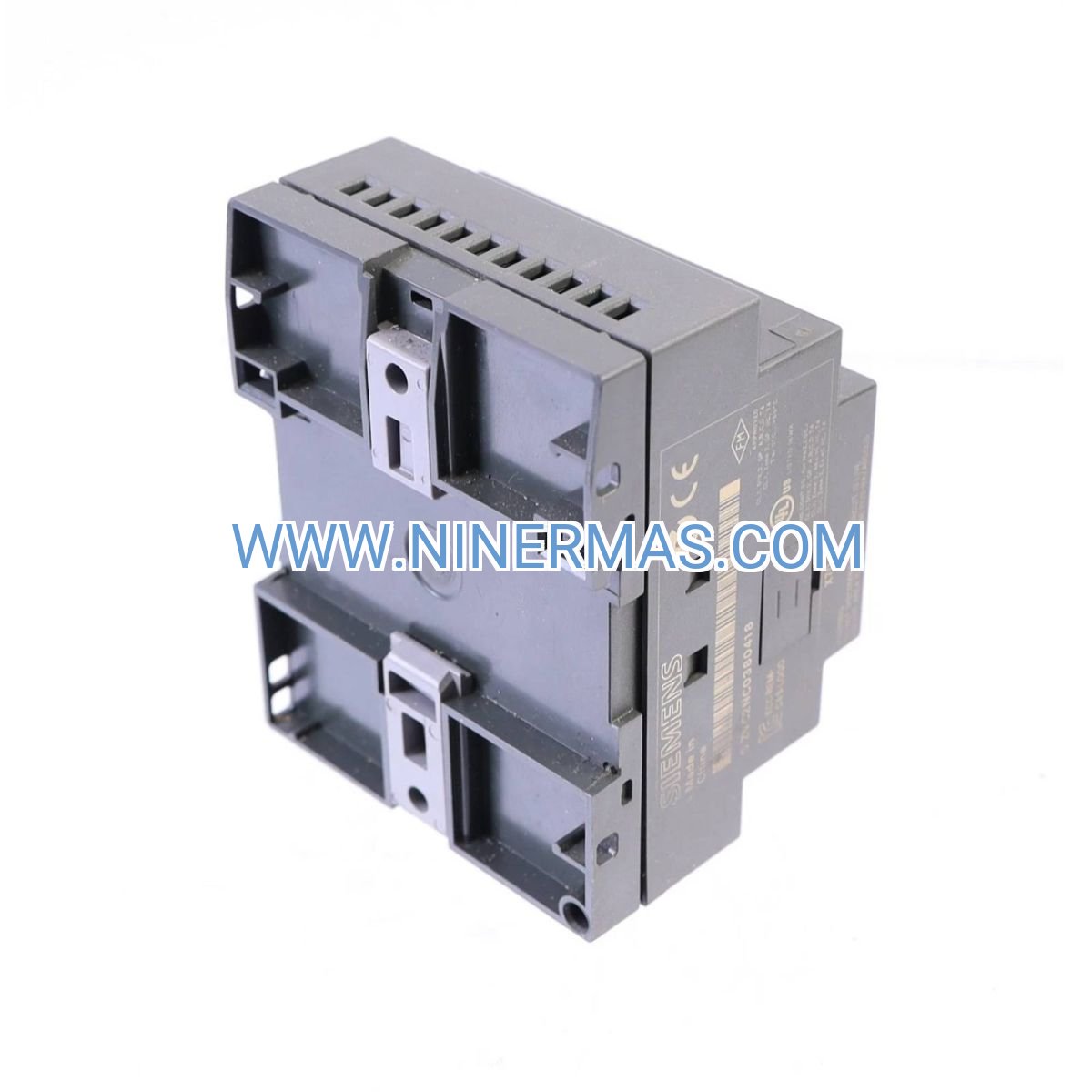

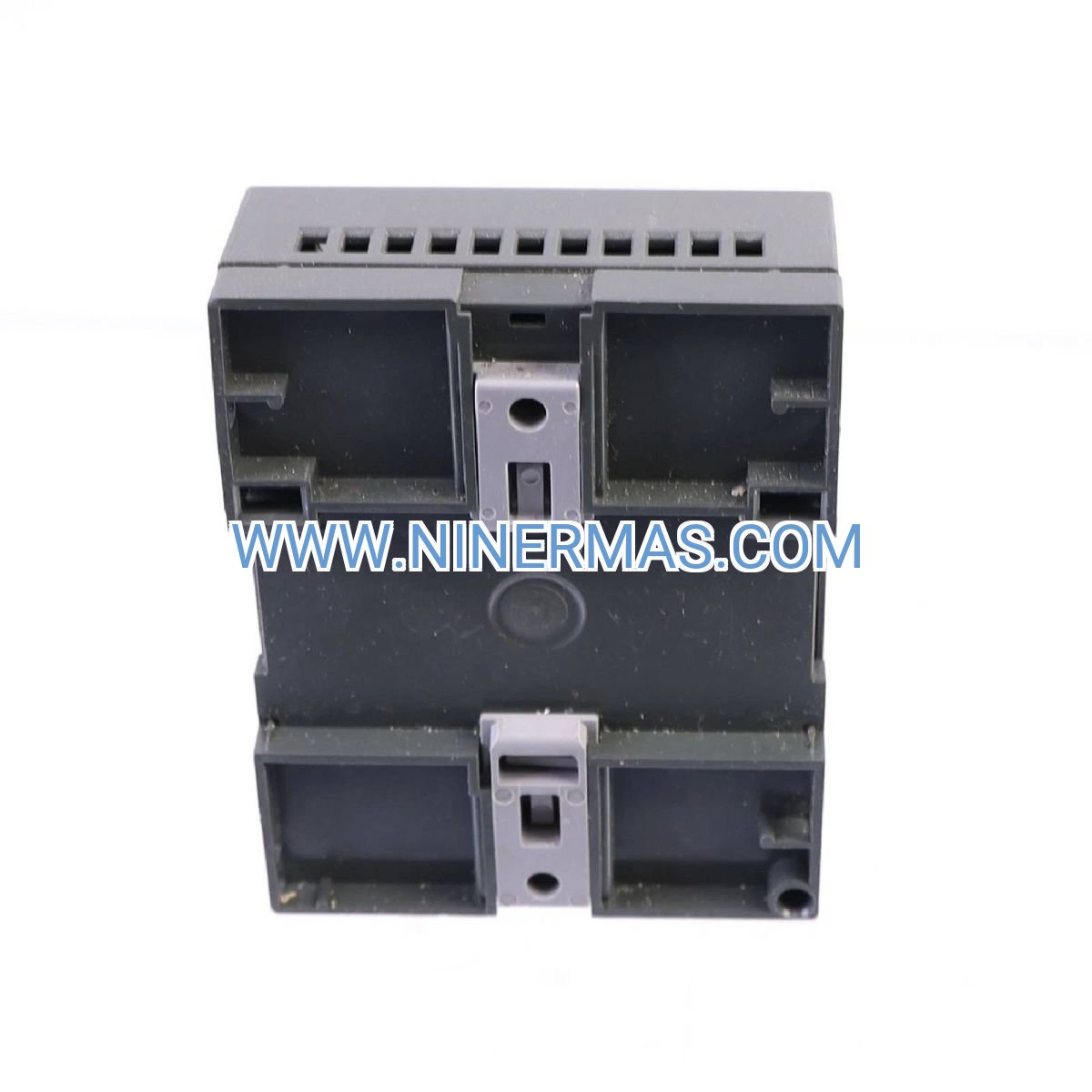

→ Compact DIN Rail Design: Space-saving 72mm width fits standard control panels alongside existing equipment, simplifying retrofits and maximizing enclosure utilization in space-constrained installations.

Application Scenarios & Industry Solutions

Building HVAC Management: Deploy for multi-zone temperature control, ventilation sequencing, and energy-saving scheduling. The analog inputs monitor temperature sensors while relay outputs manage damper actuators, fan contactors, and heating elements. Reduces energy consumption by 15-30% through optimized runtime scheduling and setpoint management.

Water & Wastewater Systems: Control pump stations, level management, and chemical dosing operations. Digital inputs monitor float switches and flow sensors, while relay outputs sequence pump operations to prevent dry running and optimize wear distribution. Prevents costly equipment damage through intelligent interlock logic.

Manufacturing Process Control: Manage conveyor systems, material handling, and sequential operations. Implement safety interlocks, emergency stop circuits, and production counting functions. The controller's fast scan time ensures responsive control for time-critical processes, improving throughput by coordinating multi-stage operations.

Commercial Lighting Systems: Automate parking lot lighting, exterior building illumination, and security lighting based on astronomical timers, photocell inputs, and occupancy schedules. Relay outputs switch lighting contactors while analog inputs interface with daylight sensors for optimal energy efficiency.

Agricultural Automation: Control irrigation valves, greenhouse ventilation, and environmental monitoring systems. Combine time-based scheduling with sensor feedback for soil moisture, temperature, and humidity management, optimizing growing conditions while minimizing water and energy usage.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 12/24RC variant when your application requires relay outputs for high-current loads (motors, contactors, heaters) and operates on low-voltage DC control power. If your system uses 230V AC power or requires Ethernet connectivity, consider the LOGO! 230RCE or 12/24RCE models. For applications needing more than 12 I/O points, plan for expansion modules during initial specification.

Extended Functions & Integration Capabilities

Advanced Timing Functions: Built-in astronomical clock automatically adjusts switching times based on sunrise/sunset calculations, eliminating manual seasonal adjustments for outdoor lighting and HVAC applications.

Data Logging & Trending: Record up to 16 analog values with configurable sampling rates, enabling performance analysis and predictive maintenance strategies without external data acquisition systems.

Communication Interfaces: While this base model focuses on standalone operation, it integrates seamlessly with LOGO! communication modules for Modbus RTU, Ethernet/IP, and cloud connectivity when remote monitoring is required.

Customization Options: Factory configuration services available for high-volume deployments, including pre-loaded programs, custom labeling, and application-specific I/O wiring harnesses to accelerate installation and reduce commissioning time.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 1-2 business days via express courier, with typical delivery in 3-5 business days to major industrial centers. All shipments include tracking and signature confirmation.

Custom Configuration: Pre-programmed units with customer-specific logic require 5-7 business days for programming, testing, and quality verification before shipment.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers all defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring long-term protection.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and optimization recommendations. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Each unit includes quick-start guide, wiring diagrams, function block reference, and sample programs. Full technical manuals and LOGO! Soft Comfort software available via download portal.

Frequently Asked Questions

How do I expand the I/O capacity when my application grows?
The 6ED1052-1MD00-0BA6 supports up to three expansion modules connected via the right-side connector, adding up to 24 additional I/O points. Digital and analog expansion modules can be mixed to match your specific requirements. Configuration is automatic—the base module detects connected expansions during power-up.

What programming software is compatible with this LOGO! controller?
Use LOGO! Soft Comfort V8.3 or newer for Windows-based programming, offering graphical function block editing, simulation, and documentation generation. Alternatively, program directly using the front-panel buttons and LCD display for simple applications or field modifications without a PC.

Can this module handle outdoor installation requirements?
The IP20 protection rating requires installation inside a weatherproof enclosure rated NEMA 4X or IP65 minimum for outdoor environments. Ensure ambient temperature remains within 0-55°C specification and provide adequate ventilation to prevent condensation inside the enclosure.

What is the maximum load current for each relay output?
Each of the four relay outputs is rated for 10A resistive load at 250V AC or 30V DC. For inductive loads (motors, solenoids), apply appropriate derating factors and consider RC snubber circuits to extend relay contact life. Total simultaneous load across all outputs should not exceed 16A.

Does this controller support remote monitoring and control?
The base 12/24RC model operates as a standalone controller. For remote access, Ethernet connectivity, and web server functionality, upgrade to the LOGO! 12/24RCE variant (6ED1052-1MD00-0BA7), which adds built-in Ethernet and supports LOGO! Web Editor for browser-based monitoring.

How does the analog input configuration work?
The first four digital inputs (I1-I4) can be individually configured as 0-10V analog inputs through software settings. This allows flexible sensor integration—use them as digital inputs for switches or analog inputs for temperature transmitters, pressure sensors, or potentiometers based on your application needs.

Take the Next Step in Automation Excellence

Ready to simplify your control system while maintaining industrial-grade reliability? Our automation specialists are standing by to discuss your specific application requirements, recommend optimal configurations, and provide detailed technical specifications. Contact us today for personalized consultation, volume pricing, or to request a detailed quotation for your project.
