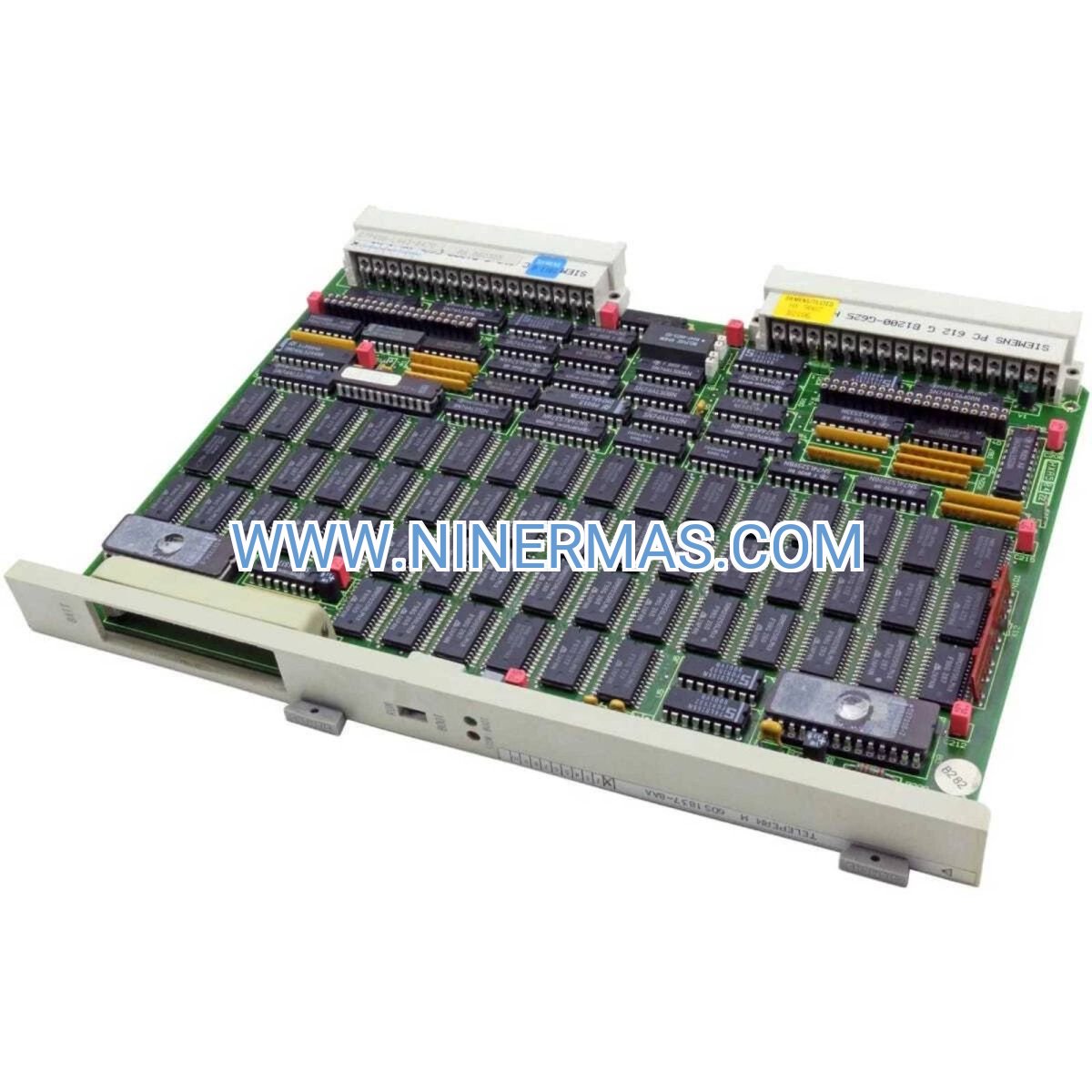

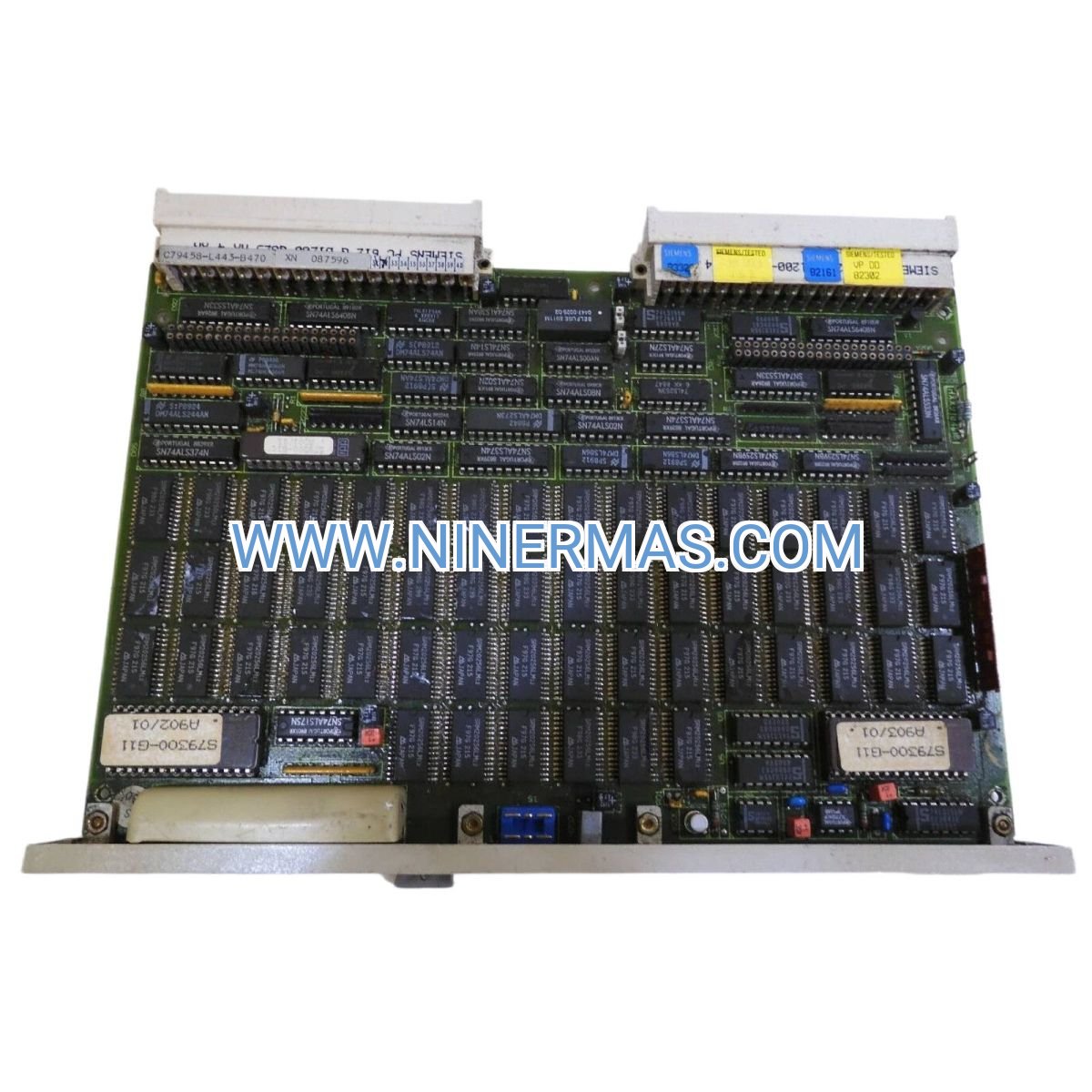

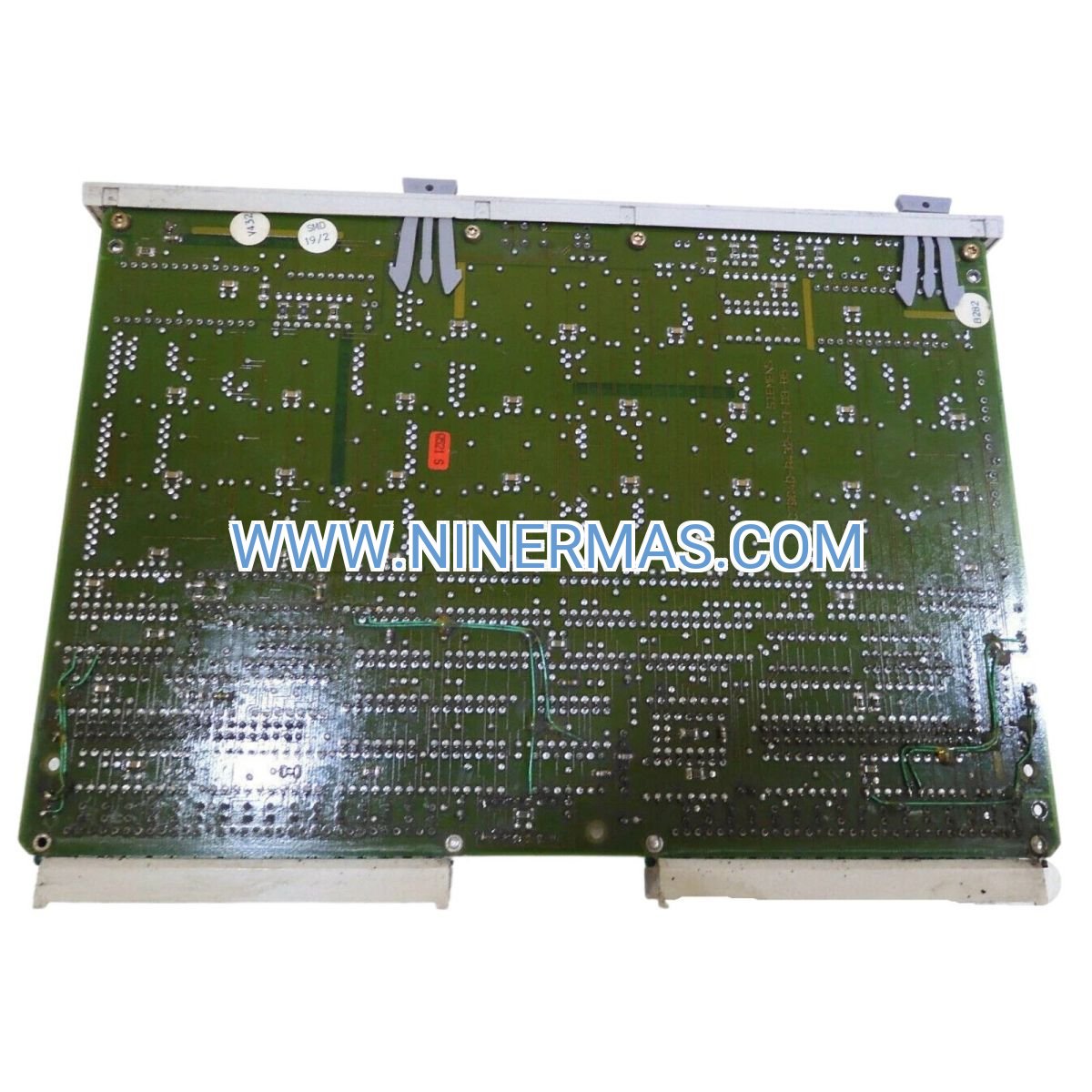

Siemens 6DS1702-8AA – Industrial-Grade 4-Channel Isolated Analog Output Module

The Siemens 6DS1702-8AA delivers precision analog signal transmission for distributed control systems where electrical isolation is mission-critical. Designed for Teleperm M architectures, this four-channel output module eliminates ground loop interference while maintaining signal fidelity across harsh industrial environments. Process engineers rely on its galvanically isolated channels to safeguard sensitive field instrumentation from voltage transients and common-mode noise.

Manufacturing facilities operating legacy Teleperm M infrastructure face ongoing challenges with obsolete I/O components. The 6DS1702-8AA addresses these concerns through proven plug-in architecture that supports rapid replacement without system reconfiguration. Plant maintenance teams benefit from hot-swap capability that reduces unplanned downtime during module failures or preventive maintenance cycles.

Key differentiators include channel-to-channel isolation that prevents cross-talk in multi-loop control strategies, diagnostic LEDs for immediate fault identification, and compatibility with standard 0-10V/4-20mA industrial signals. This module serves as the critical interface between digital control logic and analog actuators in valve positioning, variable frequency drives, and proportional control applications.

Core Features & Benefits

→ Four Independent Isolated Outputs
Each channel operates with complete galvanic separation, protecting downstream devices from electrical faults in adjacent loops. This architecture proves essential in multi-zone temperature control and distributed valve networks where a single ground fault could compromise entire process segments.

→ Teleperm M Native Integration
Seamless backplane communication with Teleperm M processors eliminates custom interface programming. Configuration through Simatic PDM tools accelerates commissioning timelines while maintaining consistency across distributed I/O racks.

→ Dual Signal Format Support
Configurable for voltage (0-10V) or current (4-20mA) outputs accommodates diverse field device requirements without additional signal converters. Current loop capability supports cable runs exceeding 1000 meters in large facility layouts.

✓ Built-In Diagnostics
Real-time monitoring detects open circuits, short conditions, and out-of-range signals. Status indicators accelerate troubleshooting during commissioning and reduce mean-time-to-repair during operational failures.

✓ IP20 Control Cabinet Design
Standard DIN rail mounting and compact form factor optimize panel space utilization. Operating temperature range of 0-60°C suits typical industrial control room environments.

✓ Hot-Swappable Architecture
Front-accessible terminal blocks and keyed connectors enable module replacement without disturbing adjacent I/O cards or disrupting active control loops on other channels.

Application Scenarios

Chemical Batch Processing
Reactor temperature control systems demand isolated outputs to prevent ground-referenced thermocouples from creating measurement errors. The 6DS1702-8AA's channel isolation maintains setpoint accuracy within ±0.1% while controlling heating/cooling valve actuators across multiple reaction vessels.

Power Plant Auxiliary Systems
Boiler feedwater control and turbine lubrication systems require fail-safe analog outputs for critical pump speed regulation. Galvanic isolation protects control logic from high-voltage transients common in power generation facilities, ensuring continuous operation during grid disturbances.

Pharmaceutical Clean Room HVAC
Pressure cascade control in sterile manufacturing zones relies on precise damper positioning. Isolated outputs prevent electromagnetic interference from variable air volume drives affecting adjacent control loops, maintaining FDA-compliant environmental conditions.

Water Treatment Dosing Systems
Chemical feed pump control in municipal treatment plants benefits from current loop outputs that resist signal degradation over long cable runs. Isolation protects SCADA systems from lightning-induced surges in outdoor pump stations.

Food & Beverage Pasteurization
Multi-zone temperature profiling in continuous pasteurizers requires synchronized analog outputs for steam valve control. Channel isolation ensures independent loop tuning without thermal cross-coupling between adjacent heating sections.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 6DS1702-8AA, verify Teleperm M system firmware compatibility (consult migration documentation for systems predating 2015). For new installations, evaluate migration paths to SIMATIC S7 platforms as Siemens discontinued Teleperm M support effective December 2020. Current loop outputs are preferred for cable runs exceeding 100 meters or installations with significant electrical noise. Voltage outputs suit short-distance applications requiring faster response times.

Extended Functions

Legacy System Integration: The 6DS1702-8AA supports protocol bridging to modern SCADA platforms through Teleperm M gateway modules, enabling gradual migration strategies that preserve existing field wiring investments while upgrading supervisory control infrastructure.

Redundancy Configuration: Dual-module setups with automatic failover logic provide high-availability output control for critical safety instrumented systems. Consult Siemens application notes for redundant I/O rack configurations in SIL-rated applications.

Calibration Flexibility: Field-adjustable zero and span settings accommodate non-standard signal ranges (e.g., 1-5V, 10-50mA) without hardware modifications. Configuration via Simatic PDM or legacy Teleperm M engineering stations.

Delivery & Service Assurance

Lead Time: Standard delivery within 5-7 business days for in-stock units. Custom-configured modules with factory calibration certificates ship within 15 business days. Expedited shipping available for critical outage situations.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and component failures. Warranty includes replacement module shipment and return logistics for defective units.

Technical Support: Application engineering assistance available for system integration questions, troubleshooting guidance, and migration planning. Direct access to Siemens-certified technicians with Teleperm M expertise.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates for Simatic PDM, and compliance certificates (CE, UL where applicable). Digital documentation library includes firmware compatibility matrices and obsolescence roadmaps.

Frequently Asked Questions

What cable specifications are recommended for 4-20mA current loop outputs?
Use shielded twisted-pair cable with 18-22 AWG conductors for optimal noise immunity. Maximum loop resistance of 600Ω limits cable runs to approximately 1000 meters with standard 24 AWG wire. Ground shield at control cabinet end only to prevent ground loops.

Can the 6DS1702-8AA interface with HART-enabled field devices?
No, this module provides basic analog output functionality without HART communication capability. For HART-compatible I/O, specify Siemens ET200M series modules with integrated HART modem functionality.

How does galvanic isolation improve system reliability compared to non-isolated outputs?
Isolation prevents ground potential differences between control cabinet and field devices from creating measurement errors or damaging sensitive electronics. In facilities with multiple grounding points, isolation eliminates circulating currents that cause signal drift and premature component failure.

What is the expected service life for the 6DS1702-8AA in continuous operation?
Mean time between failures (MTBF) exceeds 100,000 hours under rated environmental conditions. Actual service life depends on ambient temperature, electrical stress, and maintenance practices. Plan for module replacement every 15-20 years in typical industrial environments.

Are replacement modules available given Teleperm M discontinuation?
NINERMAS maintains inventory of refurbished and new-old-stock 6DS1702-8AA modules for legacy system support. Availability subject to market supply. Contact our team for current stock status and migration consulting for long-term system modernization.

What safety precautions are required during hot-swap module replacement?
Ensure control logic places affected outputs in safe state before module removal. Verify backplane power remains stable during extraction. Use anti-static wrist strap and avoid touching connector pins. Confirm LED status indicators after insertion before returning loops to automatic control.

Take the Next Step

Secure your Teleperm M system's operational continuity with genuine Siemens 6DS1702-8AA modules. Our industrial automation specialists provide technical consultation to verify compatibility with your existing infrastructure and recommend optimal sparing strategies. Request a detailed quotation or schedule a system assessment to explore migration pathways that balance immediate operational needs with long-term modernization objectives.

Contact our team today: Email sale@ninermas.com or call +0086 187 5021 5667 for expert guidance on analog I/O solutions tailored to your process control requirements.
