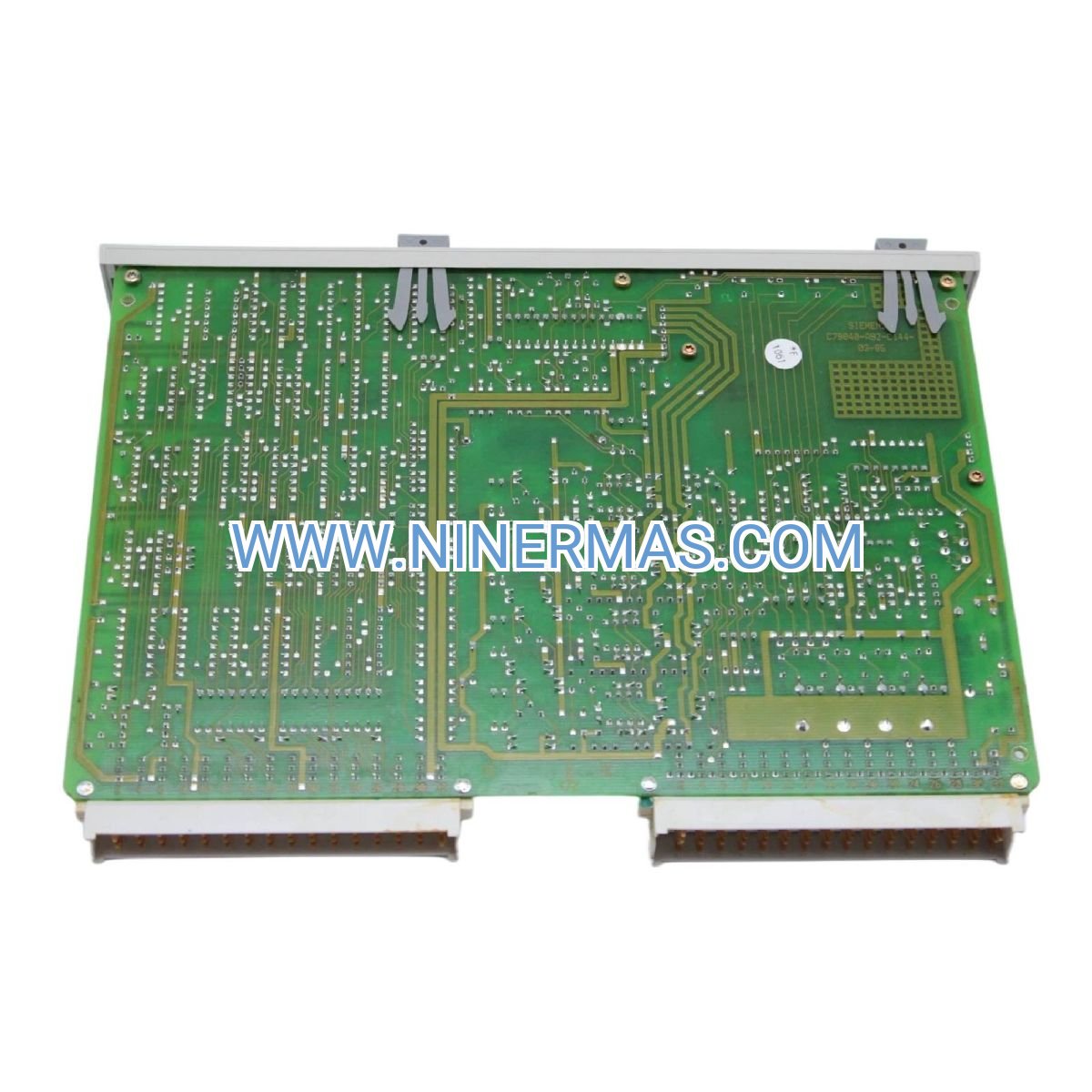

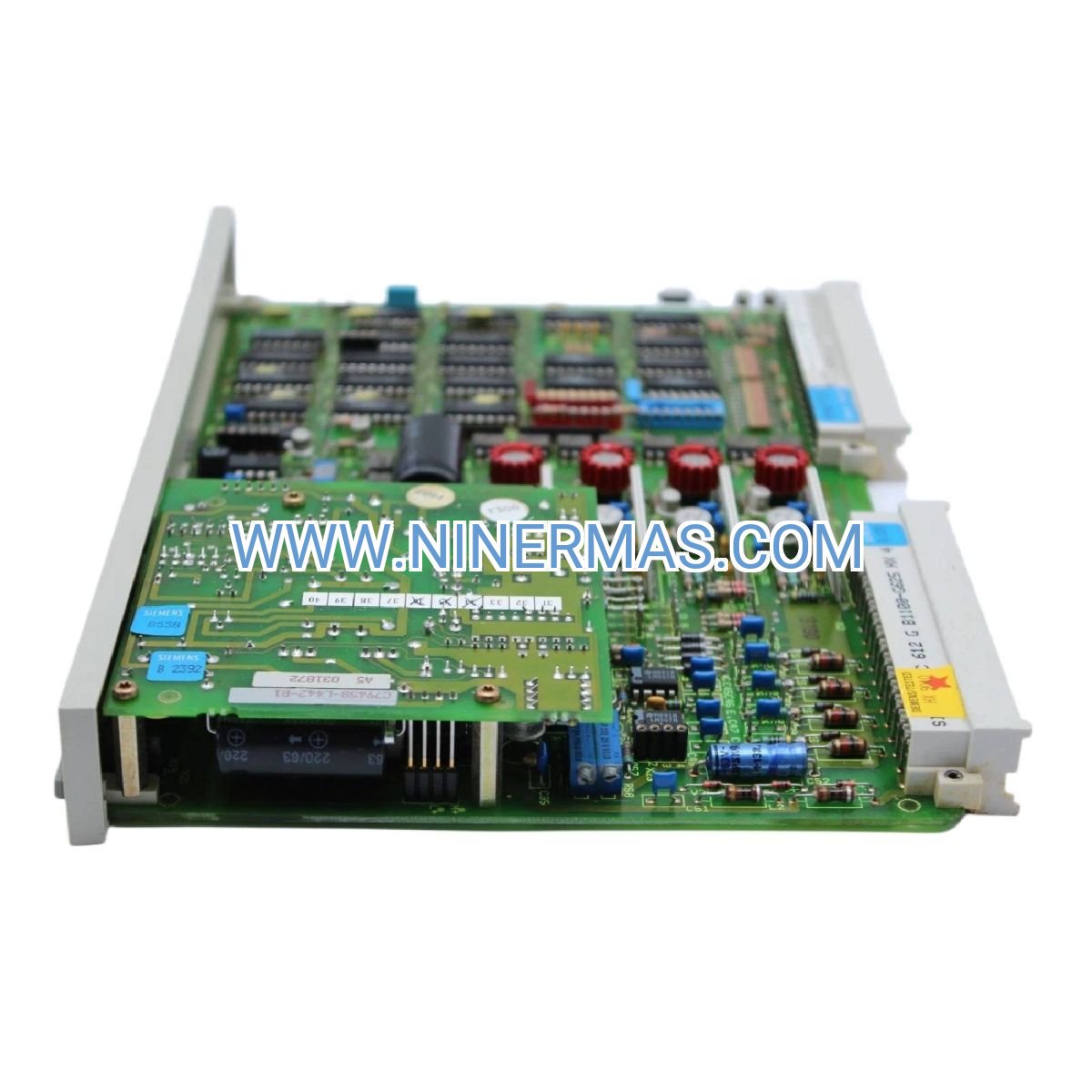

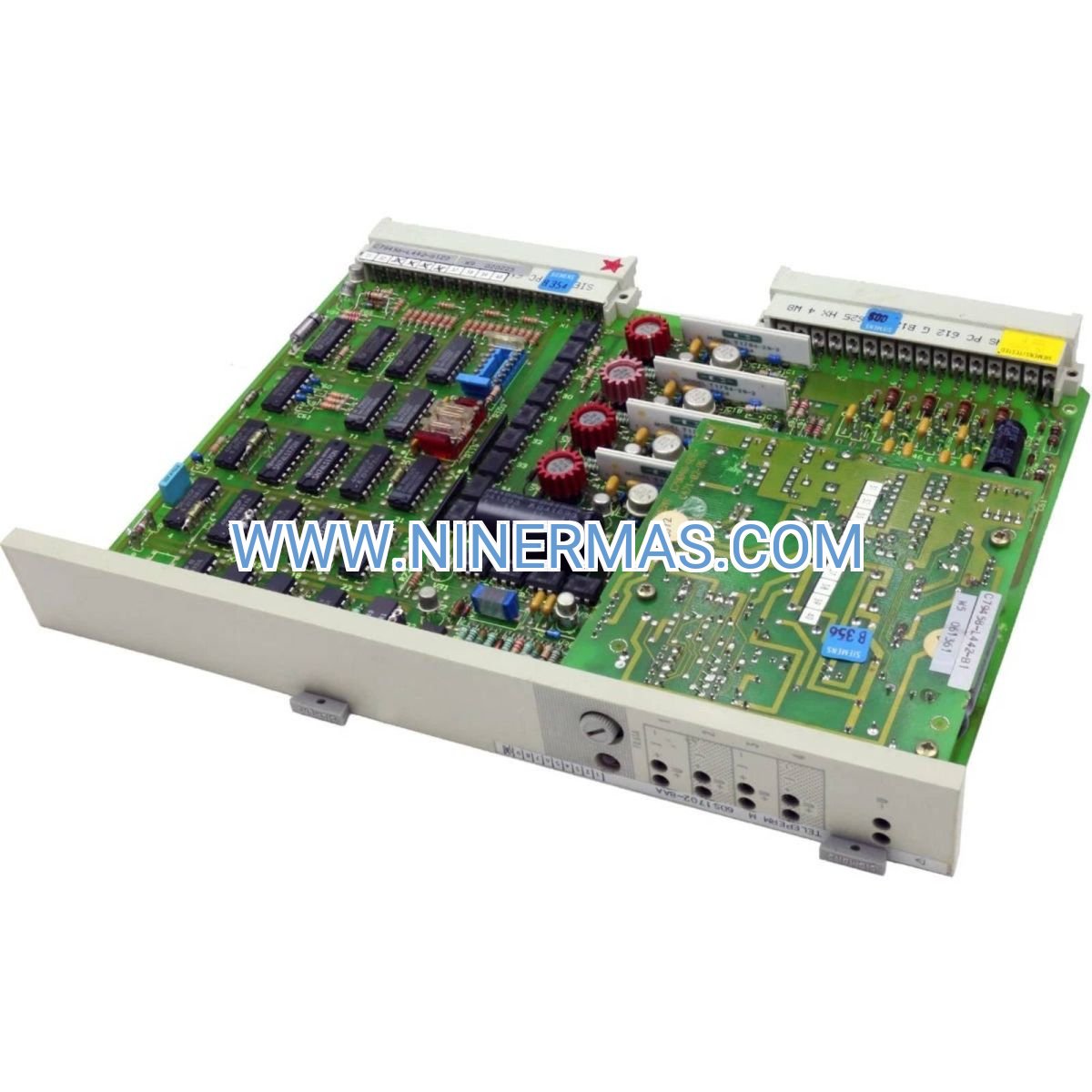

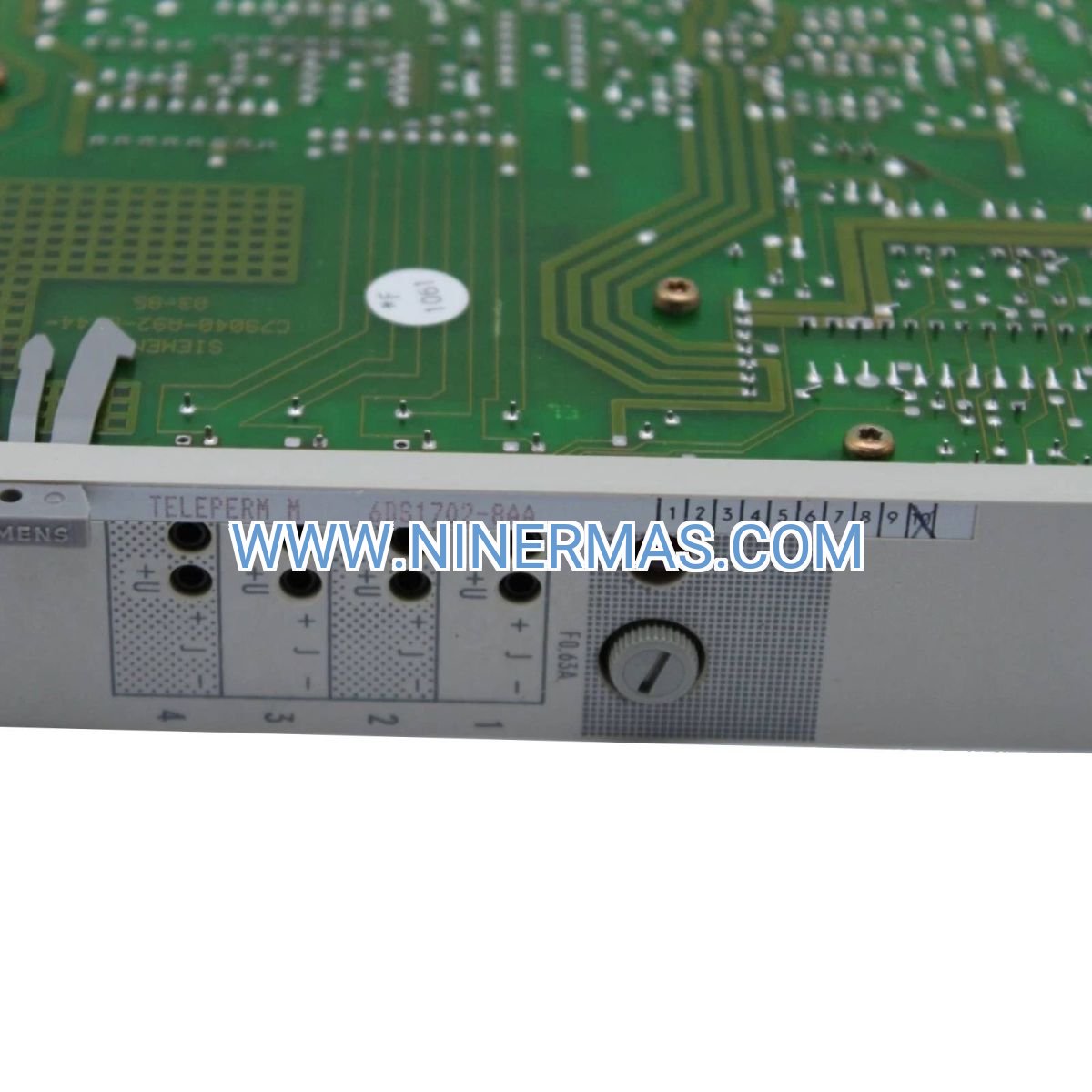

6DS1702-8AA Analog Output Module (Industrial-Grade Multi-Channel Controller)

The 6DS1702-8AA represents a field-proven analog output solution engineered for mission-critical process control environments. Designed as an integral component of Siemens Teleperm M distributed control architecture, this module delivers four independently isolated output channels that eliminate ground loop interference while maintaining signal integrity across extended industrial networks. Built for continuous operation in harsh manufacturing conditions, it serves as the critical interface between digital control logic and analog field instrumentation.

Process engineers and automation specialists rely on this module to bridge the gap between centralized control systems and distributed actuators, valves, and variable frequency drives. Whether managing chemical dosing precision in pharmaceutical production or coordinating multi-zone temperature control in metallurgical furnaces, the 6DS1702-8AA provides the isolation architecture and signal conditioning required for deterministic process outcomes.

With proven compatibility across legacy Teleperm M installations and support for standard industrial signal ranges, this module enables seamless integration into existing control infrastructures while providing the diagnostic capabilities necessary for predictive maintenance strategies and rapid fault isolation.

Core Features & Technical Advantages

✓ Quad-Channel Isolated Architecture
Four independent galvanically isolated output channels prevent common-mode voltage interference and protect sensitive field devices from electrical transients. Each channel operates autonomously, ensuring that a fault in one loop cannot propagate to adjacent circuits—critical for maintaining process stability in multi-zone control applications.

✓ Universal Signal Compatibility
Supports industry-standard 4-20mA current loops and 0-10V voltage outputs, enabling direct connection to pneumatic valve positioners, electronic actuators, variable speed drives, and analog recorders without external signal converters. Current loop transmission supports cable runs exceeding 1000 meters while maintaining ±0.1% accuracy.

✓ Hot-Swappable Plug-In Design
Modular construction allows field replacement without system shutdown or backplane power cycling. Keyed connectors prevent incorrect installation, while spring-loaded terminal blocks ensure vibration-resistant connections in high-shock environments. Mean time to repair (MTTR) reduced to under 5 minutes for trained personnel.

✓ Integrated Diagnostics & Status Monitoring
Real-time loop integrity monitoring detects open circuits, short-circuit conditions, and out-of-range loads. Multi-color LED indicators provide instant visual feedback on channel health, while diagnostic data streams to Teleperm M engineering stations for centralized alarm management and historical trending.

✓ Industrial Environmental Hardening
Operates reliably across 0°C to +60°C ambient temperature range with conformal coating protection against humidity, dust, and chemical vapors. IP20-rated housing suitable for control cabinet mounting, with EMC compliance to EN 61000 standards ensuring immunity to industrial electromagnetic interference.

✓ Deterministic Backplane Communication
Synchronized data exchange with Teleperm M processors via high-speed backplane bus ensures output updates within 10ms cycle time. Distributed clock architecture maintains phase-locked coordination across multiple I/O racks for synchronized multi-axis motion control and batch sequencing.

Application Scenarios & Industry Solutions

→ Chemical & Petrochemical Processing
Controls precision metering pumps for catalyst injection, pH neutralization, and additive dosing in continuous reactors. Isolated outputs prevent ground loops in electrically noisy refinery environments where multiple grounding points exist across distributed process units. Typical deployment: 4-20mA signals to smart positioners on control valves managing corrosive fluid flows.

→ Power Generation & Cogeneration Plants
Regulates steam turbine governor actuators, boiler feedwater control valves, and combustion air dampers in combined-cycle facilities. Galvanic isolation protects control circuits from high-voltage transients during generator synchronization and load transfers. Enables coordinated control of multiple fuel sources (natural gas, coal, biomass) through independent output channels.

→ Pharmaceutical & Biotechnology Manufacturing
Manages sterile process parameters including bioreactor temperature jackets, fermentation vessel pressure regulators, and clean-in-place (CIP) chemical dosing systems. Isolated architecture meets FDA 21 CFR Part 11 requirements for electronic record integrity by preventing signal cross-contamination between batch production zones.

→ Water & Wastewater Treatment
Drives variable frequency pumps for lift stations, controls polymer dosing in flocculation basins, and regulates chlorine injection for disinfection. Long-distance current loop capability supports remote actuator installations across sprawling treatment facilities without signal degradation or repeater stations.

→ Metals & Mining Operations
Coordinates multi-zone furnace temperature profiles in heat treatment lines, controls hydraulic actuators in rolling mills, and regulates conveyor speeds in ore processing circuits. Rugged construction withstands vibration, temperature cycling, and electromagnetic interference from induction heating equipment and high-current motor drives.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6DS1702-8AA when your application requires galvanic isolation between output channels to prevent ground loops in distributed control networks. For applications with shorter cable runs (<100m) and minimal electrical noise, non-isolated modules may offer cost advantages. If your system requires more than four outputs, multiple modules can be installed in adjacent backplane slots with synchronized operation. Verify compatibility with your Teleperm M processor firmware version—consult system documentation for specific revision requirements.

Extended Capabilities & Integration Options

SCADA & HMI Connectivity: Output channel data streams to Simatic WinCC, Wonderware, or third-party SCADA platforms via OPC DA/UA servers running on Teleperm M communication processors. Real-time trending, alarm annunciation, and remote setpoint adjustment available through Ethernet/IP or Profibus DP gateways.

Redundancy Configurations: Deploy in hot-standby redundant pairs with automatic failover for critical control loops. Bumpless transfer logic ensures output continuity during processor switchover events, maintaining process stability during maintenance operations or component failures.

Custom Calibration Services: Factory-certified calibration to customer-specific signal ranges (e.g., 1-5V, 10-50mA) available for OEM applications. Calibration certificates traceable to NIST standards provided with each customized module, supporting ISO 9001 quality management requirements.

Retrofit & Migration Support: Compatible with legacy 6DS17xx series modules through firmware emulation mode. Enables phased migration from older Teleperm M systems to SIMATIC S7 platforms using protocol converters and I/O mapping tools—preserving existing field wiring while upgrading control logic.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock modules ship within 2-3 business days via express courier (DHL, FedEx, UPS). Typical transit time to major industrial centers: North America 5-7 days, Europe 4-6 days, Asia-Pacific 3-5 days. Expedited same-day shipping available for critical downtime situations.

Custom Configuration Lead Time: Modules requiring special calibration, firmware versions, or conformal coating upgrades ship within 10-15 business days. Rush processing available with 48-hour turnaround for emergency replacements.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and calibration drift beyond published specifications. Warranty includes advance replacement service—receive tested spare before returning defective unit to minimize production downtime.

Technical Support Access: Unlimited phone and email support from application engineers with Teleperm M expertise. Remote diagnostic assistance via TeamViewer or AnyDesk for troubleshooting complex integration issues. Response time: <4 hours for critical production-down scenarios, <24 hours for general technical inquiries.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration examples, and dimensional drawings. Digital library access includes firmware release notes, obsolescence bulletins, and migration guides for long-term system planning.

Frequently Asked Questions

What cable specifications are recommended for 4-20mA output connections?
Use twisted-pair shielded cable (18-22 AWG) with drain wire grounded at the module end only. For runs exceeding 500 meters, increase wire gauge to 16 AWG to minimize voltage drop. Shield continuity prevents electromagnetic interference from VFDs and welding equipment—critical in heavy industrial environments.

How does this module integrate with modern SIMATIC S7 control systems?
Direct integration requires Teleperm M-to-S7 protocol gateways (e.g., CP443-1 communication processors). For greenfield installations, consider SIMATIC ET 200SP analog output modules which offer similar isolation with native Profinet connectivity. Migration services available to map existing I/O configurations to S7-1500 hardware.

Can output channels drive multiple actuators in parallel configuration?
Current loop outputs (4-20mA) do not support parallel loads—each channel drives a single series-connected device. Voltage outputs (0-10V) can drive multiple high-impedance loads (>10kΩ each) in parallel, though signal buffering amplifiers are recommended to prevent loading errors and maintain calibration accuracy.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
Built-in loop diagnostics detect wire breaks (open circuit), shorted outputs, and overload conditions. LED status indicators show green (normal operation), yellow (configuration mode), or red (fault detected). Diagnostic registers accessible via Teleperm M engineering software provide detailed fault codes and historical event logs for root cause analysis.

Is field recalibration required for long-term accuracy maintenance?
Factory calibration remains stable for 5+ years under normal operating conditions. Annual verification recommended for critical control loops—use precision multimeter and calibrated current source to verify ±0.1% accuracy. Recalibration procedures documented in service manual, executable via Simatic PDM software or handheld calibrators.

What safety considerations apply when installing in hazardous area applications?
The 6DS1702-8AA is rated for safe area (non-hazardous) installation only. For Zone 1/Division 1 hazardous locations, install module in purged/pressurized control room enclosures with intrinsically safe barriers (e.g., MTL, Pepperl+Fuchs) on field wiring. Consult local electrical codes (NEC Article 500, IEC 60079) for barrier selection and installation requirements.

Take the Next Step in Process Control Optimization

Ready to enhance your Teleperm M system reliability with proven analog output technology? Our application engineers are available to discuss your specific control requirements, recommend optimal module configurations, and provide detailed integration support. Contact us today for technical consultation, pricing for volume orders, or to request test modules for evaluation in your facility.

Request a quote: Share your project specifications for customized pricing and delivery timelines.
Technical consultation: Schedule a call with our automation specialists to review system architecture and migration strategies.
Urgent replacement: 24/7 emergency support line for critical production downtime situations.
