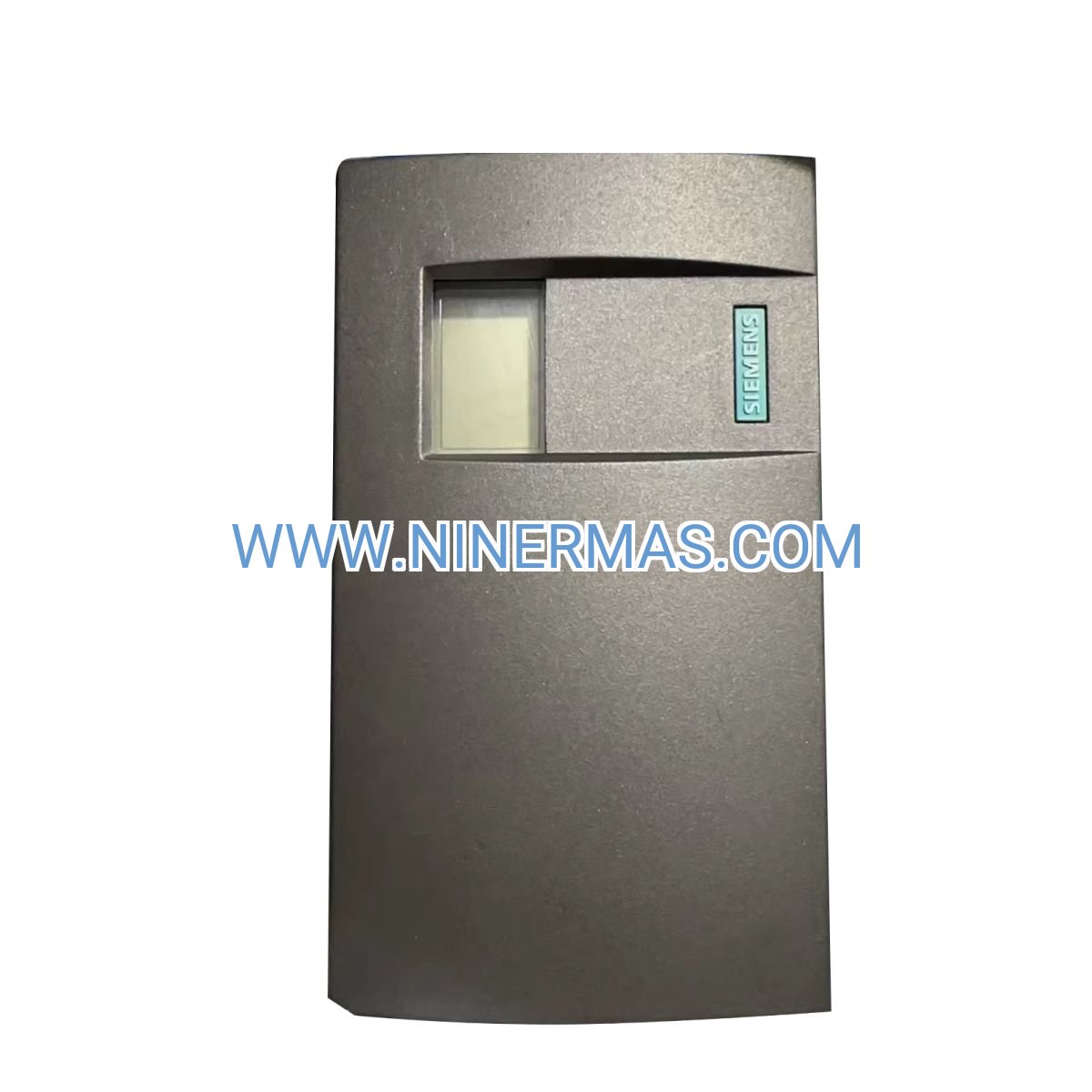

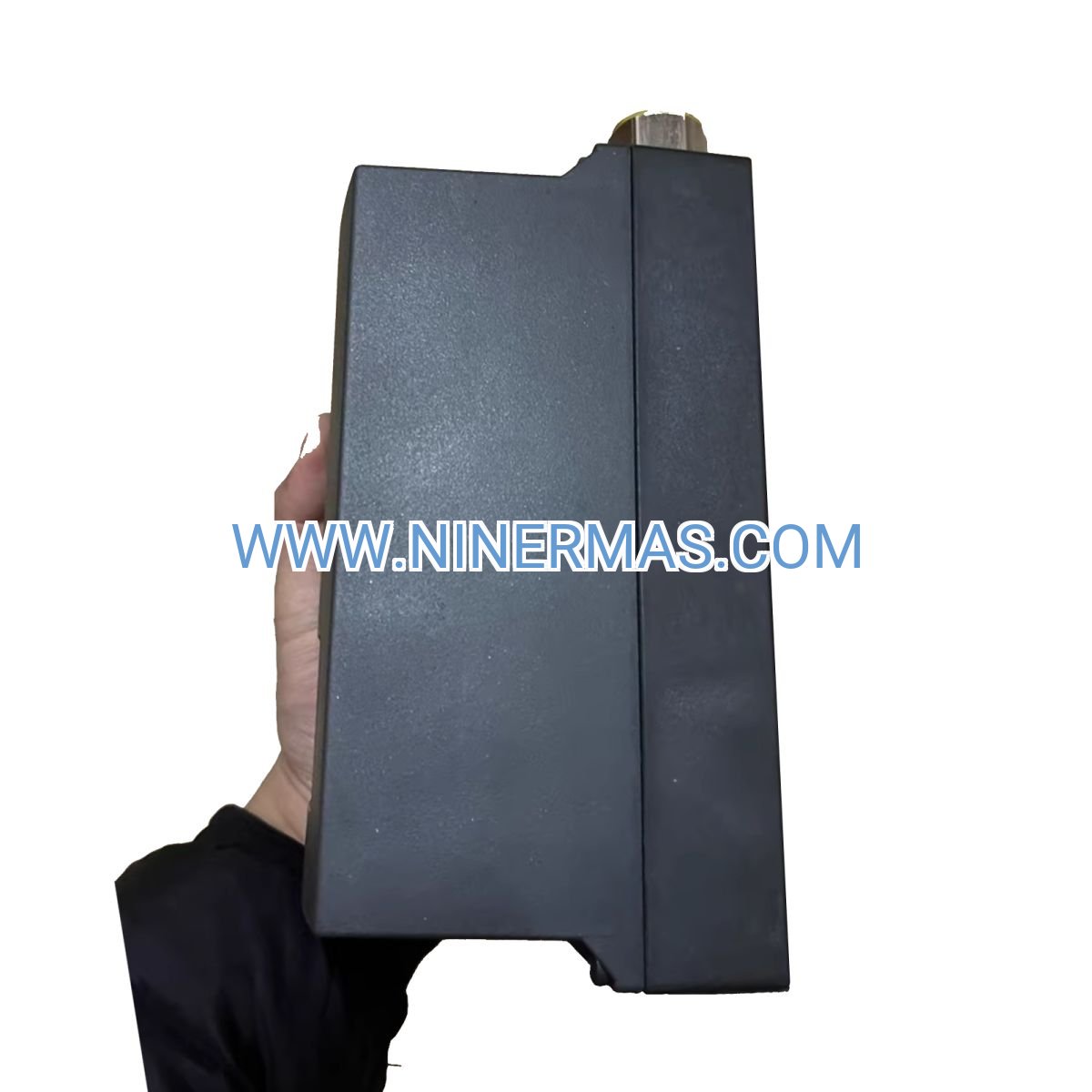

6DR5220-0EM00-0AA0 SIPART PS2 Electropneumatic Positioner (Industrial-Grade HART Protocol)

The 6DR5220-0EM00-0AA0 delivers field-proven valve positioning for critical process loops where accuracy, diagnostics, and uptime define operational success. Engineered around Siemens' piezo-valve architecture, this HART-enabled positioner converts 4–20 mA signals into precise pneumatic output while continuously monitoring actuator health, friction trends, and calibration drift. Designed for refineries, chemical plants, power stations, and water infrastructure, it combines one-touch commissioning with predictive maintenance intelligence to reduce installation time and eliminate unplanned shutdowns.

Process engineers rely on the SIPART PS2 platform to maintain tight control across fluctuating temperatures, corrosive atmospheres, and hazardous zones. With ATEX, IECEx, FM, and CSA certifications, the 6DR5220-0EM00-0AA0 meets global safety standards for Zone 1/Division 1 environments. Its IP66/NEMA 4X enclosure withstands extreme weather, while the -30°C to +80°C operating range ensures year-round reliability in outdoor installations. Whether you're optimizing reactor feed rates, managing steam turbine bypass systems, or controlling municipal water distribution, this positioner transforms standard actuators into intelligent control assets.

From auto-calibration that adapts to any actuator geometry to HART diagnostics accessible from your control room, the 6DR5220-0EM00-0AA0 streamlines commissioning, simplifies troubleshooting, and extends valve service life. Explore how this smart positioner integrates into your automation strategy and delivers measurable ROI through reduced maintenance cycles and improved process stability.

Core Features & Benefits

→ Piezo-Valve Precision Technology
Achieves ±0.25% positioning accuracy with minimal hysteresis, ensuring consistent valve response across the full stroke range. Superior repeatability maintains setpoint stability even when supply pressure fluctuates or ambient temperature shifts, reducing process variability and improving product quality.

→ One-Touch Auto-Calibration
Patented initialization sequence automatically identifies actuator type (linear/rotary), stroke length (5–120 mm), and rotation angle (30°–100°), eliminating manual parameter entry. Commissioning time drops from hours to under 10 minutes, lowering installation costs and accelerating project timelines.

→ Predictive Diagnostics via HART
Continuous self-monitoring tracks valve friction, travel count, control deviation, and air supply quality. Maintenance alerts flag emerging issues—such as packing wear or actuator spring degradation—before they cause failures, enabling condition-based servicing and reducing emergency callouts by up to 40%.

→ Hazardous-Area Certification
ATEX Zone 1, IECEx, FM Class I Division 1, and CSA approvals permit installation in explosive atmospheres without additional barriers. Intrinsically safe design protects personnel and assets in oil & gas, petrochemical, and solvent-handling facilities.

→ SIL 2 Functional Safety
Certified per IEC 61508 for safety instrumented systems, the positioner integrates into emergency shutdown (ESD) and high-integrity pressure protection (HIPPS) loops. Detailed safety manuals and proof-test procedures support compliance with IEC 61511 and API RP 556 requirements.

✓ Remote Configuration & Calibration
HART two-way communication allows parameter adjustments, valve signature testing, and firmware updates from the control room or via handheld communicator. Eliminates scaffolding, hot-work permits, and confined-space entry, improving safety and reducing downtime during maintenance windows.

Application Scenarios

Refinery & Petrochemical Processing
Controls distillation column reflux, catalytic cracker feed, hydrotreater hydrogen flow, and coker drum isolation valves. High-temperature stability and corrosion-resistant materials ensure reliable operation in naphtha, crude oil, and sulfur-laden environments. Diagnostic data supports turnaround planning and regulatory compliance audits.

Chemical Manufacturing & Batch Processing
Manages reactor dosing sequences, solvent recovery loops, and emergency vent systems in pharmaceutical, agrochemical, and specialty chemical plants. Explosion-proof certification and SIL rating meet stringent safety requirements for exothermic reactions and toxic material handling.

Power Generation & Cogeneration
Regulates steam turbine bypass valves, boiler feedwater control, combustion air dampers, and flue gas recirculation in coal, gas, CCGT, and biomass plants. Fast response and precise modulation optimize thermal efficiency, reduce NOx emissions, and support grid frequency regulation during load swings.

Water & Wastewater Treatment
Optimizes chemical dosing (chlorine, alum, polymer), filtration backwash cycles, and distribution pressure control in municipal and industrial facilities. Energy savings of 15–25% result from eliminating valve oversizing and reducing pump cycling through accurate flow modulation.

Pulp & Paper Mills
Controls stock consistency, bleach chemical addition, and steam header pressure in digester, bleaching, and drying sections. Corrosion-resistant construction withstands chlorine dioxide, sodium hydroxide, and high-humidity environments typical of pulp processing.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6DR5220-0EM00-0AA0 when your application demands HART diagnostics, SIL certification, or operation in hazardous zones. For non-hazardous environments with basic 4–20 mA control, consider the 6DR5210 or 6DR5025 variants. Verify actuator compatibility (linear stroke 5–120 mm or rotary 30°–100°) and confirm air supply meets ISO 8573-1 Class 3 cleanliness to prevent premature wear of piezo valves.

Extended Functions

Valve Signature Testing: Built-in partial-stroke test (PST) capability verifies valve and actuator performance without full closure, supporting ISA-84 / IEC 61511 proof-test requirements. Signature data reveals friction changes, seat wear, and packing degradation, enabling predictive maintenance scheduling.

Split-Range & Characterization: Configurable split-range operation controls two valves from a single 4–20 mA signal, ideal for heating/cooling or dual-path flow applications. Linearization tables compensate for non-linear valve characteristics (equal-percentage, quick-opening), ensuring proportional control response.

Asset Management Integration: HART data integrates with Siemens SIMATIC PDM, Emerson AMS, or Yokogawa FieldMate for centralized device configuration, calibration records, and maintenance history tracking. FDT/DTM support ensures compatibility with third-party asset management platforms.

Customization Options: Factory configuration services include pre-set fail-safe positions, custom characterization curves, and application-specific parameter lockouts. Consult our engineering team for high-vibration, cryogenic, or ultra-high-temperature variants requiring special materials or extended certifications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3–5 business days. Custom-configured units or large-volume orders typically require 2–3 weeks. Expedited processing available for critical shutdowns or emergency replacements—contact our sales team for priority scheduling.

Warranty Coverage: 12-month manufacturer warranty protects against defects in materials and workmanship from shipment date. Extended warranty plans and spare parts kits available to support long-term asset reliability and minimize inventory costs.

Technical Support: Factory-trained application engineers provide pre-sale sizing assistance, HART configuration guidance, and troubleshooting support via phone, email, or remote desktop. On-site commissioning and training services available for multi-unit installations or complex control strategies.

Documentation Package: Each positioner includes installation manual, quick-start guide, HART DD file, SIL safety manual, and calibration certificate. CAD drawings (STEP, DWG), loop diagrams, and material certifications (EN 10204 3.1) provided upon request.

Frequently Asked Questions

How does the auto-calibration process handle different actuator brands?
The initialization routine is actuator-agnostic, automatically detecting stroke length, spring rate, and friction characteristics for linear or rotary designs from manufacturers including Emerson Fisher, Flowserve, Rotork, and AUMA. Manual override available for non-standard geometries.

What air quality standards must be maintained for reliable operation?
Supply air must meet ISO 8573-1 Class 3 (particle size ≤5 µm, pressure dew point ≤-20°C, oil content ≤1 mg/m³). Install coalescing filters and dryers upstream of the positioner to prevent piezo-valve clogging and extend service intervals beyond 5 years.

Can this positioner integrate with Foundation Fieldbus or PROFIBUS networks?
The 6DR5220-0EM00-0AA0 is HART-only. For digital fieldbus applications, specify the 6DR5220-0EN00-0AA0 (PROFIBUS PA) or 6DR5220-0EG00-0AA0 (Foundation Fieldbus) variants, which offer identical mechanical specifications with different communication modules.

Is the positioner suitable for cryogenic service below -30°C?
Standard units operate down to -30°C. For LNG, liquid nitrogen, or other cryogenic applications below -40°C, request the low-temperature option (suffix -Z C11), which includes special seals, lubricants, and cold-weather electronics tested to -60°C.

How often should calibration verification be performed?
Siemens recommends annual calibration checks for general process control and semi-annual verification for SIL-rated safety applications per IEC 61511. HART diagnostics provide continuous drift monitoring, allowing condition-based calibration intervals that often extend beyond 24 months in stable environments.

What fail-safe behavior options are available during signal or air loss?
Configurable fail modes include fail-open, fail-closed, or fail-last-position. For safety applications, specify fail-safe direction during ordering (suffix -Z A01 for fail-open, -Z A02 for fail-closed) to ensure mechanical spring return aligns with process safety requirements.

Ready to Optimize Your Valve Control?

Contact our automation specialists to discuss your application requirements, receive sizing recommendations, and obtain a detailed quotation. Whether you're upgrading legacy positioners, designing a new process unit, or seeking SIL-certified solutions for safety systems, we deliver expert guidance and fast fulfillment to keep your project on schedule.

Request a Quote: Email sale@ninermas.com or call +0086 187 5021 5667
Technical Inquiries: Speak with our application engineers for HART configuration, actuator compatibility, or hazardous-area certification questions.
