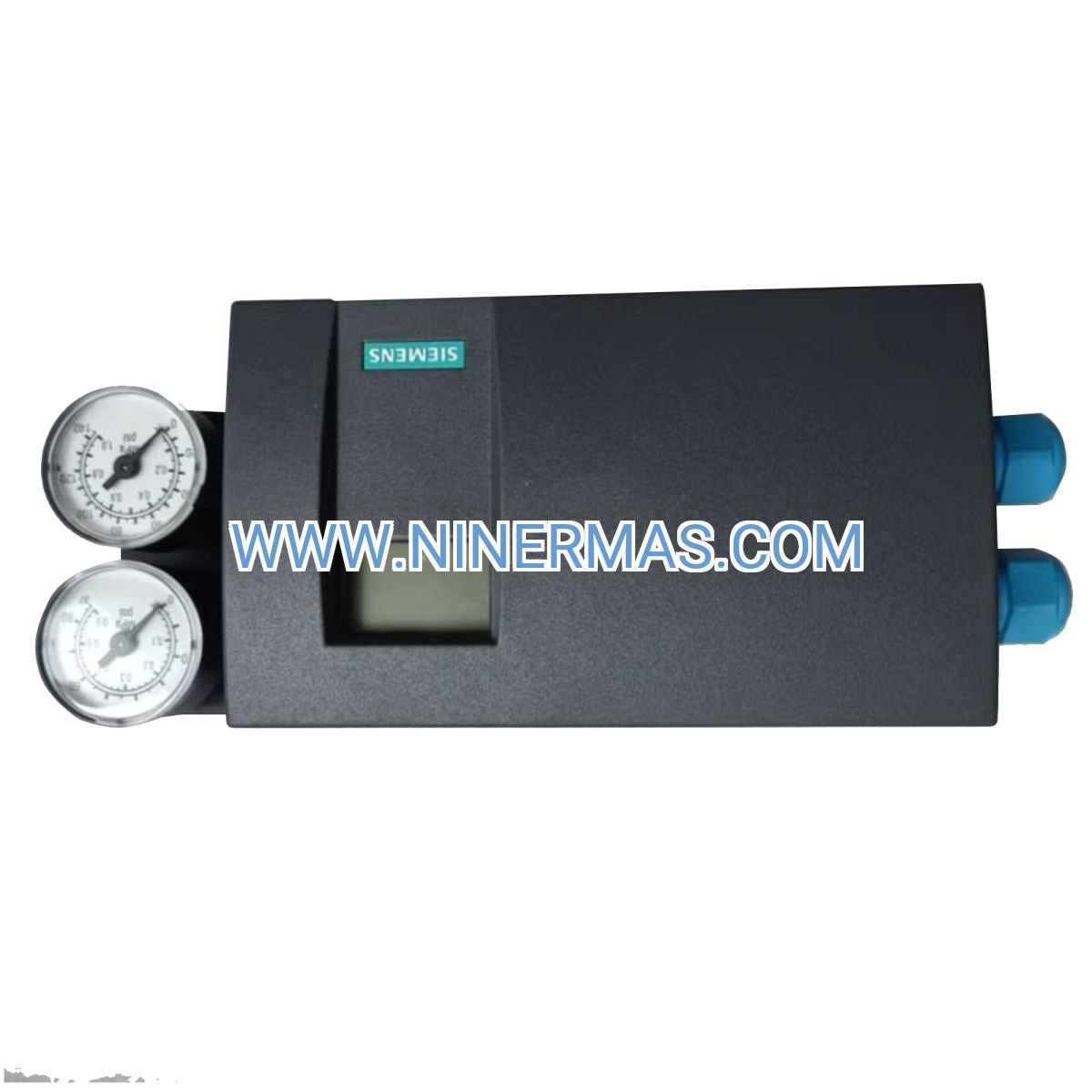

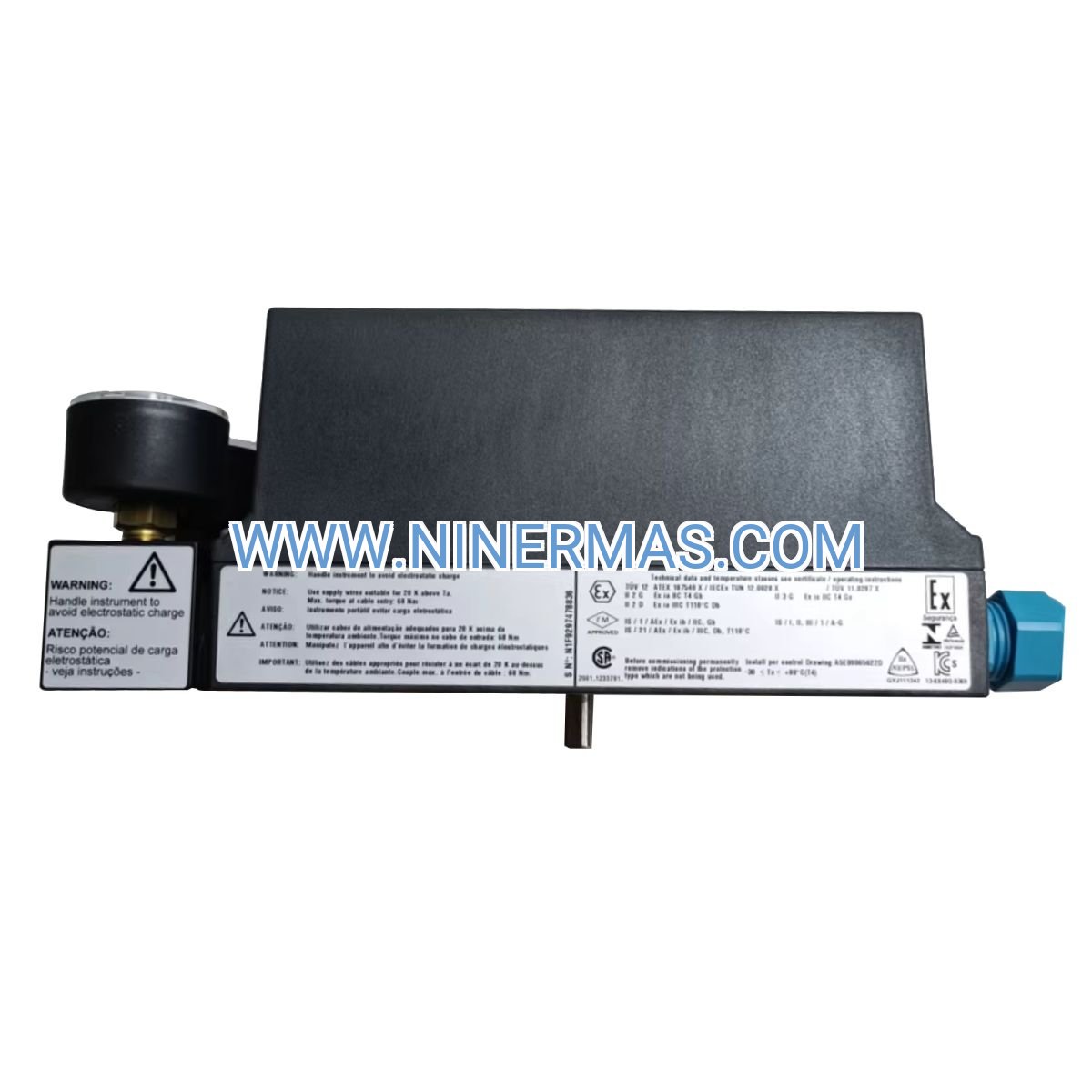

Siemens 6DR5210-0EM01-0AA3 SIPART PS2 (Industrial-Grade Intrinsically Safe Valve Positioner)

The Siemens 6DR5210-0EM01-0AA3 is an intrinsically safe smart electropneumatic positioner engineered for critical valve control in explosive atmospheres. Combining Ex i Zone 1 certification with HART digital communication, this SIPART PS2 device delivers fail-safe positioning accuracy for linear and rotary actuators across oil & gas, chemical processing, and pharmaceutical manufacturing environments. Its dual-output pneumatic design ensures precise modulation even under extreme temperature fluctuations from -30°C to +80°C.

Designed for process engineers who demand both safety compliance and operational intelligence, this positioner eliminates the traditional trade-off between hazardous area protection and advanced diagnostics. Whether you're controlling separator valves on offshore platforms or reactor feed systems in chemical plants, the 6DR5210-0EM01-0AA3 provides the reliability and data transparency modern automation architectures require.

With auto-calibration routines that reduce commissioning time by 70% and predictive diagnostics that forecast maintenance needs weeks in advance, this device transforms valve control from a passive component into an active contributor to plant efficiency and safety performance.

Core Features & Business Value

✓ Ex i Intrinsic Safety Certification
Approved for Zone 1 hazardous locations per ATEX and IECEx standards, enabling safe deployment in refineries, chemical plants, and gas processing facilities without expensive explosion-proof enclosures. Reduces installation costs by 40% compared to flameproof alternatives while maintaining equivalent protection levels.

✓ HART Digital Protocol Integration
Bidirectional communication over standard 4-20mA wiring delivers real-time diagnostics, remote configuration, and asset management data to your DCS or SCADA system. Eliminates field trips for parameter adjustments, cutting commissioning and maintenance labor by 60%.

✓ Dual-Output Pneumatic Architecture
Independent control of both actuator chambers provides superior positioning accuracy (±0.5% linearity) and faster response times. Automatically adapts to single-acting spring-return or double-acting piston actuators without manual configuration.

✓ Auto-Calibration Intelligence
Self-learning algorithms detect actuator stroke, optimize control parameters, and compensate for valve packing friction—all without technician intervention. New installations achieve optimal performance in under 10 minutes versus 2+ hours for manual tuning.

✓ Predictive Maintenance Analytics
Continuous monitoring of valve friction signatures, air consumption patterns, and response time degradation triggers early warnings before process upsets occur. Extends valve service intervals by 30% through condition-based maintenance scheduling.

→ Wide Environmental Range
Operates reliably from -30°C to +80°C ambient temperature with corrosion-resistant aluminum housing and polyester coating. Proven performance in Arctic gas fields, desert refineries, and tropical offshore platforms without environmental protection accessories.

Industrial Application Scenarios

Oil & Gas Production Facilities
In offshore separator platforms and onshore gas processing units, the 6DR5210-0EM01-0AA3 controls level, pressure, and flow valves within explosive gas zones. The Ex i certification eliminates hot work permits during installation, while HART diagnostics enable remote monitoring from onshore control centers—reducing offshore manning requirements and improving safety metrics.

Chemical Manufacturing Plants
Reactor feed control and distillation column regulation demand precise valve positioning under corrosive atmospheres. This positioner's intrinsic safety allows installation directly on process equipment without segregated safe areas, optimizing plant layout. Predictive diagnostics identify valve seat wear before product quality deviates, preventing batch rejections.

Pharmaceutical Production Lines
Sterile processing environments require hygienic valve control with full traceability. The built-in data logger captures 10,000 positioning events for FDA 21 CFR Part 11 compliance, while the maintenance-free design minimizes contamination risks from service interventions. Auto-calibration ensures consistent batch-to-batch performance.

Power Generation Systems
Boiler feedwater control and turbine bypass valves operate under extreme temperature swings and vibration. The positioner's wide ambient range and robust mounting per IEC 60534-6-1 ensure reliable operation without recalibration. HART diagnostics integrate with plant asset management systems for coordinated maintenance planning.

Petrochemical Refineries
Crude distillation units and catalytic crackers require fail-safe valve control in Class I Division 1 areas. The dual-output design provides split-range control for complex valve arrangements, while the 1.4-7 bar supply pressure range accommodates existing plant air systems without booster compressors.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6DR5210-0EM01-0AA3 when your application requires intrinsic safety certification for Zone 1/Division 1 areas combined with HART digital communication. For non-hazardous locations, consider the standard 6DR5210-0EM00-0AA0 variant. If your actuator requires >7 bar supply pressure, specify high-pressure variants. Verify that your safety barriers or isolators support the positioner's power requirements (≤3.6 mA) and cable parameters per the Ex i certification documentation.

Extended Functionality

IoT Integration Capabilities
The HART protocol enables seamless connectivity to Industrial IoT platforms via HART-IP gateways or wireless HART adapters. Stream positioning data, diagnostic alerts, and performance metrics to cloud-based analytics engines for multi-site benchmarking and AI-driven optimization. Compatible with major asset management suites including Siemens PAS, Emerson AMS, and Yokogawa PRM.

Advanced Diagnostic Suite
Beyond basic positioning feedback, the device monitors valve friction trends, actuator air leakage rates, solenoid response times, and control loop stability. Deviation alarms trigger when performance degrades beyond configurable thresholds, enabling proactive maintenance before process impact. Forensic data logging supports root cause analysis for unplanned shutdowns.

Customization Options
Factory configuration services pre-program application-specific parameters including fail-safe positions, alarm setpoints, and control tuning. Custom mounting brackets accommodate non-standard actuator interfaces. Explosion-proof junction box kits simplify field wiring in Division 1 installations. Consult factory for lead times on customized variants.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for stock configurations from regional distribution centers. Expedited shipping available for critical outage support.

Custom Configuration: 10-15 business days for factory-programmed units with application-specific parameters or non-standard mounting accessories.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and factory calibration accuracy. Extended warranty programs available for critical service applications.

Technical Support: Lifetime access to application engineering team for sizing assistance, troubleshooting guidance, and HART configuration support. Remote diagnostics via HART communication for rapid issue resolution.

Documentation Package: Each unit ships with installation manual, HART DD file, Ex i certification documents, calibration certificate, and quick-start commissioning guide. CAD models and P&ID symbols available for download.

Frequently Asked Questions

How does the intrinsic safety certification impact maximum cable length for HART communication?
The Ex i parameters define maximum cable capacitance (typically 5 µF) and inductance (typically 3 mH) between the positioner and safety barrier. With standard 18 AWG instrumentation cable (60 pF/m, 0.6 µH/m), this permits cable runs exceeding 1,500 meters while maintaining HART signal integrity. Always verify barrier specifications match positioner requirements.

Can this positioner control both fail-open and fail-closed valve configurations?
Yes. During auto-calibration, you specify the fail-safe direction (air-to-open or air-to-close). For single-acting actuators, the positioner automatically configures output channels to achieve the desired failure mode. Double-acting actuators require external solenoid valves for fail-safe positioning, which the positioner can monitor via discrete inputs.

What energy efficiency improvements can I expect compared to conventional positioners?
The optimized pneumatic design reduces air consumption by 40-60% through intelligent exhaust management and leak detection. For a typical refinery with 500 control valves, this translates to annual compressed air savings exceeding $50,000 at industrial utility rates. The HART diagnostics quantify per-valve consumption for targeted leak repair programs.

Does the positioner require specialized tools for HART configuration and diagnostics?
Basic HART communication works with any HART-compatible handheld communicator (e.g., Emerson 475, Endress+Hauser Fieldcheck). For advanced diagnostics and trending, use Siemens SIMATIC PDM software or third-party FDT/DTM tools. The device description (DD) file is freely downloadable from the Siemens support portal.

How does the positioner perform in high-vibration environments like reciprocating compressor stations?
The robust aluminum housing and vibration-damped electronics withstand continuous vibration up to 2g RMS per IEC 60068-2-6. For severe applications (>4g), specify optional vibration-isolation mounting kits. The auto-calibration algorithm compensates for vibration-induced position noise, maintaining control stability without manual tuning.

What maintenance procedures are required to sustain long-term accuracy?
Under normal conditions, perform annual pneumatic connection inspections and biennial calibration verification. The HART diagnostics provide continuous condition monitoring, alerting to degradation trends that may require earlier intervention. No routine lubrication is needed due to the maintenance-free bearing design. Filter regulators in the air supply should be serviced per manufacturer recommendations.

Ready to Optimize Your Valve Control System?

Contact our application engineering team for sizing assistance, HART integration guidance, or to request a detailed quotation. We provide complimentary valve-actuator-positioner compatibility verification and can arrange factory acceptance testing for critical applications. Bulk pricing available for multi-unit projects.
