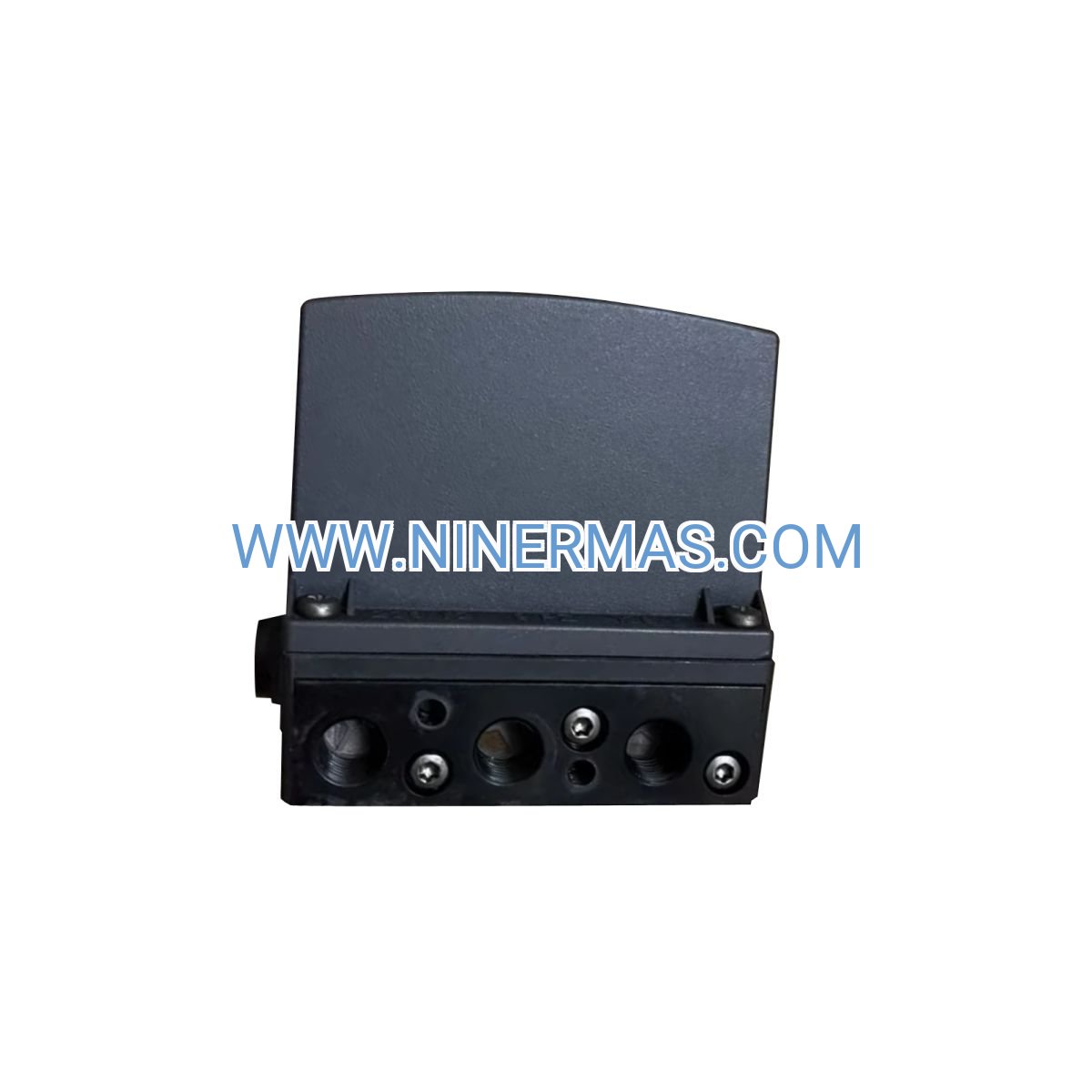

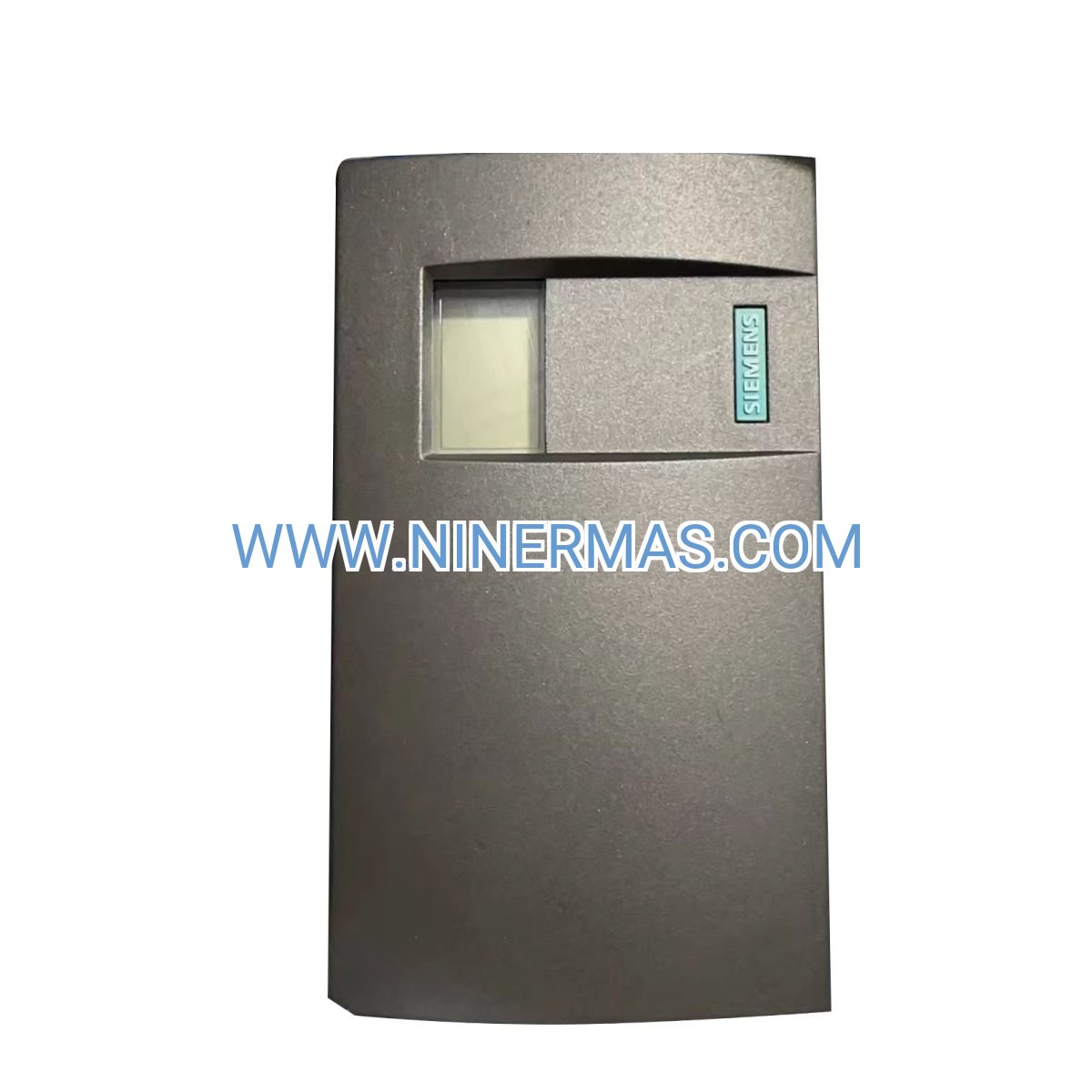

SIPART PS2 Electropneumatic Positioner (Industrial-Grade Valve Control)

The 6DR5210-0EM00-0AA0 delivers precision valve positioning through advanced microprocessor technology and dual-protocol communication. Engineered for continuous operation in harsh industrial environments, this intelligent positioner combines 4-20 mA analog control with HART digital diagnostics to optimize process efficiency and reduce maintenance costs. Designed for linear and part-turn actuators across oil & gas, chemical processing, power generation, and water treatment facilities.

Process engineers rely on SIPART PS2 technology to eliminate valve hysteresis, reduce air consumption by up to 60%, and achieve positioning accuracy within ±0.25% of span. The self-calibrating design adapts to changing process conditions while built-in diagnostics monitor valve health in real-time, preventing costly unplanned shutdowns.

With ATEX, IECEx, FM, and CSA certifications for hazardous locations, IP66/67 weatherproof construction, and proven reliability in temperatures from -30°C to +80°C, this positioner meets the demanding requirements of mission-critical control applications worldwide.

Core Features & Benefits

✓ Dual-Protocol Intelligence: Simultaneous 4-20 mA analog control and HART digital communication enable remote configuration, calibration, and diagnostics without field visits—reducing commissioning time by 50% and eliminating hazardous area entry for routine adjustments.

✓ Predictive Maintenance Capability: Continuous monitoring of valve friction, seat wear, actuator spring degradation, and response time trends provides early warning of performance issues 30-90 days before failure, allowing scheduled maintenance during planned outages.

✓ Universal Actuator Compatibility: NAMUR-compliant mounting interface fits linear stroke actuators from 10-300 mm and rotary actuators from 30-100° without adapters. Quick-connect pneumatic fittings and plug-in electrical terminals enable single-technician installation in under 20 minutes.

✓ Extreme Environment Performance: Conformal-coated electronics, stainless steel pneumatic components, and dual-seal construction withstand corrosive atmospheres, vibration up to 4g, and temperature cycling without calibration drift—proven in offshore platforms, desert facilities, and arctic installations.

✓ Energy-Efficient Operation: Optimized pneumatic circuit design reduces air consumption to 0.03 Nm³/h during steady-state operation (70% lower than conventional positioners), lowering compressor operating costs and enabling solar-powered remote installations.

✓ Safety System Integration: SIL 2 capable design with partial stroke testing (PST) functionality supports safety instrumented systems for emergency shutdown valves, meeting IEC 61508 requirements for process safety applications.

Application Scenarios

→ Upstream Oil & Gas Production: Controls wellhead chokes, separator level valves, and gas lift injection systems in remote fields. Withstands H2S, salt spray, and sandstorms while maintaining ±0.5% control accuracy. HART diagnostics enable condition monitoring from central control rooms 100+ km away, reducing helicopter inspection visits.

→ Chemical Reactor Control: Manages feed ratio valves, temperature control loops, and pressure relief systems in batch and continuous processes. Fast response time (0.5-2 seconds) and tight deadband (±0.1%) ensure product quality consistency. Explosion-proof certification allows installation in Zone 1 hazardous areas.

→ Power Plant Steam Systems: Regulates turbine bypass valves, feedwater heaters, and deaerator level controls in coal, gas, and nuclear facilities. High-temperature option handles superheated steam applications up to 200°C. Proven MTBF exceeding 15 years in baseload operation.

→ Municipal Water Treatment: Operates clarifier sludge valves, chemical dosing pumps, and filter backwash sequences with minimal air consumption—ideal for remote lift stations without compressed air. Stainless steel wetted parts resist chlorine and ozone corrosion.

→ Pharmaceutical Manufacturing: Provides precise flow control for sterile processing, clean-in-place (CIP) systems, and aseptic filling lines. FDA-compliant documentation and validation support packages accelerate regulatory approval. Hygienic design options available for 3-A sanitary standards.

Technical Parameters & Selection Guide

Selection Criteria: Choose this model for applications requiring HART digital communication, hazardous area certification, and extreme temperature operation. For basic 4-20 mA control without diagnostics, consider the 6DR5025 economy series. For Foundation Fieldbus or PROFIBUS PA networks, specify the 6DR5220 variant. Consult factory for custom configurations including stainless steel housings, SIL 3 certification, or cryogenic service below -40°C.

Extended Functions

IoT Integration: HART-IP gateway compatibility enables connection to cloud-based asset management platforms for fleet-wide performance benchmarking, predictive analytics, and automated work order generation. REST API support allows integration with custom SCADA systems and mobile monitoring apps.

Advanced Diagnostics Suite: Beyond basic valve signature analysis, the positioner tracks supply pressure stability, I/P converter linearity, feedback sensor drift, and pneumatic leak detection. Configurable alarm thresholds trigger email/SMS notifications before process upsets occur.

Customization Options: Factory-configurable split-range operation, reverse-acting output, fail-safe positioning, and custom characterization curves (equal percentage, quick opening, linear) optimize performance for specific valve types and process requirements without field programming.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers in North America, Europe, and Asia-Pacific. Custom-configured units with special certifications or accessories require 2-3 weeks. Expedited overnight delivery available for emergency replacements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers all electronic components, pneumatic assemblies, and mechanical parts against defects in materials and workmanship. Extended 3-year and 5-year service plans available with priority technical support and advance replacement options.

Technical Support: Dedicated application engineers provide pre-sale sizing assistance, commissioning guidance, and troubleshooting support via phone, email, and remote desktop sessions. On-site startup services and training programs available for complex installations or multi-unit projects.

Documentation Package: Each unit includes installation manual, quick-start guide, HART DD file, calibration certificate, material traceability records, and CAD mounting drawings. Multilingual documentation available in English, German, Spanish, Chinese, and Arabic.

Frequently Asked Questions

Q: How do I configure HART parameters without opening the enclosure in hazardous areas?
A: Connect a HART communicator to the 4-20 mA loop terminals at the marshalling cabinet or DCS I/O card—no need to access the field device. The positioner supports through-wiring for daisy-chain configurations. Alternatively, use Siemens PDM software via a HART modem for laptop-based configuration.

Q: What actuator force range is compatible with this positioner model?
A: The 6DR5210-0EM00-0AA0 handles actuators from 200 N to 20,000 N (45-4,500 lbf) thrust for linear types, and 40-4,000 Nm (30-3,000 ft-lbf) torque for rotary types. Larger actuators may require the high-capacity 6DR5220 variant with dual-output capability.

Q: Can I retrofit this smart positioner onto existing pneumatic actuators from other manufacturers?
A: Yes, the NAMUR-compliant mounting interface fits actuators from Emerson Fisher, Flowserve, Rotork, AUMA, and other major brands without modification. Verify your actuator has IEC 60534-6-1 mounting holes and 10-300 mm stroke (linear) or 30-100° rotation (rotary).

Q: What's the difference between this model and the 6DR5220 variant?
A: The 6DR5220 adds Foundation Fieldbus or PROFIBUS PA digital communication (instead of HART), dual-channel redundancy for SIL 3 applications, and enhanced diagnostics including partial stroke testing. Choose 6DR5210 for HART-based systems; choose 6DR5220 for fieldbus networks or safety-critical services.

Q: How does the positioner reduce compressed air consumption compared to conventional designs?
A: Piezo-electric pilot valve technology and optimized nozzle-flapper geometry minimize bleed air during steady-state operation. The microprocessor calculates the minimum air flow needed to maintain position, reducing consumption by 60-70% versus relay-based positioners—saving $500-2,000 annually per valve in compressor energy costs.

Q: Is this positioner suitable for steam service above 100°C?
A: Standard models operate to +80°C ambient. For high-temperature applications (steam, thermal oil, hot gas), specify the -HT option with heat shields, extended mounting brackets, and high-temp seals rated to +200°C process media. Consult factory for cryogenic service below -40°C.

Take the Next Step

Optimize your valve control performance with proven SIPART PS2 technology. Contact our application engineers today for sizing assistance, custom configuration quotes, or technical specifications tailored to your process requirements. Volume discounts available for multi-unit projects and OEM integrations.
