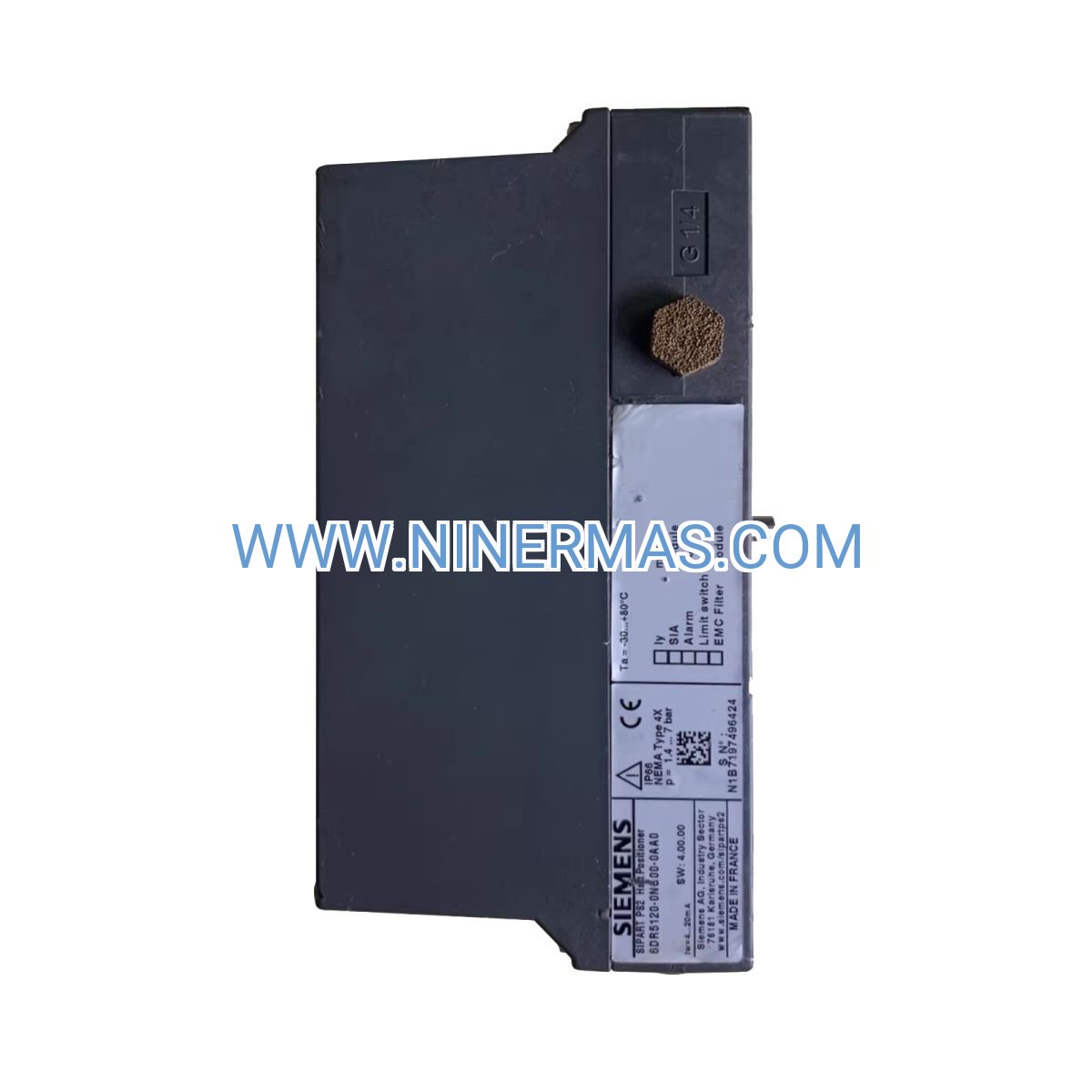

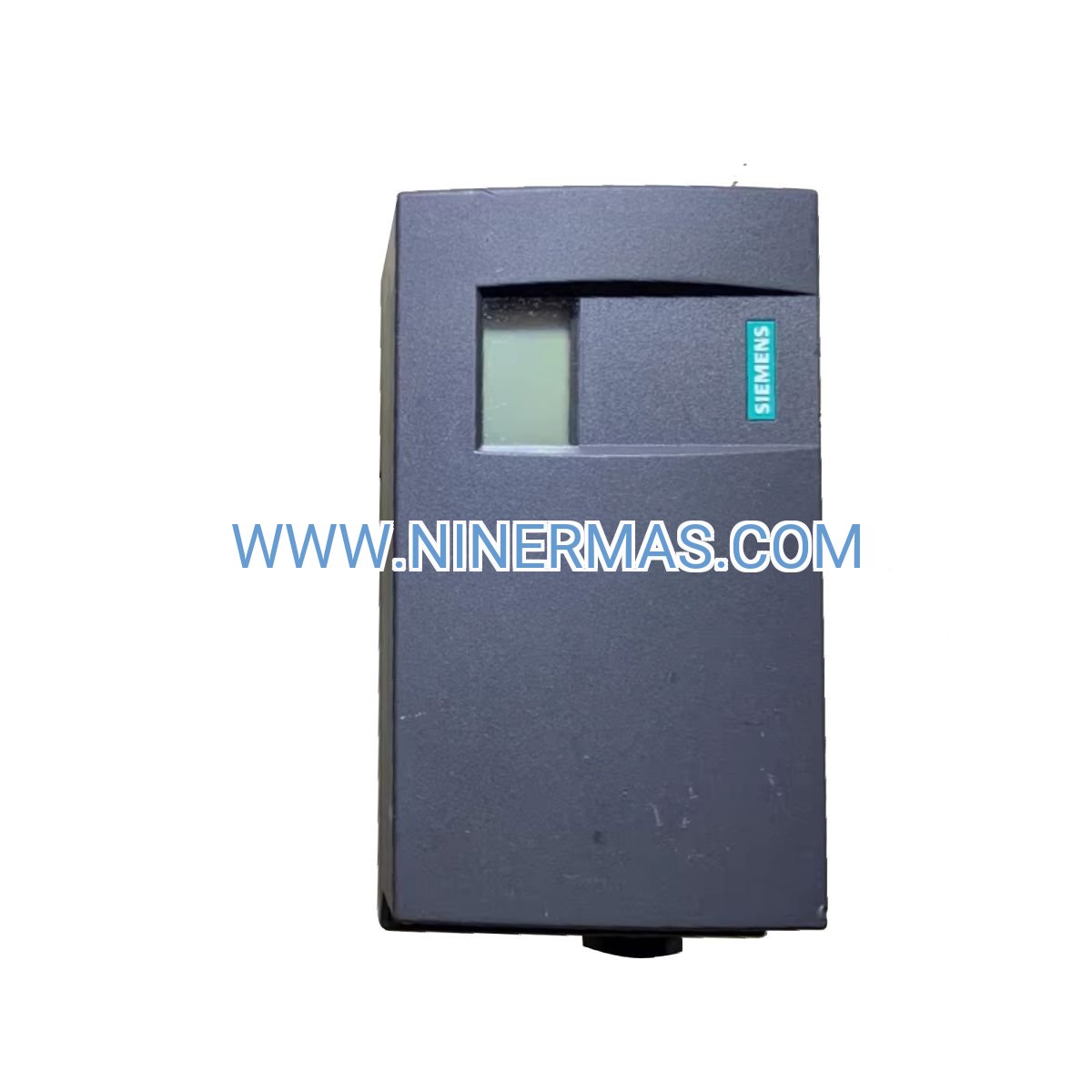

6DR5120-0NG00-0AA0 SIPART PS2 Smart Positioner (Industrial-Grade Valve Control Solution)

The Siemens 6DR5120-0NG00-0AA0 delivers intelligent electropneumatic positioning for linear and rotary actuators in mission-critical process environments. Engineered with microprocessor-based diagnostics and HART/PROFIBUS PA connectivity, this SIPART PS2 Smart positioner ensures precise valve control across chemical plants, refineries, power stations, and water treatment facilities where positioning accuracy directly impacts product quality, safety compliance, and operational efficiency.

Designed for process engineers and automation specialists managing complex control loops, this device eliminates manual calibration delays while providing real-time performance data that prevents unplanned downtime. Whether you're retrofitting legacy systems or commissioning new installations, the 6DR5120-0NG00-0AA0 combines proven Siemens reliability with advanced predictive maintenance capabilities that reduce total cost of ownership by up to 40% over conventional positioners.

With IP66/67 environmental protection, explosion-proof certifications (ATEX/IECEx), and operating range from -40°C to +85°C, this positioner thrives in the harshest industrial conditions—from offshore platforms to desert refineries—delivering consistent ±0.25% positioning accuracy that keeps your processes running within specification.

Core Features & Benefits

✓ Microprocessor-Driven Precision Control
Achieves ±0.25% positioning accuracy through continuous feedback monitoring and adaptive PID algorithms. Business Value: Tighter process control reduces product waste and improves batch consistency in pharmaceutical and specialty chemical applications.

✓ Integrated HART & PROFIBUS PA Communication
Bi-directional digital protocols enable remote configuration, diagnostics, and valve signature analysis without process interruption. Business Value: Maintenance teams diagnose issues from control rooms, cutting troubleshooting time by 70% and eliminating confined space entry risks.

✓ Self-Diagnostic & Predictive Maintenance
Continuous monitoring detects seat leakage, packing friction increase, and actuator spring degradation weeks before failure. Business Value: Shift from reactive to predictive maintenance schedules, reducing emergency shutdowns and extending valve service intervals by 50%.

✓ Auto-Calibration Technology
One-button initialization automatically maps actuator stroke, optimizes air consumption, and tunes control parameters in under 3 minutes. Business Value: Commissioning teams complete installations 60% faster, reducing project labor costs and accelerating production startup.

→ Energy-Optimized Air Consumption
Intelligent algorithms reduce compressed air usage by 30% compared to traditional positioners through pulse-width modulation and leak detection. Business Value: Facilities with 100+ control valves save $15,000-$25,000 annually in compressor energy costs.

→ Split-Body Modular Design
Electronics module separates from pneumatic housing for field replacement without breaking process connections or recalibration. Business Value: Repairs complete in 15 minutes versus 2-hour traditional positioner replacement, minimizing production losses.

Typical Application Scenarios

Chemical Processing – Reactor Temperature Control
Maintaining ±1°C setpoint stability in exothermic reactions requires rapid valve response and precise positioning. The SIPART PS2 Smart's 0.3-second response time and anti-stick algorithms prevent temperature excursions that cause off-spec product or runaway reactions. Delivered Value: Batch rejection rates drop from 3.2% to 0.4%, saving $180,000 annually for a mid-size specialty chemicals producer.

Power Generation – Steam Turbine Bypass Systems
During startup and load changes, bypass valves must modulate precisely to prevent thermal shock damage to turbine components. The positioner's fail-safe modes and position feedback accuracy ensure controlled steam flow even during instrument air loss. Delivered Value: Extends turbine maintenance intervals from 18 to 24 months, deferring $2.3M overhaul costs.

Oil & Gas – Offshore Platform Wellhead Control
Salt spray, vibration, and explosive atmospheres demand ruggedized instrumentation with zero-failure tolerance. ATEX Zone 1 certification and stainless steel construction enable 10+ year service life in North Sea conditions. Delivered Value: Eliminates helicopter mobilization for positioner replacement ($45,000 per trip), improving platform uptime from 94% to 98.7%.

Water Treatment – Chlorine Dosing Precision
Public health regulations require ±0.05 ppm chlorine residual control, demanding positioners that respond instantly to flow variations. HART communication logs every valve movement for regulatory compliance audits. Delivered Value: Achieves 99.8% compliance with EPA disinfection standards while reducing chlorine consumption by 12%.

Pharmaceutical Manufacturing – Clean Steam Distribution
Sterile processing requires positioners with sanitary certifications and materials that withstand 135°C steam-in-place cycles. The PS2 Smart's EHEDG-compliant design and diagnostic logging satisfy FDA 21 CFR Part 11 requirements. Delivered Value: Passes validation protocols on first attempt, accelerating facility qualification by 6 weeks.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6DR5120-0NG00-0AA0 when your application requires digital communication for asset management systems, operates in explosive atmospheres, or demands diagnostic capabilities beyond basic position feedback. For non-hazardous areas with 4-20mA-only requirements, consider the standard SIPART PS2 model 6DR5025 for cost optimization. Actuator sizing must account for supply pressure—consult Siemens actuator selection software (SIPART PS2 Configurator) to verify thrust/torque compatibility with your valve Cv and differential pressure.

Extended Functions

IoT Integration & Remote Monitoring: The positioner's HART-IP gateway compatibility enables integration with Siemens SIMATIC PCS neo DCS and third-party SCADA platforms. Real-time valve health data streams to cloud-based analytics engines (AWS IoT, Azure Industrial IoT) for fleet-wide performance benchmarking and machine learning-driven optimization.

Advanced Diagnostics Suite: Beyond standard position feedback, the device monitors 12 performance parameters including friction analysis, step response testing, and partial stroke testing (PST) for emergency shutdown valves. Valve signature comparison detects 0.5% degradation in response characteristics, triggering maintenance work orders before process impact occurs.

Customization Options: Factory configuration services pre-program customer-specific parameters, fail-safe positions, and alarm thresholds. Custom firmware supports non-standard control signals (split-range, characterized curves) and integrates with proprietary DCS protocols via function block customization.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for stock configurations (6DR5120-0NG00-0AA0 standard model). Express 24-hour shipping available for critical replacements via DHL/FedEx priority service.

Custom Configuration Lead Time: 10-15 business days for factory pre-programmed units with customer-specific parameters, special certifications (GOST-R, CRN), or non-standard materials.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials, workmanship, and firmware. Extended 36-month warranty available with annual calibration verification service contract.

Technical Support: 24/7 multilingual hotline staffed by Siemens-certified instrumentation engineers. Remote diagnostics via HART communicator or PROFIBUS interface resolve 80% of issues without site visits. On-site commissioning support available within 48 hours across Asia-Pacific, EMEA, and Americas regions.

Documentation Package: Each unit ships with installation manual (12 languages), quick-start guide, calibration certificate traceable to national standards, ATEX/IECEx compliance declarations, and HART device description (DD) files for integration with AMS, PDM, or FieldCare asset management software.

Frequently Asked Questions

How does the SIPART PS2 Smart reduce compressed air consumption in large valve installations?
The positioner employs pulse-width modulation (PWM) to minimize continuous air bleed, using short bursts only when position correction is needed. Leak detection algorithms identify downstream actuator or tubing leaks, alerting operators before air waste becomes significant. In a 200-valve refinery, this technology reduced compressor runtime by 18%, saving 420,000 kWh annually.

What actuator stroke lengths and rotation angles are compatible with this positioner?
Linear actuators from 10mm to 300mm stroke and rotary actuators from 30° to 100° rotation are supported via the universal feedback linkage. For strokes exceeding 300mm, consult the extended-range linkage kit (order separately). The auto-calibration routine automatically detects and maps the full travel range during initialization.

Can the positioner be retrofitted to existing pneumatic actuators from other manufacturers?
Yes—the SIPART PS2 Smart mounts to actuators meeting IEC 60534 (linear) and VDI/VDE 3845 (rotary) standards, including Fisher, Masoneilan, Neles, Rotork, and Auma brands. Mounting bracket adapters (6DR4004 series) accommodate non-standard bolt patterns. Verify actuator air volume is within 0.1-6 liters for optimal response time.

What diagnostic data is accessible through HART communication for predictive maintenance programs?
The positioner transmits valve travel position, supply pressure, control signal, internal temperature, cycle counter, and 12 diagnostic parameters including friction force, step response time, seat leakage rate, and I/P converter drift. Data logs store 30 days of trend history for root-cause analysis. Integration with AMS Suite or Siemens PDM enables automated alert generation when parameters exceed baseline thresholds.

Is the device suitable for high-vibration environments like reciprocating compressor stations?
The positioner is vibration-tested to IEC 60068-2-6 (10-150 Hz, 2g acceleration) and shock-tested to IEC 60068-2-27 (15g, 11ms half-sine). Installations on reciprocating compressor anti-surge valves and engine-driven pump skids have demonstrated reliable operation in environments exceeding 5g continuous vibration. Use vibration-damping mounting brackets (optional accessory) for extreme conditions.

How does the split-body design simplify field maintenance compared to traditional positioners?
The electronics module (containing microprocessor, display, and communication boards) detaches from the pneumatic housing via four captive screws without disturbing air supply connections, feedback linkage, or actuator mounting. Replacement modules arrive pre-calibrated and auto-detect actuator parameters from the pneumatic section's memory chip, eliminating the 2-hour recalibration process required by conventional designs. This reduces mean-time-to-repair (MTTR) from 120 minutes to 15 minutes.

Take the Next Step

Ready to upgrade your valve control infrastructure with intelligent positioning technology? Contact our process automation specialists for application-specific sizing, actuator compatibility verification, and volume pricing for multi-valve projects. Request a technical datasheet, CAD models, or schedule a live demonstration of HART diagnostic capabilities.
